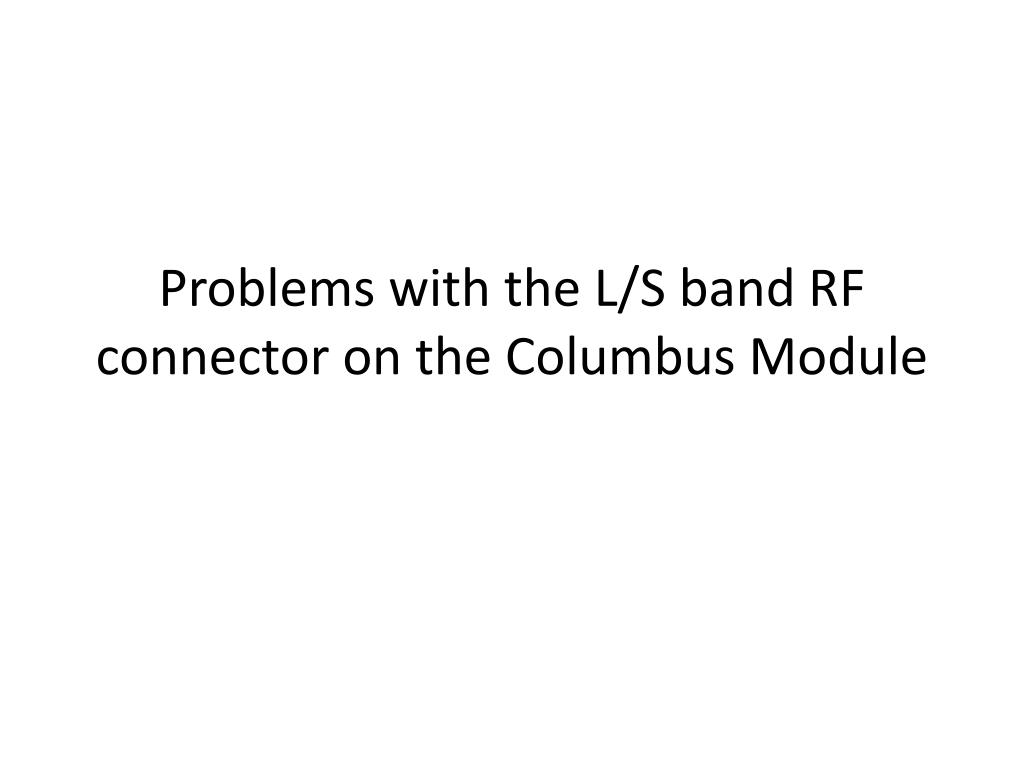

  1. Problems with the L/S band RF connector on the Columbus Module

  2. The Problem • The connector chosen for the DATV module RF input is unique to the ISS. • In Fact it is so unique that no additional connectors are available at this time. NASA and ESA stores have searched their stocks. • An acceptable substitute needs to be found

  3. HAM-TV system on ISS

  4. ARISS and AIS RF cable

  5. Suhner type N connector

  6. NZGC pins vs 21-033102/1 pins

  7. Connector pin Layout

  8. Connector and Pin quote • Comment : Quotation Can Ship dates are valid only on the Quotation issue date. • All inventory is subject to prior sale. • Thank you for the opportunity to quote. • When ordering, please reference the quote number above. • Line Qty Part Number Can Ship Unit Unit Price • 10 5 APH D38999/20FG75SA-LC 09/20/13 EACH 41.220 • 2 wks. ARO • 20 5 APH D38999/26FG75PA-LC 09/09/13 EACH 40.070 • stb, 2 days ARO • 30 20 APH NZGC-X50-8SB-3 02/17/14 EACH 228.360 • ***ITAR*** 100 pc min, 23 wks. ARO, NCNR • 50 20 APH NZGC-X50-8PB-3 02/17/14 EACH 164.360 • ***ITAR*** 100 pc min, 23 wks. ARO, NCNR • 60 10 AIC MS27488-8-3 09/05/13 EACH 0.460 • stock • 70 1 DAN DRK264-8 09/05/13 EACH 124.300

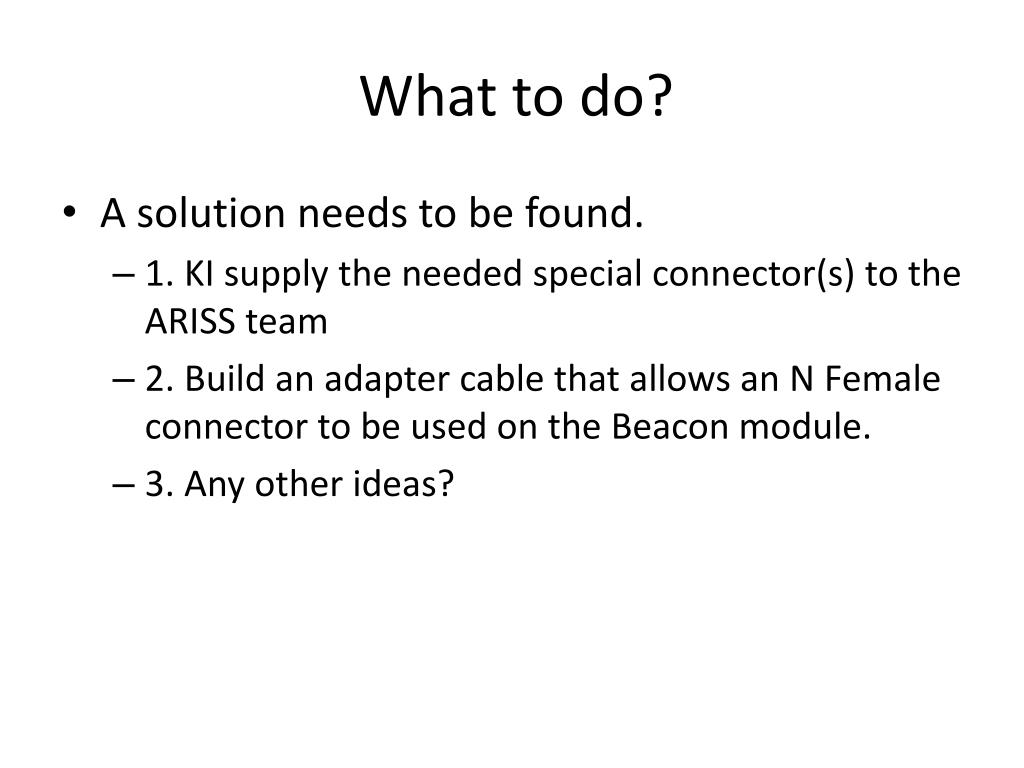

  9. What to do? • A solution needs to be found. • 1. KI supply the needed special connector(s) to the ARISS team • 2. Build an adapter cable that allows an N Female connector to be used on the Beacon module. • 3. Any other ideas?
