  1. Self-IntroductionApplied Fractional Calculus Workshop Series Zhigang, Lian/Link MESA (Mechatronics, Embedded Systems and Automation)Lab School of Engineering, University of California, Merced E: zlian2@ucmerced.edu Phone:2092598023 Lab: CAS Eng 820 (T: 228-4398) Jun 30, 2014. Monday 8:00-18:00 PM Applied Fractional Calculus Workshop Series @ MESA Lab @ UCMercedu

  2. Cuckoo Search with L´evy and Mittag-Leffler distribution

  3. 1 2 HCSPSO search 3 New Cuckoo search 4 Experiment Random distribution Outline

  4. Slide-4/1024 1. Random distribution 1.1 L’evy distribution A Lévy flight is a random walk in which the step-lengths have a probability distribution that is heavy-tailed. The "Lévy" in "Lévy flight" is a reference to the French mathematician Paul Lévy. In probability theory and statistics, the Lévy distribution, named after Paul Lévy, is a continuous probability distribution for a non-negative random variable.  AFC Workshop Series @ MESALAB @ UCMerced

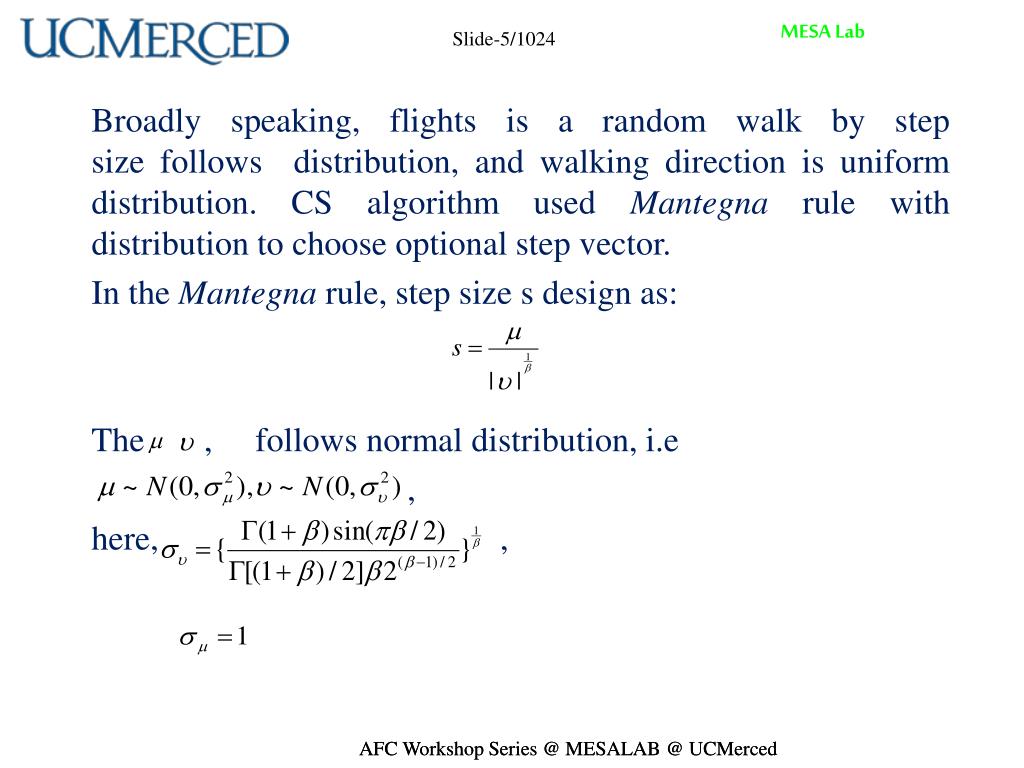

  5. Slide-5/1024 Broadly speaking, flights is a random walk by step size follows distribution, and walking direction is uniform distribution. CS algorithm used Mantegna rule with distribution to choose optional step vector. In the Mantegna rule, step size s design as: The   ,   follows normal distribution, i.e , here, , AFC Workshop Series @ MESALAB @ UCMerced AFC Workshop Series @ MESALAB @ UCMerced

  6. Slide-6/1024 Le´vy stable distributions are a rich class of probability distributions and have many intriguing mathematical properties. The class is generally defined by a characteristic function and its complete specification requires four parameters: Stability index: Skewness parameter: Scale parameter: Location parameter with varying ranges: AFC Workshop Series @ MESALAB @ UCMerced

  7. The  Curve of L’evy distribution AFC Workshop Series @ MESALAB @ UCMerced

  8. Slide-8/1024 1.2 The Mittag-Leffler distribution Pillai (1990) introduced the Mittag-Leffler distribution in terms of Mittag-Leffler functions. A random variable with support over is said to follow the generalized Mittag-Leffler distri-bution with parameters and if its Laplace transform is given by: The cumulative distribution function (c.d.f.) corresponding to above is given by   AFC Workshop Series @ MESALAB @ UCMerced

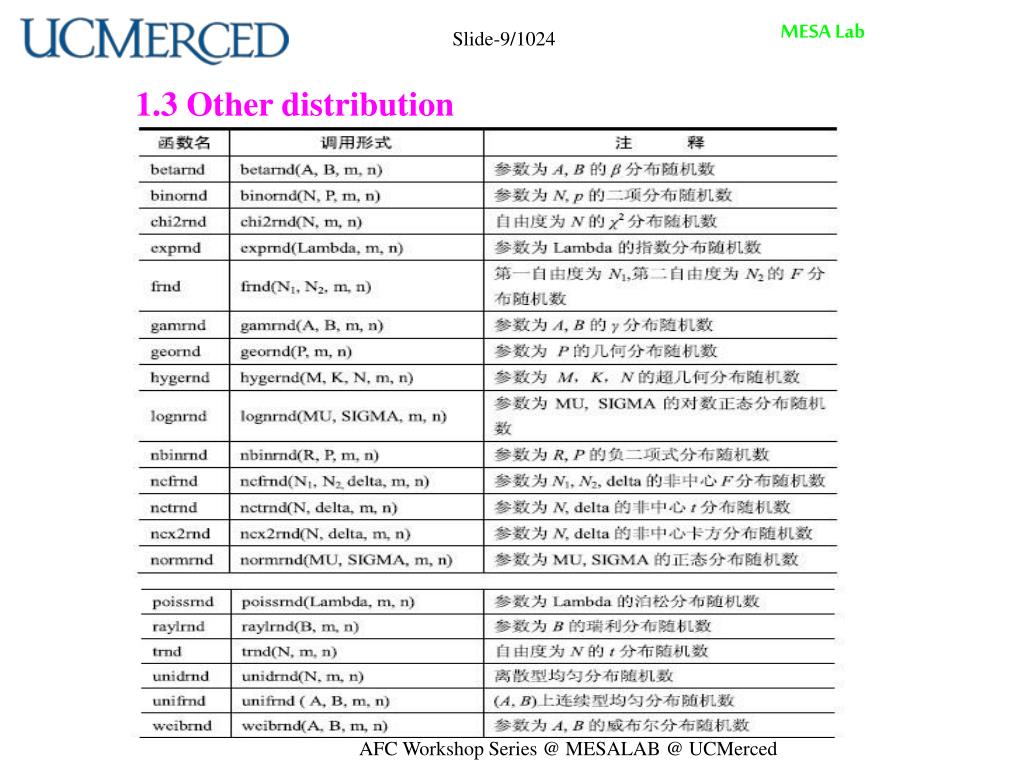

  9. Slide-9/1024 1.3 Other distribution AFC Workshop Series @ MESALAB @ UCMerced

  10. Slide-10/1024 2. HCSPSO search 1)A Hybrid CS/PSO Algorithm for Global Optimization Iterative equation: AFC Workshop Series @ MESALAB @ UCMerced

  11. Slide-11/1024 2) The pseudo-code of the CS/PSO is presented as bellow: AFC Workshop Series @ MESALAB @ UCMerced

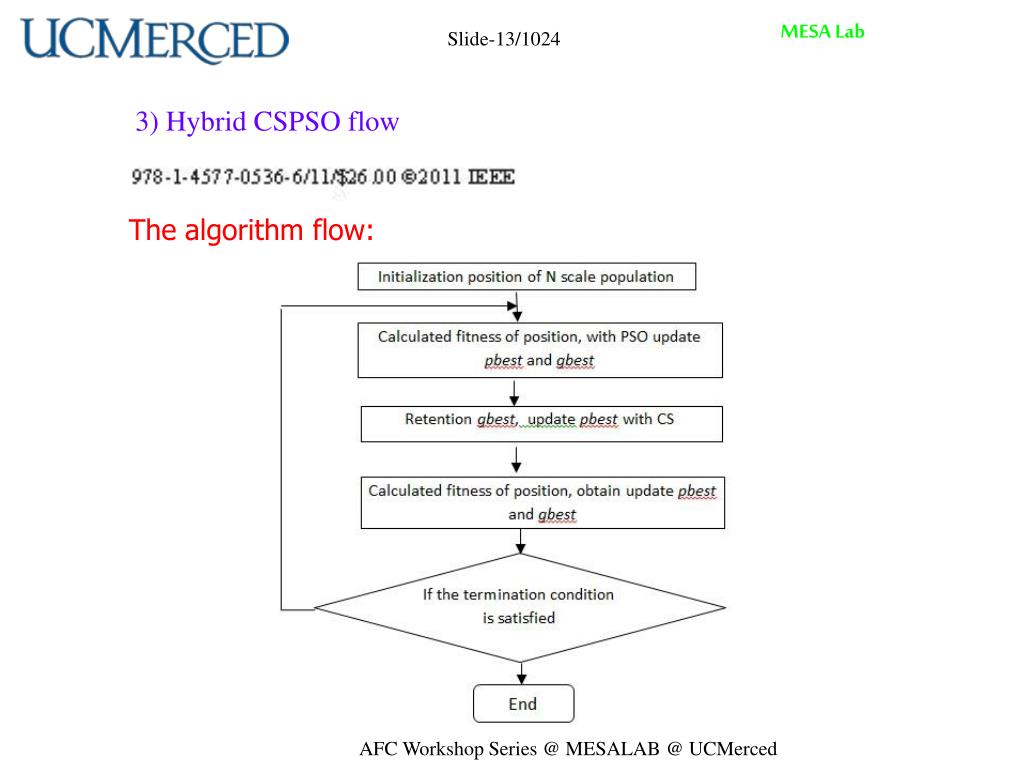

  12. Slide-13/1024 3) Hybrid CSPSO flow The algorithm flow: AFC Workshop Series @ MESALAB @ UCMerced

  13. Slide-15/1024 3.New Cuckoo search 3.1 New Cuckoo Search method based on the obligate brood parasitic behavior of some cuckoo species in combination with the L´evy flight behavior of some birds and fruit flies, at the same time, combine particle swarm optimization (PSO), evolutionary computation technique. AFC Workshop Series @ MESALAB @ UCMerced

  14. Slide-16/1024 3.2 New Cuckoo Search(Lian and Chen) 1) Iterative equation: 2)The pseudo-code of the CS/PSO is presented as bellow AFC Workshop Series @ MESALAB @ UCMerced

  15. Slide-17/1024 AFC Workshop Series @ MESALAB @ UCMerced

  16. Slide-18/1024 3) New CS with the L´evy and Mittag-Leffler distritution AFC Workshop Series @ MESALAB @ UCMerced

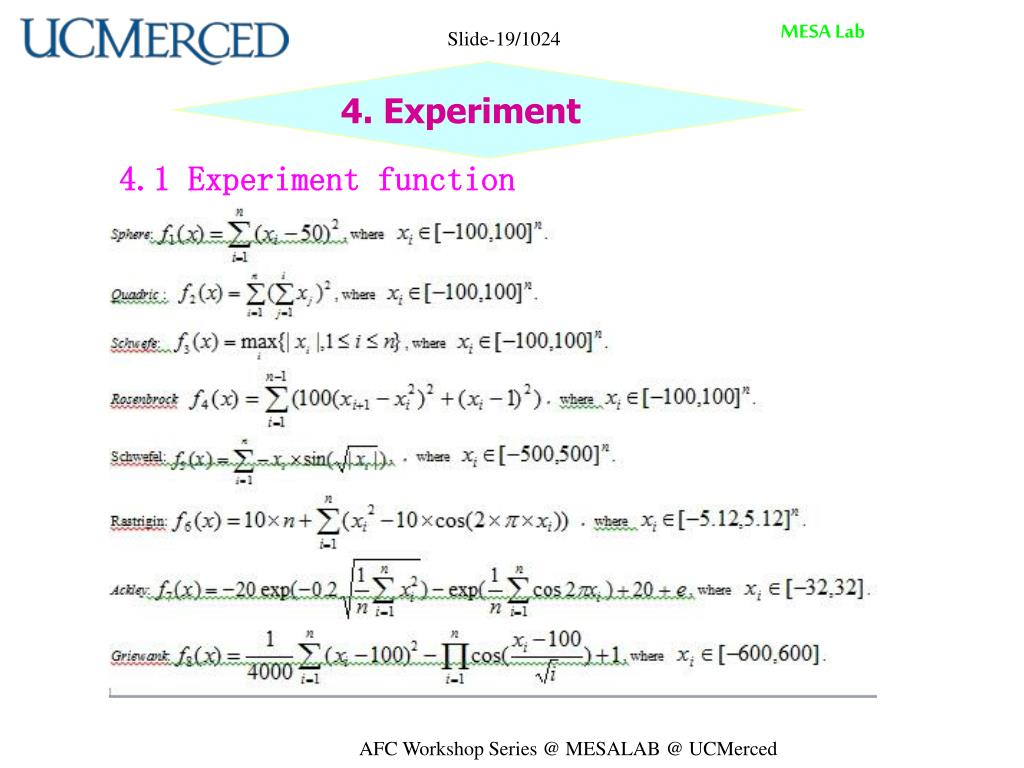

  17. Slide-19/1024 4. Experiment 4.1 Experiment function AFC Workshop Series @ MESALAB @ UCMerced

  18. Slide-20/1024 AFC Workshop Series @ MESALAB @ UCMerced

  19. Slide-21/1024 4.2 Experiment with large size 1) Simulation data AFC Workshop Series @ MESALAB @ UCMerced

  20. Slide-22/1024 AFC Workshop Series @ MESALAB @ UCMerced

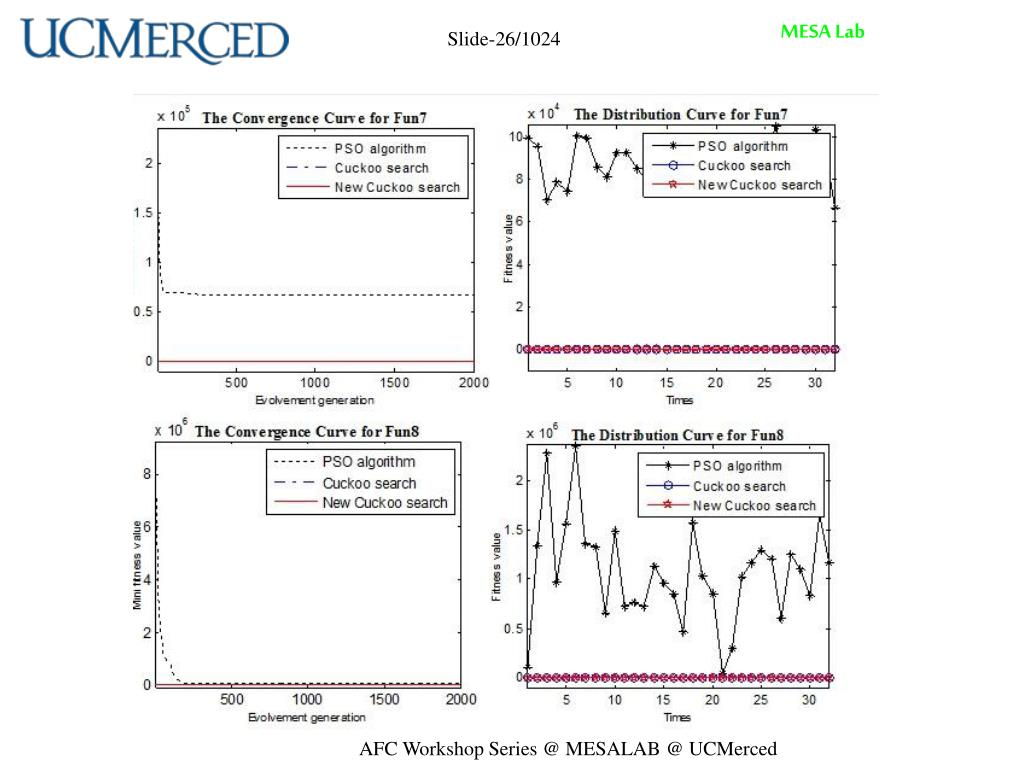

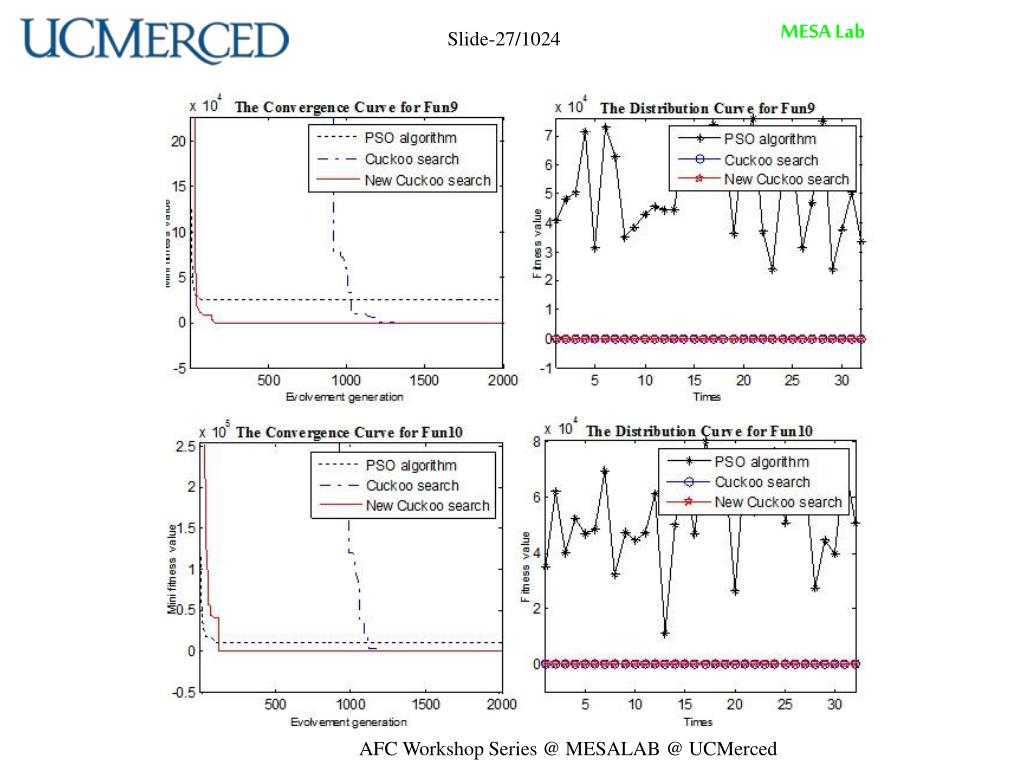

  21. Slide-23/1024 2) The Graph of Convergence AFC Workshop Series @ MESALAB @ UCMerced

  22. Slide-24/1024 AFC Workshop Series @ MESALAB @ UCMerced

  23. Slide-25/1024 AFC Workshop Series @ MESALAB @ UCMerced

  24. Slide-26/1024 AFC Workshop Series @ MESALAB @ UCMerced

  25. Slide-27/1024 AFC Workshop Series @ MESALAB @ UCMerced

  26. Slide-28/1024 AFC Workshop Series @ MESALAB @ UCMerced

  27. Slide-29/1024 AFC Workshop Series @ MESALAB @ UCMerced

  28. Slide-30/1024 4.3 Experiment with different distributions 1) Improve test functions The above test function , have same characteristic of optimization solution , which is their imperfection. In the experimental process, we found algorithm with high probability random coefficient generation mode close to 0, it is easy to make  close to 0, so it is easy to converge to 0. This caused problem is algorithm search performance surface phenomena is ‘powerful’, in fact this false appearance is mad by the defects test function cause algorithm make strong fake image. AFC Workshop Series @ MESALAB @ UCMerced

  29. Slide-31/1024 AFC Workshop Series @ MESALAB @ UCMerced

  30. Slide-32/1024 2) Test To fund the best performance of algorithm with different random coefficient generate by L´evy and Mittag-Leffler distribution. We will take the main random coefficients with different distribution generate, in which and from 0 to 2 with 0.1 step changes, research and analysis the performance of different distribution random parameters how to influence algorithm. AFC Workshop Series @ MESALAB @ UCMerced

  31. Slide-33/1024 AFC Workshop Series @ MESALAB @ UCMerced

  32. we find the algorithm with random coefficient generated by Mittag-Leffler distributionand approximately equal 1 and 1 is efficient, and by L´evy distribution and approximately equal 0.8 and 1.2 is efficient. Again verify, the PSO algorithm is based on Uniform distribution, c1 and c2 approximately equal 1.8 and 1.6 is efficient.

  33. The PSO, CS HCSPSO and NCS algorithm with random generate of different Uniform, L´evy and Mittag-Leffler distributions and solve the test function, in which and from 0 to 2 with 0.1 step changes, and for the X axis,  for Y axis, the optimal value as Z axis, the three-dimensional graphics are as following.

  34. Slide-44/1024 4.4 Solution Descine one efficient optization tool; Find test function have big imperfection; Find Uniform,L´evy and Mittag-Leffler distribution effective used in different algortihm. AFC Workshop Series @ MESALAB @ UCMerced

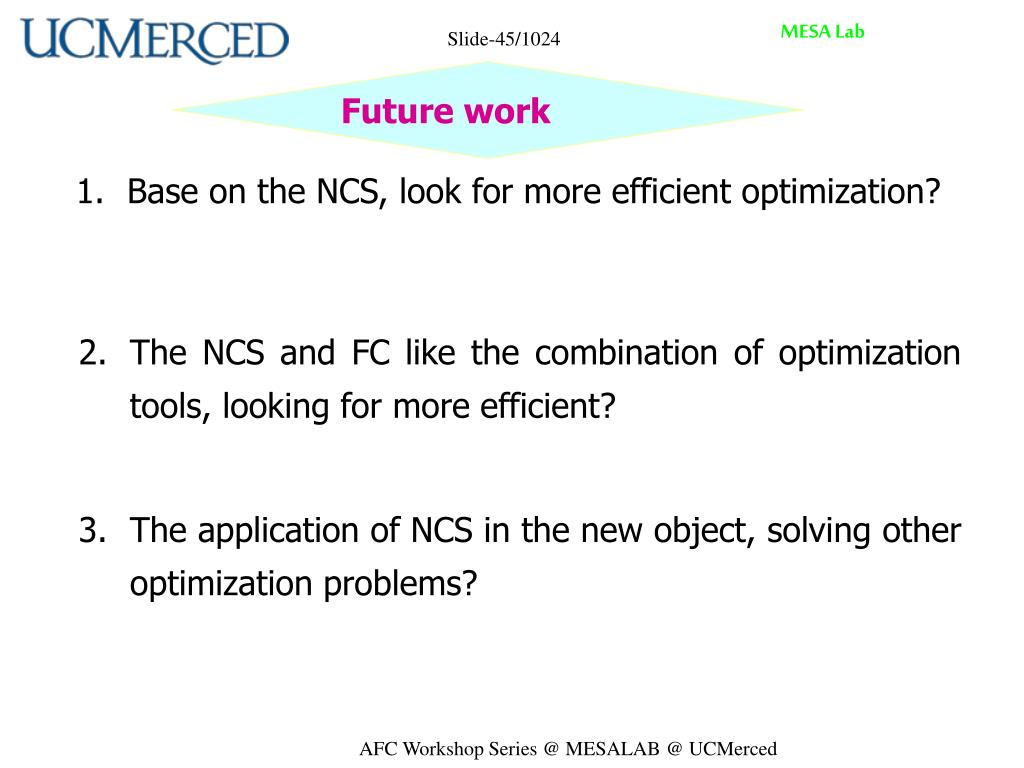

  35. Slide-45/1024 Future work Base on the NCS, look for more efficient optimization? The NCS and FC like the combination of optimization tools, looking for more efficient? The application of NCS in the new object, solving other optimization problems? AFC Workshop Series @ MESALAB @ UCMerced

  36. Sincerely hope that you give me some advices!
