  1. Basic Precipitator Control Troubleshooting

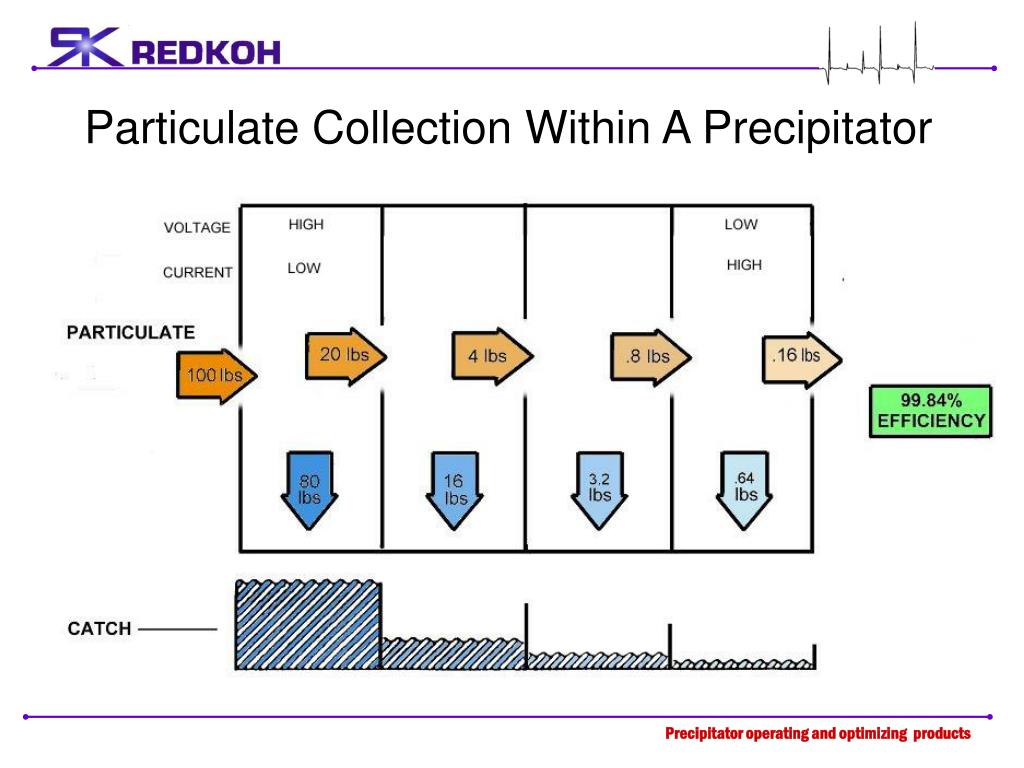

  2. Particulate Collection Within A Precipitator Precipitator operating and optimizing products

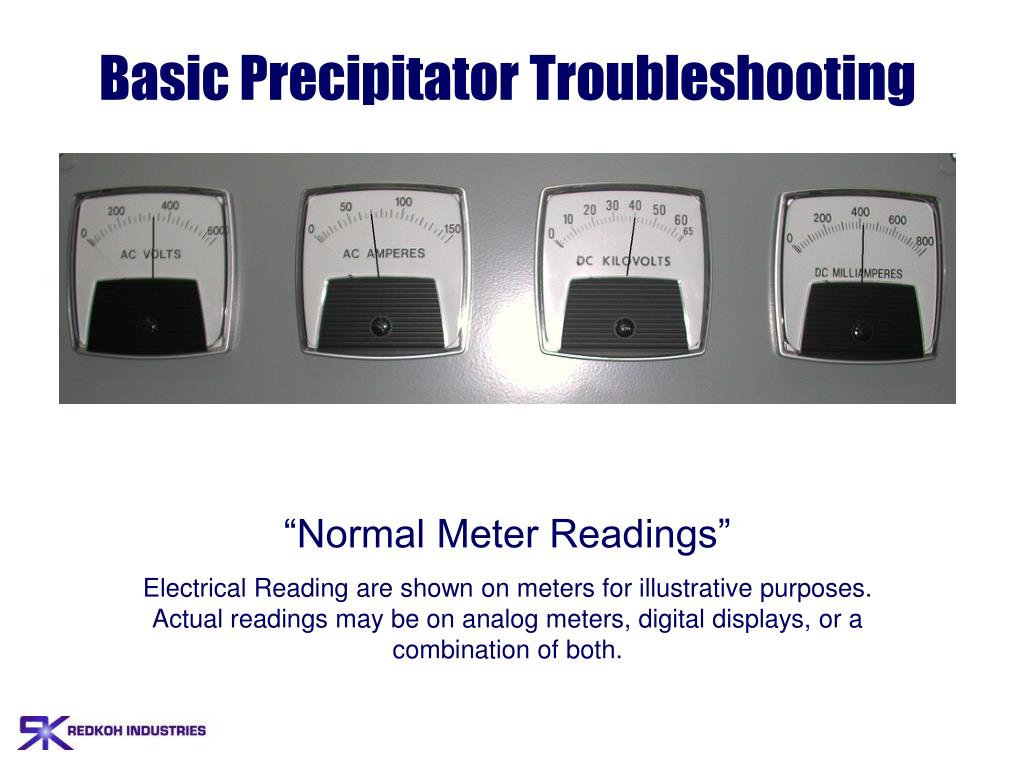

  3. Basic Precipitator Troubleshooting “Normal Meter Readings” Electrical Reading are shown on meters for illustrative purposes. Actual readings may be on analog meters, digital displays, or a combination of both.

  4. Basic Precipitator Troubleshooting

  5. Basic Precipitator Troubleshooting

  6. Basic Precipitator Troubleshooting

  7. Basic Precipitator Troubleshooting

  8. Basic Precipitator Troubleshooting

  9. Basic Precipitator Troubleshooting

  10. Basic Precipitator Troubleshooting

  11. Basic Precipitator Troubleshooting

  12. Basic Precipitator Troubleshooting

  13. Basic Precipitator Troubleshooting

  14. Basic Precipitator Troubleshooting

  15. Basic Precipitator Troubleshooting

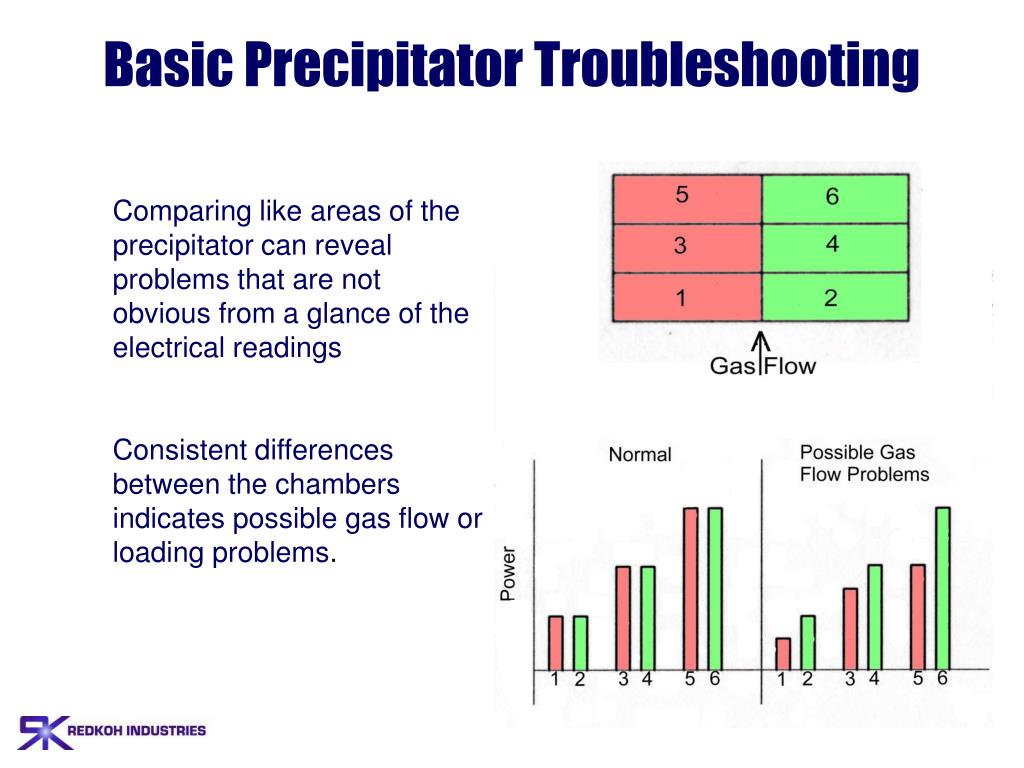

  16. Basic Precipitator Troubleshooting Comparing like areas of the precipitator can reveal problems that are not obvious from a glance of the electrical readings Consistent differences between the chambers indicates possible gas flow or loading problems.

  17. Basic Precipitator Troubleshooting When electrical levels change on just one TR control the problem is usually within that control or bus section. When electrical levels change on all the TR controls the problem is usually associated with the process.
