Linux Pseudo random Number Generator (LPRNG)

Real-life cryptography Pfeiffer Alain Linux Pseudo randomNumberGenerator (LPRNG)

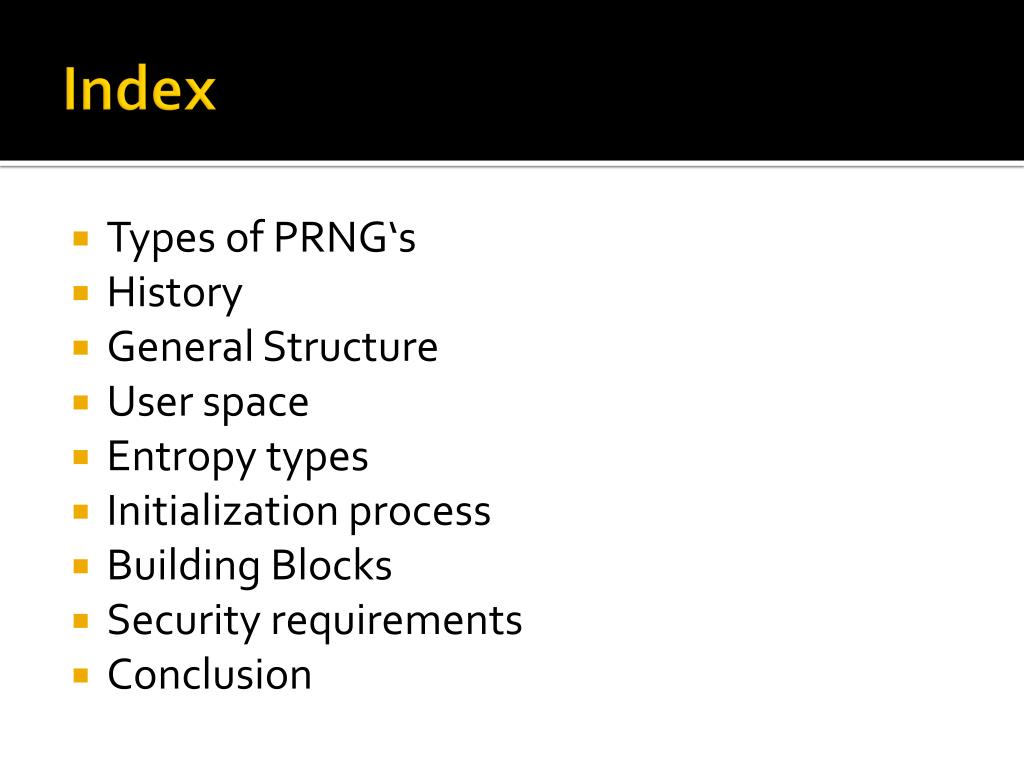

Index • Types of PRNG‘s • History • General Structure • User space • Entropy types • Initialization process • Building Blocks • Security requirements • Conclusion

Types • Non-cryptographic deterministic: Should not be used for security (Mersenne Twister) • Cryptographically secure: Algorithm with properties that make it suitable for the use in cryptography (Fortuna) • Entropy inputs: Produces bits non-deterministically as the internal state is frequently refreshed with unpredictable data from one or several external entropy sources (LPRNG)

History • Part of the Linux Kernel since 1994 • Written by Ts‘o • Modified by Mackall • +/- 1700 lines of C code

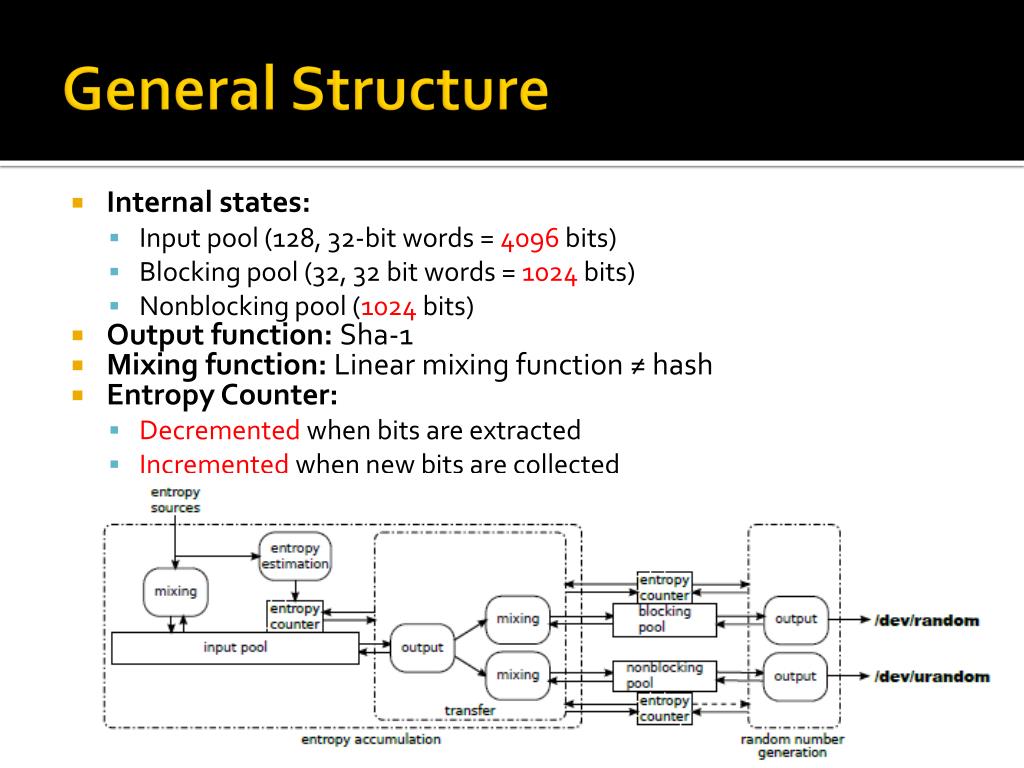

General Structure • Internal states: • Input pool (128, 32-bit words = 4096 bits) • Blocking pool (32, 32 bit words = 1024 bits) • Nonblocking pool (1024 bits) • Output function: Sha-1 • Mixing function: Linear mixing function ≠ hash • Entropy Counter: • Decremented when bits are extracted • Incremented when new bits are collected

User space • /dev/random • Reads from blocking pool • Limits the number of generated bits • Blocked when not enough entropy • Resumed when new entropy in input pool • /dev/urandom • Reads fromnonblocking • Generates random bits WITHOUT blocking • Writing the data does NOT change the entropy counter!!! • Get_random_bytes() • Kernel space • Reads random bytes from nonblocking pool

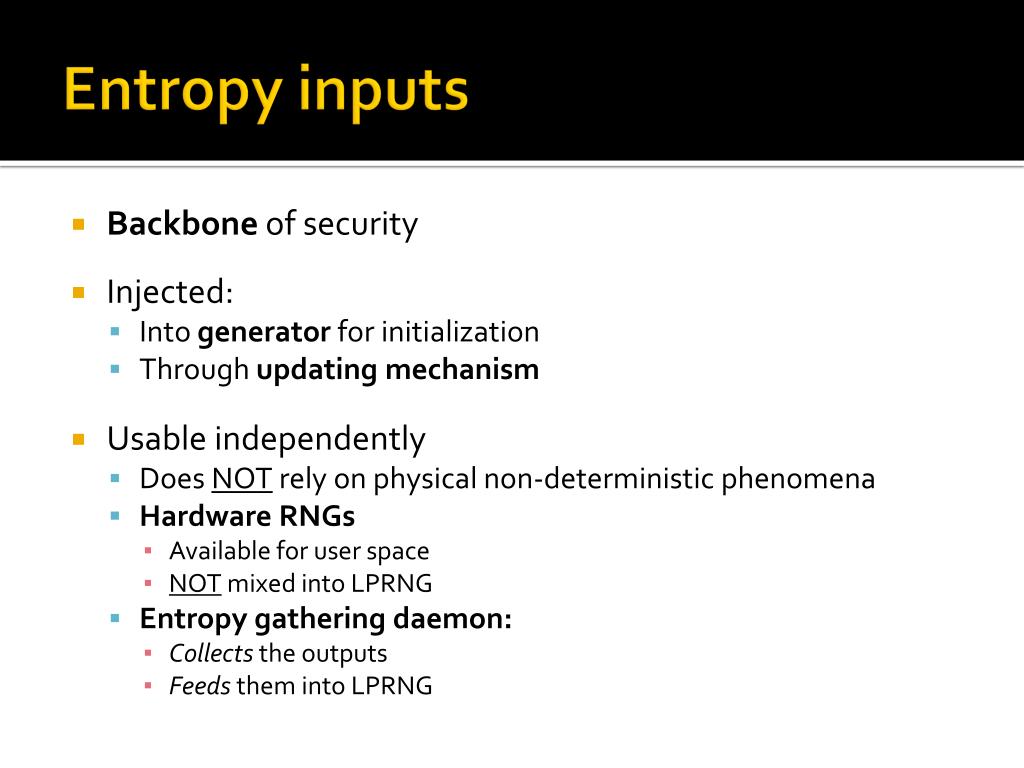

Entropyinputs • Backbone of security • Injected: • Into generator for initialization • Through updating mechanism • Usable independently • Does NOT rely on physical non-deterministic phenomena • Hardware RNGs • Available for user space • NOT mixed into LPRNG • Entropy gathering daemon: • Collects the outputs • Feeds them into LPRNG

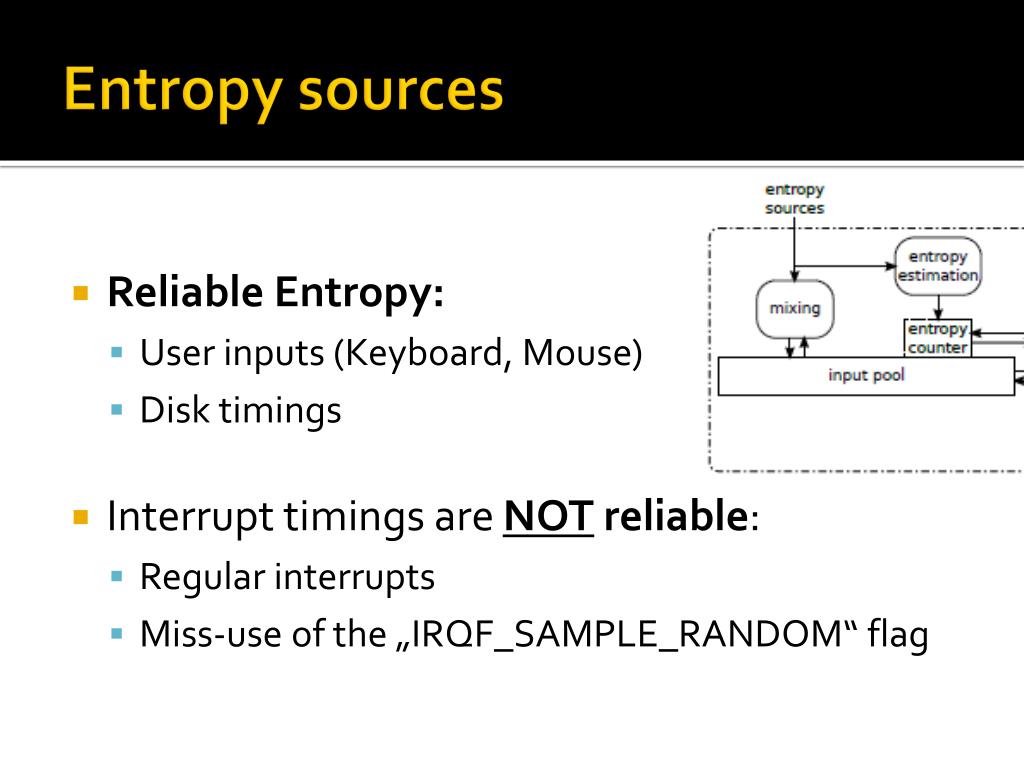

Entropysources • Reliable Entropy: • User inputs (Keyboard, Mouse) • Disk timings • Interrupt timings are NOT reliable: • Regular interrupts • Miss-use of the „IRQF_SAMPLE_RANDOM“ flag

Entropyevents • „num“ value (Type of event, 32 bits) • Mouse (12 bits) • Keyboard (8 bits) • Interrupts (4 bits) • Hard drive (3 bits) • CPU „cycle“ • Max: 32 bits • AVG: 15 bits • „jiffies“ count (32 bits) • Kernel counter of timer interrupts (avg. 3 – 4 Bits) • Frequency 100 – 1000 ticks/sec  The generator never assumes max entropy.

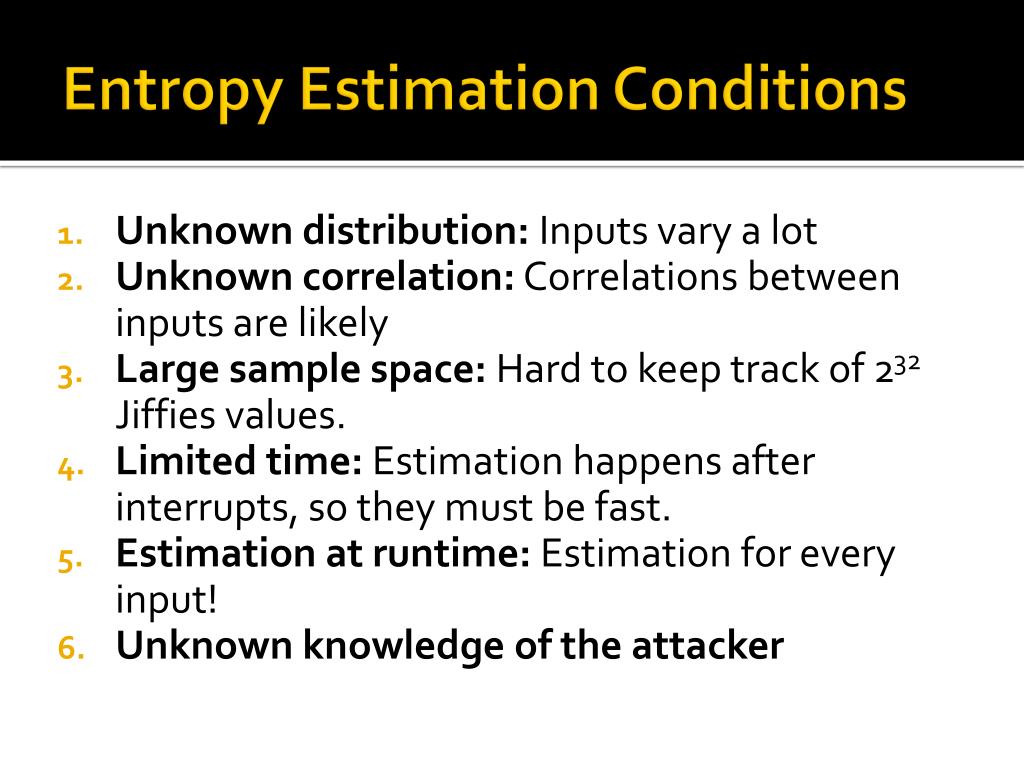

EntropyEstimationConditions • Unknown distribution: Inputs vary a lot • Unknown correlation: Correlations between inputs are likely • Large sample space: Hard to keep track of 232 Jiffies values. • Limited time: Estimation happens after interrupts, so they must be fast. • Estimation at runtime: Estimation for every input! • Unknown knowledge of the attacker

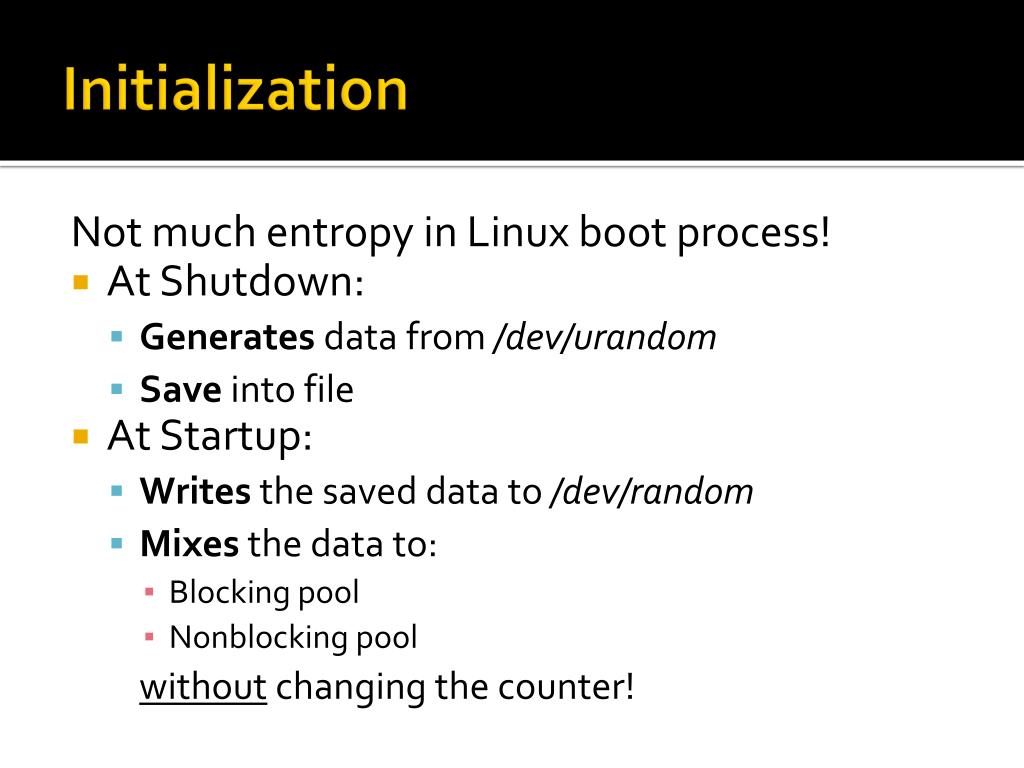

Initialization Not much entropy in Linux boot process! • At Shutdown: • Generates data from /dev/urandom • Save into file • At Startup: • Writes the saved data to /dev/random • Mixes the data to: • Blocking pool • Nonblocking pool without changing the counter!

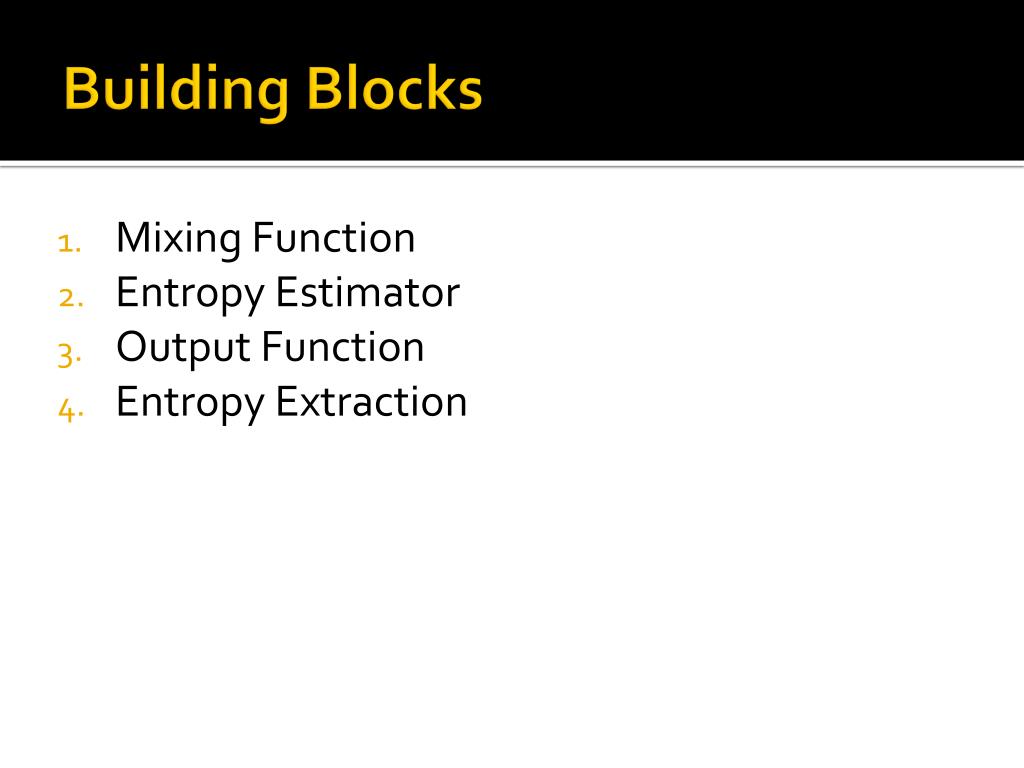

Building Blocks • Mixing Function • Entropy Estimator • Output Function • Entropy Extraction

Linear feedbackshiftingregister     …

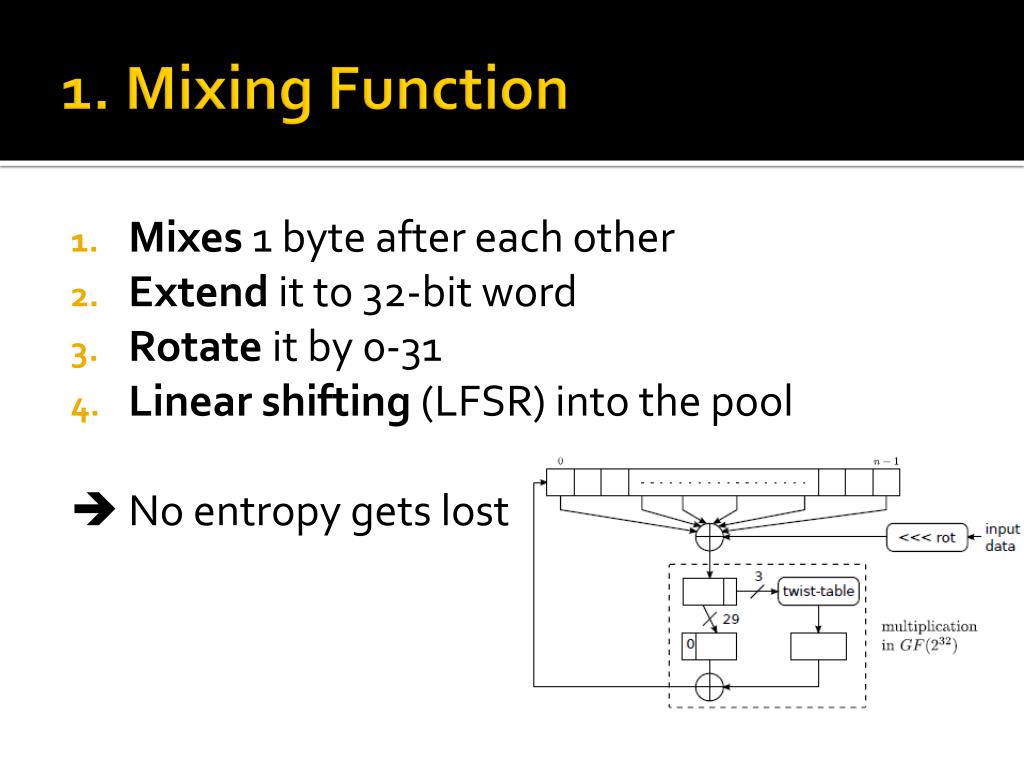

1. Mixing Function • Mixes 1 byte after each other • Extend it to 32-bit word • Rotate it by 0-31 • Linear shifting (LFSR) into the pool  No entropy gets lost

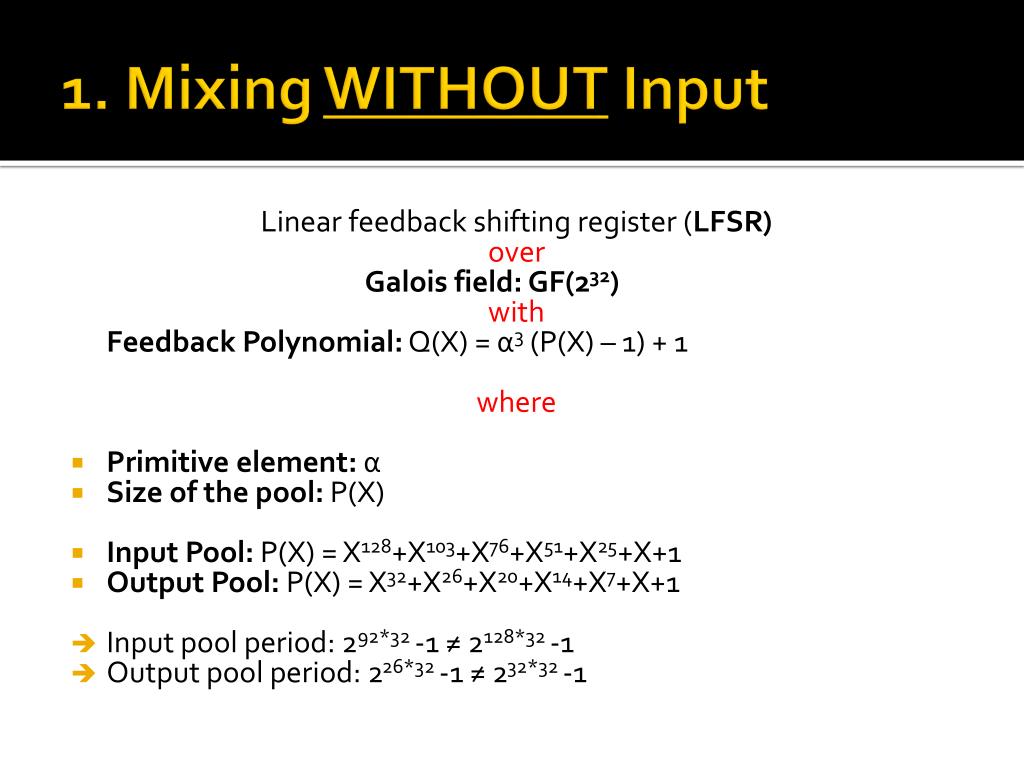

1. Mixing WITHOUT Input Linear feedback shifting register (LFSR) over Galois field: GF(232) with Feedback Polynomial: Q(X) = α3 (P(X) – 1) + 1 where • Primitive element: α • Size of the pool: P(X) • Input Pool: P(X) = X128+X103+X76+X51+X25+X+1 • Output Pool: P(X) = X32+X26+X20+X14+X7+X+1 • Input pool period: 292*32 -1 ≠ 2128*32 -1 • Output pool period: 226*32 -1 ≠ 232*32 -1

1. Mixing WITHOUT Input (cont.) • Input Pool: P(X) = X128+X103+X76+X51+X25+X+1 • Output Pool: P(X) = X32+X26+X20+X14+X7+X+1 • P(X) is NOT irreducible! • But by changing one feedback position • Input Pool: P(X) = X128+X104+X76+X51+X25+X+1 • Output Pool: P(X) = X32+X26+X19+X14+X7+X+1 • P(X) is irreducible ButNOT primitive! • However by changing α to: • α2 (X32+X26+X23+X14+X7+X+1) • α4 • α7 • … • P(X) is irreducible AND primitive! • Periods: 2128*32 -1 & 232*32 -1

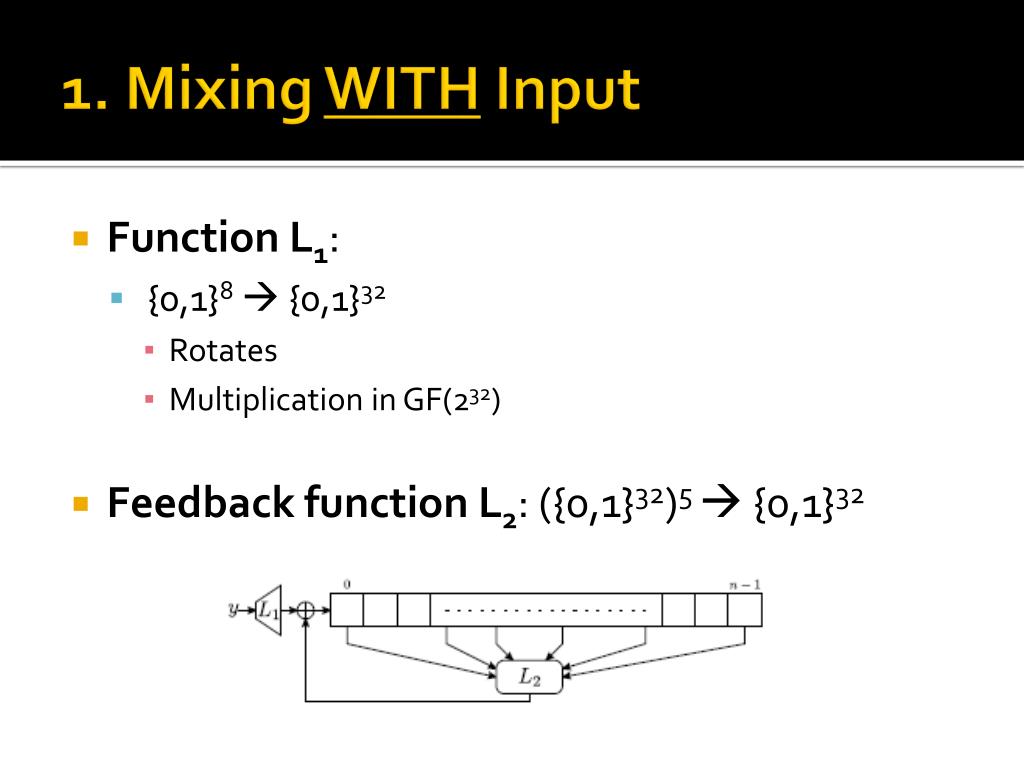

1. Mixing WITH Input • Function L1: • {0,1}8 {0,1}32 • Rotates • Multiplication in GF(232) • Feedback function L2: ({0,1}32)5  {0,1}32

2. EntropyEstimator (1) • Random variables: • Identically distributed • Different (single) source • Sample space: D where |D| >> 2 • Jiffies count: ᵹi[1] at time i • Estimator with input Ti: • Logarithm function: • Outcome:

2. EntropyEstimator (2) • To compute • We must know: • Time ti-1 • Jiffies count: ᵹi-1[1] where [1] = event 1 • Jiffies count: ᵹi-1[2] where [2] = event 2 • Property: invariant under a permutation • Permutation: • Distribution q: • Distribution p:  H(p) ≠ H(q), since it uses the value of a given element and not its probability!

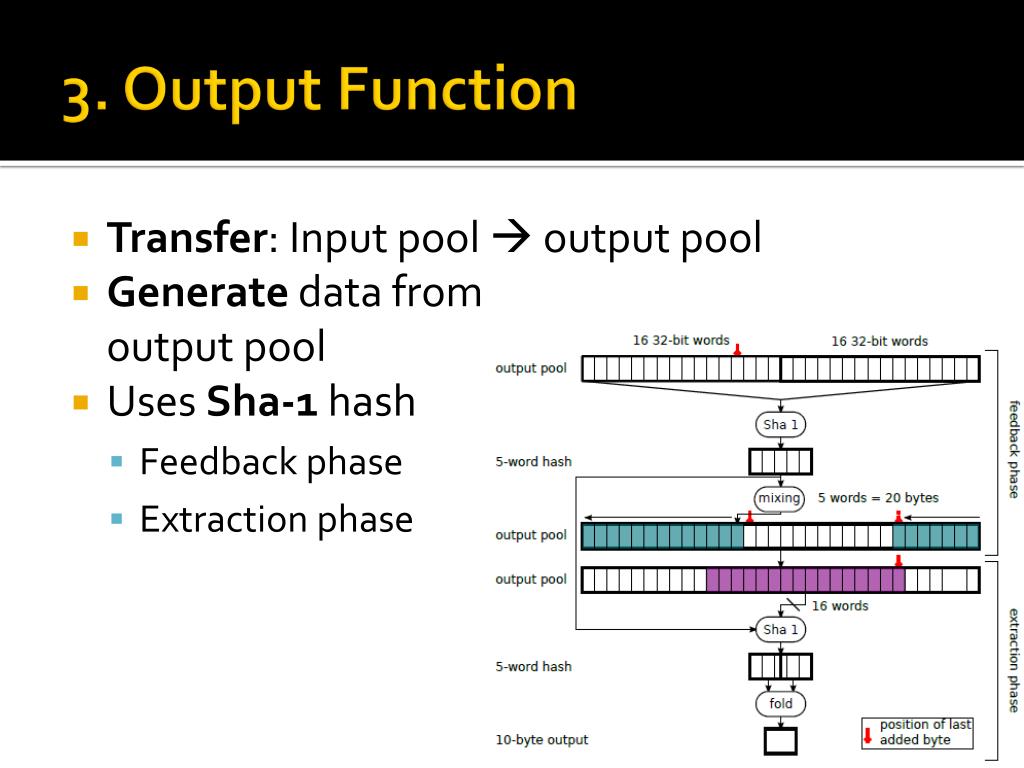

3. Output Function • Transfer: Input pool  output pool • Generate data from output pool • Uses Sha-1 hash • Feedback phase • Extraction phase

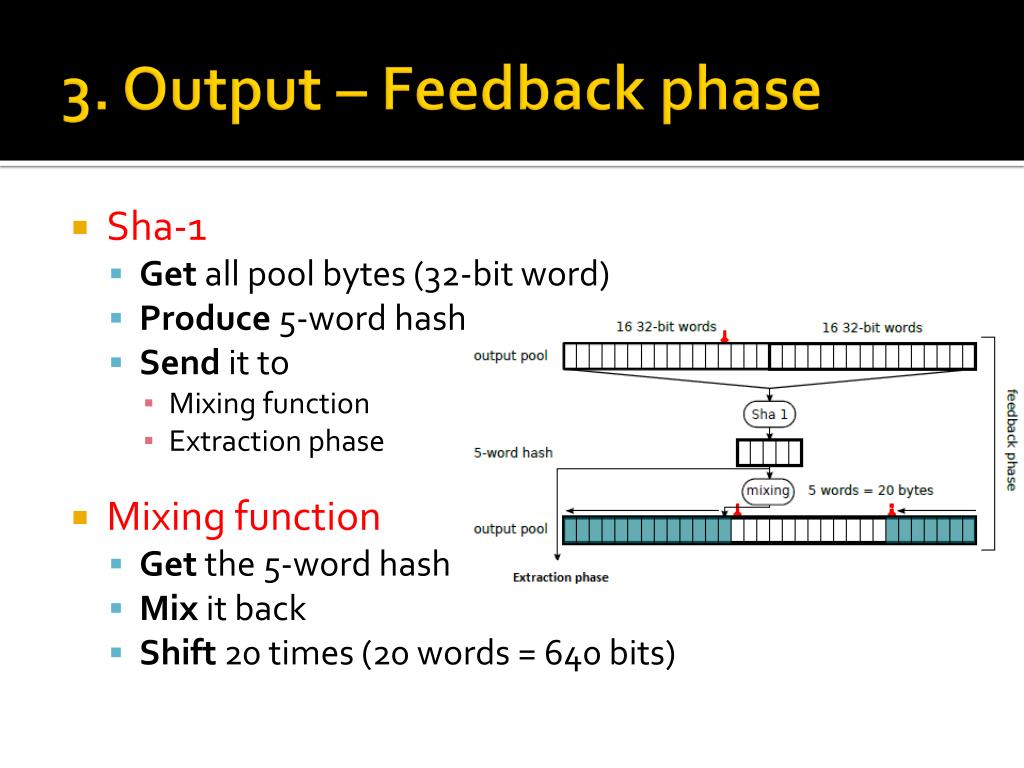

3. Output – Feedback phase • Sha-1 • Get all pool bytes (32-bit word) • Produce 5-word hash • Send it to • Mixing function • Extraction phase • Mixing function • Get the 5-word hash • Mix it back • Shift 20 times (20 words = 640 bits)

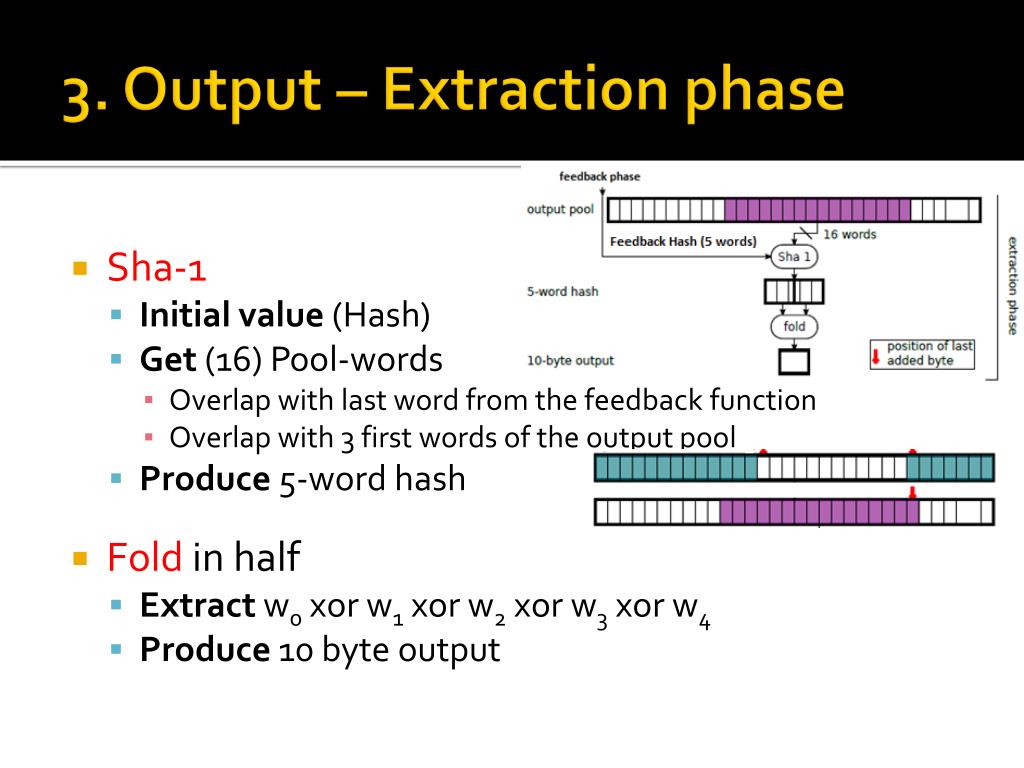

3. Output – Extractionphase • Sha-1 • Initial value (Hash) • Get (16) Pool-words • Overlap with last word from the feedback function • Overlap with 3 first words of the output pool • Produce 5-word hash • Fold in half • Extract w0xor w1xor w2xor w3xor w4 • Produce 10 byte output

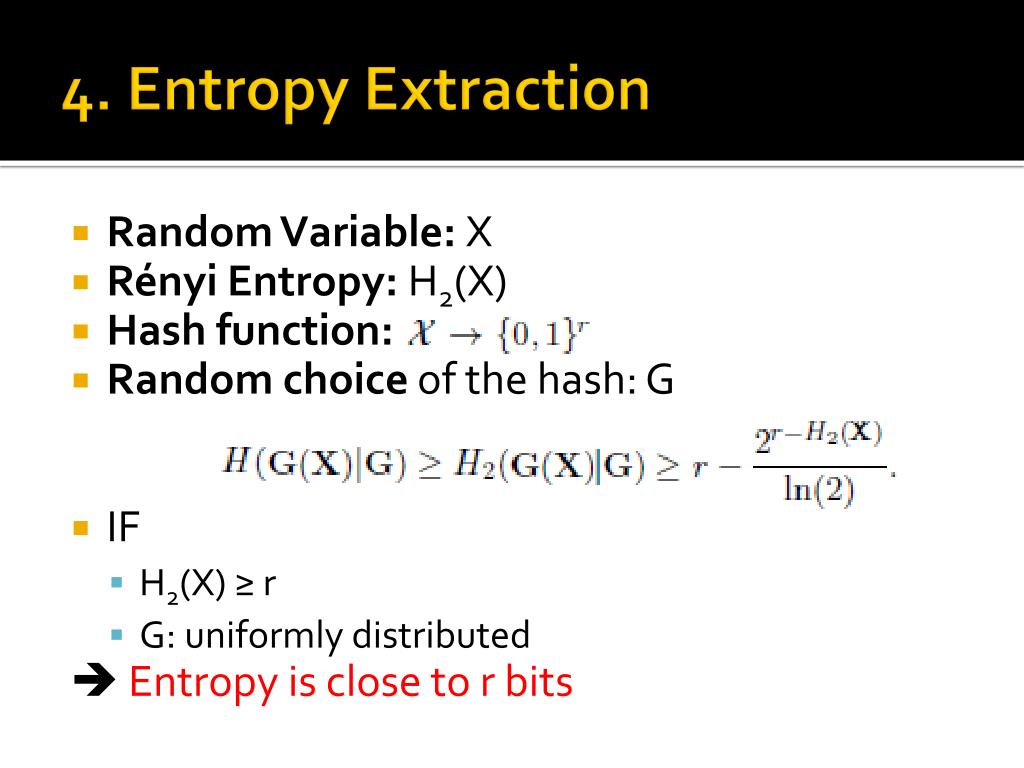

4. EntropyExtraction • Random Variable: X • Rényi Entropy: H2(X) • Hash function: • Random choice of the hash: G • IF • H2(X) ≥ r • G: uniformly distributed  Entropy is close to r bits

4. EntropyExtraction - LPRNG • LPRNG fixed hash function: • Assumptions: • Each element has size of • Attacker knows all permutations  Universal hash function: • If the pool contains: • k bits of Rényi entropy • m ≤ k  Entropy close to m bits:

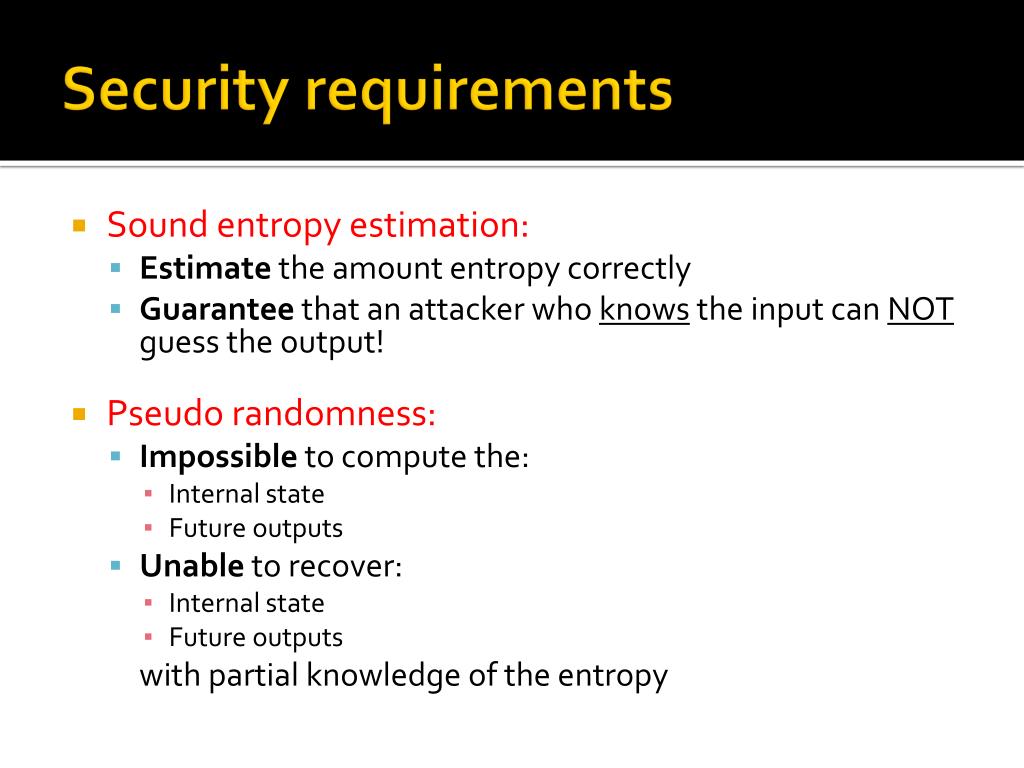

Security requirements • Sound entropy estimation: • Estimate the amount entropy correctly • Guarantee that an attacker who knows the input can NOT guess the output! • Pseudo randomness: • Impossible to compute the: • Internal state • Future outputs • Unable to recover: • Internal state • Future outputs with partial knowledge of the entropy

Sound entropyestimation • Samples:N = 7M • Empirical frequency: • Estimators: • LPRNG entropy: • Shannon entropy: • Min-entropy: • Rényi entropy: • Results:

Pseudorandomness • Sha-1: one-way function  Adversary can NOT recover the content of • output pool • input pool if he only knows the outputs! • Folding: Avoids recognizing patterns  Output of the hash is NOT directly recognizable  Secure if the internal state is NOT compromised!

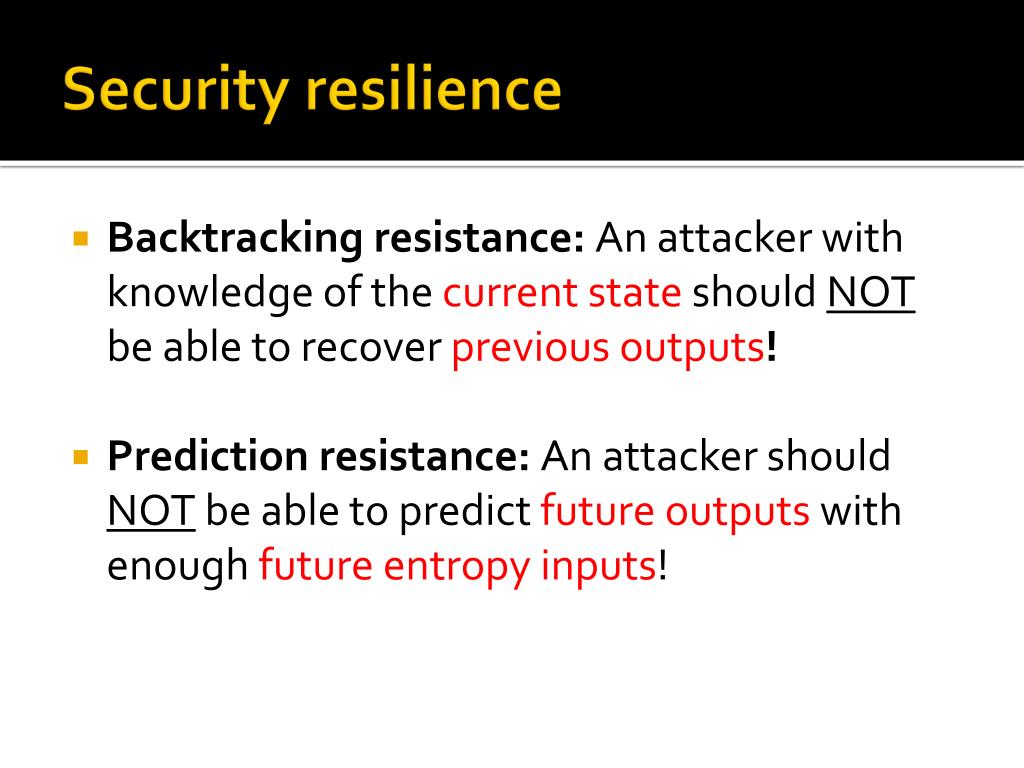

Security resilience • Backtracking resistance: An attacker with knowledge of the current state should NOT be able to recover previous outputs! • Prediction resistance: An attacker should NOT be able to predict future outputs with enough future entropy inputs!

Securiyresilience LPRNG • Forward security: Knowledge of theinitial state does NOT provide information on previous states. Even if the state was not refreshed by new entropy inputs.  Backtracking provided by: One-way output function • Backward security: Adversary who knows the internal state is able predict • Outputs • Future outputs because the Output function is deterministic… (Bad!)  Prediction provided by: Reseed the internal state between requests!

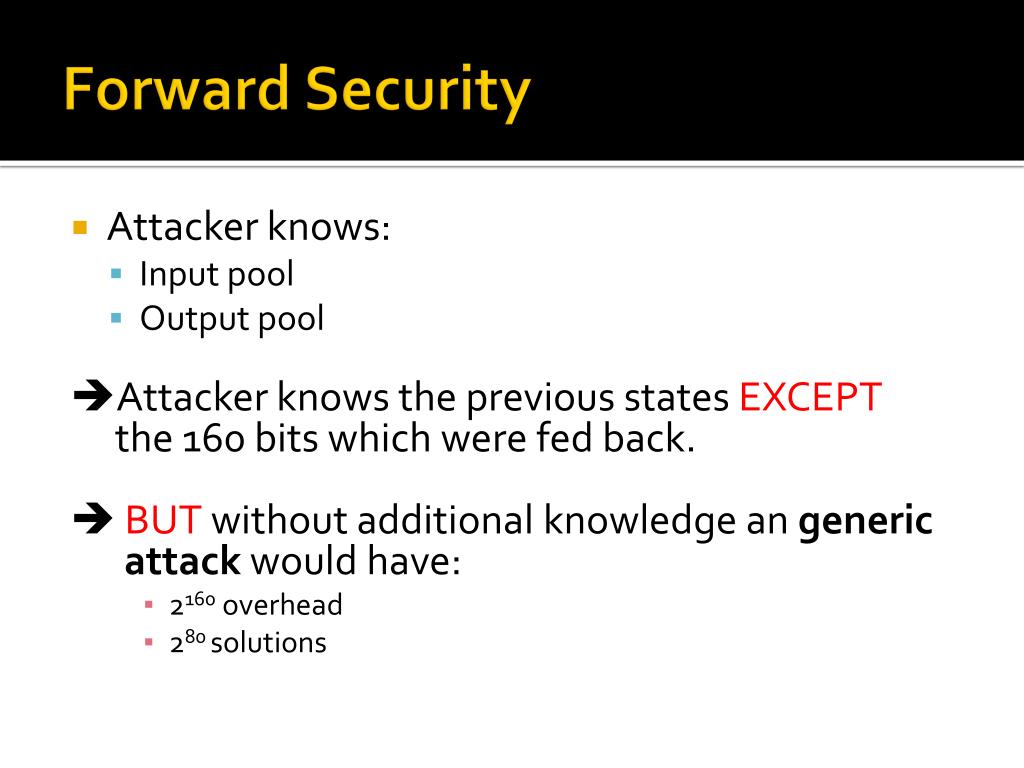

Forward Security • Attacker knows: • Input pool • Output pool Attacker knows the previous states EXCEPT the 160 bits which were fed back.  BUT without additional knowledge an generic attack would have: • 2160 overhead • 280 solutions

Backward Security • Transferring k bits of entropy means that after: • Generating data from UNKNOWN S1 • Mixing S1 to the KNOWN S2 • Guessing the NEW S2 would cost on average 2k-1 trials for the attacker! • Collecting k bits of entropy means that after: • Processing unknown data from KNOWN S1 • Guessing the NEW S1 would cost on average 2k-1 trials for the observer!

Backward Security – Attacks • 1. Attacker: • Knows the output pool • Does NOT know the input pool • 2. Attacker knows • Input pool • Output pool

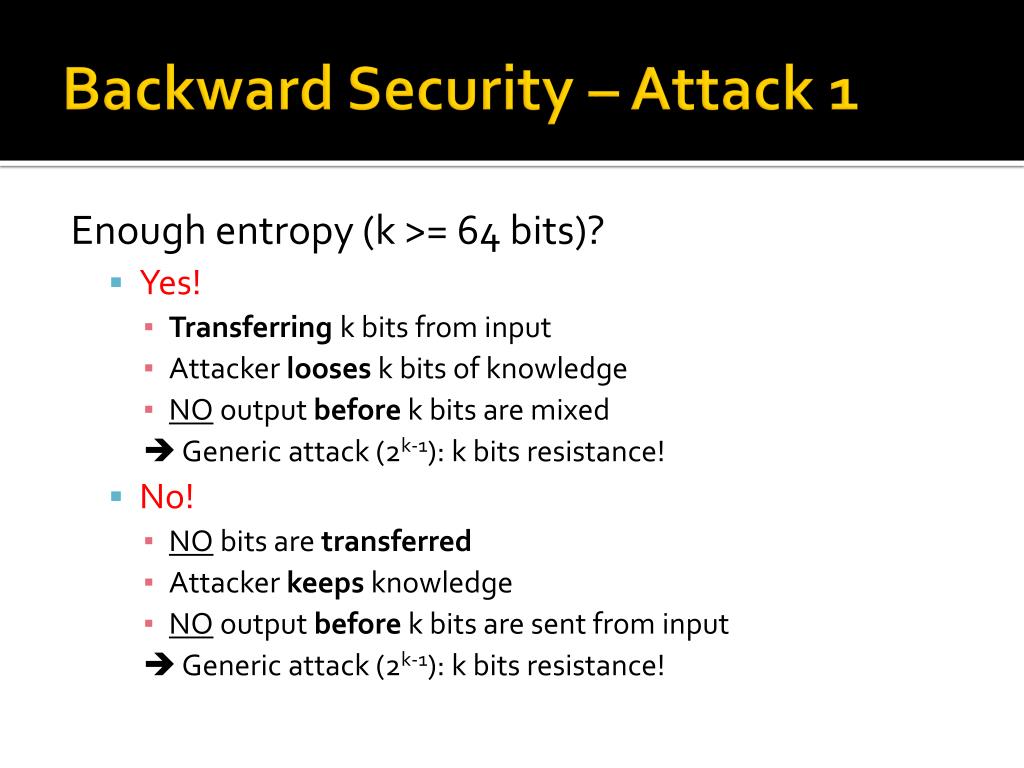

Backward Security – Attack 1 Enough entropy (k >= 64 bits)? • Yes! • Transferring k bits from input • Attacker looses k bits of knowledge • NO output before k bits are mixed  Generic attack (2k-1): k bits resistance! • No! • NO bits are transferred • Attacker keeps knowledge • NOoutputbefore k bits are sent from input  Generic attack (2k-1): k bits resistance!

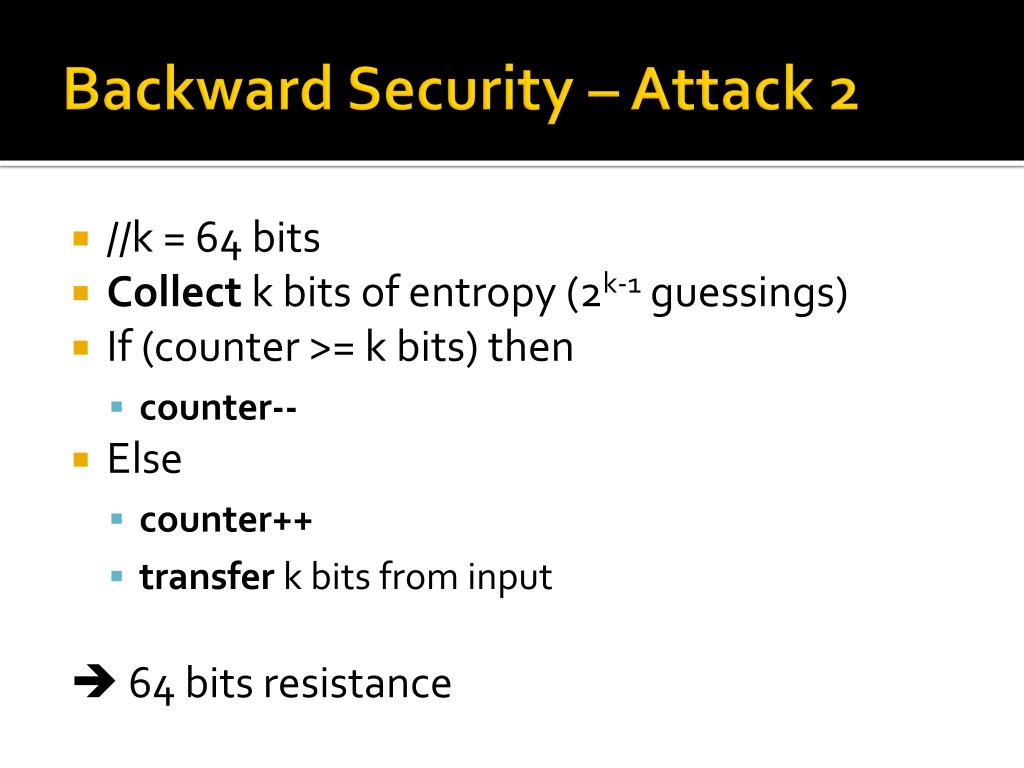

Backward Security – Attack 2 • //k = 64 bits • Collect k bits of entropy (2k-1guessings) • If (counter >= k bits) then • counter-- • Else • counter++ • transfer k bits from input  64 bits resistance

Conclusion • Goodlevelofsecurity • Mixing functioncouldbeimproved! • Newerhash-functioncouldbeused (Sha-3)
