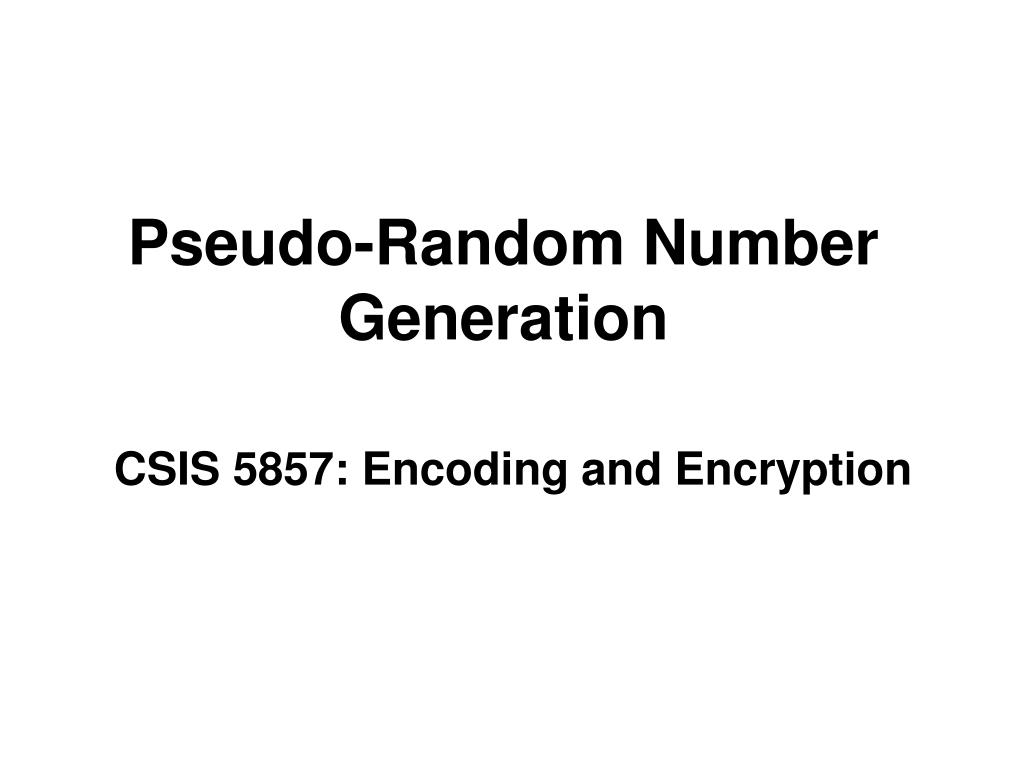

1. Pseudo-Random Number Generation CSIS 5857: Encoding and Encryption

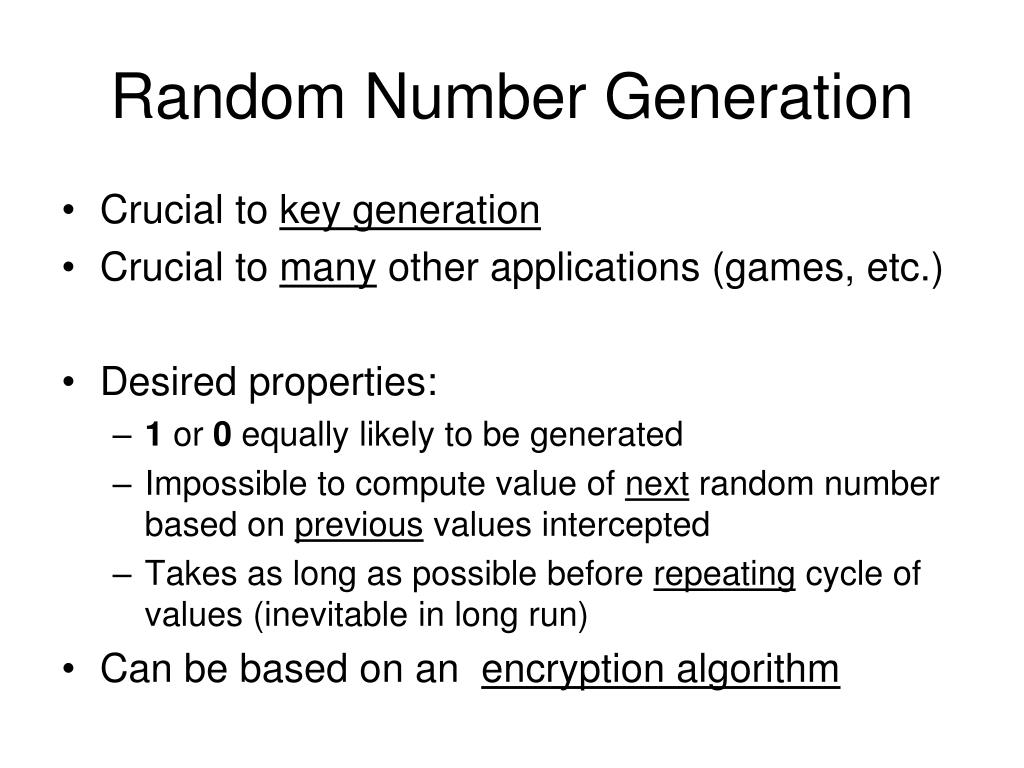

2. Random Number Generation • Crucial to key generation • Crucial to many other applications (games, etc.) • Desired properties: • 1 or 0 equally likely to be generated • Impossible to compute value of next random number based on previous values intercepted • Takes as long as possible before repeating cycle of values (inevitable in long run) • Can be based on an encryption algorithm

3. True Random Numbers • Based on some random physical process • Coin flip • Particle physics • Difficult to build into computer!

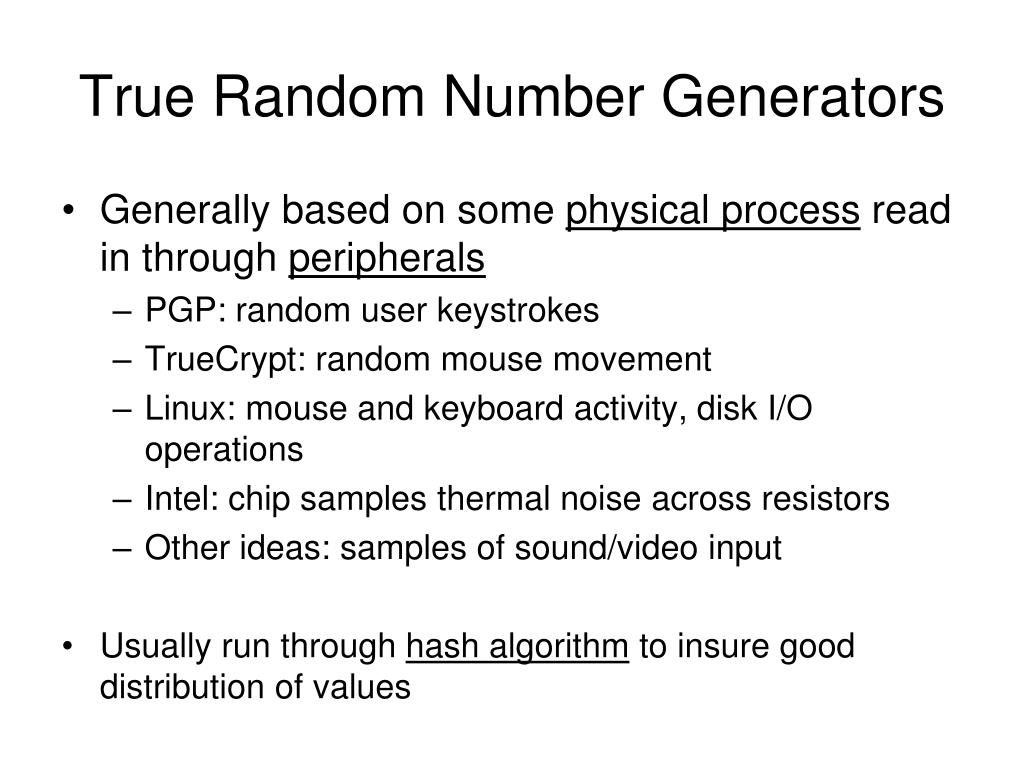

4. True Random Number Generators • Generally based on some physical process read in through peripherals • PGP: random user keystrokes • TrueCrypt: random mouse movement • Linux: mouse and keyboard activity, disk I/O operations • Intel: chip samples thermal noise across resistors • Other ideas: samples of sound/video input • Usually run through hash algorithm to insure good distribution of values

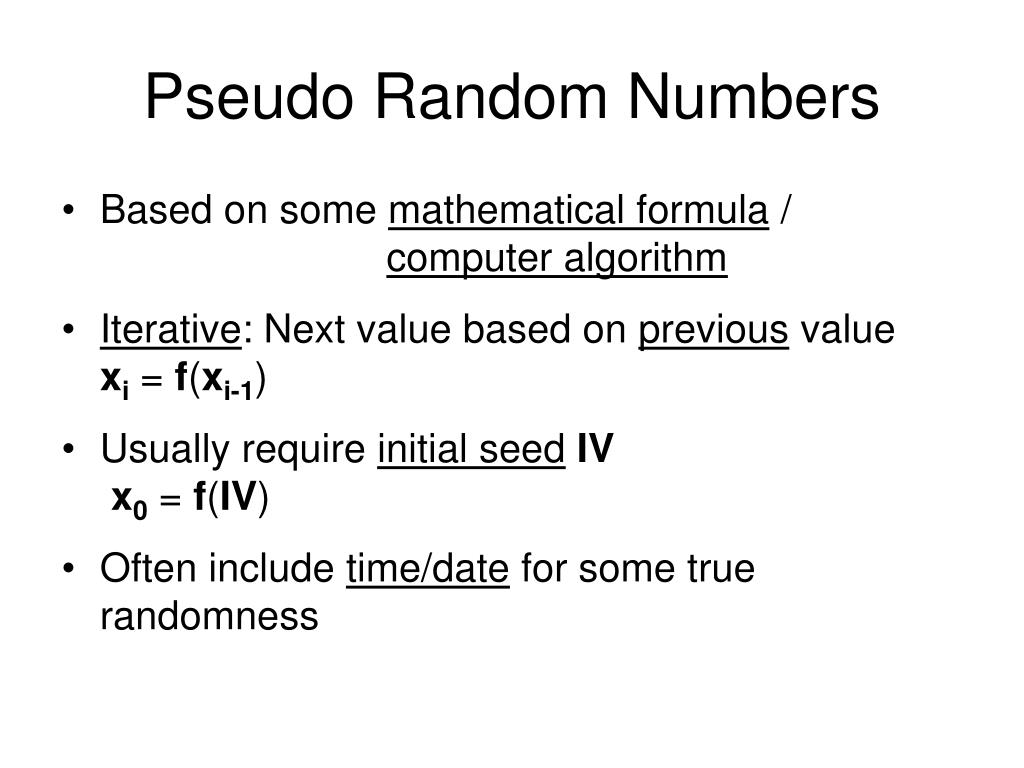

5. Pseudo Random Numbers • Based on some mathematical formula / computer algorithm • Iterative: Next value based on previous valuexi= f(xi-1) • Usually require initial seedIVx0= f(IV) • Often include time/date for some true randomness

6. Linear Congruential PRNG • Simple modular arithmetic: xi +1 = (axi + b) mod n • Commonly built into programming languages • Common values: • n= 231-1, a = 27,b = 0 • Generate all positive 32-bit integers with no repetition

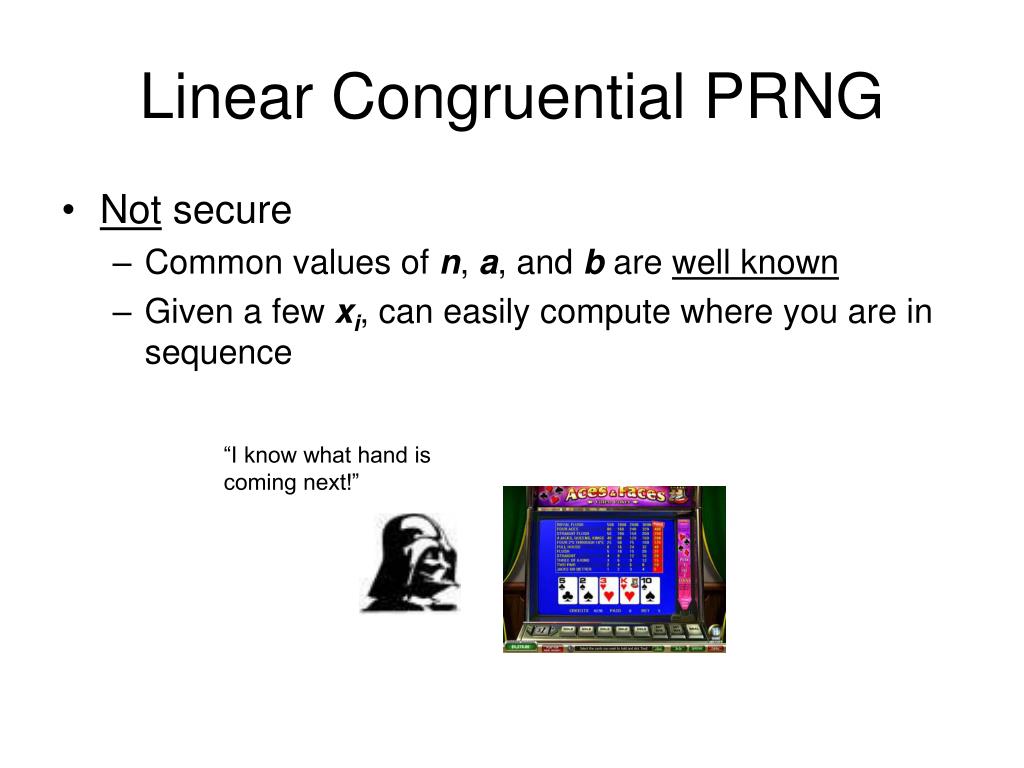

7. Linear Congruential PRNG • Not secure • Common values of n, a, and b are well known • Given a few xi, can easily compute where you are in sequence “I know what hand is coming next!”

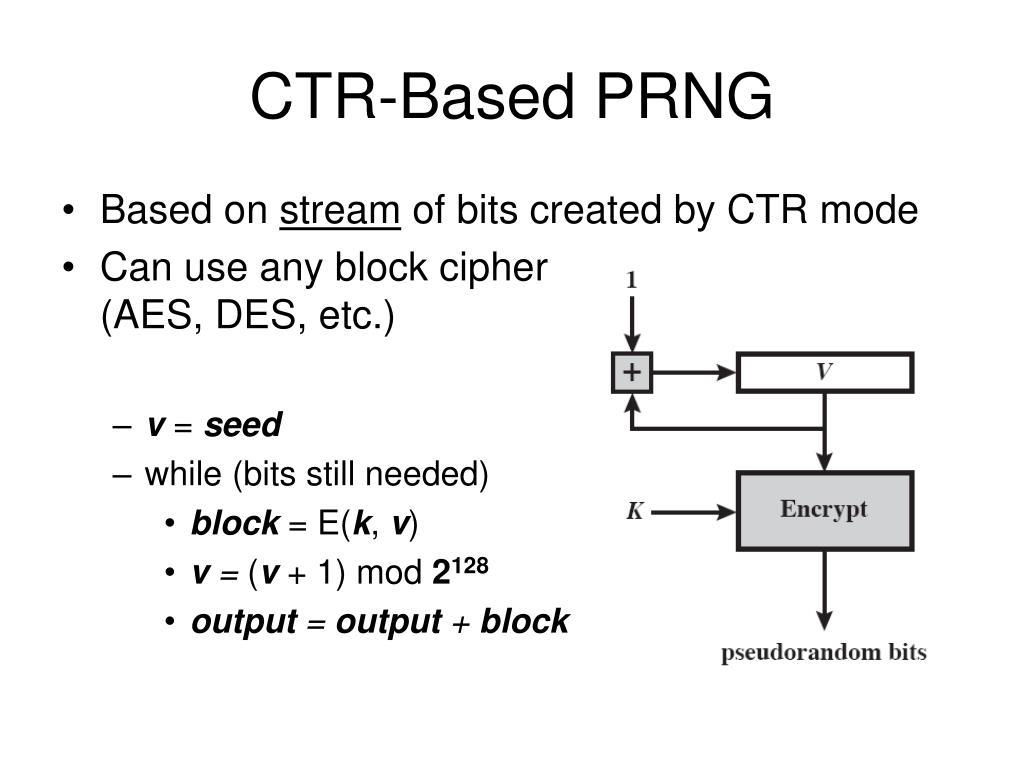

8. CTR-Based PRNG • Based on stream of bits created by CTR mode • Can use any block cipher (AES, DES, etc.) • v = seed • while (bits still needed) • block = E(k, v) • v = (v + 1) mod 2128 • output = output + block

9. ANSI X9.17 PRNG • Based on Triple DES • Initial Vector IV (initially seed) • Current date/time • Cipher block chaining mode used • Next IV based onprevious result • Cracking sequence requires cracking 3DES to compute initial IV 112-bit key

10. ANSI X9.62 PRNG (Micali-Schnorr) • PRNG based on RSA • Generate p, q, n, and e as in RSA • Choose bits k to generate each step • N = number of bits in n (N = log2(n)) • Remaining bits r = N – k • Choose seed x0(r bits)

11. ANSI X9.62 PRNG (Micali-Schnorr) • To generate pseudorandom sequence of size km: • For i= 1 to m • yi=xei-1mod n (like RSA encryption) • xi= rmost significant bits of yi • output kleast significant bits of yi

12. Hash-based PRNG • ISO 18031 PRNG • Initial vector V • Each cycle V += 1 • Hash V • Take n least significant bits • Secure if hash function secure • Can’t determine V from current random number

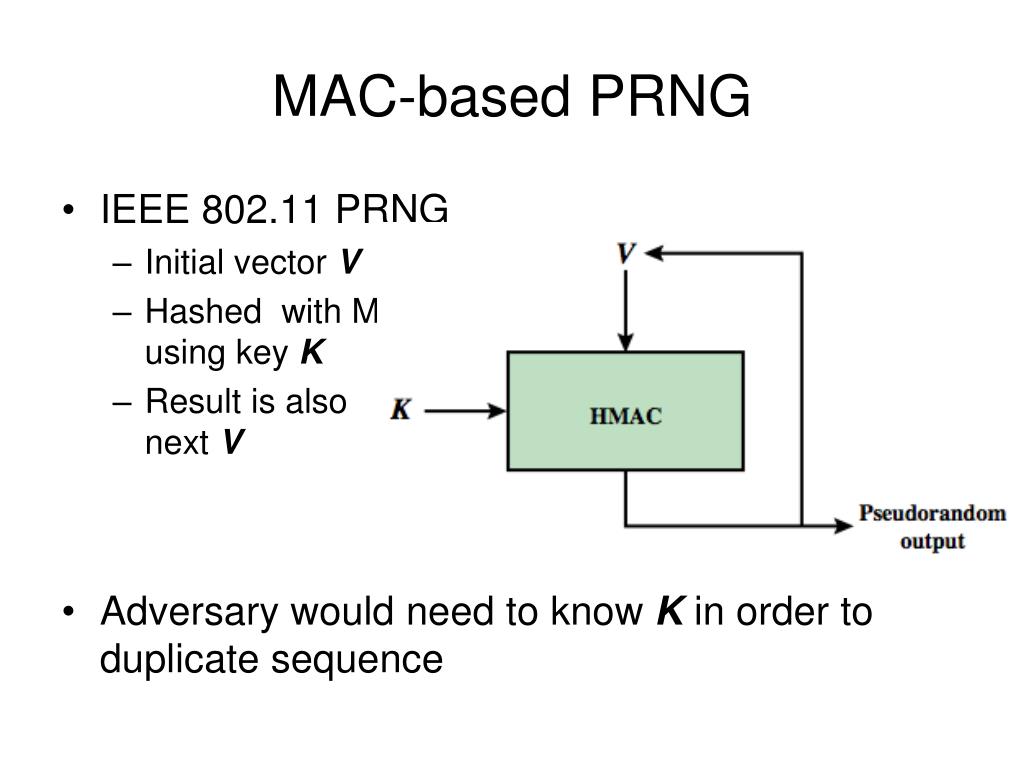

13. MAC-based PRNG • IEEE 802.11 PRNG • Initial vector V • Hashed with MACusing key K • Result is also next V • Adversary would need to know K in order to duplicate sequence
