  1. An Adaptive Coverage Adjustment Mechanism for LTE Femtocell Jui-Ming Chen, Li-Der Chou, Yu-Hong Lin InternationalComputer Symposium (ICS), 2010

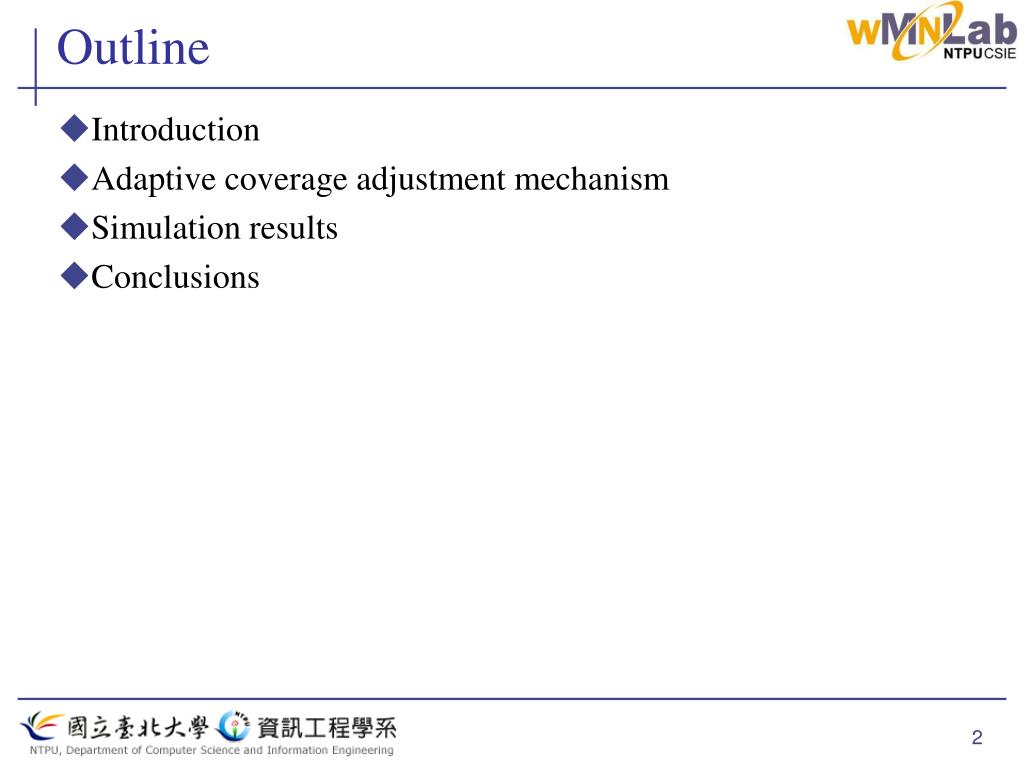

  2. Outline • Introduction • Adaptive coverage adjustment mechanism • Simulation results • Conclusions

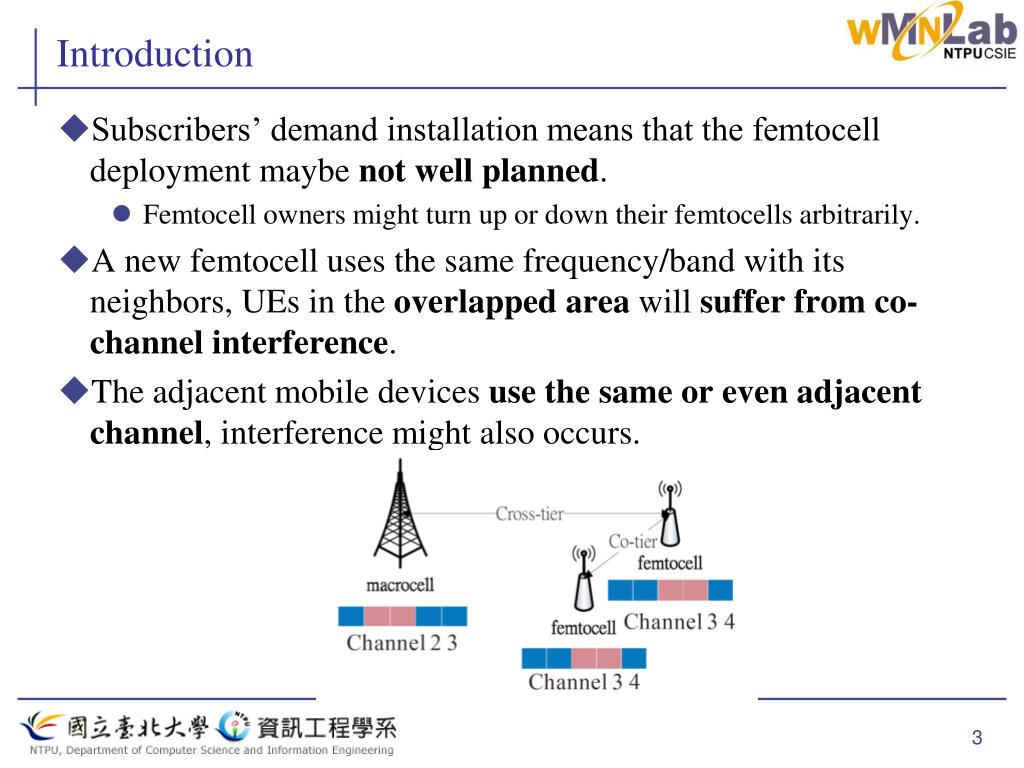

  3. Introduction • Subscribers’ demand installation means that the femtocell deployment maybe not well planned. • Femtocell owners might turn up or down their femtocells arbitrarily. • A new femtocell uses the same frequency/band with its neighbors, UEs in the overlapped area will suffer from co-channel interference. • The adjacent mobile devices use the same or even adjacent channel, interference might also occurs.

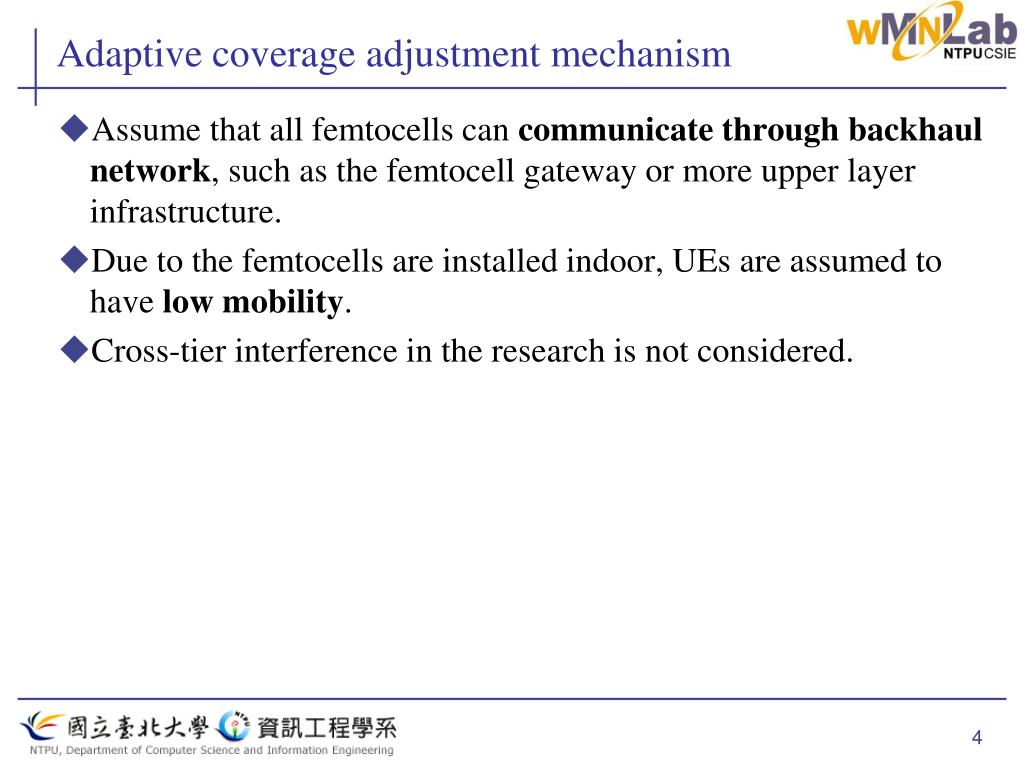

  4. Adaptive coverage adjustment mechanism • Assume that all femtocells can communicate through backhaul network, such as the femtocell gateway or more upper layer infrastructure. • Due to the femtocells are installed indoor, UEs are assumed to have low mobility. • Cross-tier interference in the research is not considered.

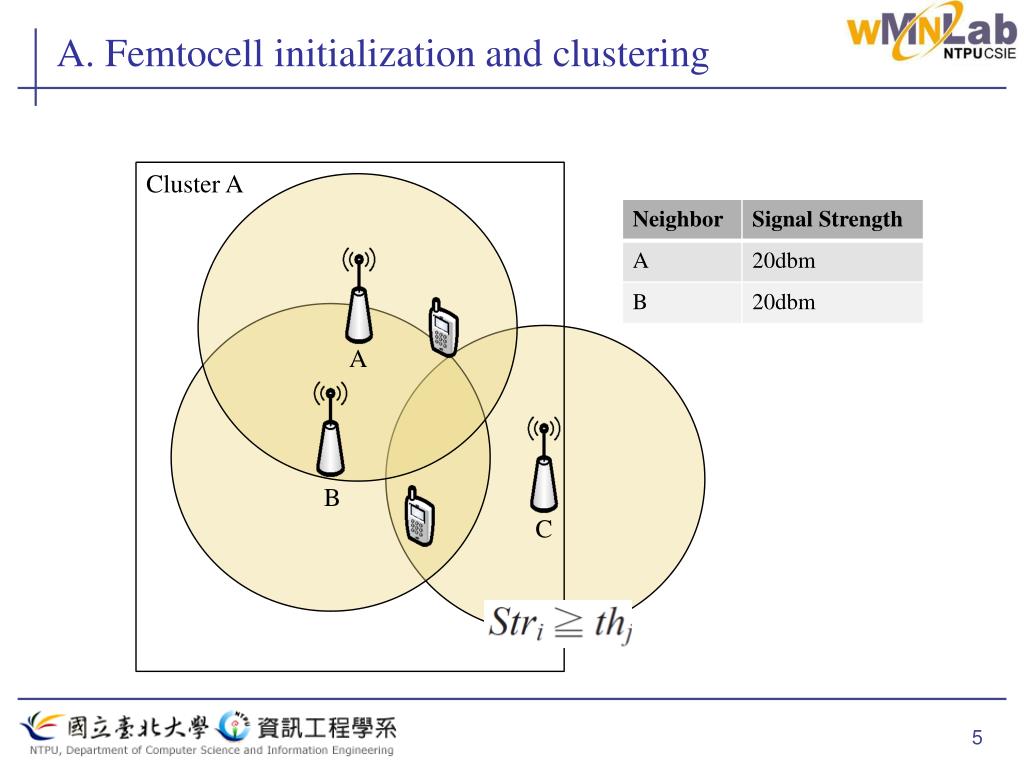

  5. A. Femtocell initialization and clustering Cluster A A C B

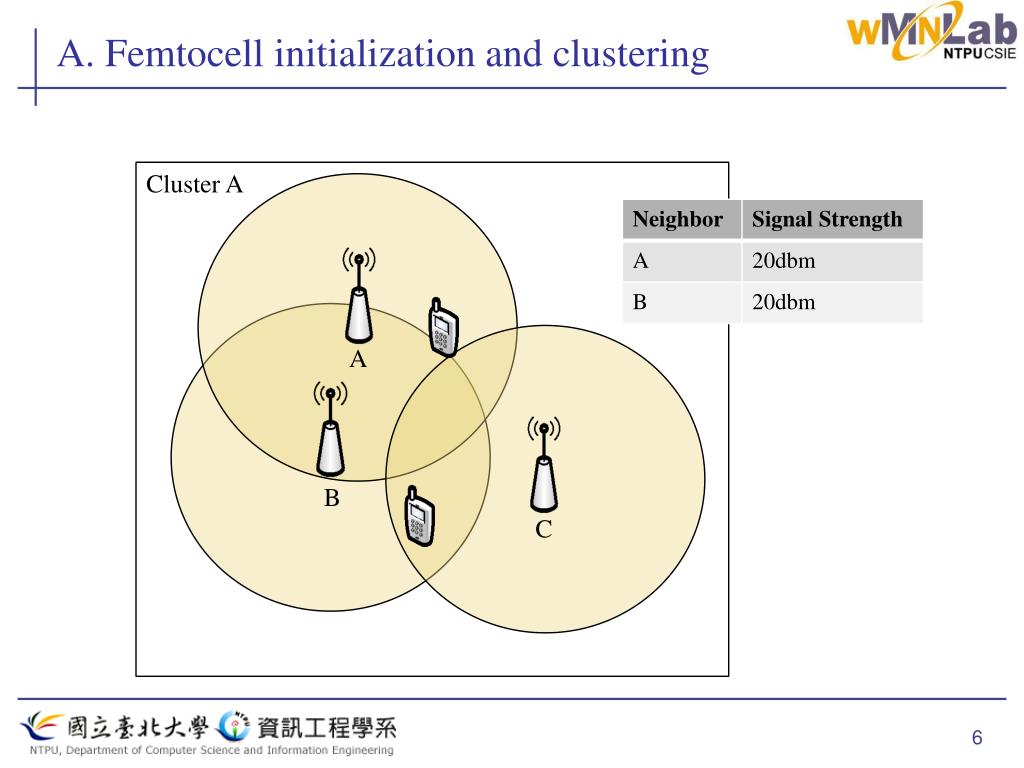

  6. A. Femtocell initialization and clustering Cluster A A C B

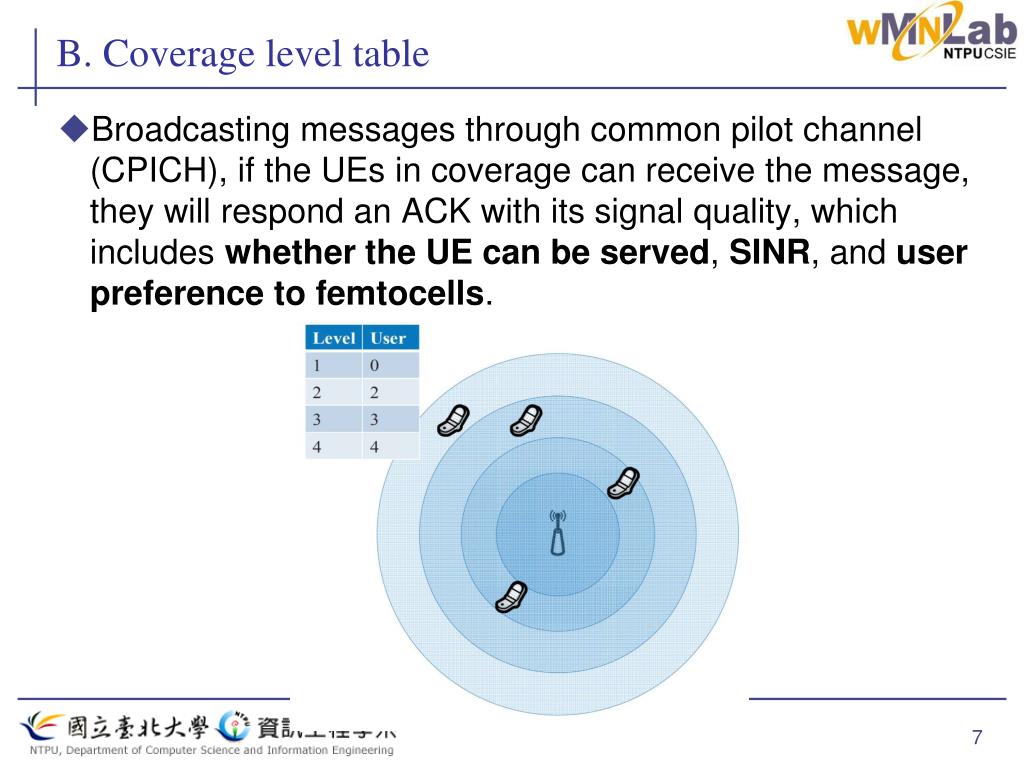

  7. B. Coverage level table • Broadcasting messages through common pilot channel (CPICH), if the UEs in coverage can receive the message, they will respond an ACK with its signal quality, which includes whether the UE can be served, SINR, and user preference to femtocells.

  8. C. Negotiation algorithm • In clustering algorithm, when interference occurs, only the linked nodes on the graph should be adjusted at most. • There must be a femtocell FAPI that causes interference. FAPI can try to decrease its coverage level first to mitigate the interference. • The neighbors of FAPI have to decrease their coverage level to mitigate the interference.

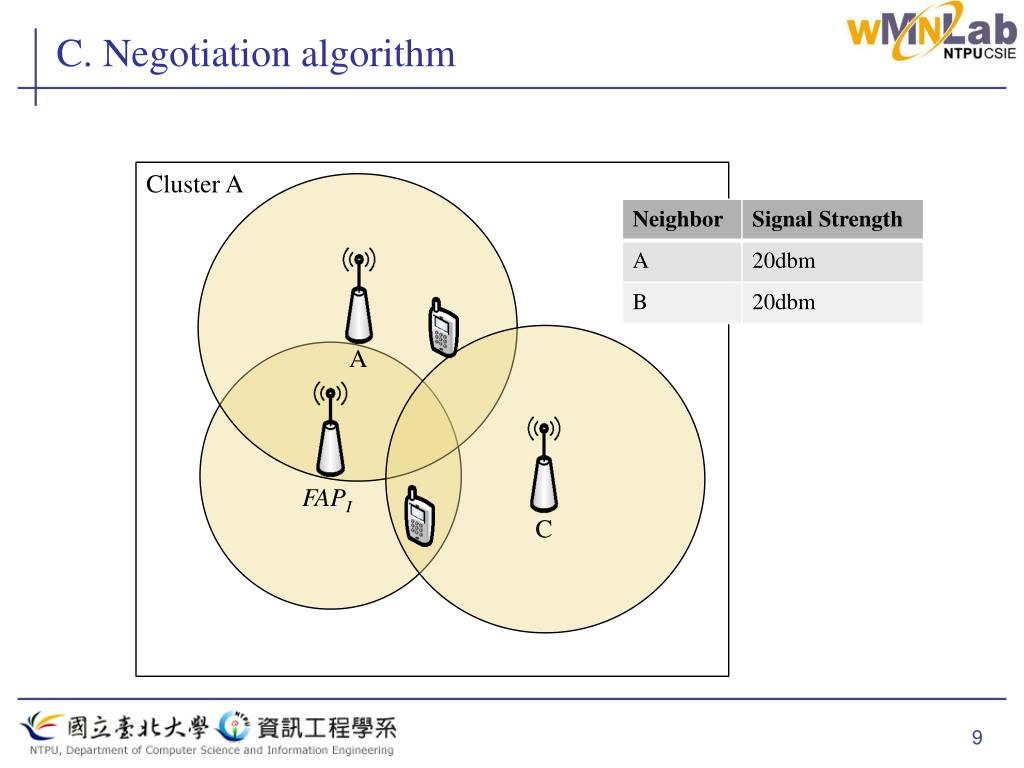

  9. C. Negotiation algorithm Cluster A A C FAPI

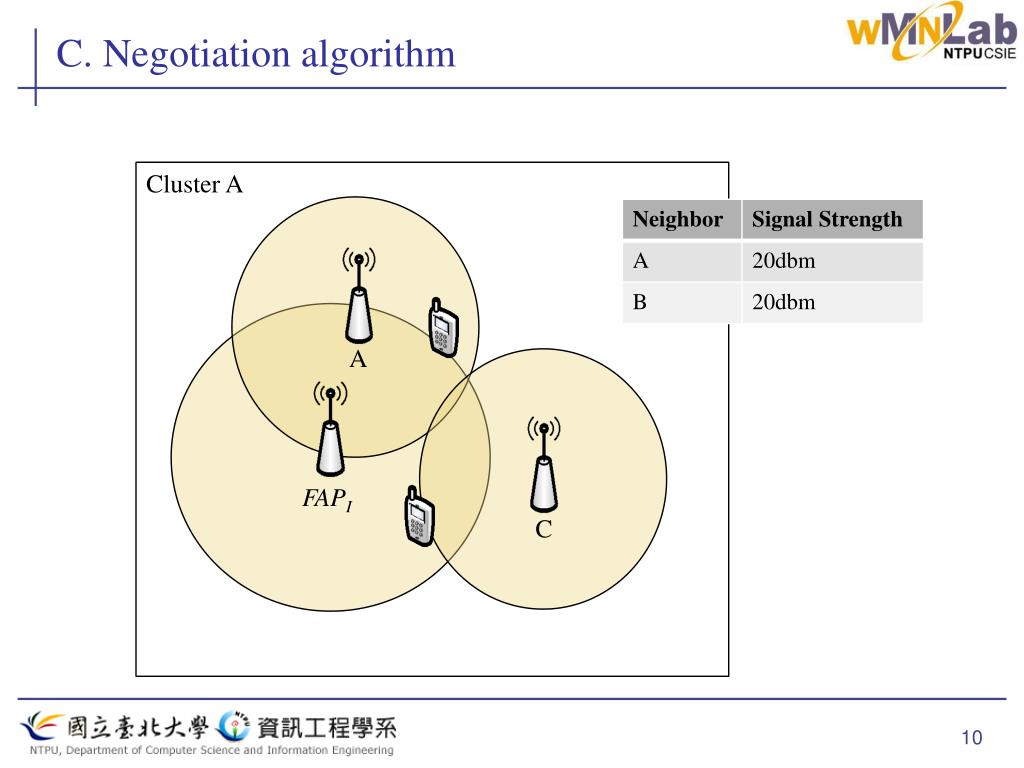

  10. C. Negotiation algorithm Cluster A A C FAPI

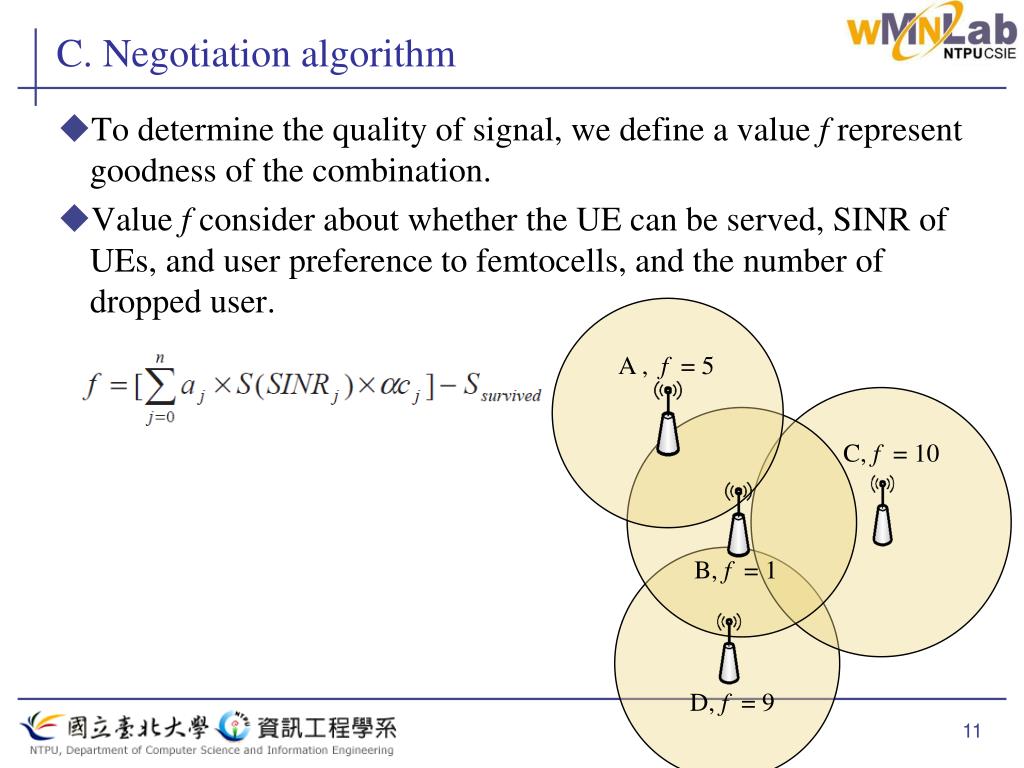

  11. C. Negotiation algorithm • To determine the quality of signal, we define a value f represent goodness of the combination. • Value f consider about whether the UE can be served, SINR of UEs, and user preference to femtocells, and the number of dropped user. C, f = 10 A , f = 5 D, f = 9 B, f = 1

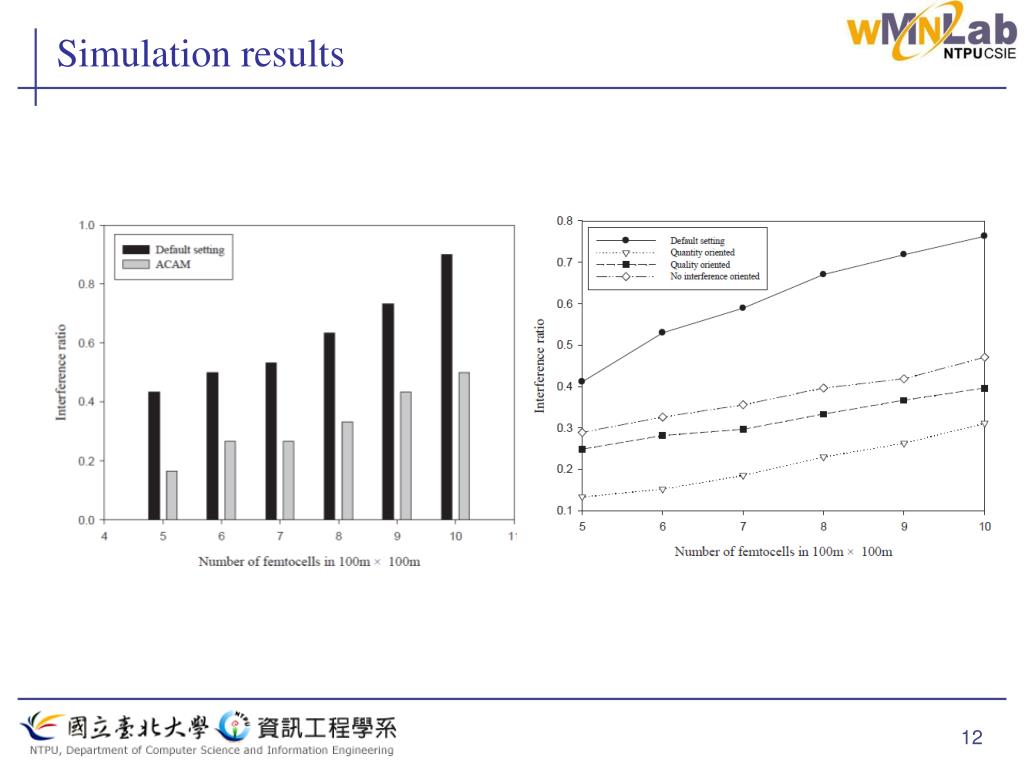

  12. Simulation results

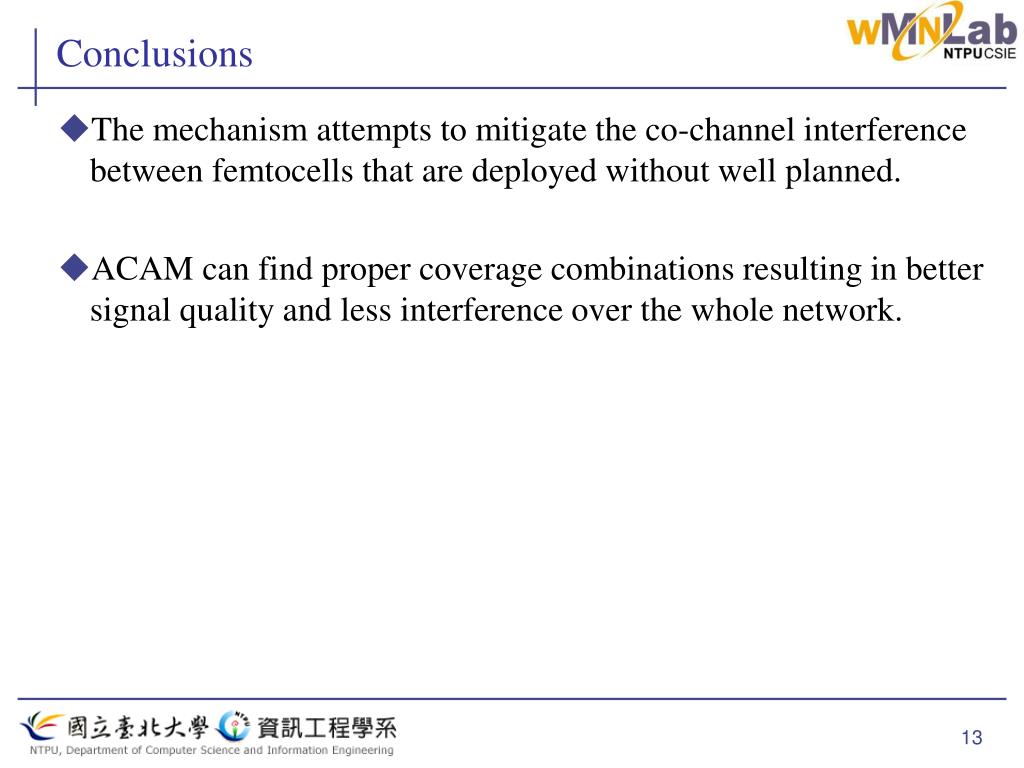

  13. Conclusions • The mechanism attempts to mitigate the co-channel interference between femtocells that are deployed without well planned. • ACAM can find proper coverage combinations resulting in better signal quality and less interference over the whole network.

  14. 每週一句 • The rest of the paper is organized as follows. Section 2 introduces the background … . Section 3 describe the proposed adaptive … . Section 4 … .
