Comprehensive Guide for Proxima Projector and Multimedia Equipment Usage

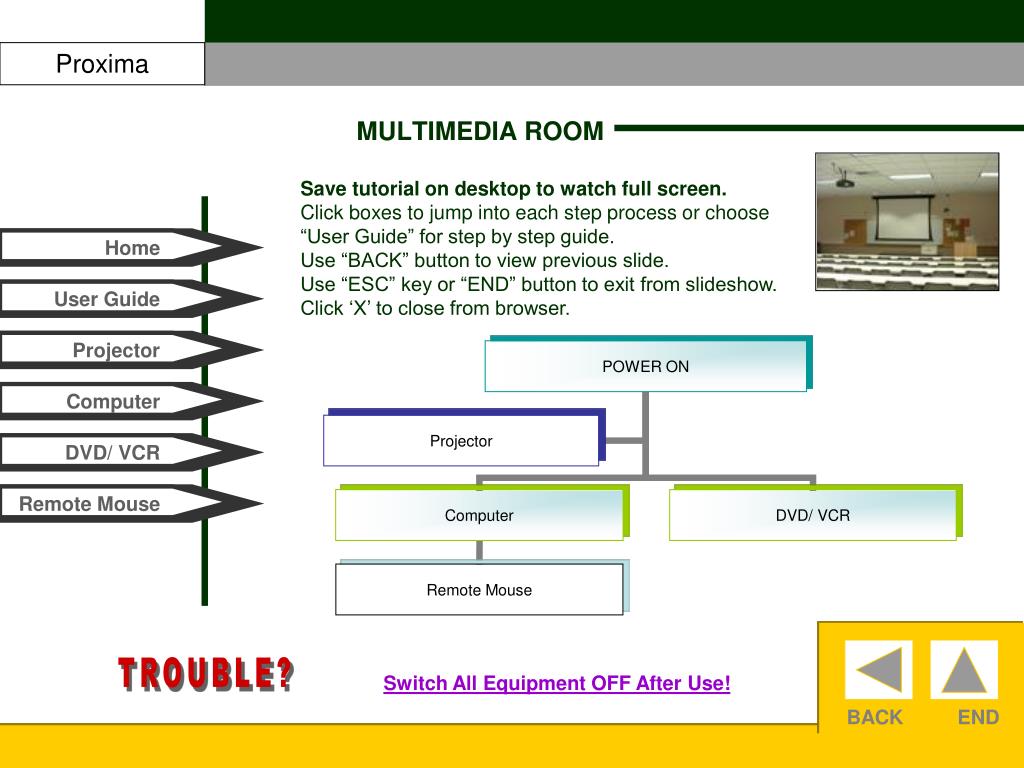

DVD/ VCR User Guide Computer Remote Mouse MULTIMEDIA ROOM Proxima Save tutorial on desktop to watch full screen. Click boxes to jump into each step process or choose “User Guide” for step by step guide. Use “BACK” button to view previous slide. Use “ESC” key or “END” button to exit from slideshow. Click ‘X’ to close from browser. Home Projector TROUBLE? Switch All Equipment OFF After Use! BACK END

Computer Projector DVD/ VCR Remote Mouse USER GUIDE Proxima • To switch DATA Projector ON: Hold remote STANDBY/ON button pressed for approximately 2 seconds or until fan is heard running. • To View Computer : Place INPUT of data projector to RGB Data 1 (press button on remote labeled RGB). • To View CCTV programs: Place INPUT of data projector to VIDEO 1 (press button on remote labeled VIDEO). Insure VCR is powered ON. Place VCR on correct channel using channel selector switch. Home User Guide • To View VCR/DVD Tapes: • Place INPUT of data projector to VIDEO 1. Put video tape or DVD in Deck. Select source and Press PLAY on Deck if video does not automatically start. MORE TROUBLE? BACK END

Computer Projector DVD/ VCR Remote Mouse USER GUIDE – PART 2 Proxima • To use Remote Mouse: • Trigger beneath remote is the left mouse button. The left cursor button near center of remote is the right mouse button. *Laser beam pointer control is button below large round button. Home User Guide • To switch DATA Projector OFF: Hold remote STANDBY/ON button pressed for approximately 2 seconds or until light from data projector goes out. Fan will run to cool down LAMP. TROUBLE? Switch All Equipment OFF After Use! BACK END

Computer Projector DVD/ VCR User Guide Remote Mouse POWER ON Proxima • Switch DATA Projector ON • Data projector are needed for every presentation. • Data Projectors need to be POWER ON by their remote controlonly. • Hold remote STANDBY/ON button pressed for approximately 2 seconds (point towards unit) or until fan is heard running. • Do not press STANDBY/ON repeatedly, this may cause the data projector to lock up. • Activate presentation equipment to be used • Use the “ON/OFF switches on each device to Power ON, including the instructor’s PC. • CCTV presentation requires VCR to tune in channel. • PowerPoint presentation requires instructor’s PC. • DVD playback requires a DVD player, some PCs have DVD player on their drives. Home TROUBLE? BACK END

Home User Guide Computer DVD/ VCR Remote Mouse PROJECTOR Proxima • Operate projector using remote control only. • Switch DATA Projector ON: • Hold remote STANDBY/ON button pressed for approximately 2 seconds (point towards unit) or until fan is heard running. • Do not press STANDBY/ON repeatedly, this may cause the data projector to lock up. • Switch DATA Projector OFF: • Hold remote STANDBY/ON button pressed for approximately 2 seconds or until light from data projector goes out. Fan will run to cool down LAMP. • Select source to display: • Press VIDEO to display VCR/DVD/CCTV. • Press RGB to display computer screen. • Press BLANK for privacy blue screen. • Adjust audio levels: • Use UP/DOWN volume controls on remote. Projector TROUBLE? BACK END

Home User Guide Computer Projector Remote Mouse DVD/ VCR • Press VIDEO on the data projector remote. • To display CCTV use your VCR to tune into assigned channel. • Use UP/DOWN arrow on VCR to select channel. • Screen will be blue till the scheduled playback time. • Adjust volume on Data Projector remote. • On VCR load VHS Tape and use front controls to operate. • DVD/VCR combo decks have a remote control. - Not all rooms are equipped with a DVD/VCR combo unit. • The basic front control buttons can be use to operate DVD and VCR. • To change display source, press the DVD/VCR button on the front. You can tell which side you are controlling by the green DVD or VCR light which shows on the display. DVD/ VCR TROUBLE? BACK END

Projector DVD/ VCR User Guide Remote Mouse COMPUTER Computer operation is beyond the scope of the tutorial, but there are a few things you should know. • Power ON • You will need to turn the computer on and off manually by pressing the ON/OFF switch. • Log IN • Use default user and leave blank for password. • Save Files • Save your files to your personal flash drive, or a blank CD. Home Computer TROUBLE? BACK END

Home User Guide Computer Projector DVD/ VCR REMOTE MOUSE Remote Mouse TROUBLE? BACK END

Home User Guide Computer Projector DVD/ VCR Remote Mouse TROUBLESHOOTING TROUBLE? BACK END
