Analysis of Rotational and Vibrational Raman Spectra in Virtual State Dynamics

Jan 22, 2026

110 likes | 231 Vues

This study investigates the characteristics of Stokes and Anti-Stokes lines observed in Rotational and Vibrational Raman spectra of a sample in virtual state with a rotational quantum number DJ=±1. The analysis focuses on the effective transitions between various rotational states (J, J+2, J-2) and their corresponding vibrational states (V=0, V=1). Emphasis is placed on the comparison of Raman spectra to elucidate the underlying dynamics of molecular interactions.

sean-francis

Télécharger la présentation

Analysis of Rotational and Vibrational Raman Spectra in Virtual State Dynamics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

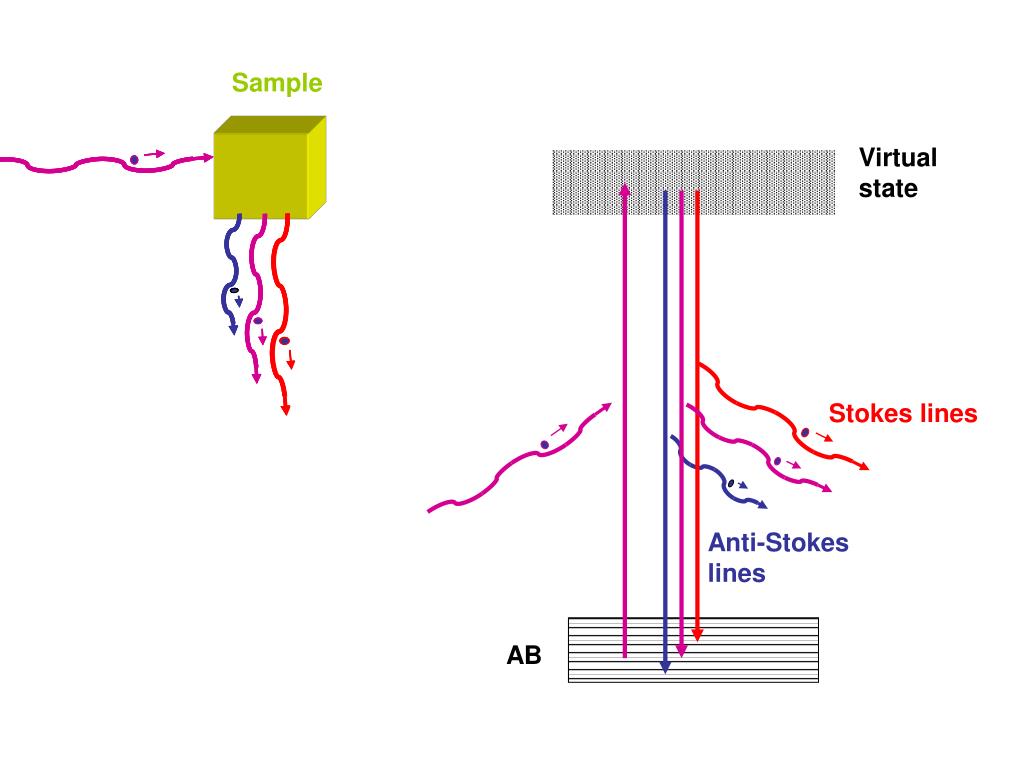

Virtual state AB Sample Stokes lines Anti-Stokes lines
DJ = ± 1 Rotational Raman: Sample Virtual state DJ = ± 1 AB J

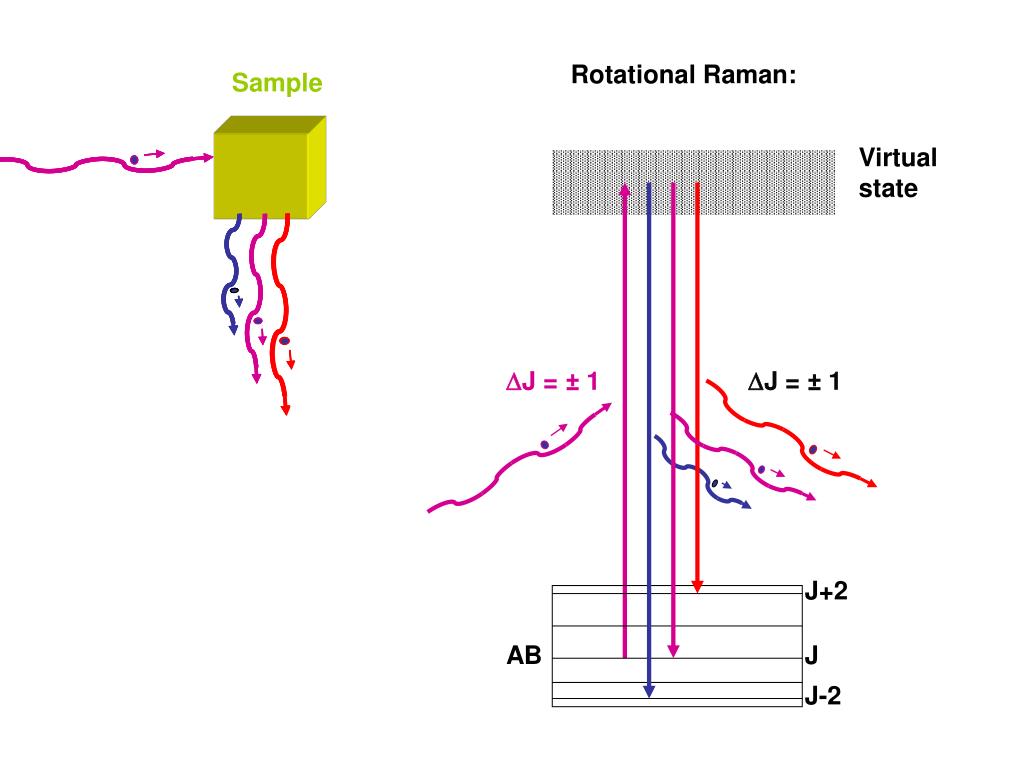

DJ = ± 1 J+2 J-2 Rotational Raman: Sample Virtual state DJ = ± 1 AB J

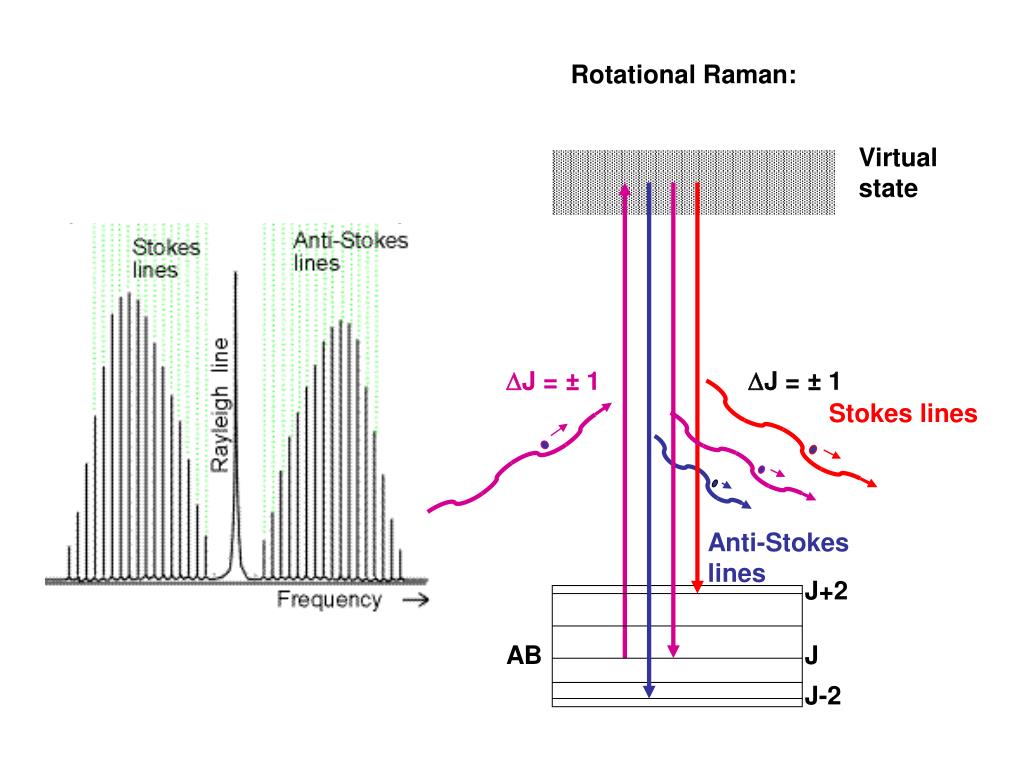

DJ = ± 1 Stokes lines Anti-Stokes lines J+2 J-2 Rotational Raman: Virtual state DJ = ± 1 AB J
Effective transitions: Vs Raman Spectrum:
Virtual state AB Sample Stokes lines Anti-Stokes lines
Vibrational Raman: Sample Virtual state V=1 AB V=0

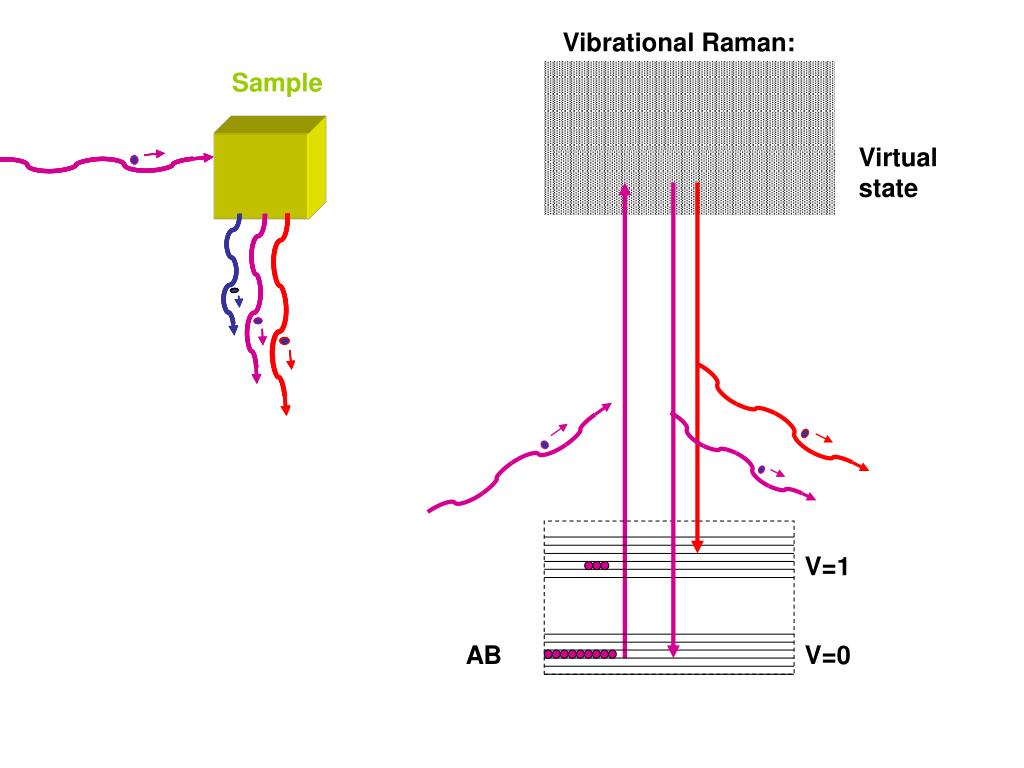

Vibrational Raman: Sample Virtual state V=1 AB V=0

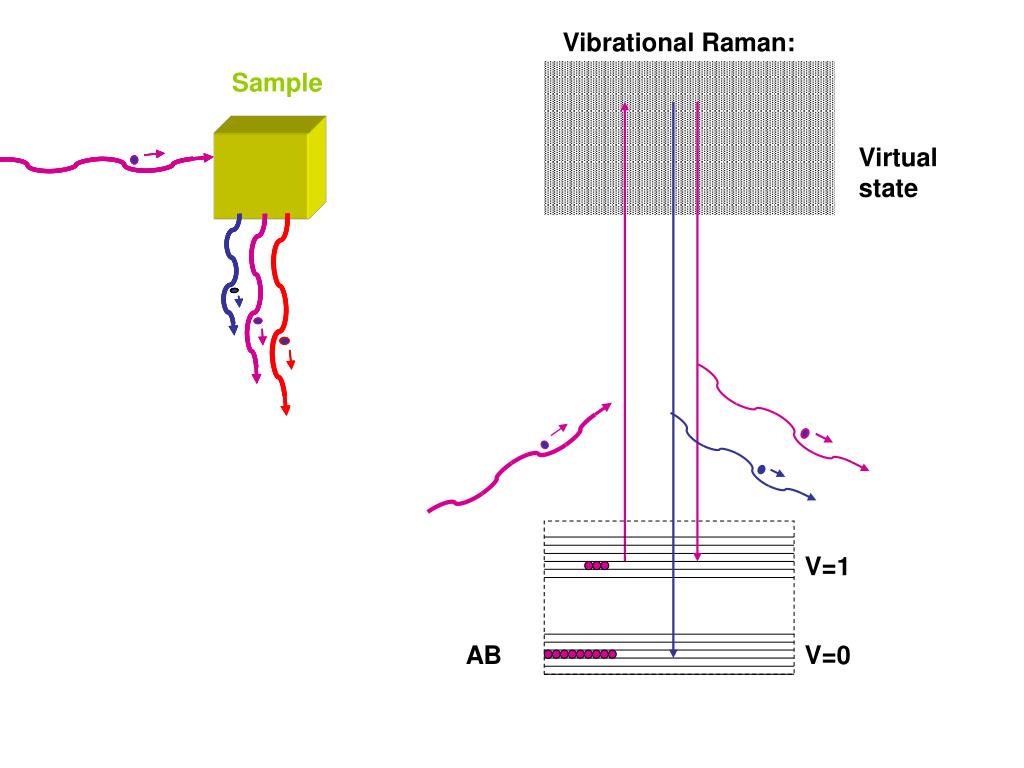

Vibrational Raman: Sample Virtual state V=1 AB V=0
Vibrational Raman: Virtual state V=1 AB V=0

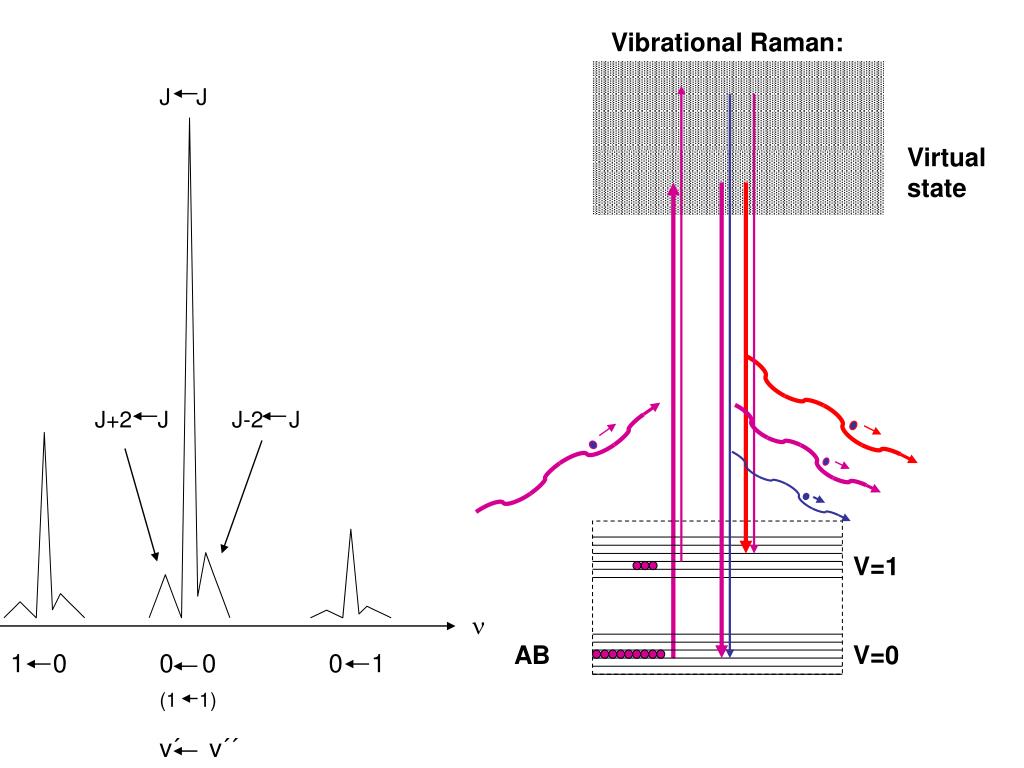

J J J+2 J J-2 J n 1 0 0 0 0 1 (1 1) v´ v´´ Vibrational Raman: Virtual state V=1 AB V=0
