  1. Introduction to Fibre Optic Communication Mid Sweden University

  2. Outline • Optical Fibres (Magnus) • Fibre Amplifiers (Magnus) • Pump Sources (Magnus, Kent) • Optical Devices (Kent) • Optical Soliton Systems (Kent) Department of Information Technology and Media Magnus Engholm

  3. Optical Communication Systems • Terrestial • Long haul • Metropolitan • Office • Submarine Department of Information Technology and Media Magnus Engholm

  4. Properties of Optical Fibres Department of Information Technology and Media Magnus Engholm

  5. Transmission Wavelengths • Loss mechanisms: • Material absorption • Rayleigh scattering • < 0.25 dB/km loss @ ~1.5 m • < 0.5 dB/km loss @ 1.2 - 1.6 m Department of Information Technology and Media Magnus Engholm

  6. Dispersion • Modal dispersion • Chromatic dispersion • material dispersion • waveguide dispersion Department of Information Technology and Media Magnus Engholm

  7. Multi-mode fibres Core size ~50 - 100m Advantages Large NA LED signal light source can be used Inexpensive Disadvantages Large modal dispersion Small bandwidth Single-mode fibres Core size ~3 - 10 m Advantages No modal dispersion Large bandwidth Disadvantages Small NA Laser signal light source must be used Expensive Optical Fibre types Department of Information Technology and Media Magnus Engholm

  8. Single-Mode Fibre Types • Standard single-mode fibre (SMF) • 0 @ 1310 nm • Dcrom< 20 ps/nm-km @ 1550 nm • Dispersion-shifted fibre (DSF) • 0 @ 1550 nm • Nonzero dispersion fibre (NDF) • Small chromatic dispersion @ 1550 nm to reduce penalties from FWM and other nonlinearities Department of Information Technology and Media Magnus Engholm

  9. Limiting factors for high bit-rate and transmission distance • Pulse broadening: • Modal dispersion ~ 10 ns/km • Chromatic dispersion ~ 0.1 ns/km • Nonlinear optical effects: • Stimulated Brillouin scattering (SBS), PT ~ 1-3 mW • Stimulated Raman scattering (SRS), PT ~ 1-2 W • Self phase modulation (SPM) • Four wave mixing (FWM) (multi-channel systems) Department of Information Technology and Media Magnus Engholm

  10. Optical Amplifiers • Rare-earth doped fibre amplifiers • EDFA • TDFA • PDFA • NDFA • Raman Fibre amplifiers • Semiconductor optical amplifiers (SOA) Department of Information Technology and Media Magnus Engholm

  11. Application of Optical Amplifiers • In-line amplifiers • replaces regenerators • Power amplifiers • boost signals to compensate fibre losses • Preamplifiers • boost the recieved signals • LAN amplifiers • compensate distribution losses in local-area networks Department of Information Technology and Media Magnus Engholm

  12. Erbium Doped Fibre Amplifier (EDFA) • Very few components • High reliability Department of Information Technology and Media Magnus Engholm

  13. Optical Amplifier • Characteristics of an ideal amplifier • High pump absorption • Large spectral bandwidth • Gain flatness • High QE • Low noise • High gain • High reliability (submarine systems) Department of Information Technology and Media Magnus Engholm

  14. Origin of Noise in Fibre Amplifiers Department of Information Technology and Media Magnus Engholm

  15. Noise Mechanisms • Signal hetrodynes with ASE: signal - spontanous beat noise • ASE heterodynes with itself: Spontanous - spontanous beat noise • Amplified signal shot noise - negligible Department of Information Technology and Media Magnus Engholm

  16. Noise Figure • NF = SNRin / SNRout • NF will always be greater than one, due to added ASE noise • The NF-value is usually given in dB • Noise figures close to 3 dB have been obtained in EDFAs (ideal amplifier) Department of Information Technology and Media Magnus Engholm

  17. Erbium Doped Fibre Amplifier • Spectroscopic properties • Long upper level life time ~10 ms • No ESA for 980 and 1480 nm pump • Best GE @ 980 nm • 100% QE • NF close to 3 dB Department of Information Technology and Media Magnus Engholm

  18. Erbium Doped Fibre Amplifier • Optical properties for different glass hosts • Wider stimulated emission • Wider amplification bandwidth Department of Information Technology and Media Magnus Engholm

  19. Erbium Doped Fibre Amplifier • Gain spectrum • Gain peak @ 1535 nm • Broad spectral BW ~ 40 nm Department of Information Technology and Media Magnus Engholm

  20. EDFA Input/Output Characteristics • Fibre NA = 0.16 • Fibre length = 9 m • 200 mW of pump power @ 980 nm Department of Information Technology and Media Magnus Engholm

  21. Erbium Doped Fibre Amplifier • EDFA design Department of Information Technology and Media Magnus Engholm

  22. Gain Efficiency vs Pump Wavelength • 980 nm ~ 11 dB/mw • 1480 nm ~ 5 dB/mw • 830 nm ~ 1.3 dB/mw Department of Information Technology and Media Magnus Engholm

  23. 980 nm vs 1480 nm pumping EDFAs • 980 nm pump • Low noise • Wasted energy because electrons must relax unproductively • Higher GE • Narrow absorption band ~ 2 nm • 1480 nm pumps • Higher noise • Need higher drive current - heat dissipation required - expensive • Smaller GE • Large tolerance in pump wavelength ~ 20 nm Department of Information Technology and Media Magnus Engholm

  24. Tm-Doped Fibre Amplifier (TDFA) • Gain @ 1470 nm (S-band) • Pumping @ 1060 nm • Low QE ~ 4% • Measured lifetime @ 3H4 ~ 0.6 ms Department of Information Technology and Media Magnus Engholm

  25. Pr-doped Fibre Amplifiers (PDFA) • Resonance @ 1.32 m • Low QE ~ 4% • GE < 0.2 dB/mW • Two pumping wavelengths: • InGaAs laser @ 1017 nm (< 50 mW output) • Nd:YLF crystal laser @ 1047 nm (ineffective & expensive) Department of Information Technology and Media Magnus Engholm

  26. Pr-doped Fibre Amplifiers (PDFA) • Results so far: • QE of ~ 5% in ZBLAN glass • QE of ~ 19 % in GLS glass (University of Southampton, 1998) • Small signal gains ~ 38 dB • Saturated output powers of up to 200 mW • NF ~ 15 dB • Problem: • Require glass compositions with low phonon energies • Non-silica based – splicing difficulties Department of Information Technology and Media Magnus Engholm

  27. Nd-doped Fibre Amplifiers (NDFA) • Gain @ 1310 – 1360 nm if doped in ZBLAN • Gain @ 1360 – 1400 nm if doped in Silica. • Strong ESA at signal wavelength • NF good, but not as good as in EDFAs • Limited performance due to competing radiative transitions • Splicing difficulties Department of Information Technology and Media Magnus Engholm

  28. Raman Amplifiers • Characteristics • Uses SRS in intrinsic silica fibres • Require high pump powers • Broad gain spectrum • Max. gain @ 60 - 100 nm above pump wavelength Department of Information Technology and Media Magnus Engholm

  29. Raman Amplifiers • Gain spectrum • 9 km gain fibre • Gain peak ~ 60 - 100 nm above pump wavelength • Low NF ~ 5 dB • Peak gain is 18 dB • Pump wavelength 1455 nm Department of Information Technology and Media Magnus Engholm

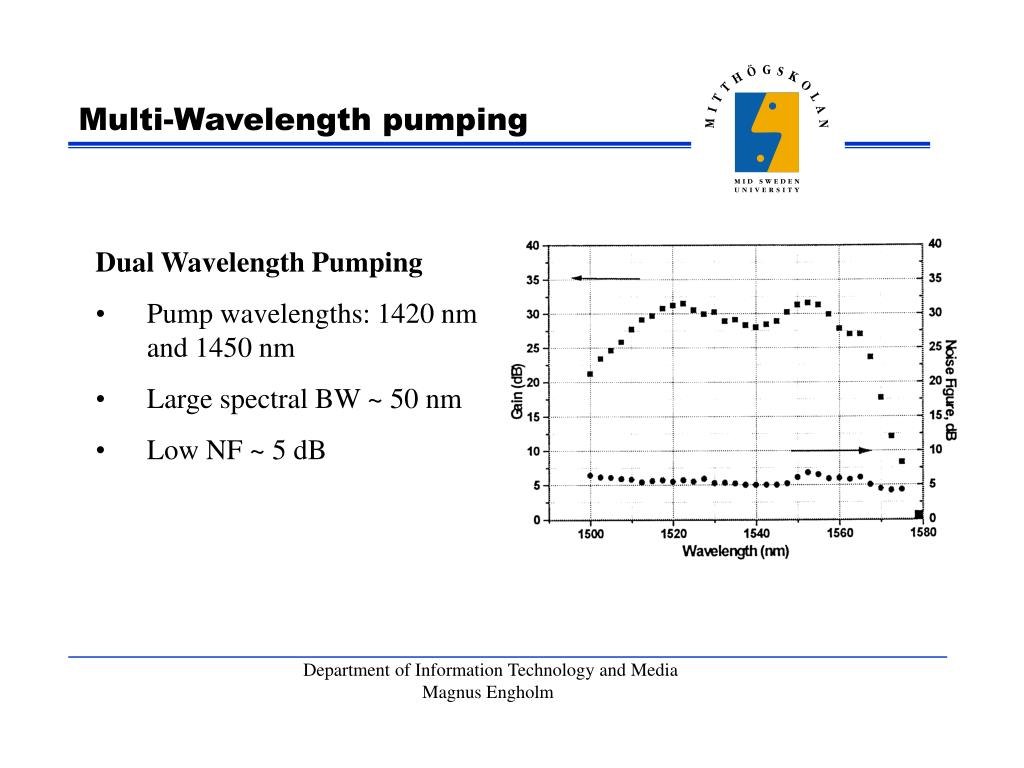

  30. Multi-Wavelength pumping • Dual Wavelength Pumping • Pump wavelengths: 1420 nm and 1450 nm • Large spectral BW ~ 50 nm • Low NF ~ 5 dB Department of Information Technology and Media Magnus Engholm

  31. Raman Amplifier • Advantages • SRS effect is present in all fibres • Gain at any wavelength • Low NF due to low ASE • Disadvantages • Fast response time • High pump powers required • High power pumps are expensive at the wavelengths of interest Department of Information Technology and Media Magnus Engholm

  32. Pumping • Core pumping • Low NF ~ 3.5 dB • High cost • High complexity • Cladding pumping • NF ~ 6 dB • Low cost • Low complexity Department of Information Technology and Media Magnus Engholm

  33. Dubble Clad Optical Fibre • Core size ~ 10 –15 m • Core NA ~ 0.12 – 0.2 • Pump cladding size ~ 100 – 400 m • Pump cladding NA ~ 0.4 • Effective pump absorption coefficient eff = core(Acore/Acladding) • Increase pump absorption by co-doping with Yb Department of Information Technology and Media Magnus Engholm

  34. Fibre Design • Problem: Pump absorption low, rays will miss doped core • Solution: break symmetry • a) Offset core, hard to splice • b) Difficult to make • c) Not difficult to make Department of Information Technology and Media Magnus Engholm

  35. Launching schemes • Straightforward, but inconvenient to use • Looks simple, but is difficult to make • Possible problem: fibre damage – fibre gets hot and may brake • Typical launching efficiency ~ 70 – 80% Department of Information Technology and Media Magnus Engholm

  36. Fibre Lasers • Simple design with very few components • Very narrow line width (10 kHz) • For use as a signal source, some external modulator must be used • High power output are obtainable in cw- mode ~4W, ~ 10 W in pulsed mode Department of Information Technology and Media Magnus Engholm

  37. Yb-doped Fibre Laser • Strong absorption and emission band @ 976 nm • High power pumps is required ~ 3 W • Absorption @ 915 - 940 is weaker but wider • Results so far: • 500 mW (J. Minelly, Corning) • 800 mW (A. Kurkow, GPI, Moscow) Department of Information Technology and Media Magnus Engholm

  38. The future of Fibre Amplifiers • Increase in spectral bandwidth ~ 140 nm (hybrid solutions) Department of Information Technology and Media Magnus Engholm

  39. Prototype for a large BW - amplifier • Hybrid solution EDFA + TDFA Department of Information Technology and Media Magnus Engholm

  40. Latest Developments Department of Information Technology and Media Magnus Engholm

  41. END OF PART I Department of Information Technology and Media Magnus Engholm
