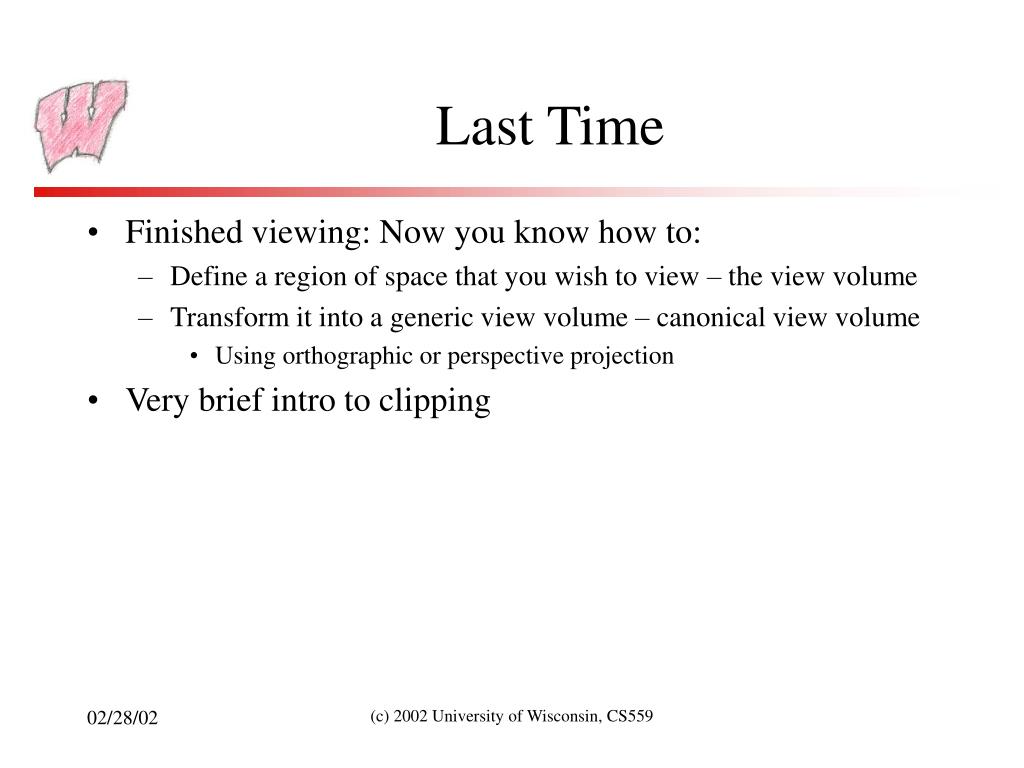

  1. Last Time • Finished viewing: Now you know how to: • Define a region of space that you wish to view – the view volume • Transform it into a generic view volume – canonical view volume • Using orthographic or perspective projection • Very brief intro to clipping (c) 2002 University of Wisconsin, CS559

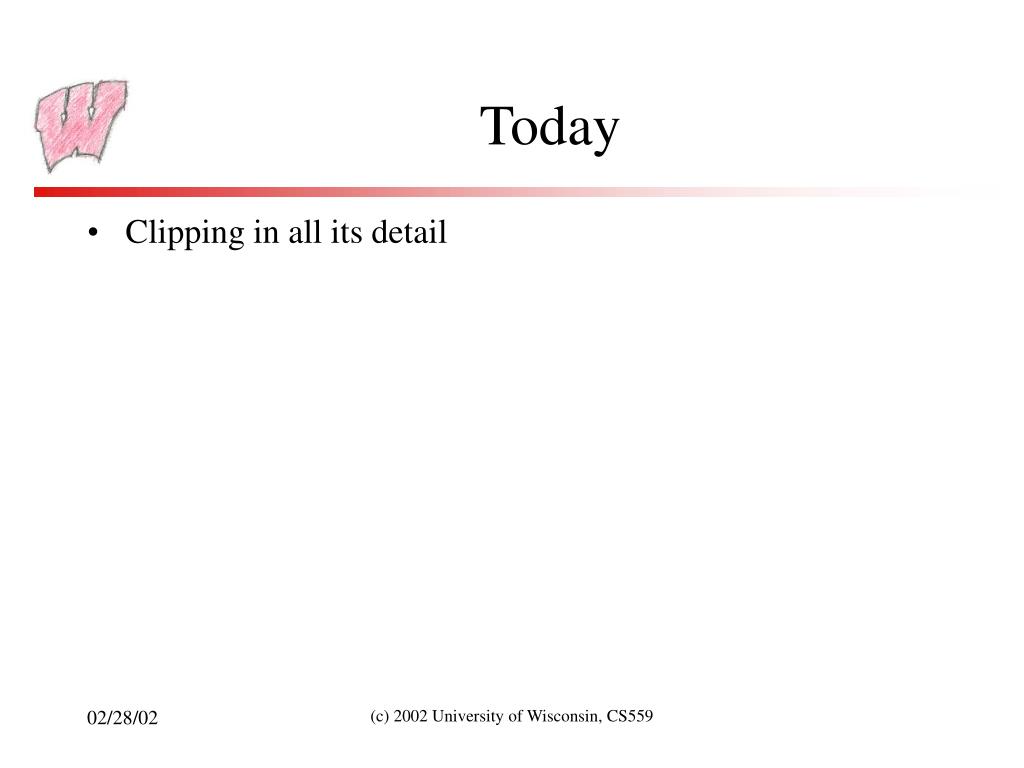

  2. Today • Clipping in all its detail (c) 2002 University of Wisconsin, CS559

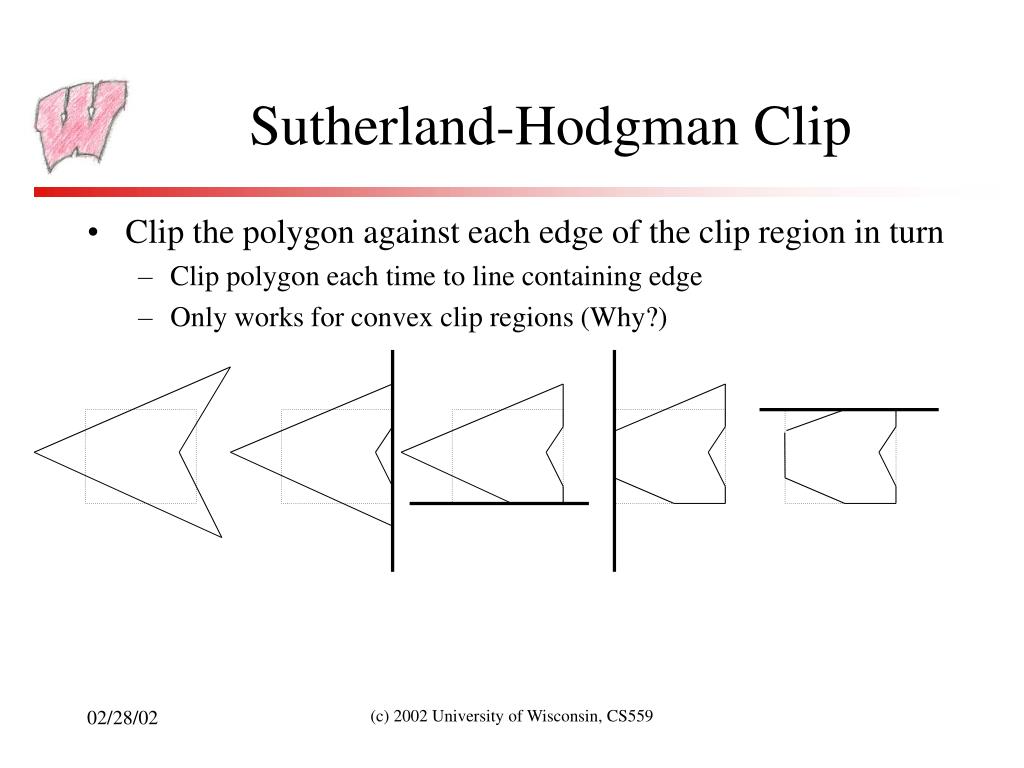

  3. Sutherland-Hodgman Clip • Clip the polygon against each edge of the clip region in turn • Clip polygon each time to line containing edge • Only works for convex clip regions (Why?) (c) 2002 University of Wisconsin, CS559

  4. Sutherland-Hodgman Clip • To clip a polygon to a line/plane: • Consider the polygon as a list of vertices • One side of the line/plane is considered inside the clip region, the other side is outside • We are going to rewrite the polygon one vertex at a time – the rewritten polygon will be the polygon clipped to the line/plane • Check start vertex: if “inside”, emit it, otherwise ignore it • Continue processing vertices as follows… (c) 2002 University of Wisconsin, CS559

  5. Sutherland-Hodgman (3) • Look at the next vertex in the list, and the edge from the last vertex to the next. If the • polygon edge crosses the clip line/plane going from out to in: emit crossing point, next vertex • polygon edge crosses clip line/plane going from in to out: emit crossing • polygon edge goes from out to out: emit nothing • polygon edge goes from in to in: emit next vertex (c) 2002 University of Wisconsin, CS559

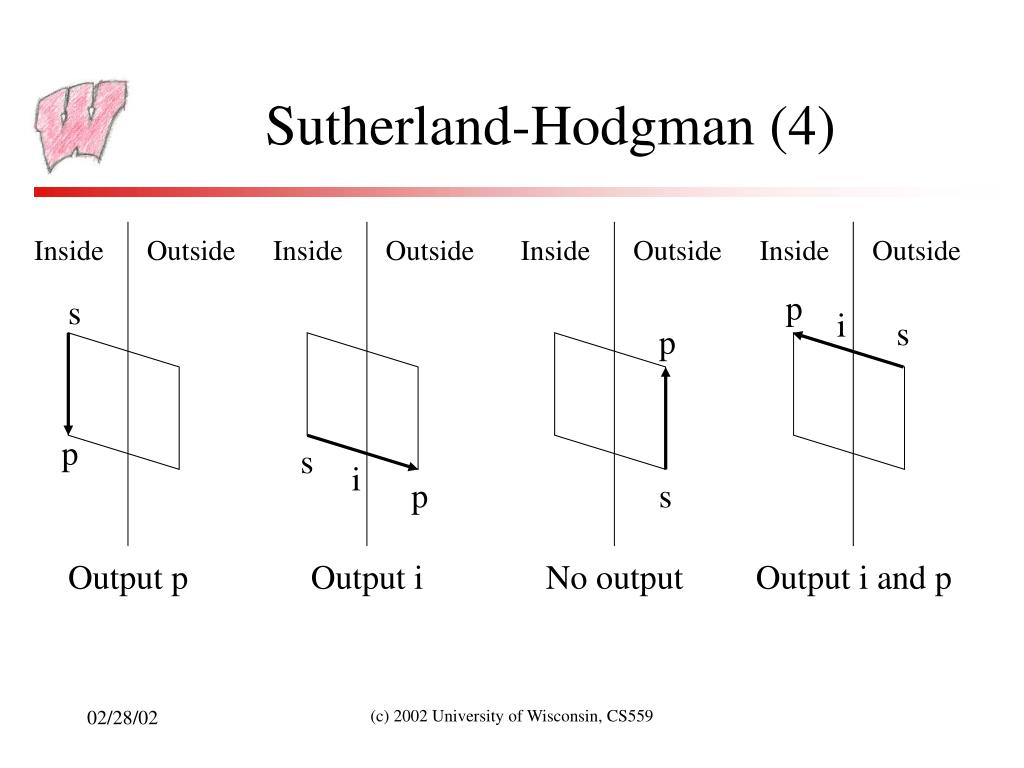

  6. Sutherland-Hodgman (4) Inside Outside Inside Outside Inside Outside Inside Outside p s i s p p s i p s Output p Output i No output Output i and p (c) 2002 University of Wisconsin, CS559

  7. Lines/planes store a vector pointing toward the outside of the clip region – the outward pointing normal Could re-define for inward pointing Dot products give inside/outside information Note that x is any point on the clip line/plane Inside-Outside Testing Outside Inside x f n i s (c) 2002 University of Wisconsin, CS559

  8. Finding Intersection Pts • Use the parametric form for the edge between two points, x1 and x2: • For planes of the form x=a: • Similar forms for y=a, z=a • Solution for general plane can also be found (c) 2002 University of Wisconsin, CS559

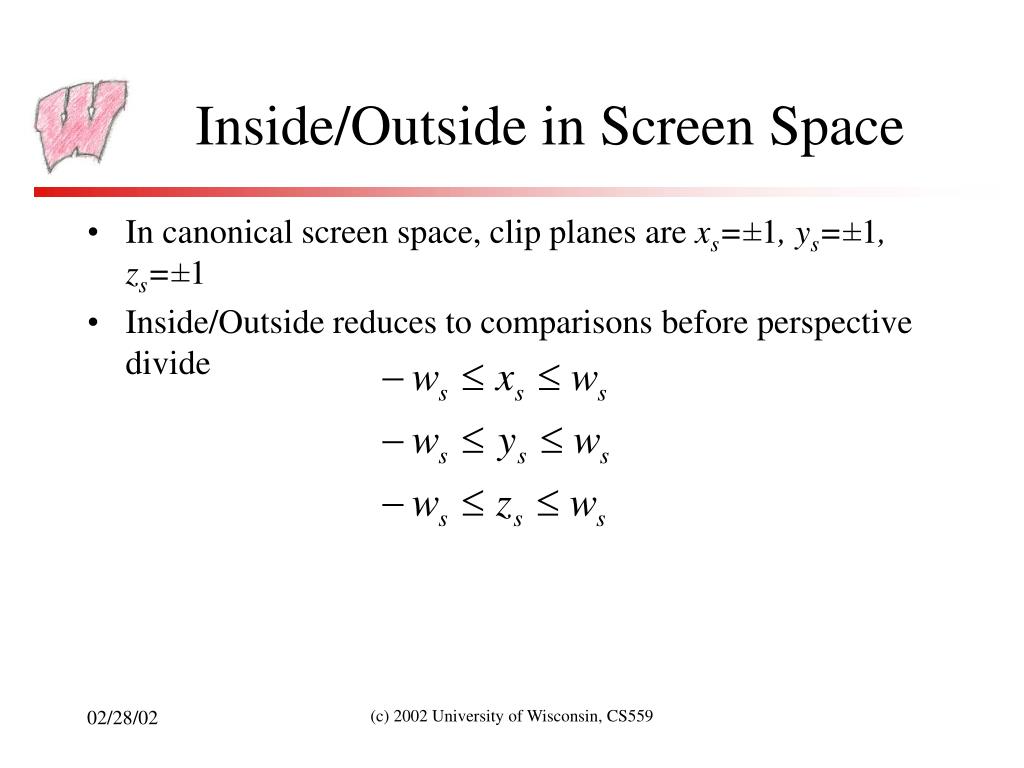

  9. Inside/Outside in Screen Space • In canonical screen space, clip planes are xs=±1, ys=±1, zs=±1 • Inside/Outside reduces to comparisons before perspective divide (c) 2002 University of Wisconsin, CS559

  10. Hardware Sutherland-Hodgman • Suitable for hardware implementation • Only need the clip edge, the endpoints of the current edge, and the last output point • Polygon edges are output as they are found, and passed right on to the next clip region edge Clip Top Clip Right Clip Bottom Vertices in Clip Far Clip Near Clip Left Clipped vertices out (c) 2002 University of Wisconsin, CS559

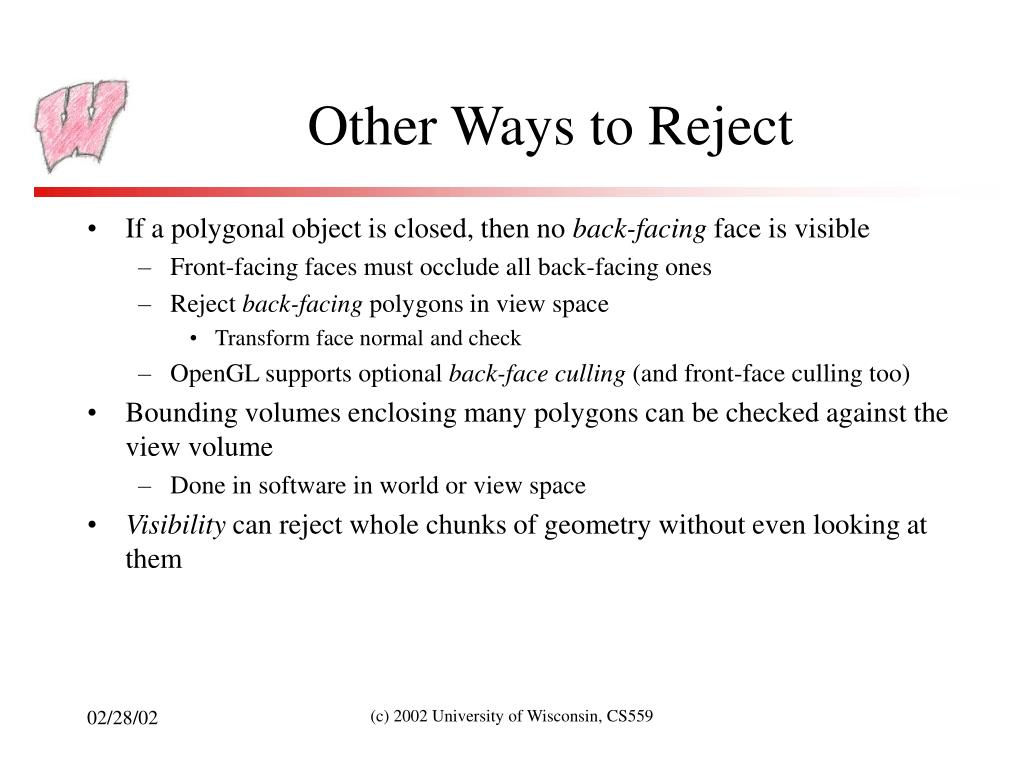

  11. Other Ways to Reject • If a polygonal object is closed, then no back-facing face is visible • Front-facing faces must occlude all back-facing ones • Reject back-facing polygons in view space • Transform face normal and check • OpenGL supports optional back-face culling (and front-face culling too) • Bounding volumes enclosing many polygons can be checked against the view volume • Done in software in world or view space • Visibility can reject whole chunks of geometry without even looking at them (c) 2002 University of Wisconsin, CS559

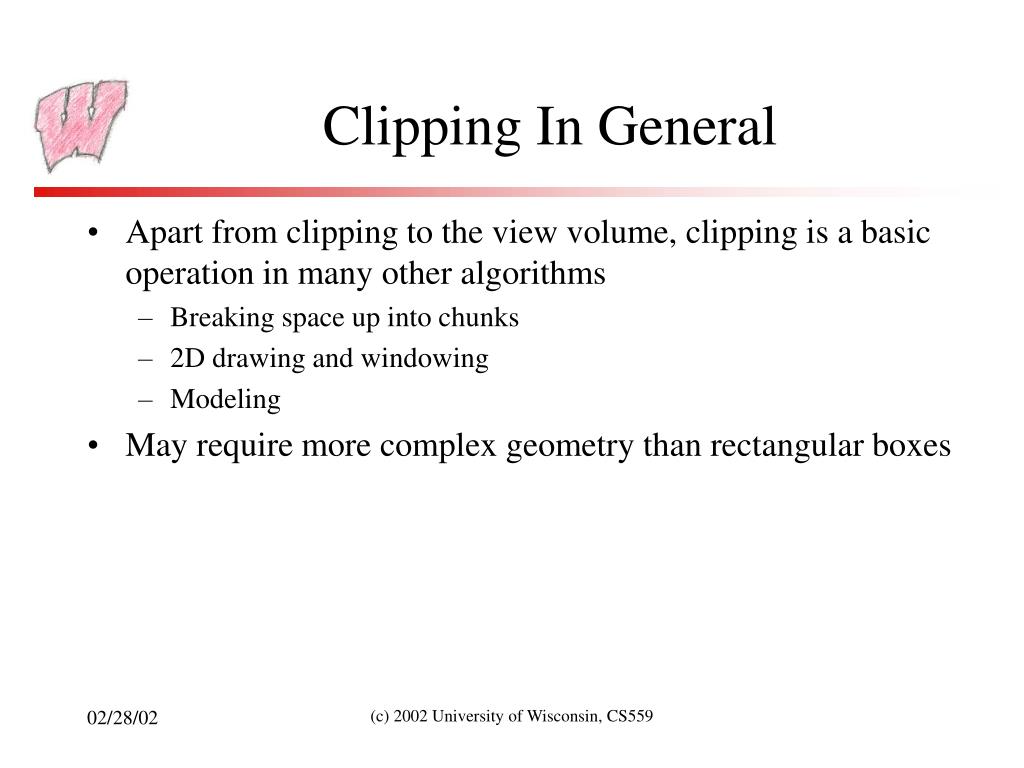

  12. Clipping In General • Apart from clipping to the view volume, clipping is a basic operation in many other algorithms • Breaking space up into chunks • 2D drawing and windowing • Modeling • May require more complex geometry than rectangular boxes (c) 2002 University of Wisconsin, CS559

  13. Additional Clipping Planes • Useful for doing things like cut-away views • Use a clip plane to cut off part of the object • Only works if piece to be left behind is convex • OpenGL allows you to do it • Also one way to use OpenGL to identify objects in a region of space (uses the selection mechanism) (c) 2002 University of Wisconsin, CS559

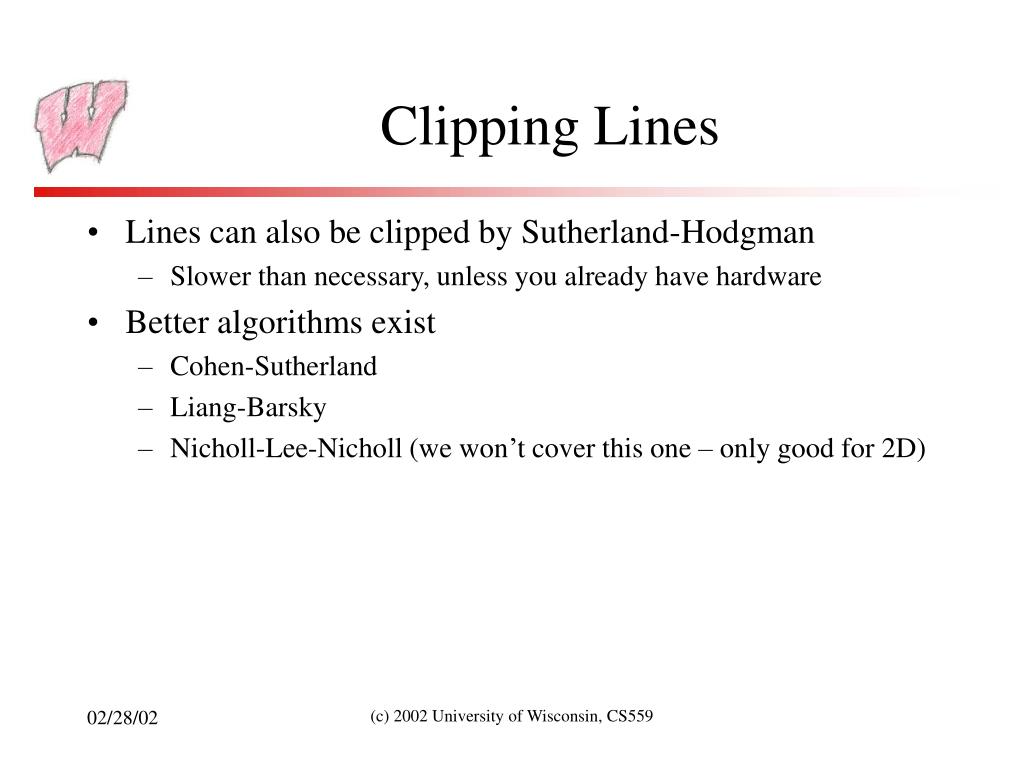

  14. Clipping Lines • Lines can also be clipped by Sutherland-Hodgman • Slower than necessary, unless you already have hardware • Better algorithms exist • Cohen-Sutherland • Liang-Barsky • Nicholl-Lee-Nicholl (we won’t cover this one – only good for 2D) (c) 2002 University of Wisconsin, CS559

  15. Cohen-Sutherland (1) • Works basically the same as Sutherland-Hodgman • Was developed earlier • Clip line against each edge of clip region in turn • If both endpoints outside, discard line and stop • If both endpoints in, continue to next edge (or finish) • If one in, one out, chop line at crossing pt and continue • Works in both 2D and 3D for convex clipping regions (c) 2002 University of Wisconsin, CS559

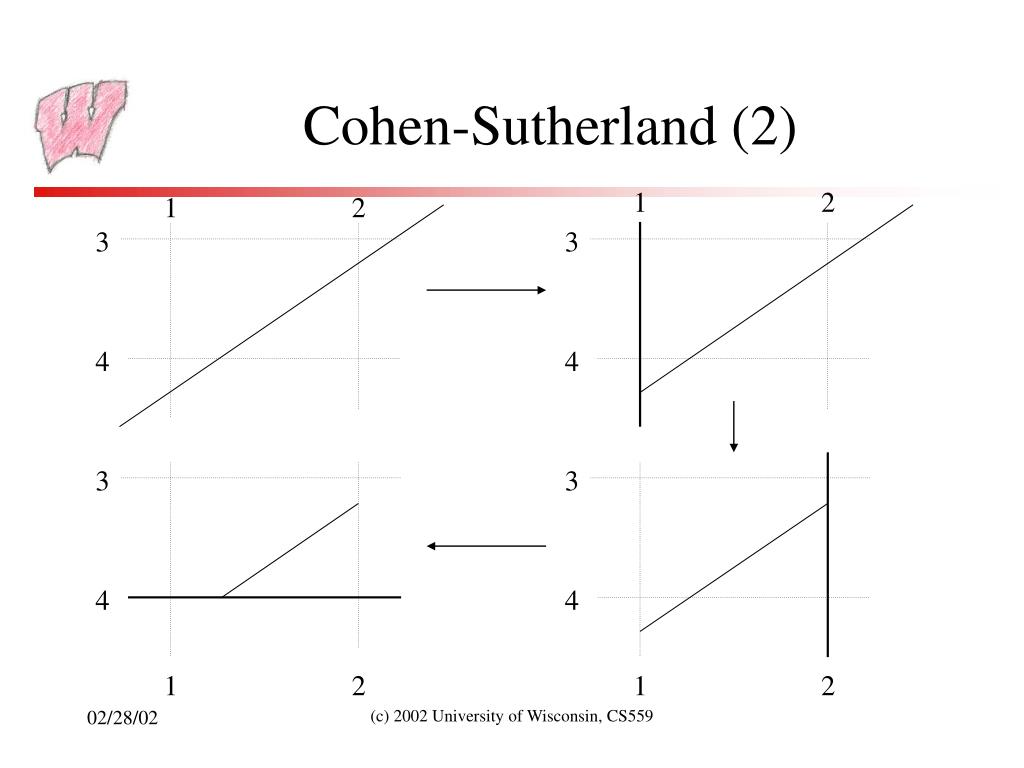

  16. Cohen-Sutherland (2) 1 2 1 2 3 3 4 4 3 3 4 4 1 2 1 2 (c) 2002 University of Wisconsin, CS559

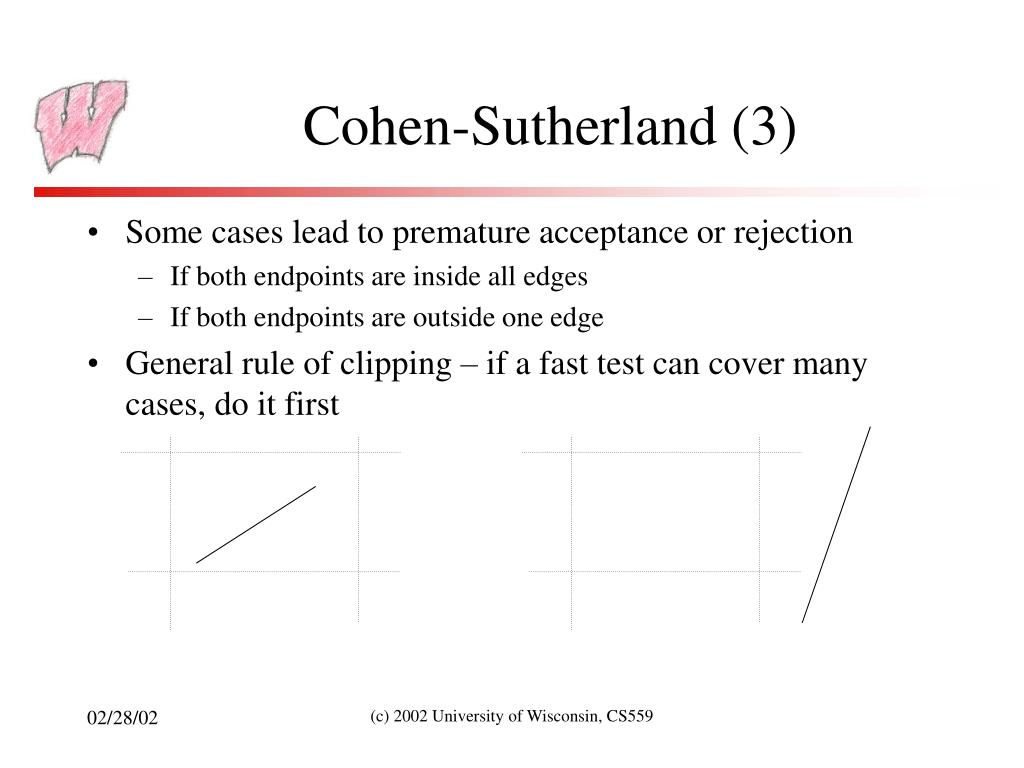

  17. Cohen-Sutherland (3) • Some cases lead to premature acceptance or rejection • If both endpoints are inside all edges • If both endpoints are outside one edge • General rule of clipping – if a fast test can cover many cases, do it first (c) 2002 University of Wisconsin, CS559

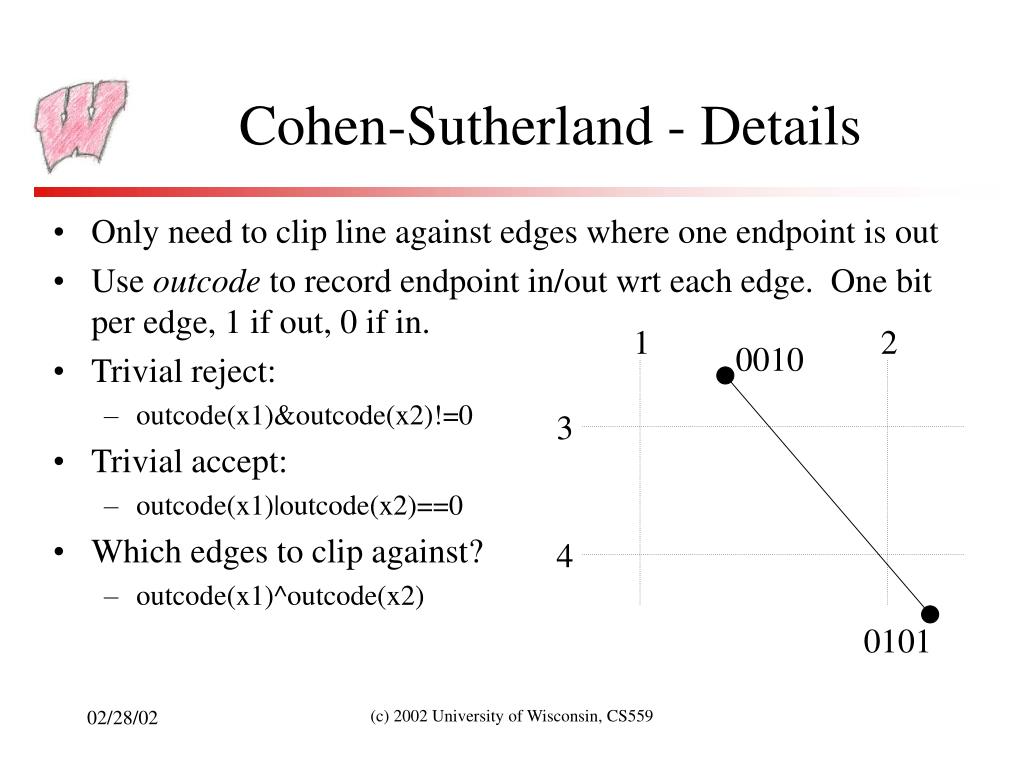

  18. Cohen-Sutherland - Details • Only need to clip line against edges where one endpoint is out • Use outcode to record endpoint in/out wrt each edge. One bit per edge, 1 if out, 0 if in. • Trivial reject: • outcode(x1)&outcode(x2)!=0 • Trivial accept: • outcode(x1)|outcode(x2)==0 • Which edges to clip against? • outcode(x1)^outcode(x2) 1 2 0010 3 4 0101 (c) 2002 University of Wisconsin, CS559

  19. Liang-Barsky Clipping • Parametric clipping - view line in parametric form and reason about the parameter values • More efficient, as not computing the coordinate values at irrelevant vertices • Works for rectilinear clip regions in 2D or 3D • Clipping conditions on parameter: Line is inside clip region for values of t such that (for 2D): (c) 2002 University of Wisconsin, CS559

  20. Liang-Barsky (2) • Infinite line intersects clip region edges when: where Note: Left edge is 1, right edge is 2, top edge is 3, bottom is 4 (c) 2002 University of Wisconsin, CS559

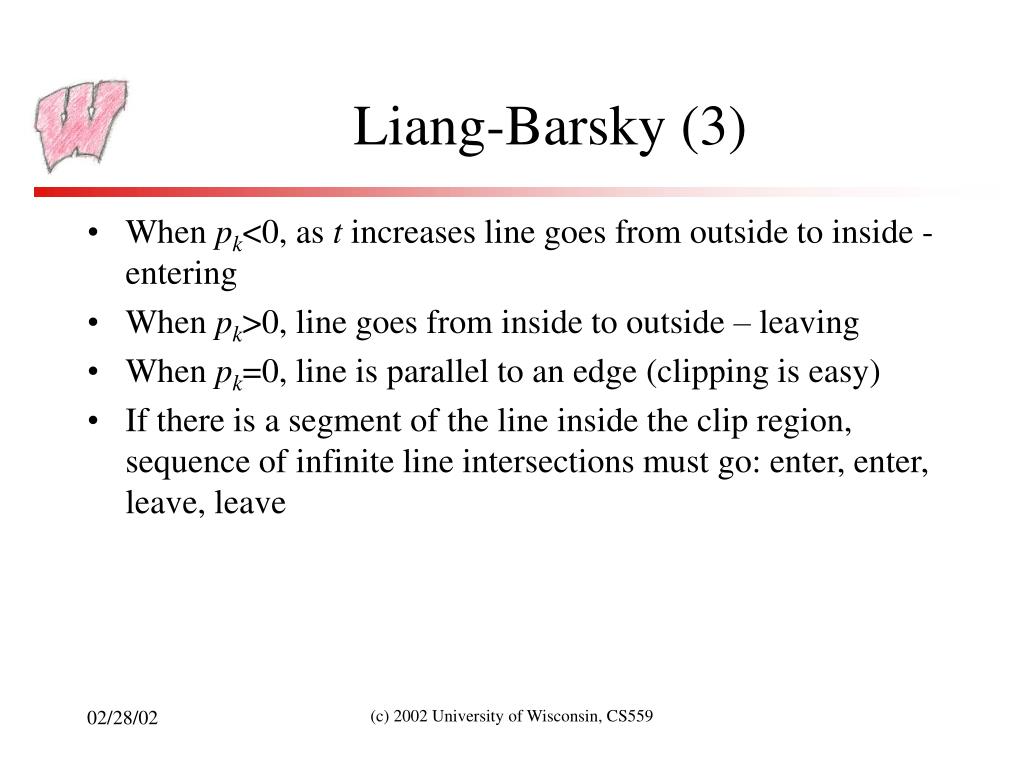

  21. Liang-Barsky (3) • When pk<0, as t increases line goes from outside to inside - entering • When pk>0, line goes from inside to outside – leaving • When pk=0, line is parallel to an edge (clipping is easy) • If there is a segment of the line inside the clip region, sequence of infinite line intersections must go: enter, enter, leave, leave (c) 2002 University of Wisconsin, CS559

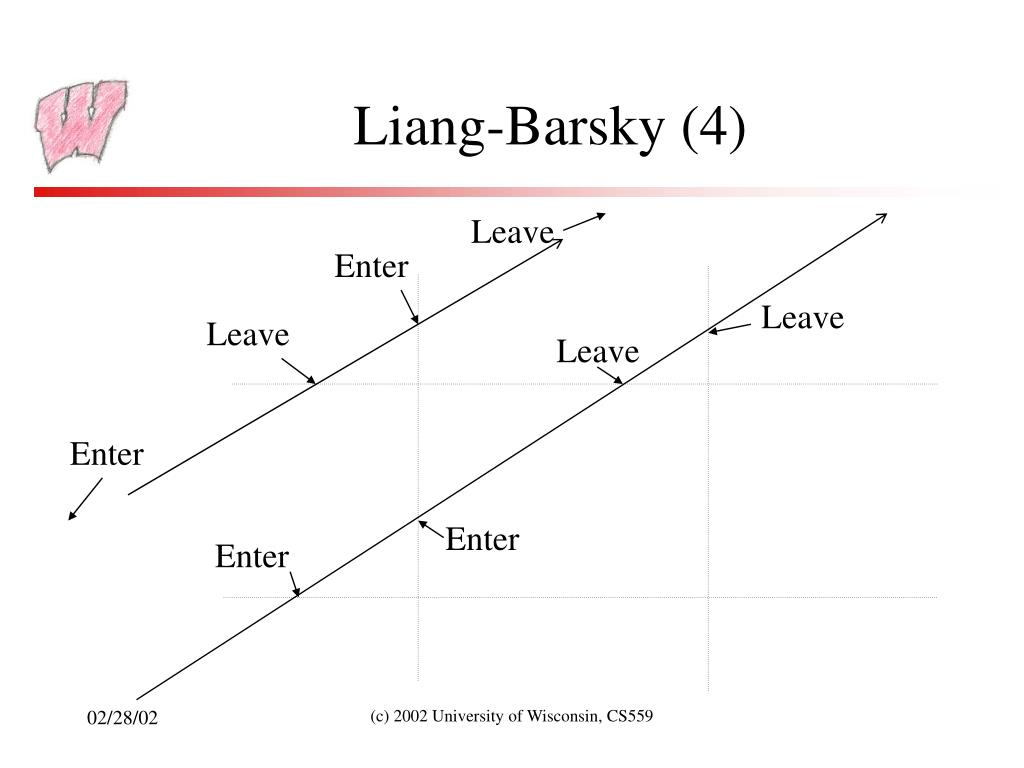

  22. Liang-Barsky (4) Leave Enter Leave Leave Leave Enter Enter Enter (c) 2002 University of Wisconsin, CS559

  23. Liang-Barsky - Algorithm • Compute entering t values, which are qk/pk for each pk<0 • Compute leaving t values, which are qk/pk for each pk>0 • Parameter value for small t end of line is:tsmall= max(0, entering t’s) • parameter value for large t end of line is: tlarge=min(1, leaving t’s) • if tsmall<tlarge, there is a line segment - compute endpoints by substituting t values • Improvement (and actual Liang-Barsky): • compute t’s for each edge in turn (some rejects occur earlier like this) (c) 2002 University of Wisconsin, CS559

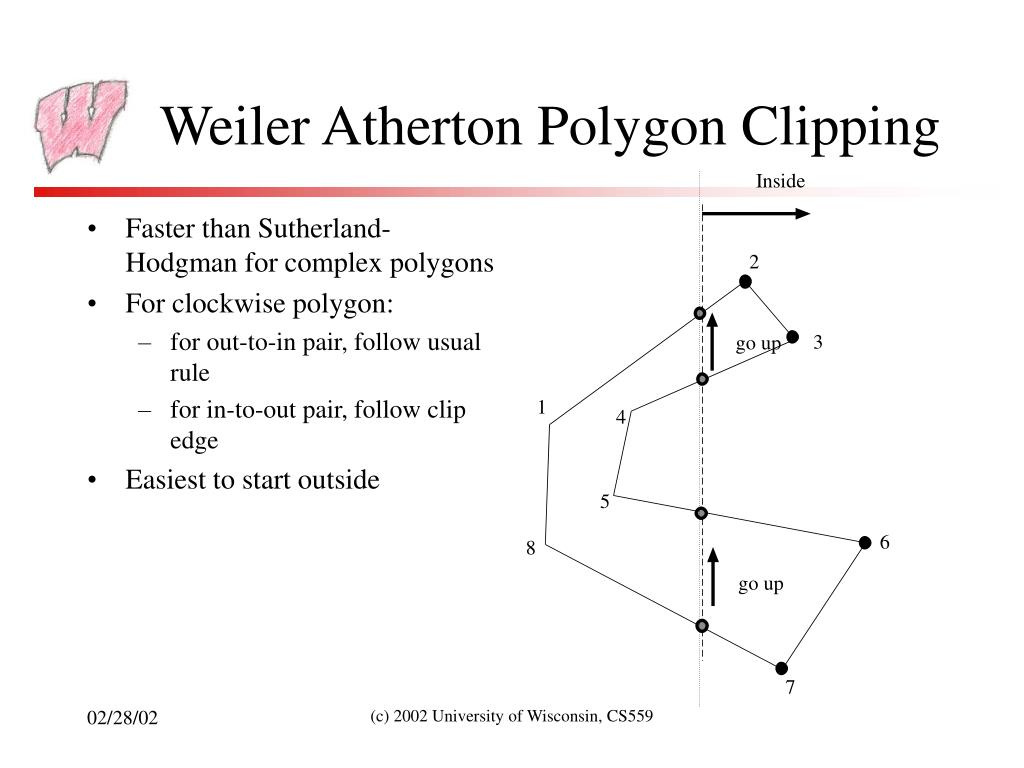

  24. Weiler Atherton Polygon Clipping • Faster than Sutherland-Hodgman for complex polygons • For clockwise polygon: • for out-to-in pair, follow usual rule • for in-to-out pair, follow clip edge • Easiest to start outside (c) 2002 University of Wisconsin, CS559

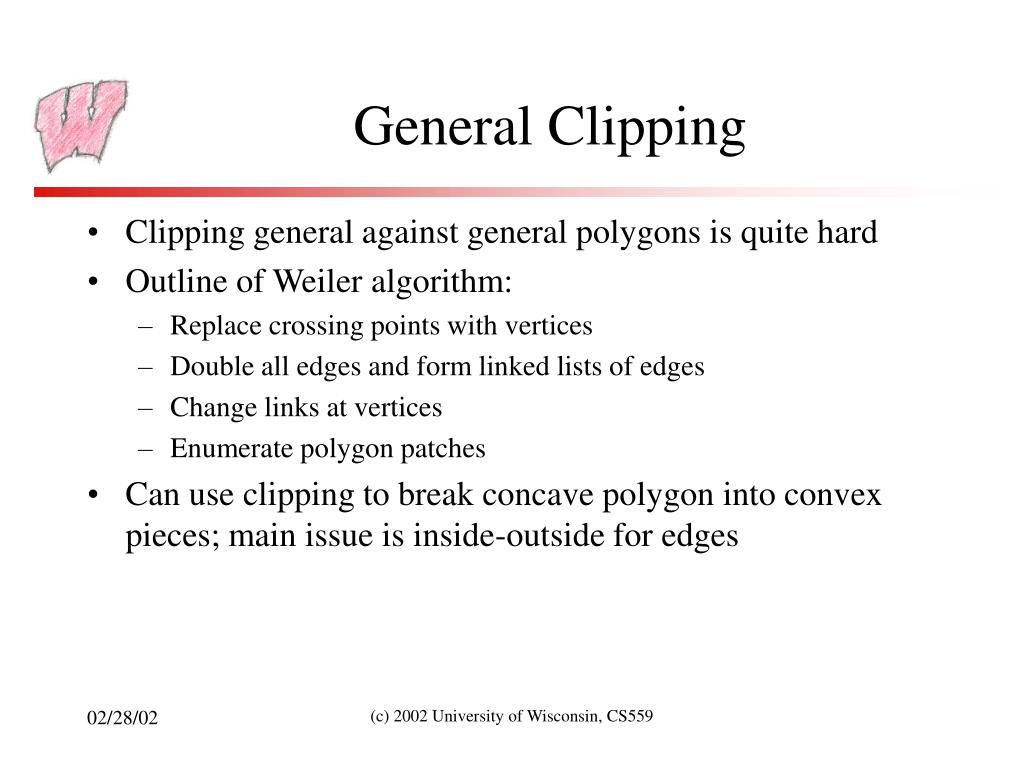

  25. General Clipping • Clipping general against general polygons is quite hard • Outline of Weiler algorithm: • Replace crossing points with vertices • Double all edges and form linked lists of edges • Change links at vertices • Enumerate polygon patches • Can use clipping to break concave polygon into convex pieces; main issue is inside-outside for edges (c) 2002 University of Wisconsin, CS559

  26. Weiler Algorithm (1) (c) 2002 University of Wisconsin, CS559

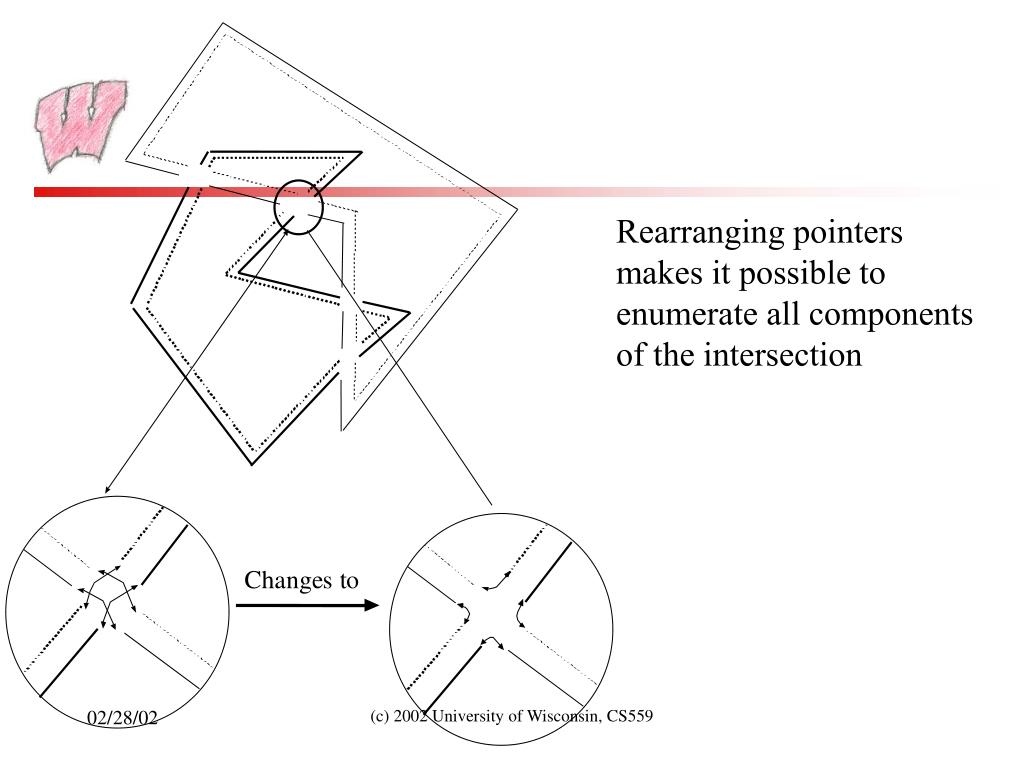

  27. Rearranging pointers makes it possible to enumerate all components of the intersection C h a n g e s t o (c) 2002 University of Wisconsin, CS559

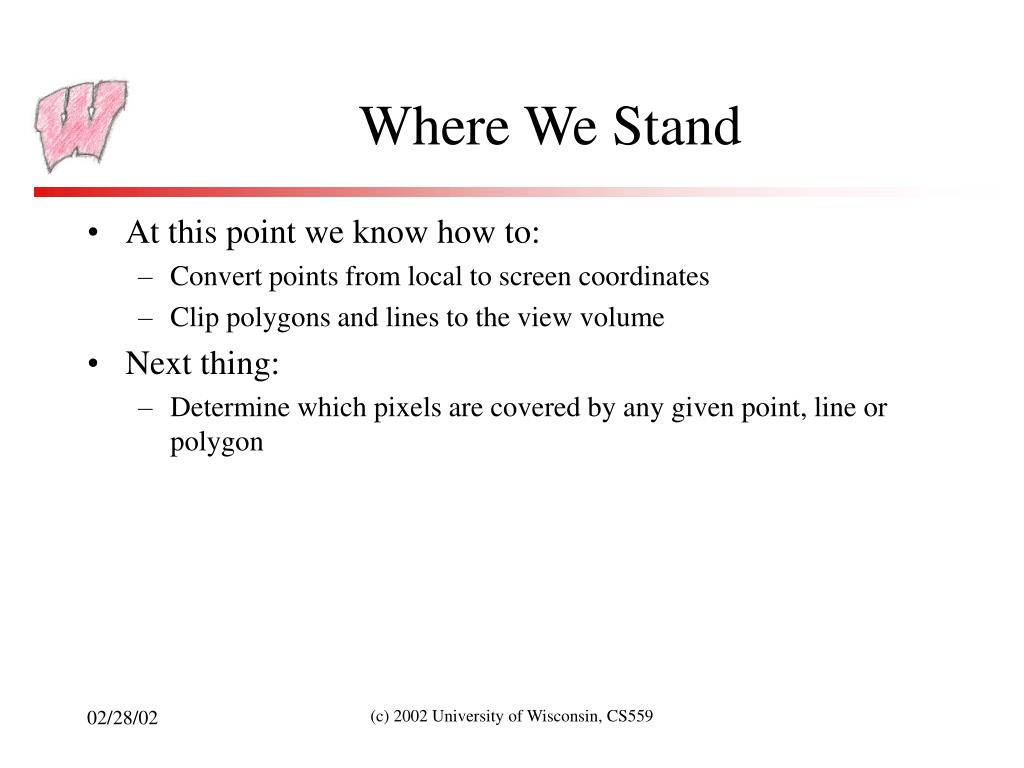

  28. Where We Stand • At this point we know how to: • Convert points from local to screen coordinates • Clip polygons and lines to the view volume • Next thing: • Determine which pixels are covered by any given point, line or polygon (c) 2002 University of Wisconsin, CS559

  29. Drawing Points • When points are mapped into window coordinates, they could land anywhere – not just at a pixel center • Solution is the simple, obvious one • Map to window space • Fill the closest pixel • Can also specify a radius – fill a square of that size, or fill a circle • Square is faster (c) 2002 University of Wisconsin, CS559

  30. Drawing Lines • Task: Decide which pixels to fill (samples to use) to represent a line • We know that all of the line lies inside the visible region (clipping gave us this!) • Issues: • If slope between -1 and 1, one pixel per column. Otherwise, one pixel per row • Constant brightness? Lines of the same length should light the same number of pixels (we normally ignore this) • Anti-aliasing? (Getting rid of the “jaggies”) (c) 2002 University of Wisconsin, CS559

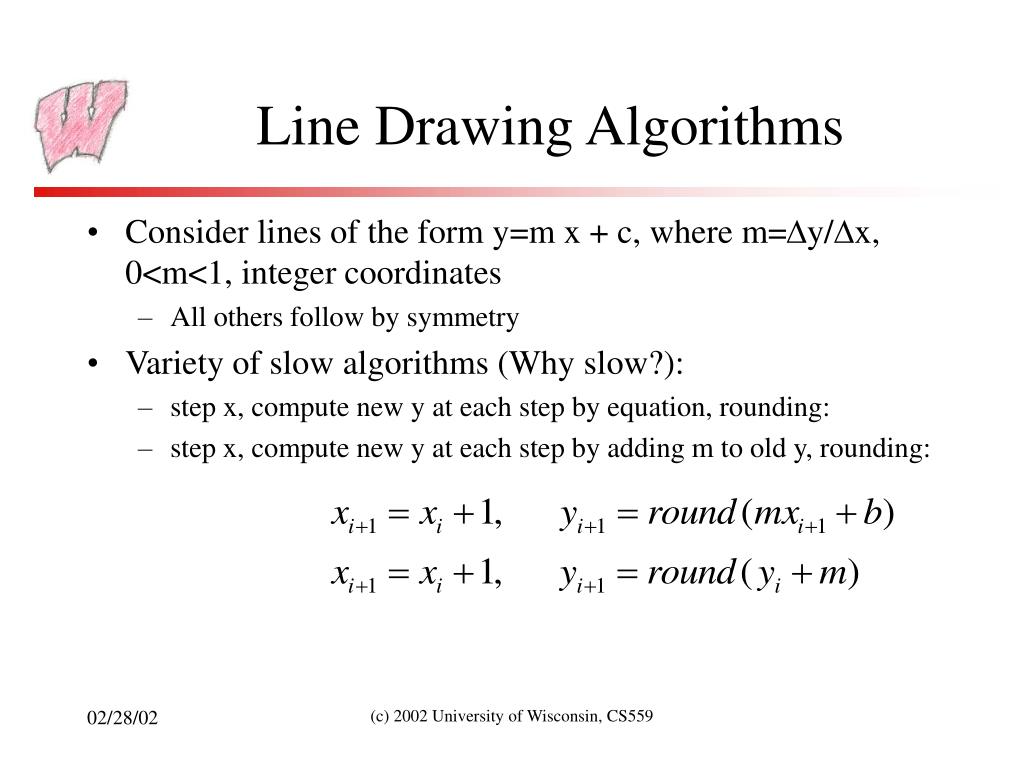

  31. Line Drawing Algorithms • Consider lines of the form y=m x + c, where m=y/x, 0<m<1, integer coordinates • All others follow by symmetry • Variety of slow algorithms (Why slow?): • step x, compute new y at each step by equation, rounding: • step x, compute new y at each step by adding m to old y, rounding: (c) 2002 University of Wisconsin, CS559

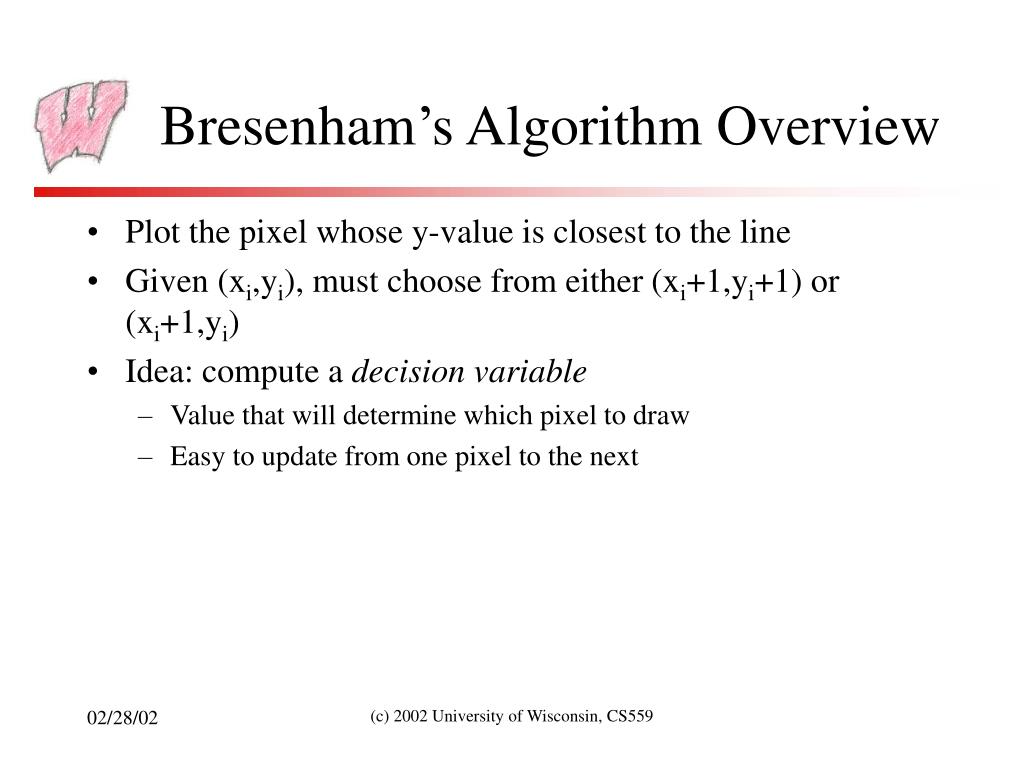

  32. Bresenham’s Algorithm Overview • Plot the pixel whose y-value is closest to the line • Given (xi,yi), must choose from either (xi+1,yi+1) or (xi+1,yi) • Idea: compute a decision variable • Value that will determine which pixel to draw • Easy to update from one pixel to the next (c) 2002 University of Wisconsin, CS559

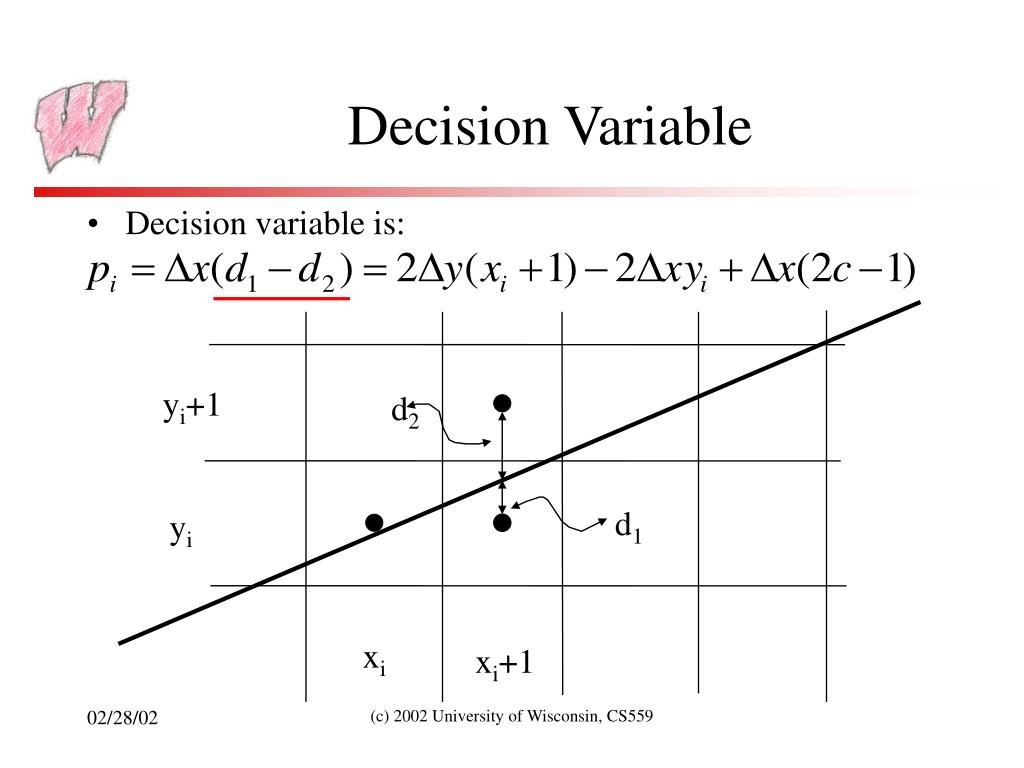

  33. Decision Variable • Decision variable is: yi+1 d2 d1 yi xi xi+1 (c) 2002 University of Wisconsin, CS559

  34. What Can We Decide? • d1<d2 => pi negative => next point at (xi+1,yi) • d1>d2 => pi positive => next point at (xi+1,yi+1) • So, we know what to draw based on the decision variable • How do we update it? What is pk+1? (c) 2002 University of Wisconsin, CS559

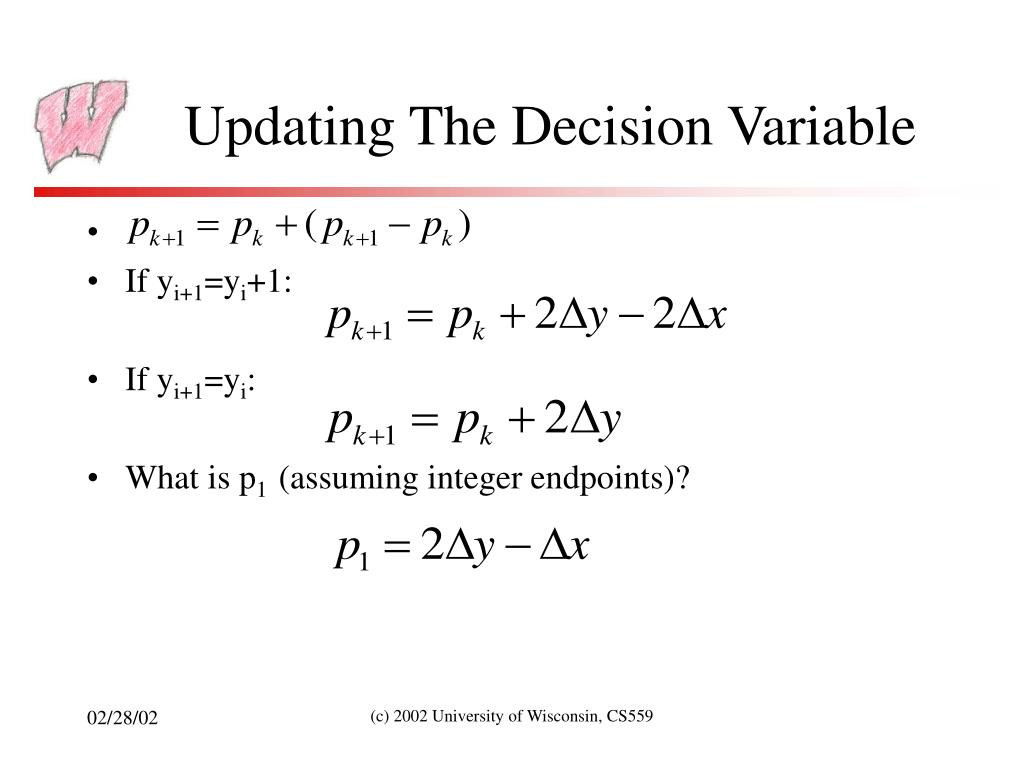

  35. Updating The Decision Variable • If yi+1=yi+1: • If yi+1=yi: • What is p1 (assuming integer endpoints)? (c) 2002 University of Wisconsin, CS559

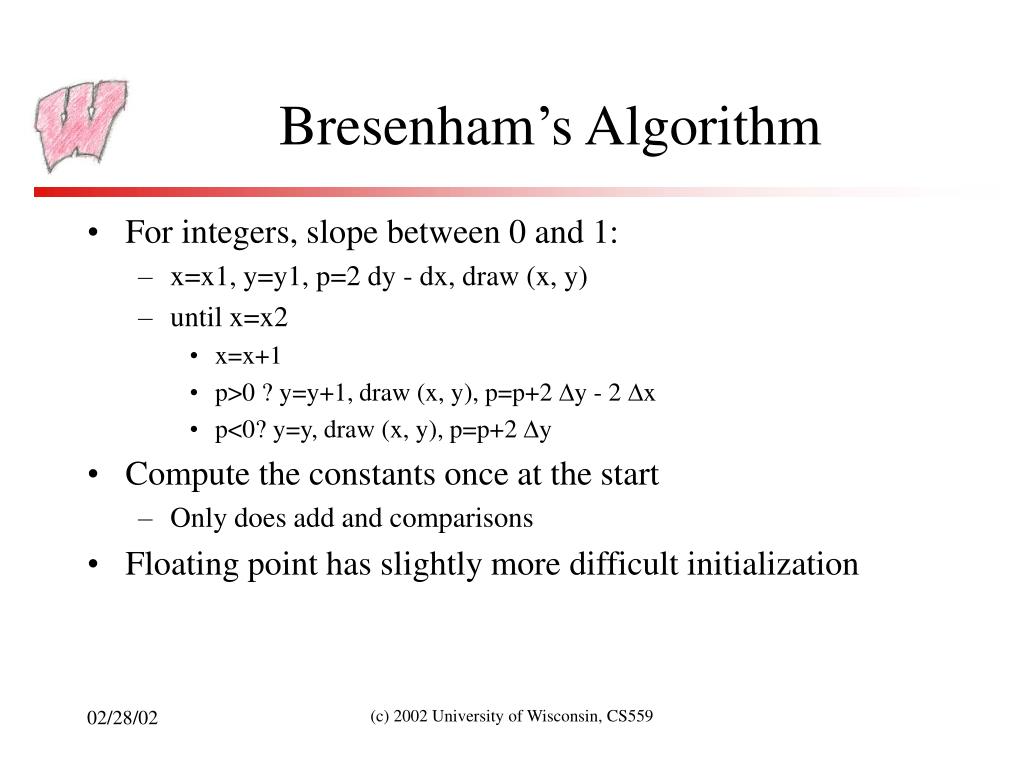

  36. Bresenham’s Algorithm • For integers, slope between 0 and 1: • x=x1, y=y1, p=2 dy - dx, draw (x, y) • until x=x2 • x=x+1 • p>0 ? y=y+1, draw (x, y), p=p+2 y - 2 x • p<0? y=y, draw (x, y), p=p+2 y • Compute the constants once at the start • Only does add and comparisons • Floating point has slightly more difficult initialization (c) 2002 University of Wisconsin, CS559

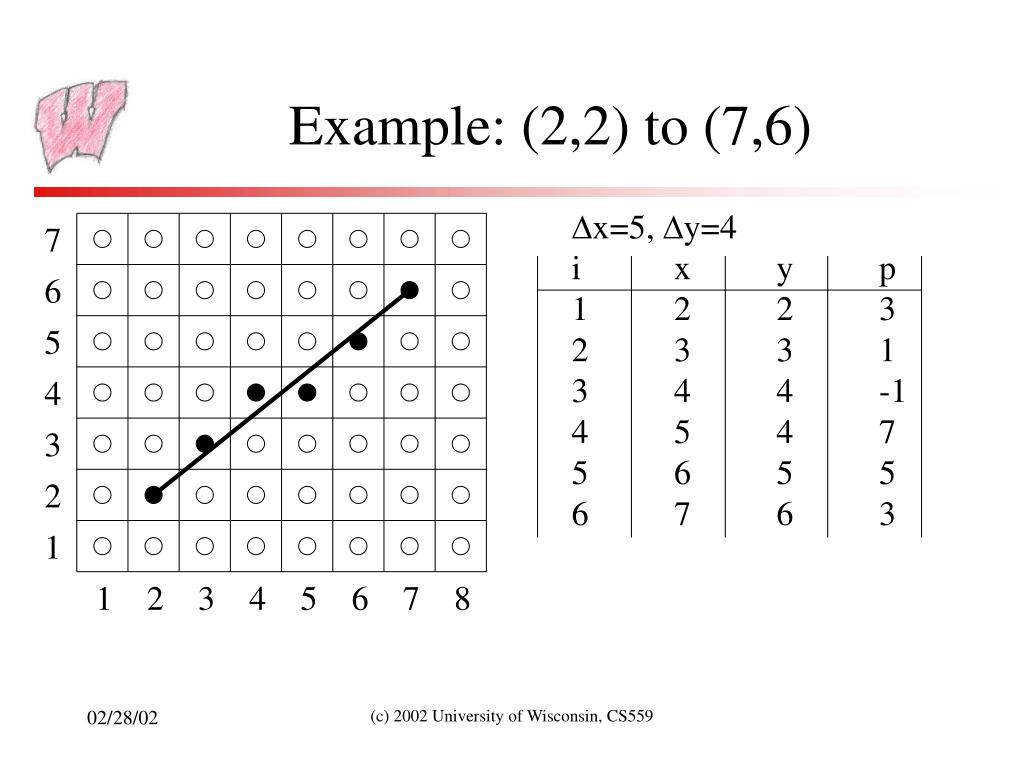

  37. Example: (2,2) to (7,6) x=5, y=4 i x y p 1 2 2 3 2 3 3 1 3 4 4 -1 4 5 4 7 5 6 5 5 6 7 6 3 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 (c) 2002 University of Wisconsin, CS559
