  1. L3 + VXLAN Made Practical

  2. Who We Are Nolan Leake Cofounder, CTO Cumulus Networks Chet Burgess Vice President, Engineering Metacloud

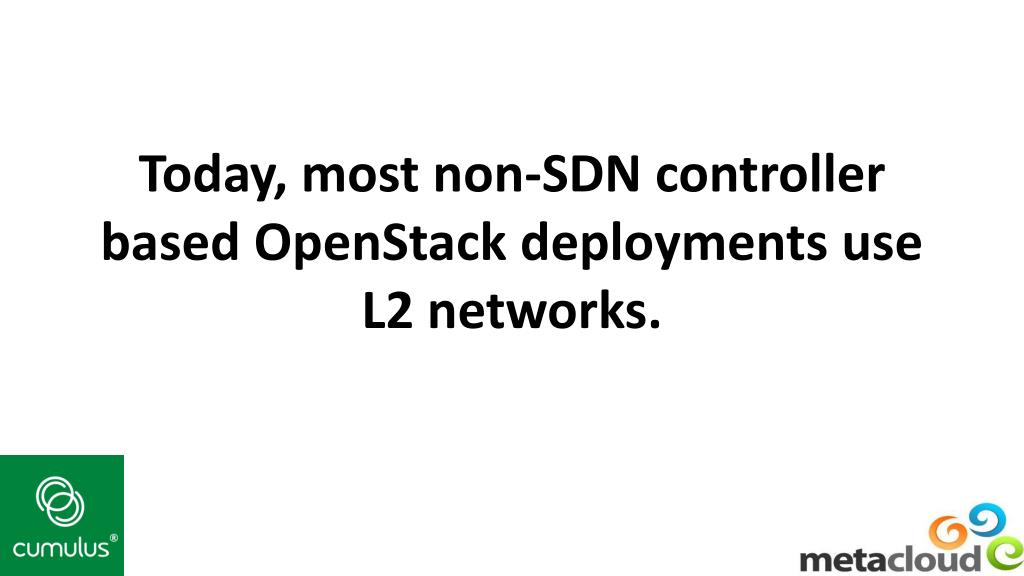

  3. Today, most non-SDN controller based OpenStack deployments use L2 networks.

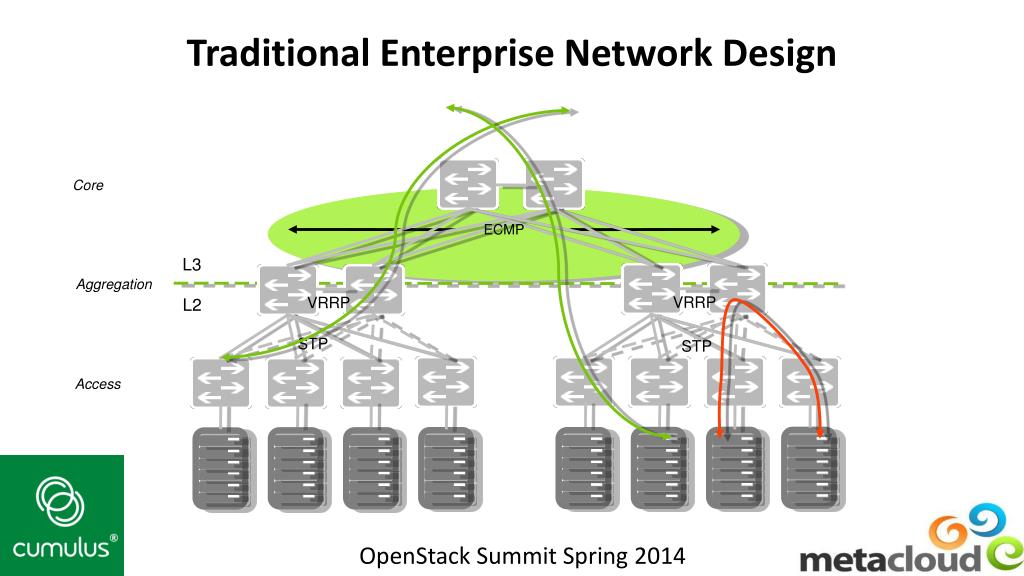

  4. Traditional Enterprise Network Design Core ECMP L3 Aggregation VRRP VRRP L2 STP STP Access

  5. What’s wrong with L2? • Aggregation tier must be highly available/redundant • Aggregate/Core scalability • MAC/ARP table limits, VLAN exhaustion, East-West choke points • Wasted capacity (STP blocking ports) • Proprietary protocols/extensions • MLAG, vPC, etc

  6. How do we make it better?

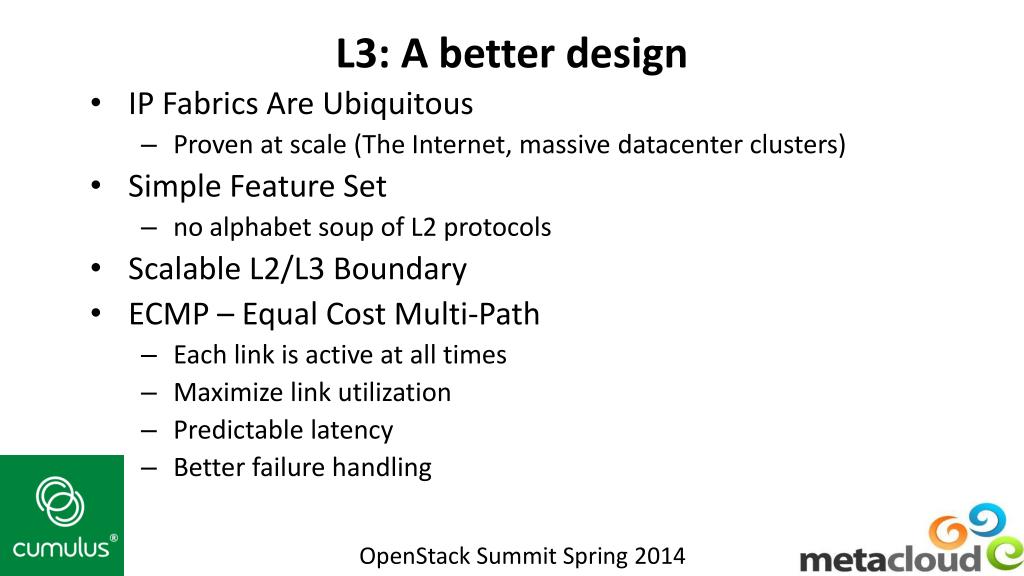

  7. L3: A better design • IP Fabrics Are Ubiquitous • Proven at scale (The Internet, massive datacenter clusters) • Simple Feature Set • no alphabet soup of L2 protocols • Scalable L2/L3 Boundary • ECMP – Equal Cost Multi-Path • Each link is active at all times • Maximize link utilization • Predictable latency • Better failure handling

  8. L3: A better design SPINE LEAF

  9. Pure L3 is great for maximizing connectivity, but what about segregation of projects?

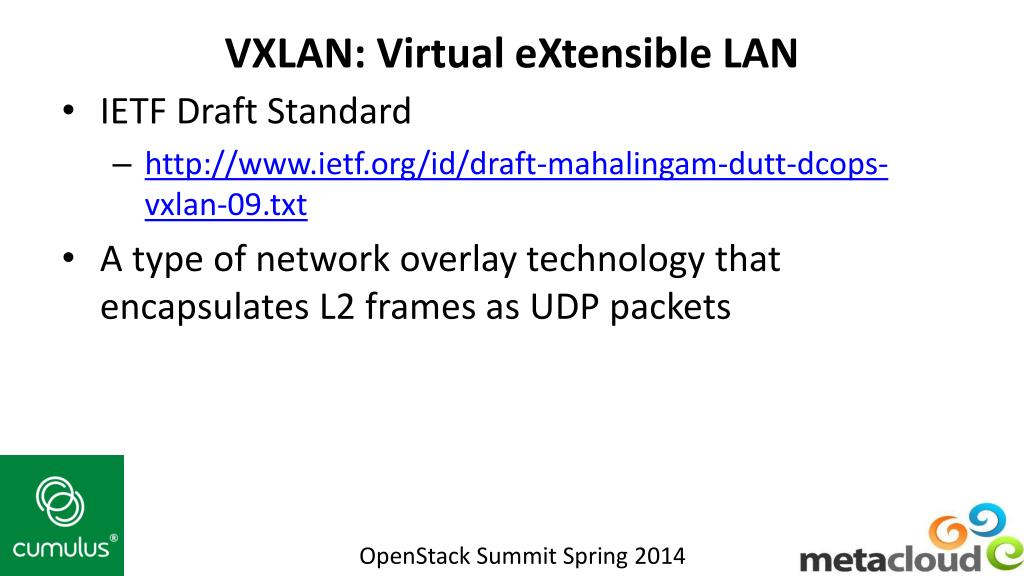

  10. VXLAN: Virtual eXtensible LAN • IETF Draft Standard • http://www.ietf.org/id/draft-mahalingam-dutt-dcops-vxlan-09.txt • A type of network overlay technology that encapsulates L2 frames as UDP packets

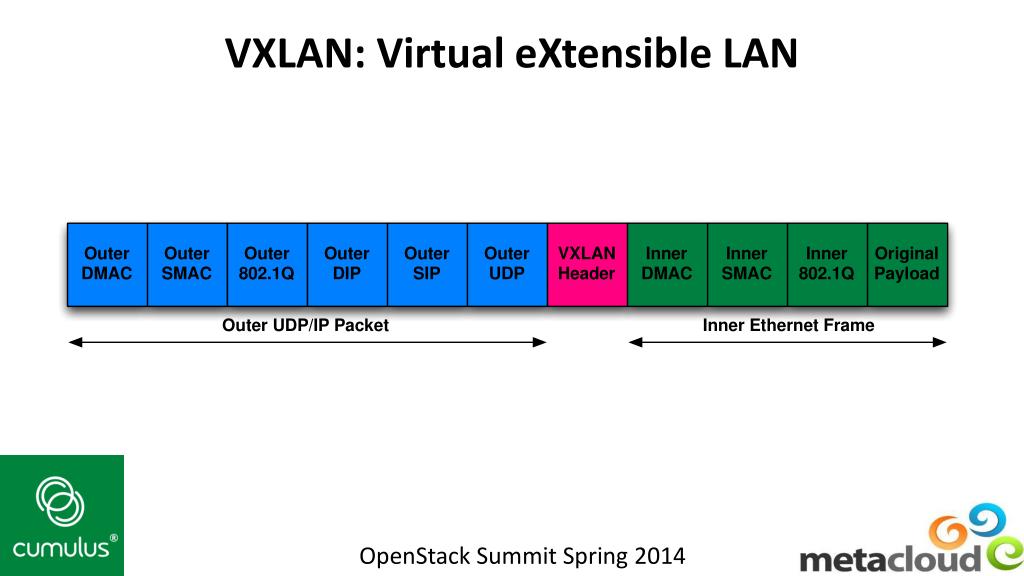

  11. VXLAN: Virtual eXtensible LAN

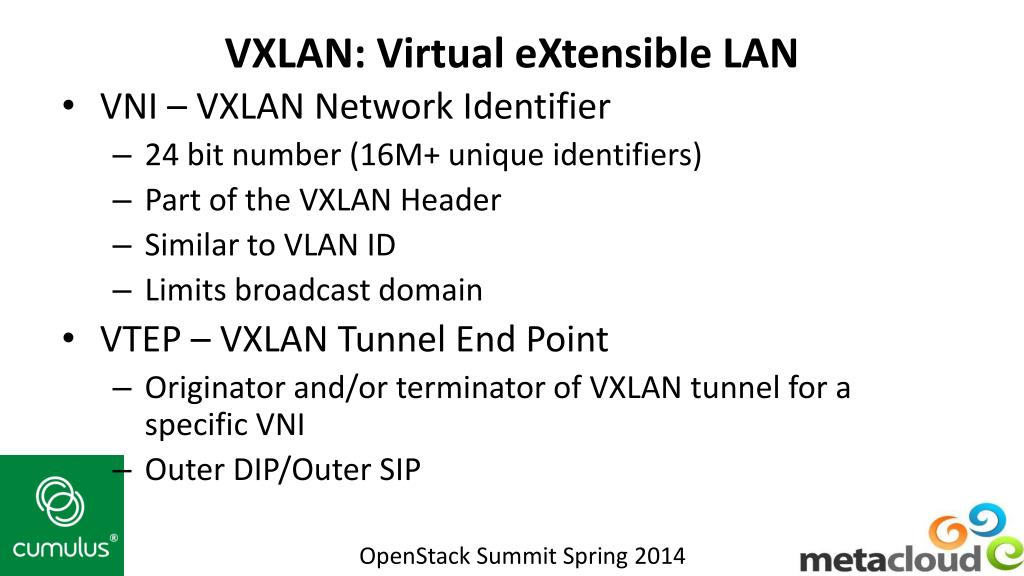

  12. VXLAN: Virtual eXtensible LAN • VNI – VXLAN Network Identifier • 24 bit number (16M+ unique identifiers) • Part of the VXLAN Header • Similar to VLAN ID • Limits broadcast domain • VTEP – VXLAN Tunnel End Point • Originator and/or terminator of VXLAN tunnel for a specific VNI • Outer DIP/Outer SIP

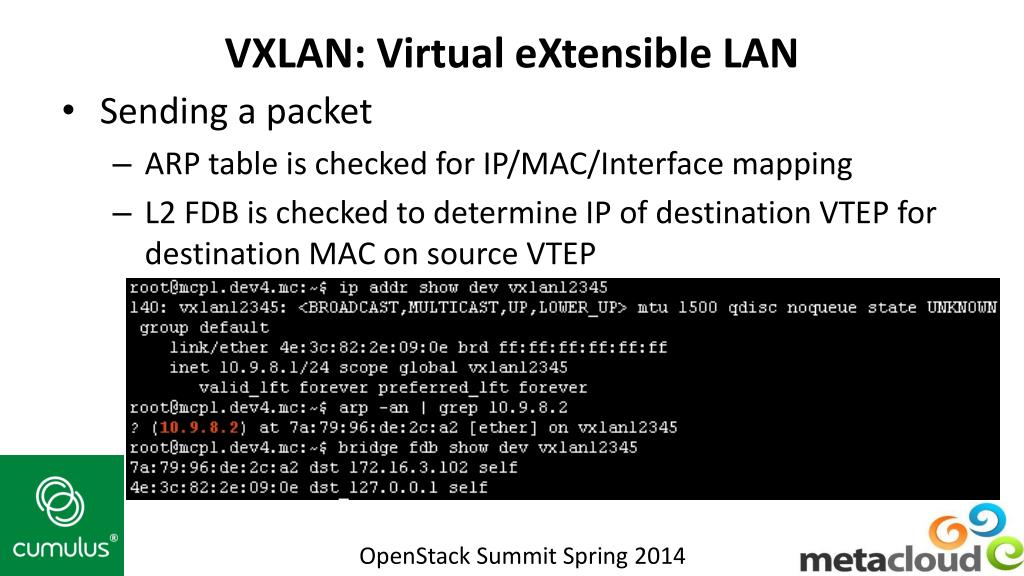

  13. VXLAN: Virtual eXtensible LAN • Sending a packet • ARP table is checked for IP/MAC/Interface mapping • L2 FDB is checked to determine IP of destination VTEP for destination MAC on source VTEP

  14. VXLAN: Virtual eXtensible LAN • Sending a packet • Packet is encapsulated for destination VTEP with configured VNI and sent to destination • Destination VTEP un-encapsulates the packet and the inner packet is then processed by the receiver

  15. How do VTEPs handle BUM (Broadcast, Unknown Unicast, Multicast)?

  16. BUM • All BUM type packets (ex. ARP, DHCP, multicast) are flooded to all VTEPs associated with the same VNI. • Flooding can be handled 2 ways • Packets are sent to a multicast address that all VTEPs are subscribers of • Packets are sent to a central service node that then floods the packets to all VTEPs found in its local DB for the matching VNI

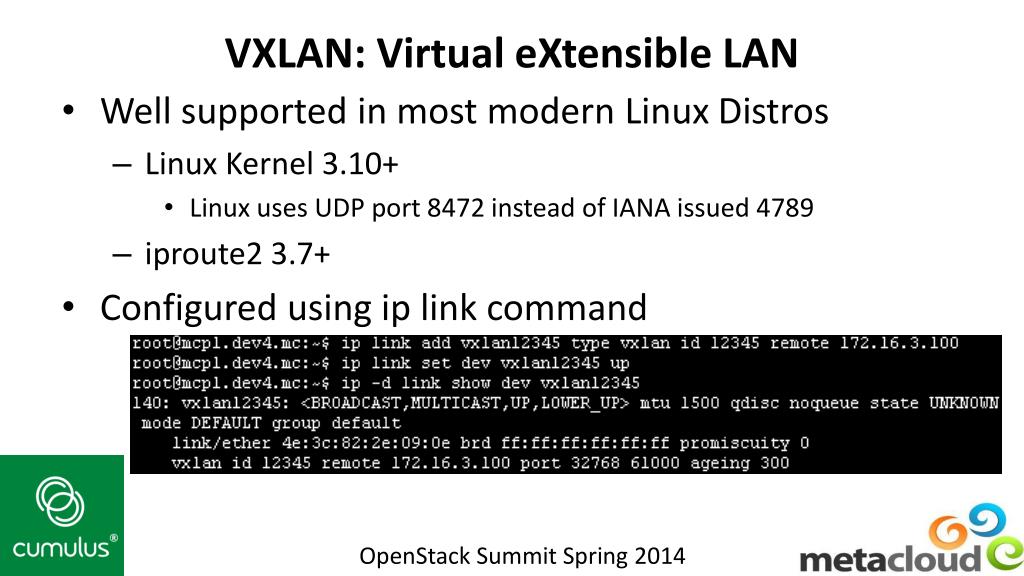

  17. VXLAN: Virtual eXtensible LAN • Well supported in most modern Linux Distros • Linux Kernel 3.10+ • Linux uses UDP port 8472 instead of IANA issued 4789 • iproute2 3.7+ • Configured using ip link command

  18. How do we use this with OpenStack?

  19. nova-network • Clients needed L3+VXLAN for their existing nova-network based big data deployments (hadoop). • Neutron already supports VXLAN and should work with L3 as well (we didn’t have time to test it). • Full VXLAN support in nova-network • Unicast VXLAN service node for BUM flooding

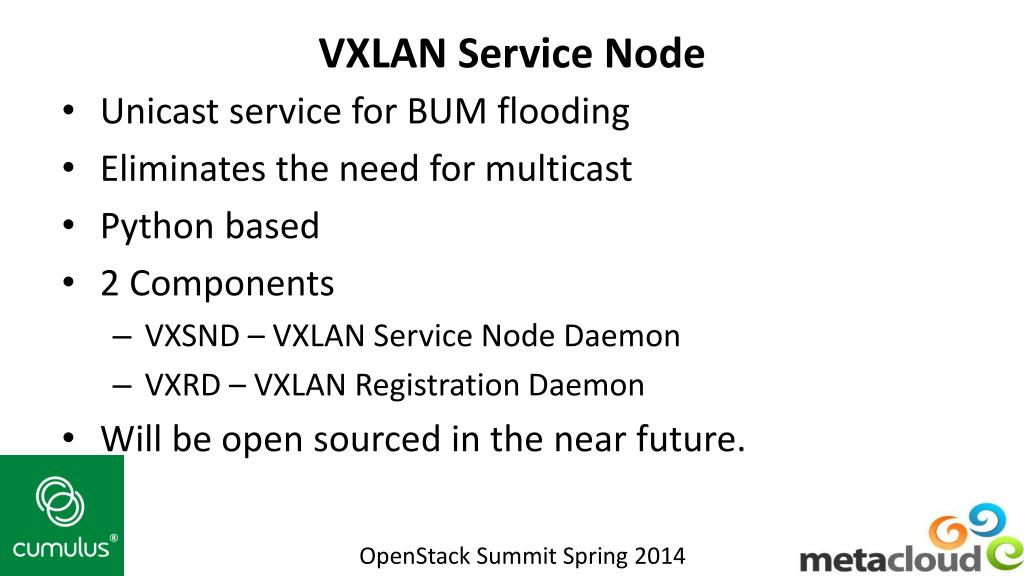

  20. VXLAN Service Node • Unicast service for BUM flooding • Eliminates the need for multicast • Python based • 2 Components • VXSND – VXLAN Service Node Daemon • VXRD – VXLAN Registration Daemon • Will be open sourced in the near future.

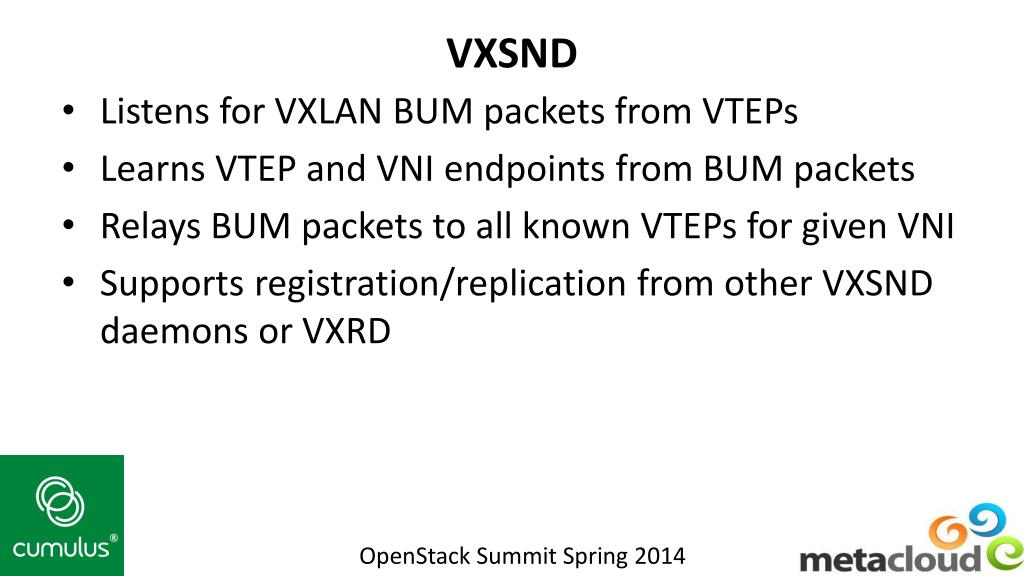

  21. VXSND • Listens for VXLAN BUM packets from VTEPs • Learns VTEP and VNI endpoints from BUM packets • Relays BUM packets to all known VTEPs for given VNI • Supports registration/replication from other VXSND daemons or VXRD

  22. VXRD • Monitors local interfaces on hypervisors • Sends VTEP+VNI registration packet to VXSND node for all local VTEPs.

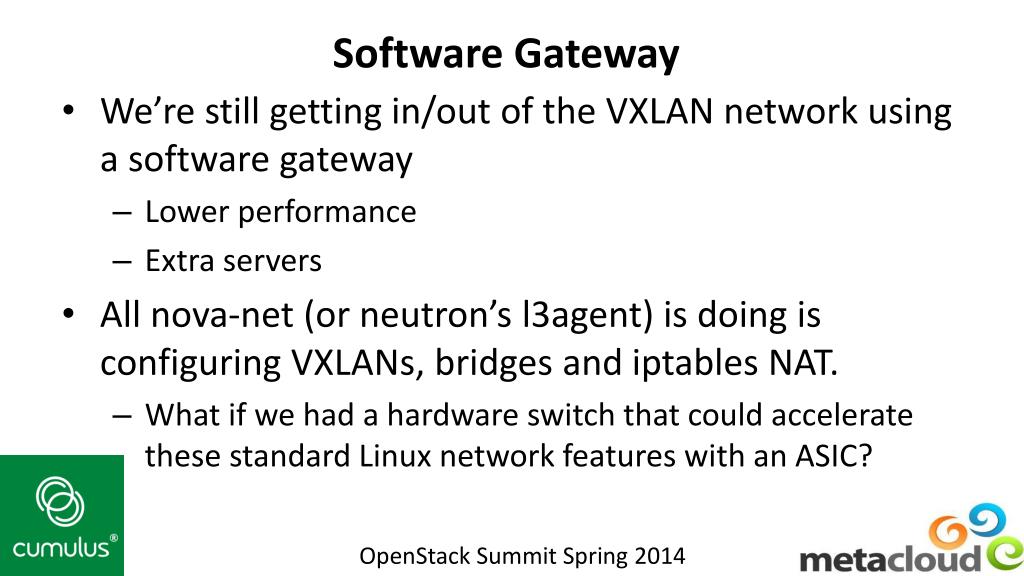

  23. Software Gateway • We’re still getting in/out of the VXLAN network using a software gateway • Lower performance • Extra servers • All nova-net (or neutron’s l3agent) is doing is configuring VXLANs, bridges and iptables NAT. • What if we had a hardware switch that could accelerate these standard Linux network features with an ASIC?

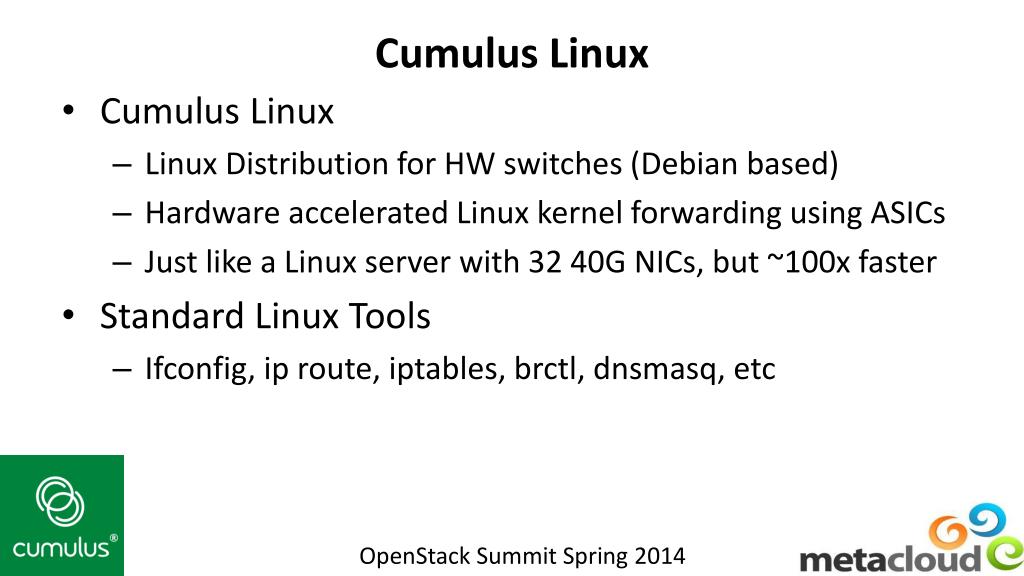

  24. Cumulus Linux • Cumulus Linux • Linux Distribution for HW switches (Debian based) • Hardware accelerated Linux kernel forwarding using ASICs • Just like a Linux server with 32 40G NICs, but ~100x faster • Standard Linux Tools • Ifconfig, ip route, iptables, brctl, dnsmasq, etc

  25. Demo

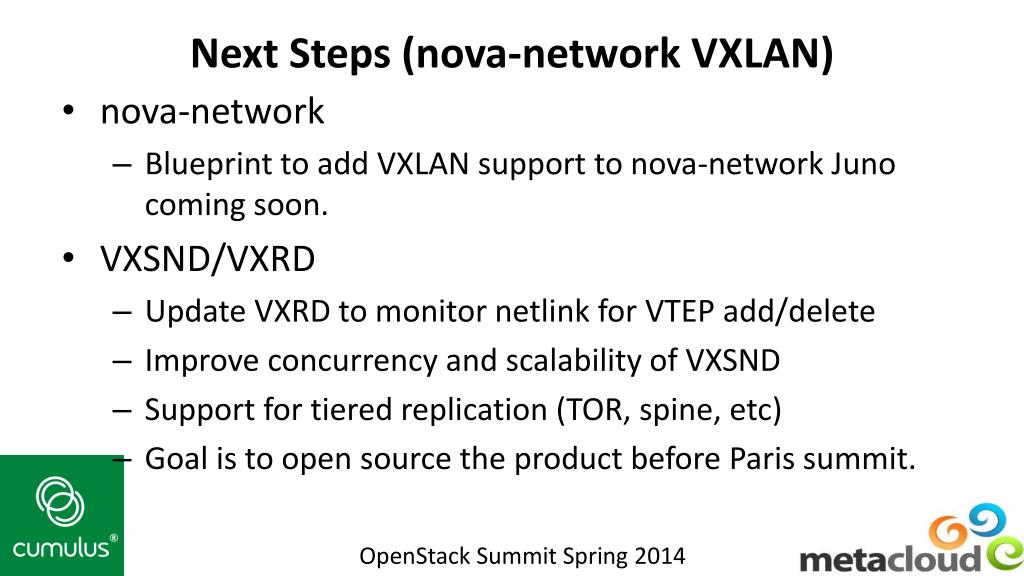

  26. Next Steps (nova-network VXLAN) • nova-network • Blueprint to add VXLAN support to nova-network Juno coming soon. • VXSND/VXRD • Update VXRD to monitor netlink for VTEP add/delete • Improve concurrency and scalability of VXSND • Support for tiered replication (TOR, spine, etc) • Goal is to open source the product before Paris summit.

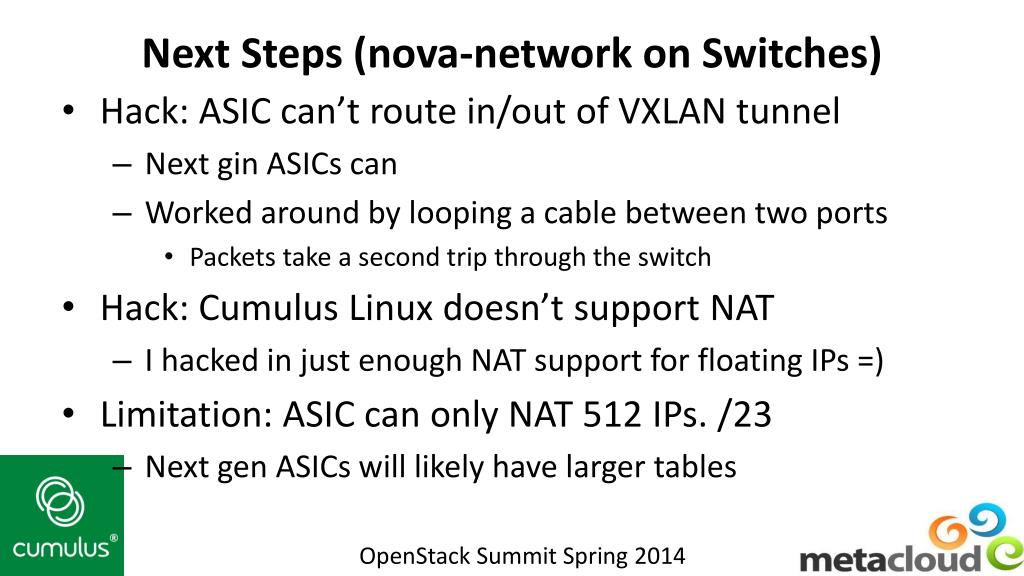

  27. Next Steps (nova-network on Switches) • Hack: ASIC can’t route in/out of VXLAN tunnel • Next gin ASICs can • Worked around by looping a cable between two ports • Packets take a second trip through the switch • Hack: Cumulus Linux doesn’t support NAT • I hacked in just enough NAT support for floating IPs =) • Limitation: ASIC can only NAT 512 IPs. /23 • Next gen ASICs will likely have larger tables

  28. Q&A
