  1. Bio301 Overview of Topics Intro Bioprocessing – Biotechnology: Make money from bioprocesses Inputs are of lower value than outputs (products) Computer based learning activities (CBLA) are on http://sphinx.murdoch.edu.au/units/extern/BIO301/teach/index.htm

  2. Lecture overview L1-3 Lecture 1: Intro, study guide, what is a bioreactor, Learning by interacting Lecture 2: What is diffusion, how can we predict the behaviour of a randomly moving molecule? moving dots, entropy, driving force, equilibrium, rate of diffusion, first order kinetics, kLa Lecture 3: oxygen transfer rate, kLa value. Graphical method of determining the kLa. Mathematical (2 point) determination of kLA Calculation and prediction of oxygen transfer as function of DO. Oxygen transfer efficiency. Bacterial OUR, DO. steady state

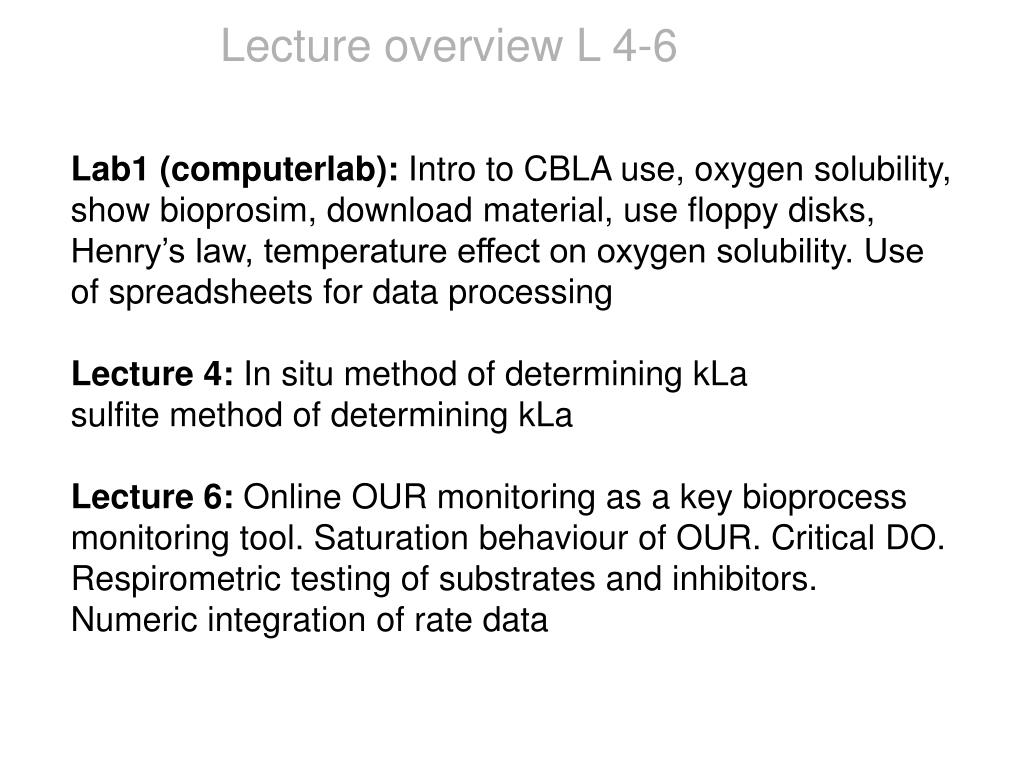

  3. Lecture overview L 4-6 Lab1 (computerlab): Intro to CBLA use, oxygen solubility, show bioprosim, download material, use floppy disks, Henry’s law, temperature effect on oxygen solubility. Use of spreadsheets for data processing Lecture 4: In situ method of determining kLa sulfite method of determining kLa Lecture 6: Online OUR monitoring as a key bioprocess monitoring tool. Saturation behaviour of OUR. Critical DO. Respirometric testing of substrates and inhibitors. Numeric integration of rate data

  4. Molecular diffusion relies on random movement resulting in uniform distribution of molecules

  5. Oxygen Transfer Rate (OTR) Overview Diffusion, how does it work, how can we predict it? Diffusion is random …. and yet predictable. A simple model simulation can show that although the diffusion movement is random, it can be precisely predicted for large number of molecules (e.g. Fick’s law of diffusion)

  6. • • • • • • • • • • Oxygen Transfer Rate (OTR) (diffusion, convection) Low OTR High OTR Transfer by diffusion is extremely slow and depends on surface area Wind Oxygen transfer by convection (turbulences) is more efficient Air In • Bioreactors combine maximum convection with maximum diffusion • Course bubbles cause more convection, fine bubbles more diffusion How soluble is oxygen?

  7. Oxygen solubility (cS) • The net transfer of oxygen from • gas phase to solution reaches a dynamic equilibrium • O2 input = O2 output • equilibrium results in defined saturation concentration (cs). • The saturation concentration is also the oxygen solubility • How soluble is oxygen?

  8. Oxygen solubility (cS) Oxygen is not very polar  poorly soluble. Oxygen Solubility is described by Henry’s Law p = partial pressure of gas k = constant depending on gas type, solution and temperature c = concentration of gas dissolved in water p = k*C • Meaning: The amount of oxygen which dissolves in water is proportional to the amount of oxygen molecules present per volume of the gas phase. • Partial pressure ~ number of O2 molecules per volume of gas • increases with O2 concentration in gas • increases with total gas pressure • How to calculate partial pressure? (refer to CBLA)

  9. 468 cs = (31.6 + T) Oxygen solubility (cS) Effect of temperature Oxygen Saturation Concentration cs (mg/L) Temperature (°C) Oxygen solubility decreases with increasing temperature. Overall: oxygen is poorly soluble (8mg/: at room temp.) More important than solubility is oxygen supply rate (oxygen transfer rate OTR).

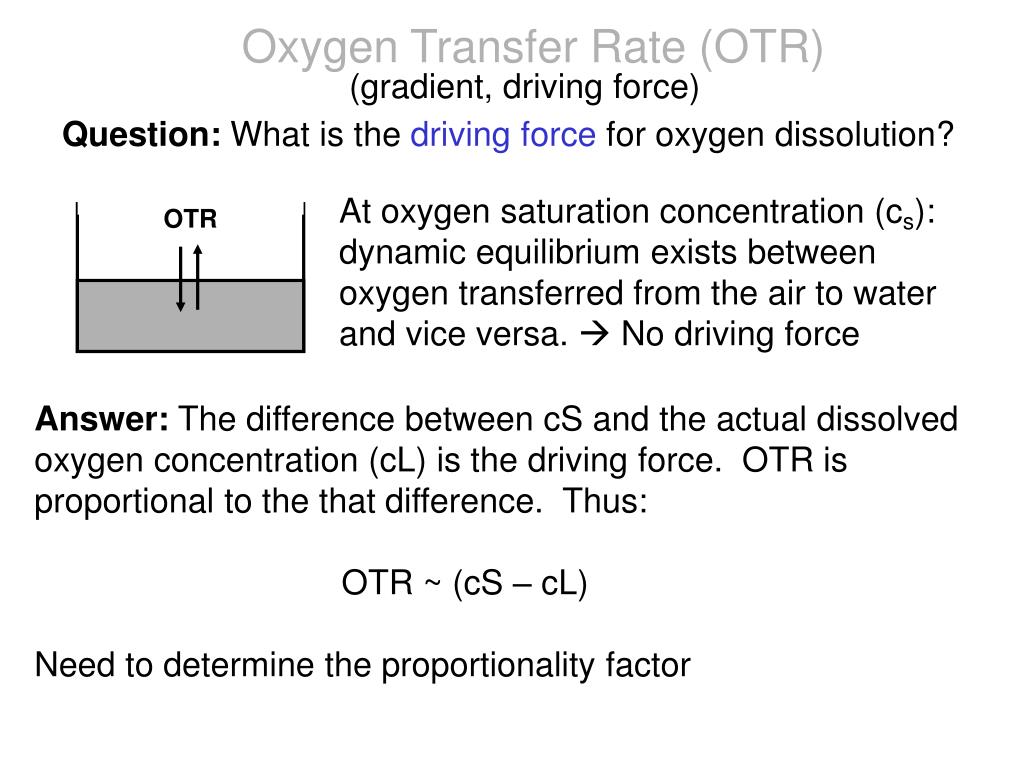

  10. Oxygen Transfer Rate (OTR) (gradient, driving force) Question: What is the driving force for oxygen dissolution? At oxygen saturation concentration (cs): dynamic equilibrium exists between oxygen transferred from the air to water and vice versa.  No driving force OTR Answer: The difference between cS and the actual dissolved oxygen concentration (cL) is the driving force. OTR is proportional to the that difference. Thus: OTR ~ (cS – cL) Need to determine the proportionality factor

  11. 8 Air On cL (ppm) 0 5 10 Time (min) OTR – depends on DO (cL) Significance of OTR: critical to know and to control for all aerobic bioreactors 1. Deoxygenation (N2, sulfite + Co catalyst) 2. Aeration and monitoring dissolved oxygen concentration (D.O. or cL) as function of time 3. OTR = slope of the aeration curve (mg/L.h or ppm/h)

  12. OTR – depends on DO (cL) 4. Observation: OTR decreases over time (and with incr. cL) 5. OTR is not a good measure of aeration capacity of a bioreactor 6. OTR is highest at cL = zero (Standard OTR) 7. OTR is zero at oxygen saturation concentrations (cs) 8. OTR is negatively correlated to cL 9. OTR is correlated to the saturation deficit (cs - cL), which is the driving force for oxygen transfer 9. The factor of correlation is the volumetric mass transfer coefficient kLa OTR = kLa (cs - cL) Mg/L/h h-1 mg/L

  13. OTR –Significance of gradient First: steep step in oxygen (top layer saturated, next layer oxygen free) Then: buildup of a gradient of many layers. Each layer is only slightly different from the next  Transfer from layer to layer has little driving force. Gradient build-up inhibits fast diffusion

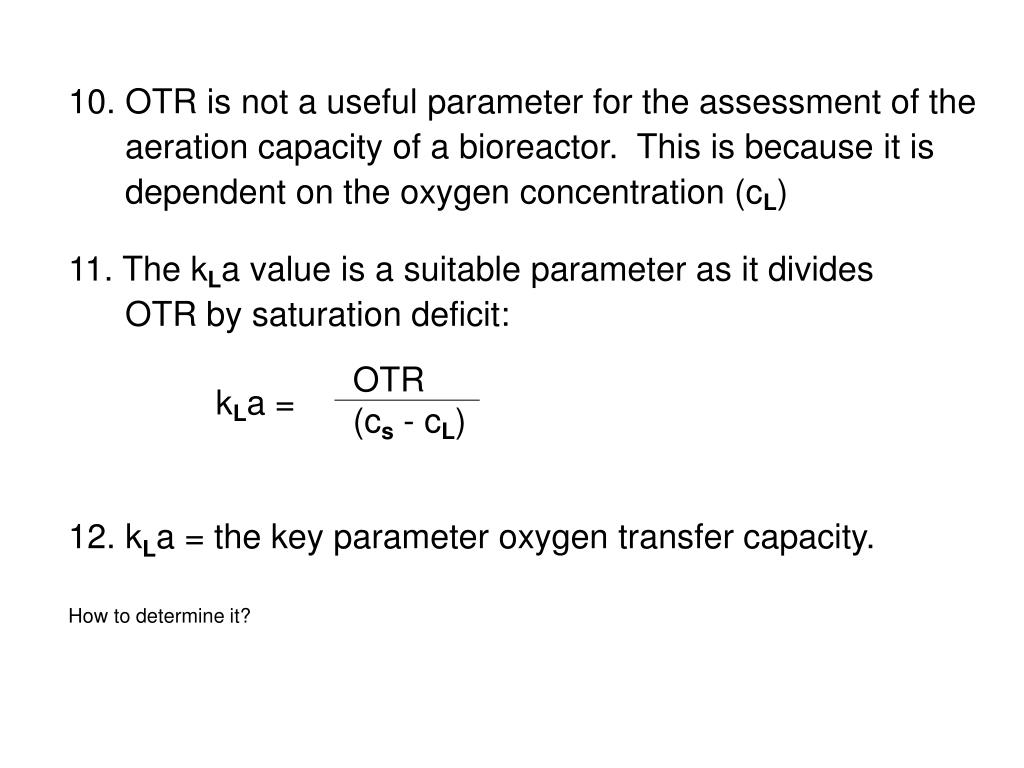

  14. 10. OTR is not a useful parameter for the assessment of the aeration capacity of a bioreactor. This is because it is dependent on the oxygen concentration (cL) 11. The kLa value is a suitable parameter as it divides OTR by saturation deficit: OTR (cs - cL) kLa = 12. kLa = the key parameter oxygen transfer capacity. How to determine it?

  15. Lec 2 summary: • Oxygen is poorly soluble depending mainly on • partial pressure in headspace • Temperature • OTR is driven and proportional to driving force (cS-cL) • kLa is the proportionality factor (first order kinetics) • kLa describes the performance of a bioreactor to provide • Oxygen to microbes • Next lecture: quantify kLA

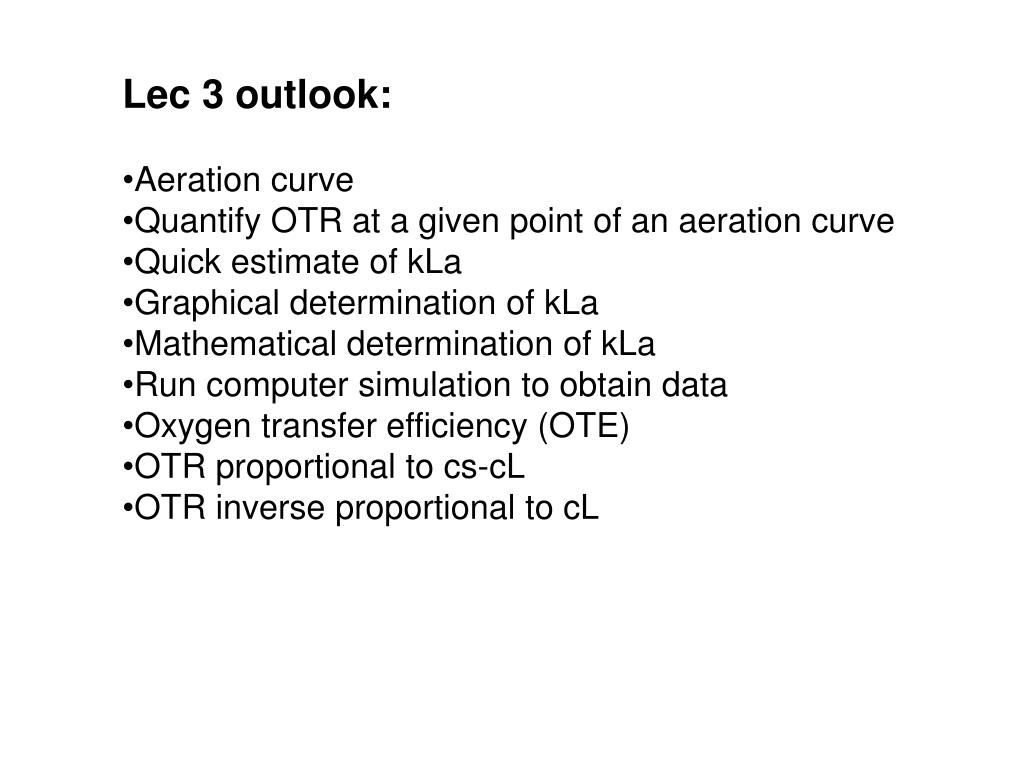

  16. Lec 3 outlook: • Aeration curve • Quantify OTR at a given point of an aeration curve • Quick estimate of kLa • Graphical determination of kLa • Mathematical determination of kLa • Run computer simulation to obtain data • Oxygen transfer efficiency (OTE) • OTR proportional to cs-cL • OTR inverse proportional to cL

  17. 8 Air On 6 cL (mg/L) 5 mg/L 4.5 min 0 5 10 Time (min) OTR – Quick estimate of kLA Example: determine OTR at 6 mg/L OTR is the slope of the tangent for each oxygen concentration OTR = ∆ cL/ ∆ t = 5 mg/L/ 4.5 min = 1.1 mg/L/min = 66 mg/L/h

  18. OTR – quick estimate of kLA kLa = OTR (cs-cL) = 66 ppm / h (8 ppm – 6 ppm) = 3.3 h-1 Q: Problem with this method? A: based on one single OTR slope measurement and unreliable to obtain from real data. DO Time

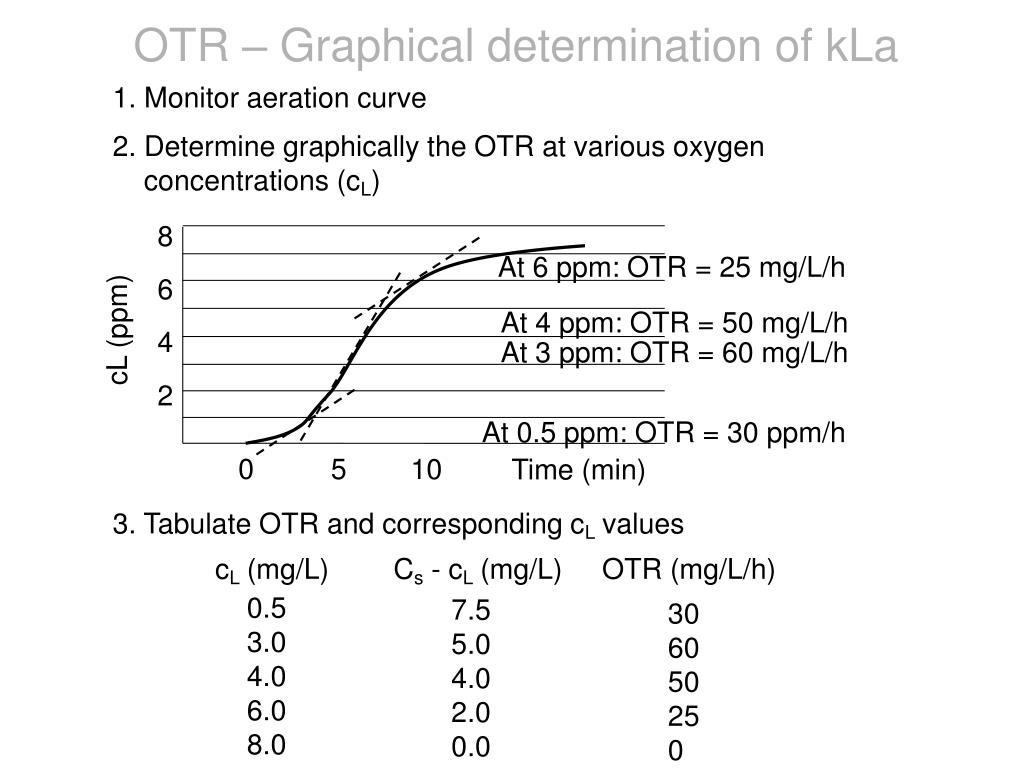

  19. 8 6 4 2 0 5 10 OTR – Graphical determination of kLa 1. Monitor aeration curve 2. Determine graphically the OTR at various oxygen concentrations (cL) At 6 ppm: OTR = 25 mg/L/h At 4 ppm: OTR = 50 mg/L/h cL (ppm) At 3 ppm: OTR = 60 mg/L/h At 0.5 ppm: OTR = 30 ppm/h Time (min) 3. Tabulate OTR and corresponding cL values cL (mg/L) Cs - cL (mg/L) OTR (mg/L/h) 0.5 3.0 4.0 6.0 8.0 7.5 5.0 4.0 2.0 0.0 30 60 50 25 0

  20. 70 mg/L/h kLa = = 12 h-1 6 mg/L OTR – Graphical determination of kLa 4. Plot OTR values as a function of cs - cL. Standard OTR 100 OTR (mg/L/h) cs 50 0 0 2 4 6 8 cs- cL (mg/L) 5. A linear correlation exists between kLa and the saturation deficit (cs - cL) which is the driving force of the reaction. 6. The slope of the plot OTR versus cs - cL is the kLa value. 7. The standard OTR (max OTR) can be read from the intercept with the cs line. (Standard OTR = 100 ppm/h)

  21. 2. kLa = dcL/dt (cs- cL) cs - co ( ) cs 3. kLa = ln cs - ci • ci = 6 ti - to Dissolved Oxygen Concentration (mg/L) • co = 3 to ti Time (min) = ln 2.5 8- 3 ppm ( ) kLa = ln 4.4 min 8 - 6 ppm 10.5 - 6.1 min Mathematical Determination of kLa 1. OTR is a change of cL over time, thus = dcL/dt Integration gives = 12.5 h-1 = 0.21 min-1

  22. 4. This method should be carried out for 3 to 4 different intervals. By aver 5. Once the kLa is known it allows to calculate the OTR at any given oxygen concentration: OTR = kLa (cs - cL)

  23. Factors Affecting the Oxygen Transfer Coefficient kLa kLa consists of: • kL = resistance or thickness of boundary film • a = surface area Bulk Liquid Bubble [Oxygen] Cell Distance Main boundary layer = steepest gradient → rate controlling, driving force

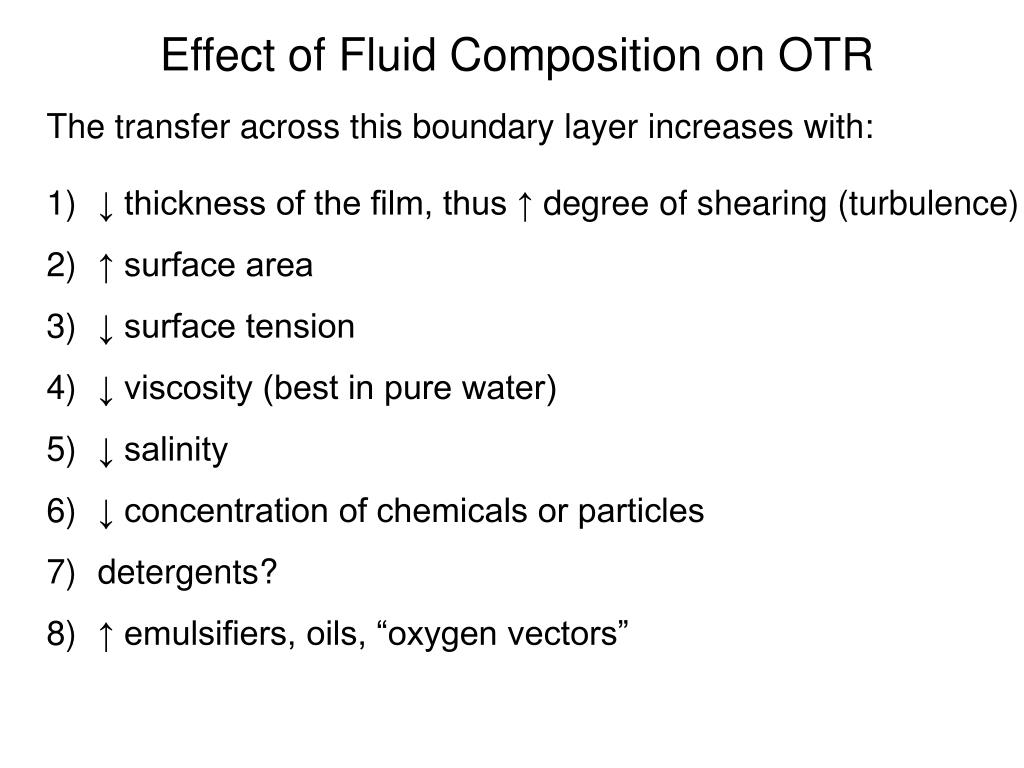

  24. Effect of Fluid Composition on OTR The transfer across this boundary layer increases with: • ↓ thickness of the film, thus ↑ degree of shearing (turbulence) • ↑ surface area • ↓ surface tension • ↓ viscosity (best in pure water) • ↓ salinity • ↓ concentration of chemicals or particles • detergents? • ↑ emulsifiers, oils, “oxygen vectors”

  25. oxygen transferred OTE = oxygen supplied oxygen transferred (mol/L.h) X 100 % OTE = oxygen supplied (mol/L.h) Oxygen Transfer Efficiency (OTE) Significance of OTE: economical, evaporation Calculation of OTE (%): Why do students find this type calculation difficult? Units are disregarded. Molecular weights are misused.

  26. 3.1 (mmol/L.h) X 100 % OTE = 34.3 (mol/L.h) Oxygen Transfer Efficiency (OTE) A bioreactor ( 3 m3) is aerated with 200 L/min airflow. If the OTR is constant (100 mg/L/h) determine the %OTE. 1. Convert the airflow into an oxygen flow in mmol/L/h 200 L air /min = 12000 L air/h (x 60) = 2520 L O2/h (x 21%) = 102.9 mol O2/h (÷ 24.5 L/mol) (÷ 3000 L) = 34.3 mmol O2/L.h 2. OTR 100 mg/L.h = 3.1 mmol O2/L.h (÷ 32 g/mol) = 9%

  27. 10 % OTE 5 Airflow Oxygen Transfer Efficiency (OTE) OTE is dependent upon the cL in the same way than OTR OTE decreases with increasing airflow (more oxygen is wasted)

  28. Engineering Parameters Influencing OTR Increase depth vessel Deeper vessel  bubbles rise a long way  ↑ OTR, OTE but more pressure required  ↑ $$ Decrease bubble size • Larger surface area  ↑ OTR, OTE smaller bubbles rise slower  more gas hold up  ↑ OTR, OTE Increase air flow rate  ↑ Number of bubbles  ↑ OTR but ↓ OTE Increase stirring rate • ↑ turbulence  ↓ thickness of boundary layer  ↑ OTR, OTE  ↓ Bubble size  ↑ OTR, OTE

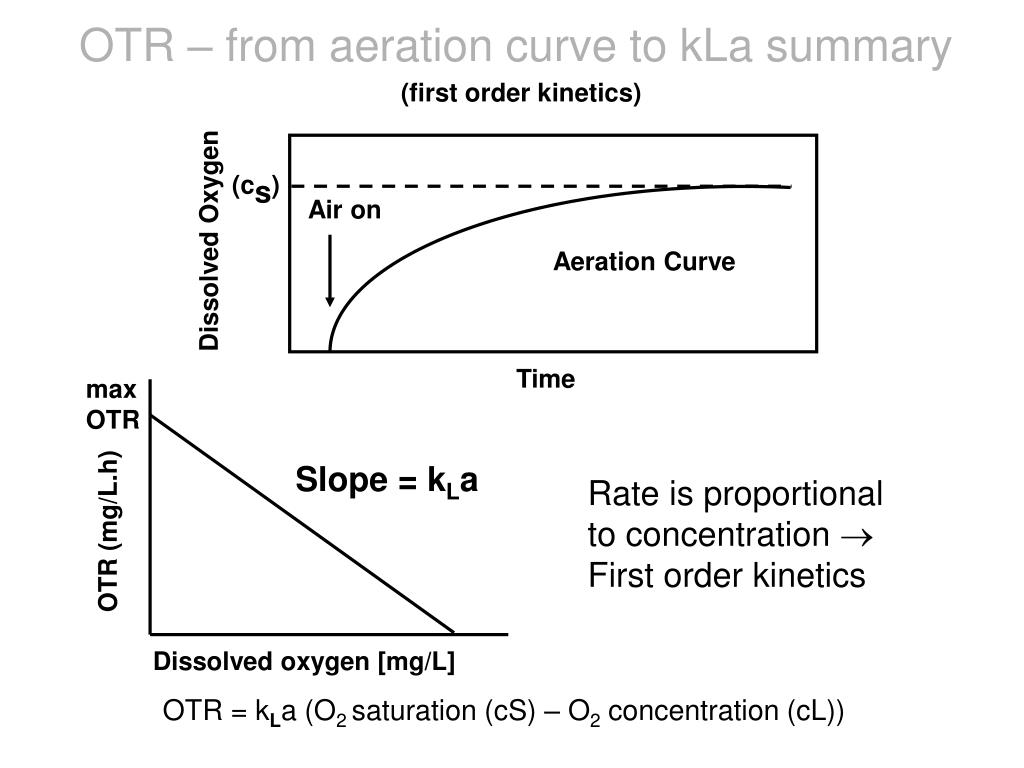

  29. OTR – from aeration curve to kLa summary (first order kinetics) (cs) Air on Dissolved Oxygen Aeration Curve Time max OTR Slope = kLa Rate is proportional to concentration First order kinetics OTR (mg/L.h) Dissolved oxygen [mg/L] OTR = kLa (O2 saturation (cS) – O2 concentration (cL))

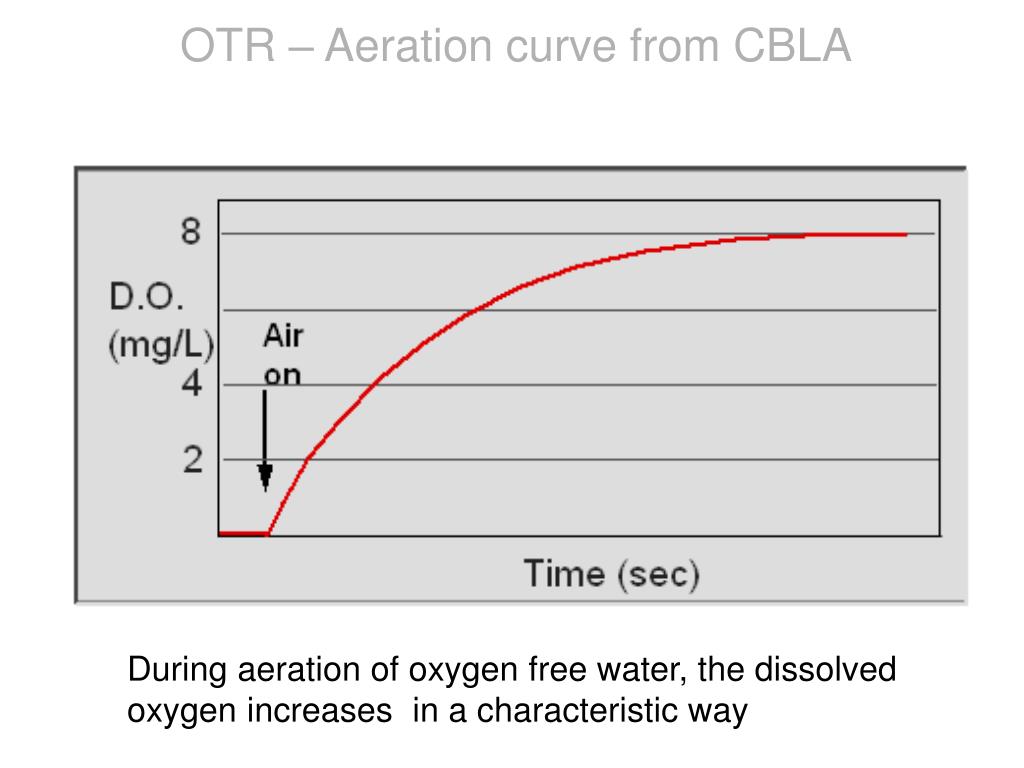

  30. OTR – Aeration curve from CBLA During aeration of oxygen free water, the dissolved oxygen increases in a characteristic way

  31. OTR – aeration curve from CBLA • Highest Rate at lowest dissolved oxygen concentration • Rate of zero when DO reaches saturation concentration Can the relationship between rate and DO be expressed mathematically?

  32. New Topic: Microbial Oxygen Uptake Kinetics • After having investigated principles and methods of quantifying the oxygen transfer OTR (from gas phase to solution): • Now we will investigate the oxygen uptake rate OUR behaviour of bacteria • Leading to combining both kinetics in a typical reactor where often OUR = OTR. This allows easy online interpretation of the whole bioprocess

  33. X OUR [Substrate] Time OUR – Variation during batch culture In batch culture OUR changes strongly over time due to increase in biomass (X) depletion of substrate (S). However OUR can be considered constant: • over short time intervals (min) • in continuous culture  Very useful tool to study microbes and reactor behaviour

  34. OUR – Significance • Critical indicator of culture status (respiration rate). • Indicator or growth (relationship X* / OUR). • Indicator of health, inhibition etc ( if X = constant). • Essential for culture optimisation. • Should be ideally monitored online. • *) X= biomass concentration (e.g. g Dry Weight/L)

  35. OUR – Determination 1. Aerate to maximum 2. Stop aeration 3. Monitor cL cL Time (sec) Conclusion: 1. OUR is linear over most cL values 2. A critical D.O. exists

  36. OUR – Determination 1. Aerate to maximum 2. Stop aeration 3. Monitor cL OUR not dependent on DO cL O2 dependent OUR Time (sec) Conclusion: 1. OUR is linear over most cL values 2. A critical D.O. exists

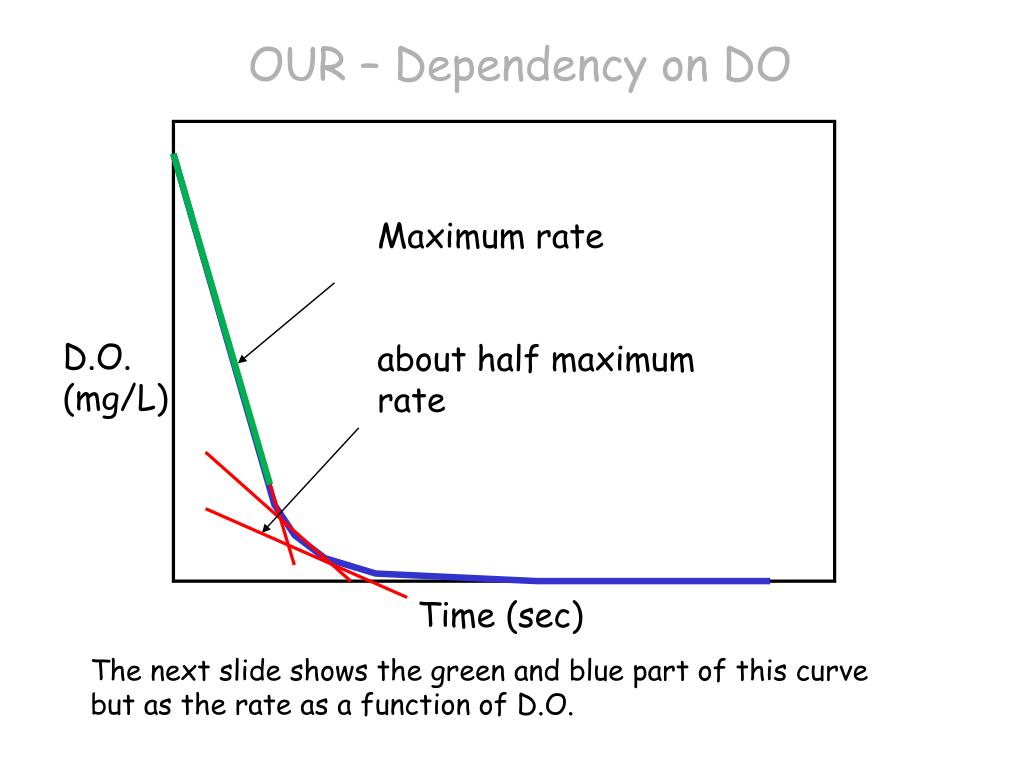

  37. OUR – Dependency on DO Maximum rate about half maximum rate D.O. (mg/L) Time (sec) The next slide shows the green and blue part of this curve but as the rate as a function of D.O.

  38. OUR – Dependency on DO The OUR is mostly independent of D.O. (zero order kinetics) At very low D.O. the OUR is strongly dependent on D.O. (close to 1st order kinetics) OUR (mg/L/h) D.O. (mg/L)

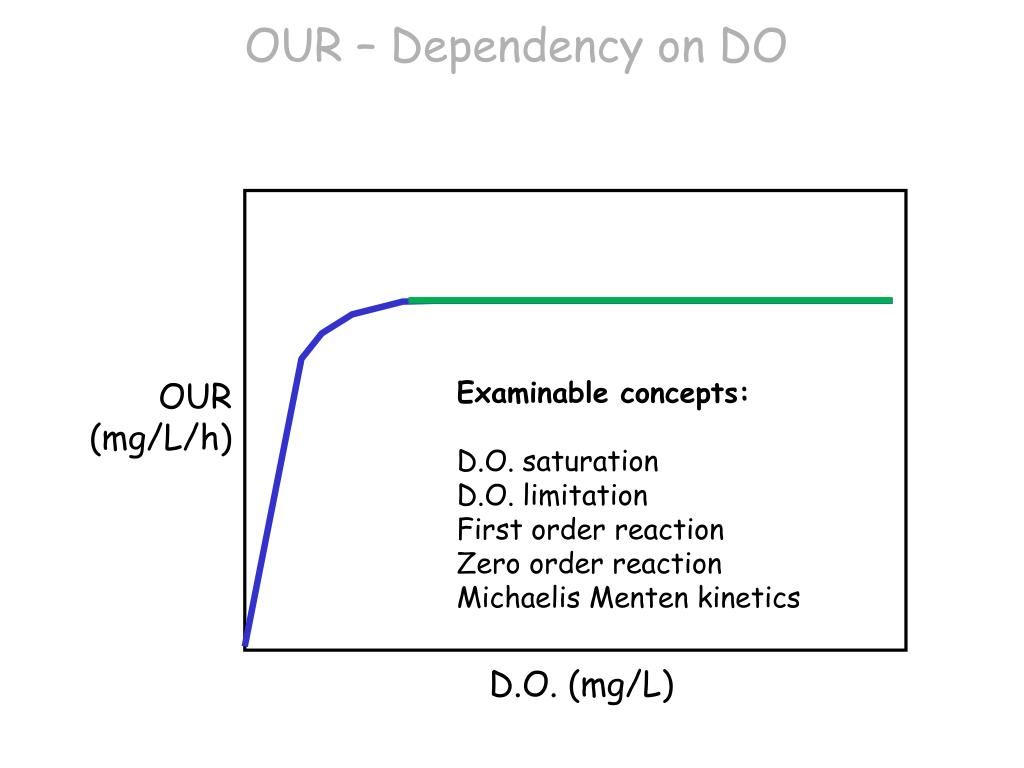

  39. OUR – Dependency on DO Examinable concepts: D.O. saturation D.O. limitation First order reaction Zero order reaction Michaelis Menten kinetics OUR (mg/L/h) D.O. (mg/L)

  40. OUR (mg/L/h) Critical DO 0.5 1 2 DO (mg/L) Dependence of OUR on DO (cL) Conclusions: 1. Typical Michaelis Menten relationship 2. ks at about 0.1 ppm (critical D.O.: 0.2 mg/L)

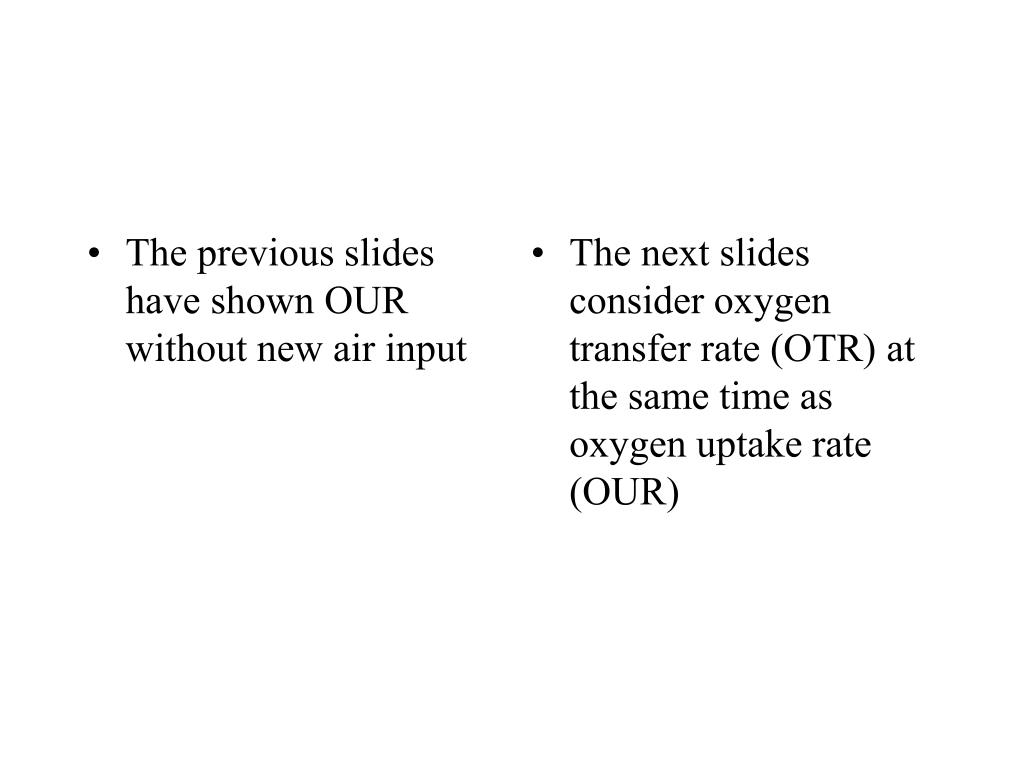

  41. The previous slides have shown OUR without new air input • The next slides consider oxygen transfer rate (OTR) at the same time as oxygen uptake rate (OUR)

  42. Air Off Air On DO (ppm) A B C Time (sec) OUR – Indirect online monitoring Steady state: 1. OUR constant 3. DO constant 2. OTR constant 4. OUR = OTR A dcL/dt = 0 dcL/dt = OUR B = - QO2.X dcL/dt = OTR - OUR C = kLa (cs - cL) - QO2.X When dcL/dt = 0 → OUR = OTR → OUR = kLa(cs – cL) Conclusion: When kLa is known, steady state OUR can be calculated from the dissolved [oxygen] (D.O.) (cL)

  43. Feed On Feed On DO (ppm) Feed Off Feed Off Feed Off Time (min) OUR – Dependency on DO The addition of feed to a starving culture of microbes results in an instantaneous increase of OUR, which Causes a drop in the D.O.

  44. OUR – calculation from in situ DO monitoring • 1. Calculation of OUR from kLa and cL • Given: • Reactor with airflow that gives a known kLa of . kLa = 20 h-1 • Due to bacterial OUR a steady state DO establishes at 2 mg/L • OUR = kLa * (cS-cL) • kLa = 20 h-1, cL = 2 mg/L, cS= 8 mg/L OUR = ? • OUR = 20 h-1 x 6 mg/L = 120 mg/L/h • Conclusion: • OUR can be determined immediately • Online OUR monitoring is possible (online respirometry) • Useful for Degradability tests, toxicity tests, process optimisation
