  1. Wine Cabinets C/ Juan Ramón Jiménez, nº 34, 1º 1ª 8100 Mollet del Vallès - Barcelona - Tel. +34 93 562 51 11 - Fax: +34 93 562 50 94

  2. Caveduke. The company is well known for manufacturing products with an excellent aesthetic finish, an accurate refrigerating The advanced technology used in manufacturing our wine cellars makes them the most silent cellars on the market and, therefore, ideal for installation in living rooms, halls, etc.Only fine wood and materials that are highly resistant to cold and heat are used to manufacture our cellars, giving them a practically life-long durability. In addition, we also take great care in considering the four most important factors in wine conservation: appropriate humidity, constant temperature, and the absence of vibrations and ultraviolet rays. Caveduke is the only large manufacturer that will make a customised model in the colour, size and even design you require. CELLARSThese are designed for conservation and maturing of red wines, grand reserves... it can be regulated from +12ºC to +19ºC.MULTI-TEMPERATUREFor tasting of any type of wine: white, red, rose, sparkling... Controlled humidity.DUALVITECA®Cellar and multi-temperature in the same apparatus. Easy use, simply by placing its control level to the left or right in order to choose the modality.COLD-HOTThis option will be essential whenever the machine is in environments where the outside temperature is 10º or less. charactericstics C/ Juan Ramón Jiménez, nº 34, 1º 1ª 8100 Mollet del Vallès - Barcelona - Tel. +34 93 562 51 11 - Fax: +34 93 562 50 94

  3. Technical Characteristics • Option A. REFRIGERANT SYSTEM BY COMPRESSOR • COMPONENTS OF REFRIGERATION SYSTEM. • EMBAJADOR / MINISTER MODEL • ·Evaporating Set 0,41 x 1 x 6 pipe 3/8 separation 10 • ·Danfoss Compressor TL-4G • ·Condenser • ·PVC Grey tray, to gather water • ·Black pipe to gather water made of PVC 16mm • ·R.134 A Gas • ·Howitzer valve • ·Filter • ·Copper Pipe 3/16 • ·Copper Pipe ¼ • ·Capillary • ALBACEA / REGENT MODEL • All the components of Embajador / Minister, modifying • ·Evaporating Set 0,41 x 1 x 6 pipe 3/8 separation 10 • ·Condenser •   STATUS / VANITY MODEL • All the components of Albacea / Regent, modifying • ·Evaporating Set 0,41 x 1 x 20 pipe 3/8 separation 10 • ·Danfoss Compressor TL-5G • ·Condenser • Option B. REFRIGERANT SYSTEM BY PELTIER SYSTEM. • VIP, CHIC, CUP, PRIVILEGE, WINE DISPENSER MODELS • ·Thermoelectric board. • ·Ventilators. COMMON ELEMENTS: DIGITAL THERMOSTAT. ANALOGUE HIGROMETER AND THERMOMETER DAMPNESS AUTOMATIC CONTROLLED.(55-65%) ANTIVIBRATION CAVEDUKE SYSTEM WITH RUBBER BLOCKS AND ARMAFLEX ISOLANT. DOUBLE GLASS WITH PROTECTION TO AVOID THE U.V. RAYS. ISOLATION OF 4.5 CM. THICK AND HIGH DENSITY EXPANDED FOAM OF POLYURÉTHANE INJECTED. WOOD WITH HYDROFUG TREATMENT AGAINST THE HUMIDITY.

  4. STANDARD OPTIONS • Standard housings. • Shelves. Made by solid wood. • Kind of doors.Frame made by oak solid door (except Aluminium door) and Glass special to filter UV rays. • Finish/colors. • Handle. • Temperatures.

  5. Standard housings

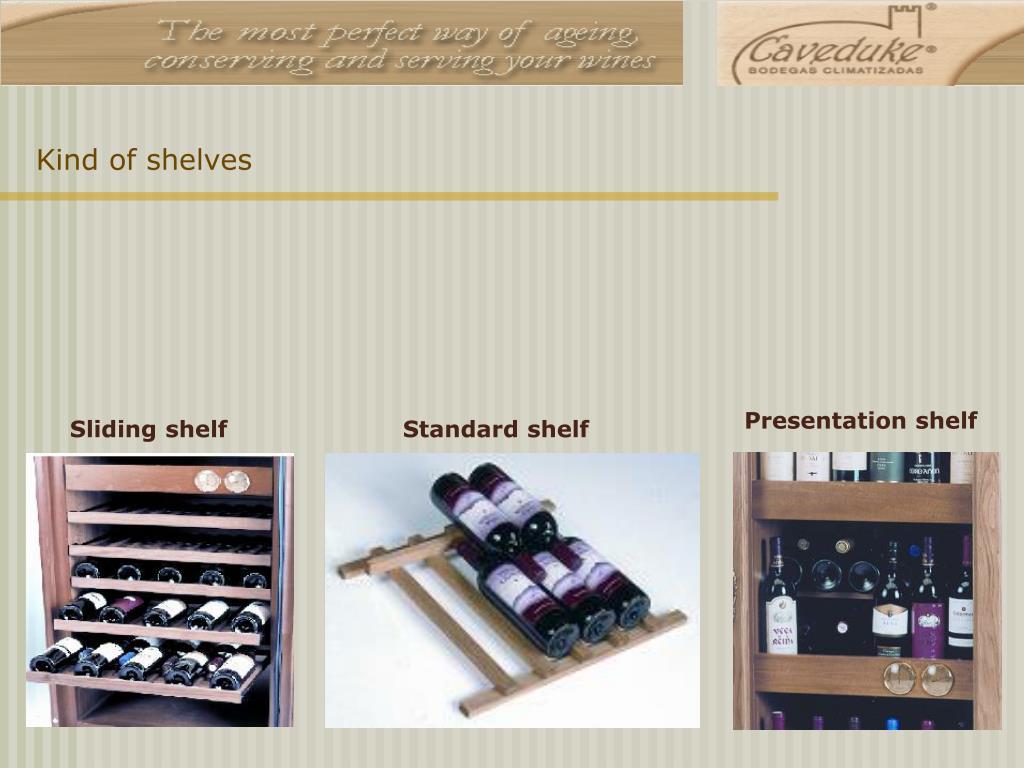

  6. Kind of shelves Presentation shelf Sliding shelf Standard shelf

  7. Kind of standard doors Embajador door.With lock and handle. Prestige door.With lock and handle . Solid door.With lock and handle. Corona door.With lock and handle. Palace door.With handle. Minister door.With groove to open Aluminium door.With handle.

  8. Types of Finish(External housing ) • Melamine: black, silver grey, maple 01, ceder, cherry tree 02, etimoe, 4221 beech, walnut, zebrano, oak color. • Oak Veneered: Varnish or spraying lacquers. ( Any color required). • Mdf Wood: Varnish or spraying lacquers. ( Any color required). • Solid Oak or Beech wood.Varnish or spraying lacquers. ( Any color required). WALNUT CEDER MAPLE ETIMOE CHERRY TREE 02 OAK BEECH 4221 SILVER GREY ZEBRANO

  9. Types of standard handles Legend handle with lock Zen handle Rustic handle with lock Dandy handle with lock Modern lock. Silver or Gold lock Palace door. Silver or Gold color Other kind of handle/lock on request. We can install handle or lock you supply. (Except for aluminium door )

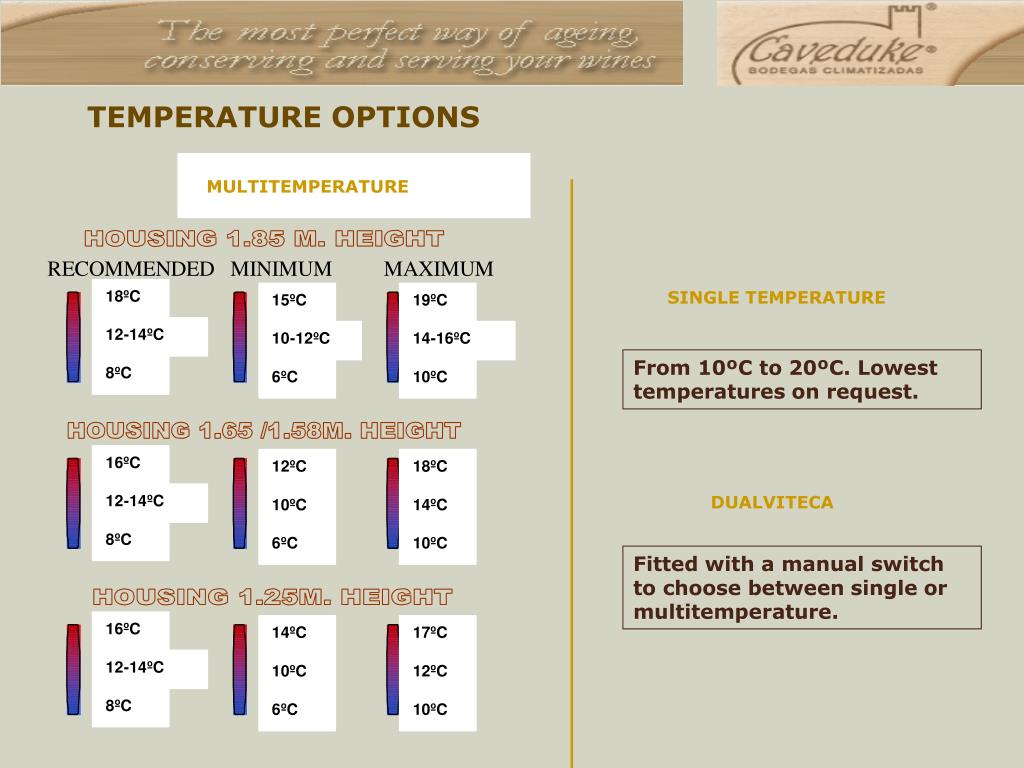

  10. TEMPERATURE OPTIONS MULTITEMPERATURE SINGLE TEMPERATURE From 10ºC to 20ºC. Lowest temperatures on request. DUALVITECA Fitted with a manual switch to choose between single or multitemperature.

  11. Caveduke wine cabinets The most perfect way to age, preserve and serve your wines
