  1. Fill in the Blanks

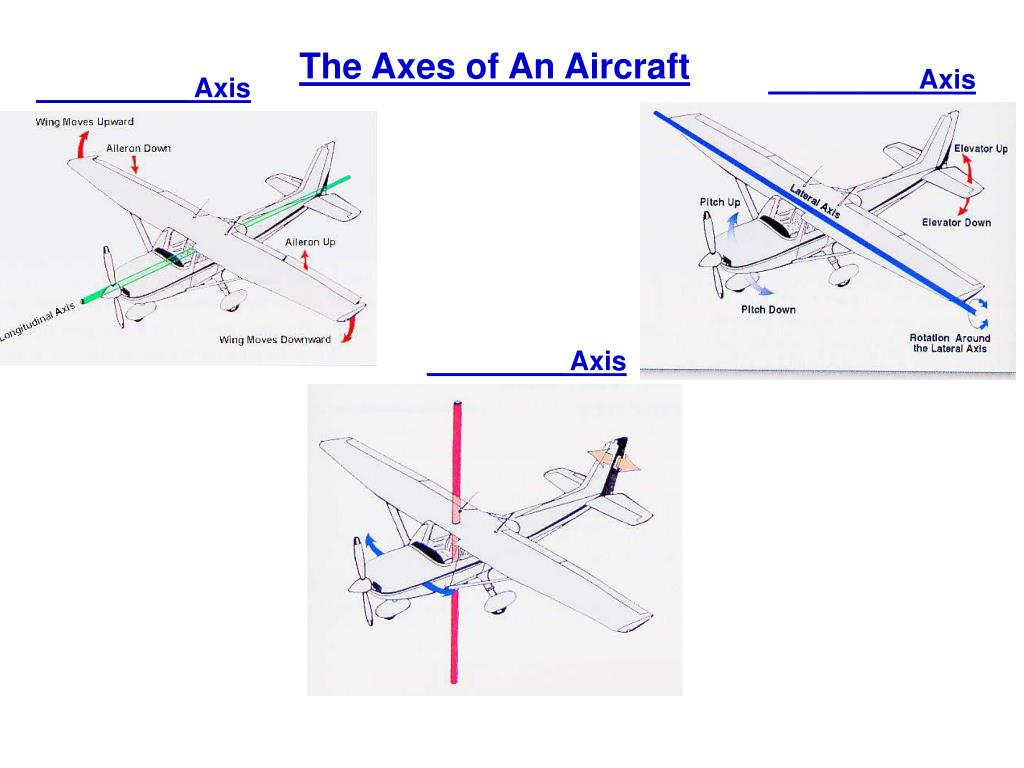

  2. The Axes of An Aircraft __________Axis __________ Axis _________ Axis

  3. “Cockpit” Tandem = front & back

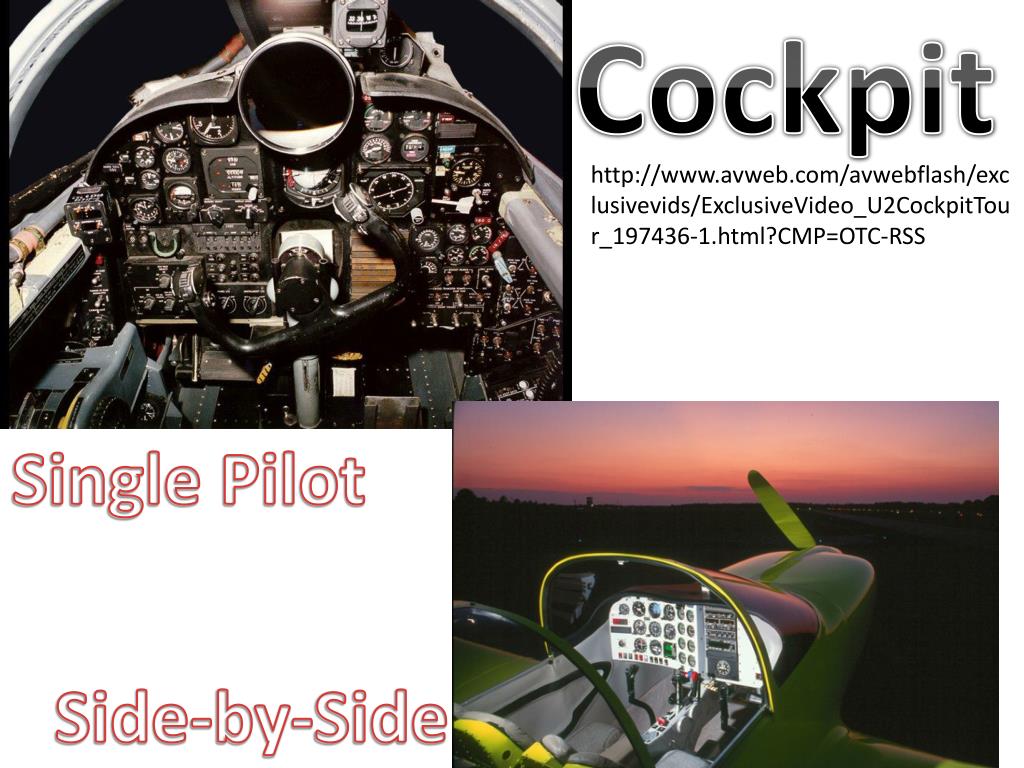

  4. Cockpit http://www.avweb.com/avwebflash/exclusivevids/ExclusiveVideo_U2CockpitTour_197436-1.html?CMP=OTC-RSS Single Pilot Side-by-Side

  5. FLAPS Changes chord line, increasing angle of attack, which in turn increases LIFT

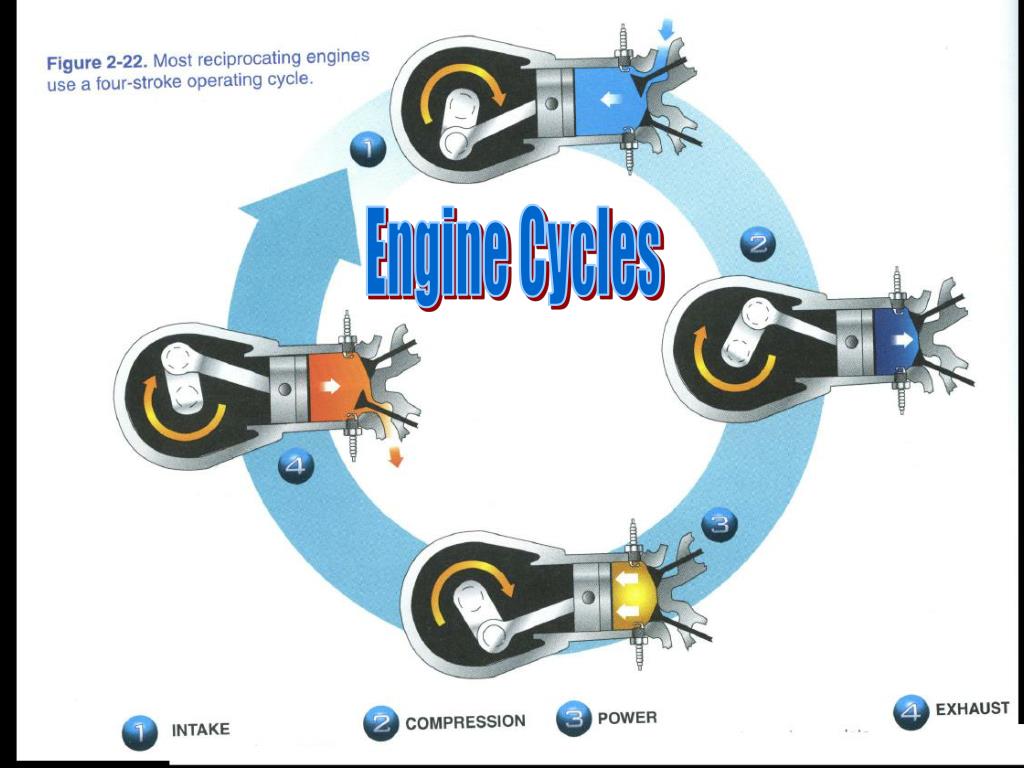

  6. Engine Cycles

  7. 1 horsepower = 550 foot-pounds of work per second Propulsion http://www.planemath.com/activities/pmenterprises/propulsion/propulsion2.html

  8. Homework: Ch 3, Part d, p. 60
