  1. Artistic Edge and Corner Enhancing Smoothing Giuseppe Papari Nicolai Petkov Patrizio Campisi

  2. ABSTRACT • 1) absence of texture details 2) increased sharpness of edges as compared to photographic images • generalizes both the well known Kuwahara filter and the more general class of filters known as VCFS. • VCFS: value and criterion filter structure Value-and-criterion filters have a `value' function (V) and a `criterion' function (C), each operating separately on the original image, and a `selection' operator (S) acting on the output of C. The selection operator chooses a location from the output of C, and the output of V at that point is the output of the overall filter.

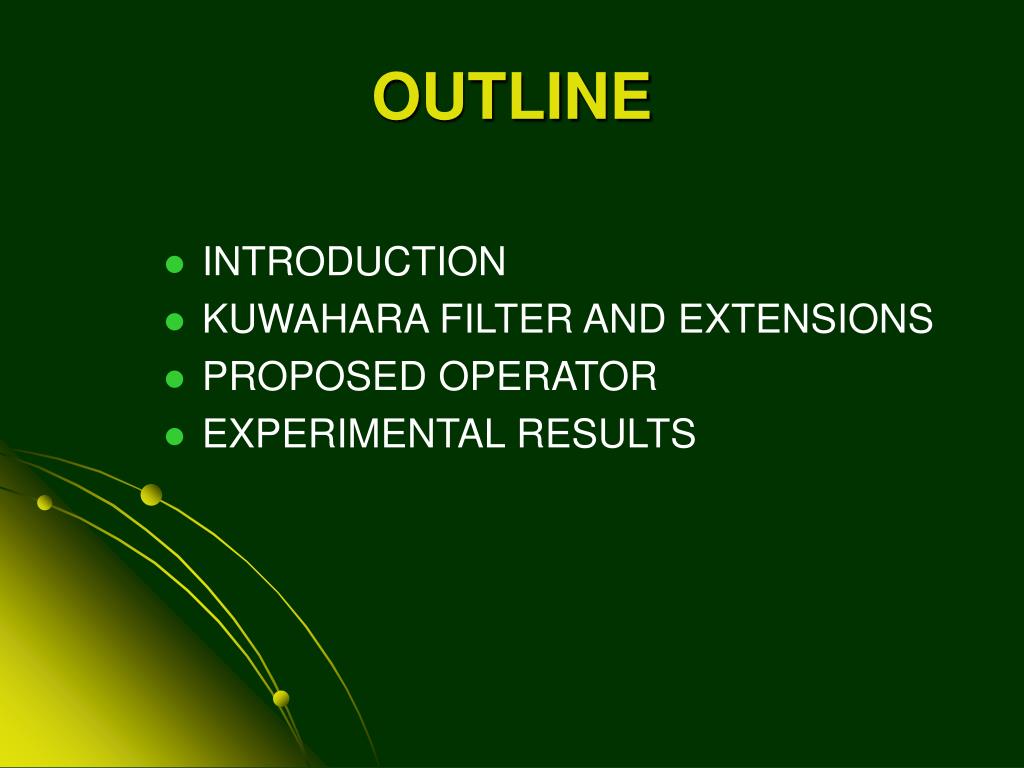

  3. OUTLINE • INTRODUCTION • KUWAHARA FILTER AND EXTENSIONS • PROPOSED OPERATOR • EXPERIMENTAL RESULTS

  4. INTRODUCTION • Linear low-pass filtering strongly attenuates high-frequency components, not only noise, but also edges and corners, are smoothed out. • There has been a remarkable effort to find a nonlinear operator able to remove texture and noise, while preserving edges and corners. • ECPS: edge and corner preserving smoother • Ex : median filtering, morphological analysis, bilateral filtering

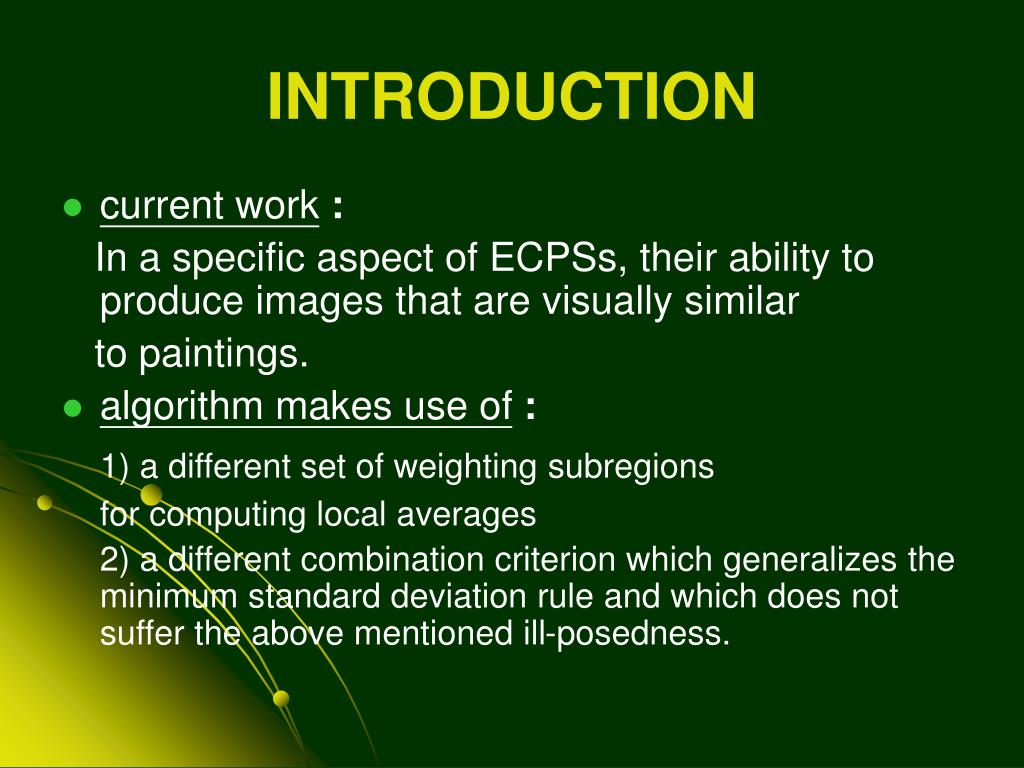

  5. INTRODUCTION • current work: In a specific aspect of ECPSs, their ability to produce images that are visually similar to paintings. • algorithm makes use of: 1) a different set of weighting subregions for computing local averages 2) a different combination criterion which generalizes the minimum standard deviation rule and which does not suffer the above mentioned ill-posedness.

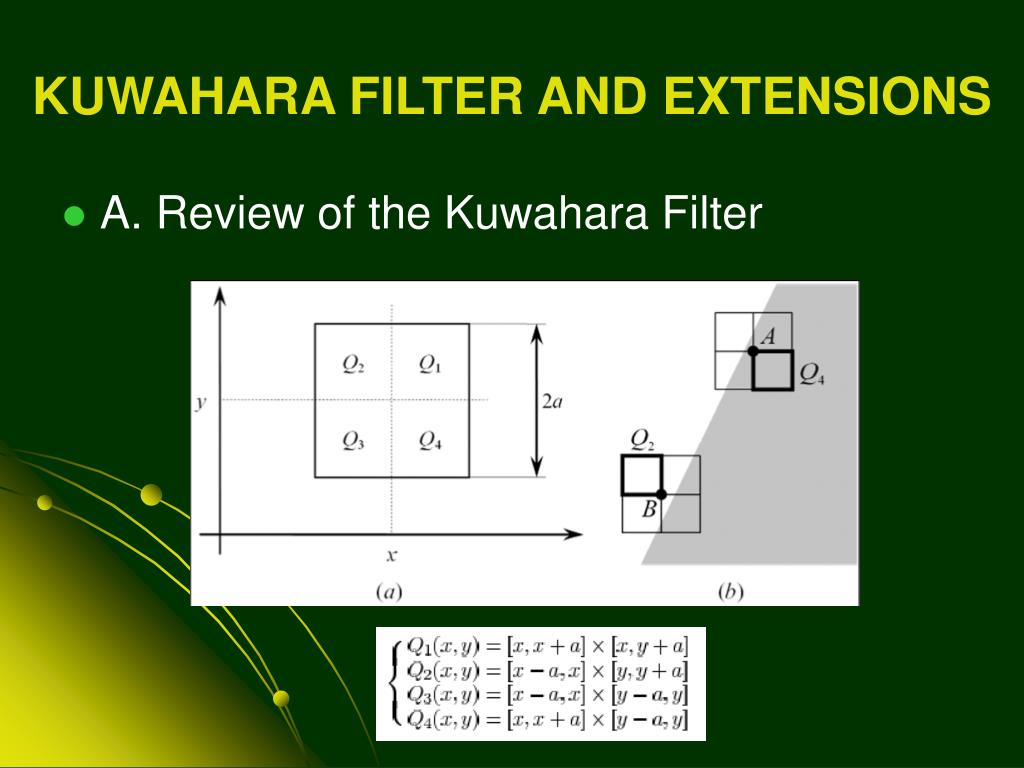

  6. KUWAHARA FILTER AND EXTENSIONS • A. Review of the Kuwahara Filter

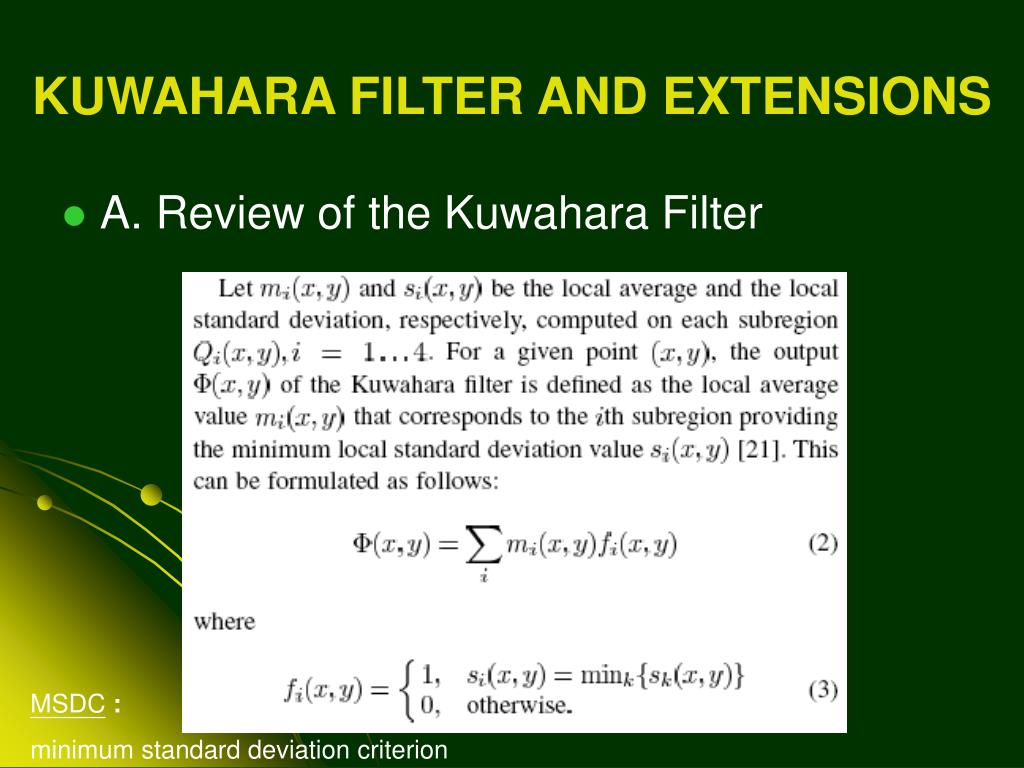

  7. KUWAHARA FILTER AND EXTENSIONS • A. Review of the Kuwahara Filter MSDC: minimum standard deviation criterion

  8. KUWAHARA FILTER AND EXTENSIONS • B. Limitations of the Kuwahara Filter Fig.2

  9. PROPOSED OPERATOR

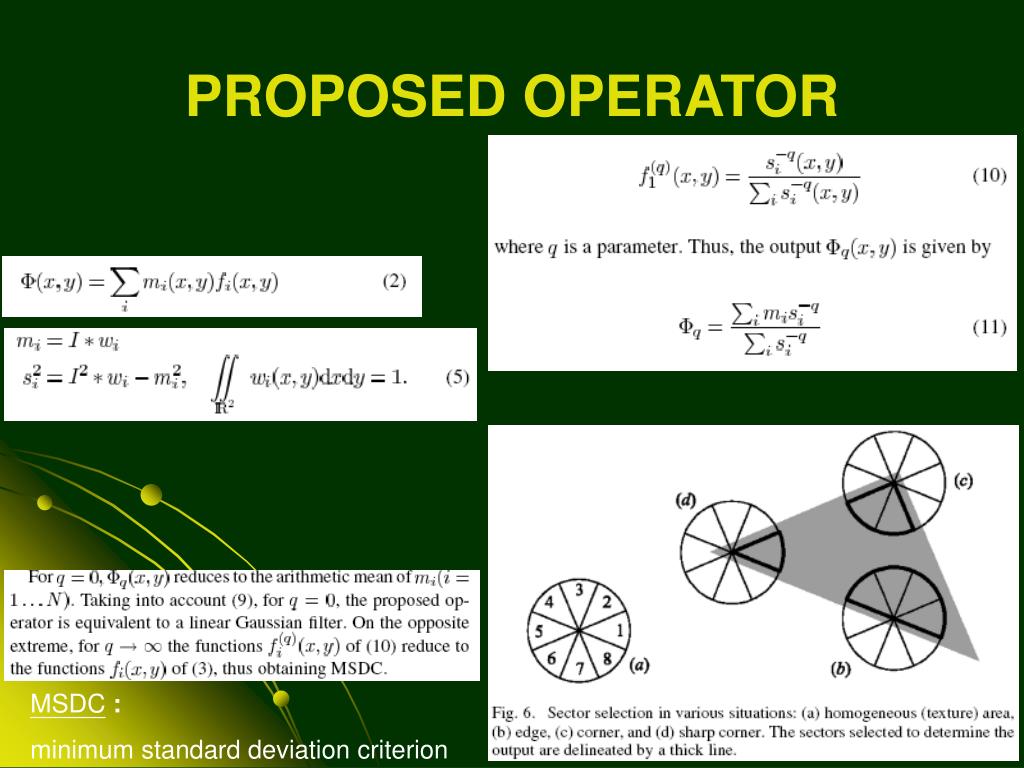

  10. PROPOSED OPERATOR MSDC: minimum standard deviation criterion

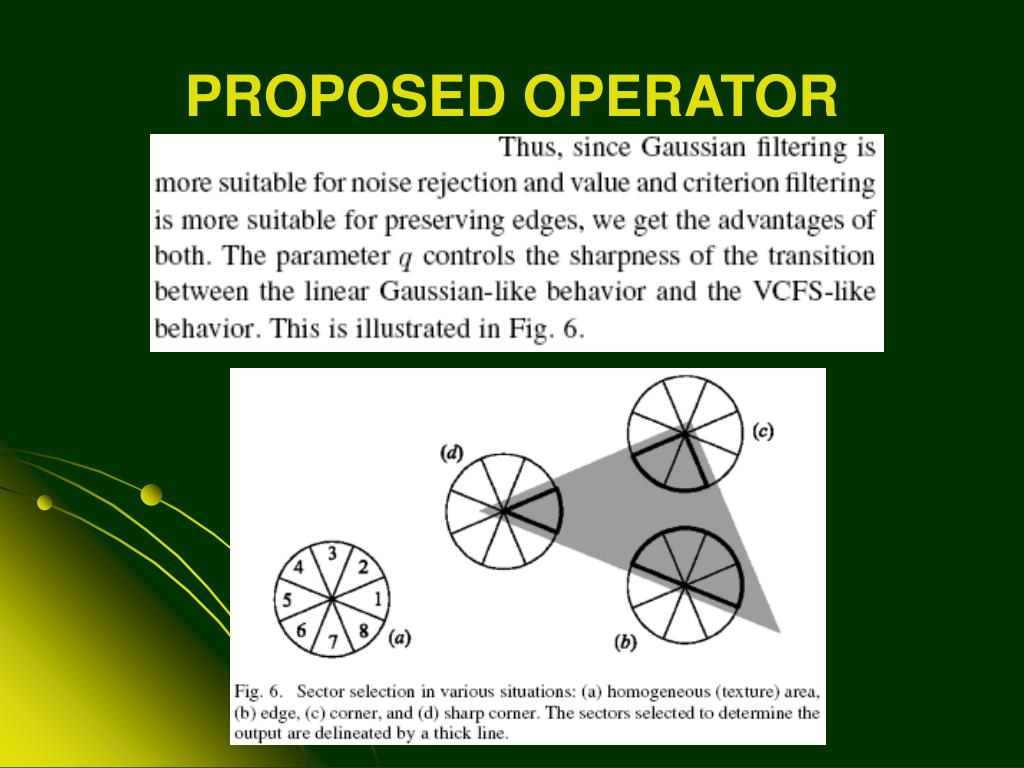

  11. PROPOSED OPERATOR

  12. EXPERIMENTAL RESULTS • A. Comparison With Existing Approaches • Fig.8 • Fig.9 • Fig.10 • Fig.11 • Fig.12 • Fig.13 • Fig.14

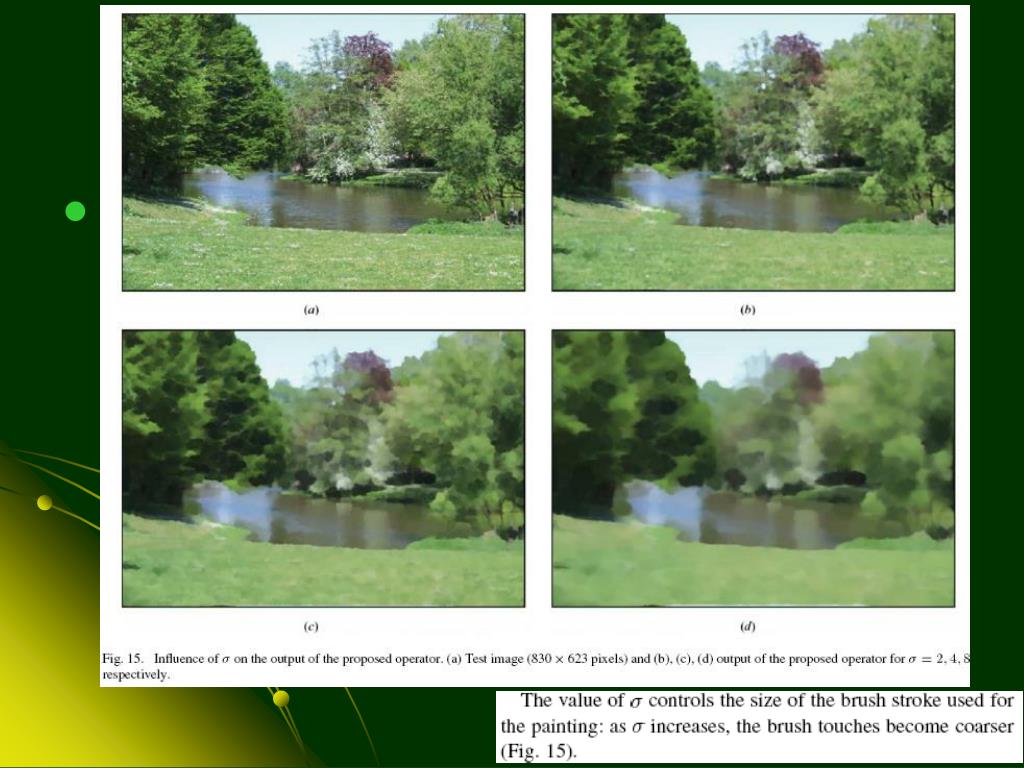

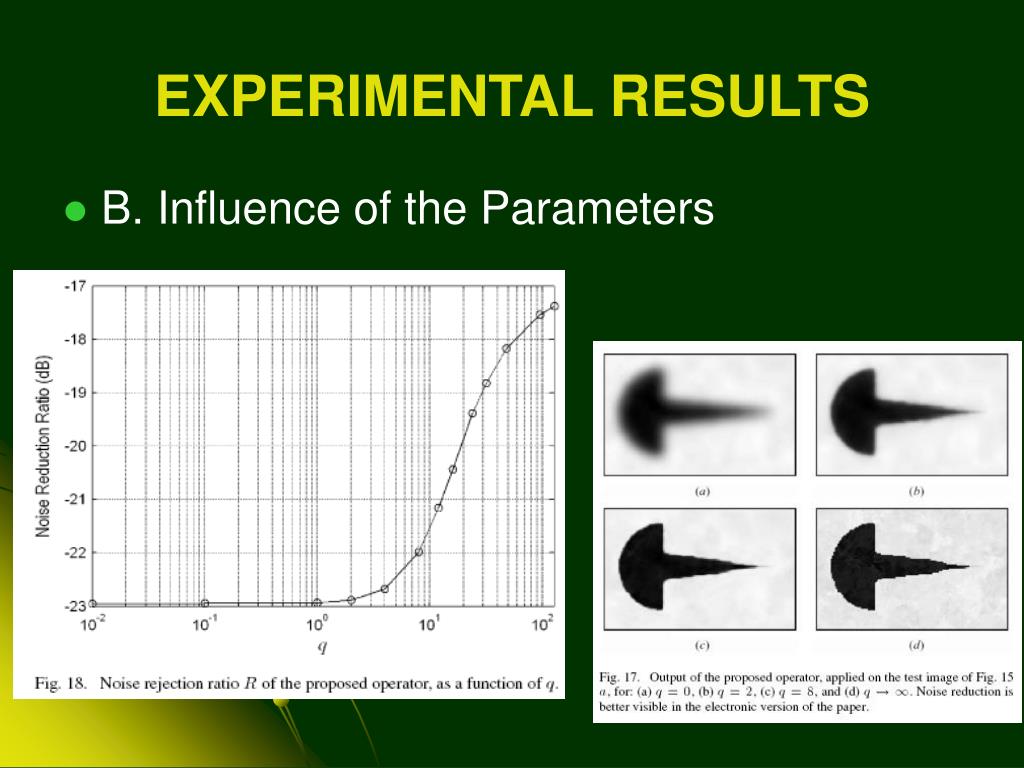

  13. EXPERIMENTAL RESULTS • B. Influence of the Parameters

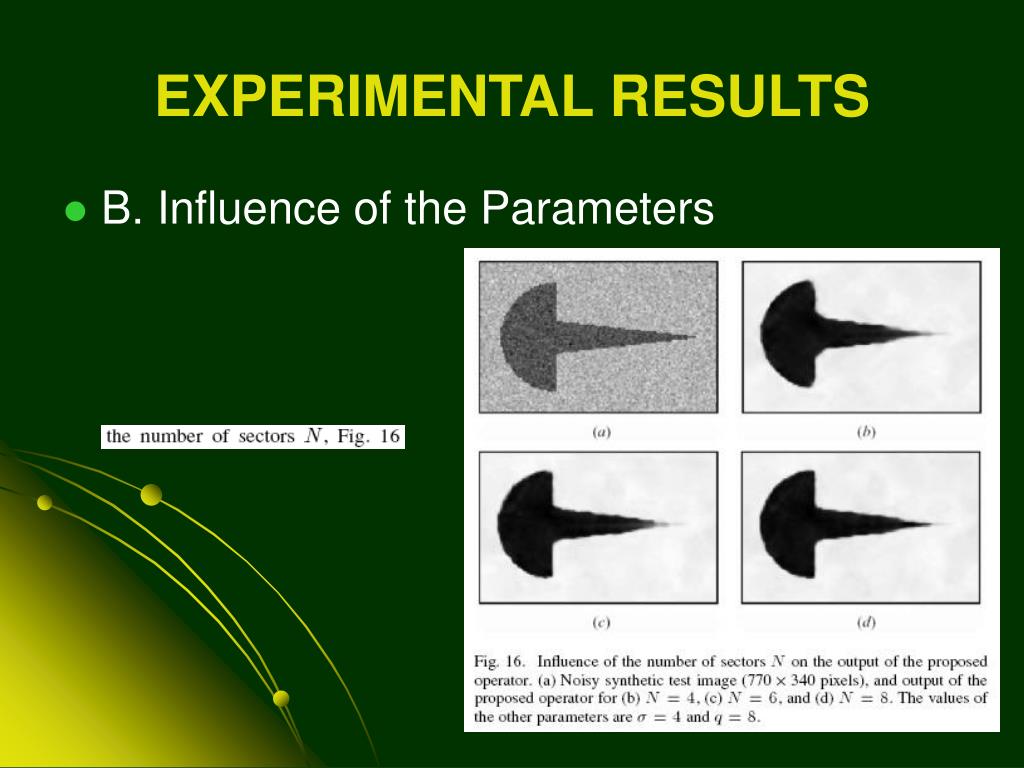

  14. EXPERIMENTAL RESULTS • B. Influence of the Parameters

  15. EXPERIMENTAL RESULTS • B. Influence of the Parameters

  16. Thank you for your listening! 2007.12.18
