Object Detection Using Semi-Naïve Bayes to Model Sparse Structure

Object Detection Using Semi-Naïve Bayes to Model Sparse Structure. Henry Schneiderman Robotics Institute Carnegie Mellon University. Object Detection. Find all instances of object X (e.g. X = human faces). Examples of Detected Objects. Chosen variable.

seven
Télécharger la présentation

Object Detection Using Semi-Naïve Bayes to Model Sparse Structure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Object Detection Using Semi-Naïve Bayes to Model Sparse Structure Henry Schneiderman Robotics InstituteCarnegie Mellon University

  2. Object Detection • Find all instances of object X (e.g. X = human faces)

  3. Examples of Detected Objects

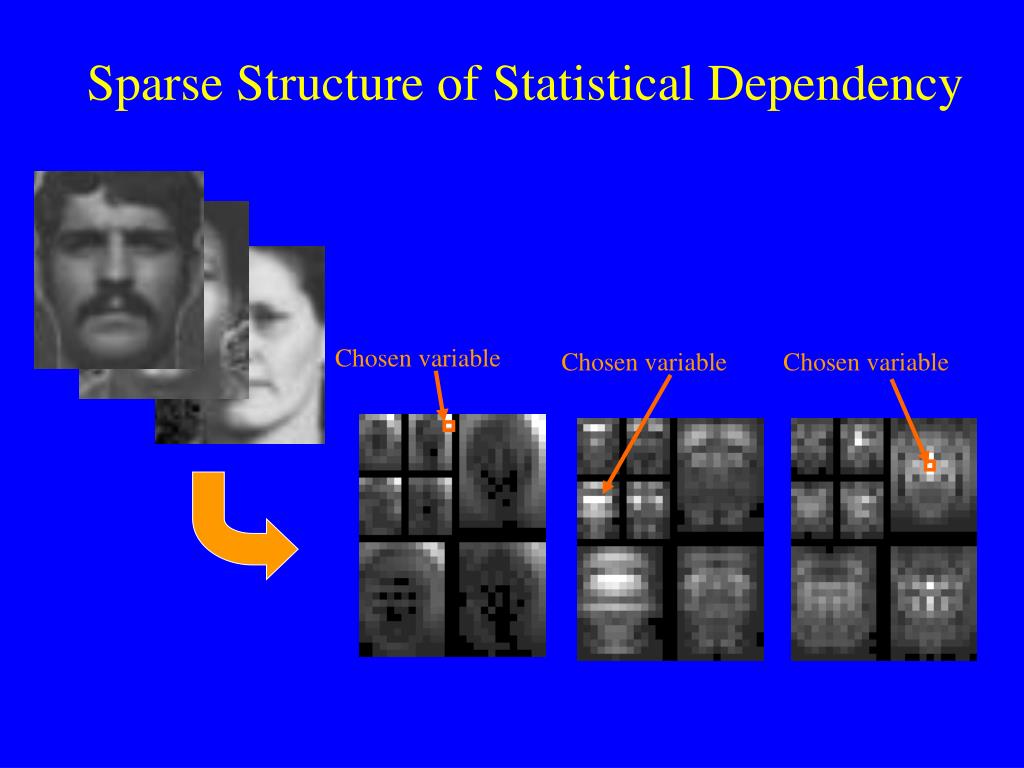

  4. Chosen variable Sparse Structure of Statistical Dependency Chosen variable Chosen variable

  5. Sparse Structure of Statistical Dependency Chosen coefficient Chosen coefficient Chosen coefficient

  6. Sparse Structure of Statistical Dependency Chosen coefficient Chosen coefficient Chosen coefficient

  7. Detection using a Classifier “Object is present” (at fixed size and alignment) Classifier “Object is NOT present”(at fixed size and alignment)

  8. e.g. S1 = (x21, x34, x65, x73, x123) S2 = (x3, x8, x17, x65, x73, x111) Proposed Model: Semi-Naïve Bayes input variables subsets • Kononenko (1991), Pazzini (1996), Domingos and Pazzini (1997), Rokach and Maimon (2001)

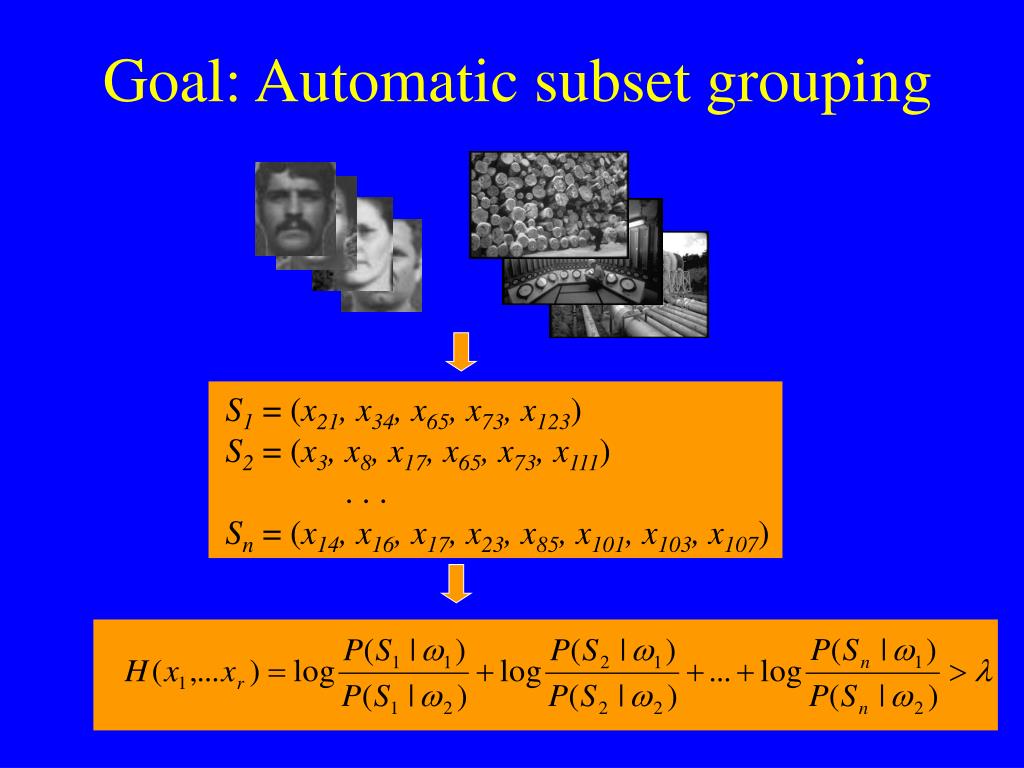

  9. Goal: Automatic subset grouping S1 = (x21, x34, x65, x73, x123) S2 = (x3, x8, x17, x65, x73, x111) . . . Sn = (x14, x16, x17, x23, x85, x101, x103, x107)

  10. qfunctions nfunctions, n << q Approach: Selection by Competition x1 x2 x3 . . . xm Generate q candidate subsets S1 S2 . . . Sq Train q log likelihood function log [p1(S1|w1) / p1(S1|w2)] log [p2(S2|w1) / p2(S2|w2)] . . . log [pq(Sq|w1) / pq(Sq|w2)] Select combination of n candidates log [pj1(Sj1|w1) / pj1(Sj1|w2)] log [pj2(Sj2|w1) / pj2(Sj2|w2)] . . . log [pjn(Sjn|w1) / pjn(Sjn|w2)] H(x1,…,xr) = log [pj1(Sj1|w1) / pj1(Sj1|w2)]+log [pj2(Sj2|w1) / pj2(Sj2|w2)] +. . .+ log [pjn(Sjn|w1) / pjn(Sjn|w2)]

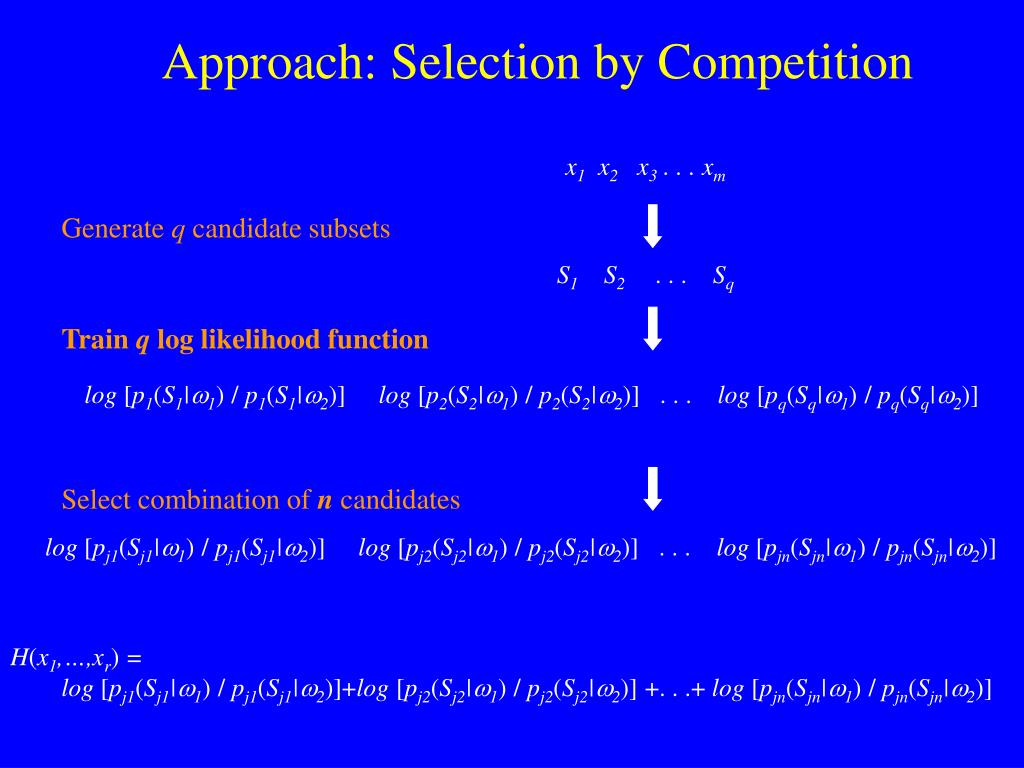

  11. Approach: Selection by Competition x1 x2 x3 . . . xm Generate q candidate subsets S1 S2 . . . Sq Train q log likelihood function log [p1(S1|w1) / p1(S1|w2)] log [p2(S2|w1) / p2(S2|w2)] . . . log [pq(Sq|w1) / pq(Sq|w2)] Select combination of n candidates log [pj1(Sj1|w1) / pj1(Sj1|w2)] log [pj2(Sj2|w1) / pj2(Sj2|w2)] . . . log [pjn(Sjn|w1) / pjn(Sjn|w2)] H(x1,…,xr) = log [pj1(Sj1|w1) / pj1(Sj1|w2)]+log [pj2(Sj2|w1) / pj2(Sj2|w2)] +. . .+ log [pjn(Sjn|w1) / pjn(Sjn|w2)]

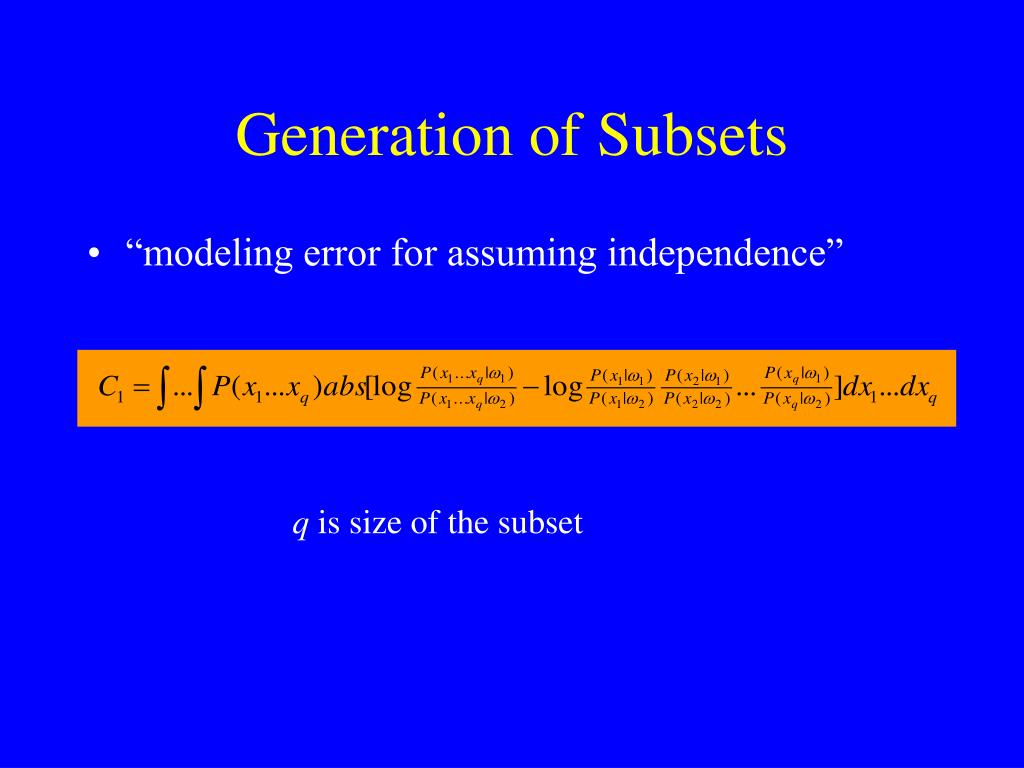

  12. Generation of Subsets • “modeling error for assuming independence” q is size of the subset

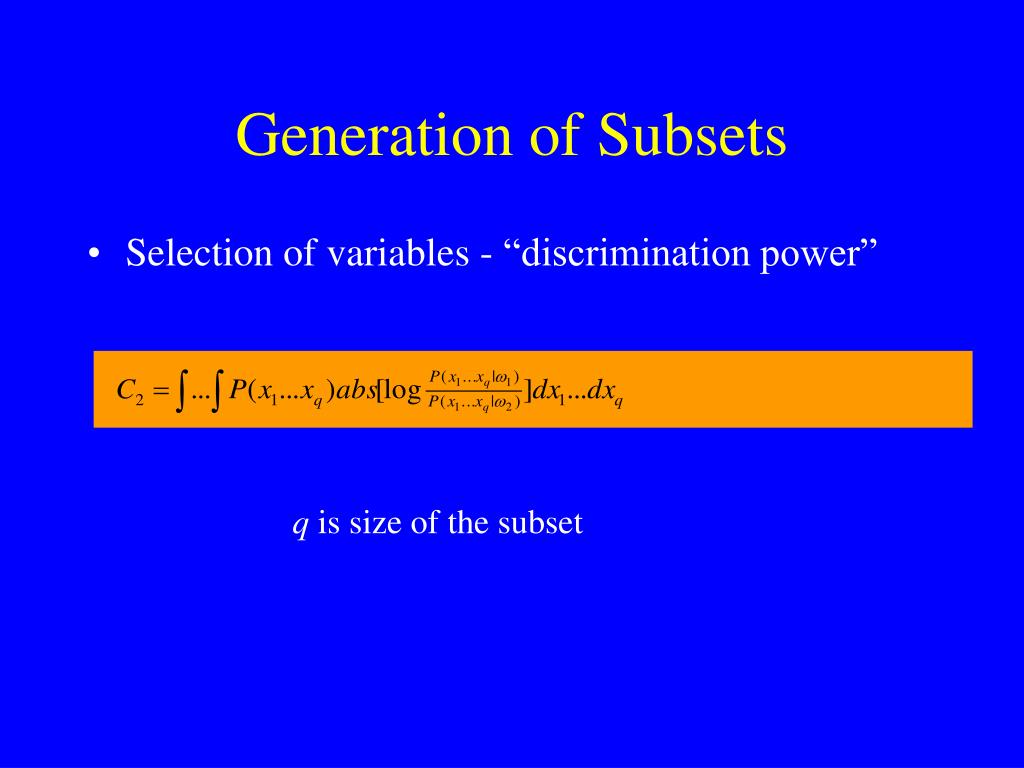

  13. Generation of Subsets • Selection of variables - “discrimination power” q is size of the subset

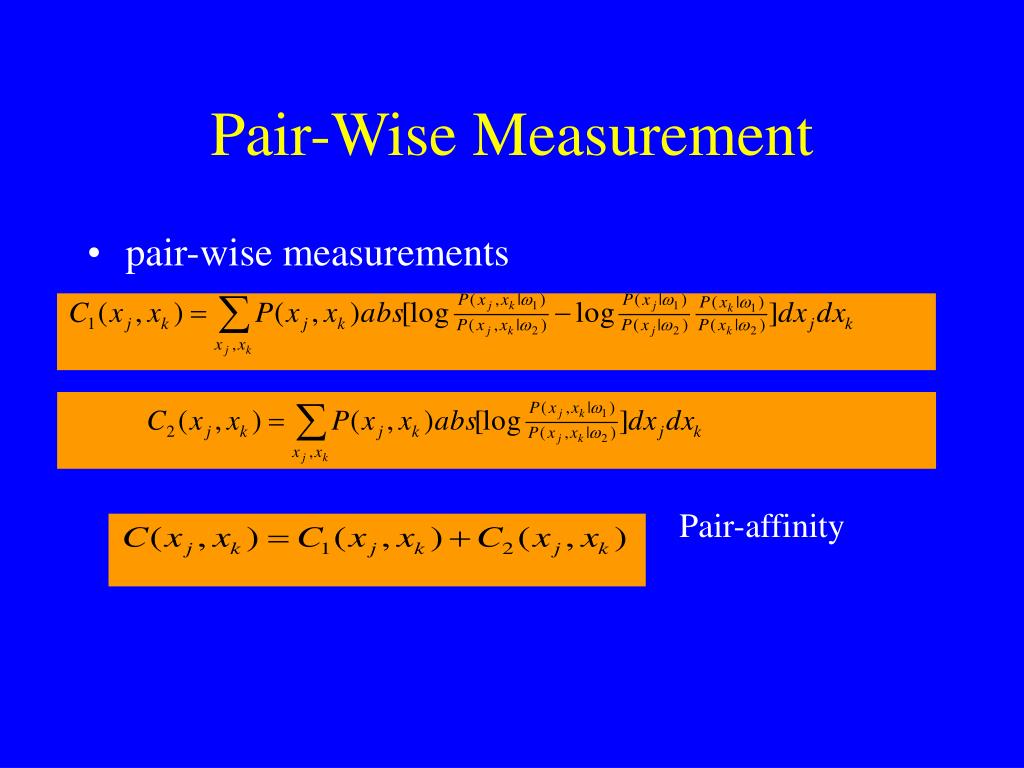

  14. Pair-Wise Measurement • pair-wise measurements Pair-affinity

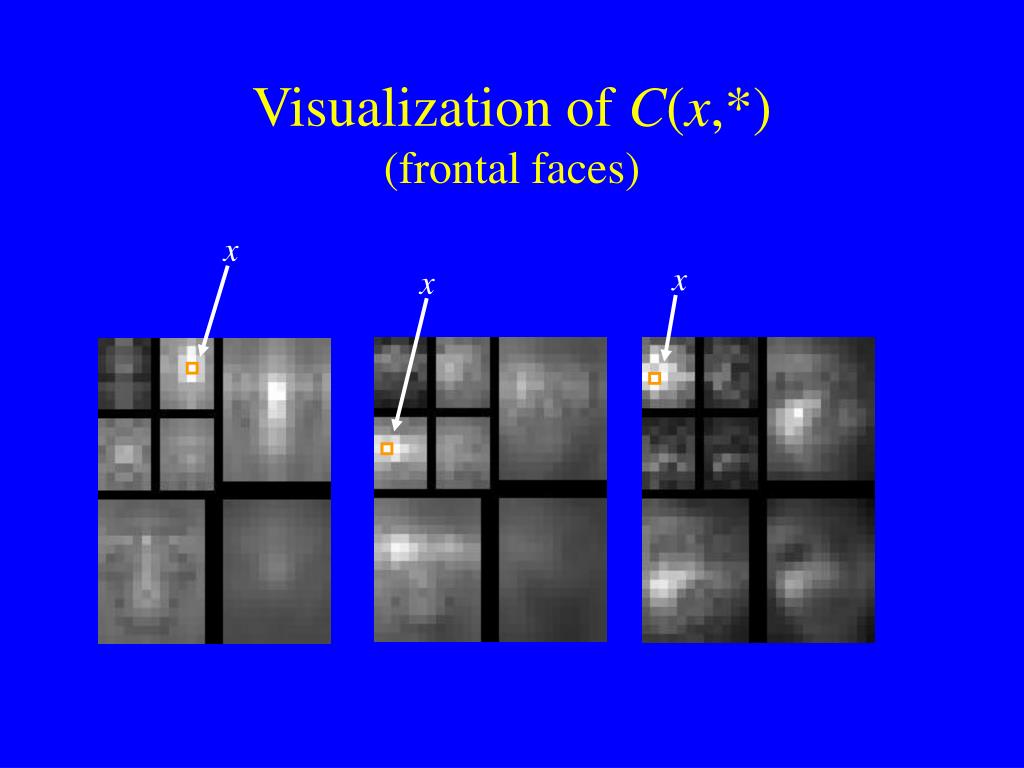

  15. Visualization of C(x,*)(frontal faces) x x x

  16. Measure over a Subset Subset-affinity

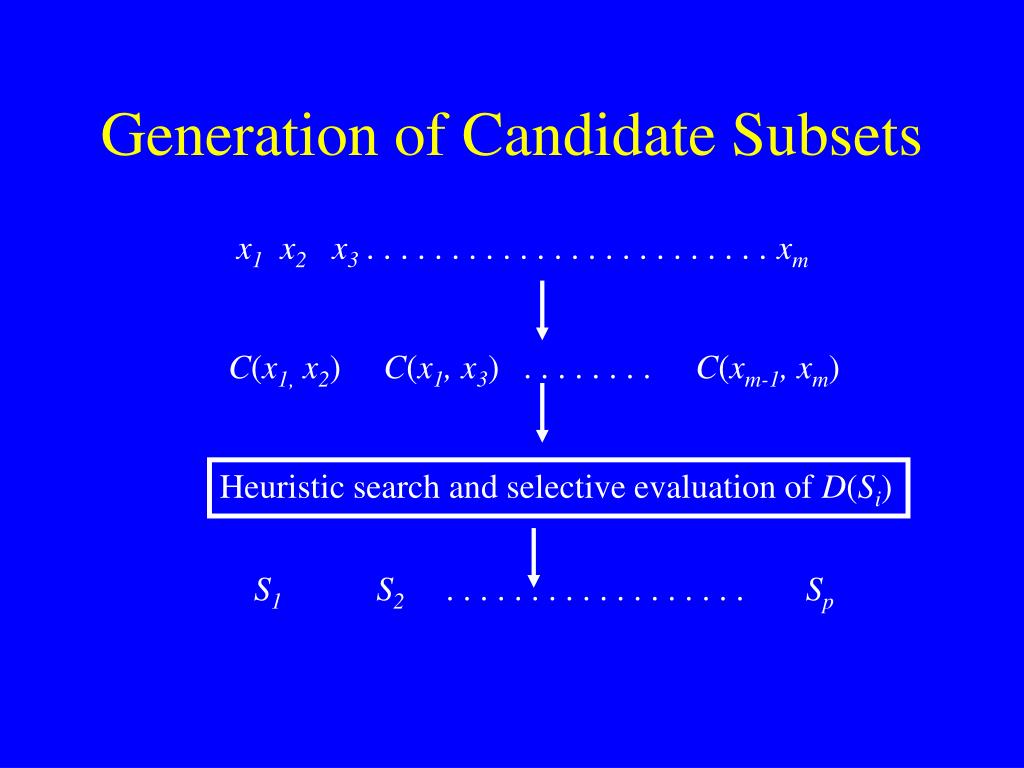

  17. Generation of Candidate Subsets x1 x2 x3 . . . . . . . . . . . . . . . . . . . . . . . . xm C(x1, x2) C(x1, x3) . . . . . . . . C(xm-1, xm) Heuristic search and selective evaluation of D(Si) S1 S2 . . . . . . . . . . . . . . . . . . Sp

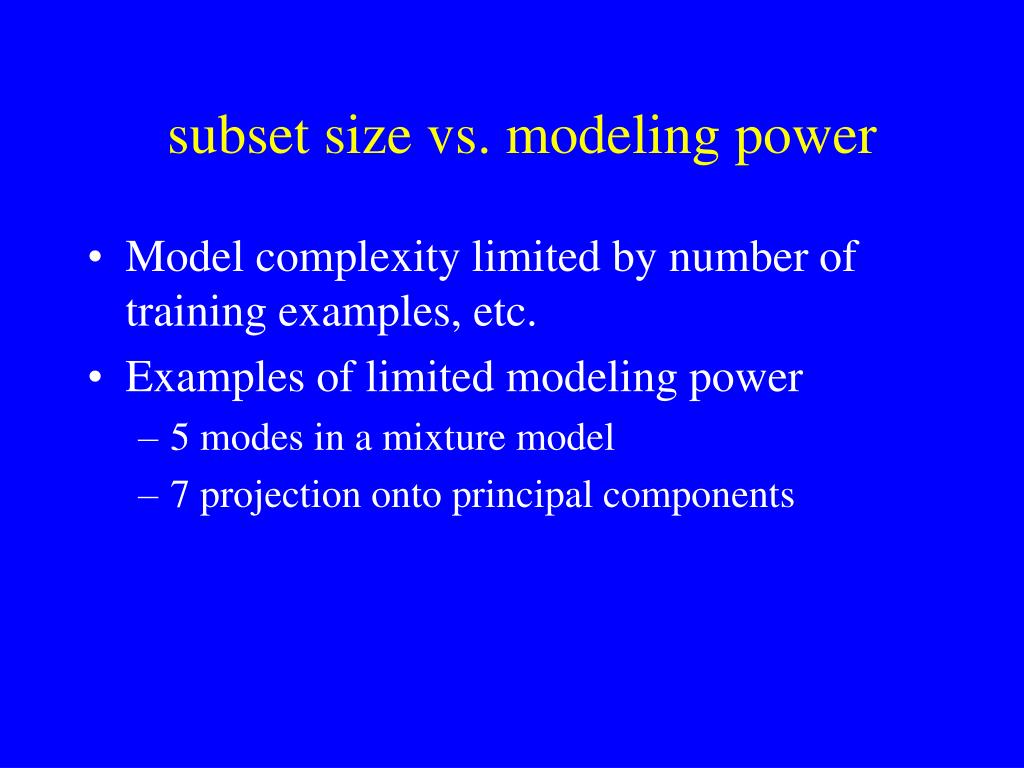

  18. subset size vs. modeling power • Model complexity limited by number of training examples, etc. • Examples of limited modeling power • 5 modes in a mixture model • 7 projection onto principal components

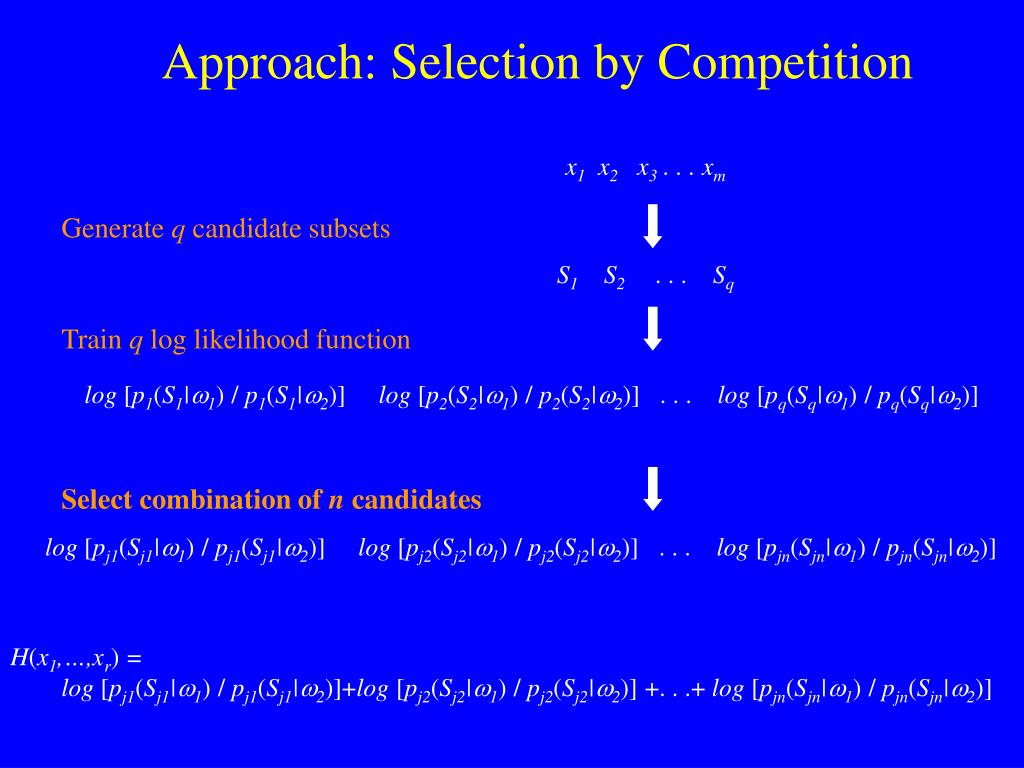

  19. Approach: Selection by Competition x1 x2 x3 . . . xm Generate q candidate subsets S1 S2 . . . Sq Train q log likelihood function log [p1(S1|w1) / p1(S1|w2)] log [p2(S2|w1) / p2(S2|w2)] . . . log [pq(Sq|w1) / pq(Sq|w2)] Select combination of n candidates log [pj1(Sj1|w1) / pj1(Sj1|w2)] log [pj2(Sj2|w1) / pj2(Sj2|w2)] . . . log [pjn(Sjn|w1) / pjn(Sjn|w2)] H(x1,…,xr) = log [pj1(Sj1|w1) / pj1(Sj1|w2)]+log [pj2(Sj2|w1) / pj2(Sj2|w2)] +. . .+ log [pjn(Sjn|w1) / pjn(Sjn|w2)]

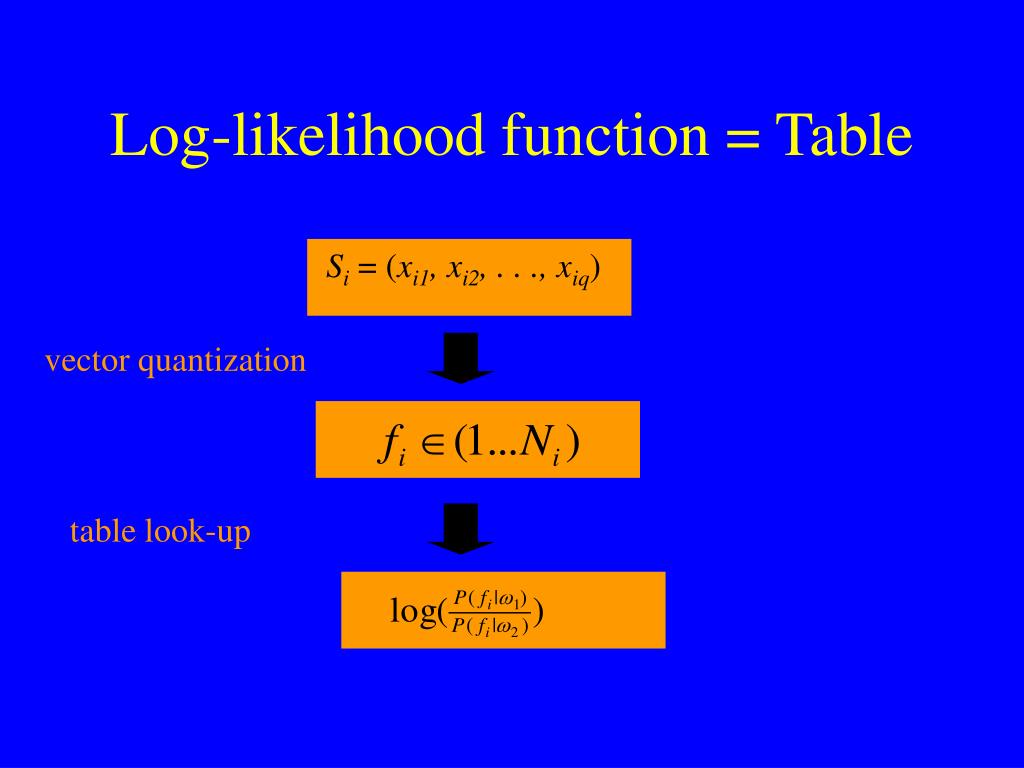

  20. Log-likelihood function = Table Si = (xi1, xi2, . . ., xiq) vector quantization table look-up

  21. Sub-Classifier Training by Counting fi Pi (fi |w1) fi Pi(fi |w2)

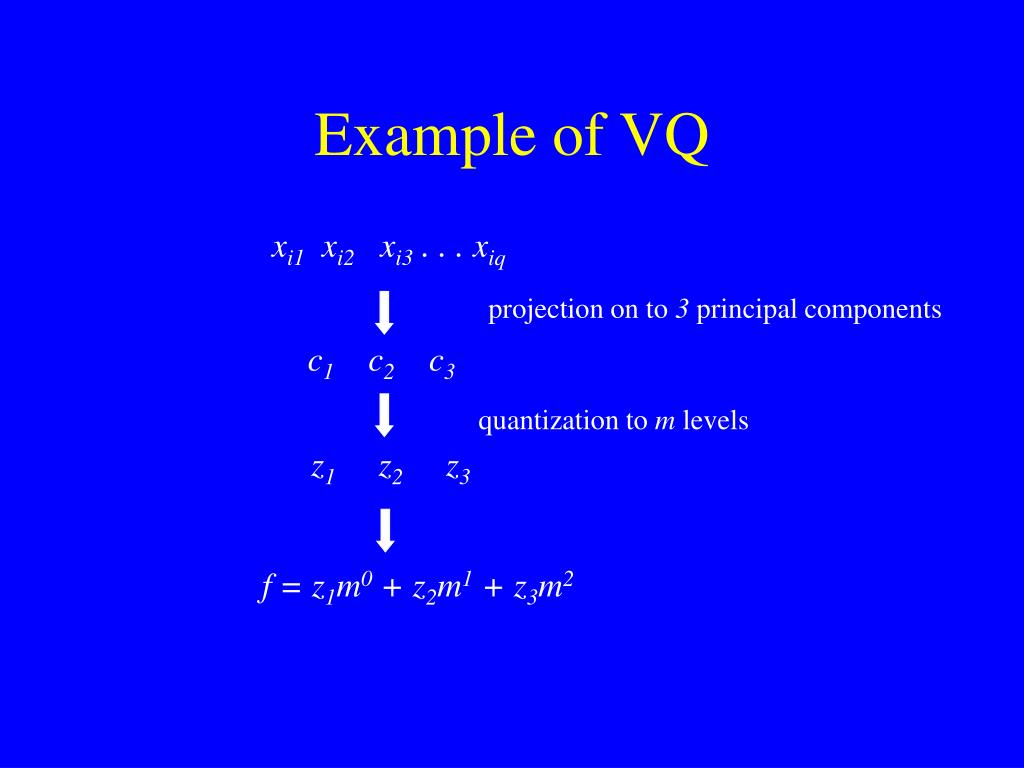

  22. Example of VQ xi1 xi2 xi3 . . . xiq projection on to 3 principal components c1 c2 c3 quantization to m levels z1 z2 z3 f = z1m0 + z2m1 + z3m2

  23. Approach: Selection by Competition x1 x2 x3 . . . xm Generate q candidate subsets S1 S2 . . . Sq Train q log likelihood function log [p1(S1|w1) / p1(S1|w2)] log [p2(S2|w1) / p2(S2|w2)] . . . log [pq(Sq|w1) / pq(Sq|w2)] Select combination of n candidates log [pj1(Sj1|w1) / pj1(Sj1|w2)] log [pj2(Sj2|w1) / pj2(Sj2|w2)] . . . log [pjn(Sjn|w1) / pjn(Sjn|w2)] H(x1,…,xr) = log [pj1(Sj1|w1) / pj1(Sj1|w2)]+log [pj2(Sj2|w1) / pj2(Sj2|w2)] +. . .+ log [pjn(Sjn|w1) / pjn(Sjn|w2)]

  24. Candidatelog-likelihoodfunctions h1(S1) h2(S2) . . . hP(SP) Evaluate on training data E1,w1 E1,w2 E2,w1 E2,w2 . . . Ep,w1 Ep,w2 Evaluate ROCs ROC1ROC2 . . . ROCP Order top Q log-likelihoodfunctions hj1(Sj1) hj2(Sj2) . . . hjQ(SjQ)

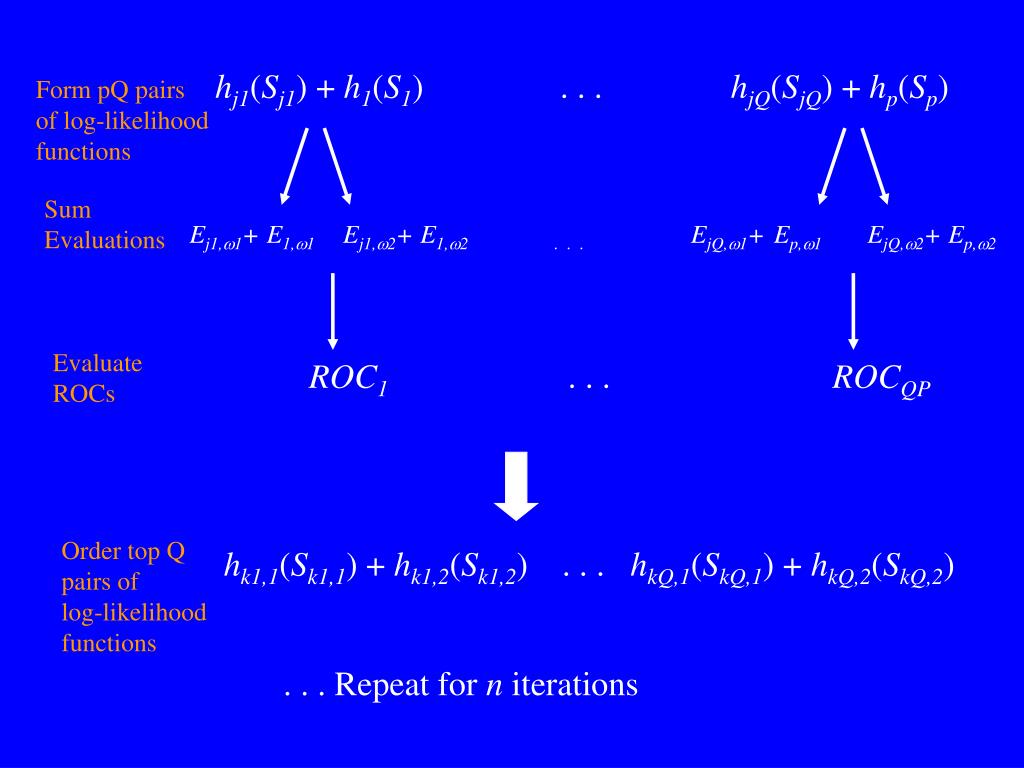

  25. hj1(Sj1) + h1(S1) . . . hjQ(SjQ) + hp(Sp) Form pQ pairsof log-likelihoodfunctions Sum Evaluations Ej1,w1+E1,w1Ej1,w2+ E1,w2 . . . EjQ,w1+Ep,w1 EjQ,w2+ Ep,w2 Evaluate ROCs ROC1 . . . ROCQP Order top Q pairs of log-likelihoodfunctions hk1,1(Sk1,1) + hk1,2(Sk1,2) . . . hkQ,1(SkQ,1) + hkQ,2(SkQ,2) . . . Repeat for n iterations

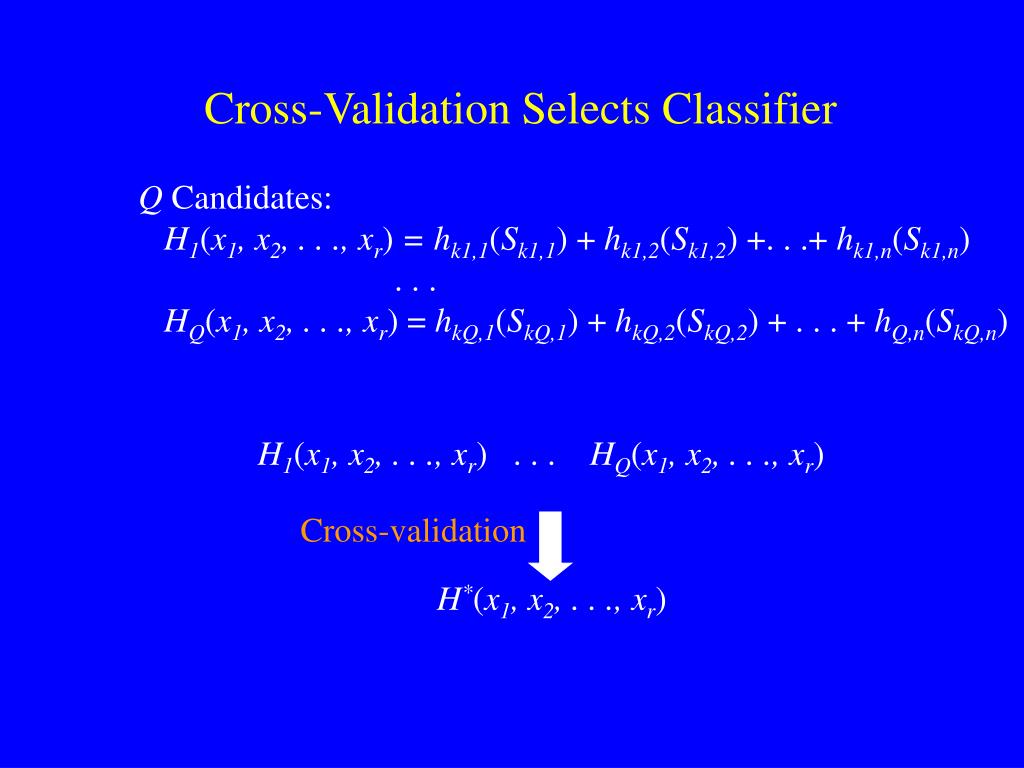

  26. Cross-Validation Selects Classifier Q Candidates: H1(x1, x2, . . ., xr) = hk1,1(Sk1,1) + hk1,2(Sk1,2) +. . .+ hk1,n(Sk1,n) . . . HQ(x1, x2, . . ., xr) = hkQ,1(SkQ,1) + hkQ,2(SkQ,2) + . . . + hQ,n(SkQ,n) H1(x1, x2, . . ., xr) . . . HQ(x1, x2, . . ., xr) Cross-validation H*(x1, x2, . . ., xr)

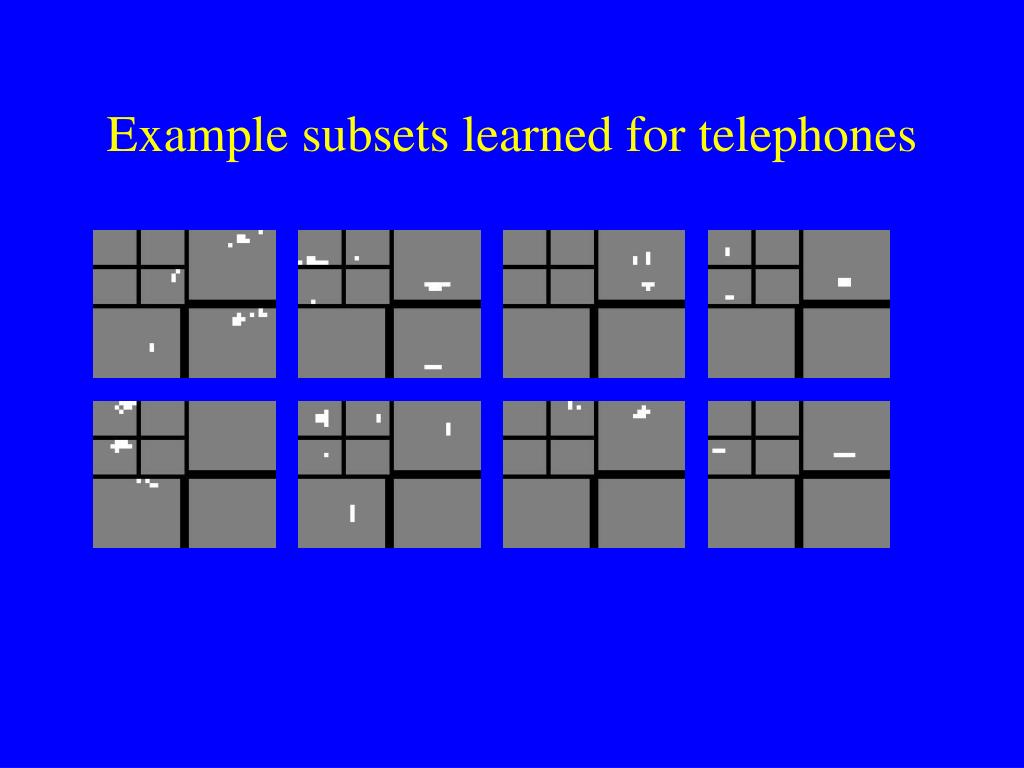

  27. Example subsets learned for telephones

  28. Evaluation of Classifier “Object is present” (at fixed size and alignment) Classifier “Object is NOT present”(at fixed size and alignment)

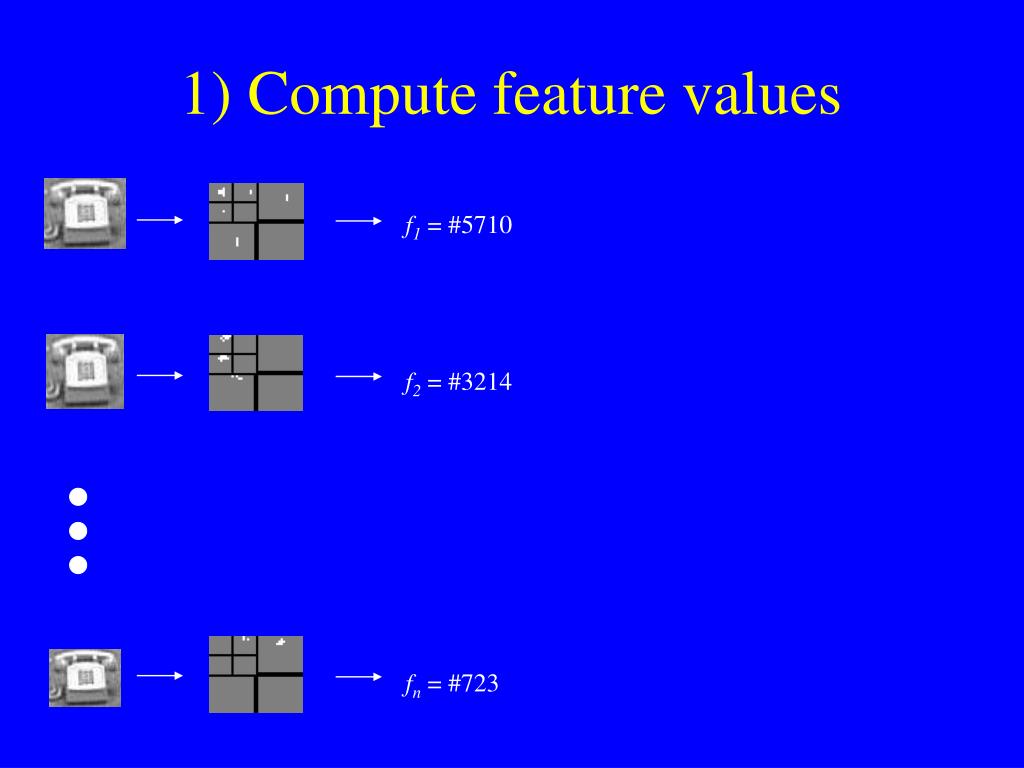

  29. 1) Compute feature values f1 = #5710 f2 = #3214 fn = #723

  30. P2( #3214 | w1) Pn( #723 | w1) log log = 0.03 = 0.23 P2( #3214 | w2) Pn( #723 | w2) 2) Look-Up Log-Likelihoods P1( #5710 | w1) f1 = #5710 log = 0.53 P1( #5710 | w2) f2 = #3214 fn = #723

  31. P2( #3214 | w1) Pn( #723 | w1) log log = 0.23 = 0.03 P2( #3214 | w2) Pn( #723 | w2) 3) Make Decision P1( #5710 | w1) log = 0.53 P1( #5710 | w2) > l 0.53 + 0.03 + . . . + 0.23 S <

  32. Detection using a Classifier “Object is present” (at fixed size and alignment) Classifier “Object is NOT present”(at fixed size and alignment)

  33. View-based Classifiers FaceClassifier #1 FaceClassifier #2 FaceClassifier #3

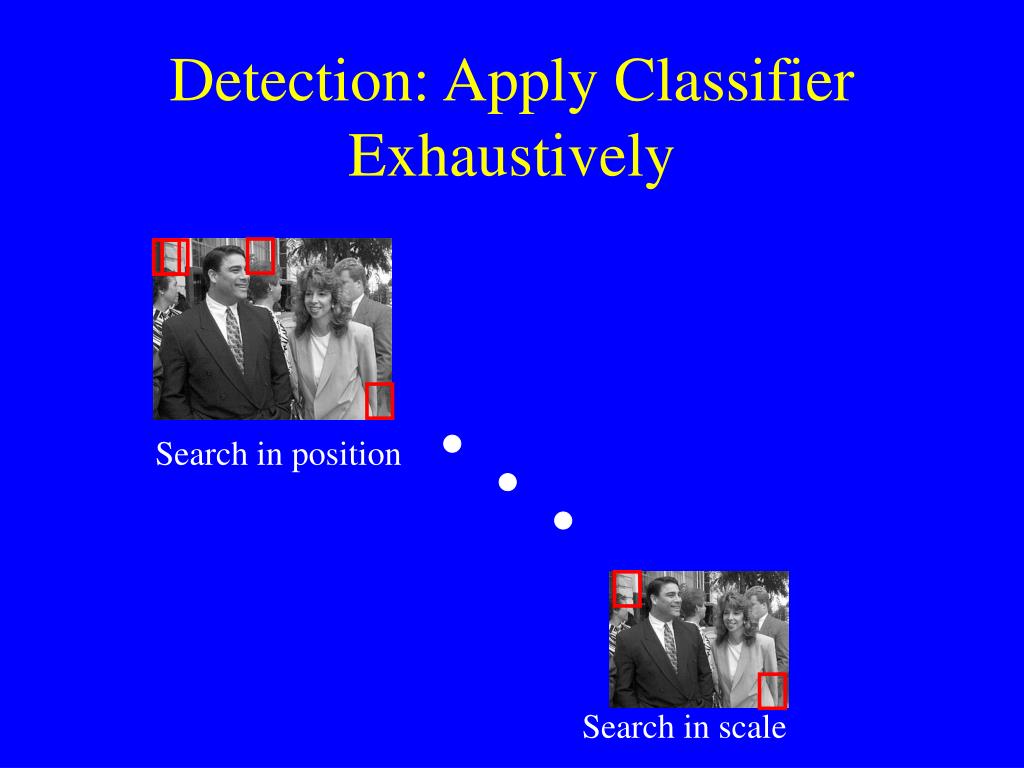

  34. Search in scale Detection: Apply Classifier Exhaustively Search in position

  35. P2( #3214 | w1) Pn( #723 | w1) log log = 0.23 = 0.03 P2( #3214 | w2) Pn( #723 | w2) Decision can be made by partial evaluation P1( #5710 | w1) log = 0.53 P1( #5710 | w2) > l 0.53 + 0.03 + . . . + 0.23 S <

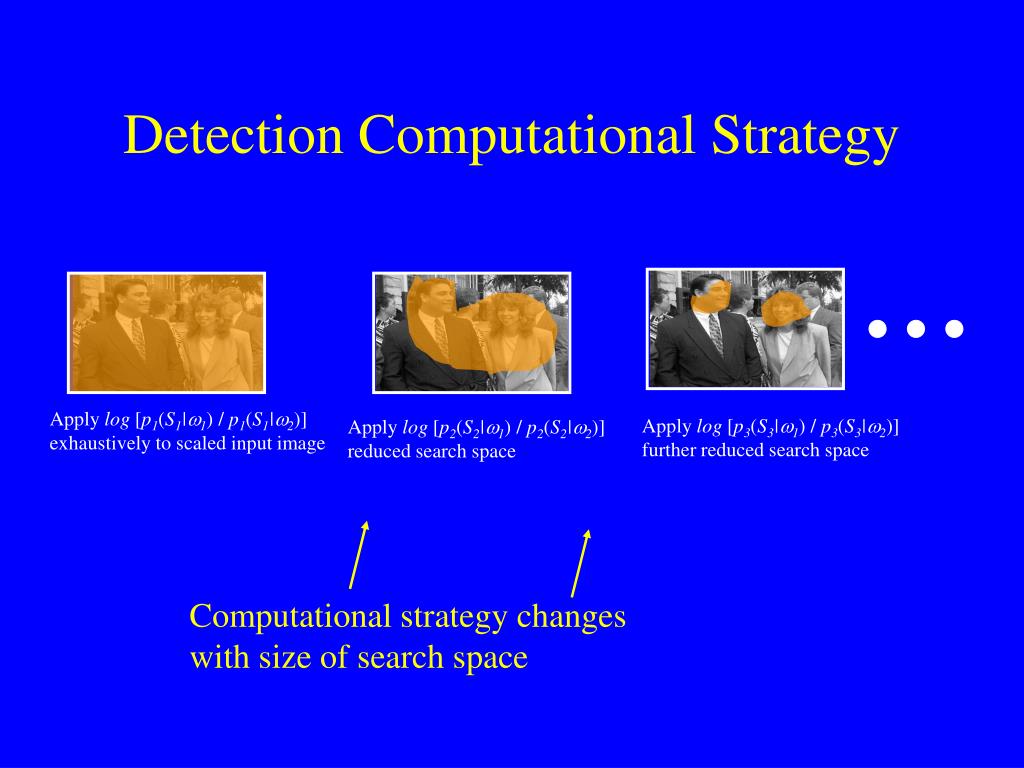

  36. Detection Computational Strategy Apply log [p1(S1|w1) / p1(S1|w2)]exhaustively to scaled input image Apply log [p3(S3|w1) / p3(S3|w2)]further reduced search space Apply log [p2(S2|w1) / p2(S2|w2)]reduced search space Computational strategy changes with size of search space

  37. Compute M2 feature values Look-up M2 log-likelihood values Repeat for N2 Candidates Candidate-Based Evaluation

  38. Compute N2 + M2 +2MN feature values Look-up M2 log-likelihood values Repeat for N2 Candidates Feature-Based Evaluation

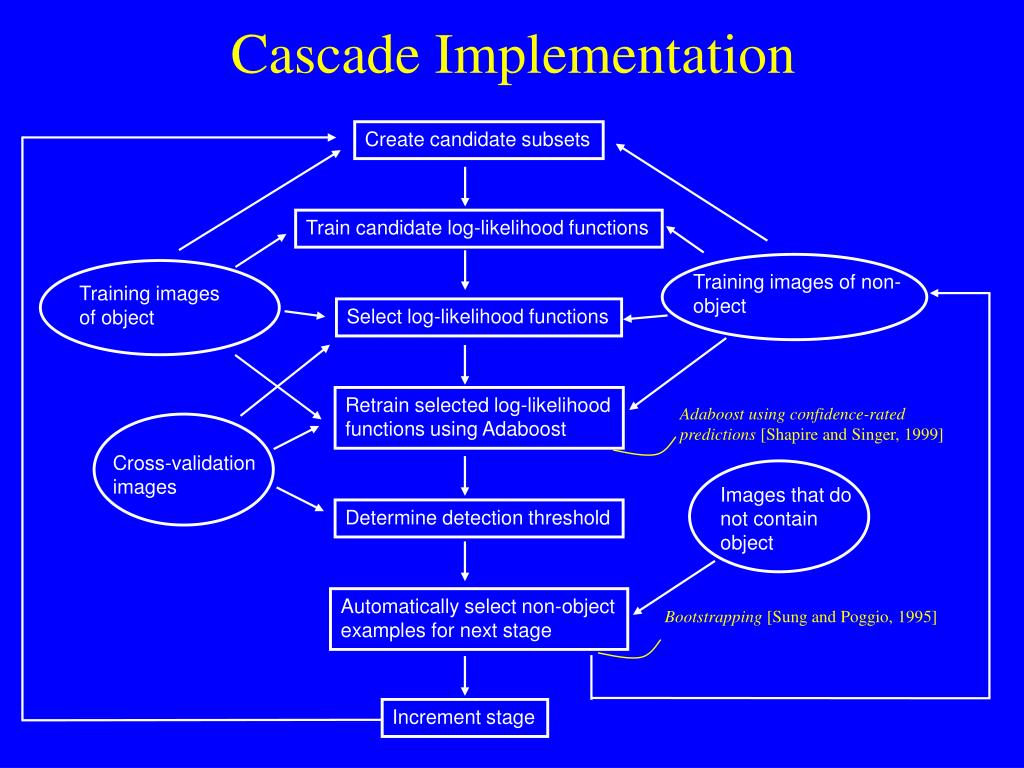

  39. Adaboost using confidence-rated predictions [Shapire and Singer, 1999] Cross-validationimages Images that donot contain object Bootstrapping [Sung and Poggio, 1995] Cascade Implementation Create candidate subsets Train candidate log-likelihood functions Training images of non-object Training imagesof object Select log-likelihood functions Retrain selected log-likelihoodfunctions using Adaboost Determine detection threshold Automatically select non-objectexamples for next stage Increment stage

  40. Face, eye, ear detection

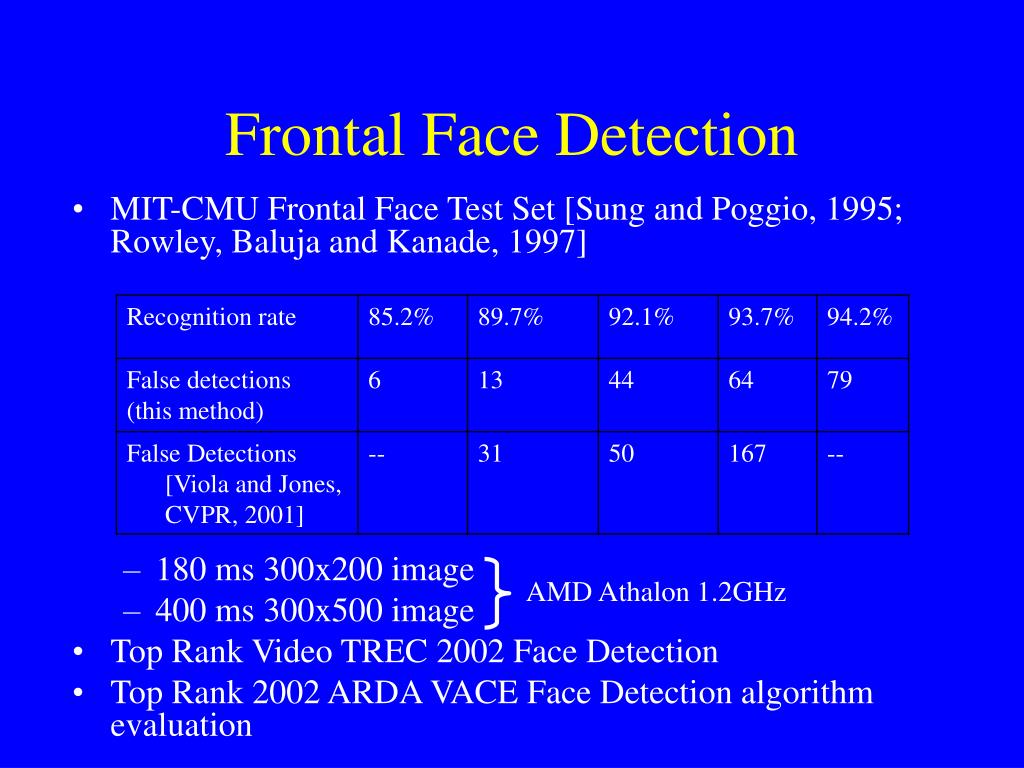

  41. Frontal Face Detection • MIT-CMU Frontal Face Test Set [Sung and Poggio, 1995; Rowley, Baluja and Kanade, 1997] • 180 ms 300x200 image • 400 ms 300x500 image • Top Rank Video TREC 2002 Face Detection • Top Rank 2002 ARDA VACE Face Detection algorithm evaluation AMD Athalon 1.2GHz

  42. Face & Eye Detection for Red-Eye Removal from Consumer Photos CMU Face Detector

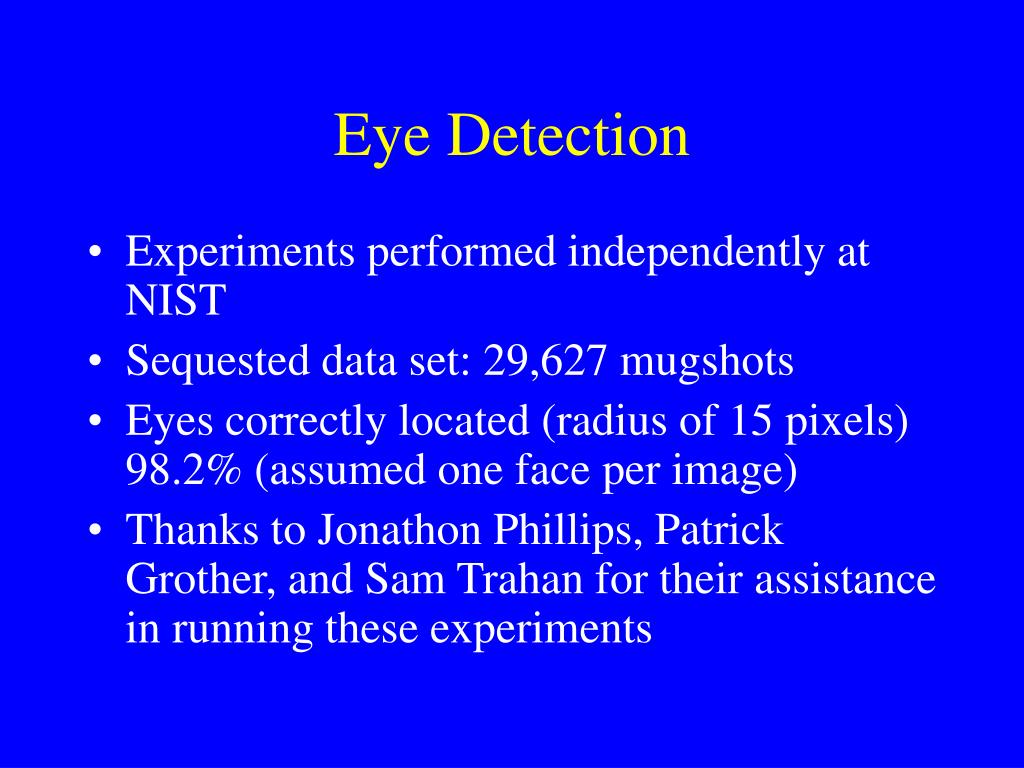

  43. Eye Detection • Experiments performed independently at NIST • Sequested data set: 29,627 mugshots • Eyes correctly located (radius of 15 pixels) 98.2% (assumed one face per image) • Thanks to Jonathon Phillips, Patrick Grother, and Sam Trahan for their assistance in running these experiments

  44. Realistic Facial Manipulation:Earring Example With Jason Pinto

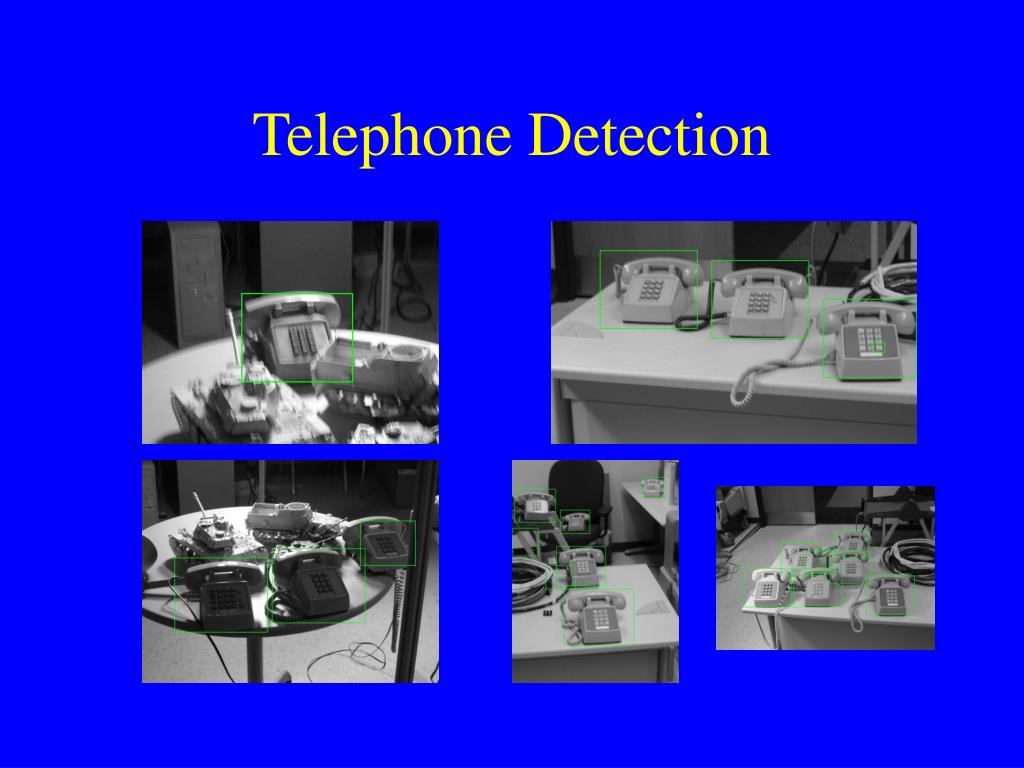

  45. Telephone Detection

  46. Cart, pose 1

  47. Cart, pose 2

  48. Cart, pose 3

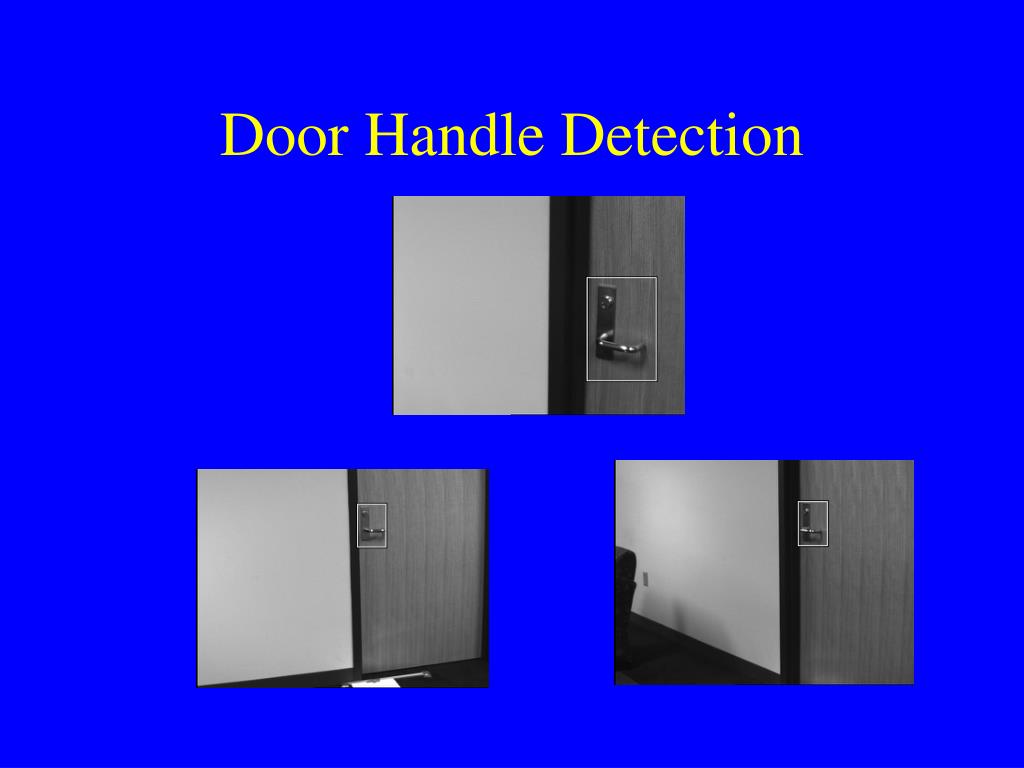

  49. Door Handle Detection

  50. Summary of Classifier Design • Sparse structure of statistical dependency in many image classification problem • Semi-naïve Bayes Model • Automatic learning structure of semi-naïve Bayes classifier: • Generation of many candidate subsets • Competition among many log-likelihood functions to find best combination CMU on-line face detector:http://www.vasc.ri.cmu.edu/cgi-bin/demos/findface.cgi
