1 / 43

Balancing Equations

Balancing Equations. Reactants  Products This means that you HAVE to have the same number of atoms on the left and right hand sides of the equation. What do the numbers mean?. Subscript numbers refer only to the single element that the number is immediately after. No number = 1

shandi
Télécharger la présentation

Balancing Equations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

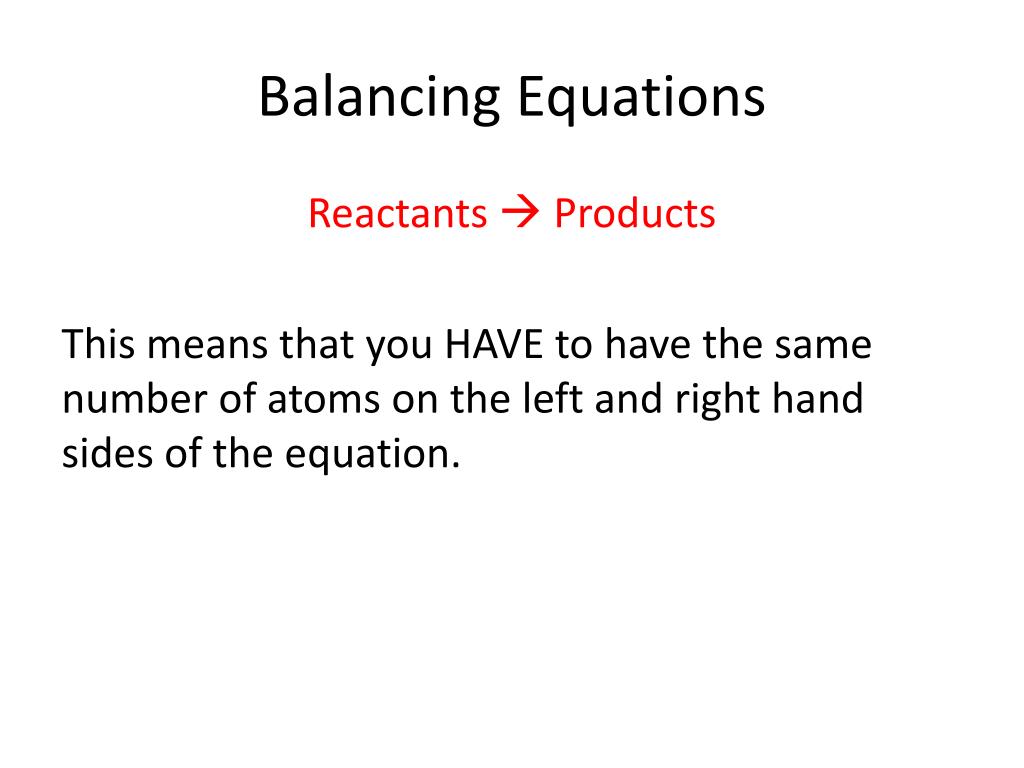

  1. Balancing Equations Reactants  Products This means that you HAVE to have the same number of atoms on the left and right hand sides of the equation.

  2. What do the numbers mean? • Subscript numbers refer only to the single element that the number is immediately after. No number = 1 • For example: CO2 1 x C and 2 x O • Full size numbers (2,3,4) refer to the whole molecule immediately after the number. No number = 1 • For example: 2H2SO4  2 molecules of sulphuric acid

  3. Changing numbers • You can only change BIG numbers. • If you change subscriptnumbers then you change the chemical!

  4. An example: H2 + O2 H2O

  5. Try this one: Na + HCl NaCl + H2

  6. Percentage yields • When you are doing a chemical reaction you don’t necessarily get as much product as you think you should because not all of the reactants react 100%, or some gas might escape, or you drop a bit… Lots of reasons.

  7. Step 1: How much should you have? You work this out by looking at the formula for the equation: 2Mg + O2 2MgO This tells us that 2 moles of Mg reacts with 1 mole of oxygen to give 2 moles of MgO

  8. 2Mg + O2 2MgO So, if 48g of Mg was reacted with unlimited oxygen, how much MgO would you expect? Ar of Mg is 24. Therefore 48g is 2 moles. This means we must expect 2 moles of MgO Mr of MgO = 24+16 = 40 Therefore the expected mass of MgO is 80g

  9. Percentage yield You can calculate % yield by: % yield = (actual mass / expected mass ) x 100 In this case, if we got 60g of MgO: % yield = 60/80 = 75%

  10. 1) C + O2  CO2 How many moles are there in 8.8g of CO2? Therefore, how many moles of C and O2 would I need to produce this much CO2? What masses of C and O2 required for this reaction? 2)CaCO3CaO + CO2 How much calcium oxide is produced by heating 25 g of calcium carbonate?

  11. What is an empirical formula? • A formula giving the proportions of the elements present in a compound but not the actual numbers or arrangement of atoms.

  12. What is the ratio of atoms? Can you simplify any of the ratios?

  13. What is the ratio of atoms?

  14. FOR YOUR GLOSSARY: Empirical Formula • The formula that gives the simplest whole number ratio of atoms of each element present in a compound. • Ratios are in WHOLE NUMBERS ONLY (to represent atoms) Finished? 1 to 10 in your book for a formula challenge!

  15. Write down the empirical formula for these molecules? • Water – H2O • Sulfur – S8 • Hexane – C6H14 • Benzene – C6H6 • Carbon dioxide - CO2 • Oxygen - O2 • Propene - C3H6 • Octene - C4H8 • Nitrogen - N2 • Calcium Carbonate - CaCO3 YOU HAVE 5 MINUTES

  16. Write down the empirical formula for these molecules Mark these now! What was your score out of 10? • Water – H2O H2O • Sulfur – S8 S • Hexane – C6H14 C3H7 • Benzene – C6H6 CH • Carbon dioxide – CO2 CO2 • Oxygen - O2 O • Propene - C3H6 CH2 • Octene - C4H8 CH2 • Nitrogen - N2 N • Calcium Carbonate - CaCO3 CaCO3

  17. Calculating Empirical Formula-Method Sample question: If 22.55% of phosphorus chloride is phosphorous, what is the empirical formula of the compound? (P=31, Cl=35.5) Step 1: Divide the mass or % of each element by its RAM (find MOLES of each). Step 2: Divide both mole amounts by the smaller number. Step 3: Work out the smallest possible whole number ratio = simplest ratio of atoms. Step 4: Express as a formula.

  18. Calculating empirical formula from a percentage composition… If 22.55% of phosphorus chloride is phosphorous, what is the empirical formula of the compound? (P=31, Cl=35.5) 1.A compound which contains 11.6% nitrogen and 88.4% chlorine. 2. A compound which contains 40% sulphur and 60% oxygen. 3. A compound which contains 37.21% carbon, 7.75% hydrogen and 55.04% chlorine.

  19. Questions 1. A compound which contains 11.6% nitrogen and 88.4% chlorine. 2. A compound which contains 40% sulphur and 60% oxygen.

  20. Calculating empirical formula from a percentage composition… A compound which contains 11.6% nitrogen and 88.4% chlorine.

  21. Calculating empirical formula from a percentage composition… A compound which contains 40% sulphur and 60% oxygen? (S= 32, 0=16)

  22. Gas Chromatography/Mass Spec

  23. Instrumental methods are accurate, sensitive and rapid and are particularly useful when the amount of a sample is very small.

  24. There are pros and cons though! You need to know the pros and cons for your exam!

  25. Gas Chromatography • Gas chromatography is often used with mass spectrometry. A sample made of a mixture of chemicals is injected into a gas chromatography machine in order to separate the mixture. The separate samples then go into a mass spectrometer for identification. • A mass spectrometer is a device for finding the mass of atoms and groups of atoms. • The mass spectrometer can also give the relative molecular mass of each of the substances separated in the column.

  26. Gas Chromatography • Used to separate a mixture of compounds, like paper chromatography, but the sample is vaporised first • Can detect and identify compounds in tiny amounts of a sample, e.g. can be used to detect the presence of banned drugs in samples from athletes.

  27. Gas Chromatography- why use it? • Gas chromatography separates mixtures better than paper and thin-layer. • Has high separating power. • Can be used to trace the source of pollution incidents by measuring exact characteristics of oil spill • Very small amounts of sample are needed for gas chromatography • Can detect and identify compounds in trace amounts (tiny amounts) • Can be used to detect the presence of banned drugs in samples from athletes.

  28. How it works • A small amount of sample is injected into one end of the heated column, where it turns to vapour (gas)

  29. How it works 2: The substance is carried by the carrier gas through the tube

  30. How it works 3: The carrier gas carries the sample through the stationary phase (the liquid)

  31. How it works 4: The detector records the arrival of each chemical from the column.

  32. How it works 5: Each arrival registers as a peak of the chromatogram.

  33. Neutralisation of Acids and Alkalis Alkali + Acid Salt + Water Acids are a source of H+ ions. Alkalis are a source of OH– ions. OH– ion + H+ions H2O = Water For example Sodium Chloride + Water Sodium + Hydrochloric HydroxideAcid Na+OH– + H +Cl–– Na+Cl– + H2O

  34. Name that Salt

  35. Name that Salt answers

  36. Making and isolating salts Neutralisation is a very clean process… We take an acid and alkali… And just get a salt and water. Let the water evaporate and we’ll just be left with the crystallised salt… …as long as we start with just the right amount of acid and alkali so neither is left over. An indicator could help – we’ll know when neutral.

  37. Making and isolating ammonium nitrate Ammonia dissolves in water to form alkaline ammonium hydroxide NH3 + H2O NH4+OH-- Ammonium nitrate is a very important fertiliser. It is highly soluble in water and easily taken up from the soil by plant roots. It is an essential source of nitrogen for plants to be able to grow. Ammonium + Nitric HydroxideAcid Ammonium + Water Nitrate NH4NO3 + H2O NH4OH + HNO3 We can cheat this time – ammonia is volatile so we can use an excess and let it evaporate off with the water.

  38. Making insoluble salts Insoluble salts don’t dissolve in water. When formed they precipitate out of solution… This process is called precipitation. Lead iodide, barium sulfate and silver chloride are all examples of insoluble salts. PbI2 AgCl BaSO4

  39. Removing ions from solution. Filtration is a very easy, cheap and reliable method of separating solids from liquids. To remove an ion from solution we just need to form an insoluble salt of it. The precipitate can be then filtered off. For example, silver ions can be precipitated when combined with chloride ions.

  40. Industry and the environment. Chemical Industry uses a lot of metal ions. These could harm wildlife if the effluent (waste water) is discharged into rivers untreated. Precipitation is used to remove toxic metal ions before they enter the environment. Raising the pH of the water causes insoluble metal hydroxides to precipitate out. Very heavy fines are imposed on any companies that release effluent that exceeds legal limits.
