  1. Lambda Networking Activities in KREONet2/GLORIAD-KR Min-Ah Kim HPcN Development Team, HPcN Project Division, KISTI petimina@kisti.re.kr 27, Aug, 2007

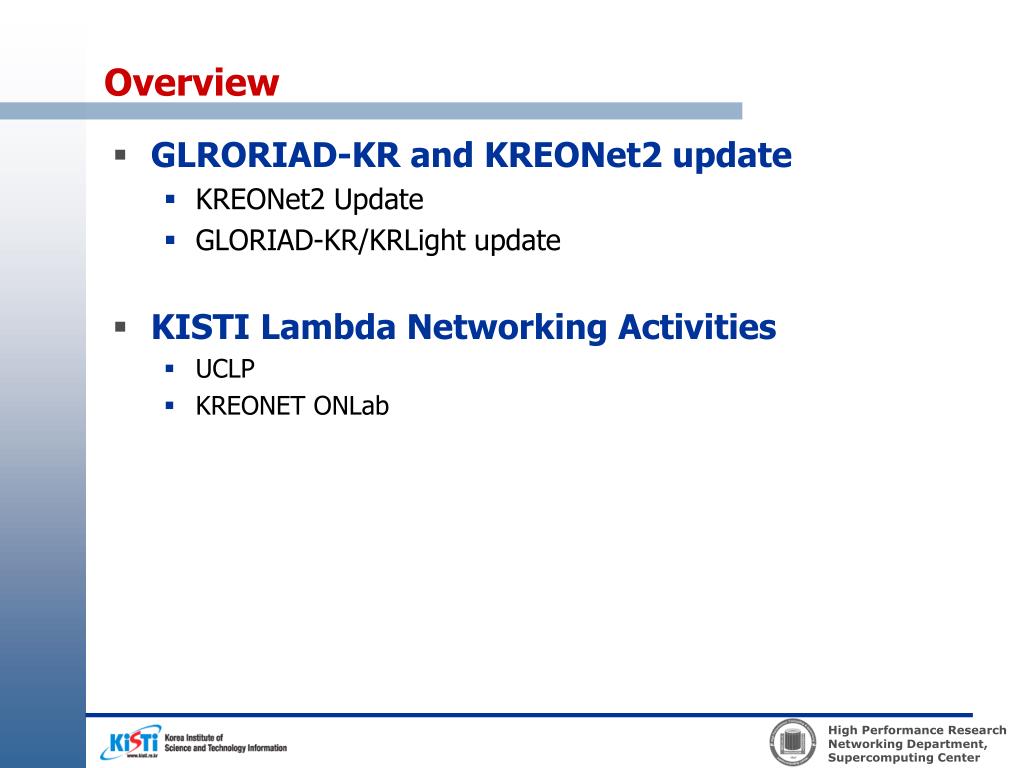

  2. Overview • GLRORIAD-KR and KREONet2 update • KREONet2 Update • GLORIAD-KR/KRLight update • KISTI Lambda Networking Activities • UCLP • KREONET ONLab

  3. 10G (KR-HK) GLORIAD-KR/KRLight Update GLO-KR ONS 15600 OC192 ONS 15454 OC192 Seattle, US Hong Kong, CN 2*10G Russia (Novosibirsk) CANARIE, Canada KREONET Calgary Toronto Moscow NYC US Seattle China (Beijing) EU Amsterdam Chicago 10G GLO-US StarLight CNIC, China Hong Kong ~10GE KISTI, Korea (Daejeon) GLO-US StarLight OC192 GLO-KR/ GLO-CA nodes (L1, L2) OC-192 Korea GLO-CA GLIF node OC192 Korea GLO-CN HKLight 10GE PacificWave

  4. KREONet2 Update Packet Switched Networks Optical Circuit Switched Networks Kangneung Incheon Seoul Seoul Incheon Ochang Ochang Suwon WDM 120G Suwon 20Gbps Daejeon Daejeon Cheonan Cheonan 5 Gbps 10 Gbps Pohang Pohang Jeonju Daegu Daegu Jeonju 10 Gbps 10 Gbps Changwon Busan Changwon Busan Kwangju Kwangju 14 regional centers 2.5 Gbps Jeju Jeju

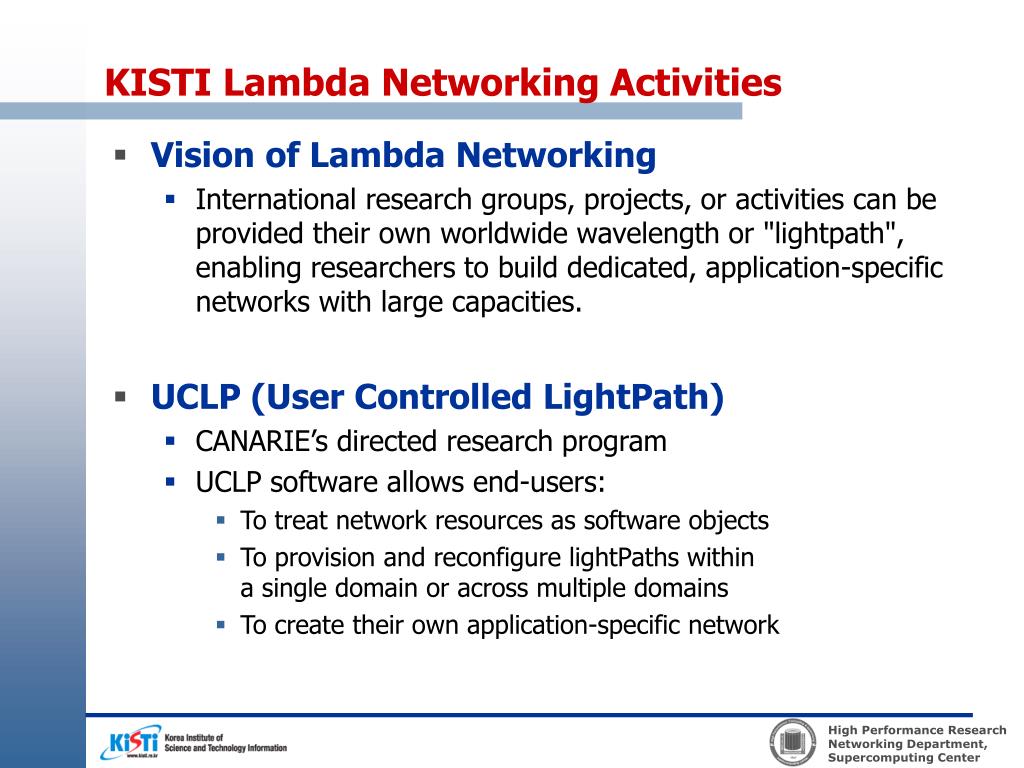

  5. KISTI Lambda Networking Activities • Vision of Lambda Networking • International research groups, projects, or activities can be provided their own worldwide wavelength or "lightpath", enabling researchers to build dedicated, application-specific networks with large capacities. • UCLP (User Controlled LightPath) • CANARIE’s directed research program • UCLP software allows end-users: • To treat network resources as software objects • To provision and reconfigure lightPaths within a single domain or across multiple domains • To create their own application-specific network

  6. UCLP APN • UCLP Articulated Private Network (Virtualized Network) [St.Arnaud 06] University Dept High Energy Physics Network CERN Commodity Internet University University Research Network Bio-informatics Network University University eVLBI Network Source at http://www.canarie.ca/canet4/library/recent/ONT_slides_%20NASA_Ames-CANARIE.ppt

  7. KISTI’s UCLP Development Phases

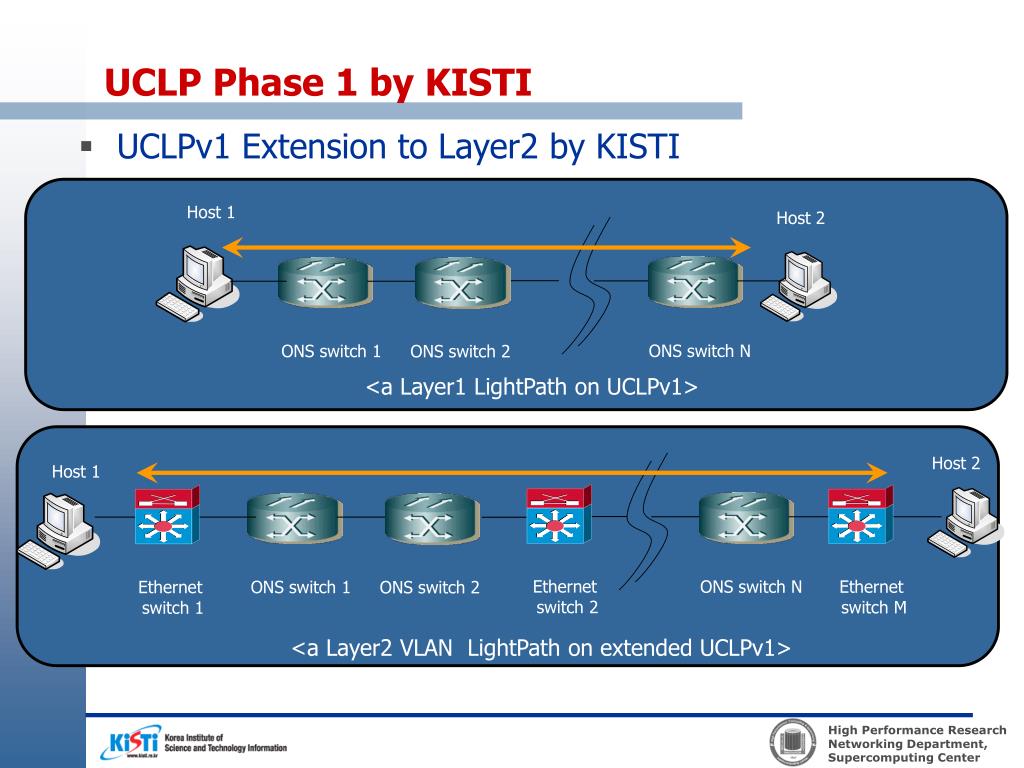

  8. UCLP Phase 1 by KISTI • UCLPv1 Extension to Layer2 by KISTI Host 1 Host 2 ONS switch N ONS switch 1 ONS switch 2 <a Layer1 LightPath on UCLPv1> Host 2 Host 1 Ethernet switch 2 ONS switch N Ethernet switch M Ethernet switch 1 ONS switch 1 ONS switch 2 <a Layer2 VLAN LightPath on extended UCLPv1>

  9. UCLP Phase 1 by KISTI • UCLPv1 Design and VLAN Extension UCLP Client GUI Non-Grid UCLP Client Grid Access Layer Jini Access Layer Lightpath Discovery and Provisioning Layer Switch Control Layer ONS Control Module VLAN Control Module TL1 CLI ONS 15454, ONS 15600 3COM 4924, Force10 E1200, OSR 7609 TL1 : Transaction Language 1 CLI : Command Line Interface

  10. UCLP Phase 2 by KISTI • UCLPv2 Design and Extension User Access Layer Service Orchestration Layer Cross Connect Web Service VLANWeb Service CoS, MPLS, VR Web Service Resource Management Layer Router Optical Switch Ethernet Switch

  11. UCLP Phase 3 by KISTI • The existing UCLP is optimized to build a dedicated end-to-end connection from a source to a destination • Some applications, however, need a dedicated network for one-to-multipoint communication or multipoint-to-multipoint communication

  12. UCLP Phase 3 by KISTI • APN in the extended UCLPv2 B A C Optical Switch D Ethernet Switch

  13. UCLP Phase 3 by KISTI • APN in the extended UCLPv2 B A C Optical Switch D Ethernet Switch

  14. KREONET ONLab • KREONET Optical Networking Laboratory • Purpose • To provide an experimental environment for testing new optical networking technologies including lambda networking technology • Test Plan • Carrier Ethernet technologies • ELAN, EVPLAN • RPR • QoS, CoS • Extended UCLPv2

  15. KREONET ONLab Topology ONS15454 OME6500 STS-48C n*GE n*GE STS-48C n*GE STS-48C C-7609 n*GE ONS15600 Daejeon C-7609 ONS15454 Kwangju

  16. Thank you ! Q & A
