  1. Client X Management over ISDN link Client X

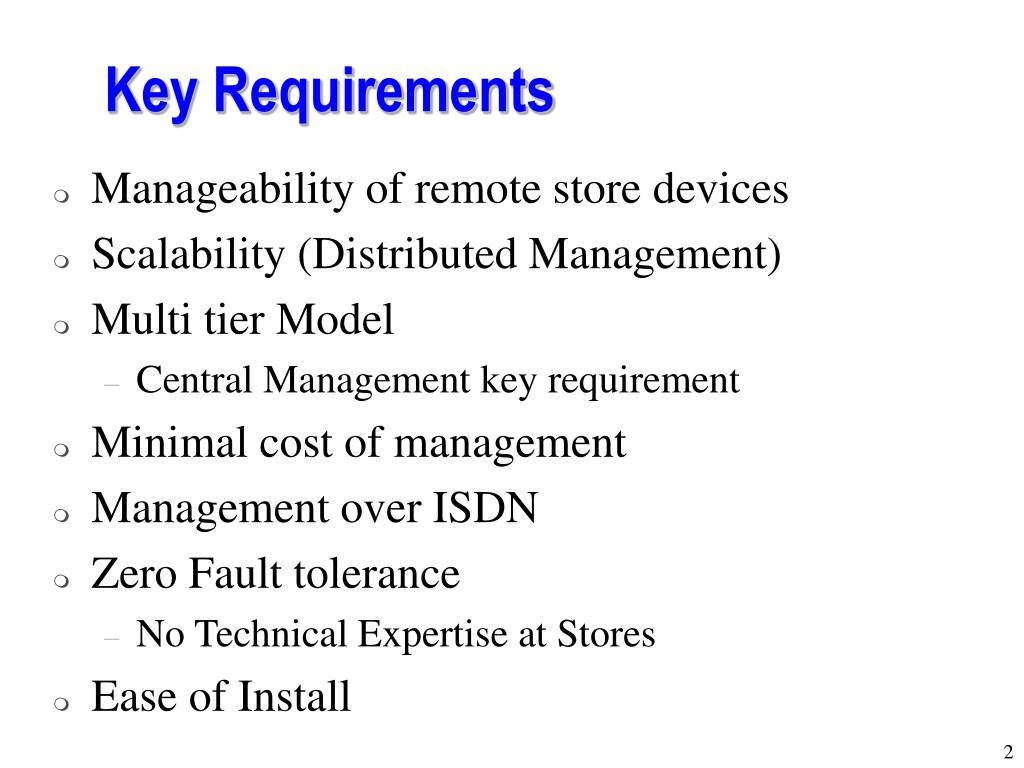

  2. Key Requirements • Manageability of remote store devices • Scalability (Distributed Management) • Multi tier Model • Central Management key requirement • Minimal cost of management • Management over ISDN • Zero Fault tolerance • No Technical Expertise at Stores • Ease of Install

  3. ISDN • Minimal ISDN up-time • 30 seconds minimum ISDN billing • ISDN costs $$$!! • ISDN connection open for management considered as overhead • PiggyBack

  4. Scalability • 1950 Remote Sites • 21 Sites Currently on BS2000 • 1950 NT Servers • Approx. 3 WIN95/NTWS per Shop • Challenges • Central Core Size • Number of ISDN Open Connections • No operator coverage

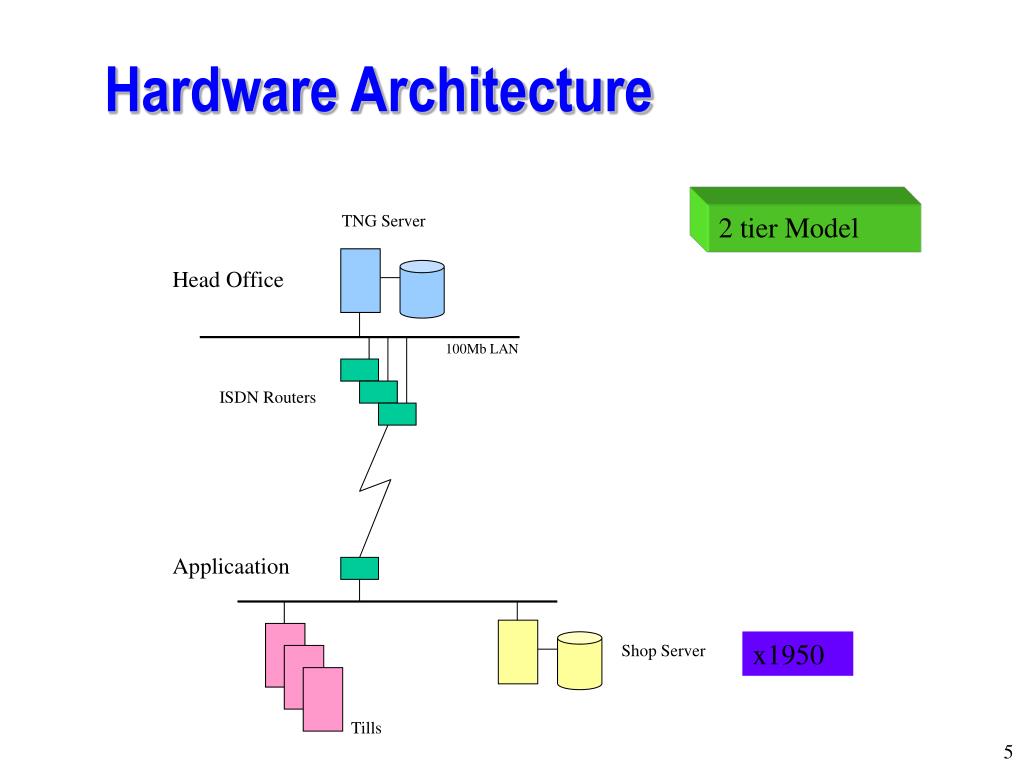

  5. TNG Server Head Office 100Mb LAN ISDN Routers Applicaation Shop Server Tills Hardware Architecture 2 tier Model x1950

  6. TNG Components • TNG • WorldView • Enterprise Management • Event , Workload • Agent Technology • DSM, Agents • Software Delivery • AMO • RCO • AntiVirus

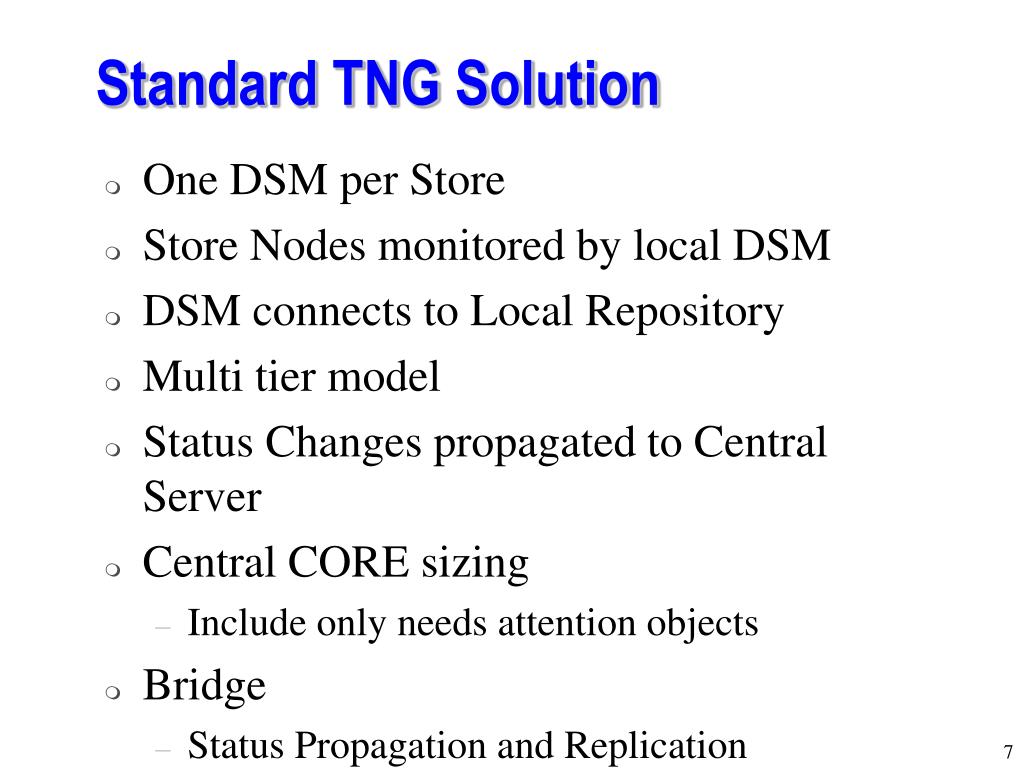

  7. Standard TNG Solution • One DSM per Store • Store Nodes monitored by local DSM • DSM connects to Local Repository • Multi tier model • Status Changes propagated to Central Server • Central CORE sizing • Include only needs attention objects • Bridge • Status Propagation and Replication

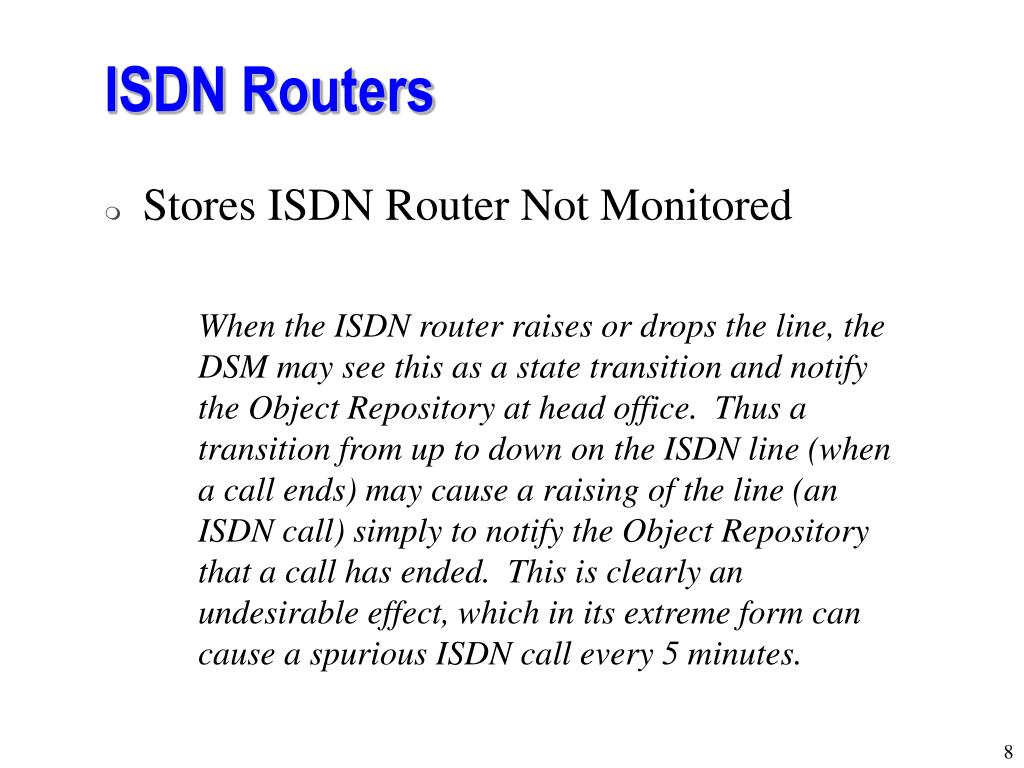

  8. ISDN Routers • Stores ISDN Router Not Monitored • When the ISDN router raises or drops the line, the DSM may see this as a state transition and notify the Object Repository at head office. Thus a transition from up to down on the ISDN line (when a call ends) may cause a raising of the line (an ISDN call) simply to notify the Object Repository that a call has ended. This is clearly an undesirable effect, which in its extreme form can cause a spurious ISDN call every 5 minutes.

  9. Client X Architecture

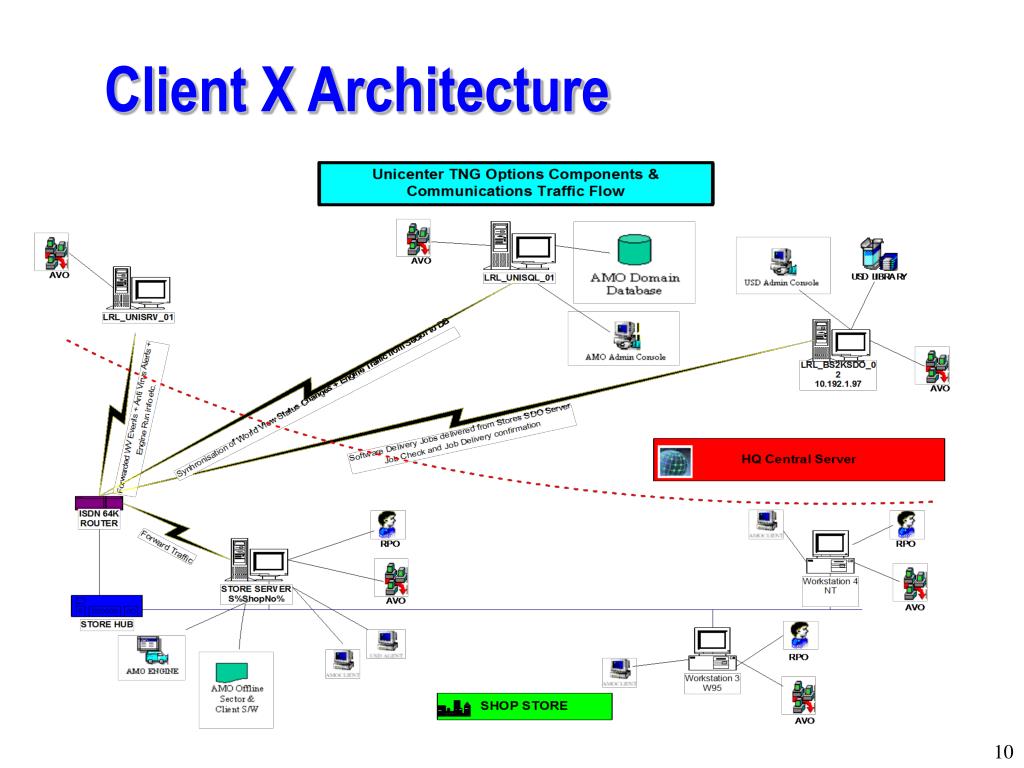

  10. Client X Architecture

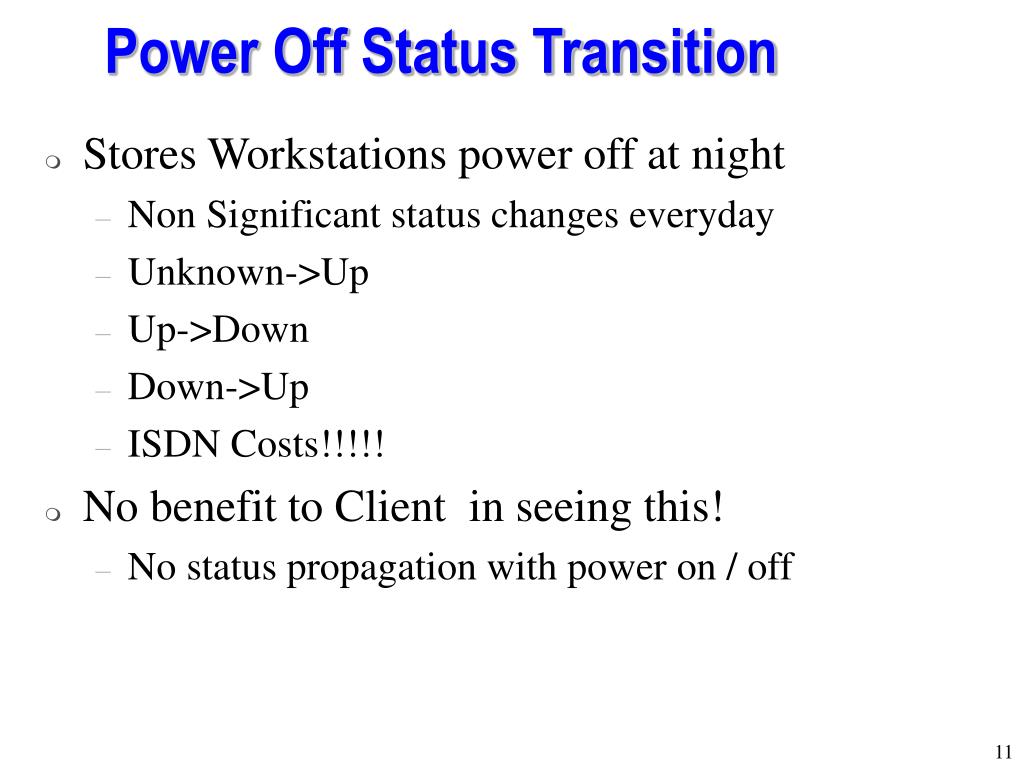

  11. Power Off Status Transition • Stores Workstations power off at night • Non Significant status changes everyday • Unknown->Up • Up->Down • Down->Up • ISDN Costs!!!!! • No benefit to Client in seeing this! • No status propagation with power on / off

  12. Bridge • Function • Propagate severity levels 2 and 5 to Central CORE • Replicate Objects • Delete Objects when no longer conforms to severity levels • Not started at bootup • Startup triggered by status transition • Event Rule

  13. Bridge Rules

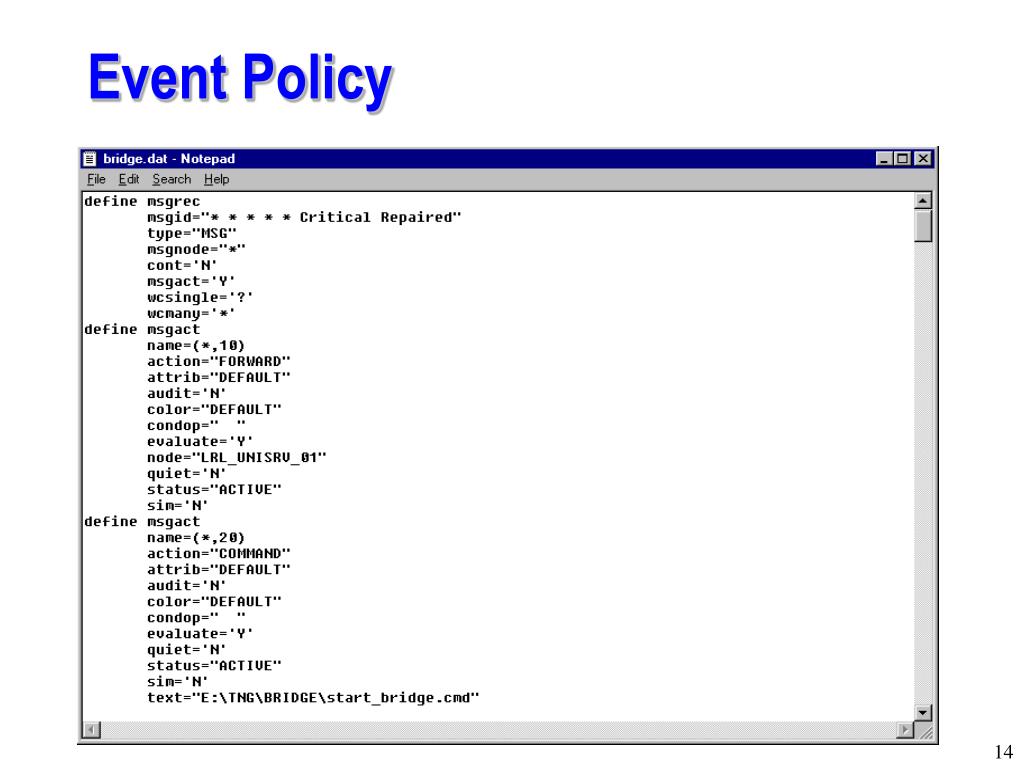

  14. Event Policy

  15. ISDN Usage

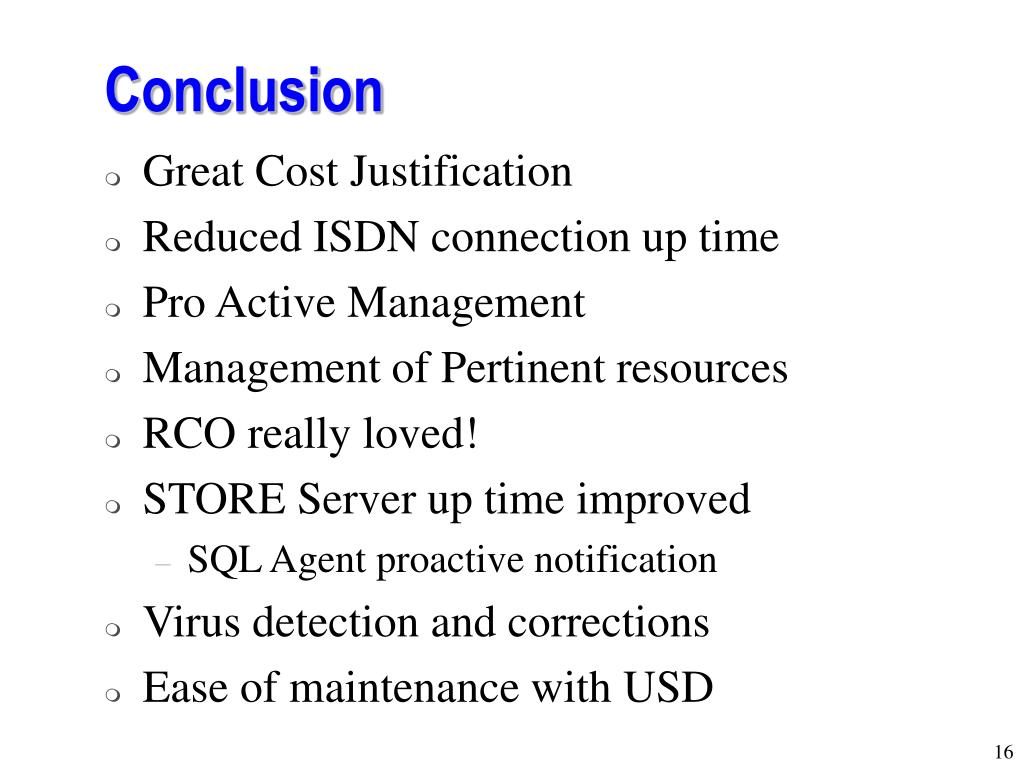

  16. Conclusion • Great Cost Justification • Reduced ISDN connection up time • Pro Active Management • Management of Pertinent resources • RCO really loved! • STORE Server up time improved • SQL Agent proactive notification • Virus detection and corrections • Ease of maintenance with USD
