1 / 19

Velocity

Velocity. The speed and direction of an object’s motion. 88 km / hr southwest. Image source: http://www.myteacherpages.com/. VELOCITY. SPEED IN A GIVEN DIRECTION. d. V. =. t. direction. A bird flies south at 20 m/s. SPEED = 20 m/s VELOCITY = 20 m/s south. CONSTANT VELOCITY.

shayla
Télécharger la présentation

Velocity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

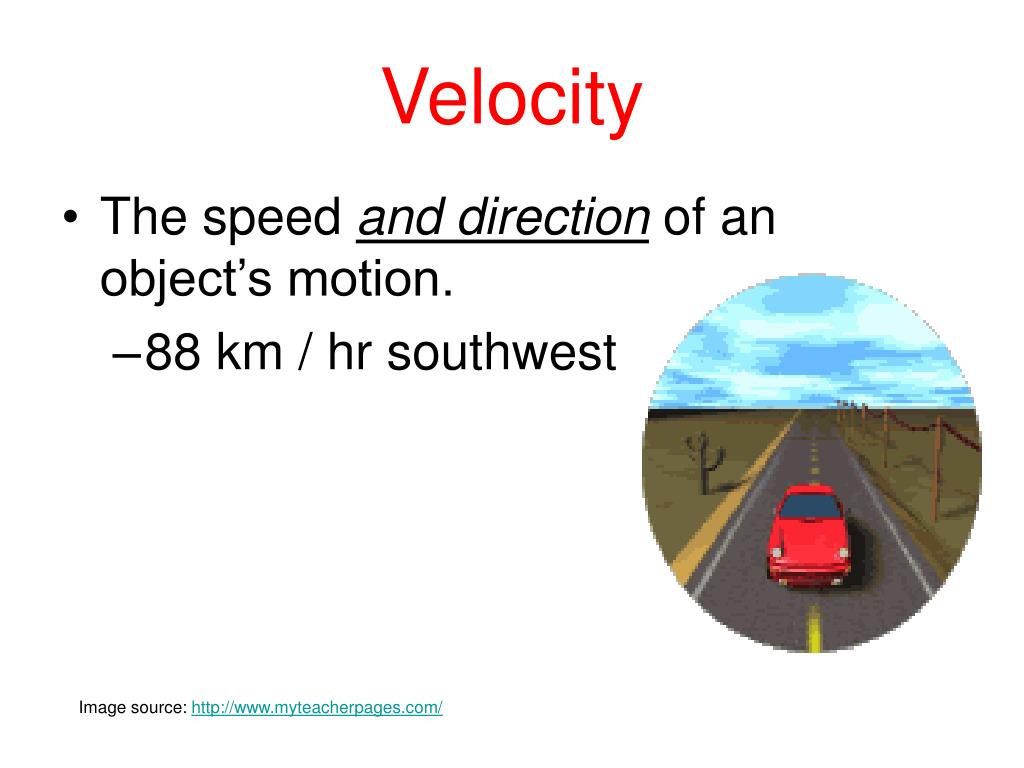

  1. Velocity • The speed and direction of an object’s motion. • 88 km / hr southwest Image source: http://www.myteacherpages.com/

  2. VELOCITY SPEED IN A GIVEN DIRECTION d V = t direction

  3. A bird flies south at 20 m/s. • SPEED = 20 m/s • VELOCITY = 20 m/s south

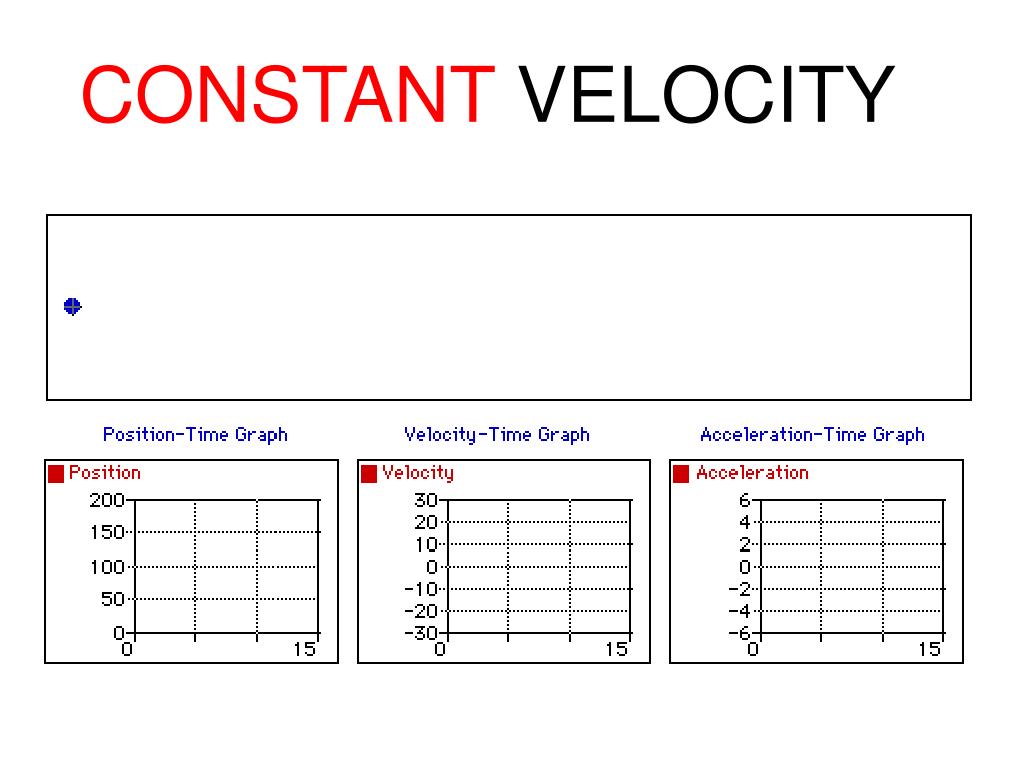

  4. CONSTANT VELOCITY

  5. CHANGING VELOCITY

  6. COMBINING VELOCITIES How fast will this ball move? What factors may affect its speed?

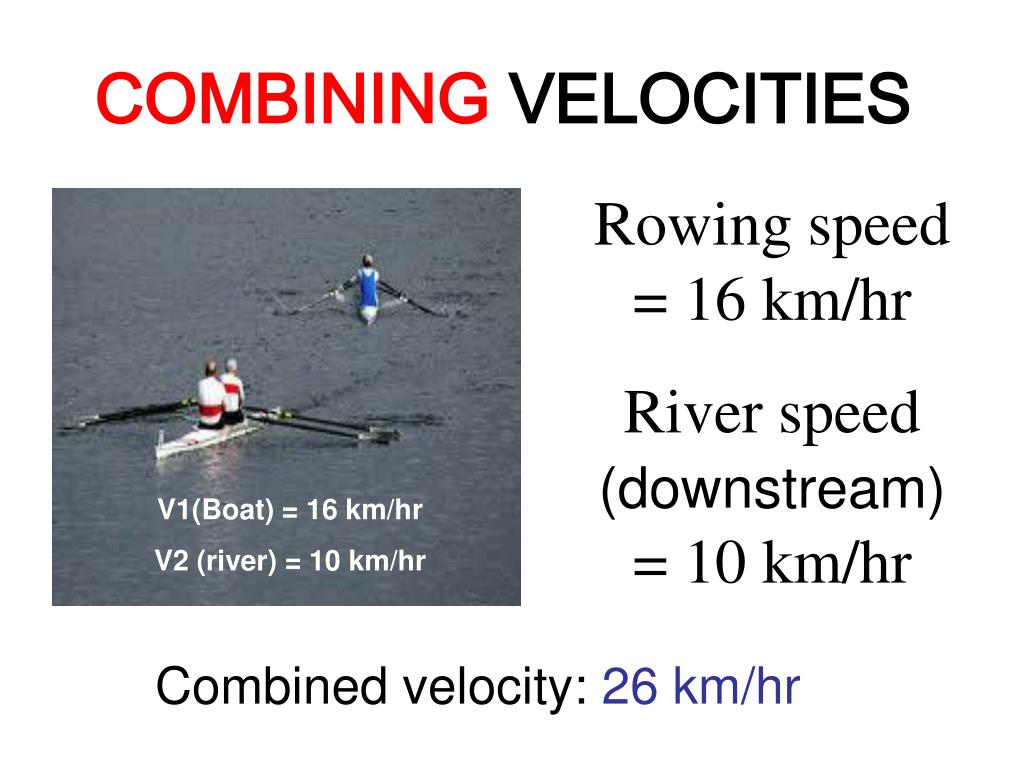

  7. COMBINING VELOCITIES Rowing speed = 16 km/hr River speed (downstream) = 10 km/hr V1(Boat) = 16 km/hr V2 (river) = 10 km/hr Combined velocity: 26 km/hr

  8. What is the velocity if you are moving upstream? Combined velocity:(V1) 16 km/hr – (V2) 10 km/hr = (CV) 6 km/hr

  9. Why is the idea of combining velocities important to launching rockets?

  10. 1.A runner moving eastward covers a distance of a 100 meters in 10 seconds. What is his velocity? • Given: D= 100 m T= 10s dir= East • Formula V= d/t with dir • Work V= 100m/10s East • Answer V= 10m/s East

  11. 2.A tropical disturbance spotted east of the Philippines was moving at 60 km per hour at a Northwesterly direction and having maximum sustained winds of 150 km/h? What is the storm’s velocity? • Given: S= 60km/h T= 10s dir= NW • Formula V= d/t with dir • Work/Answer V= 60km/h NW

  12. T= 10 min D= 500m D= 500m T= 5 min 3.Seve is walking to a friend’s house. He walks 500m for 10 minutes, then realizes he forgot something important to bring. He turns around, and hurries back to his house. The walk/jog back takes him 5 minutes. Given: Total D= 500m + 500m = 1,000m Total T= 10min + 5 min= 15min x 60 sec/min = 900 sec

  13. 3.Seve is walking to a friend’s house. He walks 500m for 10 minutes, then realizes he forgot something important to bring. He turns around, and hurries back to his house. The walk/jog back takes him 5 minutes. a. What was his average speed in m/sec? • Given: Total D= 500m + 500m = 1,000m Total T= 10min + 5 min= 15min x 60 sec/min = 900 sec (15 min) • Formula Ave S = total D/total T • Work Ave S = 1,000m/900s • Answer Ave S = 1.1 m/s

  14. 3.Seve is walking to a friend’s house. He walks 500m for 10 minutes, then realizes he forgot something important to bring. He turns around, and hurries back to his house. The walk/jog back takes him 5 minutes. b. What was Seve’s velocity (in m/s) while walking to his friend’s house? Given: D= 500m T= 10min x 60 sec/min= 600 sec dir = forward (to his friend’s house) 1.Formula V= d/t with dir 2. Work V= 500m/600s to friend’s house 3. Answer V= 0.83 m/sto friend’s house

  15. 4.Sean is running around the track oval. The oval is 800m long. He is running at a constant speed. It takes him 180 s to complete the track and get back to where he started. • What is Sean’s speed in m/s? Given: d= 800 m t= 180 s running at constant speed

  16. What is Sean’s speed in m/s? Given: d= 800 m t= 180 s running at constant speed 1. Formula S= d/t 2. Work V= 800m/180s around oval 3. Answer V= 4.44 m/saround oval If Sean is running at constant speed, is he also moving at constant velocity ? No, he is always changing direction (running around the oval).

  17. 3.A group of fishermen were rowing downstream at a speed of 16 km/h. • How fast (combined velocity) is a group actually moving if the river’s speed (downstream) is 10 km/hr? Given: V1= 16km/h V2= 10 km/h dir= downstream 1.Formula CV= V1 + V2 2. Work CV= 16 km/h + 10 km/h downstream 3. Answer CV= 26 km/h downstream

  18. 3.A group of fishermen were rowing downstream at a speed of 16 km/h. b. What will be their velocity if they were moving upstream? Given: V1= 16km/h V2= 10 km/h dir= downstream 1.Formula CV= V1 - V2 2. Work CV= 16 km/h - 10 km/h upstream 3. Answer CV= 6 km/h upstream
