Active VGA Managed System

The Active VGA Managed System by MuxLab provides a cutting-edge integrated hardware and software solution designed to streamline digital signage cabling and management via Cat5e/6 cable. With increased demand for ease of installation and remote control, this system supports up to 1,000 ft distances, allowing quick installation and adjustments across various applications like hotels, airports, and retail showrooms. Key components include the Managed Dispatcher Hub, Repeater Hub, and Receiver, all offering gain/sharpness adjustment and RS232 control options for user-friendly operation.

sheena
Télécharger la présentation

Active VGA Managed System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Active VGA Managed System 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  2. Market Trends • Digital signage being deployed in wider applications • Increased demand for ease of installation, remote control • Need to install displays and make adjustments quickly • Wireline extended distance justifies need for analog technology (i.e. VGA) 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

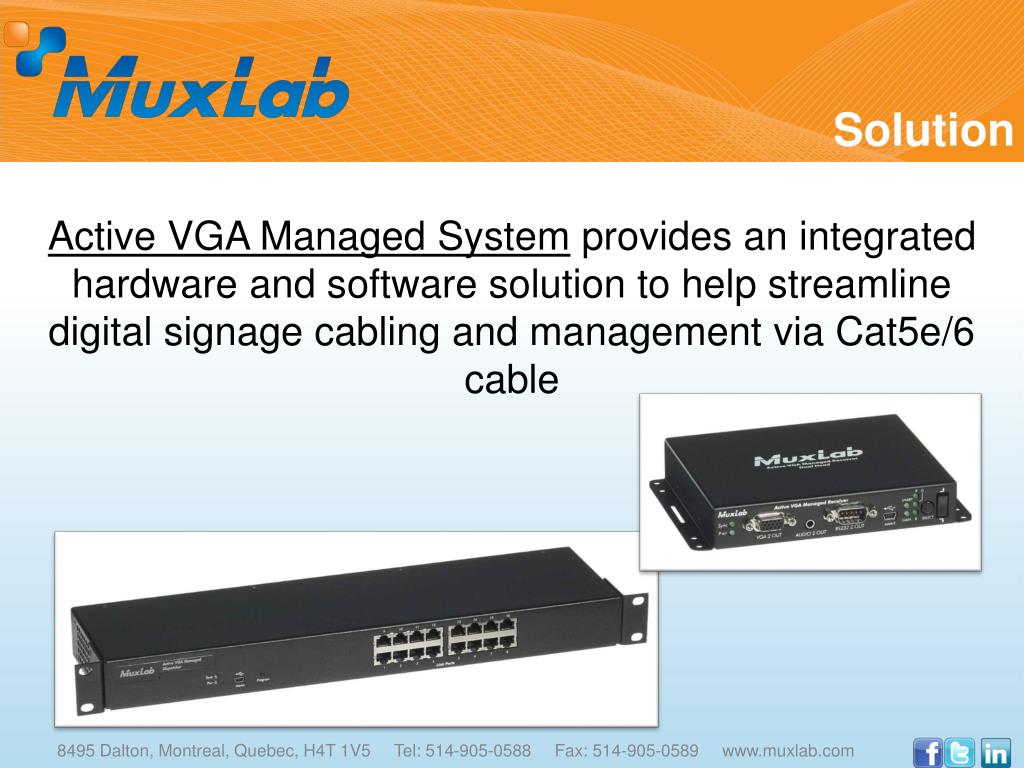

  3. Solution Active VGA Managed System provides an integrated hardware and software solution to help streamline digital signage cabling and management via Cat5e/6 cable 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  4. AVM System Active VGA Managed System Components • Active VGA Managed Dispatcher Hub • 500170 - 8 Ports • 500171 - 16 Ports • Active VGA Managed Repeater Hub • 500172 - 8 Ports • Active VGA Managed Receiver • 500174 - Dual VGA Head 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  5. AVM System Active VGA Managed Dispatcher (500170/171) • Distributes VGA/Audio to up to 8 or 16 displays • Up to 1,000 ft (305m) via Cat5e/6 • Gain/sharpness/skew adjustment via pushbutton, RS232 • Cascadable with Active Repeater Hub (500172) • Works with Active Managed Receiver (500174) • GUI software controls gain, sharpness, skew • Local VGA and audio output 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  6. AVM System Active VGA Managed Repeater (500172) • Distributes VGA/Audio to up to 8 displays • Extends distance additional 1,000 ft (305m) • Gain, sharpness, skew adjustment via pushbutton, RS232 • Works with the Active VGA Managed Dispatcher Hub (500170/171) and Active VGA Managed Receiver (500174) 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  7. AVM System Active VGA Managed Receiver (500174) • Converts Cat5e/6 to VGA/audio • Up to 1,000 ft (305m) via Cat5e/6 @ 1920 x 1200 • Supports VGA, stereo audio and RS232 • Gain, sharpness, skew adjust via manual, GUI, RS232 • Dual -VGA outputs • Works with 500170/171 and 500172 • VESA 75/100mm mounting flanges 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  8. AVM System MuxLab Control Software • Auto device discovery • Mapping of all devices in system • Adjust gain, sharpness and skew • Send RS232 commands 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  9. Topology

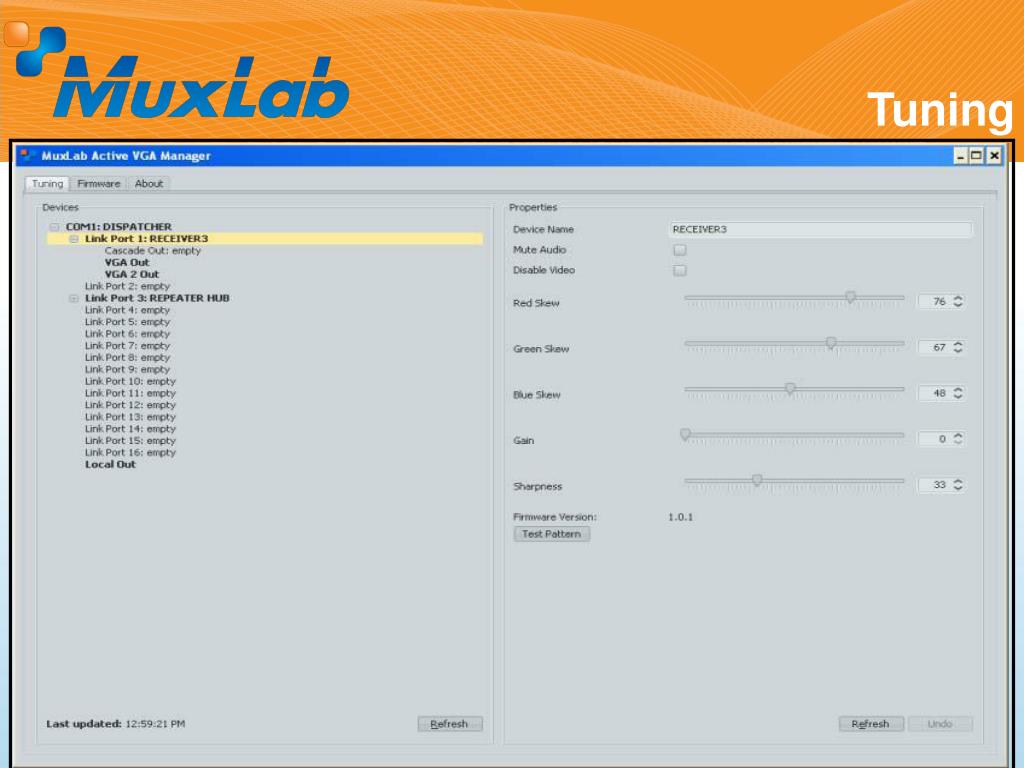

  10. Tuning

  11. Skew Test Pattern

  12. Import EDID

  13. Typical Application 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  14. Comparison Table 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  15. Typical Scenarios 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  16. AVM System Potential Buyers • Digital signage specialists • AV systems integrators Applications • Digital signage • Convention centers • Hotels • Airports • Retail showrooms • Classroom training 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  17. AVM System Launch Plan • Upload to Website - Done • Key distributor e-mail - Done • Rest of DB - Done • FTP Server: Hi-Rez image, Summary Sheet • Web: JPG Product Image file uploaded • DVD Video - available • Software & Firmware Downloads 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  18. AVM System Launch Plan • Upload to Website - Done • Key distributor e-mail - Done • Rest of DB - Done • FTP Server: Hi-Rez image, Summary Sheet • Web: JPG Product Image file uploaded • DVD Video - available • Software & Firmware Downloads 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com

  19. Thank You! 8495 Dalton, Montreal, Quebec, H4T 1V5 Tel: 514-905-0588 Fax: 514-905-0589 www.muxlab.com
