The Atom

shepry avatar
shepry
19 diapositives · 412 Views · Aug 01, 2014

The Atom. Section 4.1-4.3 Notes. History of Atomic Models. Democritus (~400BC) atomos = small, solid, indestructible particles of different shapes & sizes These were just ideas, not truly science… Dalton’s Atomic Theory Billiard Ball Model - small solid sphere

#the atom #the atom ppt #powerpoint #presentation
The Atom - slide 1
01 / 19The Atom
1 / 17

Télécharger la présentation

The Atom
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

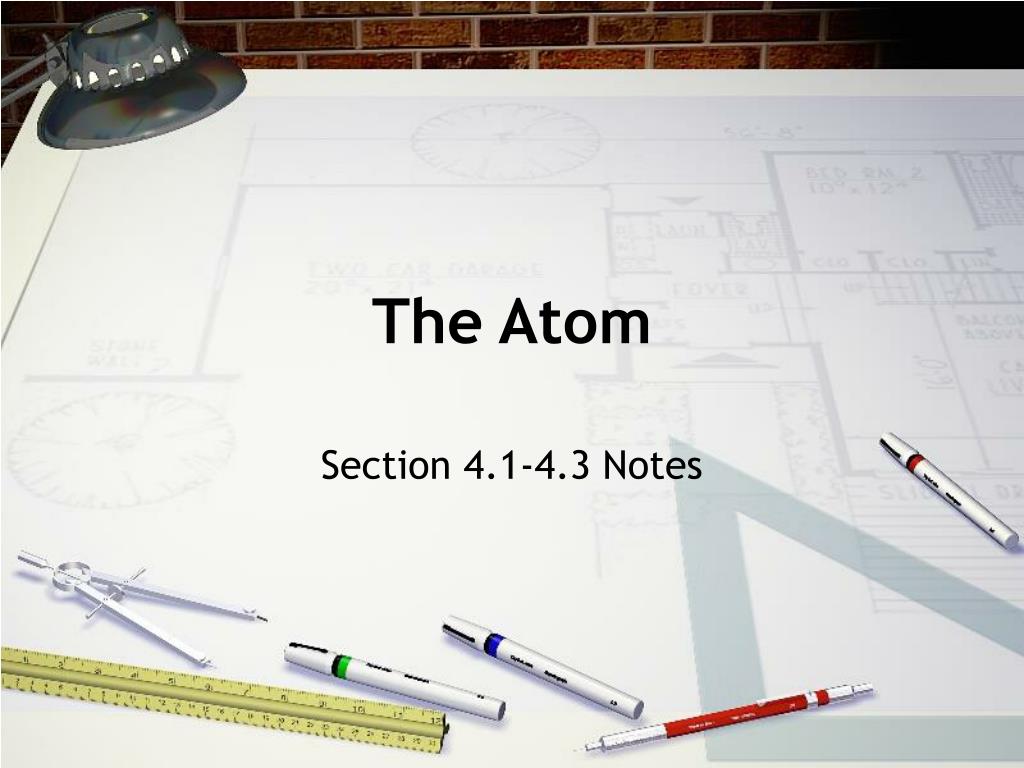

  1. The Atom Section 4.1-4.3 Notes

  2. History of Atomic Models • Democritus (~400BC) • atomos = small, solid, indestructible particles of different shapes & sizes • These were just ideas, not truly science… • Dalton’s Atomic Theory • Billiard Ball Model - small solid sphere • Developed notion of conservation of mass and that atoms combine in specific ratios

  3. History of Atomic Models • J.J. Thomson • Plum Pudding Model - positive and negative particles dispersed throughout the atom • Used Cathode Ray tubes to discover the electron - first subatomic particle discovered!

  4. Cathode Ray Tube • A tube that contains a stream of electrons going from a negative disk (cathode) to a positive disk. • Deflected stream showed that electrons are negative.

  5. Rutherford • Nuclear or Planetary Model • Discovered dense positively charged nucleus of the atom while working with alpha particles • Gold Foil Experiment

  6. History of Atomic Models • Neils Bohr - • Also Solar System Model • Electrons travel in specific, circular orbits • Schrodinger & Heisenburg - • Quantum Mechanical Model • Dense nucleus w/ protons & neutrons • Electrons exist in ‘clouds’ called orbitals w/ specific energy levels • Mathematical predictions for probability of finding electrons • Electrons have particle and wave properties

  7. How big is the nucleus?!? Go to atoms videoclip

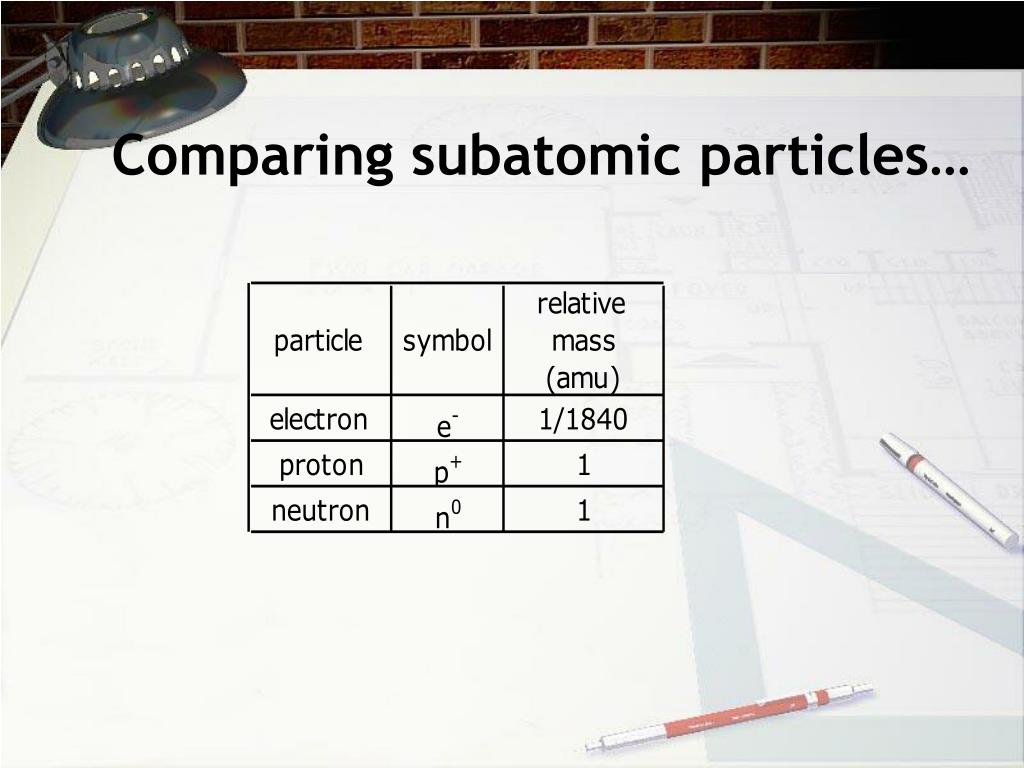

  8. Comparing subatomic particles…

  9. sToP & tHinK • If an atom has 2 protons and 2 neutrons, what is its atomic mass in atomic mass units (amu)? • What is the charge on an atom that has 7 protons and 7 electrons?

  10. Atomic Number • # of protons • # of electrons in a NEUTRAL atom • Always a whole number

  11. Mass Number • # of protons + neutrons • in atomic mass units (amu) • Isotopes - atoms of the same element with different masses • differ in number of neutrons • Examples: Carbon-13 & Carbon-14, Boron-10 & Boron-11 • Element-mass#

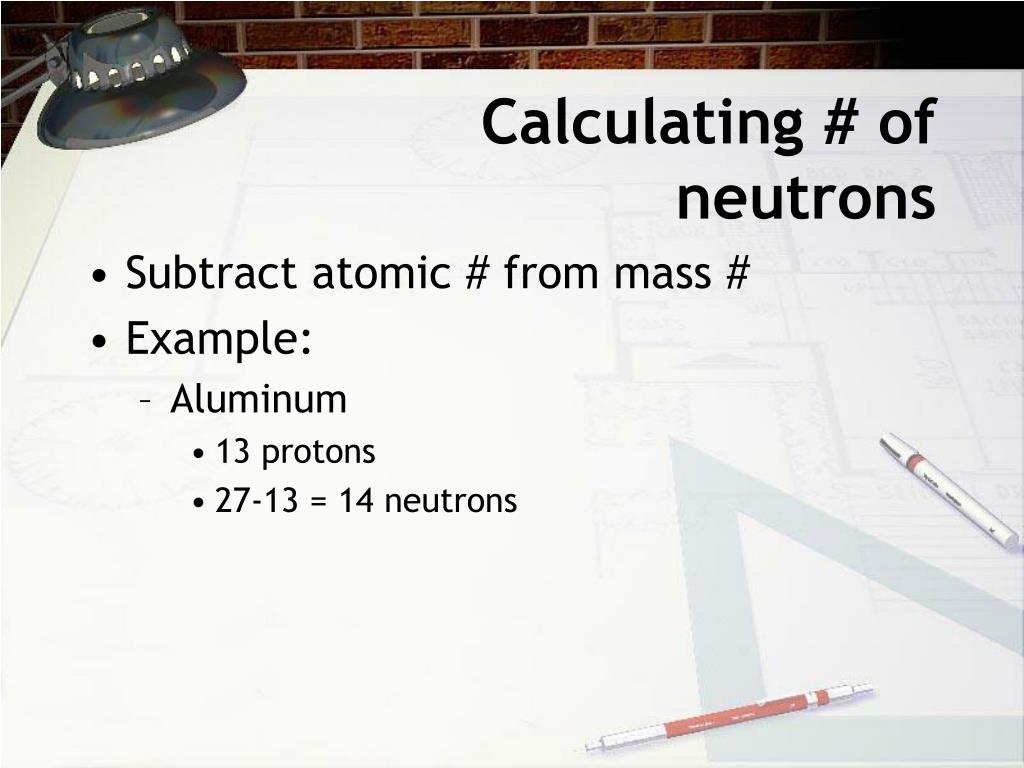

  12. Calculating # of neutrons • Subtract atomic # from mass # • Example: • Aluminum • 13 protons • 27-13 = 14 neutrons

  13. sToP & tHinK • What element has the atomic number 8? • How many protons, neutrons, and electrons are in a neutral atom of Potassium (K)? • How many protons, neutrons, and electrons are in a neutral atom of Boron-11?

  14. Relative Abundance • The atomic mass on the PT is the average of the isotopes for that element. • Example: Lithium has two isotopes, one has a mass of 6 amu & one has a mass of 7 amu. Lithium-7 occurs 92.5% of the time… • Multiply the mass by the abundance • Add the two together to get the atomic mass for the element • What is Lithium’s average atomic mass?

  15. sToP & tHinK • An element has two isotopes. One has a mass of 24 amu and represents 70% of the atoms of the element, the other has a mass of 25 amu and represents 30% of the atoms of the element. • What is the average atomic mass?

  16. sToP & tHinK • The published average atomic mass of phosphorus is 30.97. If it has two isotopes, phosphorus-30 and phosphorus-31, which one is more abundant. Explain.
