Calorimeter detector

15M cable link. 2M cable link. Backplane link. Optic Mezzanine rubbon of 12 fiber. Calorimeter detector. 20 bits @40Mhz Link = 4 copper wire Serial LVDS 280Mhz. Front-end boards. Trigger Validation Board (TVB). 32 bits @40Mhz Link = Optic fibre 1.2 Ghz. Selection Board (SB).

sherri
Télécharger la présentation

Calorimeter detector

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

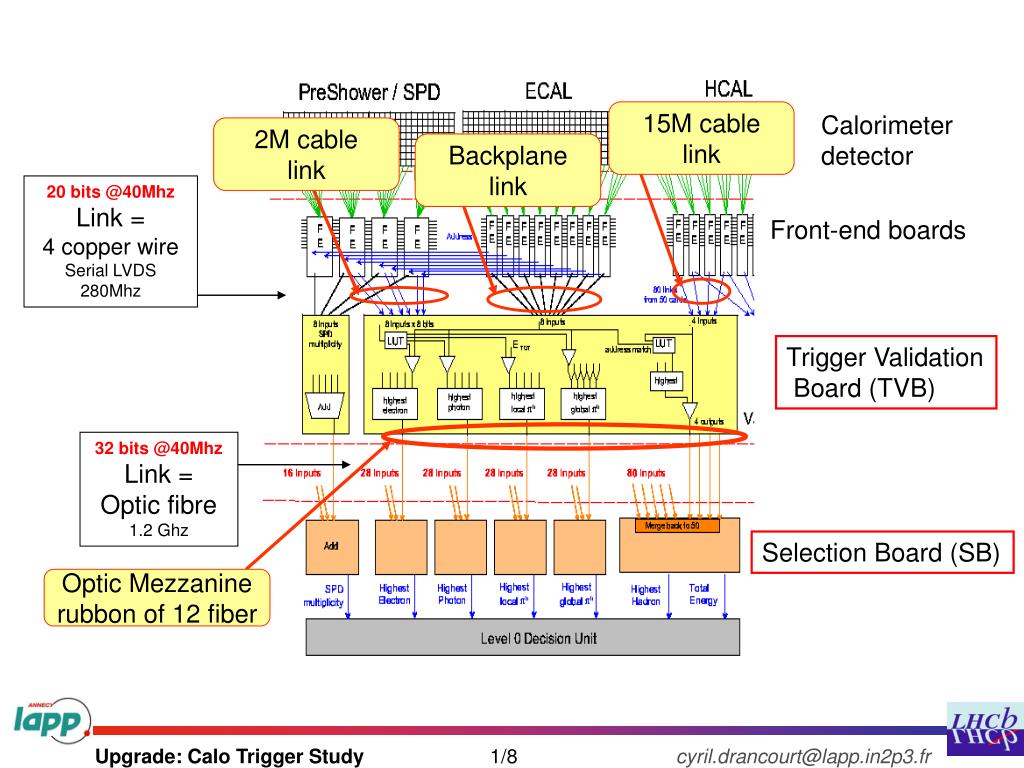

  1. 15M cable link 2M cable link Backplane link Optic Mezzanine rubbon of 12 fiber Calorimeter detector 20 bits @40Mhz Link = 4 copper wire Serial LVDS 280Mhz Front-end boards Trigger Validation Board (TVB) 32 bits @40Mhz Link = Optic fibre 1.2 Ghz Selection Board (SB) cyril.drancourt@lapp.in2p3.fr

  2. FPGA EPPI Outputs: électron photon local pi0 global pi0 Inputs 4 bus HCAL 8 bus ECAL 8 bus PS/SPD FPGA HCAL 4 outputs « Hadron » Trigger Validation Board Outputs Rubon of 12 fiber From Optical Mezzanine (only 8 usedfiber) cyril.drancourt@lapp.in2p3.fr

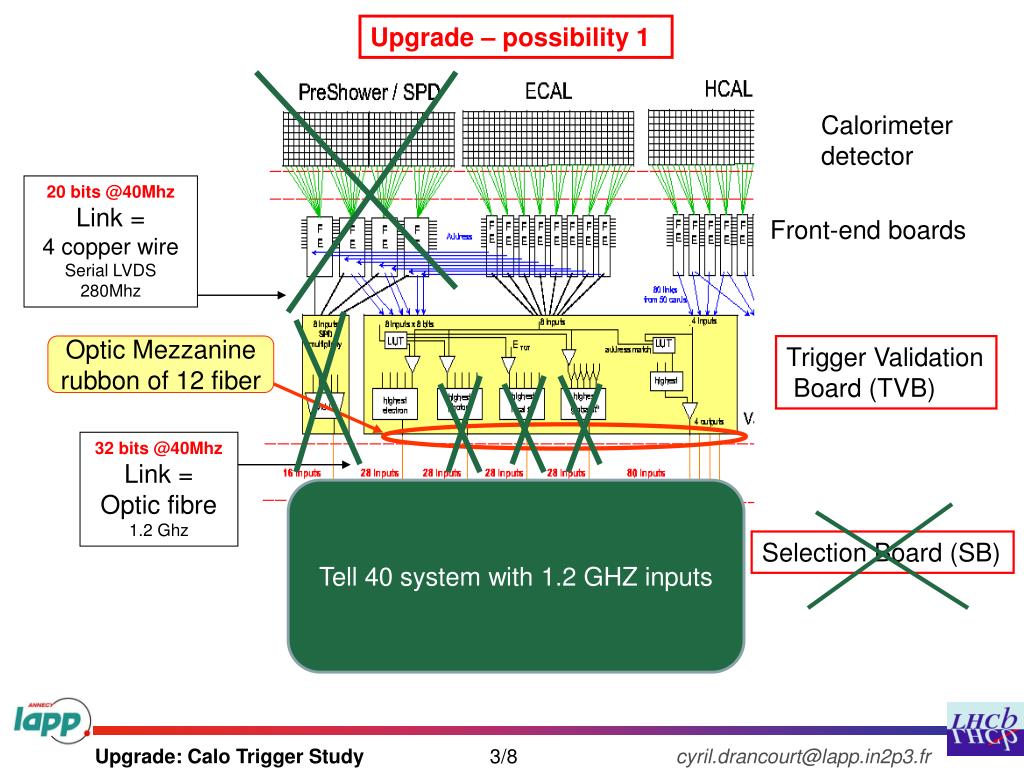

  3. Upgrade – possibility 1 Calorimeter detector 20 bits @40Mhz Link = 4 copper wire Serial LVDS 280Mhz Front-end boards Optic Mezzanine rubbon of 12 fiber Trigger Validation Board (TVB) 32 bits @40Mhz Link = Optic fibre 1.2 Ghz Tell 40 system with 1.2 GHZ inputs Selection Board (SB) cyril.drancourt@lapp.in2p3.fr

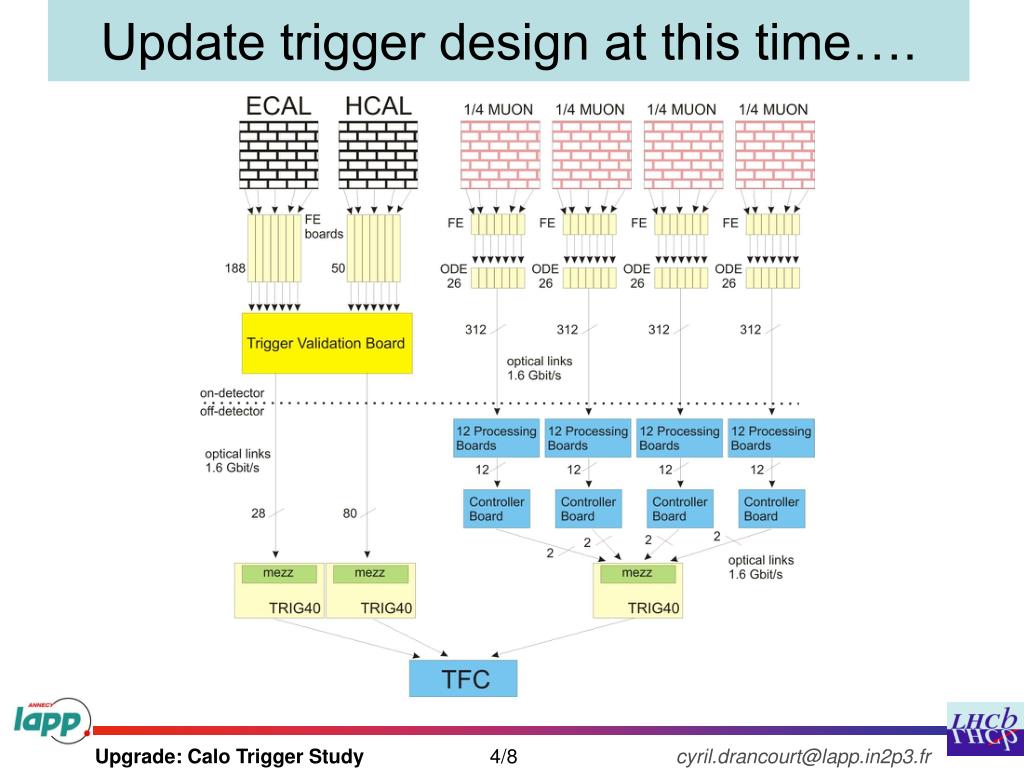

  4. Update trigger design at this time…. cyril.drancourt@lapp.in2p3.fr

  5. 1bus (electron) with 32bits @ 40Mhz 5 opticalfiber 1.2GHhz Optic level 12 bus (8 ECAL + 4 HCAL ) with 20 bits @ 40Mhz 280MHhz LVDS level D2+ D2- D1+ D1- D0+ D0- CK+ CK- 4 bus (hadron) with 32bits @ 40Mhz cyril.drancourt@lapp.in2p3.fr

  6. Tell40 design at this time…. cyril.drancourt@lapp.in2p3.fr

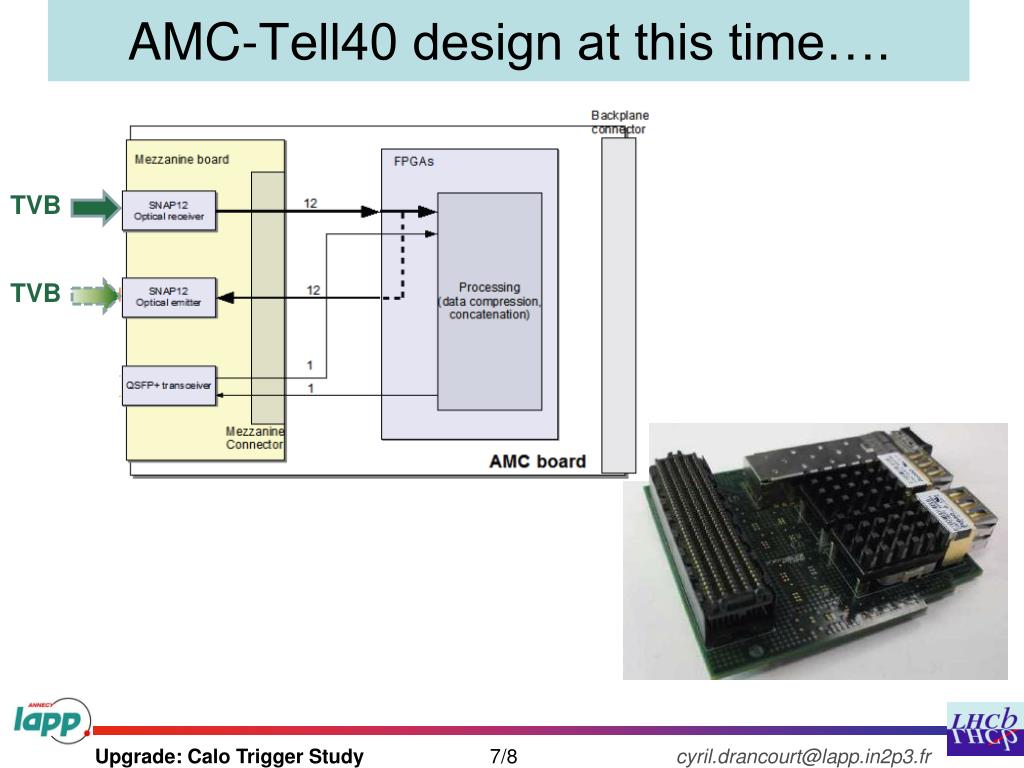

  7. AMC-Tell40 design at this time…. TVB TVB cyril.drancourt@lapp.in2p3.fr

  8. Trigger calorimeter Tell40 • 4 AMC in one TELL40 • 80 hadrons TVB outputs => 4 or 8 AMC • 28 electrons TVB outputs => 2 or 3 AMC • Resume: Calorimeter trigger need 2 or 3 Tell40 cyril.drancourt@lapp.in2p3.fr
