Ferry boat terminal Daryl toy Rensselaer polytechnic institute Fall 2013
Urban & Historical context Pons Aemilius - 1st stone bridge built across the Tiber River: 181 BC Ponte Palatino built in 1886 AD

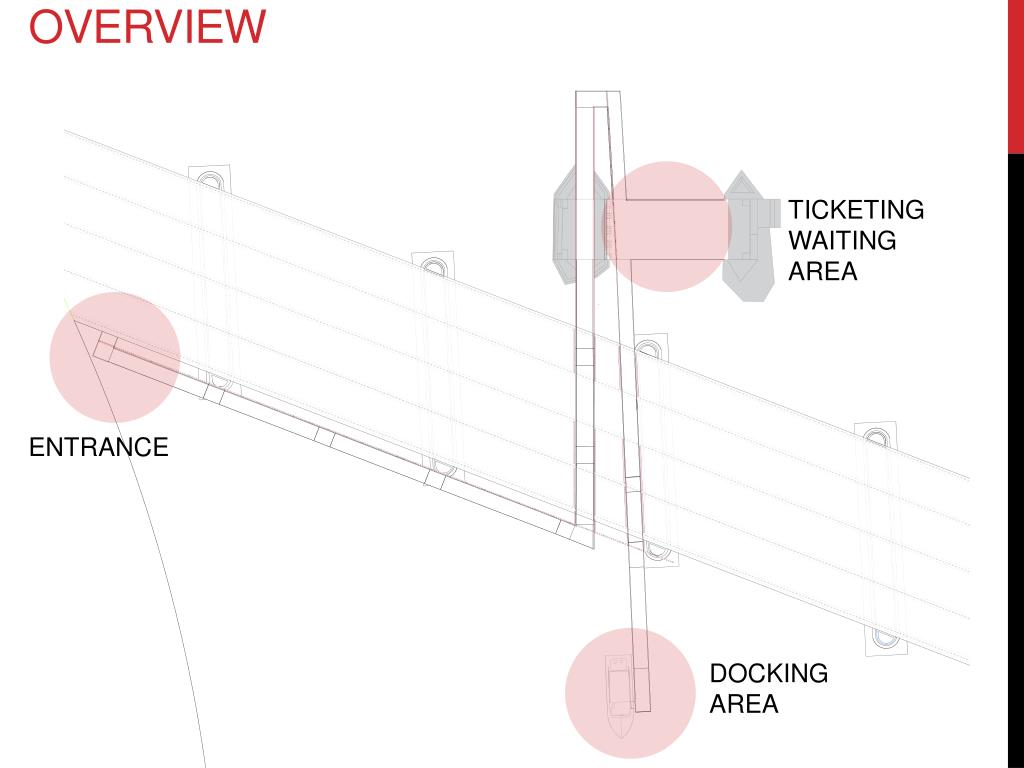

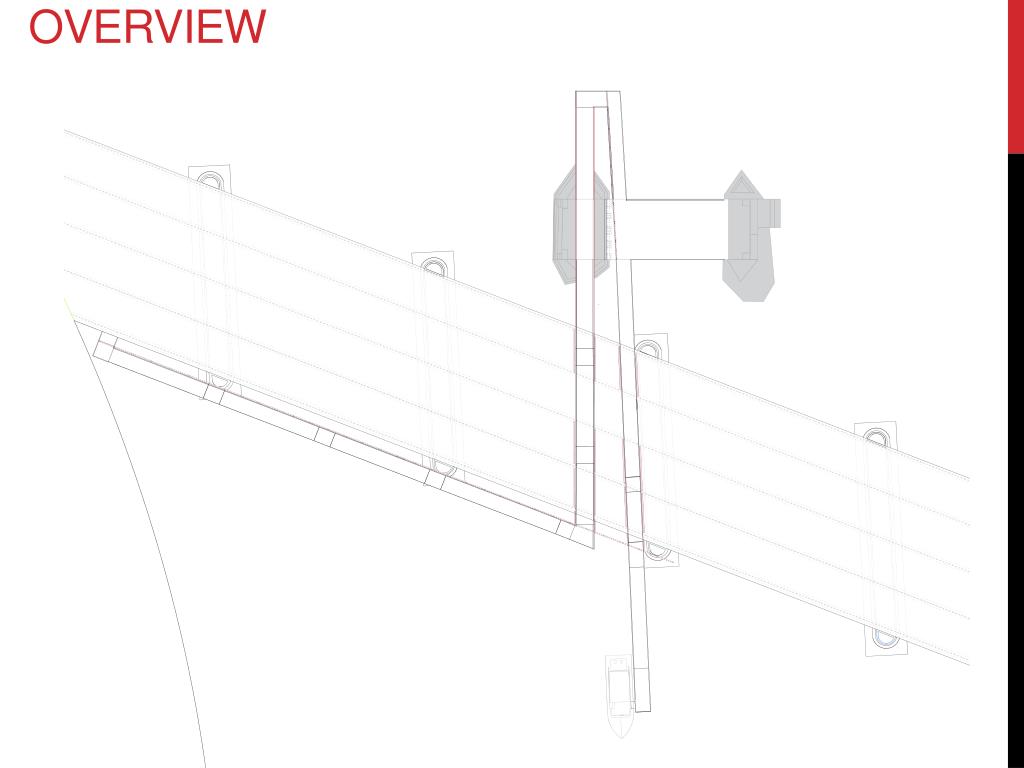

overview TICKETING WAITING AREA ENTRANCE DOCKING AREA

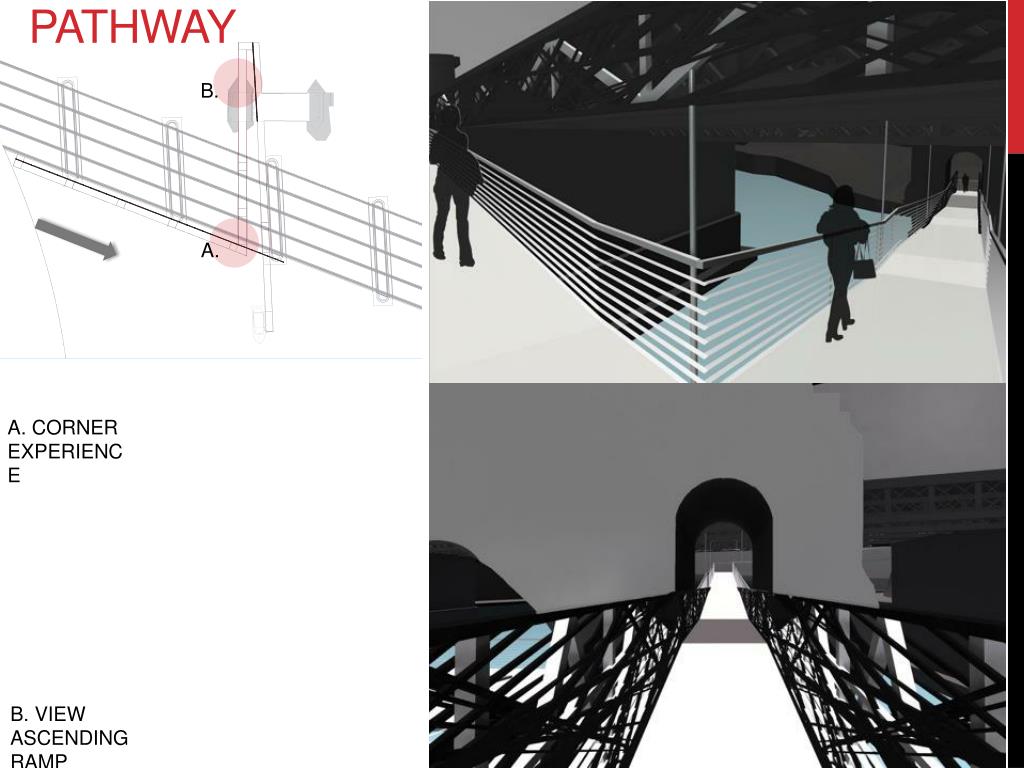

PATHWAY B. A. A. CORNER EXPERIENCE B. VIEW ASCENDING RAMP
PATHWAY A. B. A. SIDE VIEW B. VIEW FROM WAITING AREA
PATHWAY & RAMP A. B. A. ASCENDING LOWER RAMP B. WATER CHANGE & MOBILITY OF RAMPWAYS .

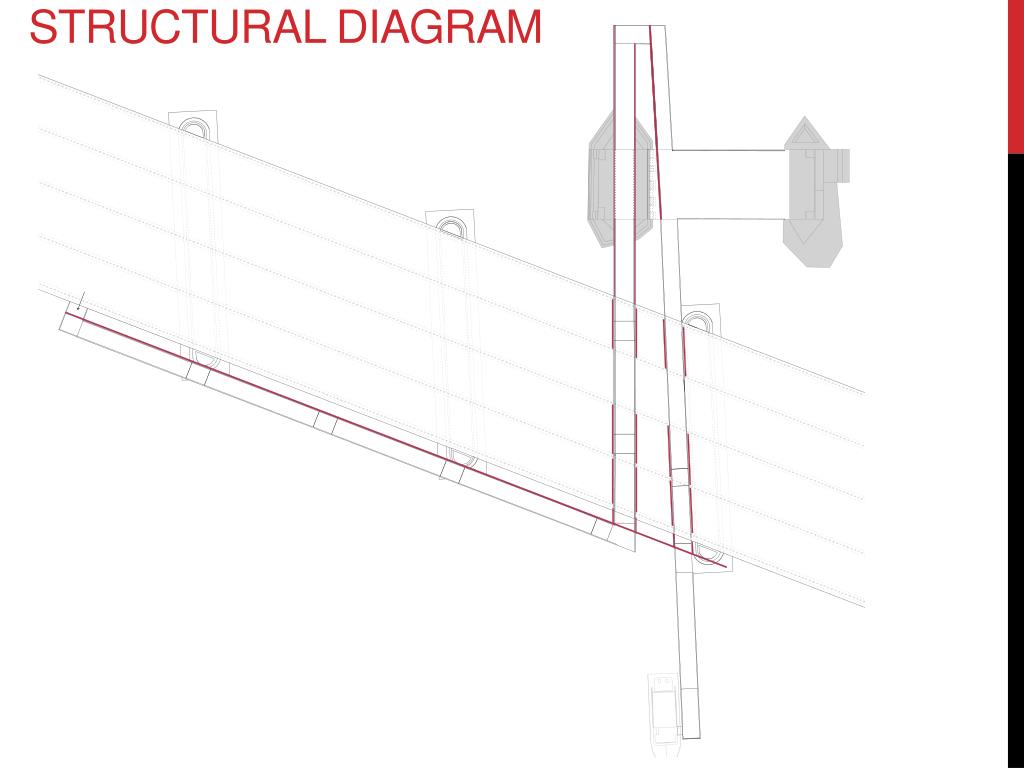

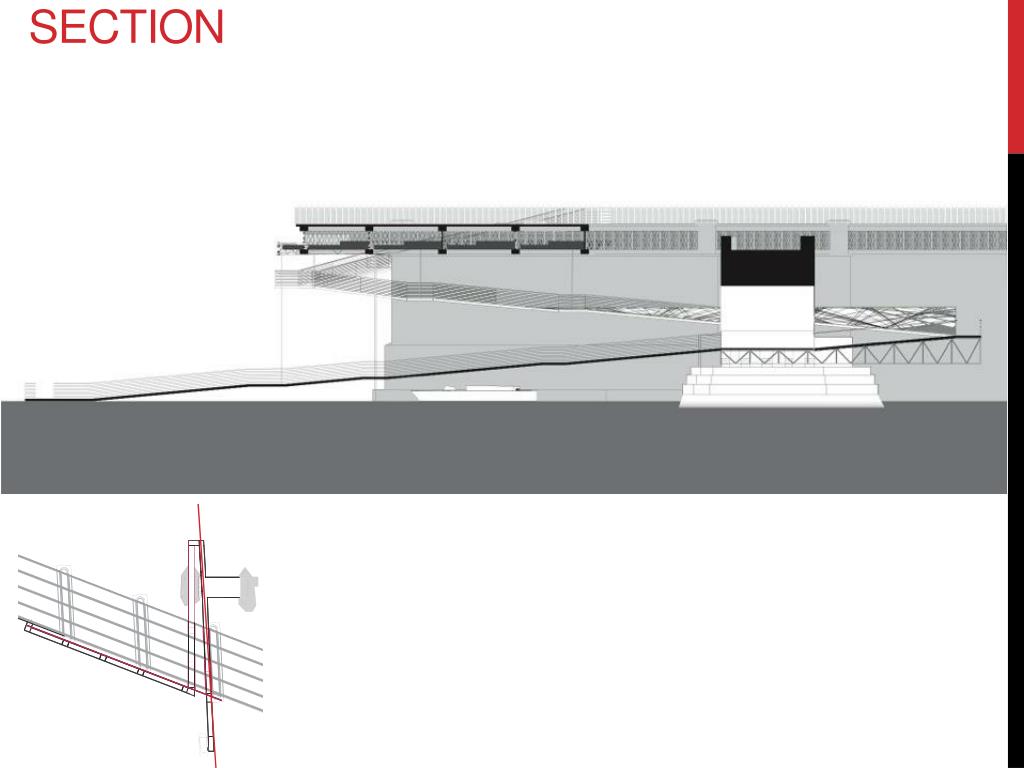

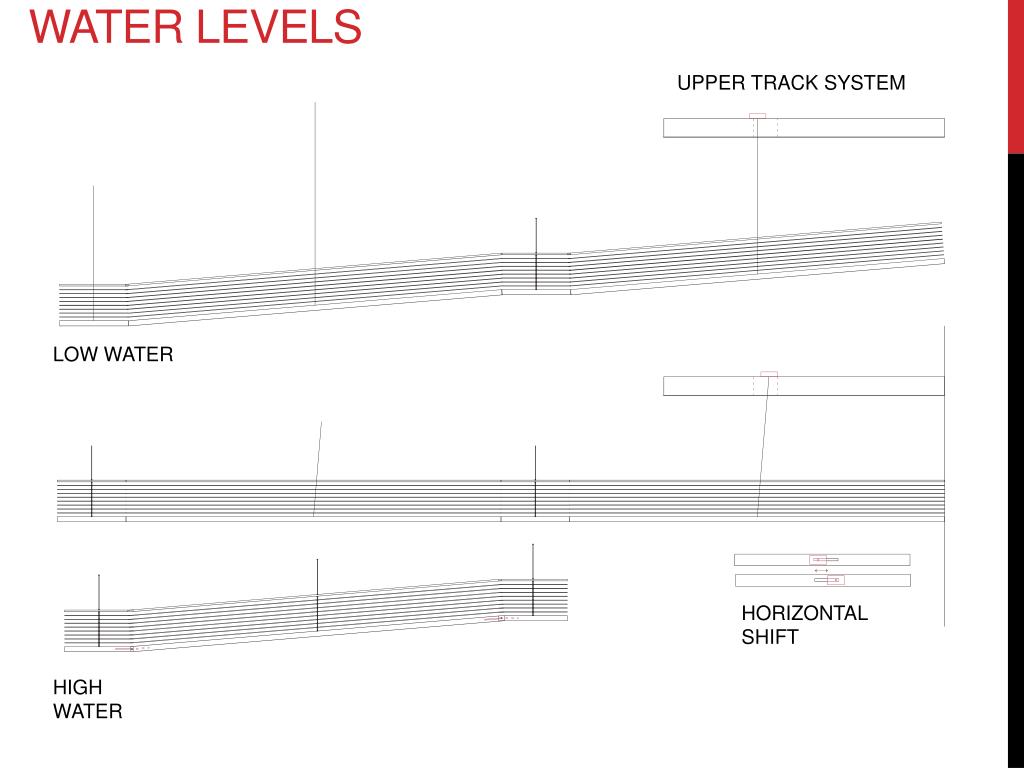

Ramp and changing water levels UPPER TRACK SYSTEM LOW WATER HORIZONTAL SHIFT HIGH WATER
Handrail detail HORIZONTAL SHIFTS PLAN HORIZONTAL SHIFTS
Ramp detail EXPLODED AXON RAMP DETAIL RIGID SUSPENSION MEMBER DETAIL RAMP SECTION
Beam design SCALE GENERATIVE DESIGN EXISTING BEARING CONDITIONS TRUSS & SKIN
