Mining Specifications (lots of) code  specifications of correctness

1. Mining Specifications(lots of) code  specifications of correctness Glenn Ammons Ras Bodík Jim Larus Univ. of Wisconsin Univ. of Wisconsin Microsoft Research

2. program program program program verifier Specifications Bugs! Motivation: why specifications? Verification tools • find bugs early • make guarantees • scale with programs • need specifications

3. program Easy to write, big payoff program program program • array accesses • memory allocation • type safety • ... verifier Bugs! Language-usage specifications

4. program Harder to write, smaller payoff program • cut-and-paste (X11) • network server (socket API) • device drivers (kernel API) • ... verifier Bugs! Library-usage specifications

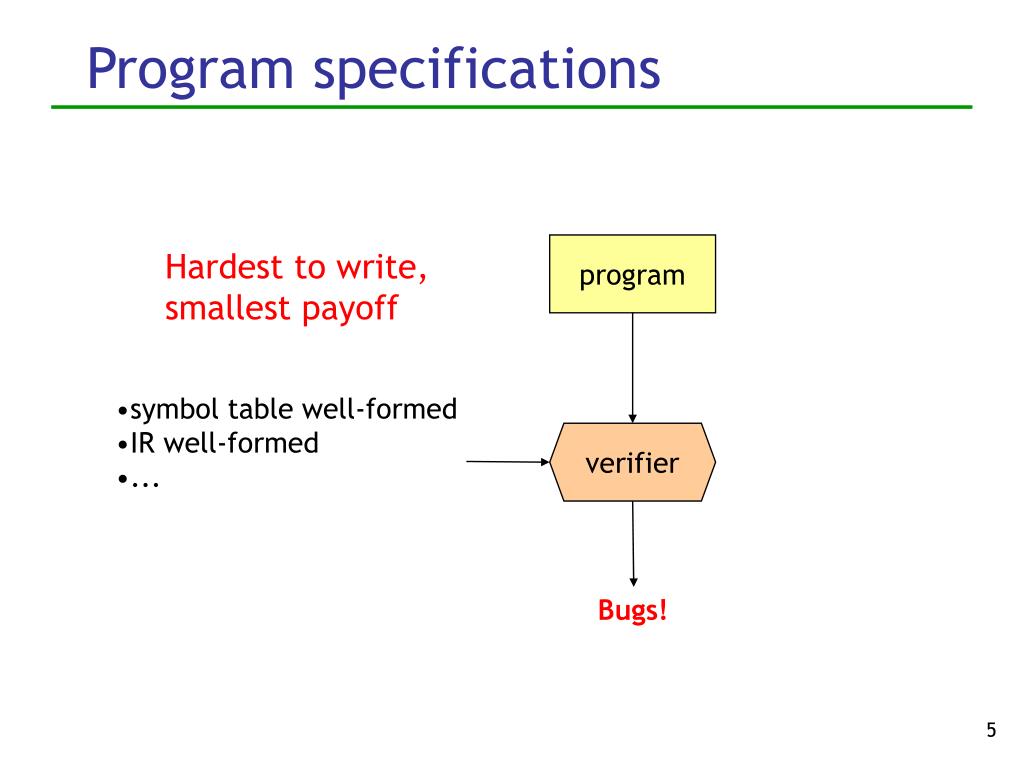

5. program Hardest to write, smallest payoff • symbol table well-formed • IR well-formed • ... verifier Bugs! Program specifications

6. Solution: specification mining • Specification mining gleans specifications from • artifacts of program development: • From programs (static)? • From executions of test cases (dynamic)? • From other artifacts?

7. Mining from traces ... socket(domain = 2, type = 1, proto = 0, return = 7) accept(so = 7, addr = 0x40, addr_len = 0x50, return = 8) write(so = 8, buf = 0x100, len = 23, return = 23) read(so = 8, buf = 0x100, len = 12, return = 12) close(so = 8, return = 0) close(so = 7, return = 0) ... • Advantages: • No infeasible paths • Pointer/alias analysis is easy • Few bugs, as program passes its tests • Common behavior is correct behavior

8. socket(return = X) read(so = Y) write(so = Y) accept(so = X, return = Y) close(so = X) close(so = Y) Output: a specification start end • Specification says what programs should do: • Temporal dependences (accept follows socket) • Data dependences (accept input is socket output)

9. 40 start start . read(so = Y) socket(return = X) A 20 . 20 C 10 . . 10 D write(so = Y) 20 accept(so = X, return = Y) B 20 10 10 E close(so = X) F close(so = Y) 10 end end socket(...) socket(...) socket(...) accept(...) accept(...) accept(...) write(...) write(...) write(...) read(...) read(...) read(...) close(...) close(...) close(...) How we mine specifications Scenarios (dep. graphs) Traces ... socket(domain = 2, type = 1, proto = 0, return = 7)) ... ... socket(domain = 2, type = 1, proto = 0, return = 7)) ... ... socket(domain = 2, type = 1, proto = 0, return = 7)) ... extract scenarios Strings PFSA learner A C E G B standardize A C E G B A C E G B PFSA postprocess Specification

10. Outline of the talk • The specification mining problem • Our specification mining system • Annotating traces with dependences • Extracting and standardizing scenarios • Probabilistic learning and postprocessing • Experimental results • Related work

11. An impossible problem Find a Turing machine that generates C, given T. I (all traces) C (all correct traces) • Unsolvable: • No restrictions on C • No connection • between C and T • Simple variants • are also • undecidable [Gold67] T (training traces)

12. A simpler problem Find a PFSAthat generates an approximation of P. 1 P a probability distribution Probability Correct Noise 0

13. A simpler problem Find a PFSAthat generates an approximation of P. 1 P a probability distribution over all scenarios Probability Correct scenarios Noise 0 All scenarios

14. A simpler problem • Find a PFSAthat generates • an approximation of P. • Tractable, plus • Scenarios are small • Noise handled • Finite-state • Weights useful for • postprocessing 1 P a probability distribution over all scenarios Probability Correct scenarios Noise 0 All scenarios

15. Outline of the talk • The specification mining problem • Our specification mining system • Annotating traces with dependences • Extracting and standardizing scenarios • Probabilistic learning and postprocessing • Verifying traces • Experimental results • Related work

16. dependence annotator Traces Annotated traces Dependence annotation socket(domain = 2, type = 1, proto = 0, return = 7) accept(so = 7, addr = 0x40, addr_len = 0x50, return = 8) write(so = 8, buf = 0x100, len = 23, return = 23) close(so = 8, return = 0) close(so = 7, return = 0)

17. dependence annotator Traces Annotated traces Dependence annotation socket(domain = 2, type = 1, proto = 0, return = 7) accept(so = 7, addr = 0x40, addr_len = 0x50, return = 8) write(so = 8, buf = 0x100, len = 23, return = 23) close(so = 8, return = 0) close(so = 7, return = 0) • Definers: • socket.return • accept.return • close.so • Users: • accept.so • read.so • write.so • close.so

18. dependence annotator Traces Annotated traces Dependence annotation socket(domain = 2, type = 1, proto = 0, return = 7) accept(so = 7, addr = 0x40, addr_len = 0x50, return = 8) write(so = 8, buf = 0x100, len = 23, return = 23) close(so = 8, return = 0) close(so = 7, return = 0) • Definers: • socket.return • accept.return • close.so • Users: • accept.so • read.so • write.so • close.so

19. Outline of the talk • The specification mining problem • Our specification mining system • Annotating traces with dependences • Extracting and standardizing scenarios • Probabilistic learning and postprocessing • Experimental results • Related work

20. Seeds Annotated traces scenario extractor Abstract scenarios Extracting scenarios socket(domain = 2, type = 1, proto = 0, return = 7) accept(so = 7, addr = 0x40, addr_len = 0x50, return = 8) write(so = 8, buf = 0x100, len = 23, return = 23) close(so = 8, return = 0) close(so = 7, return = 0)

21. Seeds Annotated traces scenario extractor Abstract scenarios Extracting scenarios socket(domain = 2, type = 1, proto = 0, return = 7) accept(so = 7, addr = 0x40, addr_len = 0x50, return = 8) write(so = 8, buf = 0x100, len = 23, return = 23) close(so = 8, return = 0) close(so = 7, return = 0)

22. Seeds Annotated traces scenario extractor Abstract scenarios Extracting scenarios socket(domain = 2, type = 1, proto = 0, return = 7) accept(so = 7, addr = 0x40, addr_len = 0x50, return = 8) write(so = 8, buf = 0x100, len = 23, return = 23) close(so = 8, return = 0) close(so = 7, return = 0)

23. Seeds Annotated traces scenario extractor Abstract scenarios Simplifying scenarios socket(domain = 2, type = 1, proto = 0, return = 7) [seed] accept(so = 7, addr = 0x40, addr_len = 0x50, return = 8) write(so = 8, buf = 0x100, len = 23, return = 23) close(so = 8, return = 0) close(so = 7, return = 0)

24. Seeds Annotated traces scenario extractor Abstract scenarios Simplifying scenarios socket(return = 7) [seed] accept(so = 7, return = 8) write(so = 8) close(so = 8) close(so = 7) Drops attributes not used in dependences.

25. Seeds Annotated traces scenario extractor Abstract scenarios Equivalent scenarios Simplified scenarios Standardizing scenarios Standardization Abstract scenarios • Two transformations: • Naming: foo(val = 7)  foo(val = X) • Reordering: foo(); bar();  bar(); foo(); • Finds the least standardized scenario, in • lexicographic order

26. Seeds Annotated traces scenario extractor Abstract scenarios Use-def and def-def dependences Standardizing scenarios socket(return = 7) [seed] accept(so = 7, return = 8) write(so = 8) read(so = 8) close(so = 8) close(so = 7)

27. Seeds Annotated traces scenario extractor Abstract scenarios Use-def and def-def dependences Standardizing scenarios socket(return = 7) [seed] accept(so = 7, return = 8) read(so = 8) write(so = 8) close(so = 8) close(so = 7) Reorder

28. Seeds Annotated traces scenario extractor Abstract scenarios Use-def and def-def dependences Standardizing scenarios socket(return = X) [seed] accept(so = X, return = Y) read(so = Y) write(so = Y) close(so = Y) close(so = X) Reorder Name

29. Seeds Annotated traces scenario extractor Abstract scenarios Standardizing scenarios socket(return = X) [seed] accept(so = X, return = Y) read(so = Y) write(so = Y) close(so = Y) close(so = X) A B D E F G Each interaction is a letter to the PFSA learner.

30. Outline of the talk • The specification mining problem • Our specification mining system • Annotating traces with dependences • Extracting and standardizing scenarios • Probabilistic learning and postprocessing • Experimental results • Related work

31. Abstract scenarios automaton learner Specification PFSA learning • Algorithm due to Raman et al.: • Build a weighted retrieval tree • Merge similar states

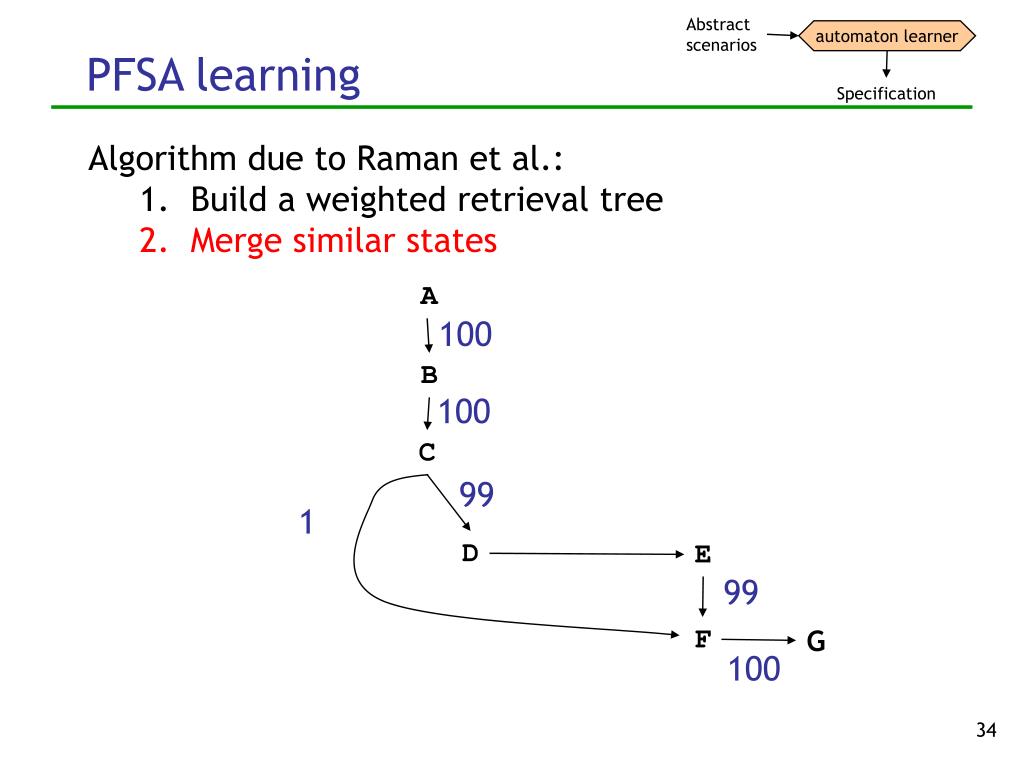

32. Abstract scenarios automaton learner Specification PFSA learning • Algorithm due to Raman et al.: • Build a weighted retrieval tree • Merge similar states A 100 B 100 C 99 1 99 F D E 1 99 G F G 99

33. Abstract scenarios automaton learner Specification PFSA learning • Algorithm due to Raman et al.: • Build a weighted retrieval tree • Merge similar states A 100 B 100 C 99 1 D E 99 G 99 F G 1

34. Abstract scenarios automaton learner Specification PFSA learning • Algorithm due to Raman et al.: • Build a weighted retrieval tree • Merge similar states A 100 B 100 C 99 1 D E 99 F G 100

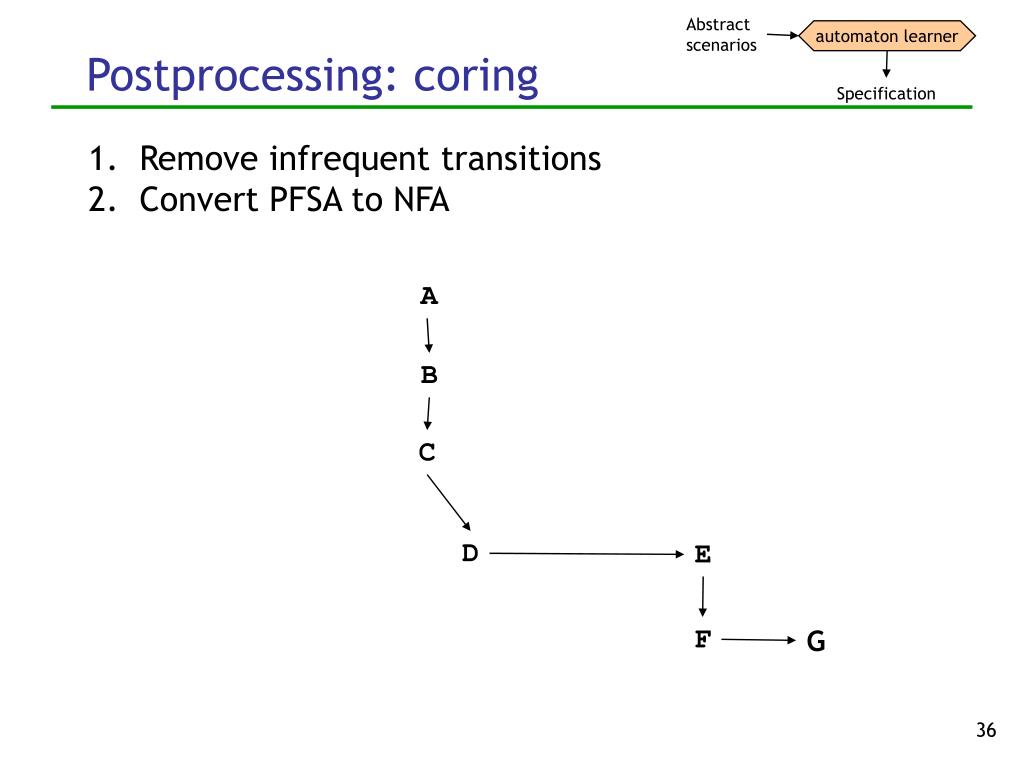

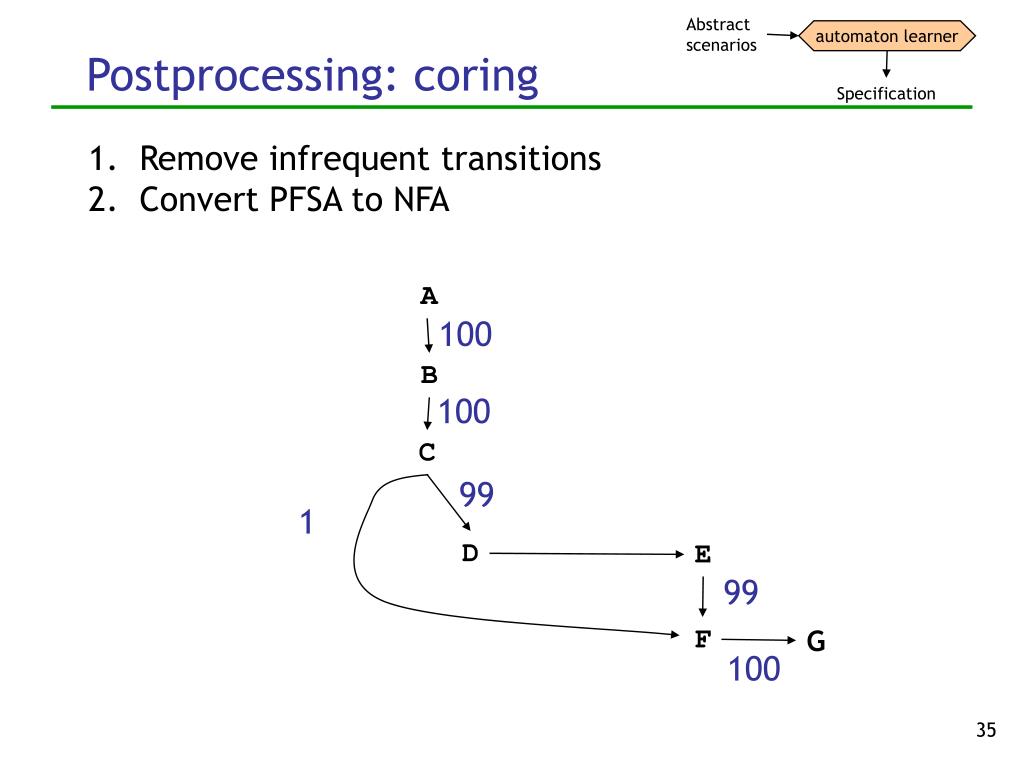

35. Abstract scenarios automaton learner Specification Postprocessing: coring • Remove infrequent transitions • Convert PFSA to NFA A 100 B 100 C 99 1 D E 99 F G 100

36. Abstract scenarios automaton learner Specification Postprocessing: coring • Remove infrequent transitions • Convert PFSA to NFA A B C D E F G

37. Outline of the talk • The specification mining problem • Our specification mining system • Annotating traces with dependences • Extracting and standardizing scenarios • Probabilistic learning and postprocessing • Experimental results • Related work

38. Where to find bugs? • in programs (static verification)? • or in traces (dynamic verification)?

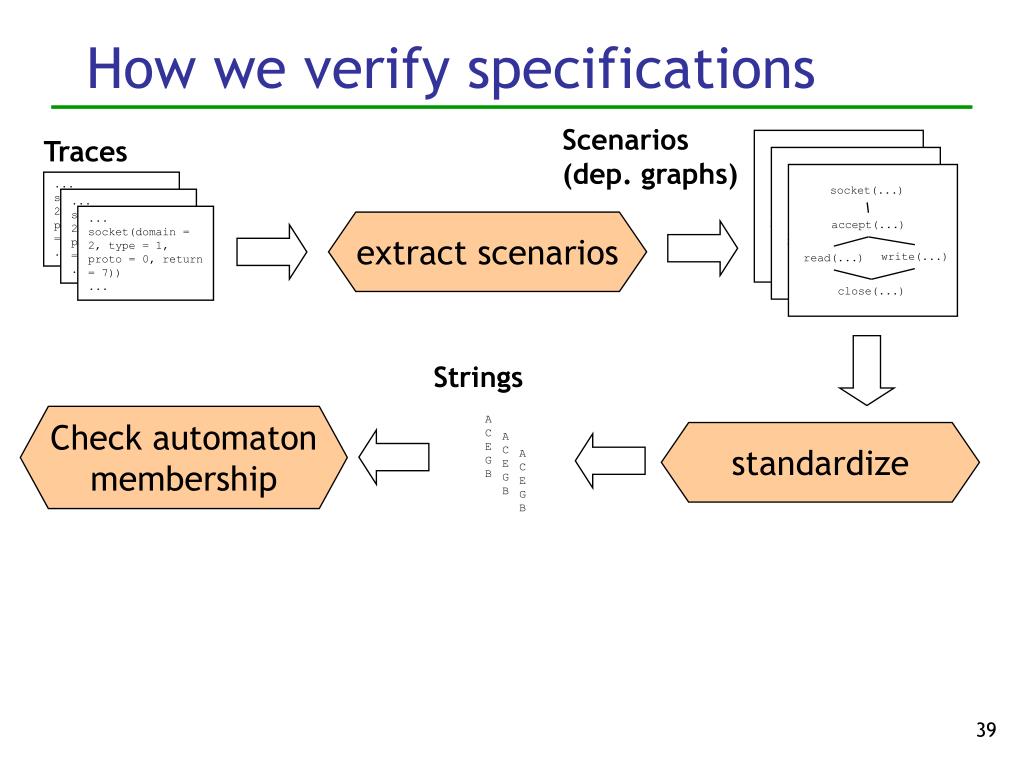

39. socket(...) socket(...) socket(...) accept(...) accept(...) accept(...) write(...) write(...) write(...) read(...) read(...) read(...) close(...) close(...) close(...) How we verify specifications Scenarios (dep. graphs) Traces ... socket(domain = 2, type = 1, proto = 0, return = 7)) ... ... socket(domain = 2, type = 1, proto = 0, return = 7)) ... ... socket(domain = 2, type = 1, proto = 0, return = 7)) ... extract scenarios Strings Check automaton membership A C E G B standardize A C E G B A C E G B

40. socket(return = X) [seed] read(so = Y) accept(so = X, return = Y) write(so = Y) close(fd = X) close(fd = Y) Verifying traces ... socket(return = 7) accept(so = 7, return = 8) write(so = 8) read(so = 8) close(so = 8) close(so = 7) ... ... socket(return = 7) accept(so = 7, return = 8) write(so = 8) read(so = 8) close(so = 8) ... OK (both sockets closed) Bug! (socket 7 not closed)

41. Experimental results Attempted to mine and verify two published X11 rules Challenge: small, buggy training sets (16 programs)

42. Learning by trial and error Start with a rule learned from one, trusted trace. Then: Randomly select an unused trace no Trace obeys rule? Expert: is trace buggy? yes yes Report bug Add trace to training set; learn a new rule no (rule too specific)

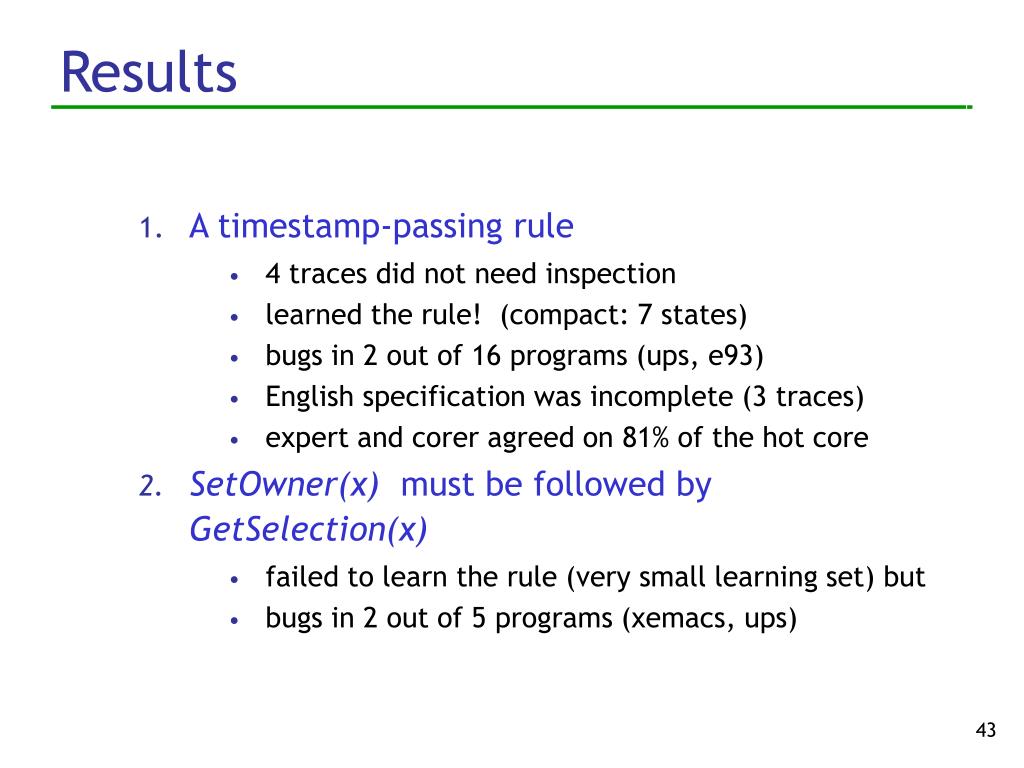

43. Results • A timestamp-passing rule • 4 traces did not need inspection • learned the rule! (compact: 7 states) • bugs in 2 out of 16 programs (ups, e93) • English specification was incomplete (3 traces) • expert and corer agreed on 81% of the hot core • SetOwner(x) must be followed by GetSelection(x) • failed to learn the rule (very small learning set) but • bugs in 2 out of 5 programs (xemacs, ups)

44. Outline of the talk • The specification mining problem • Our specification mining system • Annotating traces with dependences • Extracting and standardizing scenarios • Probabilistic learning and postprocessing • Experimental results • Related work

45. Related work Arithmetic pre/post conditions • Daikon [Ernst et al], Houdini [Flanagan and Leino] • properties orthogonal from us • eventually, we may need to include and learn some arithmetic relationships Temporal relationships over calls • intrusion detection: [Ghosh et al], [Wagner and Dean] • software processes: [Cook and Wolf] • error checking: [Engler et al SOSP 2001] • lexical and syntactic pattern matching • user must write templates (e.g., <a> always follows <b>) • design patterns: [Reiss and Renieris]

46. Conclusion • Introduced specification mining, a new approach for learning correctness specifications • Refined the problem into a problem of probabilistic learning from traces • Developed and demonstrated a practical specifications miner

47. End of talk
