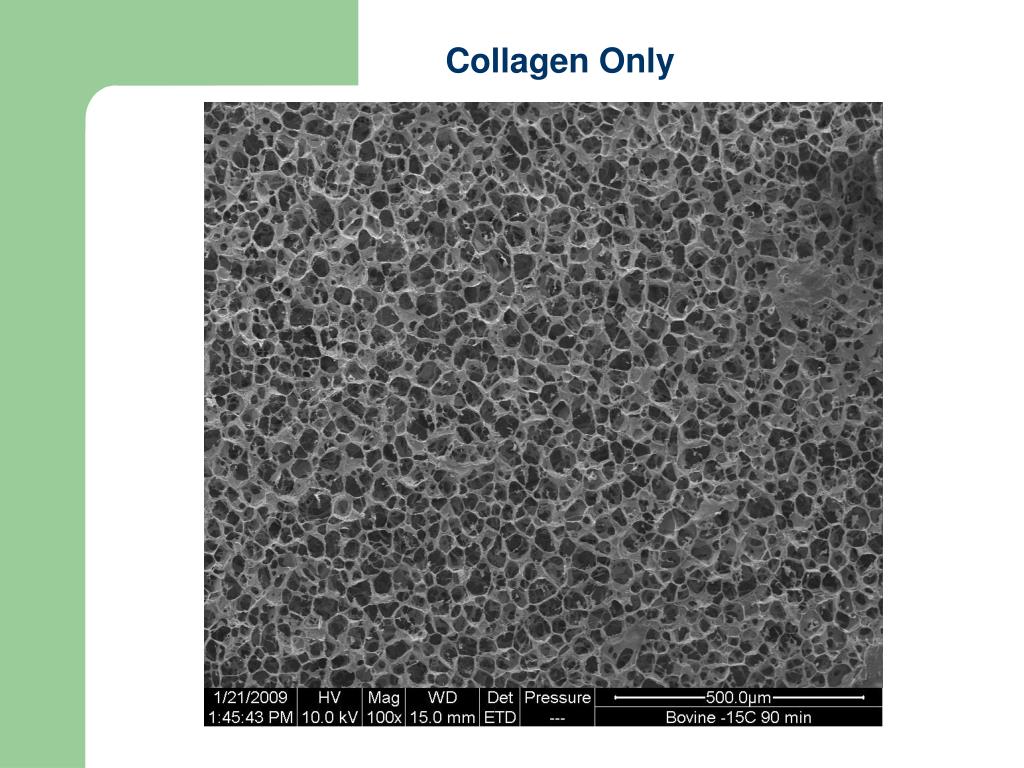

  1. Collagen Only

  2. Porous Copper Processed at 600 C

  3. Titanium 1200°C for 1 hour Spheroid metal powder is sintered together.

  4. Titanium

  5. Porous Titanium (Anatase) – Copper Hydrid

  6. SEM & LM Images Titanium Aluminum

  7. Aluminum-Copper Hybrid Copper Aluminum Hybrid 241 114 93 Strength Rating

  8. Titanium-Copper Hybrid Copper Titanium Hybrid 953 168 93 Strength Rating
