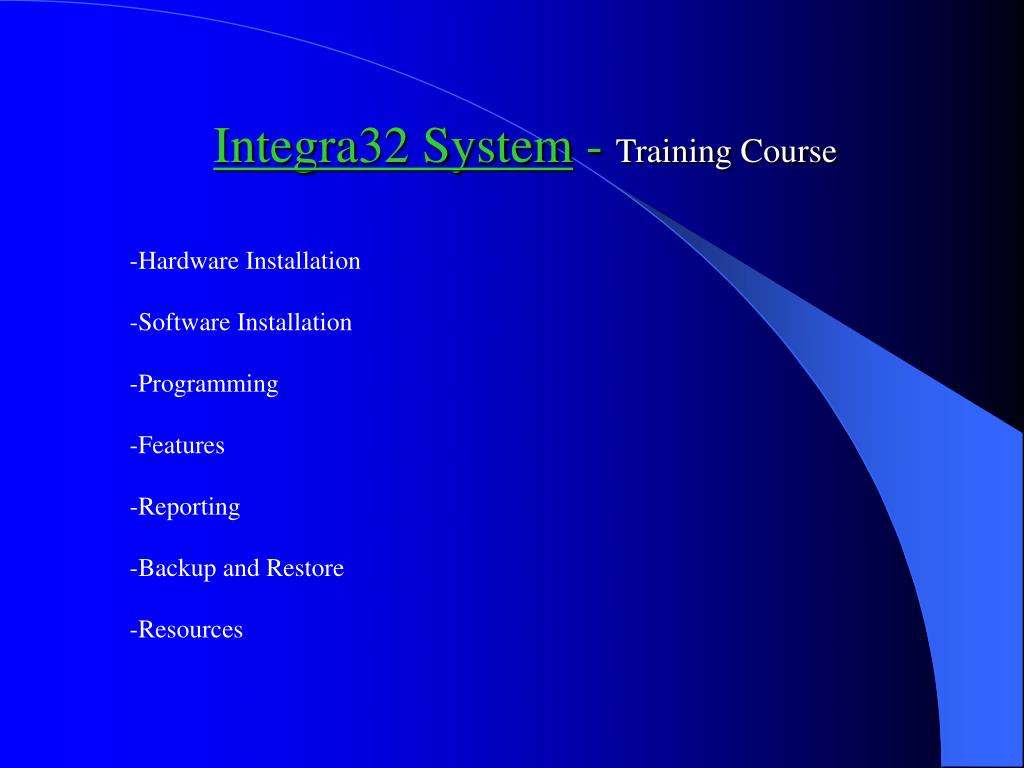

  1. Integra32 System - Training Course • Hardware Installation • Software Installation • Programming • Features • Reporting • Backup and Restore • Resources

  2. Integra32 System- Hardware Installation • Installation Considerations • Cabling & Panel Connections • Connecting to your Computer

  3. Integra32 System- Hardware Installation • Installation Considerations • Distance from Panel to Computer • Reader Distance • Device Power • EMF suppression • Grounding

  4. Integra32 System- Hardware Installation • Cabling & Panel Connections • Panel to computer • Reader connections • Inputs /Outputs

  5. Integra32 System- Hardware Installation • Connecting to your Computer • RS232 connections • Baud rate Settings • Lan Connections • Modem connections • Panel Addressing

  6. Integra32 System- Software Installation • Computer Requirements • Installing Software • Integra File Structure

  7. Integra32 System- Software Installation • Computer Requirements • Operating system Microsoft Windows 951, 982, 20003, ME, XP or NT 4.04 • Microprocessor (CPU) Pentium II 400 or higher • Memory 64 MB minimum, 128 MB recommended • Hard disk space 1.0 GB or higher to accommodate History • Disk drives 3.5” high-density floppy drive and CD-ROM Drive. • Video adapter VGA or higher • Pointing device IBM-compatible or Microsoft-compatible mouse

  8. Integra32 System- Software Installation • Installing Software • Server Installation • Client Installation

  9. Integra32 System- Software Installation • Integra File Structure • --- Program Files • ---rbh • ---Integra32 • exe files • ---default • data files • history files • ---backup • ---images

  10. Integra32 System- Software Installation Command Bars Command Menu Database Menu Monitor Screen

  11. Integra32 System- Lab 1 • Install Integra software and Connect to IRC2000 panel 1.Set DIP switches 5.Install software 2.Set Communications 3..Power up Panel 4.Connect Cable 6.Run software and verify Communications

  12. Integra32 System- Software Programming –Defining System -hardware

  13. Integra32 System– System Commands Right Click device to bring up options

  14. Integra32 System– Lab 2 -Commands • Using commands -lock/relock readers • -arm/disarm inputs • -get firmware version • -set date/time of panel • -download all files to panel • -What is the difference between permanent,semi-permanent and timed commands?

  15. Integra32 System- Software Programming –Defining Parameters -operators

  16. Integra32 System- Software Programming –Defining Parameters –holidays (40)

  17. Integra32 System- Software Programming –Defining Parameters –Schedules (32)

  18. Integra32 System- Software Programming –Defining Parameters –Areas

  19. Integra32 System- Software Programming –Defining Parameters –Messages

  20. Integra32 System- Software Programming –Defining Parameters –Access Levels

  21. Integra32 System- Software Programming –Card Programming

  22. Integra32 System- Software Programming –Badge Templates Click Here to select badge type Right Click on template to insert fields Right Click on field to select properties

  23. Integra32 System– Lab 3 – Card Programming • Design Badge template and assign to card holder • Program a user with to access reader A and B • Program a second card for access only at reader A • Put reader a into High security mode and program card 1 for access

  24. Integra32 System– Alarm Monitoring

  25. Integra32 System– Lab 4 – Alarm Simulation • Program an output to cause an alarm • Program an invalid card to cause an alarm

  26. Integra32 System- Software Programming –Features • High Security – Four Swipe • Lock/Unlock – Double Swipe • 1st person Delay • Local Links • Global Links • Access Point Activity • Area and Card Monitoring • DVR Integration

  27. Integra32 System– Lab 4 – Testing Features • Program a card to open a second output • Program a card to put reader 2 into high security • Program reader a to unlock using the ‘First Person Delay’ feature • Program a card to use the ‘Double Swipe’ feature • Program a card to use the ‘Four Swipe’ feature • Program a card to display on on activity using Access Point Activity • Program two areas and monitor card access in and out of areas

  28. Integra32 System– Modem Configuration U.S. Robotics- switches 2,5 and 6 up

  29. Integra32 System– TCP/IP Software Configuration

  30. Integra32 System– TCP/IP Hardware Configuration Hyper-terminal or Telnet Command Subnet Calculation Reset Button

  31. Integra32 System-Software Database Reports

  32. Integra32 System-Software History Reports

  33. Integra32 System– Lab 5 – Testing Reports • Run time and attendance report and compare results

  34. Integra32 System-Software Backup and Restore

  35. Integra32 System– Lab 5 – Testing Backups • Run backup then make a change to database • Restore database and see if change is gone

  36. Integra32 System- Client installation from CD • Insert CD and run Setup from client folder Run Dcomcnfg.exe on server and client

  37. Integra32 System- Resources – CD – help menu support@rbh-access.com
