  1. A first attempt to WP 5.6.2Preliminary results of one test case Matteo Buzzi, Pirmin Kaufmann, Dominique Ruffieux, Francis Schubiger MeteoSwiss

  2. Compared model runs for forecast of 12.12.04 • Model versions: • Exp001 • Exp002 • operational aLMo (without TKE) and LM • aLMo-TKE:TKE version opr at DWD + “last changes” • SYNOP • total cloudiness, T(k=ke, 2m), qv (k=ke), Td2m • Model diffusion coefficients and TKE in the PBL at Payerne • Measurements from Payerne • Sounding • T2m, T5cm • ANETZ • T2m, Td2m, (T-Td)2m, 10m-wind, total cloudiness francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

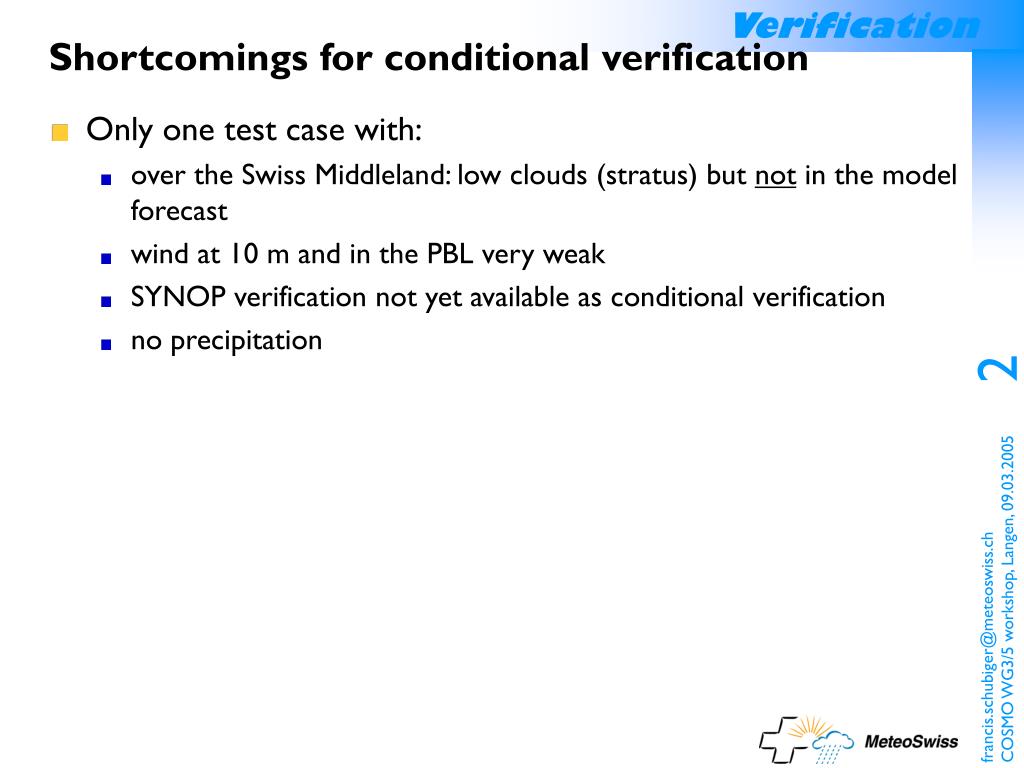

  3. Shortcomings for conditional verification • Only one test case with: • over the Swiss Middleland: low clouds (stratus) but not in the model forecast • wind at 10 m and in the PBL very weak • SYNOP verification not yet available as conditional verification • no precipitation francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  4. Total cloud cover

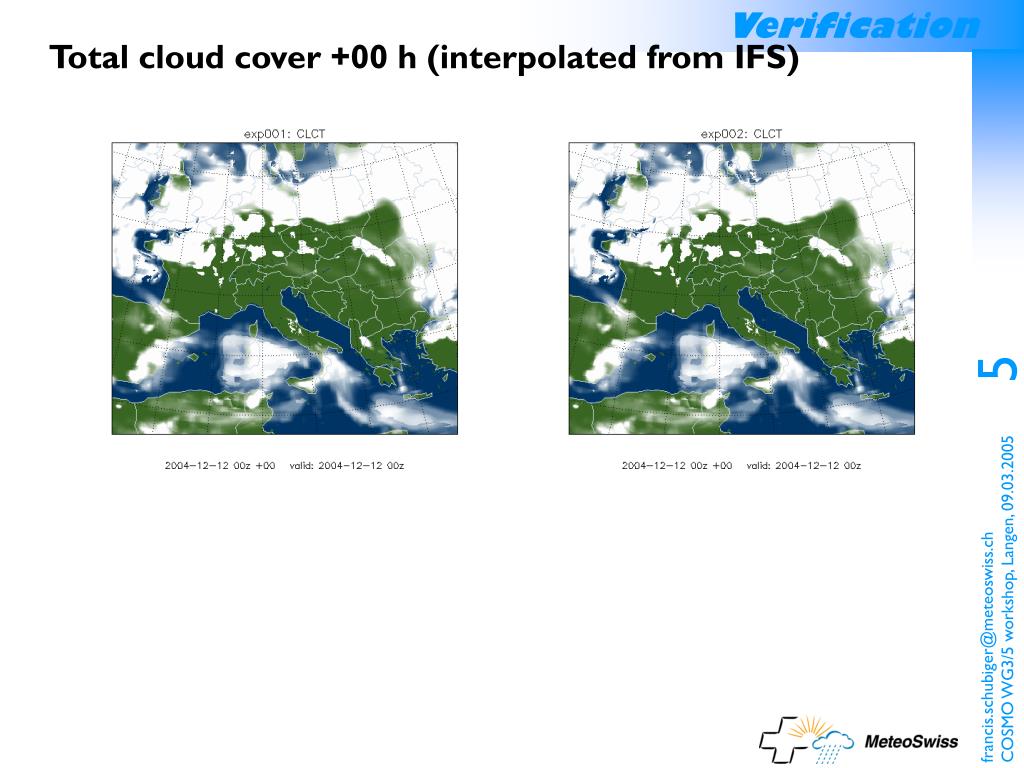

  5. Total cloud cover +00 h (interpolated from IFS) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

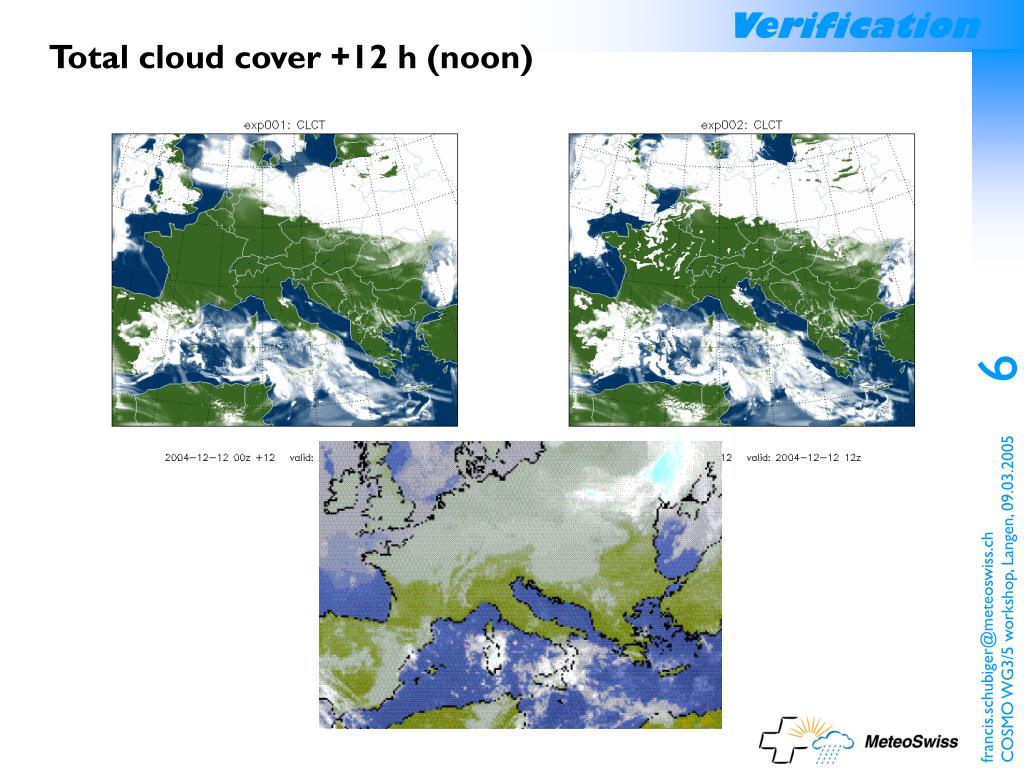

  6. Total cloud cover +12 h (noon) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

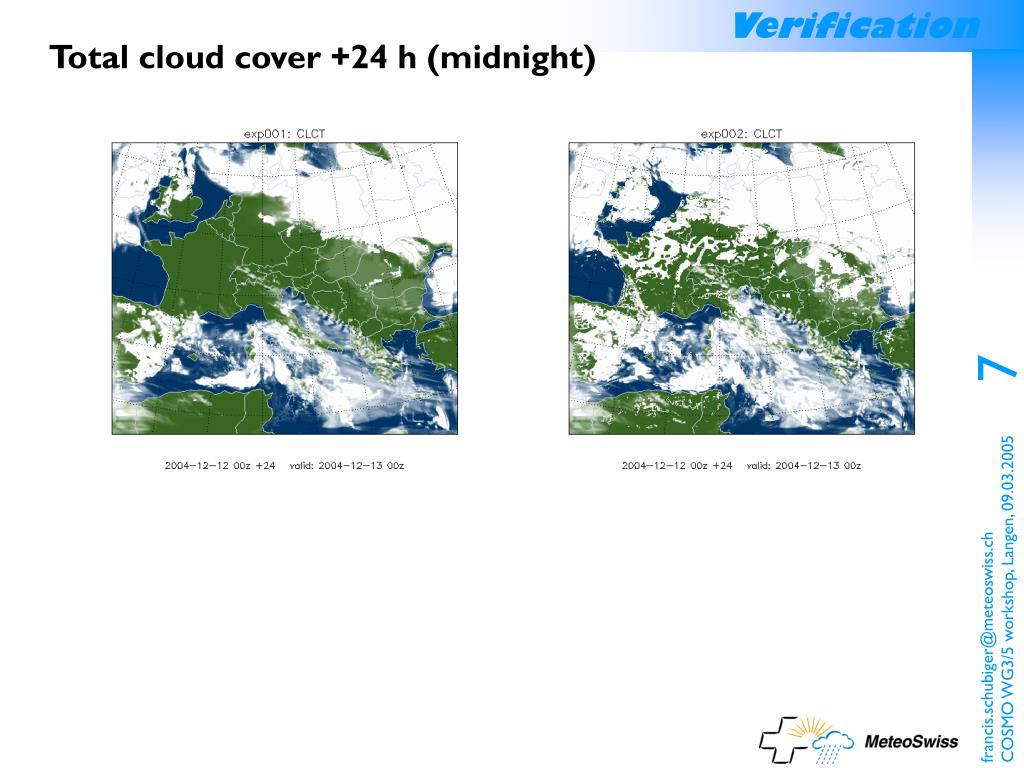

  7. Total cloud cover +24 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  8. Total cloud cover +36 h (noon) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

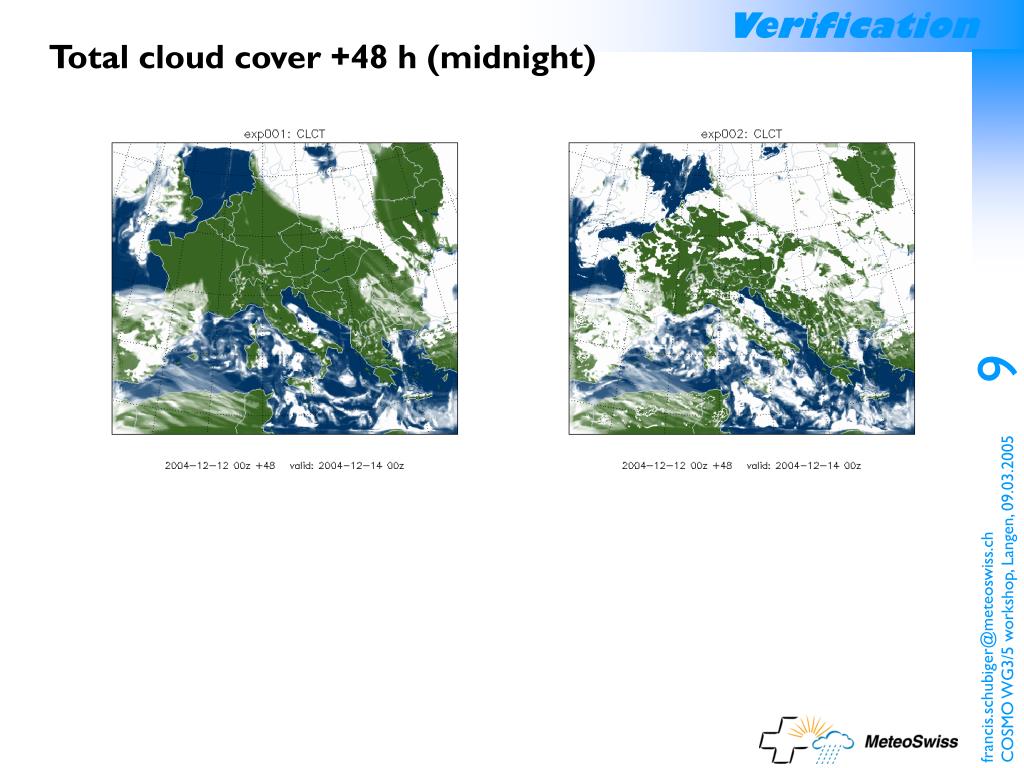

  9. Total cloud cover +48 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

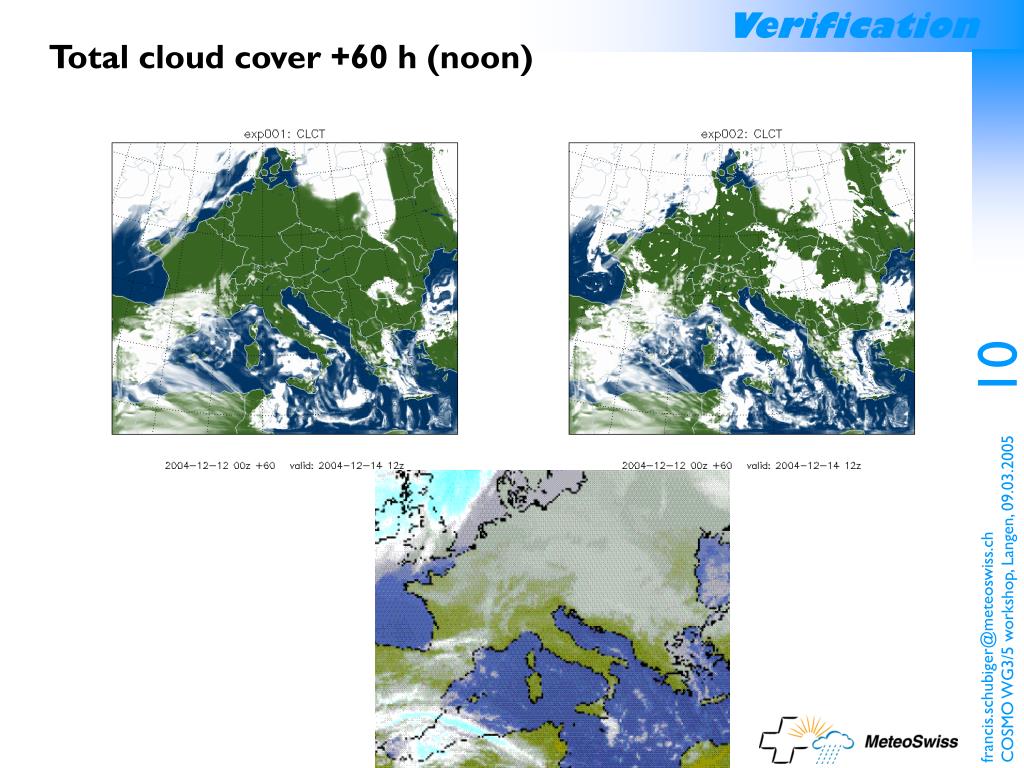

  10. Total cloud cover +60 h (noon) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

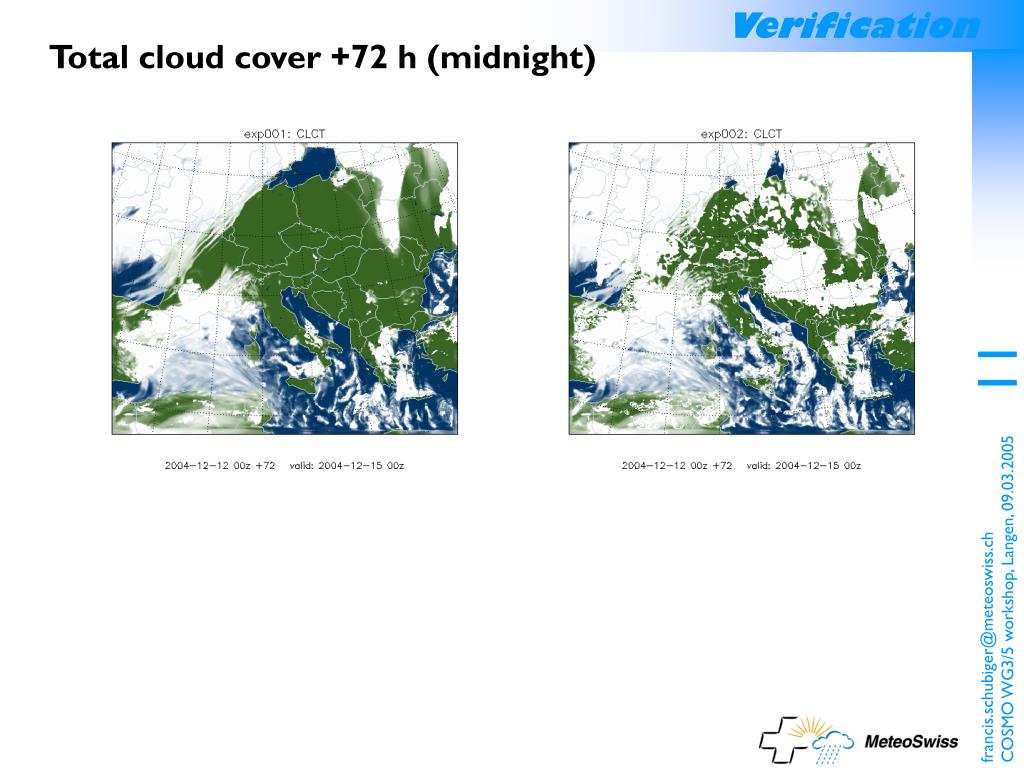

  11. Total cloud cover +72 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

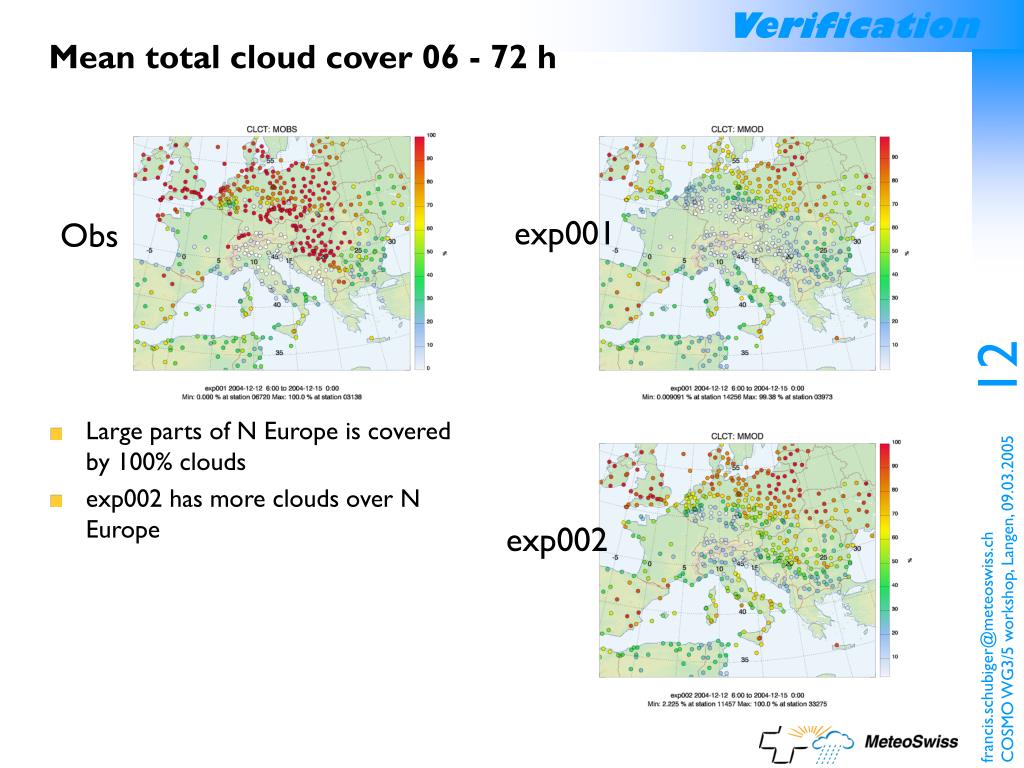

  12. Mean total cloud cover 06 - 72 h Large parts of N Europe is covered by 100% clouds exp002 has more clouds over N Europe exp001 Obs exp002 francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

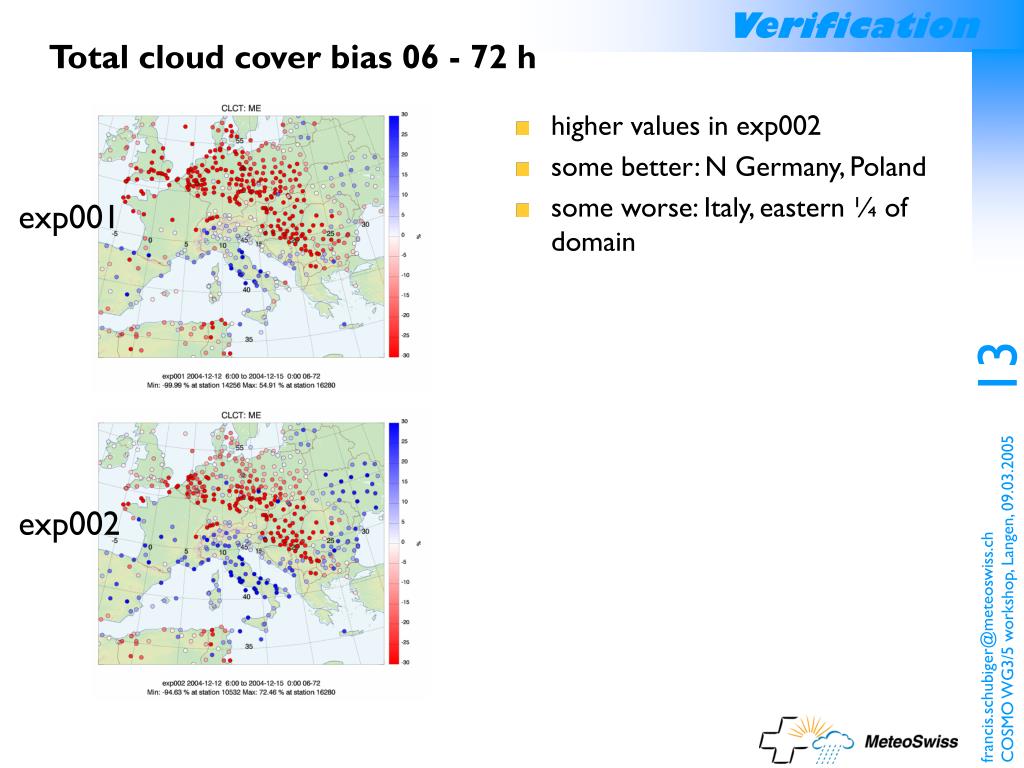

  13. Total cloud cover bias 06 - 72 h • higher values in exp002 • some better: N Germany, Poland • some worse: Italy, eastern ¼ of domain exp001 exp002 francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

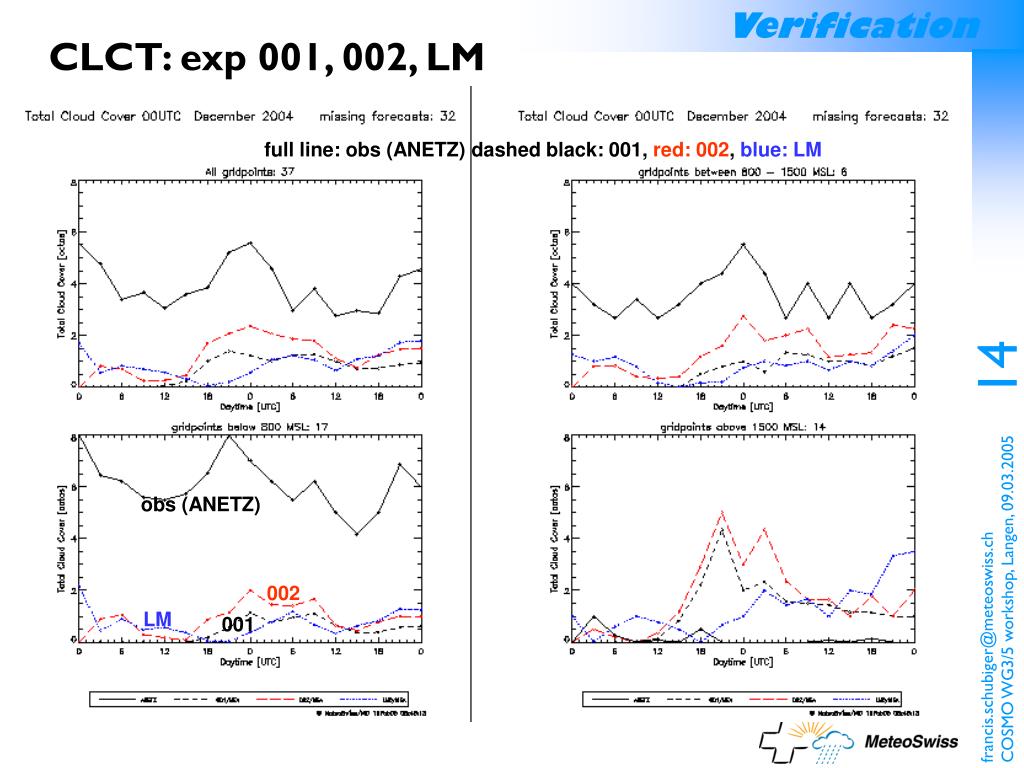

  14. CLCT: exp 001, 002, LM full line: obs (ANETZ) dashed black: 001, red: 002, blue: LM obs (ANETZ) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 002 LM 001

  15. Temperature

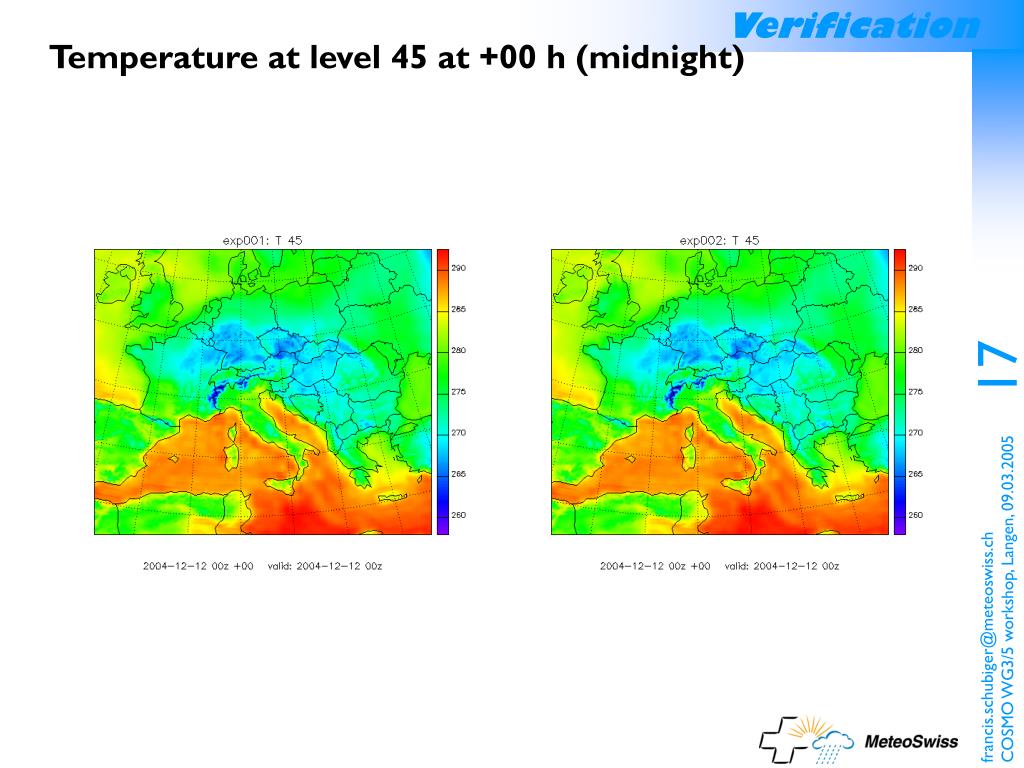

  16. Temperature at level 45 at +00 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  17. Temperature at level 45 at +12 h (noon) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  18. Temperature at level 45 at +24 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

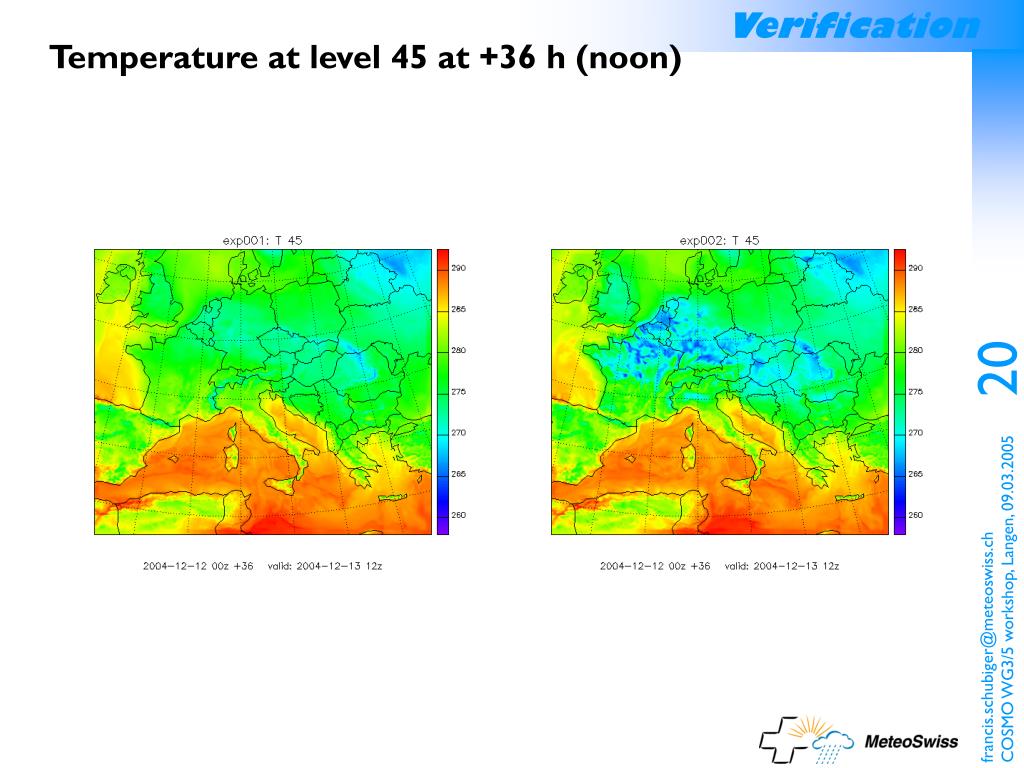

  19. Temperature at level 45 at +36 h (noon) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

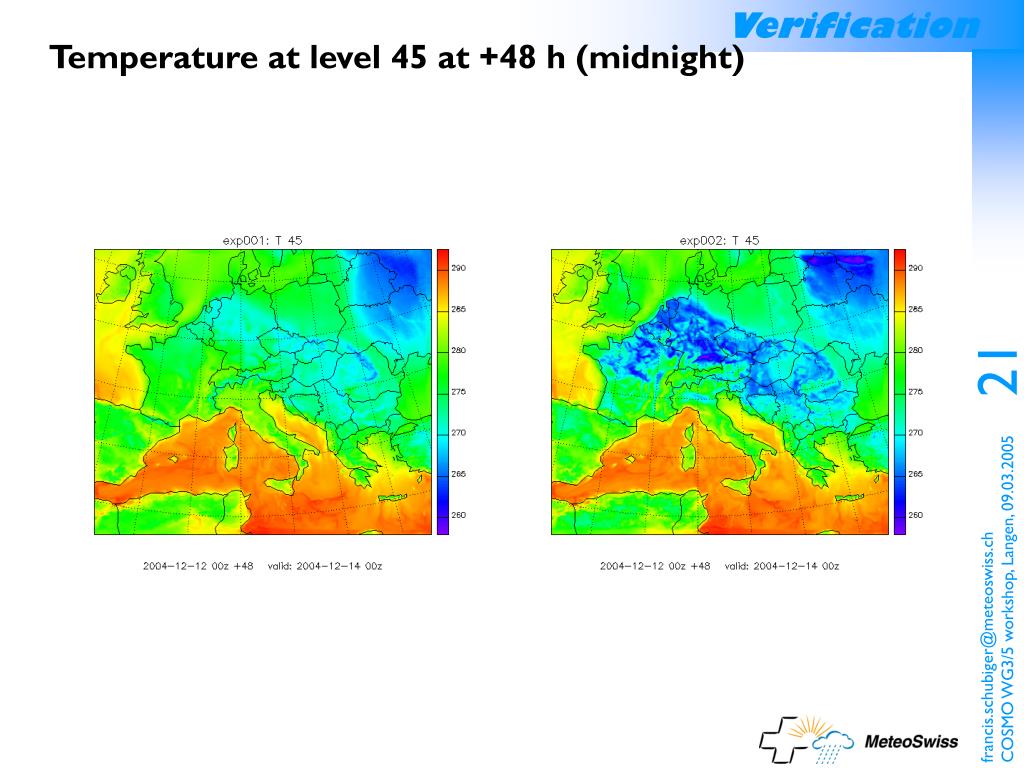

  20. Temperature at level 45 at +48 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

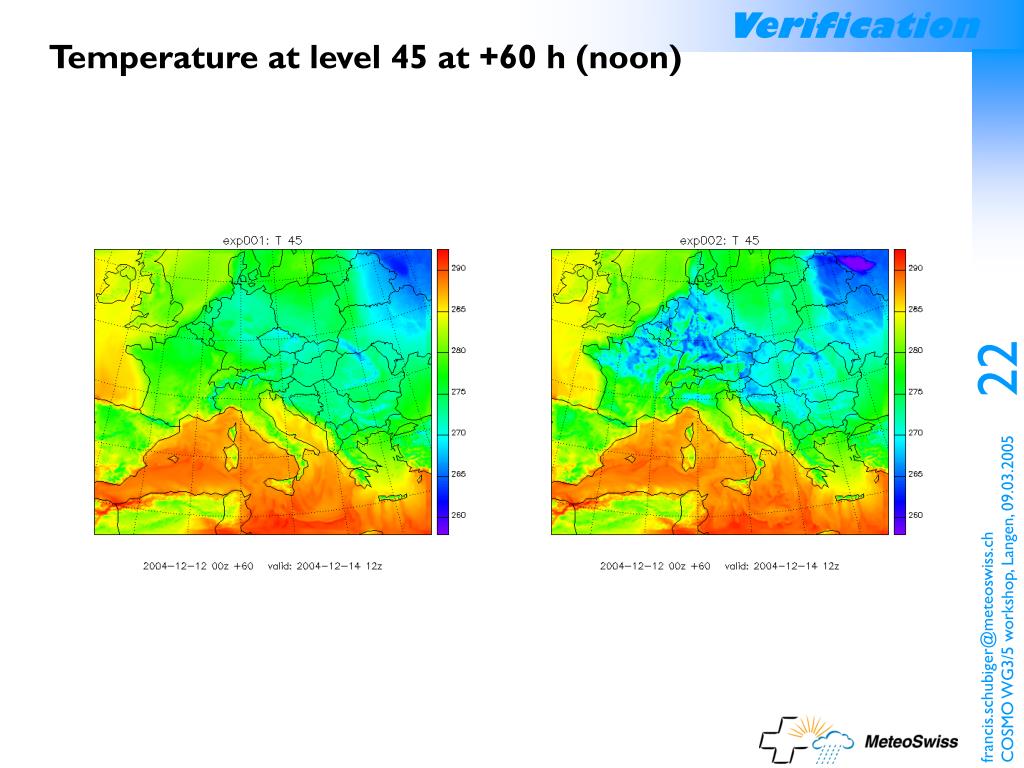

  21. Temperature at level 45 at +60 h (noon) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

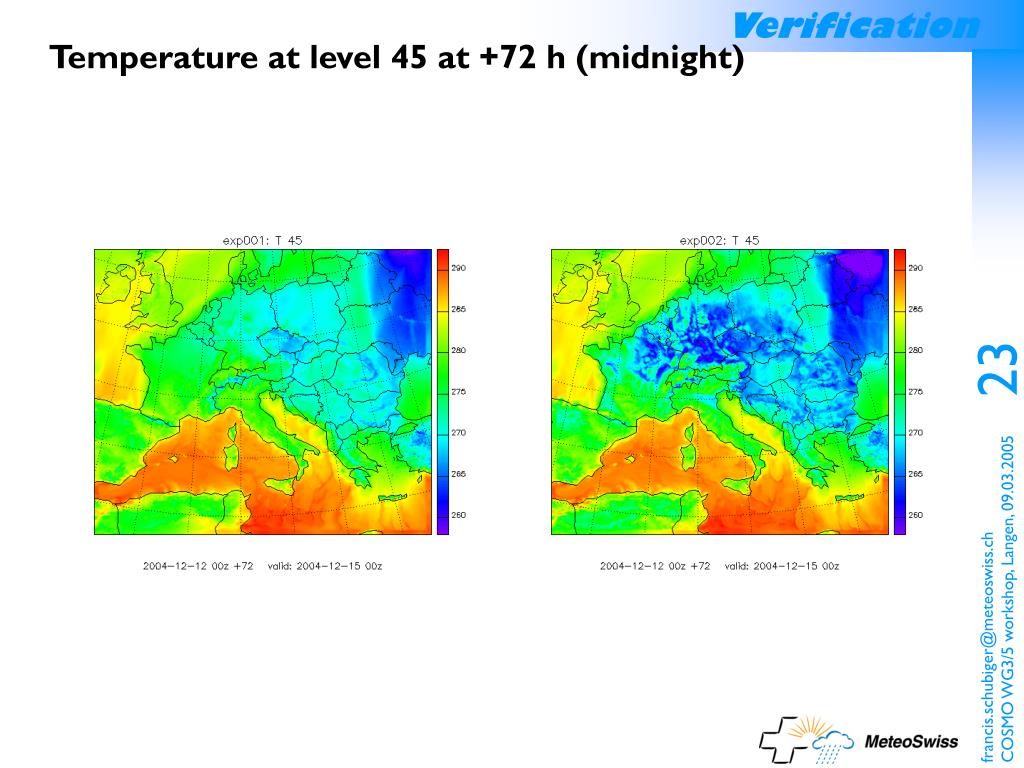

  22. Temperature at level 45 at +72 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

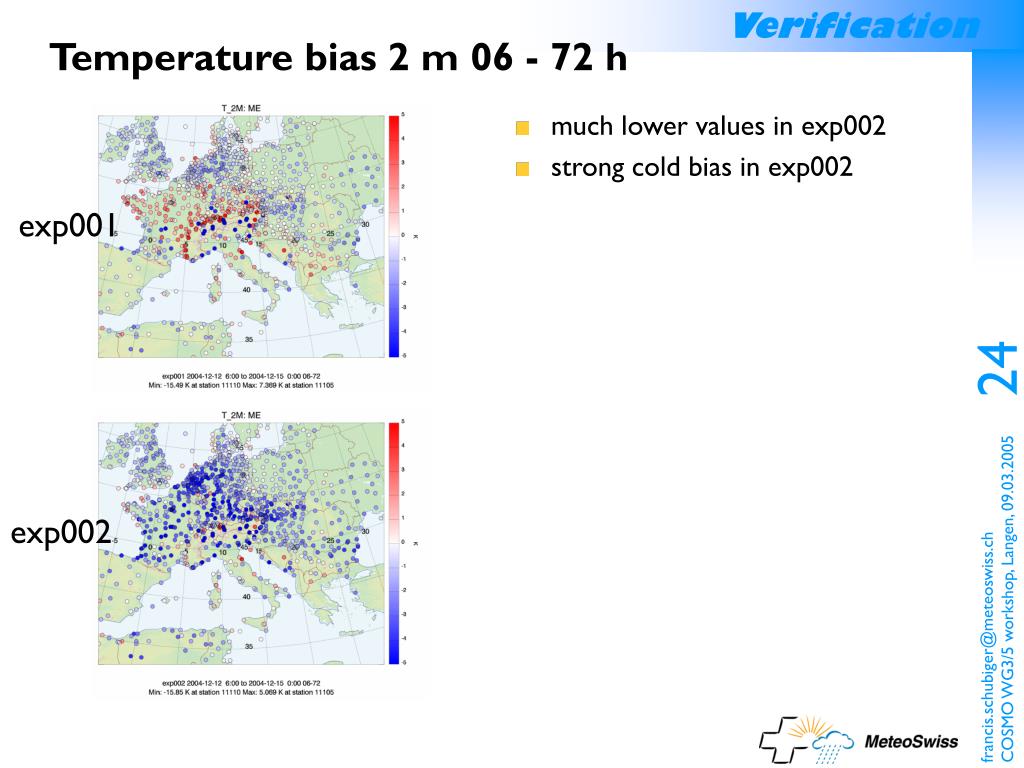

  23. Temperature bias 2 m 06 - 72 h • much lower values in exp002 • strong cold bias in exp002 exp001 exp002 francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  24. Humidity

  25. Specific humidity at level 45 at +00 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  26. Specific humidity at level 45 at +12 h (noon) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

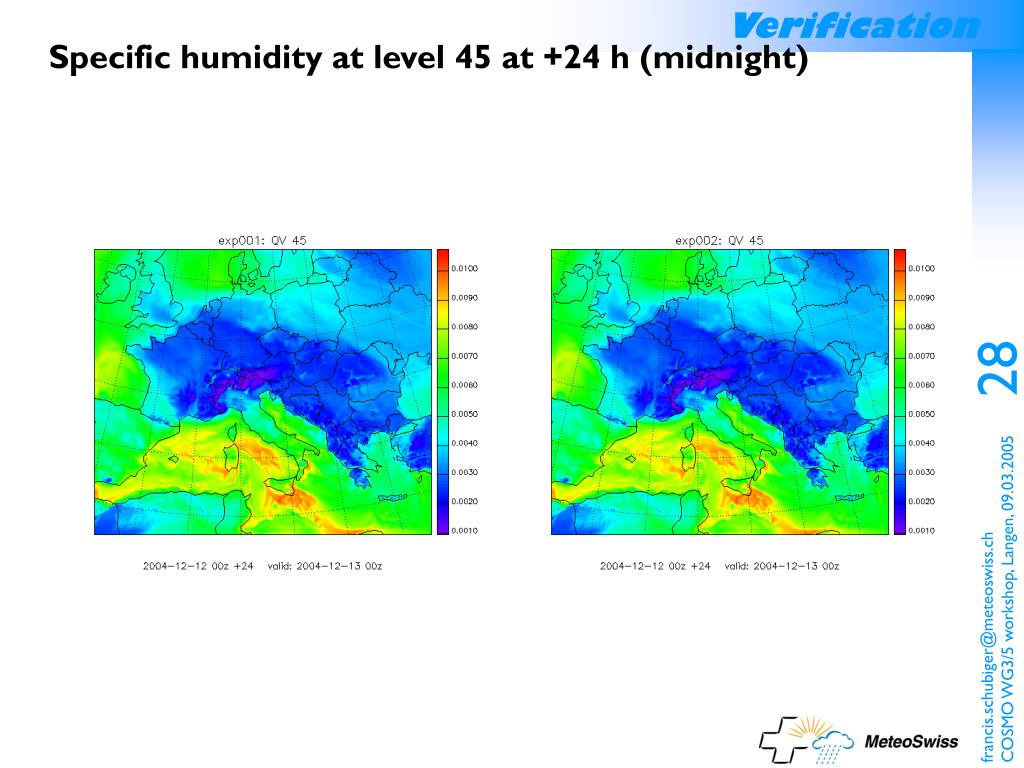

  27. Specific humidity at level 45 at +24 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

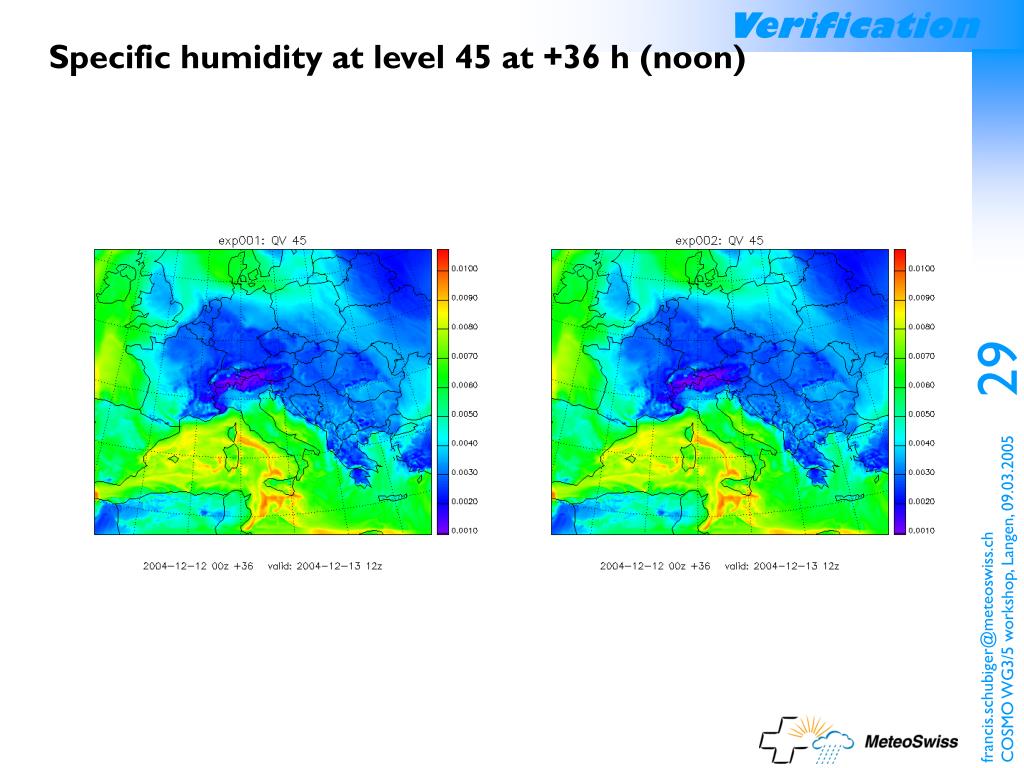

  28. Specific humidity at level 45 at +36 h (noon) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  29. Specific humidity at level 45 at +48 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

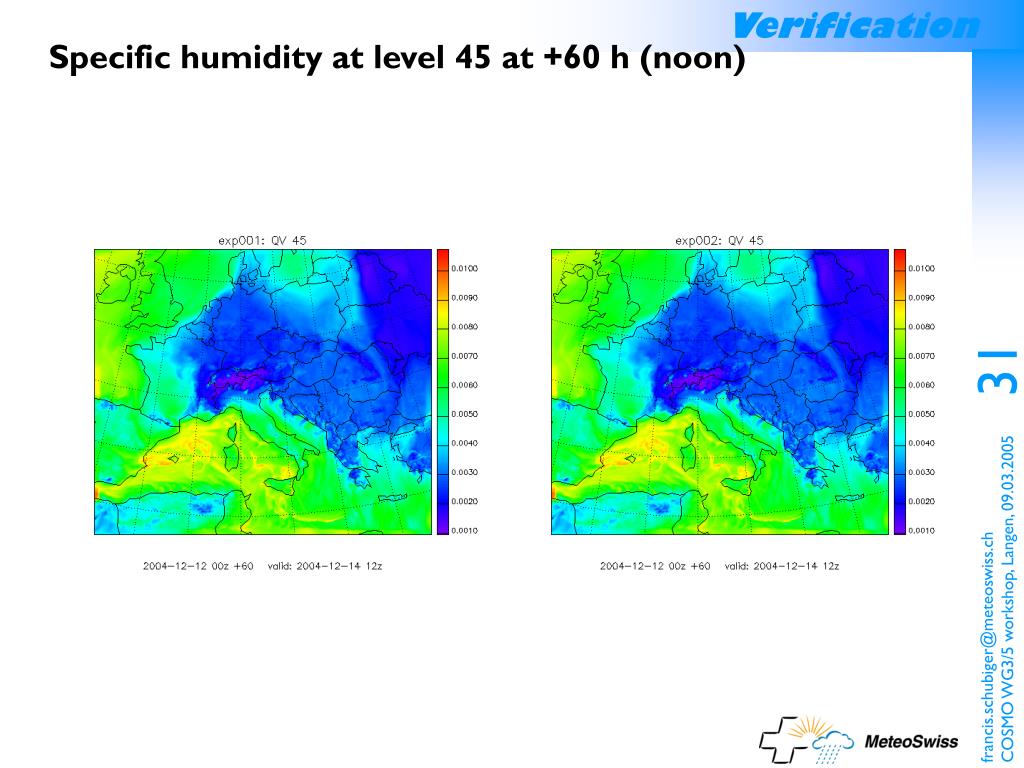

  30. Specific humidity at level 45 at +60 h (noon) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

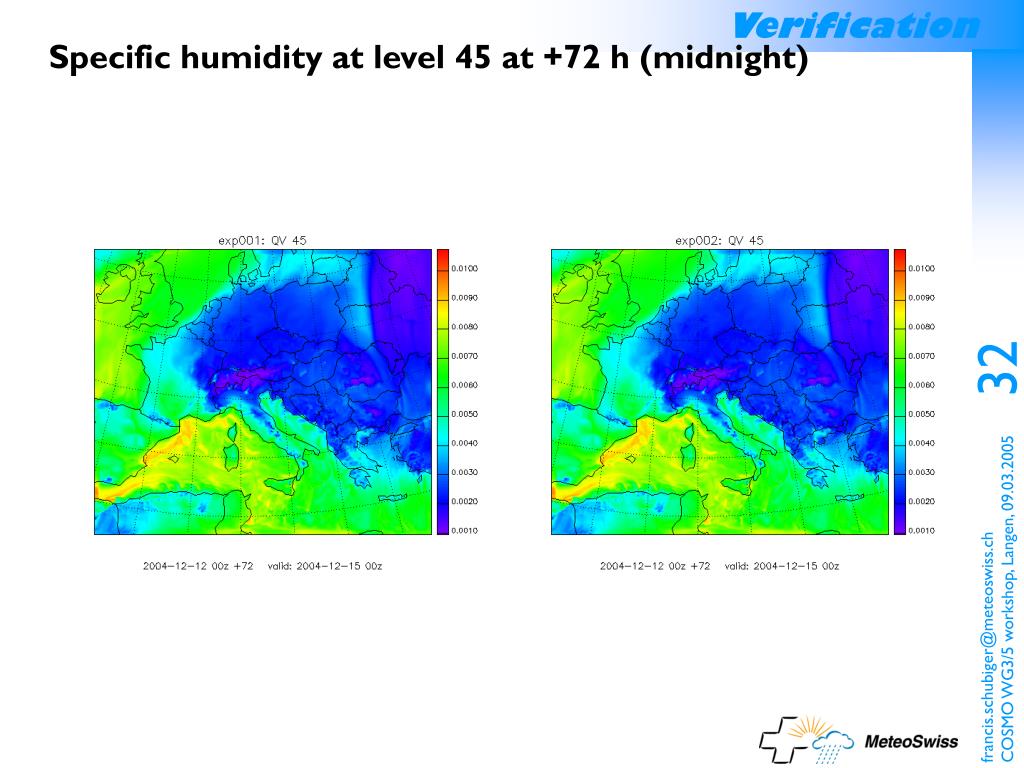

  31. Specific humidity at level 45 at +72 h (midnight) francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

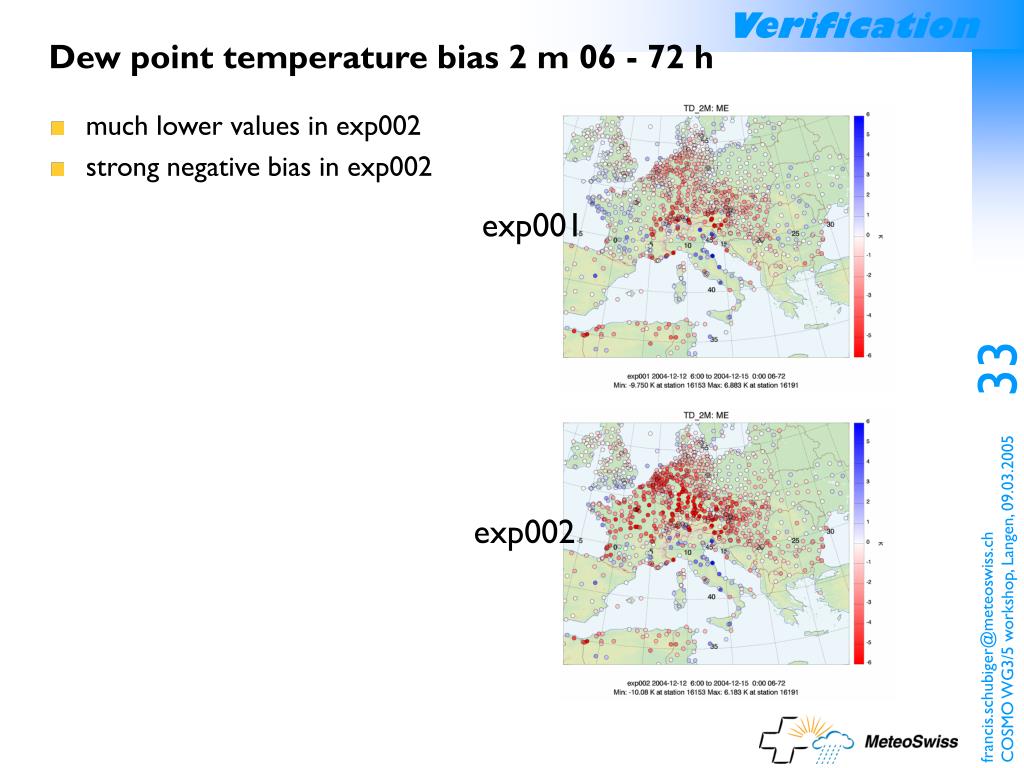

  32. Dew point temperature bias 2 m 06 - 72 h • much lower values in exp002 • strong negative bias in exp002 exp001 exp002 francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  33. Vertical profiles Payerne (PBL)

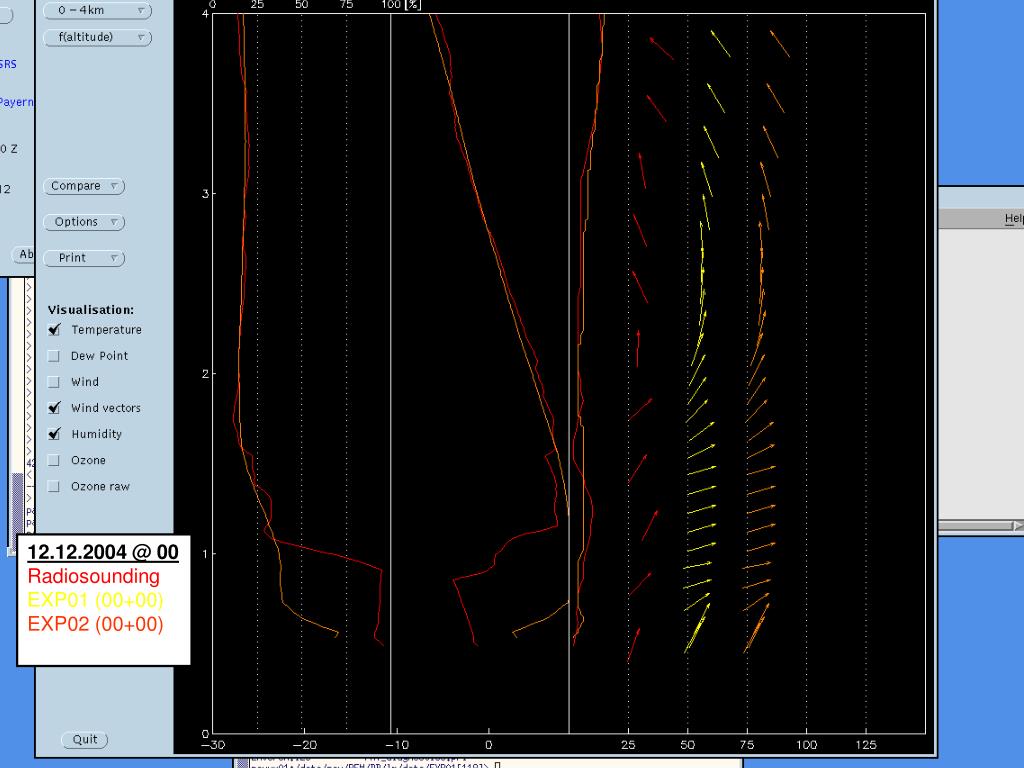

  34. 12.12.2004 @ 00 Radiosounding EXP01 (00+00) EXP02 (00+00)

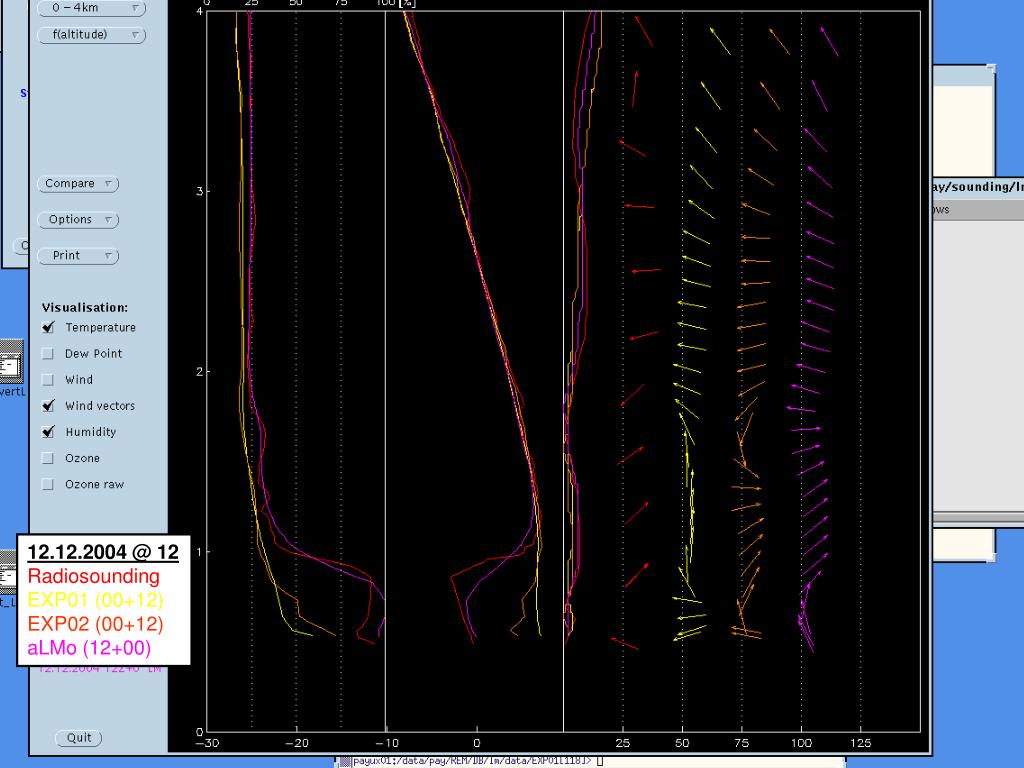

  35. francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 12.12.2004 @ 12 Radiosounding EXP01 (00+12) EXP02 (00+12) aLMo (12+00)

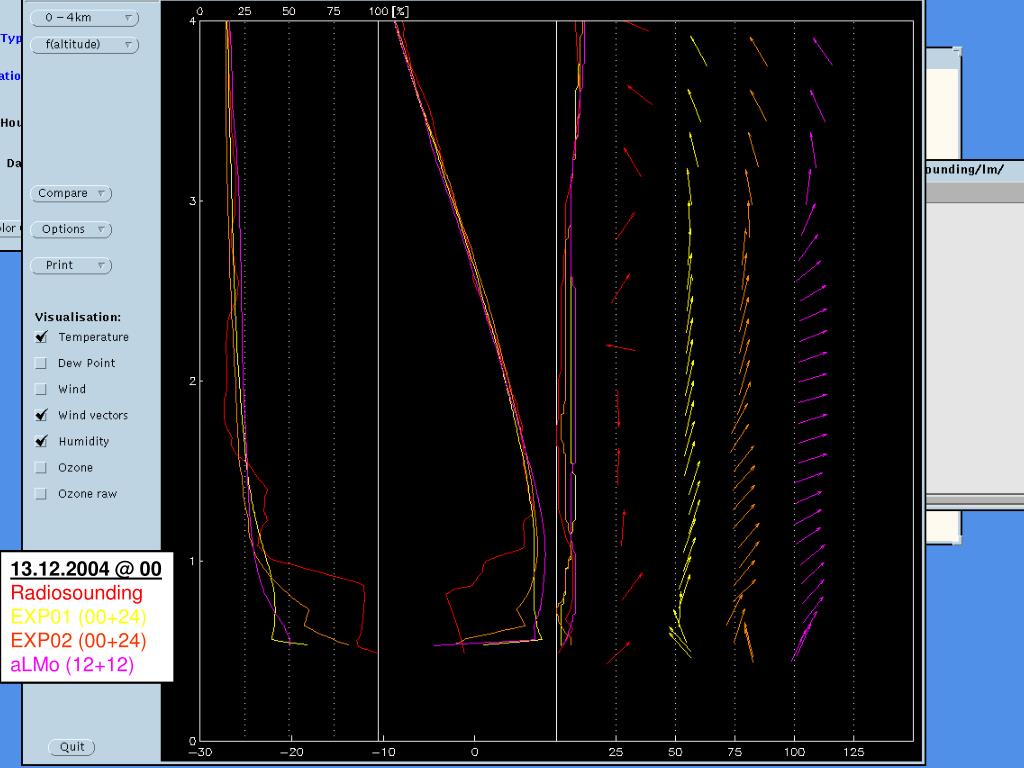

  36. francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 13.12.2004 @ 00 Radiosounding EXP01 (00+24) EXP02 (00+24) aLMo (12+12)

  37. francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 13.12.2004 @ 12 Radiosounding EXP01 (00+36) EXP02 (00+36) aLMo (12+24)

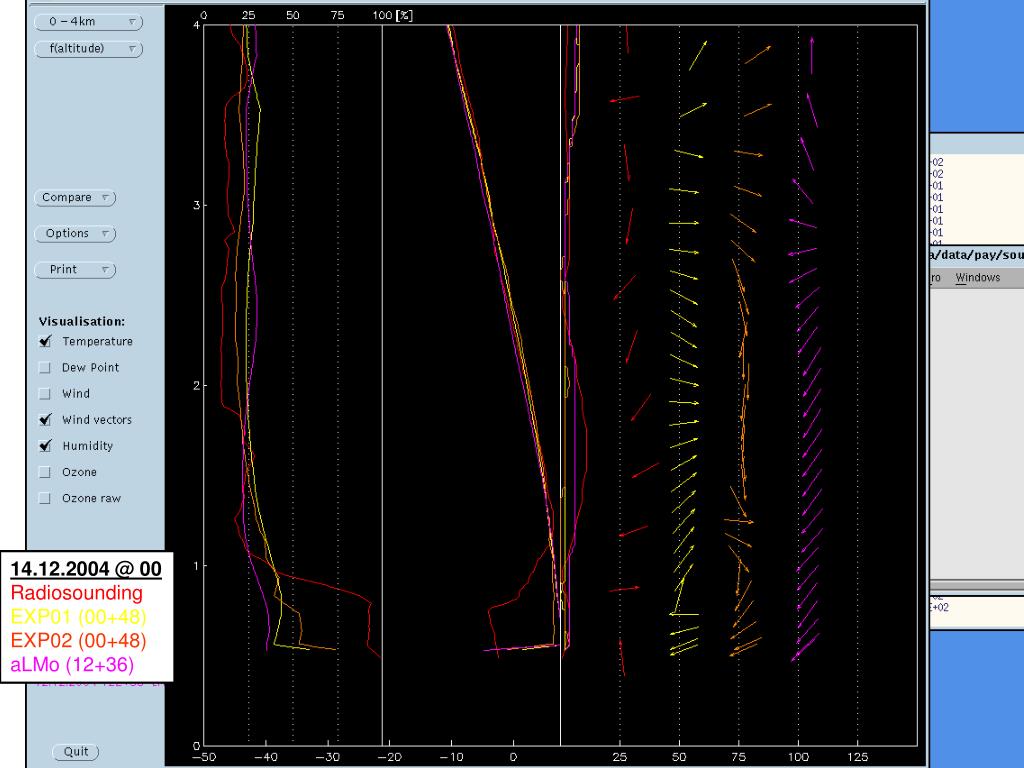

  38. francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 14.12.2004 @ 00 Radiosounding EXP01 (00+48) EXP02 (00+48) aLMo (12+36)

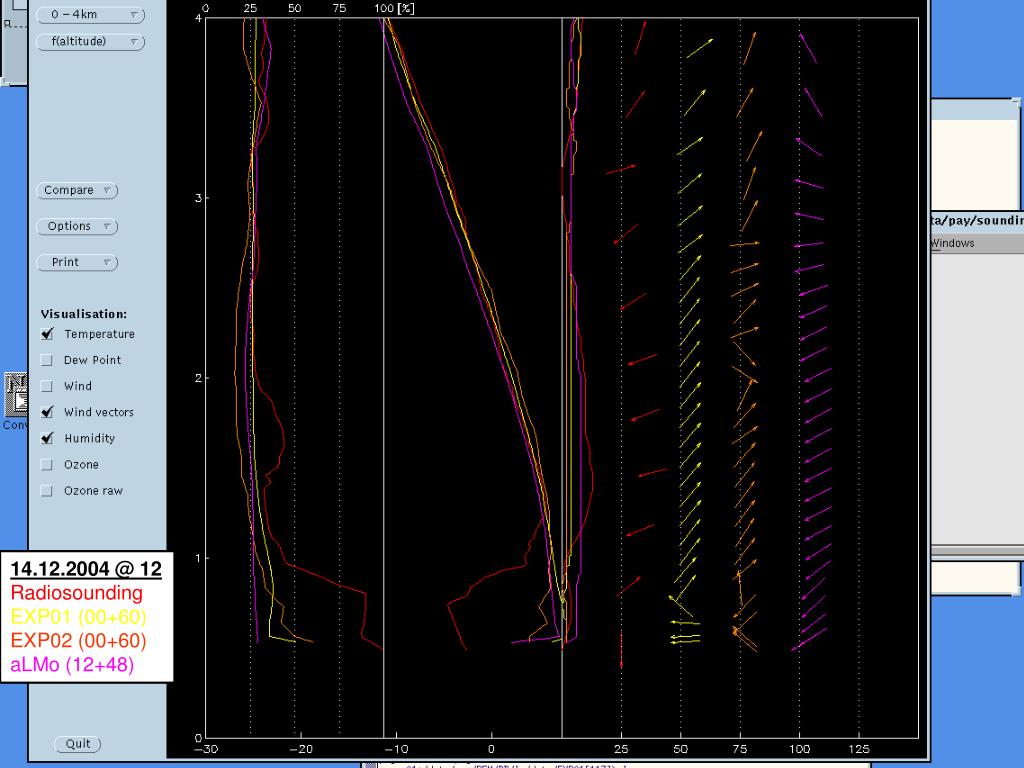

  39. francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 14.12.2004 @ 12 Radiosounding EXP01 (00+60) EXP02 (00+60) aLMo (12+48)

  40. francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 15.12.2004 @ 00 Radiosounding EXP01 (00+72) EXP02 (00+72) aLMo (12+60)

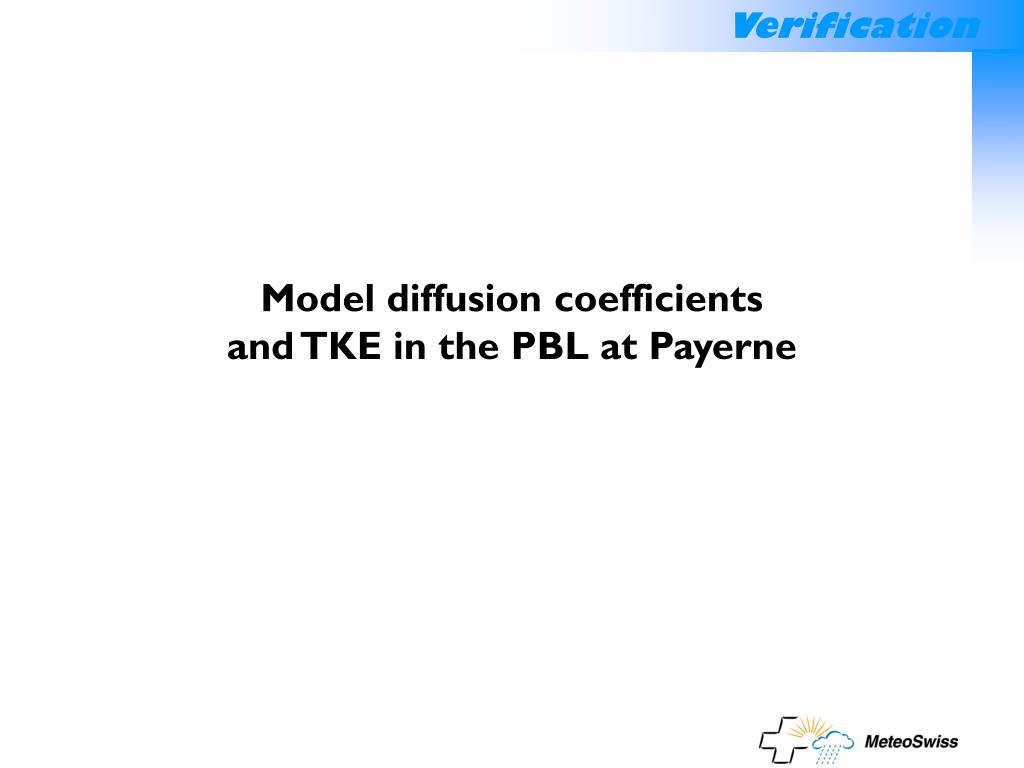

  41. Model diffusion coefficientsand TKE in the PBL at Payerne

  42. Turbulent diffusion coefficients Payerne francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  43. TKE of the lowest 3 layers francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

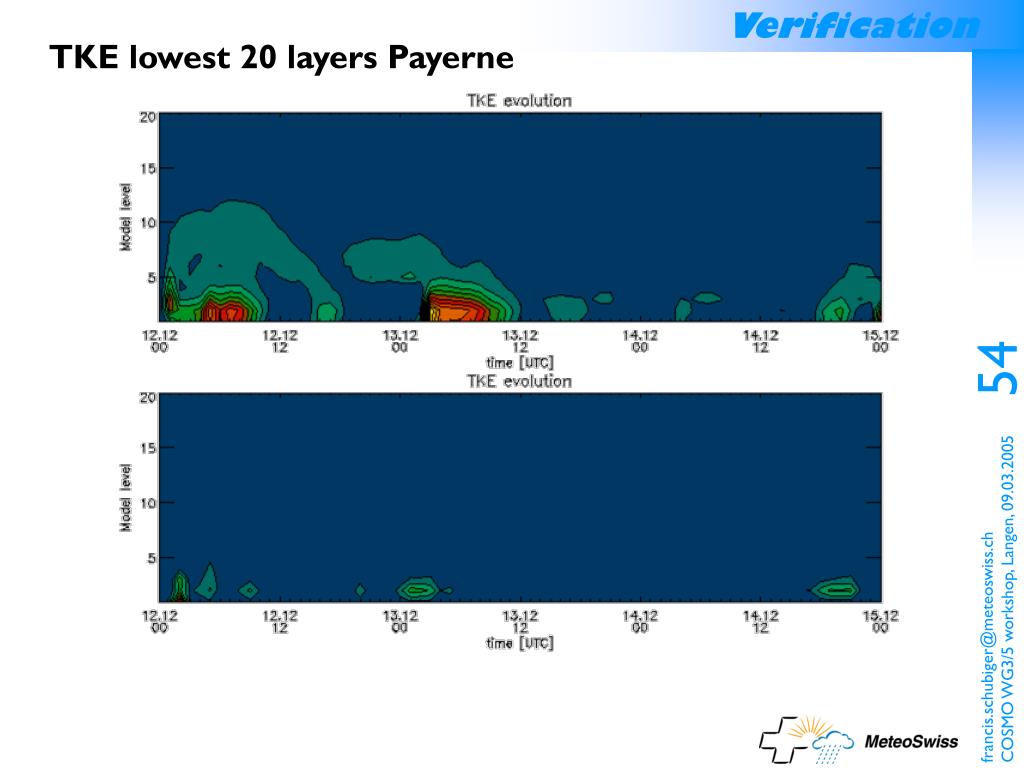

  44. TKE lowest 20 layers Payerne francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  45. Surface and soil T francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

  46. Temperature in the lowest layers francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005

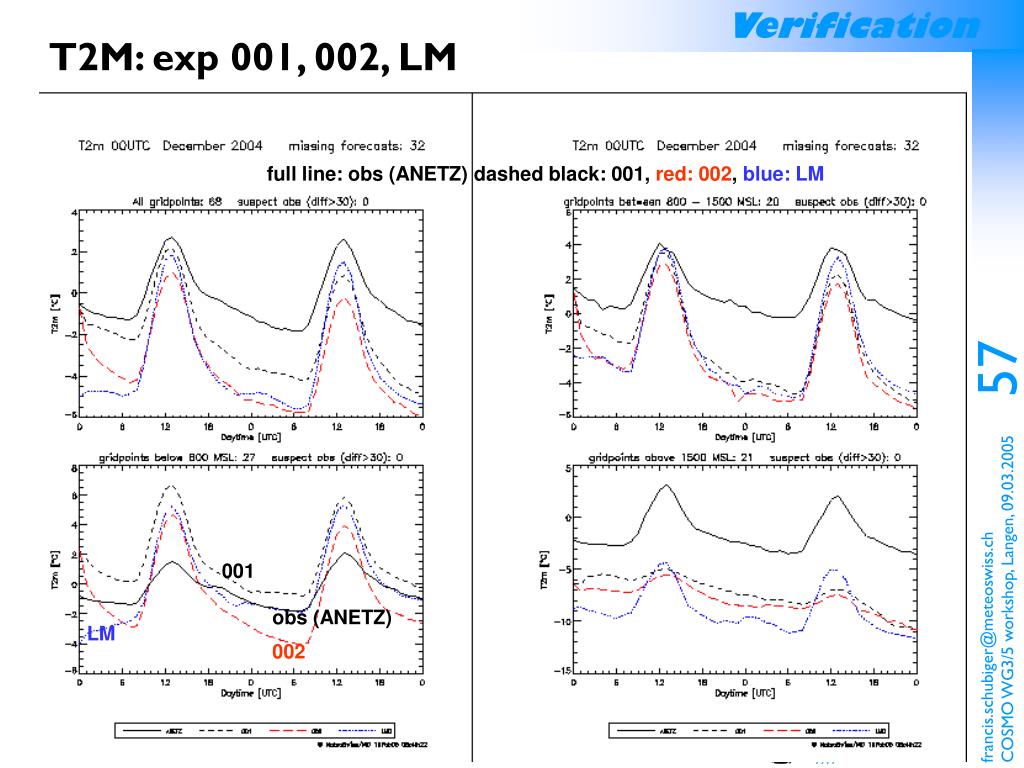

  47. T2M: exp 001, 002, LM full line: obs (ANETZ) dashed black: 001, red: 002, blue: LM francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 001 obs (ANETZ) LM 002

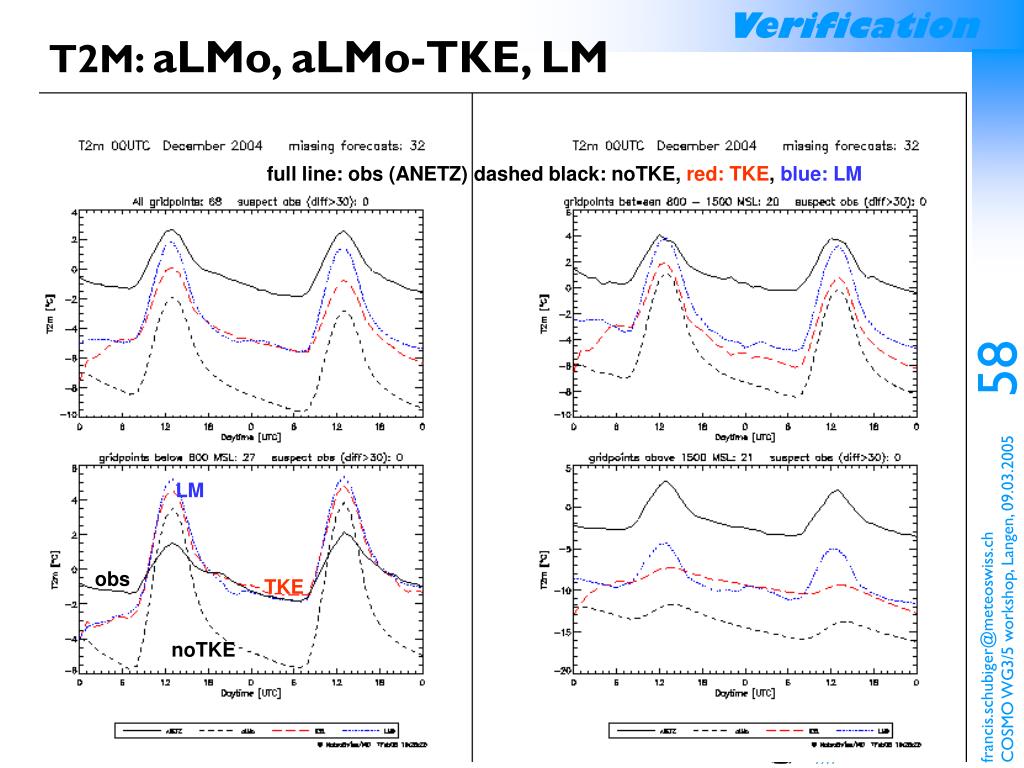

  48. T2M: aLMo, aLMo-TKE, LM full line: obs (ANETZ) dashed black: noTKE, red: TKE, blue: LM LM francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 obs TKE noTKE

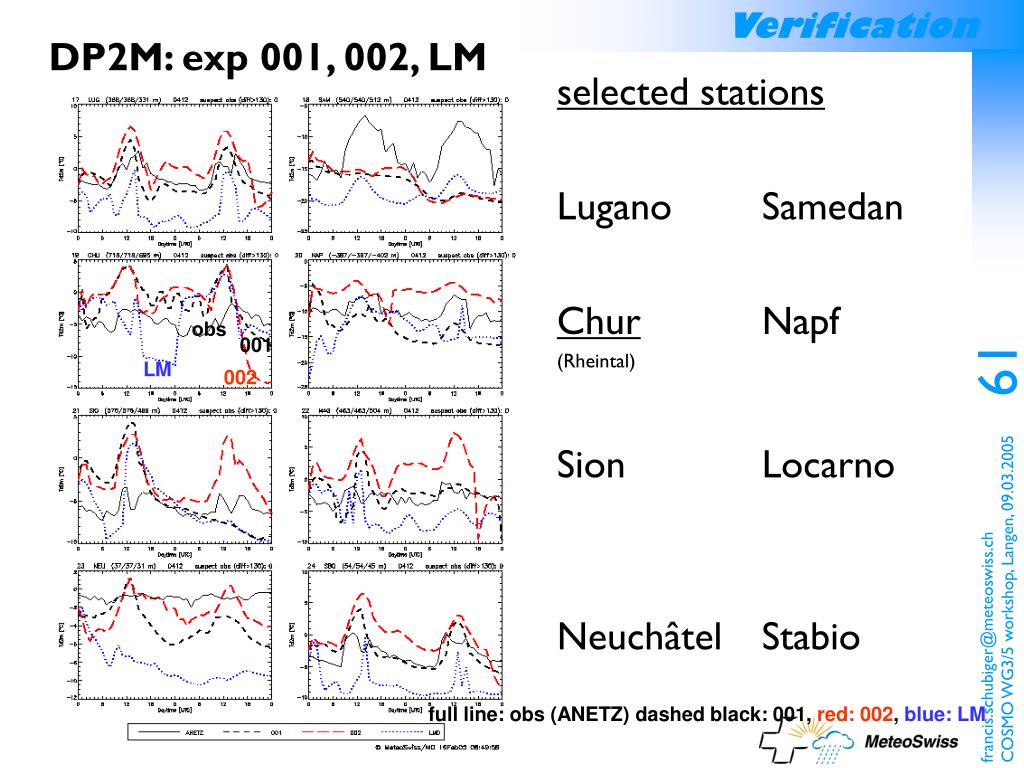

  49. DP2M: exp 001, 002, LM selected stations Lugano Samedan Chur Napf (Rheintal) Sion Locarno Neuchâtel Stabio obs 001 LM 002 francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 full line: obs (ANETZ) dashed black: 001, red: 002, blue: LM

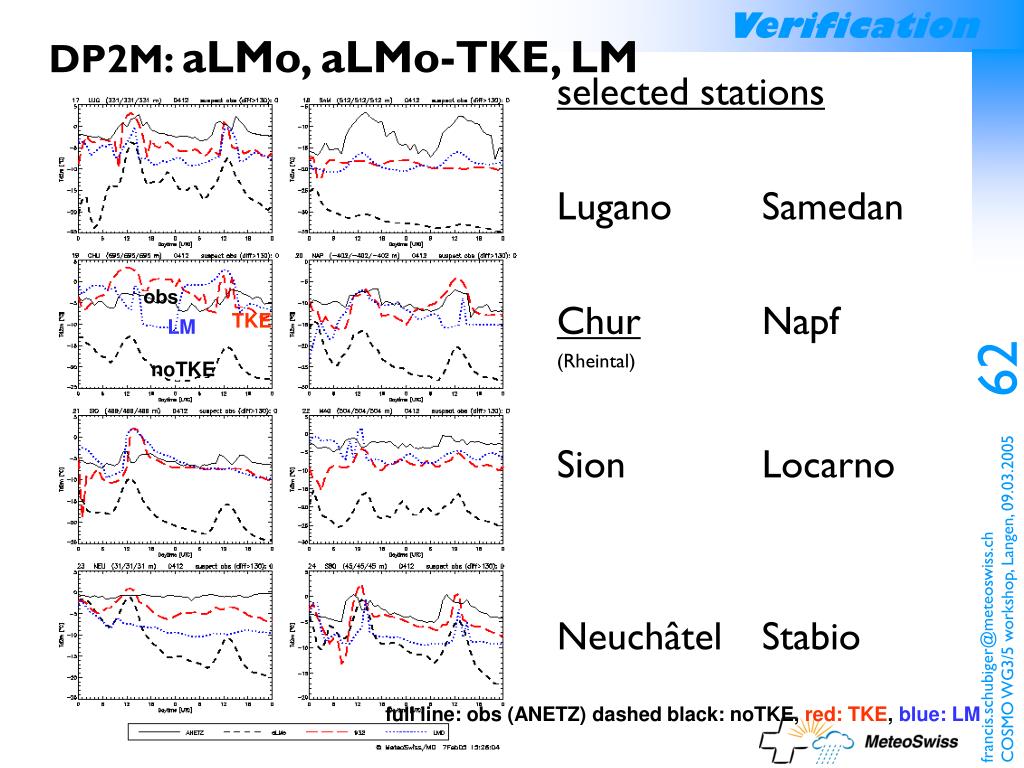

  50. DP2M: aLMo, aLMo-TKE, LM selected stations Lugano Samedan Chur Napf (Rheintal) Sion Locarno Neuchâtel Stabio obs TKE LM noTKE francis.schubiger@meteoswiss.ch COSMO WG3/5 workshop, Langen, 09.03.2005 full line: obs (ANETZ) dashed black: noTKE, red: TKE, blue: LM
