  1. Basic well Logging Analysis – The Spontaneous Potential (SP) Log Hsieh, Bieng-Zih Fall 2009

  2. The spontaneous potential (SP) log • The spontaneous potential (SP) log was one of the earliest electric logs used in the petroleum industry, and has continued to play a significant role in well log interpretation. • By far the largest number of wells today have this type of log included in their log suites.

  3. The spontaneous potential (SP) log (Cont.) • Primarily the spontaneous potential log is used to identify impermeable zones such as shale, and permeable zones such as sand. • However, the SP log has several other uses perhaps equally important.

  4. The spontaneous potential (SP) log (Cont.) • The spontaneous potential log is a record of direct current (DC) voltage differences between the naturally occurring potential of a moveable electrode in the well bore, and the potential of a fixed electrode located at the surface (Doll, 1948). • It is measured in millivolts.

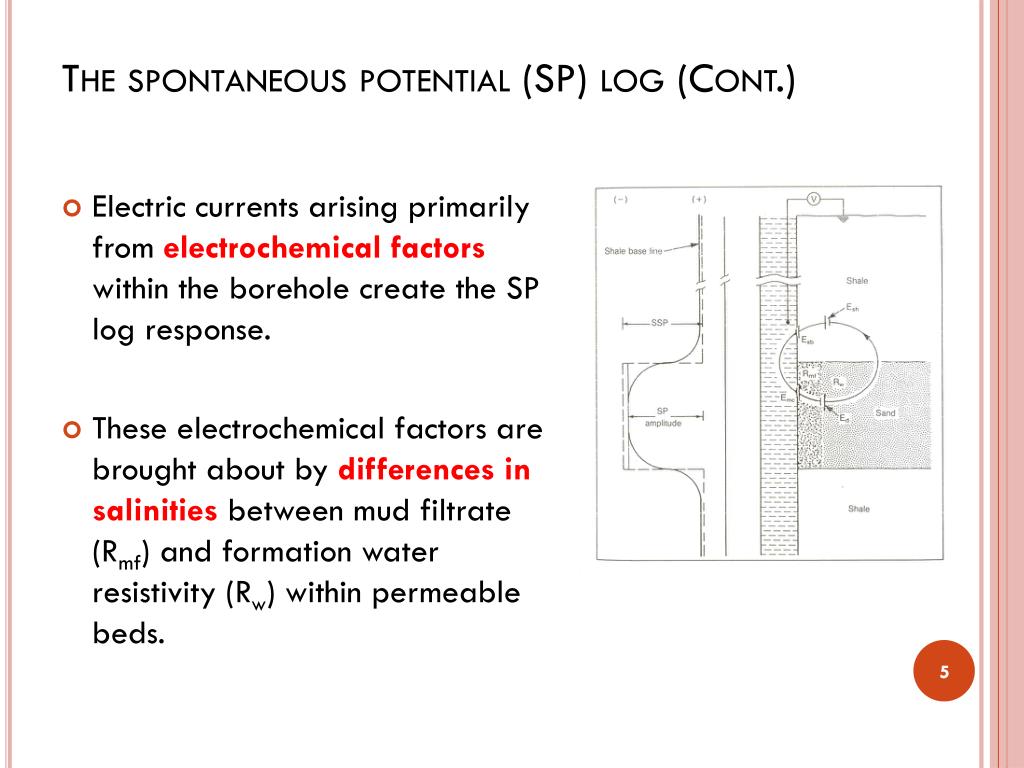

  5. The spontaneous potential (SP) log (Cont.) • Electric currents arising primarily from electrochemical factors within the borehole create the SP log response. • These electrochemical factors are brought about by differences in salinities between mud filtrate (Rmf) and formation water resistivity (Rw) within permeable beds.

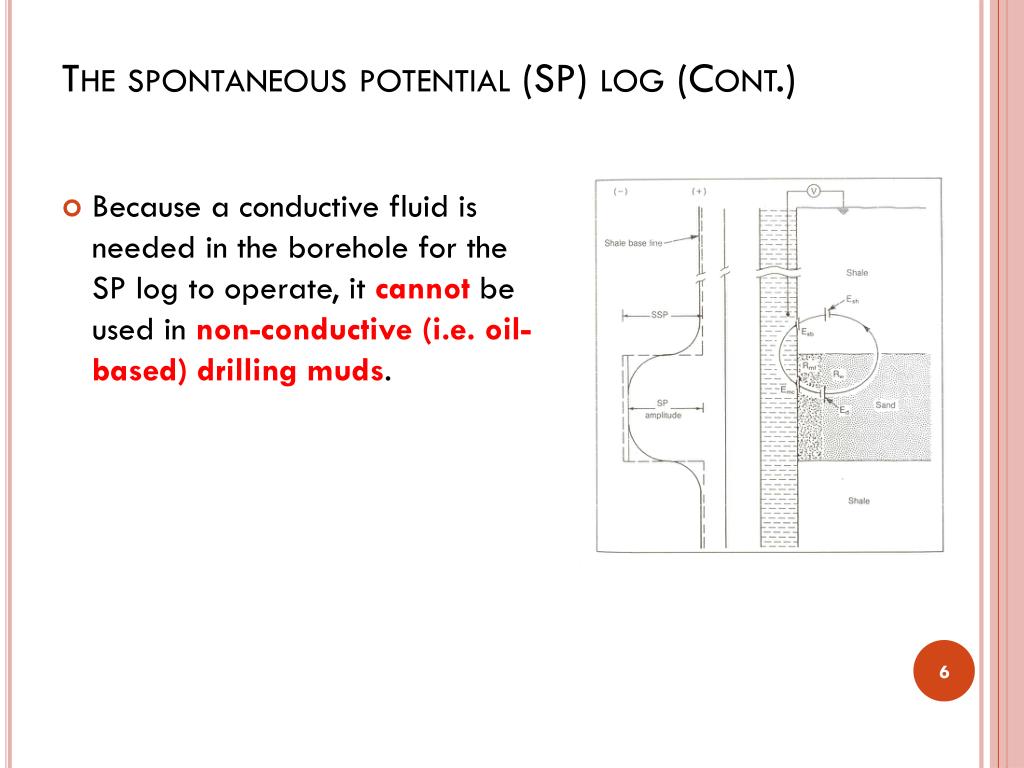

  6. The spontaneous potential (SP) log (Cont.) • Because a conductive fluid is needed in the borehole for the SP log to operate, it cannot be used in non-conductive (i.e. oil-based) drilling muds.

  7. SP deflection

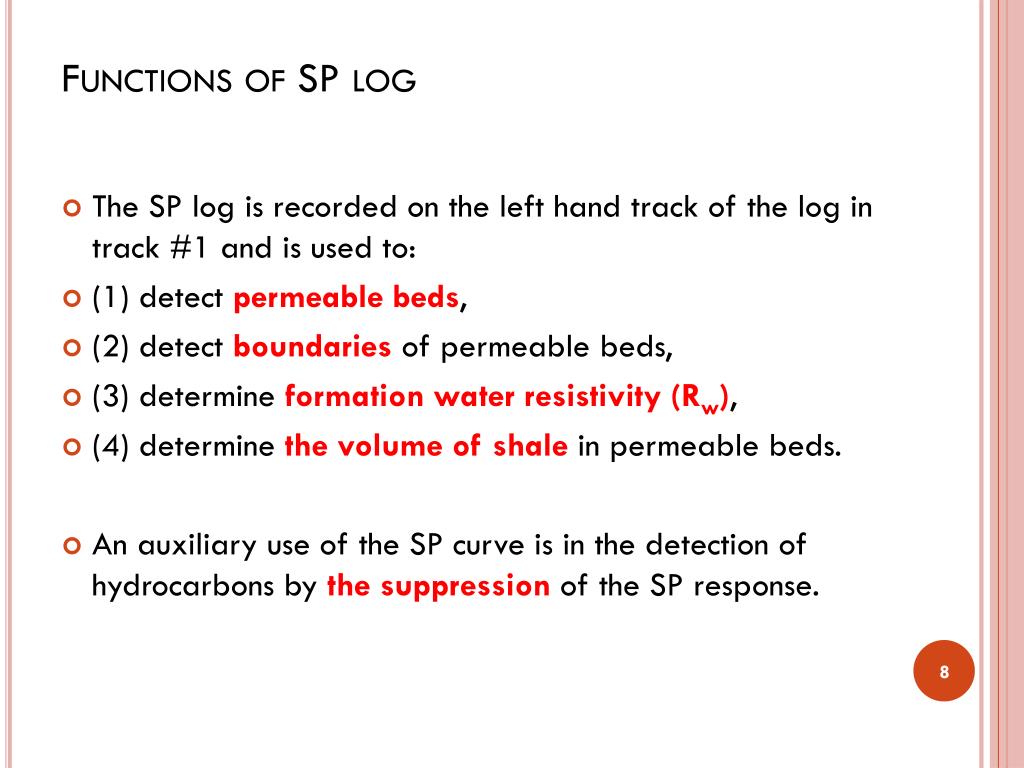

  8. Functions of SP log • The SP log is recorded on the left hand track of the log in track #1 and is used to: • (1) detect permeable beds, • (2) detect boundaries of permeable beds, • (3) determine formation water resistivity (Rw), • (4) determine the volume of shale in permeable beds. • An auxiliary use of the SP curve is in the detection of hydrocarbons by the suppression of the SP response.

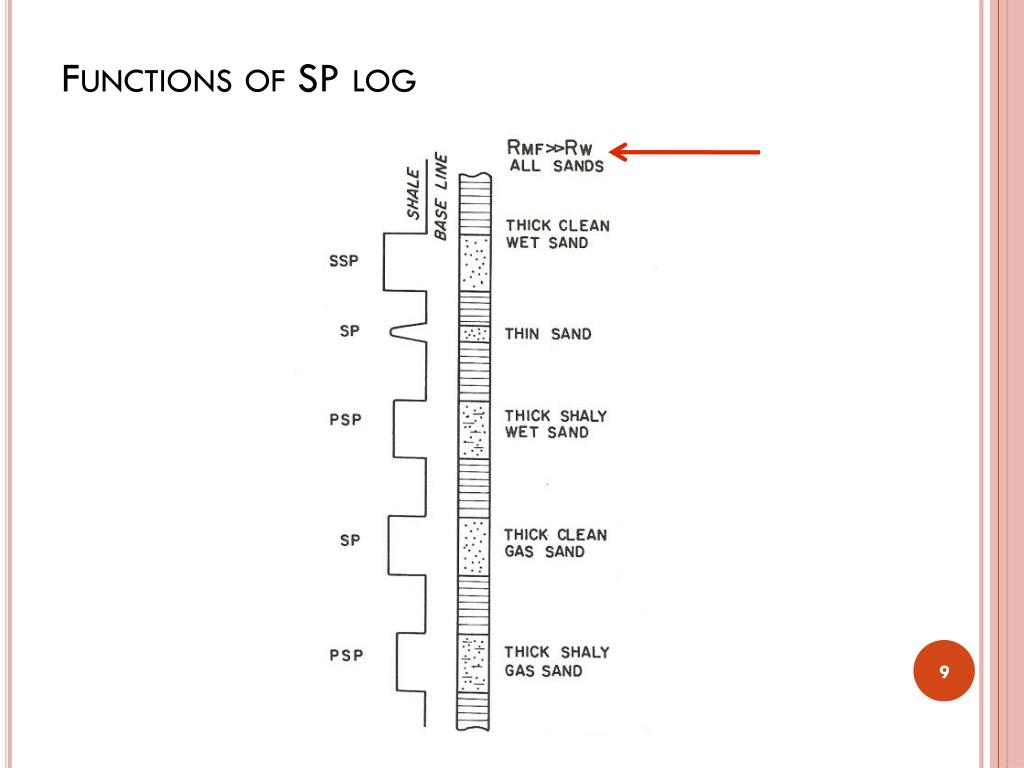

  9. Functions of SP log

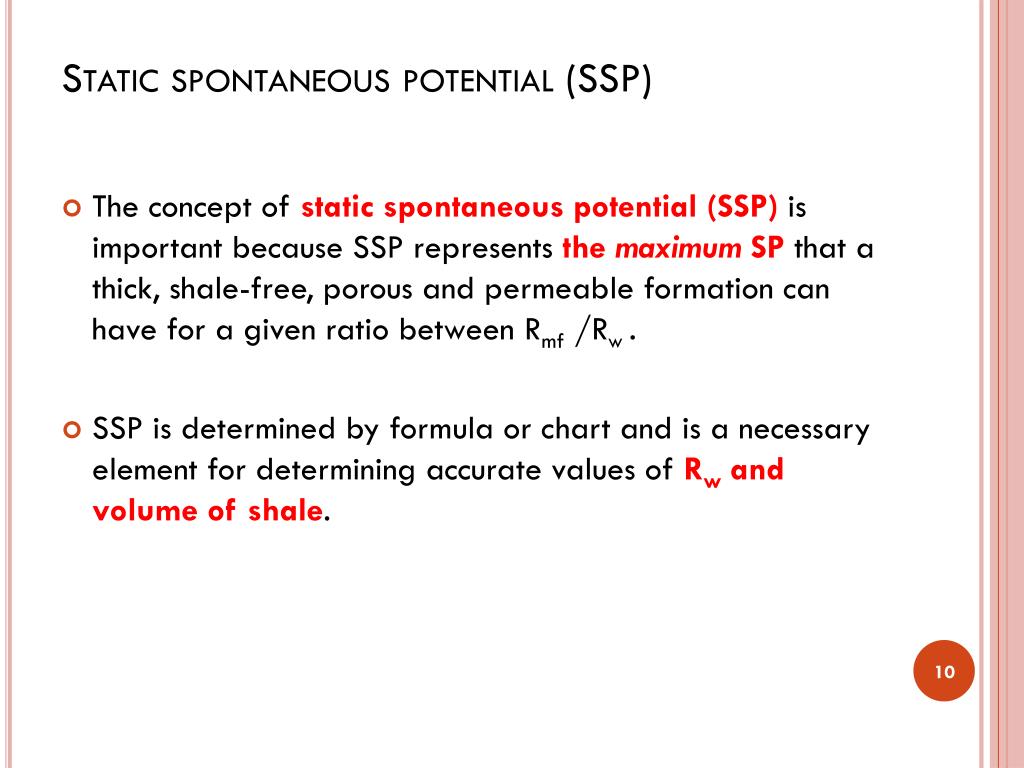

  10. Static spontaneous potential (SSP) • The concept of static spontaneous potential (SSP) is important because SSP represents the maximum SP that a thick, shale-free, porous and permeable formation can have for a given ratio between Rmf /Rw. • SSP is determined by formula or chart and is a necessary element for determining accurate values of Rw and volume of shale.

  11. Shale Base Line • The SP response of shalesis relatively constant and follows a straight line called a shale baseline. • SP curve deflections are measured from this shale baseline. • Permeable zones are indicated where there is SP deflection from the shale baseline.

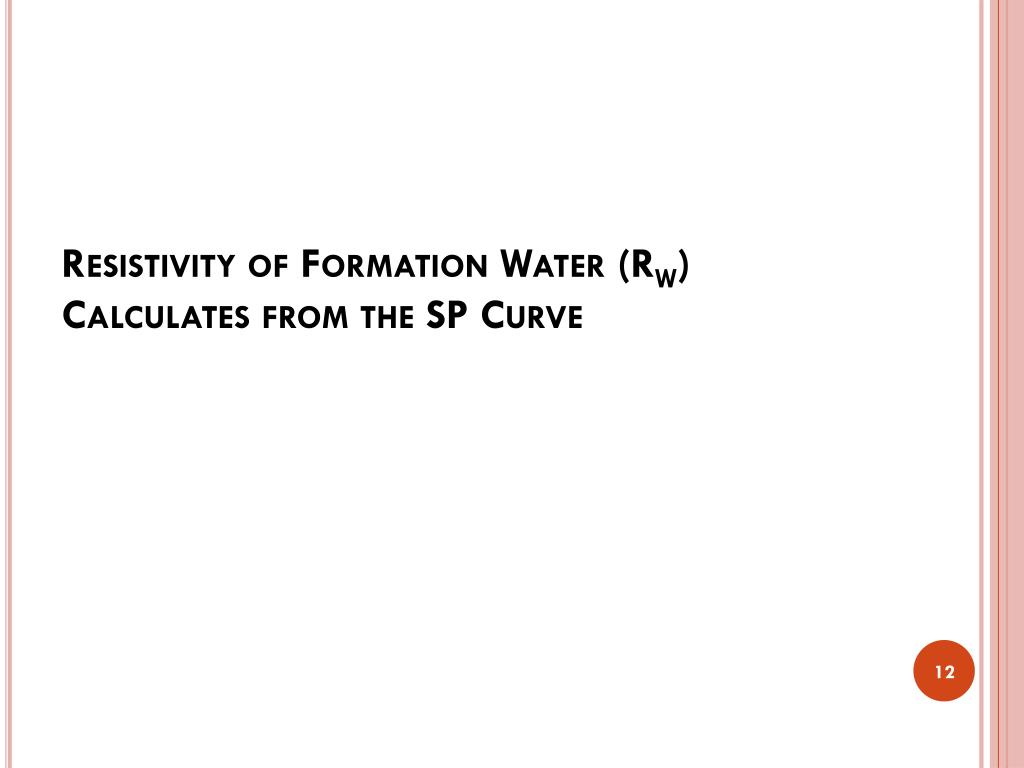

  12. Resistivity of Formation Water (Rw) Calculates from the SP Curve

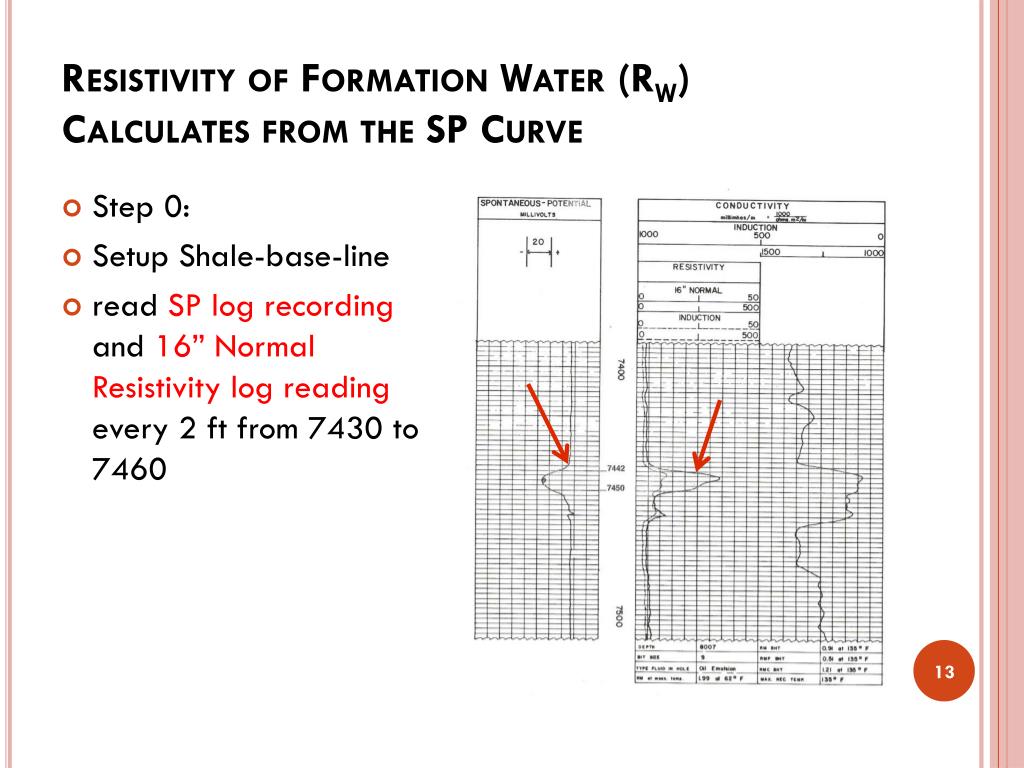

  13. Resistivity of Formation Water (Rw) Calculates from the SP Curve • Step 0: • Setup Shale-base-line • read SP log recording and 16” Normal Resistivity log reading every 2 ft from 7430 to 7460

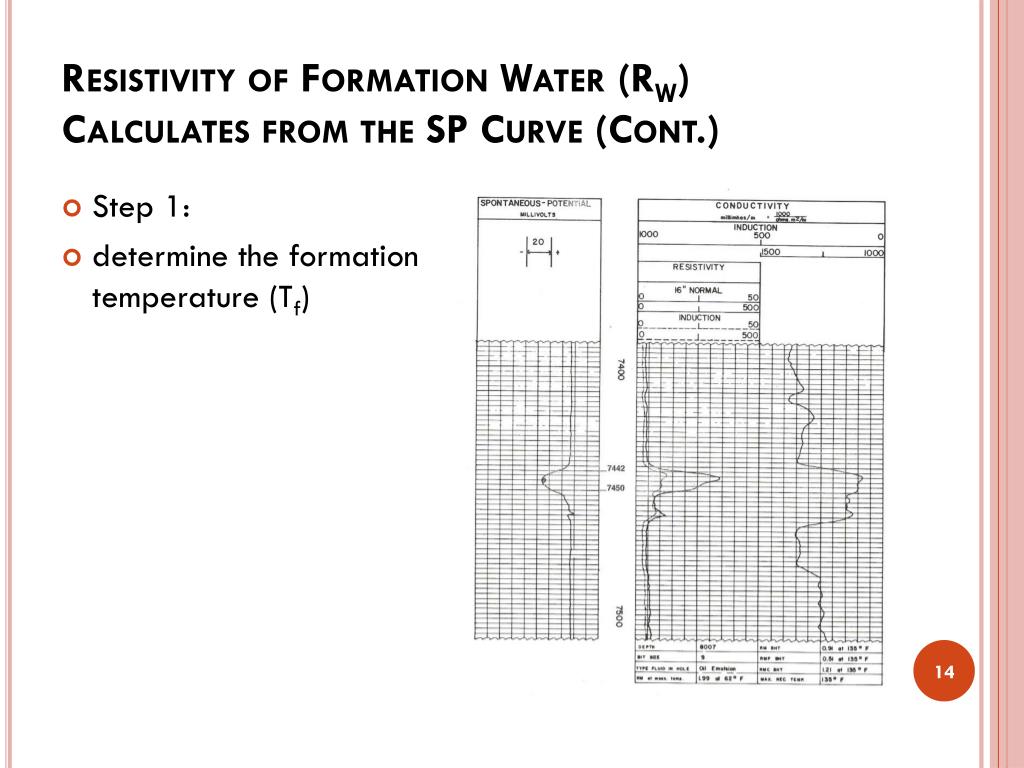

  14. Resistivity of Formation Water (Rw) Calculates from the SP Curve (Cont.) • Step 1: • determine the formation temperature (Tf)

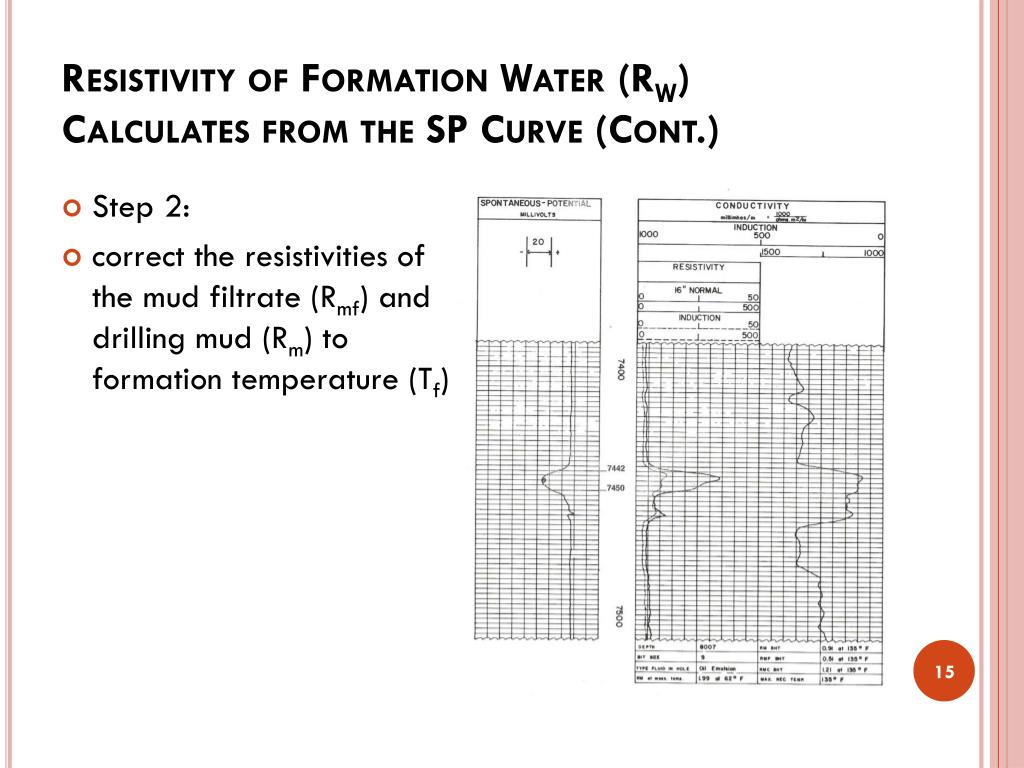

  15. Resistivity of Formation Water (Rw) Calculates from the SP Curve (Cont.) • Step 2: • correct the resistivities of the mud filtrate (Rmf) and drilling mud (Rm) to formation temperature (Tf)

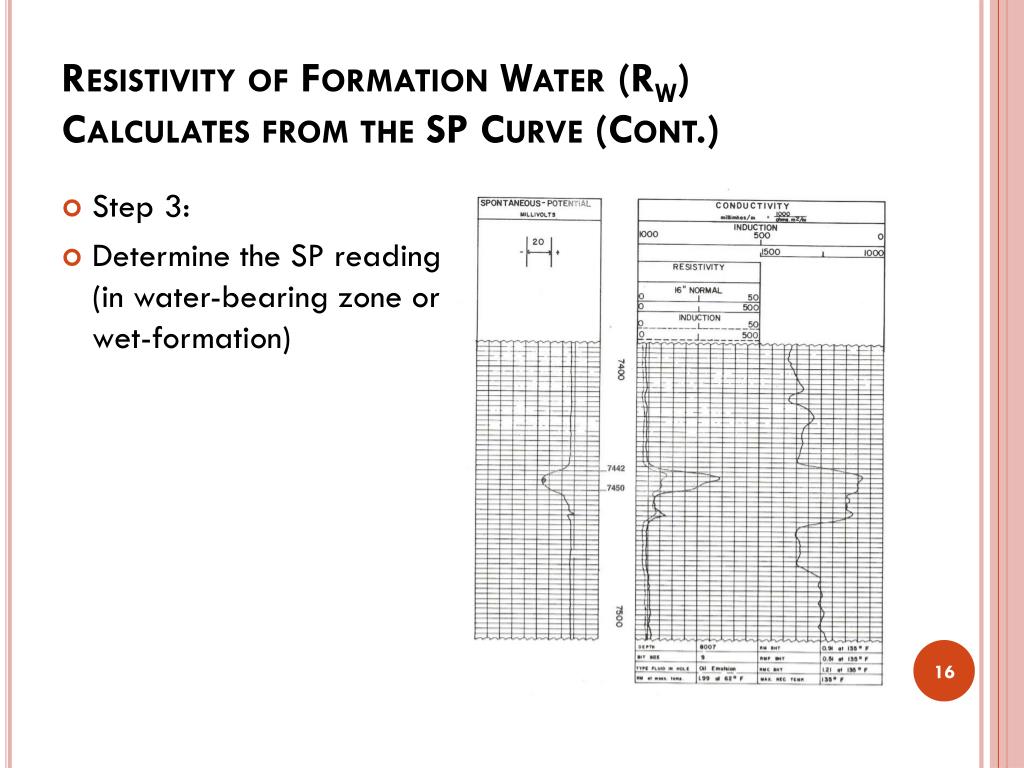

  16. Resistivity of Formation Water (Rw) Calculates from the SP Curve (Cont.) • Step 3: • Determine the SP reading (in water-bearing zone or wet-formation)

  17. Resistivity of Formation Water (Rw) Calculates from the SP Curve (Cont.) • Step 4: • Correct SP to SSP

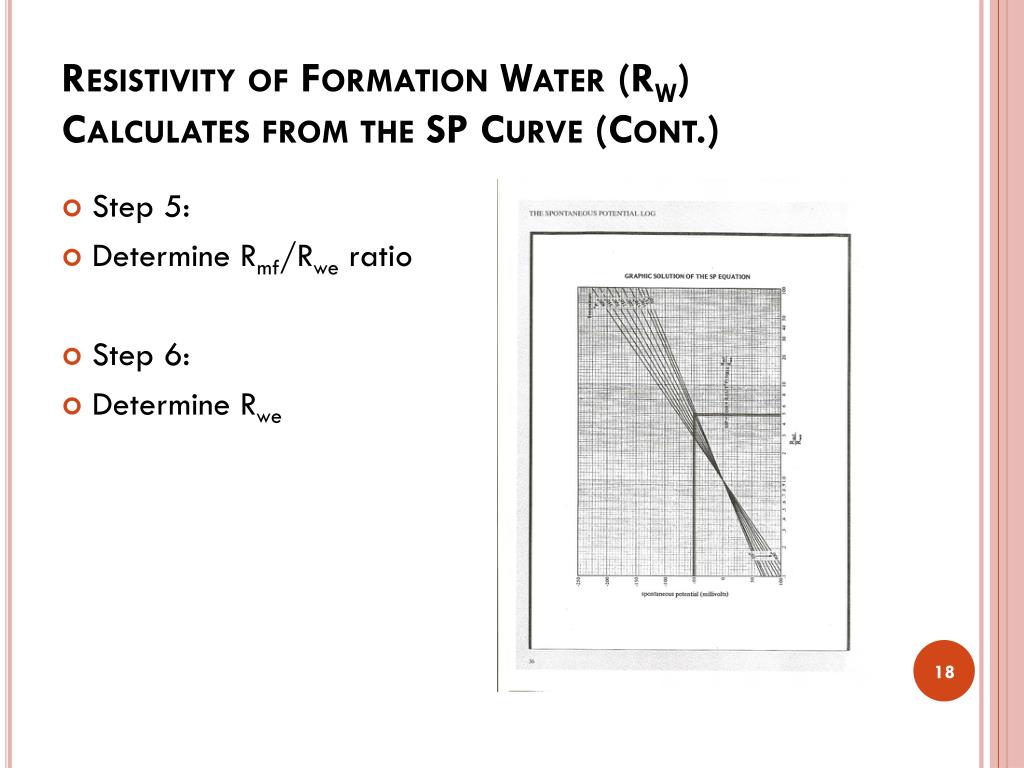

  18. Resistivity of Formation Water (Rw) Calculates from the SP Curve (Cont.) • Step 5: • Determine Rmf/Rwe ratio • Step 6: • Determine Rwe

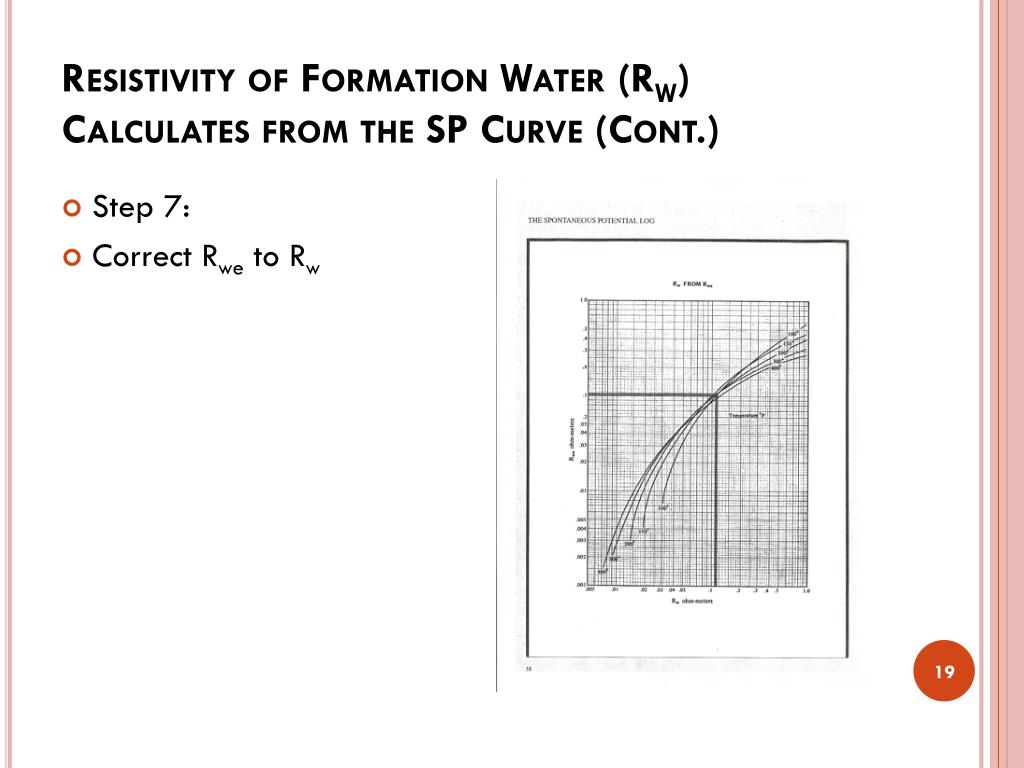

  19. Resistivity of Formation Water (Rw) Calculates from the SP Curve (Cont.) • Step 7: • Correct Rwe to Rw

  20. Volume of Shale Calculation • The SP log can be used to calculate the volume of shale in a permeable zone by the following formula: • The volume of shale in a sand can be used in the evaluation of shaly sand reservoirs.

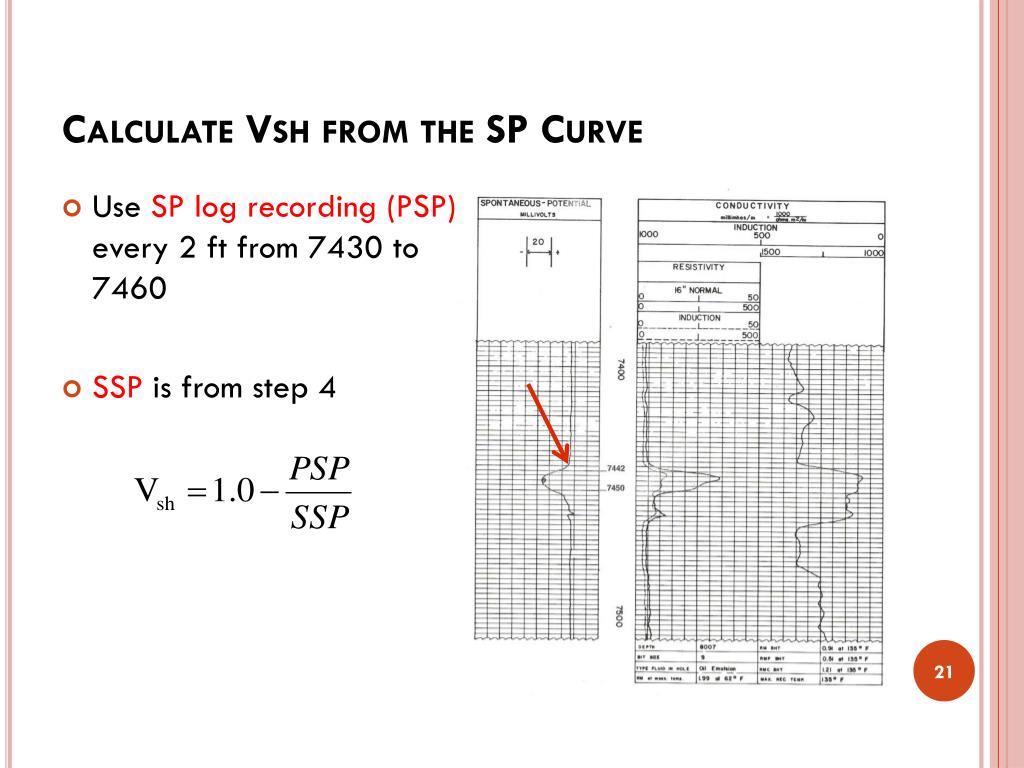

  21. Calculate Vsh from the SP Curve • Use SP log recording (PSP) every 2 ft from 7430 to 7460 • SSP is from step 4

  22. Review – SP Log • The spontaneous potential log (SP) can be used to: (1) detect permeable beds; (2) detect boundaries of permeable beds; (3) determine formation water resistivity (Rw); and (4) determine volume of shale (Vsh) in a permeable bed. • The variations in the SP are the result of an electric potential that is present between the well bore and the formation as a result of differences in salinities between Rmfand Rw.

  23. Review – SP Log (Cont.) • The SP response in shales is relatively constant and its continuity of amplitude is referred to as the shale baseline. • In permeable beds the SP will do the following relative to the shale baseline: (1) negative deflection to the left of the shale baseline where Rmf＞ Rw; (2) positive deflection to the right of the shale baseline where Rmf＜Rw; (3) no deflection where Rmf＝Rw. • The SP curve can be suppressed by thin beds, shaliness, and the presence of gas.
