EZ80190 Microprocessor Overview - Features, Specs, and Usage

The EZ80190 Microprocessor, presented by Dustin Fortin, is a powerful chip with a 50 MHz processor, 16 MB linear addressing, and support for TCP/IP stack. It features 8 KB of SRAM, 2 DMA channels, and 6 PRTs, making it ideal for network programming. The chip supports C/C++ programming and comes with a state diagram compiler for logic implementation. The cost includes software and startup kit, with licensing renewal required annually. Optimize your network applications with this versatile microprocessor.

simeon
Télécharger la présentation

EZ80190 Microprocessor Overview - Features, Specs, and Usage

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

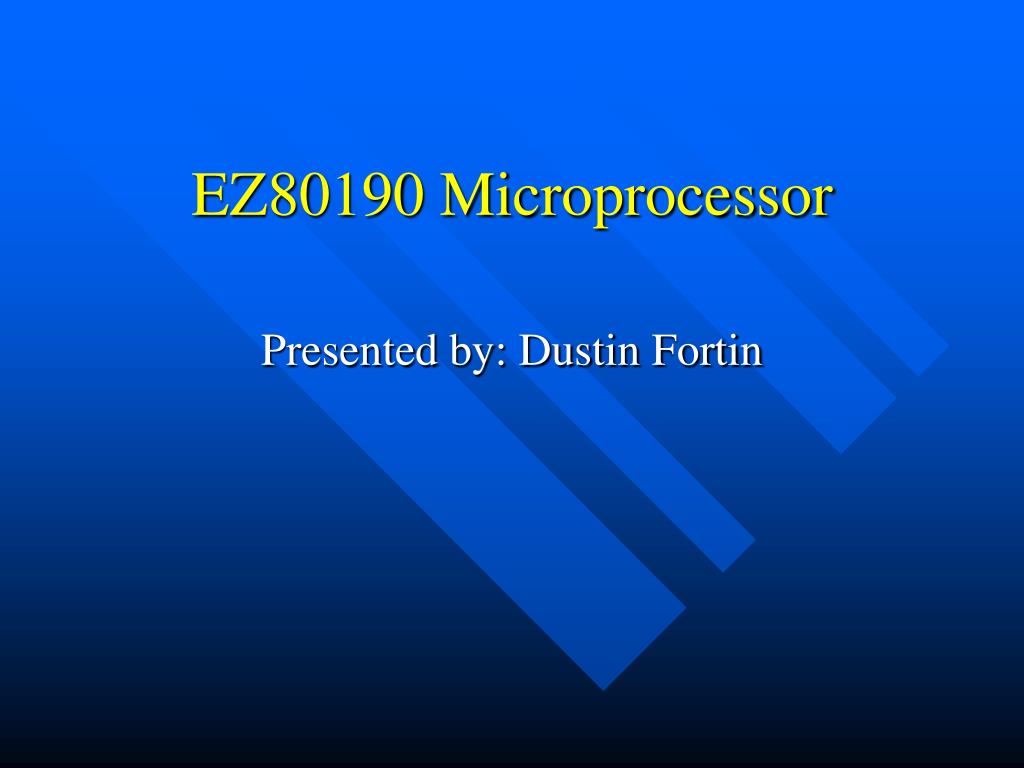

  1. EZ80190 Microprocessor Presented by: Dustin Fortin

  2. Specs • 50 mhz processor • Multiply and accumulate engine • 16 MB linear addressing • 3.3v operation • 2 DMA (Direct Memory Access) channels • Universal Zilog interface (Data direction control of SPI and UART port)

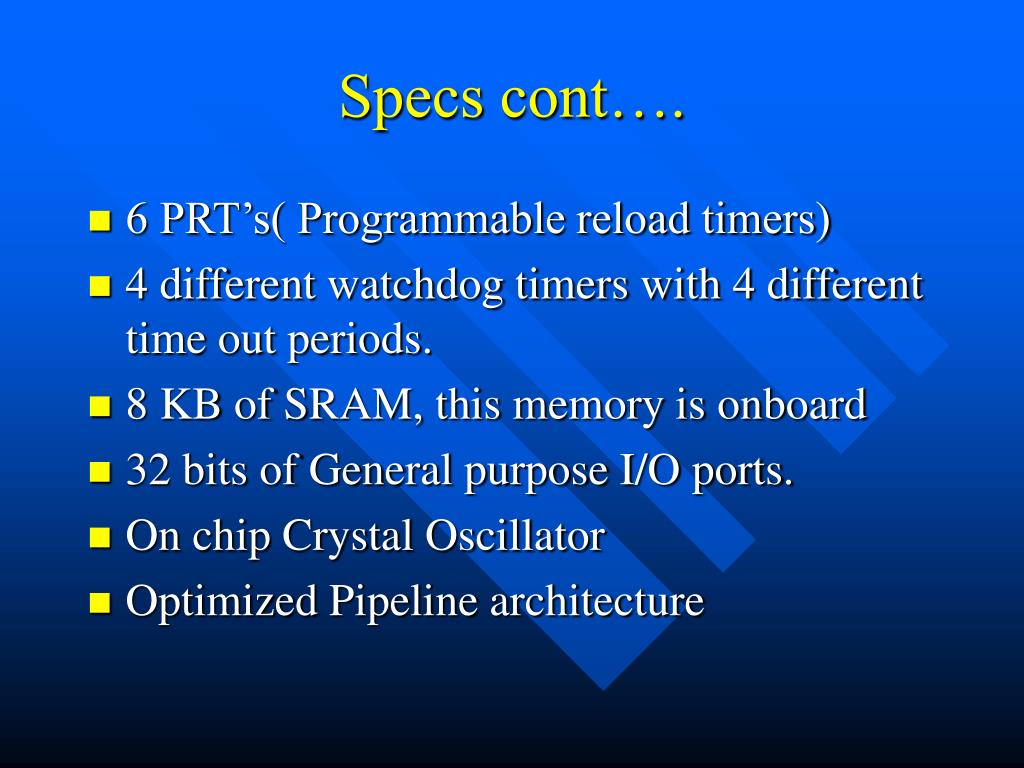

  3. Specs cont…. • 6 PRT’s( Programmable reload timers) • 4 different watchdog timers with 4 different time out periods. • 8 KB of SRAM, this memory is onboard • 32 bits of General purpose I/O ports. • On chip Crystal Oscillator • Optimized Pipeline architecture

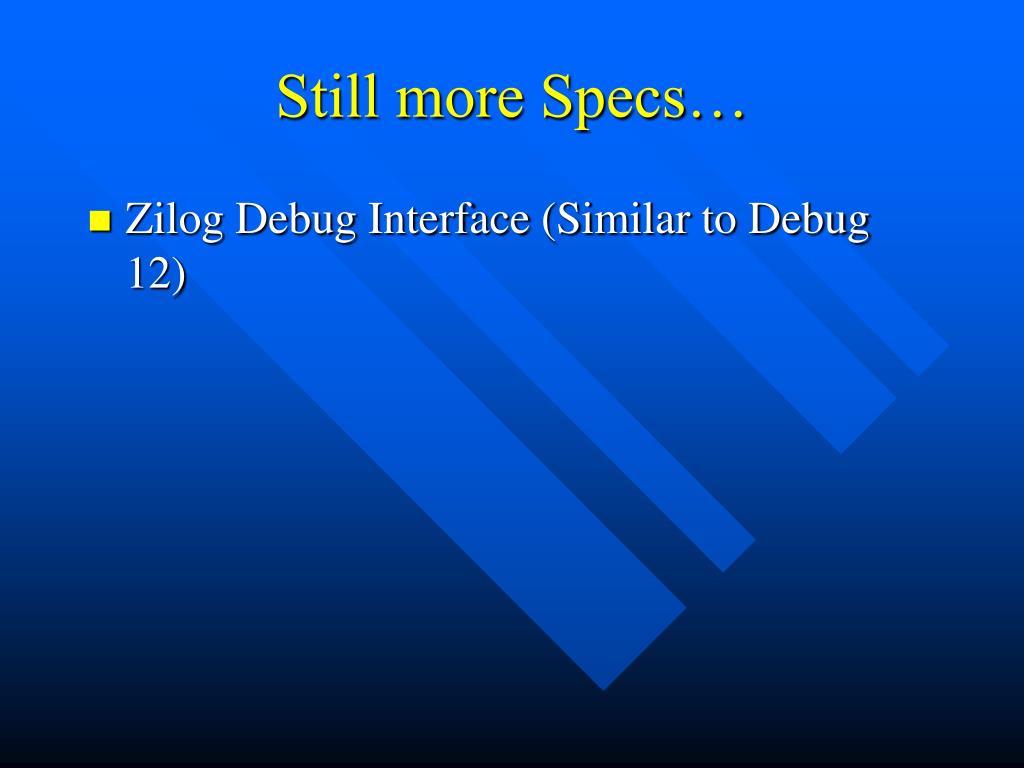

  4. Still more Specs… • Zilog Debug Interface (Similar to Debug 12)

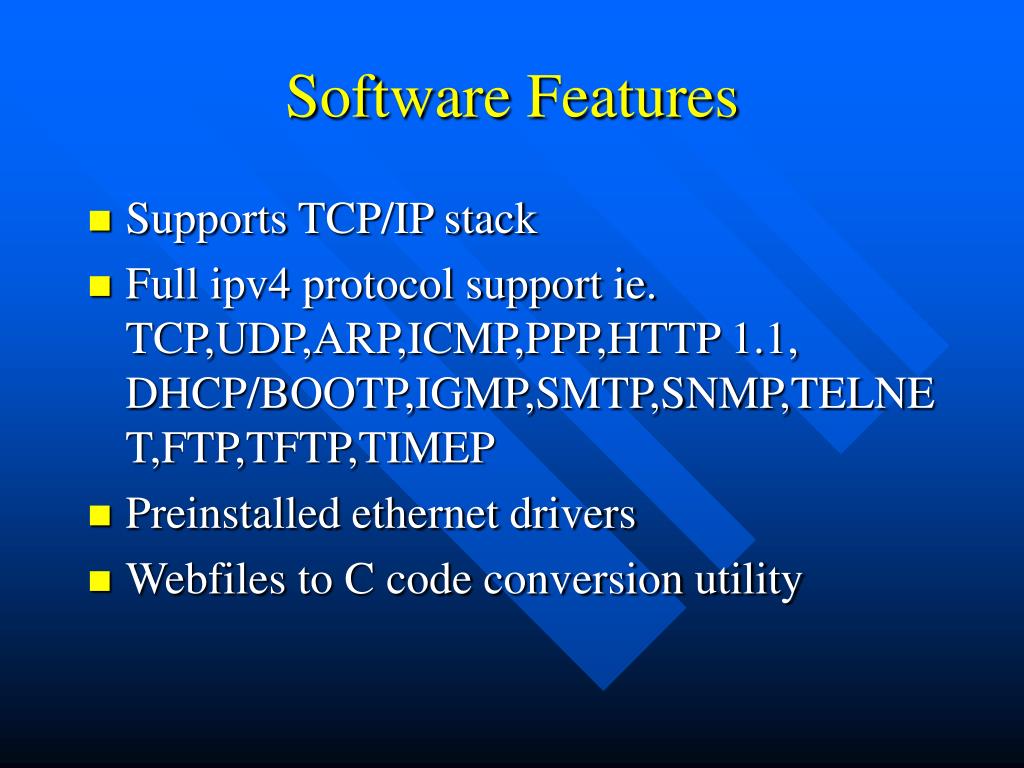

  5. Software Features • Supports TCP/IP stack • Full ipv4 protocol support ie. TCP,UDP,ARP,ICMP,PPP,HTTP 1.1, DHCP/BOOTP,IGMP,SMTP,SNMP,TELNET,FTP,TFTP,TIMEP • Preinstalled ethernet drivers • Webfiles to C code conversion utility

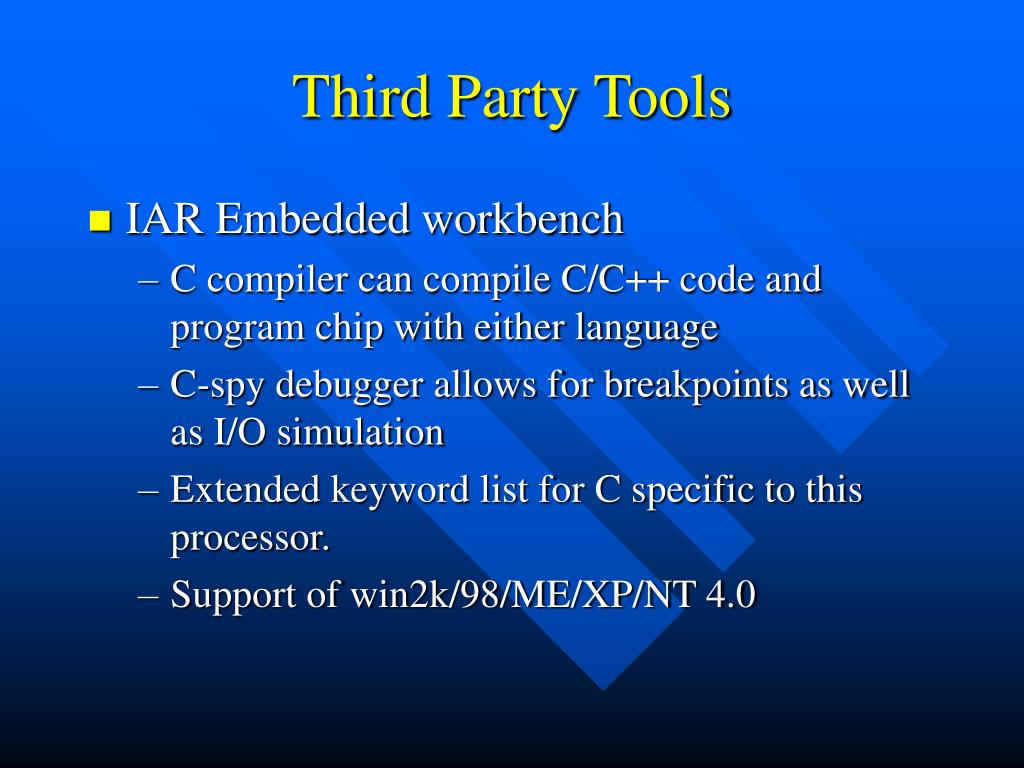

  6. Third Party Tools • IAR Embedded workbench • C compiler can compile C/C++ code and program chip with either language • C-spy debugger allows for breakpoints as well as I/O simulation • Extended keyword list for C specific to this processor. • Support of win2k/98/ME/XP/NT 4.0

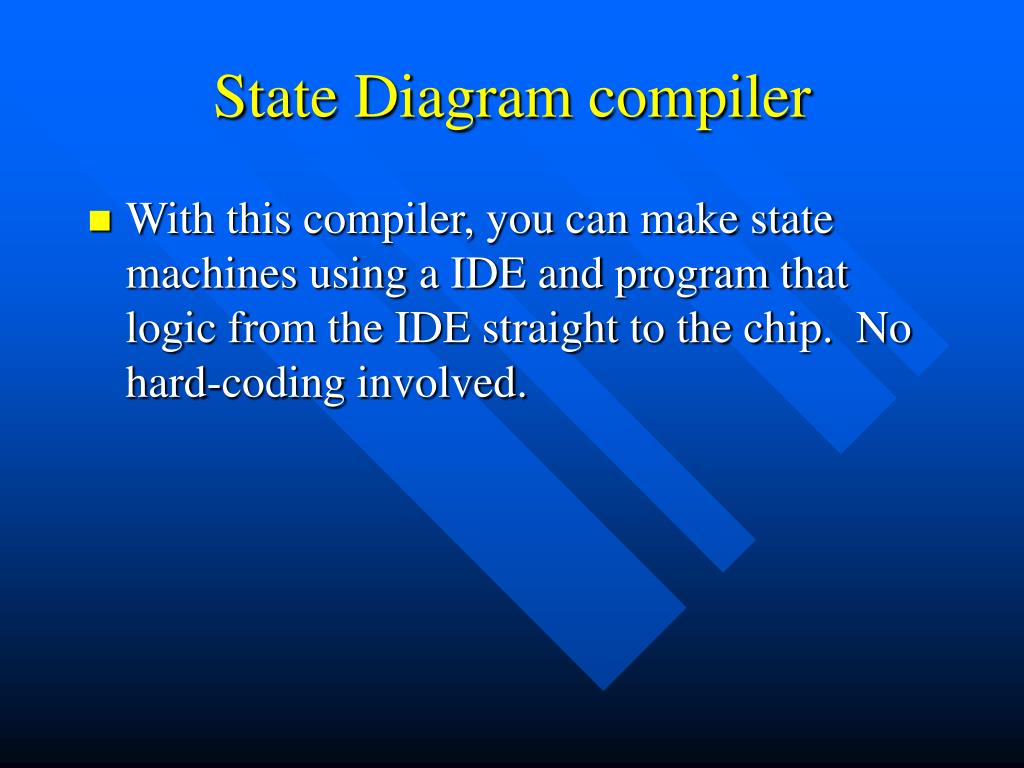

  7. State Diagram compiler • With this compiler, you can make state machines using a IDE and program that logic from the IDE straight to the chip. No hard-coding involved.

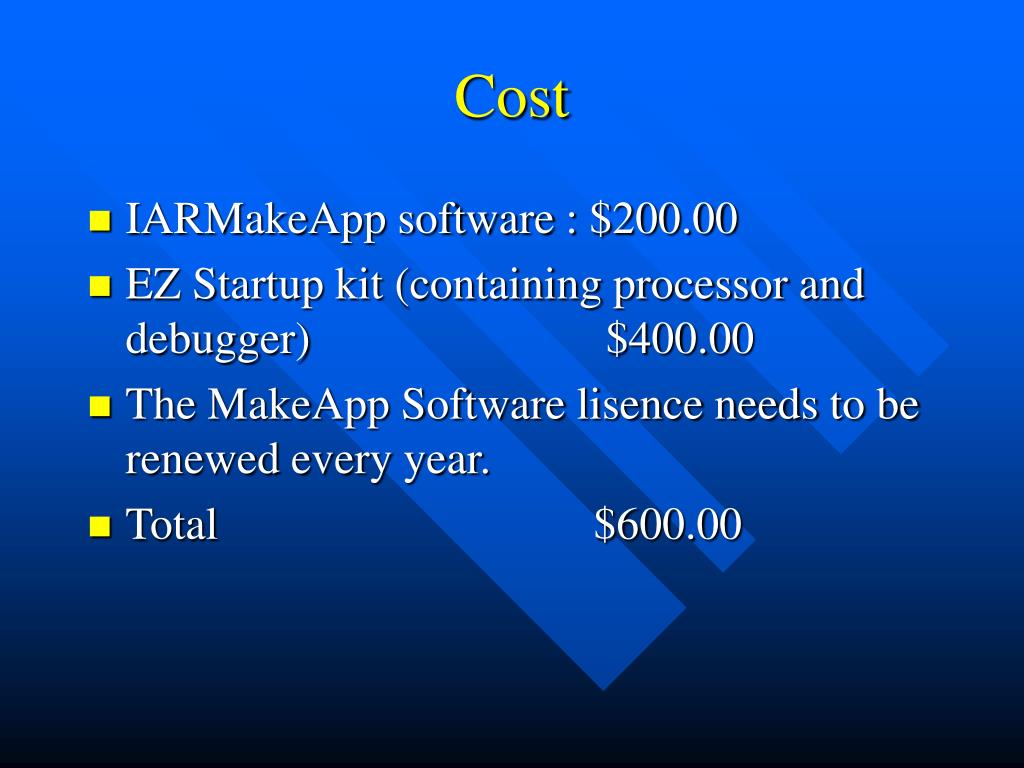

  8. Cost • IARMakeApp software : $200.00 • EZ Startup kit (containing processor and debugger) $400.00 • The MakeApp Software lisence needs to be renewed every year. • Total $600.00

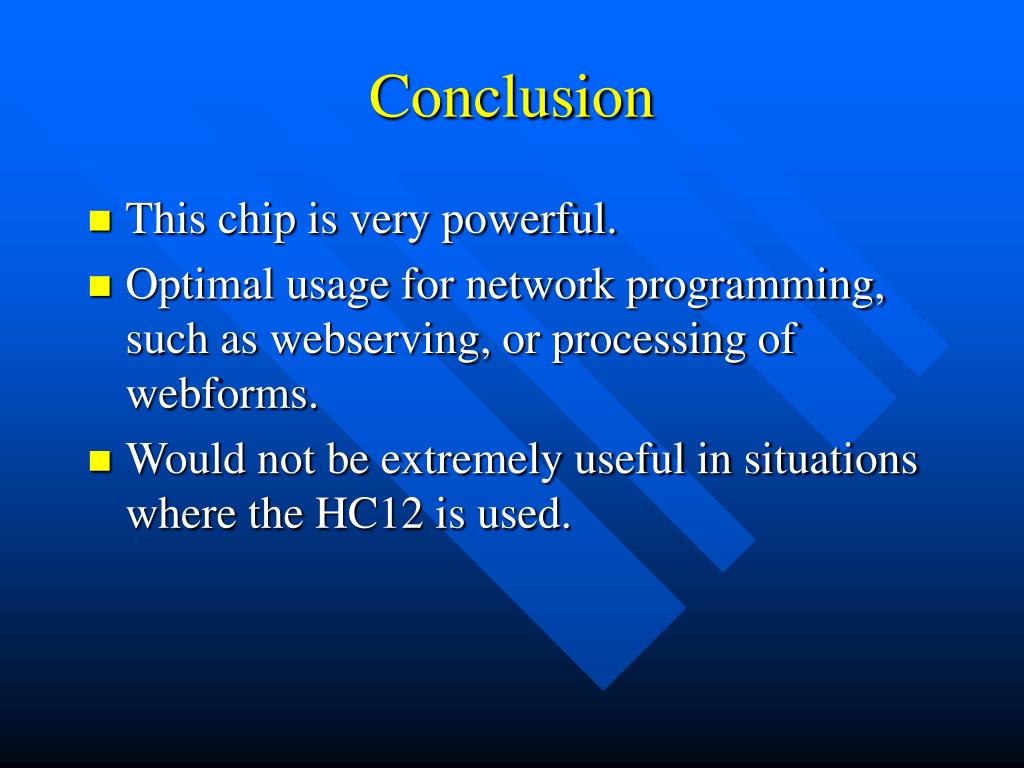

  9. Conclusion • This chip is very powerful. • Optimal usage for network programming, such as webserving, or processing of webforms. • Would not be extremely useful in situations where the HC12 is used.

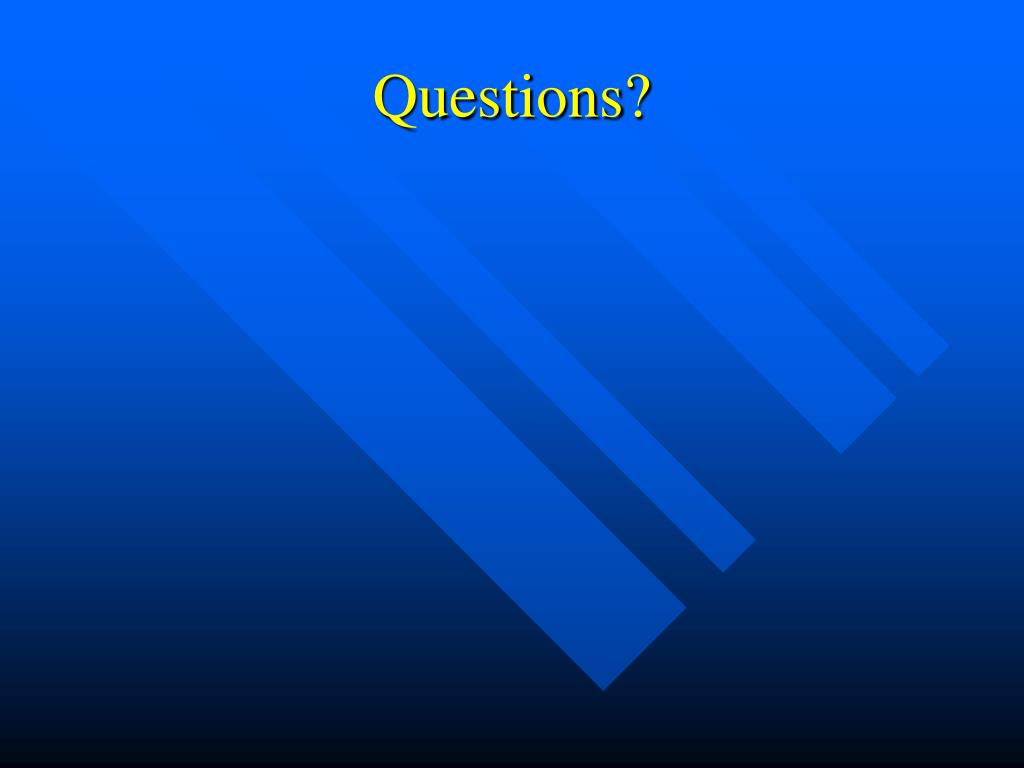

  10. Questions?
