Surface Integral Methods for Jet Aeroacoustics

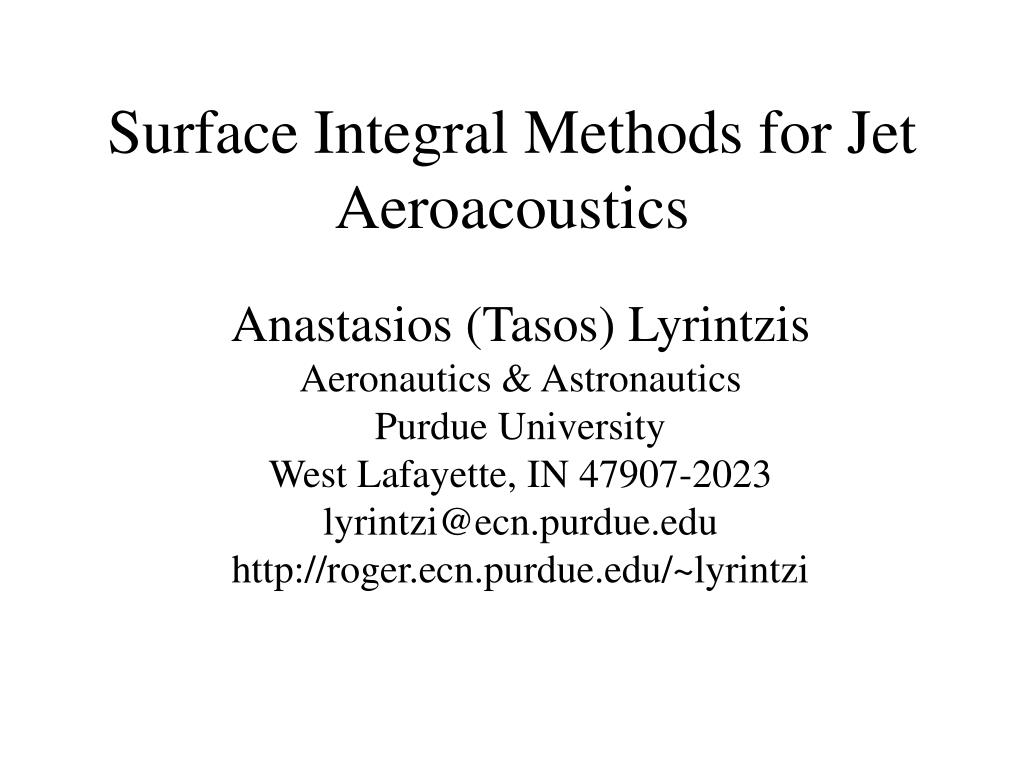

1. Surface Integral Methods for Jet Aeroacoustics Anastasios (Tasos) Lyrintzis Aeronautics & Astronautics Purdue University West Lafayette, IN 47907-2023 lyrintzi@ecn.purdue.edu http://roger.ecn.purdue.edu/~lyrintzi

2. Motivation • NASA’s goal: reduce aircraft noise by a factor of 4 within the next twenty years • Improvements in the current state-of-the-art prediction methodologies are needed

3. Methods of Acoustic Analysis • Straight CAA – expensive • Perturbation methods (e.g. LES+LEE) • Lighthill’s acoustic analogy (volume integrals) • Kirchhoff method (surface integrals) near-field: CFD - nonlinear far-field: Wave equation - linear • Porous FW-H equation (same as Kirchhoff)

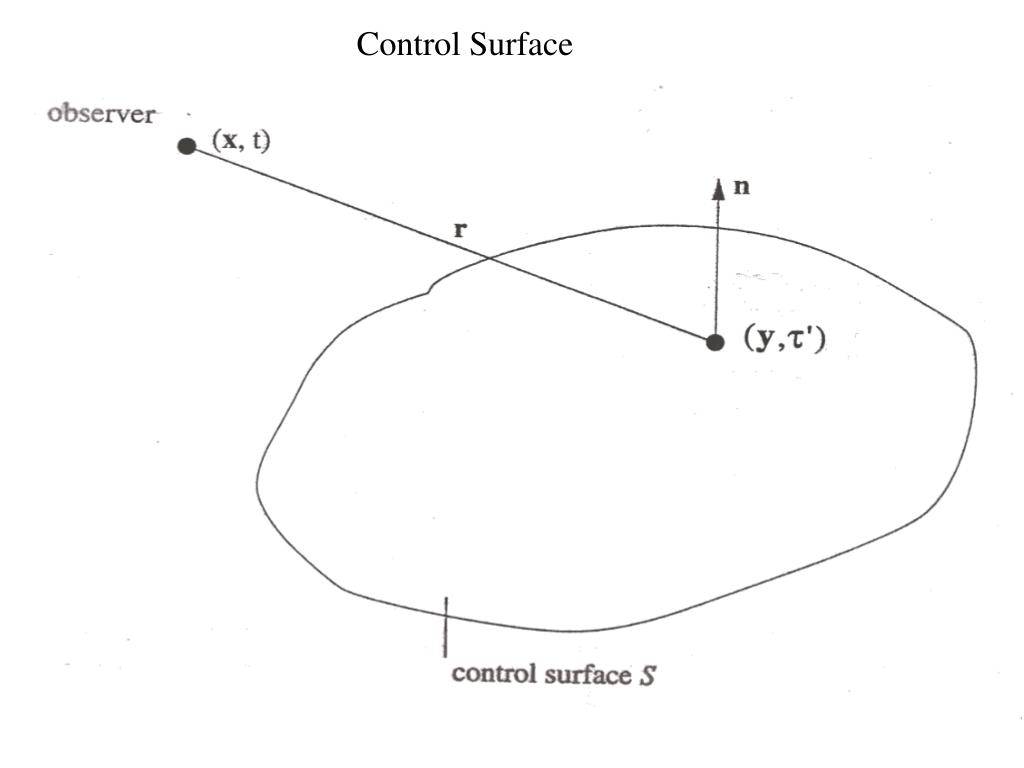

4. Control Surface

5. Kirchhoff’s Method Wave equation is valid outside a stationary surface (1) : some acoustic variable, e.g. p’ :free stream sound speed ris the distance from source to observer implies evaluation at the retarded time t-r/c is the source emission angle is the Kirchhoff surface normalvector A dot indicates a source time derivative

6. Porous FW-H equation Define new variables: (2) and (3) where subscript o implies ambient conditions, superscript implies disturbances

7. Porous FW-H equation (continued) The integral expression for the porous FW-H equation can be written as (4) where (5) (6)

8. Jet Noise Predictions • S cannot surround the entire source region • MGB can be used outside S • Refraction corrections

9. Refraction Corrections • Pilon and Lyrintzis (1997) Use geometric acoustics (Amiet, 1977) Us velocity at the downstream end of S qs sound emission angle wrt the jet axis qo emission angle in the ambient air

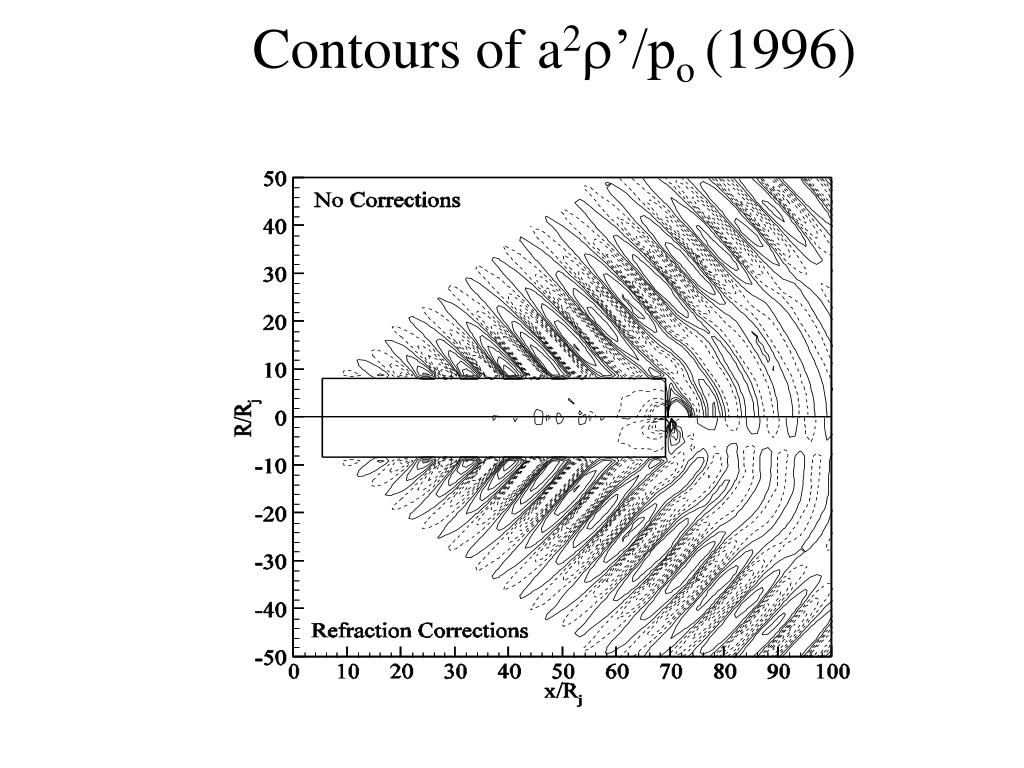

10. Contours of a2r’/po (1996)

11. Mach 0.9, Reynolds Number 400,000 Isothermal Jet LES(Oct. 2003) • No explicit SGS model • Spatial filter is treated as the implicit SGS model • 15.6 million grid points • Streamwise physical domain length is 35ro • Domain width and height are set to 30ro • 50,000 time steps total • 5.5 days of run time using 200 POWER3 processors on an IBM-SP

12. Divergence of Velocity Contours

13. Jet Aeroacoustics • Far field noise is estimated by coupling near field LES data with the Ffowcs Williams – Hawkings (FWH) and Kirchhoff’s methods • Overall sound pressure levels and acoustic pressure spectra are computed along an arc located at 60ro from the jet nozzle • Also investigated the sensitivity of far field noise predictions to the position of the control surface on which aeroacoustic data is collected

14. Jet Aeroacoustics (continued) • Acoustic data collected every 5 time steps over a period of 25,000 time steps • Shallow angles ( ) are not accurately captured since streamwise control surface is relatively short • Maximum Strouhal numbers resolved (based on grid spacing) : • 3.0 for Control Surface #1 • 2.0 for Control Surface #2 • 1.5 for Control Surface #3

15. Ffowcs Williams – Hawkings Method Prediction of Acoustic Pressure Spectra

16. Kirchhoff’s Method Prediction of Acoustic Pressure Spectra

17. Ffowcs Williams – Hawkings Method Prediction of OASPL

18. Kirchhoff’s Method Prediction of OASPL

19. Acoustic Pressure Spectra Comparison with Bogey and Bailly’s Reynolds number 400,000 LES

20. Acoustic Pressure Spectra Comparison with Bogey and Bailly’s Reynolds number 400,000 LES

21. Closed Control Surface Calculations • The control surface is closed on the outflow • FWH method is used only with the closed control surface • No refraction corrections employed

22. OASPL Comparison

23. Spectra Comparison at R = 60ro, q = 30o

24. Noise Calculations Using Lighthill’s Acoustic Analogy • Recently developed a parallel code which integrates Lighthill’s source term over a turbulent volume to compute far-field noise • The code has the capability to compute the noise from the individual components of the Lighthill stress tensor

25. Lighthill Code • Code employs the time derivative formulation of Lighthill’s volume integral • Uses the time history of the jet flow data provided by the 3-D LES code • 8th-order accurate explicit scheme to compute the time derivatives • Cubic spline interpolation to evaluate the source term at retarded times

26. Far-field Noise • Time accurate data was saved inside the jet at every 10 time steps over a period of 40,000 time steps • 1.2 Terabytes (TB) of total data to process • Used 1160 processors in parallel for the volume integrals • Cut-off frequency corresponds to Strouhal number 4.0 due to the fine grid spacing inside the jet

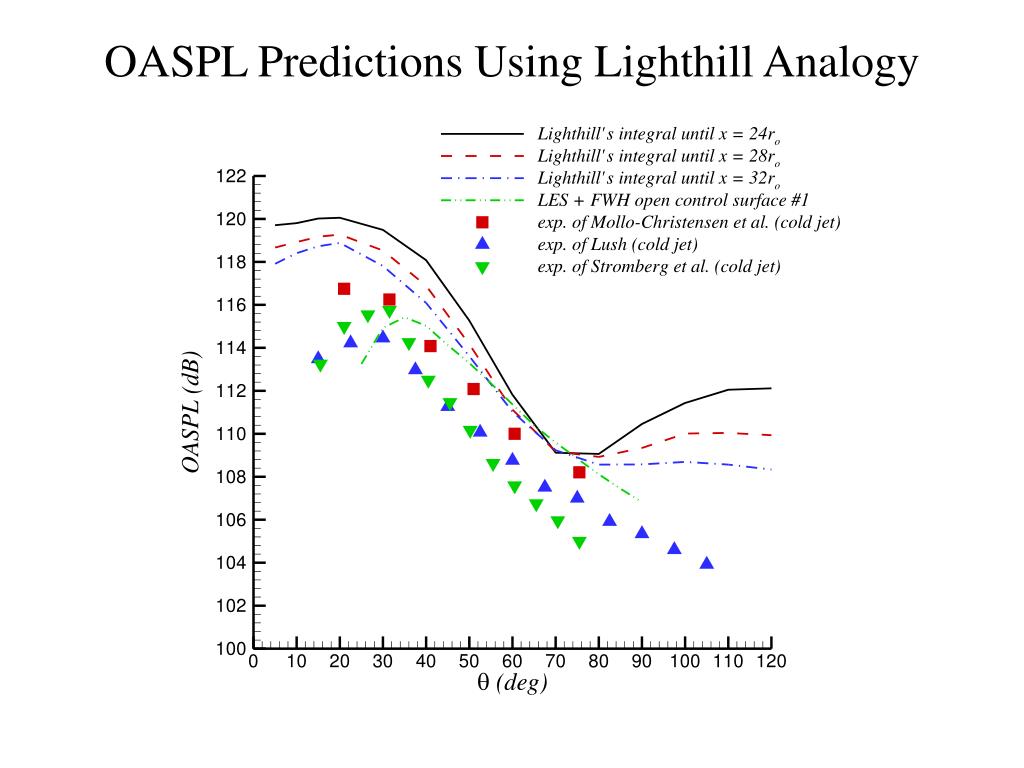

27. OASPL Predictions Using Lighthill Analogy

28. Spectra comparison with FWH Predictions at R = 60ro, q = 60o

29. Jet Noise Conclusions • Both Ffowcs Williams – Hawkings and Kirchhoff’s methods give almost identical results for all open control surfaces • Closed control surface + FWH give predictions comparable to Lighthill’s acoustic analogy prediction

30. Jet Noise Conclusions (continued) • There are acoustic sources (that cause cancellations) located in the region 32ro < x which were not captured in the LES due to short domain size • Due to the inflow forcing, OASPL levels are overpredicted relative to experiments

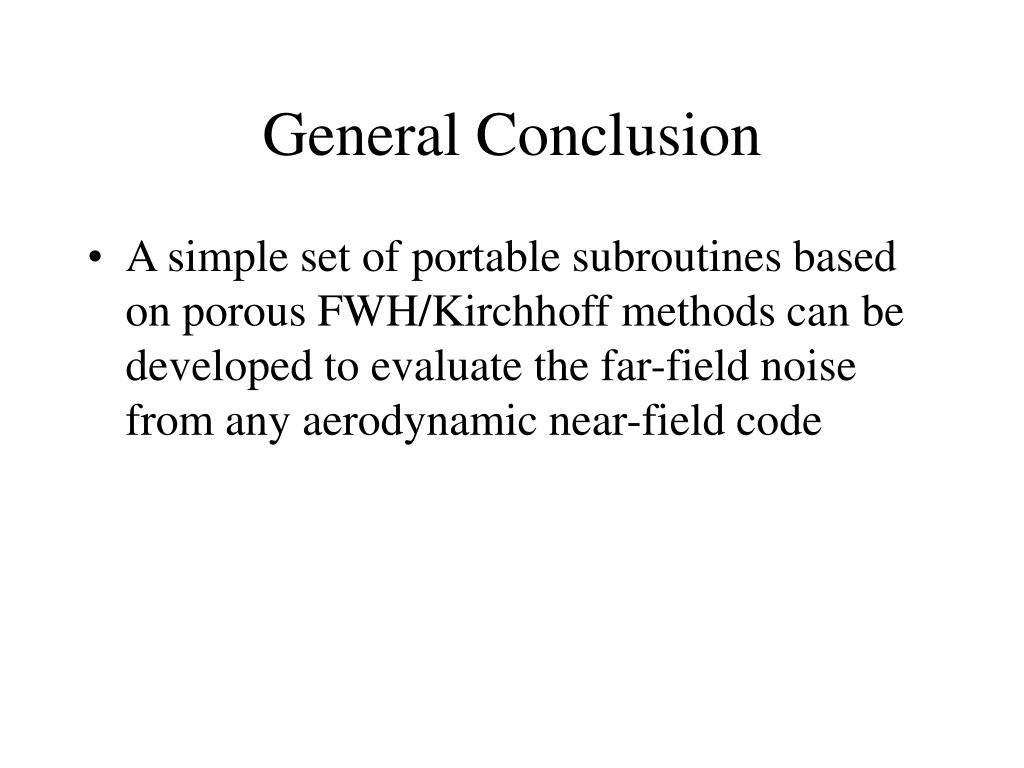

31. General Conclusion • A simple set of portable subroutines based on porous FWH/Kirchhoff methods can be developed to evaluate the far-field noise from any aerodynamic near-field code

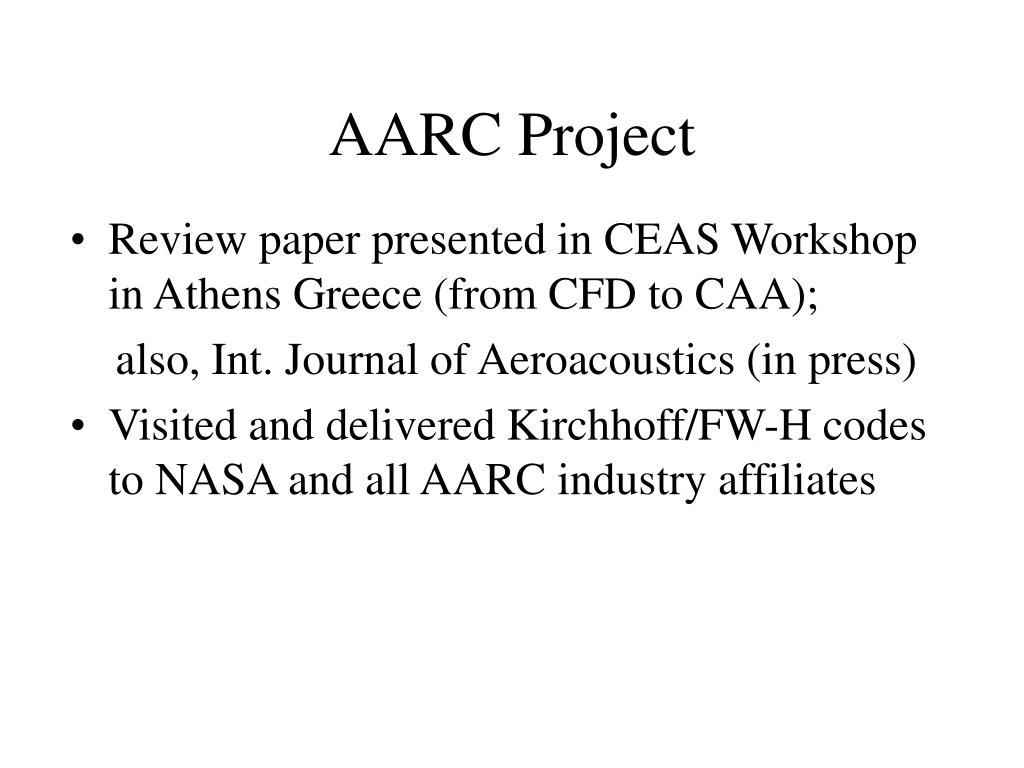

32. AARC Project • Review paper presented in CEAS Workshop in Athens Greece (from CFD to CAA); also, Int. Journal of Aeroacoustics (in press) • Visited and delivered Kirchhoff/FW-H codes to NASA and all AARC industry affiliates

33. Future Directions • Noise from unresolved LES scales: - Resolved Scales: LES + FW-H - Unresolved Scales: MGB/Tam’s approach (as currently used for RANS) • Include nozzle lips • Complicated geometries (DES for chevrons, mixers -- multi-block code) • Supersonic jets
