Face tracking for interaction -review and work

1. Face tracking for interaction-review and work Changbo Hu Advisor: Matthew Turk Department of Computer Science, University of California, Santa Barbara

2. Outline • Review • What is the aim of face tracking? • How did people do it? • What we are going to go? • Current Works • Mean-shift skin tracking • Mean-shift elliptical head tracking • Face tracking and imitation

3. Detection Recognition, verification Expression, talking… attributes applications Face in interaction • Where? • Who? • What? • What we expect computer? • To perceive the above information • To response properly

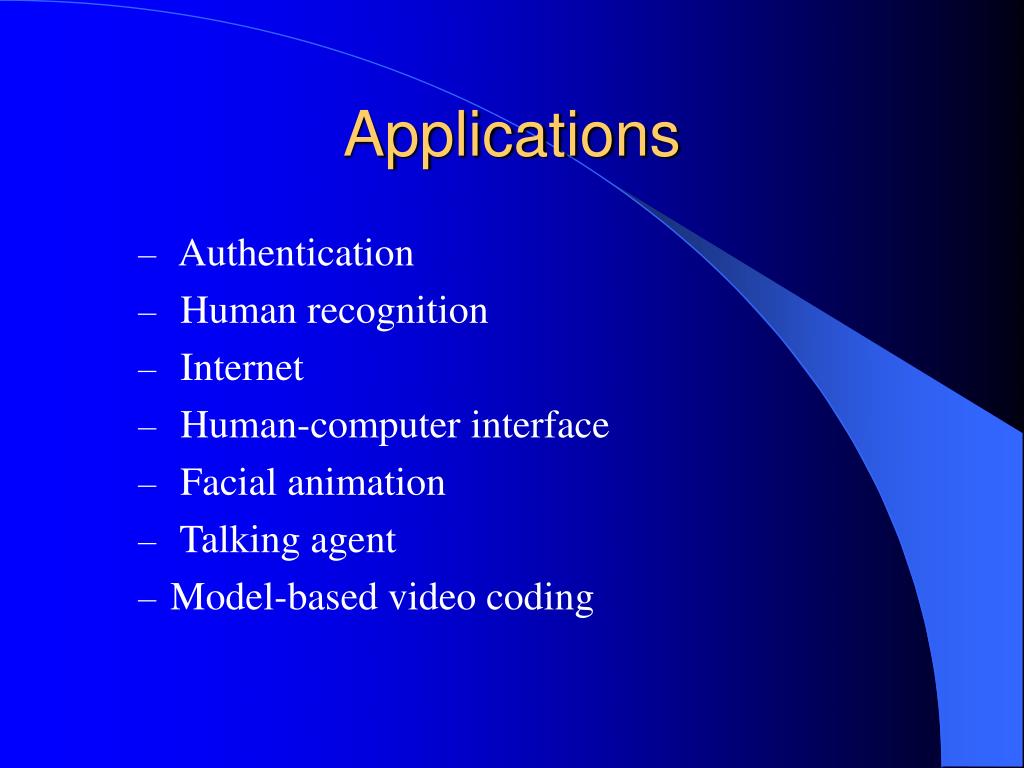

4. Applications • Authentication • Human recognition • Internet • Human-computer interface • Facial animation • Talking agent • Model-based video coding

5. The role of tracking • Two meaning: • When face detected, keep up its motion • Tracking is easier in some sense • Some Tasks request you • To know its pose • To improve performance for recognition of face and expression • Synthesis and animation

6. What facts cause face variation? 1. Pose (model the relative view to camera ) 2. Deformation(model the face expression and talking…) 3. Intensity change (model the illumination and sensor)

7. What is face tracking? • To find all the variation factors • Problem formulation: translation Intensity sensor deformation rotation projection

8. How people did it?

9. ctned

10. To look into some details Gang Xu, ICPR98 Black, CVPR 95

11. To look into some details Blake, ICCV98 Bilinear combination of motion and expression CassiaCVPR99

12. To look into some details Pentland, Computer Graphics, 96 DT, PAMI 93

13. To look into some details Pentland ICCV workgroup 99

14. To look into some details GorkTurk ICCV01

15. What will we do? • Task: Personalized full tracking and animation of face • Start point: 2d face location • Selecting face model • Modeling expression • Modeling illumination • Animation

16. What conditions we have? • Personalized face is specific • to model shape • to model expression • to have stable feature points • to sample lighting effect • Statistical learning • PCA, ASM,AAM • muscle vector, human metric for expression • Learn feature point location

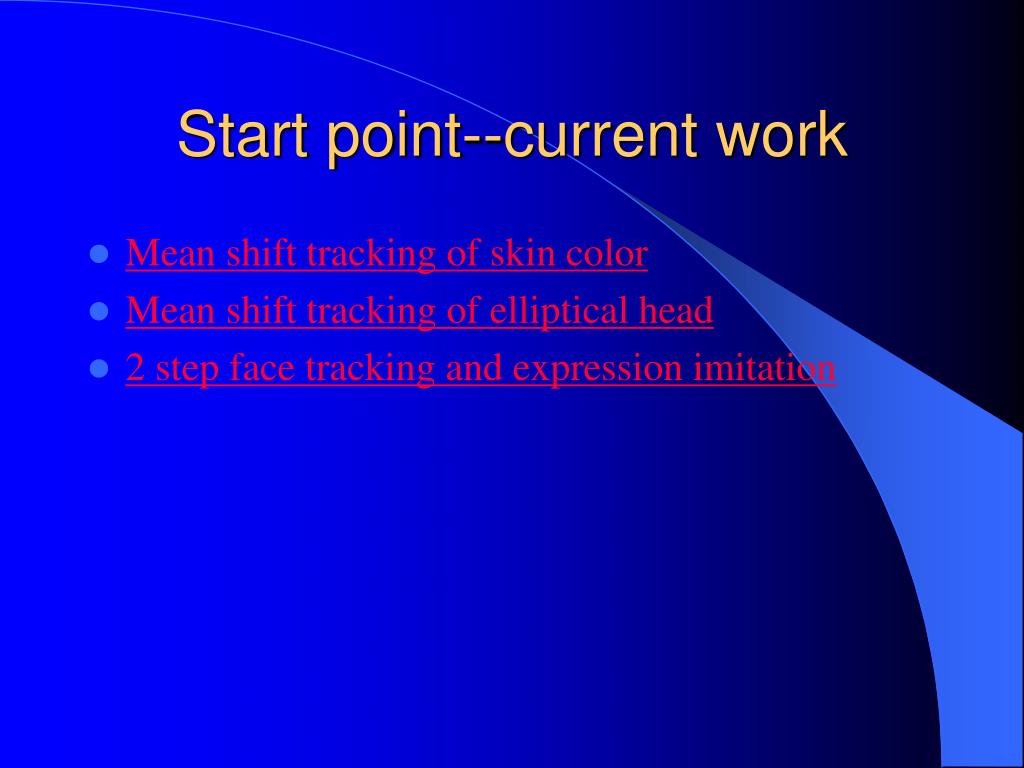

17. Start point--current work • Mean shift tracking of skin color • Mean shift tracking of elliptical head • 2 step face tracking and expression imitation

18. Selecting face model Face modeling itself is a large topic, related in graphics, talking face, etc. What model should we choose , must considering: 1. The model can account for 3d motion 2. The model is easy to adjust to individual From Reference [29]

19. Face model: data capture • to determine head geometry • method • two calibrated front and frofile images • 10 feature ponits--four eye corners, two nostrils, the bottom of the upper front teeth, the chin, the base of ears

20. Face model: locate features • to locate the facial features with high precision in three steps • to find a coarse outline of the head and estimation of main features • to analyze the important areas in more detail • zooms in on specific points and measure with high accuracy.

21. Face model: locate features

22. Face model: Location of main features • texture segmentation • using luminance image • bandpass filter and adaptive threshold • morphological operation • connected component analysis • extracting the center of mass, width, and height of each blob

23. Face model: Location of main features • color segmentation • background color /skin,hair color • extraction the similar feature as the texture • evaluating combination of features • to train a 2-d head model (size) • to score blobs to select candidates • to check each eye candidate for good combination • to evaluate whole head

24. Face model: Measuring facial features • to find the exact dimension • area around the mouth and the eye • using HSI color space • threshold for each color cluster(predefined) • recalibrating the color thresholds dynamcally • remarkable accurate, not robust enough • 2 pixels, standard deviation

25. Face model: Measuring facial feature the colors of teeth, lips and the inner,dark part of the mouth is prelearned

26. Face model: High accuracy feature points • Correlation analysis • a group of kernel • kernel chosen by width and height • scan in the image for the best correlation • 20X20 in 100X100, conjugate gradient descent approach • 0.5 pixel standard deviation

27. Face model: High accuracy from correlation

28. Face model: Pose estimation • using 6 corners, 3d known from the model • iteration equation (to find i,j and Z0) • lowpass filtering on their trajectories

29. Modeling expression • Like AAM, create pose free apperance patches

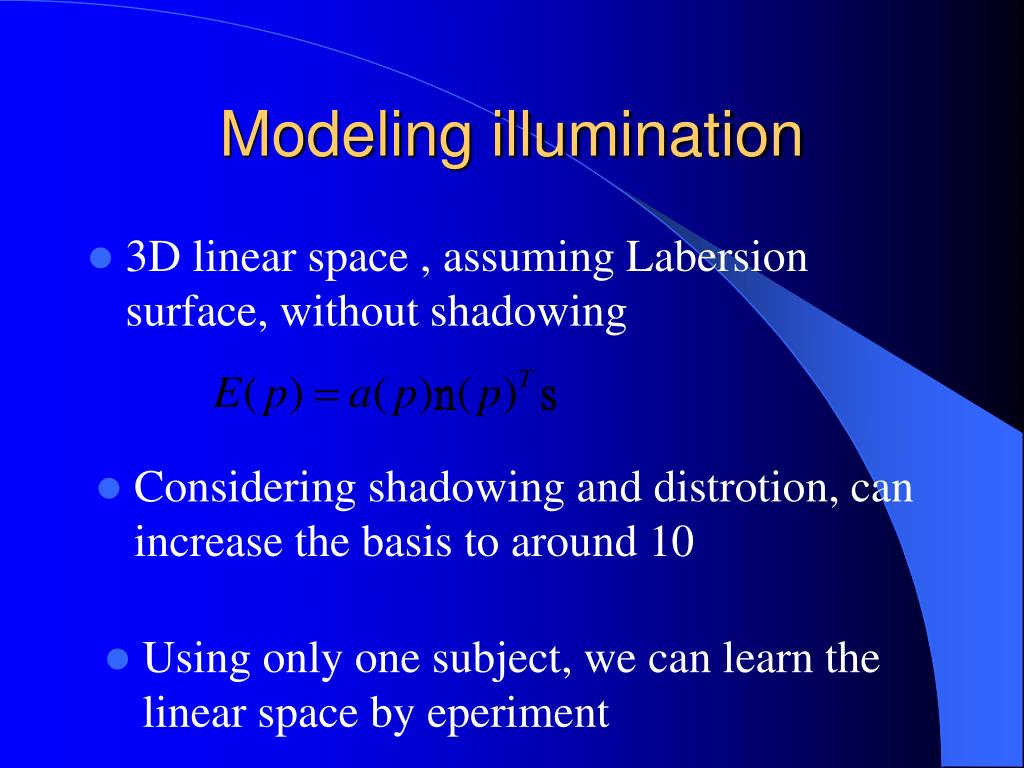

30. Modeling illumination • 3D linear space , assuming Labersion surface, without shadowing • Considering shadowing and distrotion, can increase the basis to around 10 • Using only one subject, we can learn the linear space by eperiment

31. Animation • Synthesis animation • Performance driven sketch animation

32. End Questions and comments?

33. Mean shift color tracking • An implementation to show power of skin • Feature is probability of skin hue • Mean-shift search • Choose a search window size. • Choose the initial location of the search window. • Compute the mean location in the search window. • Center the search window at the mean location computed in Step3. • Repeat Steps 3 and 4 until convergence

34. ctned • Find the zeroth moment M00 • Find the first moment for x and y, M10, M01 • Then the mean search window location (the centroid) is (xc, yc) (xc = M10/ M00, yc = M01/ M00 ) • Get features from the blob: • Length, weighth, rotation

35. ctned back

36. Meanshift elliptical head tracking Based on shape and adaptive color: the head is shaped as an ellipse and the head’s appearance is represented by adaptive color. • First : mean shift to track the color blob • Second: Maximizing the normalized gradient around the boundary of the elliptical head.

37. Why adaptive color The head’s hue vary during tracking, esp. in different views or big rotation, such as: In order to handle this problem, we modify the head’s color continuously during tracking using tracking result. hT : the initial color representation hR: the tracking result color in the current frame hN : the head’s color for tracking in the next frame

38. Relocate elliptical head • Maximizing the normalized Gradient • Assuming the elliptical head’s state • gi is the intensity gradient at perimeter pixel i of the ellipse • Nhis the number of pixels on the perimeter of the ellipse. • Then update color

39. Benefits • Compared with Bradski’s paper and Stanford elliptical head paper, our approach has the benefits: • Robust (fusion of color and gradient cue, adaptive to color changing) • Fast (do not need to search, meanshift iterate fast)

40. Demo back

41. Real time face pose tracking & expression imitation (still on) • A modification to Active apperance model • The most obvious drawback of AAM? • slow, because it can not apply PCA projection directly • Explictly compute the rigid motion by a rigid of feature points • Learning the PCA space for nonrigid shape and appearance

42. Two step face tracking Formulation: Rigid features x1, nonrigid features x2 Ta(x1)->z1, the same T a (x2)->z2 Deal with unprecise of rigid points by synthesized feedback: In the synthyzied Z2, relocate rigid feature x1 and compute new T Iteration untill covergence

43. Pose free expression Pose T New face with pose and expression

44. Animation One implementaion: using a hand drawing corresponding modes, for example: back

45. Reference • [H. li , PAMI93] H. li, P. Rovainen, and R. Forcheimer, “3-D motion estimation in model based facial image coding”PAMI, 6,1993 • [DT, PAMI 93] D. Terzopulos and K. Water, Analysis and synthesis of facial image sequences using physical and anatomical models. PAMI, 6, 1993 • [Black, CVPR 95] M Black, Yacoob, Tracking and recognizing rigid and non-rigid facial motion using local parametric model of image motion, CVPR95 • [Essa ICCV95] I. Essa and A. Pentland. Facial expression recognition using a dynamic model and motion energy. InProc. 5th Int.Conf. on Computer Vision, pages 360{367, 1995. • [Darell CVPR96] Trevor Darrell, Baback Moghaddam Alex pentland, Active face tracking and pose estimation in an Interactive room, CVPR96, • [Pentland, Computer Graphics, 96] Urfan Essa, Sumit Basu, T Darrel, Pentland, Modeling, tracking and interactive animation of faces and heads// using input from video, Proceedings Computer Graphics, 1996 • [L. Davis FG96] T. Horprasert, Y. Yacoob, and l.S Davis, “computing 3D head orientation from monocular image sequence”, FG96 • [Yacoob, PAM96] Y. Yacoob and LS Davis, “computing spatio-temporal representations of human faces”, PAMI, 6, 1996 • [Decarlo, CVPR 96] D. Decarlo and D . Metaxas, the intergration of optical flow and deformable models woth applications to human face shape and motion estimation, CVPR 96

46. [Nesi RTI96] P. Nesi and R. Magnol_. Tracking and synthesizing facial motions with dynamic contours. Real Time Imaging, 2:67-79, 1996. • [Oliver CVPR97] Nuria Olivedr, Alex Pentland, LAFTER: Lips and Face real time tracker, CVPR97, • [DT, CVPR97] P. Fieguth and D Terzopoulous, “Color-based tracking of heads and other mobile objects at video frame rates” CVPR97 • [Pentland CVPR97] TS. Jebra and A Pentland, “Parameterized structure from motion for 3D adaptive feedback tracking of faces” CVPR97 • [Cootes ECCV 98] T. Cootes, G Edwards, Active appearance model, ECCV98, • [Gang Xu, ICPR98]Gang Xu and Takeo Sugimoto, "Rits Eye: A Software-Based System for Realtime Face Detection and Tracking Using Pan-Tilt-Zoom Controllable Camera", Proc. of 14th International Conference on Pattern Recognition, pp.1194-1197, 1998 • [Birtchfield CVPR98] Stan Birchfield, Elliptical head tracking using Intensity Gradients and color histograms, CVPR 98 • [Hager PAMI98] G Hager, P Belhumeur, Efficient Region Tracking With Parametric Models of Geometry and Illumination (with P. Belhumeur), IEEE Transactions on Pattern Analysis and Machine Intelligence, 20(10), pp.~1125-1139, 1998 • [Shodl PUI98] Schödl, Haro, and Essa, Head tracking using a textured polygonal model, PUI98. • [Blake ICCV98] B. Bascle, A. Blake, Separability of pose and expression in facial tracking and animation, ICCV98
