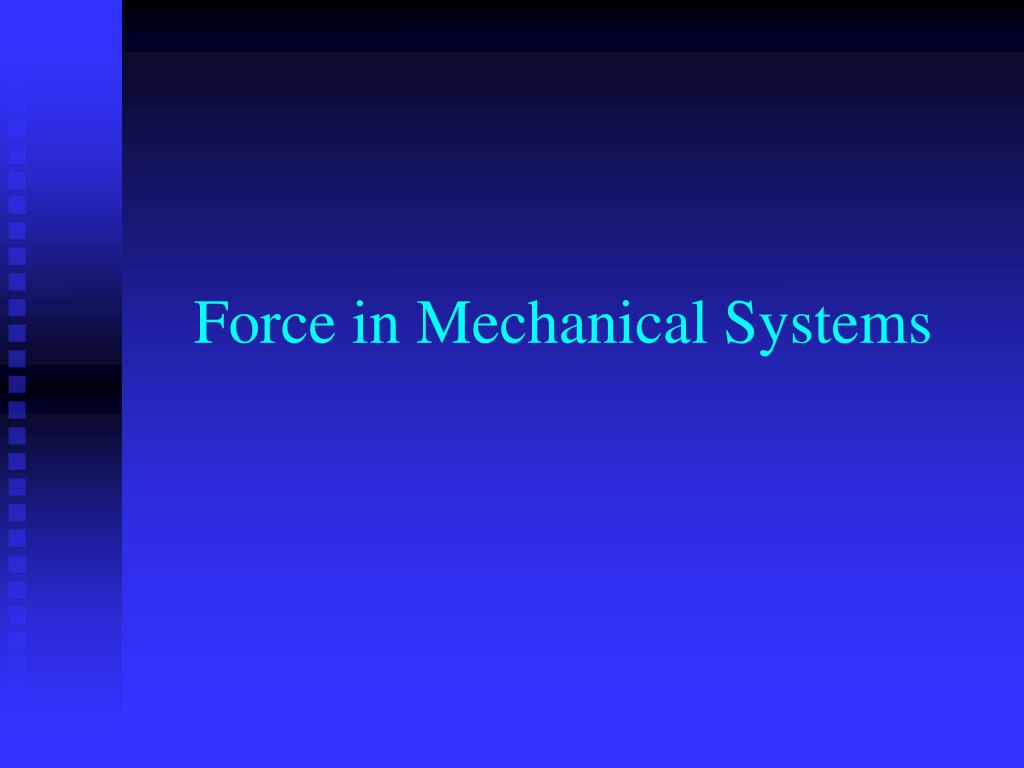

  1. Force in Mechanical Systems

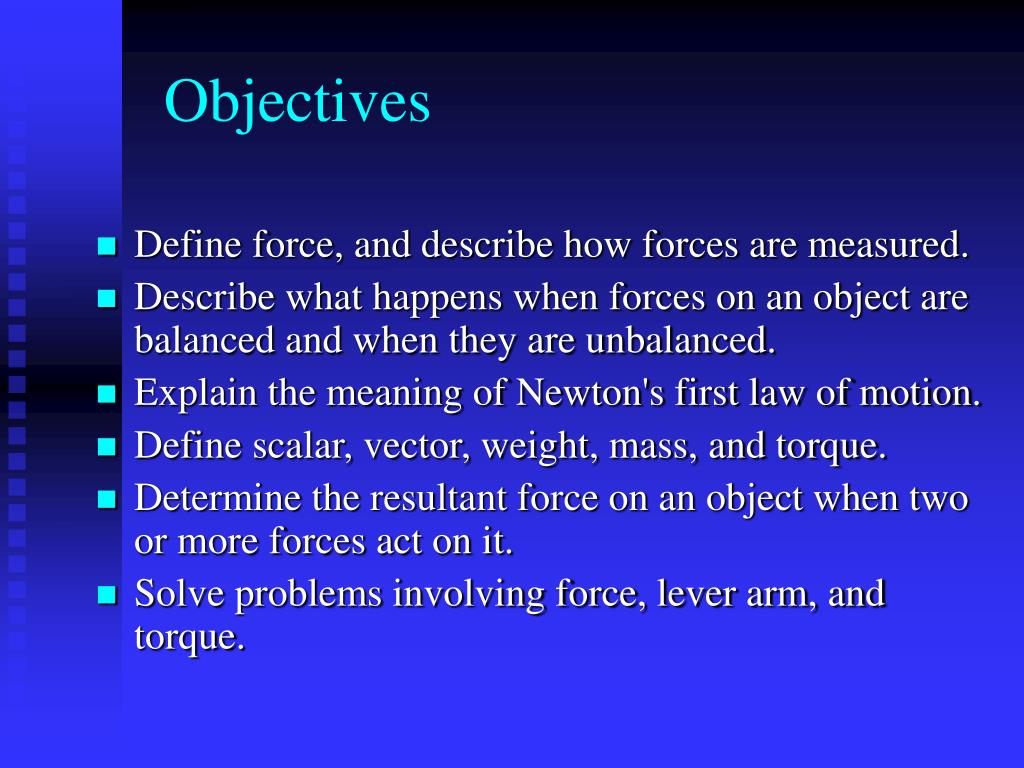

  2. Objectives • Define force, and describe how forces are measured. • Describe what happens when forces on an object are balanced and when they are unbalanced. • Explain the meaning of Newton's first law of motion. • Define scalar, vector, weight, mass, and torque. • Determine the resultant force on an object when two or more forces act on it. • Solve problems involving force, lever arm, and torque.

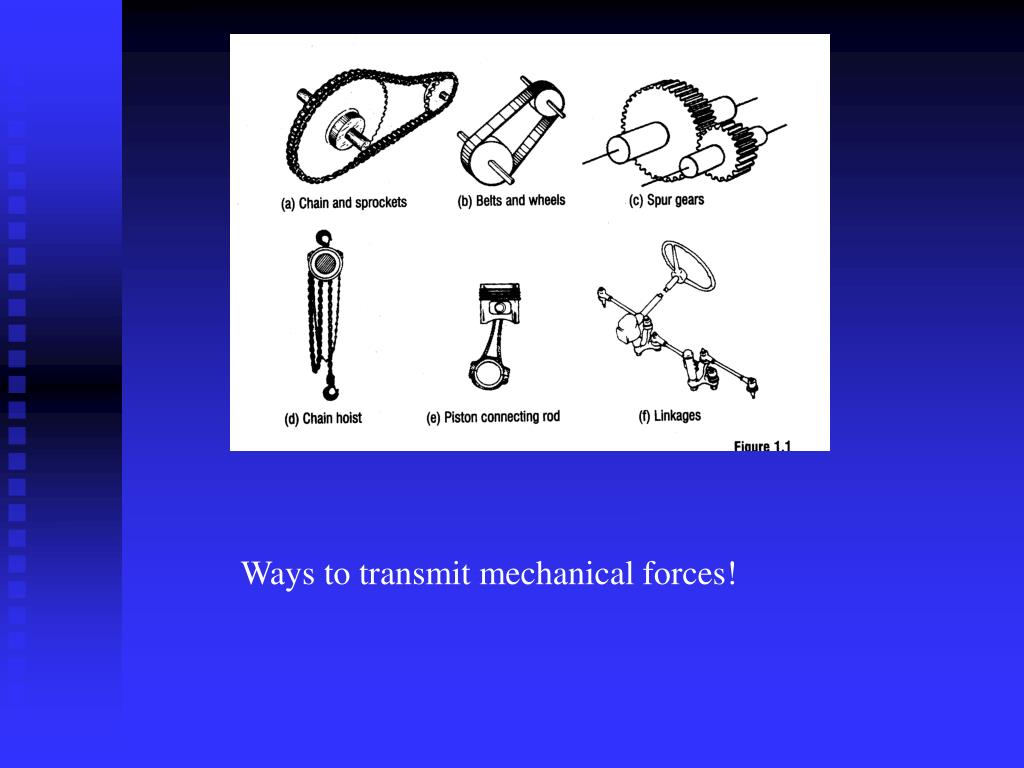

  3. Ways to transmit mechanical forces!

  4. Measuring Force • Metric System (SI- Systems International) • English

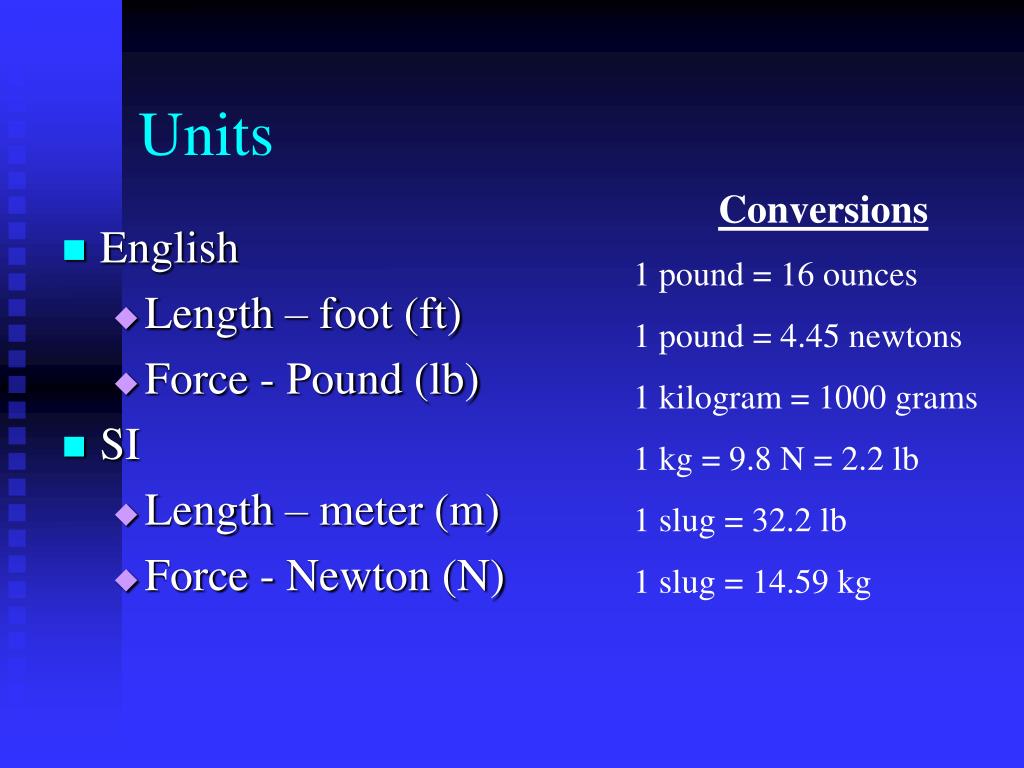

  5. Units Conversions 1 pound = 16 ounces 1 pound = 4.45 newtons 1 kilogram = 1000 grams 1 kg = 9.8 N = 2.2 lb 1 slug = 32.2 lb 1 slug = 14.59 kg • English • Length – foot (ft) • Force - Pound (lb) • SI • Length – meter (m) • Force - Newton (N)

  6. Definitions Takes into account gravity • Force • Weight • Mass • Vector – has magnitude and direction • Scalar – quantity described by only a magnitude. (temp., time, pressure, mass) Not the same thing Amount of matter in an object

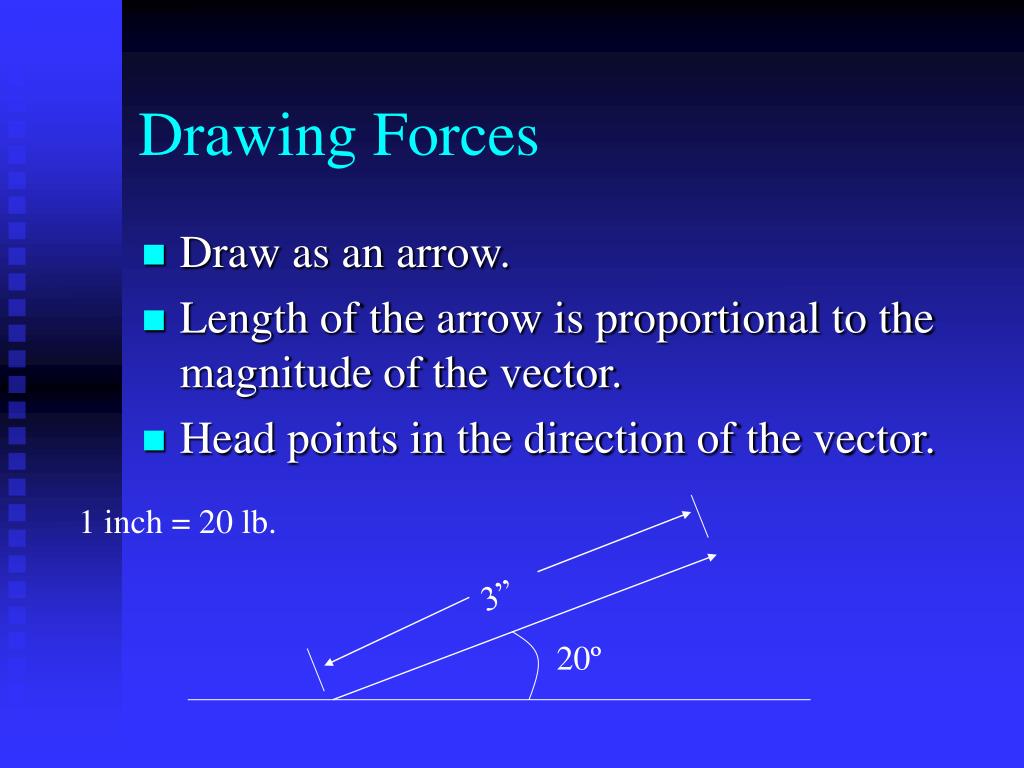

  7. Drawing Forces • Draw as an arrow. • Length of the arrow is proportional to the magnitude of the vector. • Head points in the direction of the vector. 1 inch = 20 lb. 3” 20º

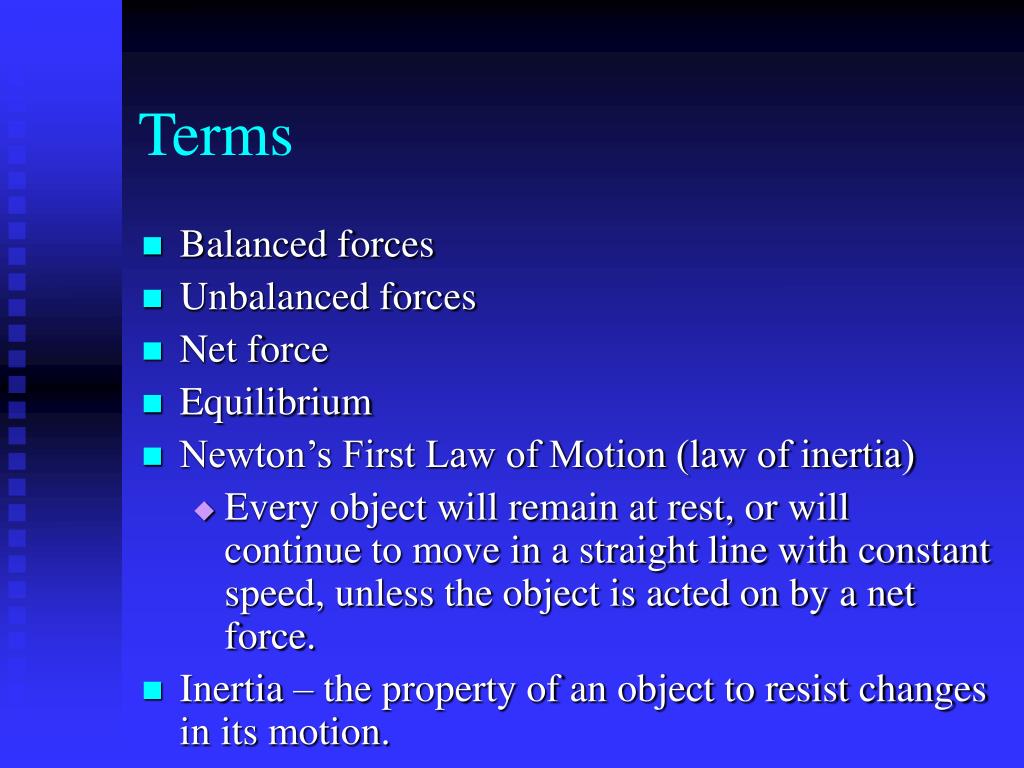

  8. Terms • Balanced forces • Unbalanced forces • Net force • Equilibrium • Newton’s First Law of Motion (law of inertia) • Every object will remain at rest, or will continue to move in a straight line with constant speed, unless the object is acted on by a net force. • Inertia – the property of an object to resist changes in its motion.

  9. Adding Forces • Draw the 40 lb. Force • Add the 30 lb. Force to the 40 lb. Force (head to tail method) • Draw the resultant force • Determine magnitude and direction of resultant • Form conclusion.

  10. Example

  11. Terms • Torque – the quantity that causes rotation in mechanical systems. (cw or ccw) • =F x L (Greek letter “tau”) Torque = Applied Force x length of lever arm

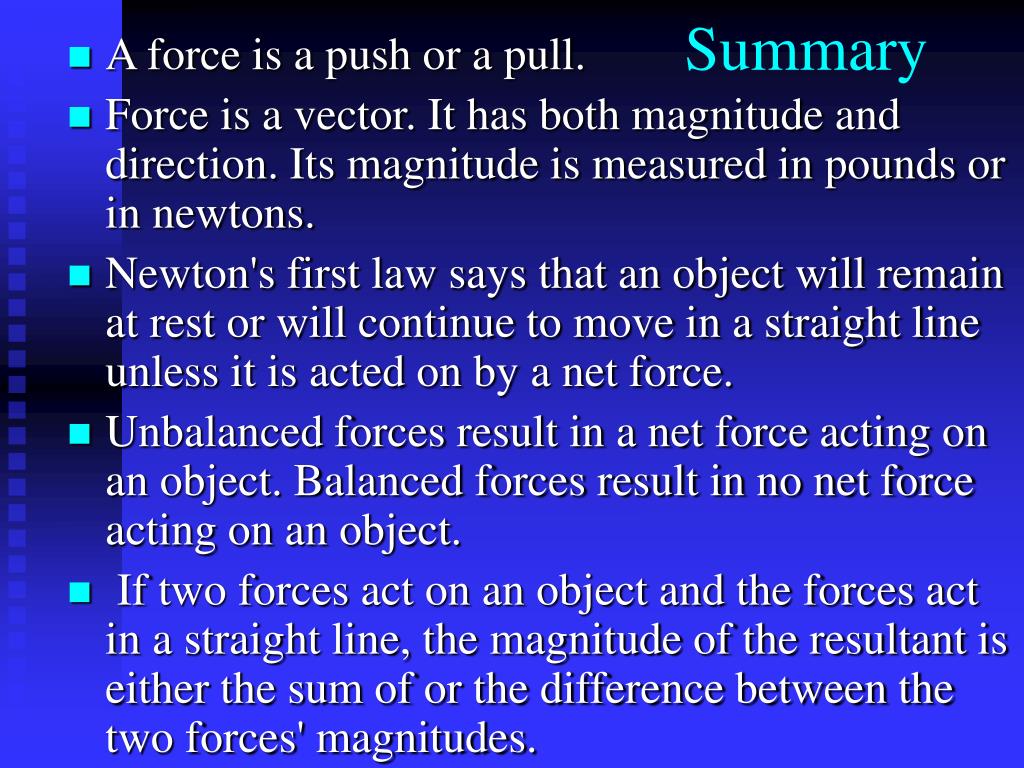

  12. Summary • A force is a push or a pull. • Force is a vector. It has both magnitude and direction. Its magnitude is measured in pounds or in newtons. • Newton's first law says that an object will remain at rest or will continue to move in a straight line unless it is acted on by a net force. • Unbalanced forces result in a net force acting on an object. Balanced forces result in no net force acting on an object. •  If two forces act on an object and the forces act in a straight line, the magnitude of the resultant is either the sum of or the difference between the two forces' magnitudes.

  13. Summary (cont.) • If two forces act on an object and the forces do not act in a straight line, the resultant can be found using the head-to-tail method of vector addition. • The mass of an object is a measure of the object's inertia. The weight is a measure of the force exerted on the object by gravity. • A torque is exerted on a body when a force is applied and the line of action of the force does not pass through the body's axis of rotation. The torque equals the force times the lever arm •  If no net torque is exerted on a body, it will remain at rest or will continue to rotate at a constant rate. (TLS # 16)
