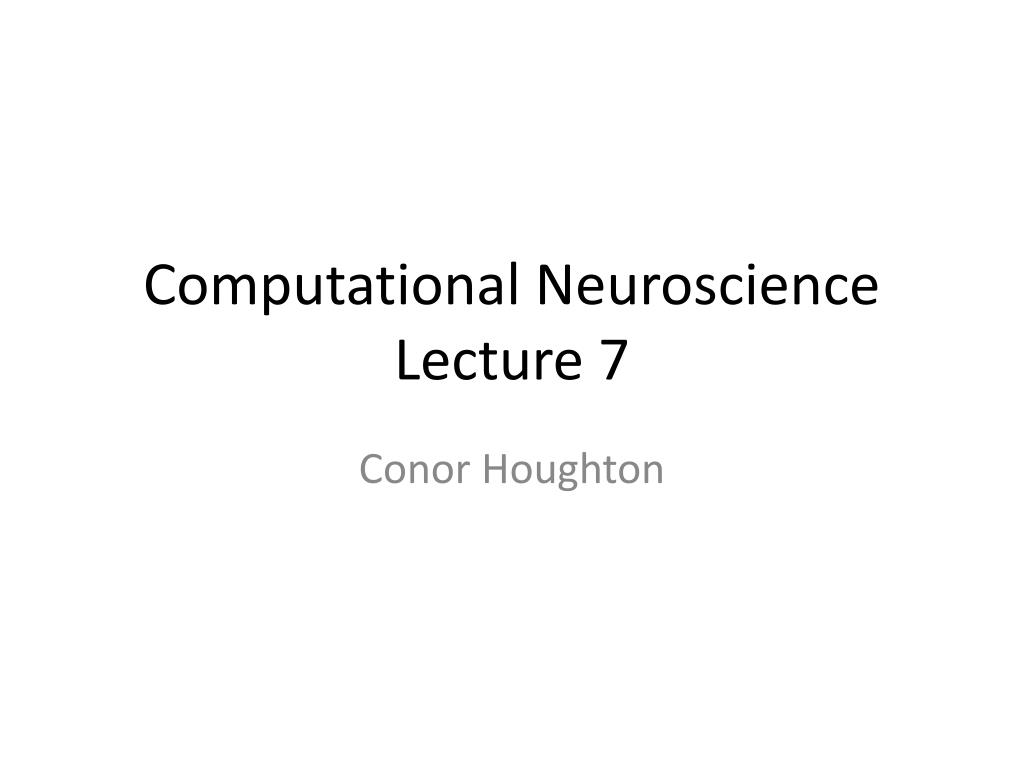

  1. Computational Neuroscience Lecture 7 Conor Houghton

  2. PICTURE FROM WIKIPEDIA

  3. PICTURES FROM WIKIPEDIA The inner ear CROSS SECTION OF THE COCHLEA COCHLEA

  4. Outer hair cells amplify • Video of dancing haircell. http://youtube.com/ /watch?v=Xo9bwQuYrRo

  5. Inner hair cells signal • Video about the inner ear, with the sound removed. http://youtube.com/ /watch?v= 1VmwHiRTdVc

  6. Stereocilia of a frog’s inner ear PICTURE FROM WIKIPEDIA

  7. Different hair cells respond to different frequencies – all hair cells respond to sound over a short time window.

  8. This gives a windowed Fourier transform.

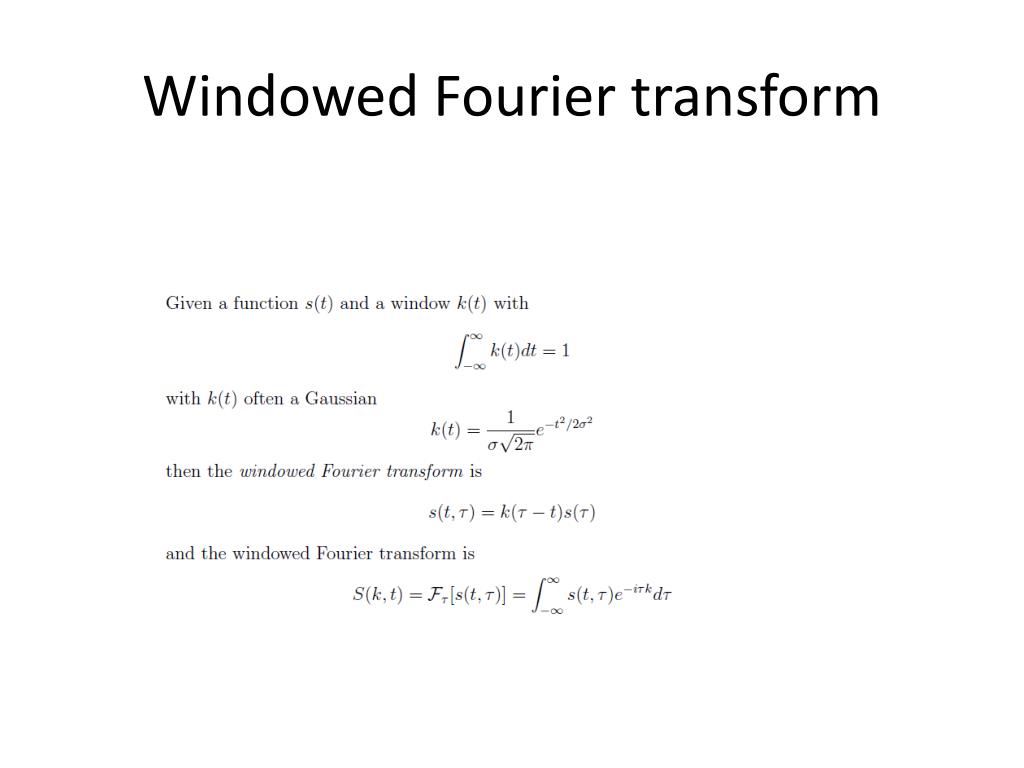

  9. Windowed Fourier transform

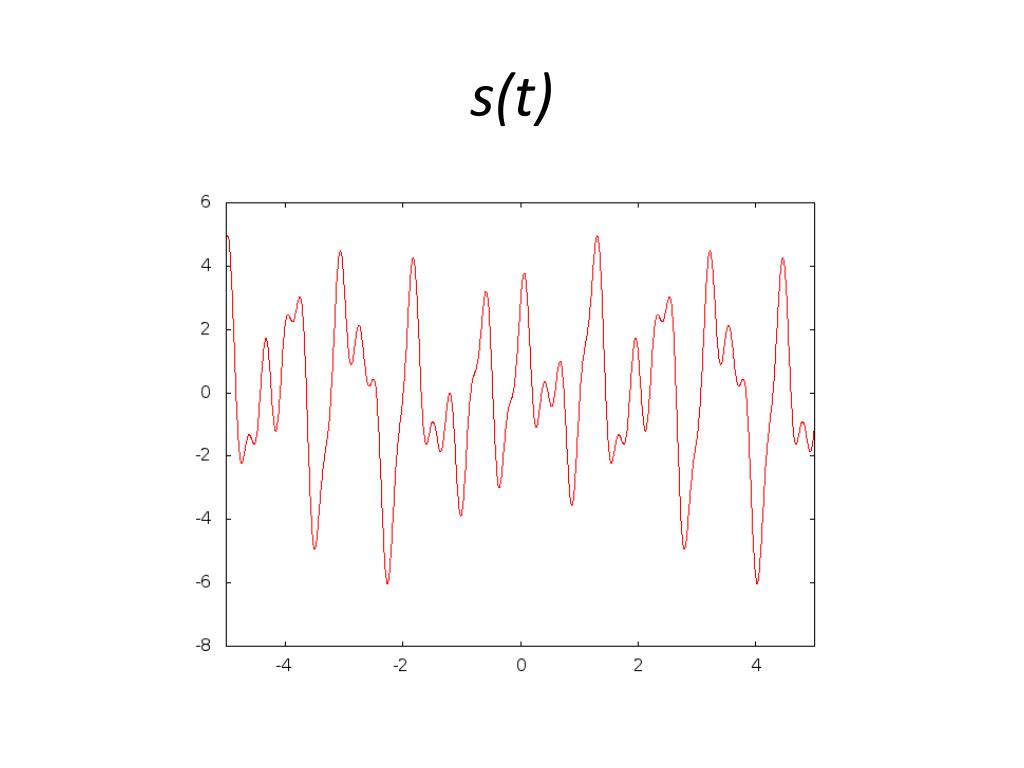

  10. s(t)

  11. k(t)

  12. s(t)k(t)

  13. Weber’s law • Roughly speaking – effect goes like the log of the cause. • Sort of holds for the auditory system. • Use log|S(k,t)| • SMALL PRINT: The phase information is gone, however, we have overlapping windows and two variables; there are theorems that say we haven’t lost anything.

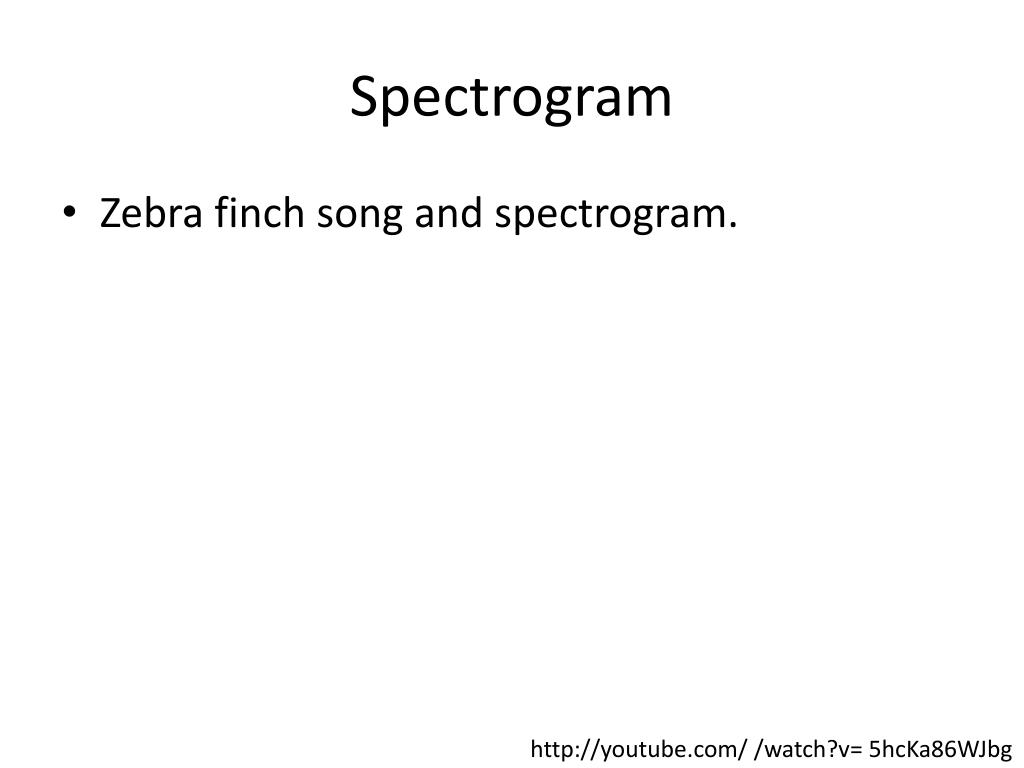

  14. Spectrogram • Zebra finch song and spectrogram. http://youtube.com/ /watch?v= 5hcKa86WJbg

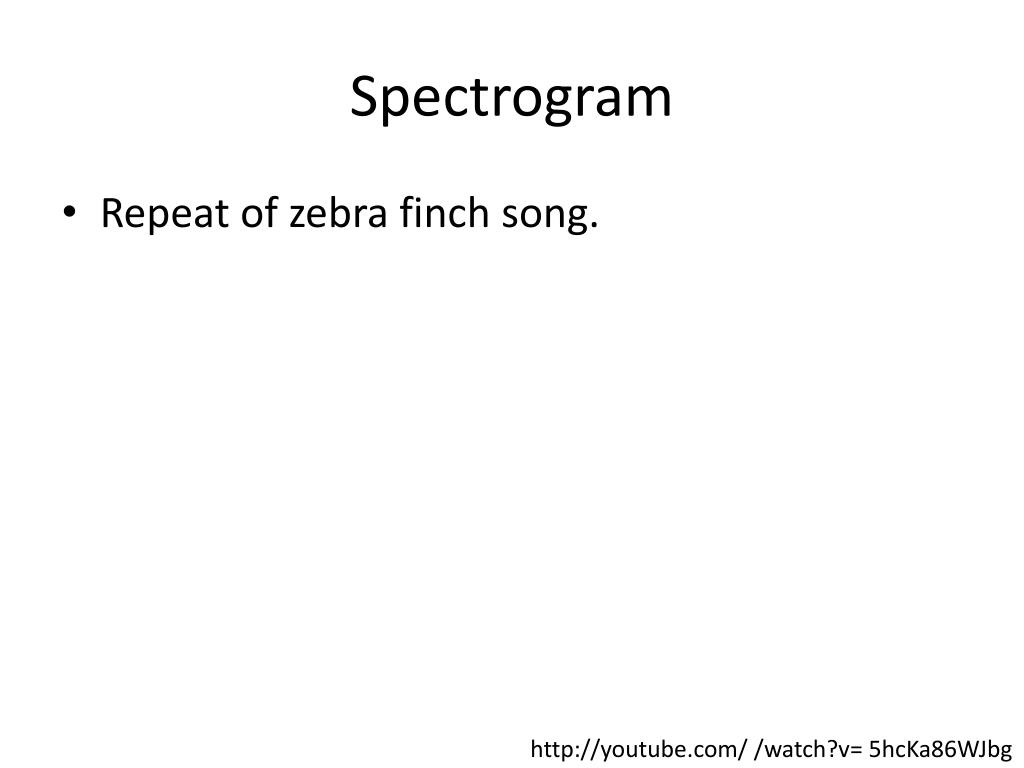

  15. Spectrogram • Repeat of zebra finch song. http://youtube.com/ /watch?v= 5hcKa86WJbg

  16. Zebra finches http://effieex3.tumblr.com/post/20369494508

  17. Zebra finch brain

  18. Maybe it’s like vision?

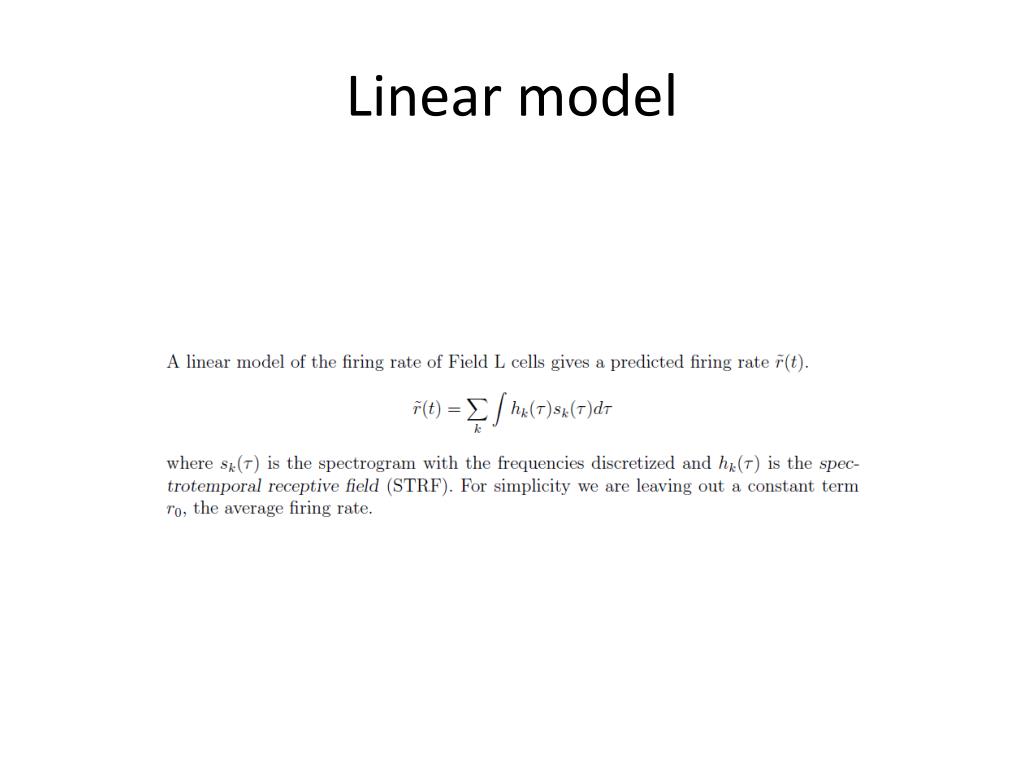

  19. Linear model

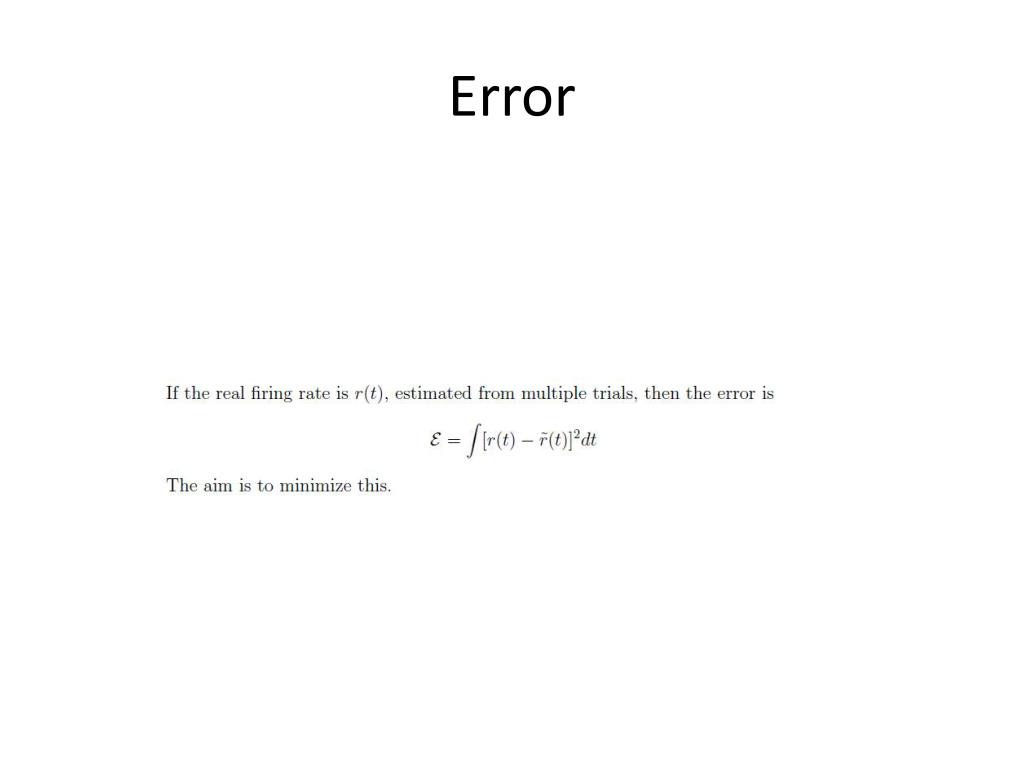

  20. Error

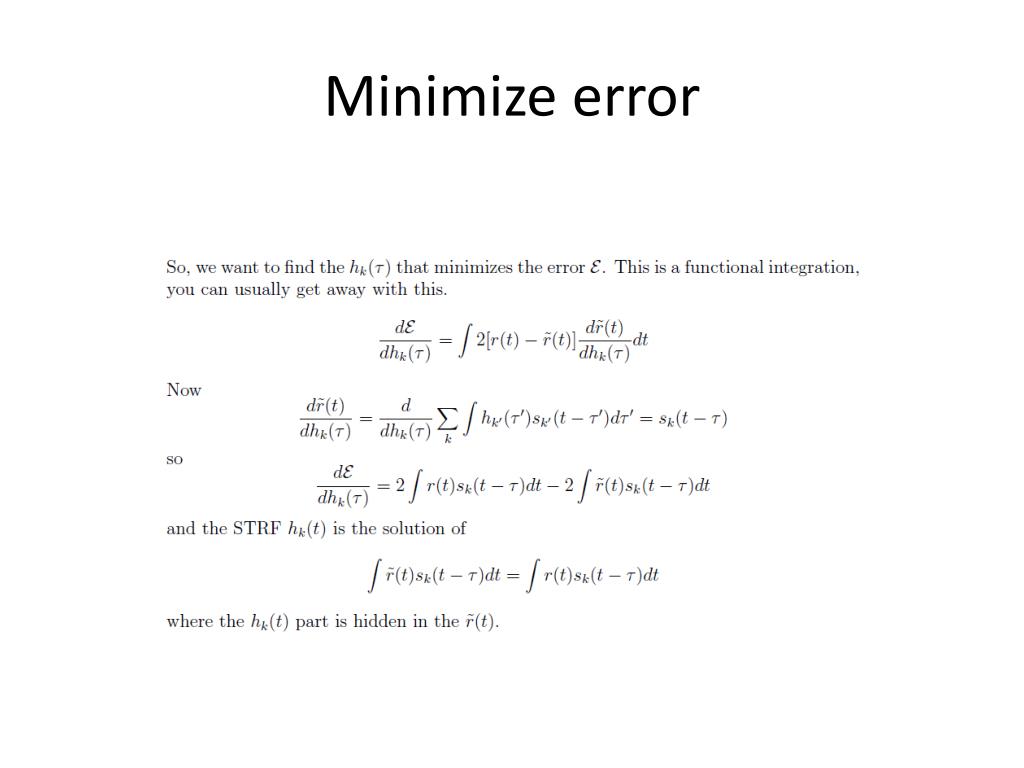

  21. Minimize error

  22. Calculate the STRF

  23. From Sen et al. J Neuro 2001

  24. From Sen et al. J Neuro 2001

  25. From Sen et al. J Neuro 2001

  26. So? • Works better than you might expect, particularly in the lower part of the pathway. • Does not give the whole story, particularly further up the pathway. • The calculation is hairy, but seems to work, certainly don’t try to improve it. • The STRFs aren’t quite as revealing as you’d expect.
