  1. Tactical Exploitation System (TES) Global Broadcast Service Network Implementation Observations and Proposed Enhancements Part One: Controlling IP Multicast Flooding

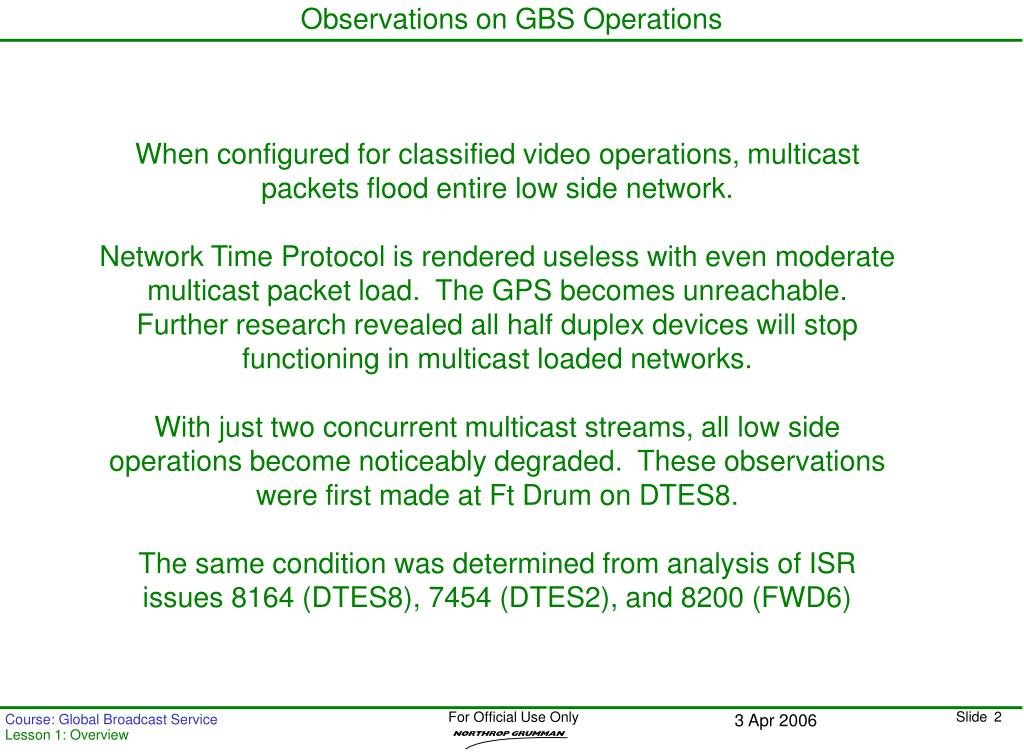

  2. Observations on GBS Operations When configured for classified video operations, multicast packets flood entire low side network.Network Time Protocol is rendered useless with even moderate multicast packet load. The GPS becomes unreachable. Further research revealed all half duplex devices will stop functioning in multicast loaded networks.With just two concurrent multicast streams, all low side operations become noticeably degraded. These observations were first made at Ft Drum on DTES8.The same condition was determined from analysis of ISR issues 8164 (DTES8), 7454 (DTES2), and 8200 (FWD6)

  3. Data Flow – Classified Feed (Video Display) CSV CSV Card Card Vehicle Utility Vehicle Utility Power Power Reader Reader Outlet Outlet IF IF Power Power Skystream Skystream IF IF IF IF IF IF IF IF Surge Surge Div Div Receiver Receiver IF IF Protector Protector Antenna Antenna ENET ENET Black Black Egress Egress Unmanaged Unmanaged Power Power ENET ENET Panel Panel IF IF Switch Switch Supply Supply RS 232 RS 232 UIP UIP ENET ENET Serial Serial Serial Serial Serial Serial Surge Surge USB USB – – Serial Serial Unclass Unclass Converter Converter GBS GBS Protector Protector Laptop Laptop Server Server KG KG - - 250 250 KIV KIV ENET ENET Existing TES Existing TES Nest Nest New Equipment Raytheon ENET ENET Video Video ENET ENET Mouse Mouse Keyboard Keyboard Customer Equip Managed Switch Managed Switch ENET ENET Ethernet Ethernet Serial Serial Video Video AmiNet AmiNet Monitor Monitor Surge Surge Audio L Audio L 103 103 Audio R Audio R Protector Protector Diag Diag KVM KVM S/COLL Backbone S/COLL Backbone AmiNet AmiNet Panel Panel Switch Switch ENET ENET Fiber ENET Fiber ENET Switch Switch 103 103 Red Red Egress Egress ENET ENET Video Video Panel Panel MAAS ss2lo Video Transit Video Transit Server Server Case Case

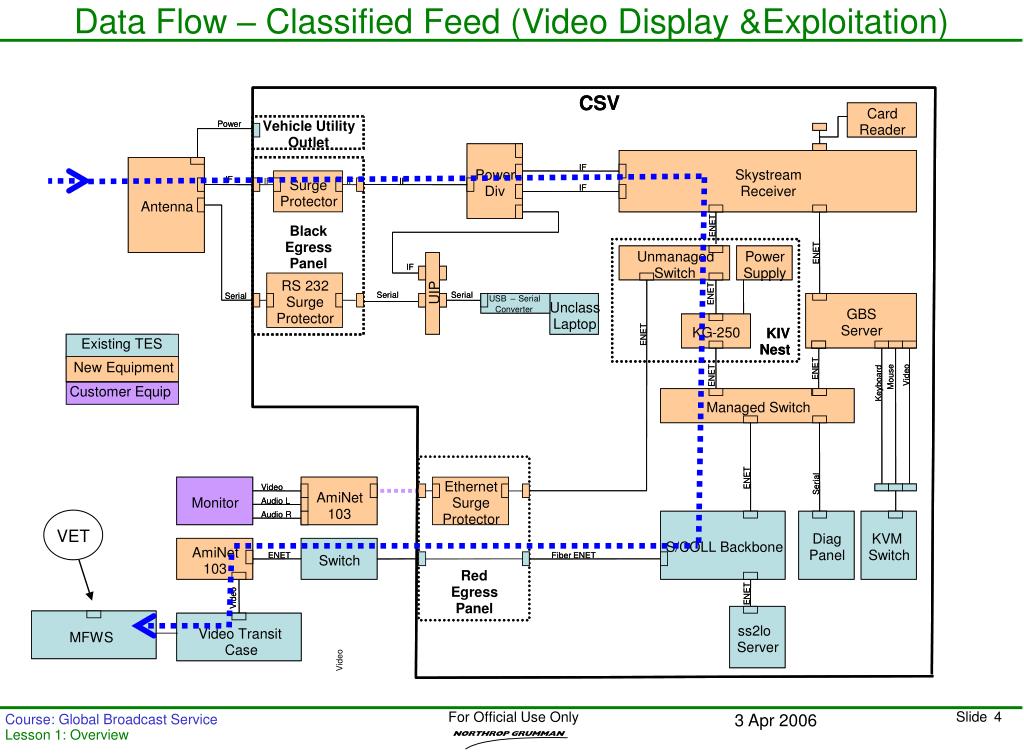

  4. Data Flow – Classified Feed (Video Display &Exploitation) Existing TES Existing TES New Equipment Raytheon Customer Equip VET CSV CSV Card Card Vehicle Utility Vehicle Utility Power Power Reader Reader Outlet Outlet IF IF Power Power Skystream Skystream IF IF IF IF IF IF IF IF Surge Surge Div Div Receiver Receiver IF IF Protector Protector Antenna Antenna ENET ENET Black Black Egress Egress Unmanaged Unmanaged Power Power ENET ENET Panel Panel IF IF Switch Switch Supply Supply RS 232 RS 232 UIP UIP ENET ENET Serial Serial Serial Serial Serial Serial Surge Surge USB USB – – Serial Serial Unclass Unclass Converter Converter GBS GBS Protector Protector Laptop Laptop Server Server KG KG - - 250 250 KIV KIV ENET ENET Nest Nest ENET ENET Video Video ENET ENET Mouse Mouse Keyboard Keyboard Managed Switch Managed Switch ENET ENET Ethernet Ethernet Serial Serial Video Video AmiNet AmiNet Monitor Monitor Surge Surge Audio L Audio L 103 103 Audio R Audio R Protector Protector Diag Diag KVM KVM S/COLL Backbone S/COLL Backbone AmiNet AmiNet Panel Panel Switch Switch ENET ENET Fiber ENET Fiber ENET Switch Switch 103 103 Red Red Egress Egress ENET ENET Video Video Panel Panel MAAS ss2lo Video Transit Video Transit Video Transit MFWS Server Server Case Case Case Video

  5. Understanding IP Multicast All classified video operations cause multicast packet flooding on the low side network. When an application wishes to join a multicast group, it sends an Internet Group Management Protocol (IGMP) join request to its default router. Since TES routers are not configured for multicast routing, this goes unanswered. The CSV switch is enabled for IGMP snooping (by default), and if the router would process IGMP, the switch could learn which of its ports have attached multicast receivers. Multicast operations succeed because all streams are currently present on all switch ports.Multicast routing needs to be enabled on the CSV router.

  6. GBS Multicast Network Configuration GBS Multicast Source Cisco 7206 Multicast Receiver Cisco 2950 SMC6709FL2 INTTigerSwitch™ 10/1008-port 10/100 +1 100BASE-FX MMF Standalone Managed Switch Multicast Receiver

  7. Configuring IP Multicast The following has been tested in the OSF, and stops IP Multicast flooding: config terminal no mgcp no ip pim bidir-enable ip multicast-routing ip pim autorp listener interface FastEthernet0/0 ip pim sparse-mode exit no ip pim dm-fallback end The first two lines after config are just to remove two items that are in the default CSV router config. MGCP is Media Gateway Control Protocol, a VOIP mechanism. Protocol Independent Multicast (PIM) bi-directional is for large scale many to many multicast environments.

  8. Tactical Exploitation System (TES) Global Broadcast Service Network Implementation Observations and Proposed Enhancements Part Two: Access to Unclassified Video

  9. GBS Connections to CSV in DTES Existing TES Existing TES New Equipment Raytheon Note: For Full FWD Configurations, The Switch In The Multifunction Workstation Is Replaced By The Switch In The Tactical Workstation. For FWD(-) A New Network Interface Box (NIB) Is Provided * BLACK Egress Panel RED Egress Panel User’s Cable 150’ Supplied w/NGRT Aminet 103 * SwitchIn Multifunction WS 100’ Existing Fiber 50’ New Ethernet VCR Transit Case Aminet 103

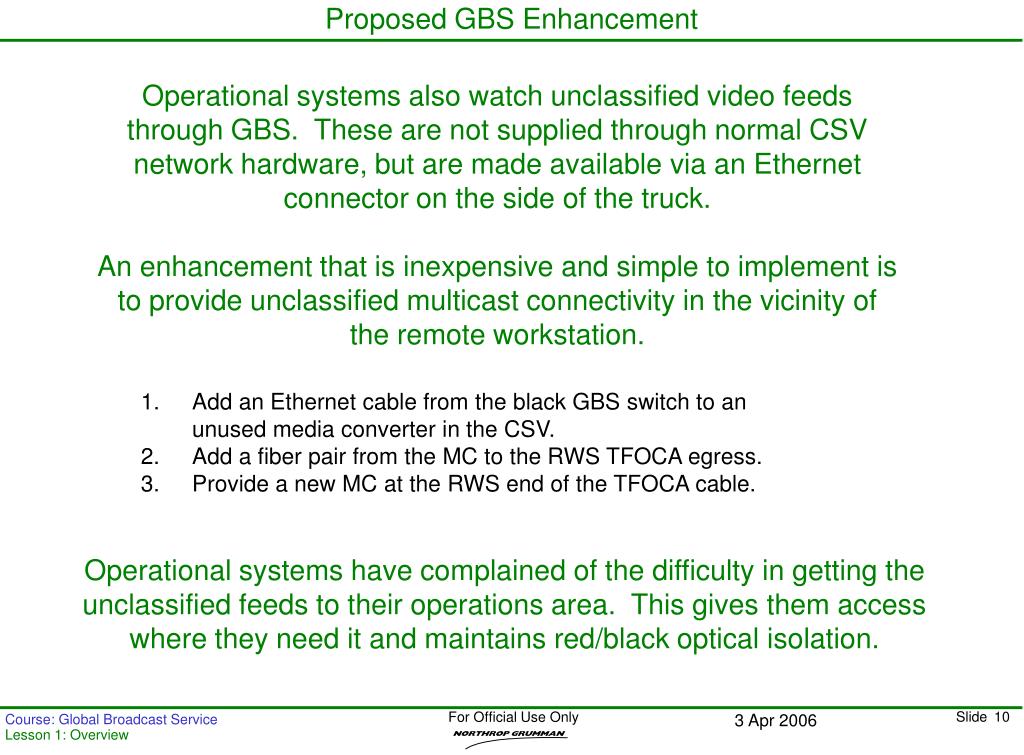

  10. Proposed GBS Enhancement Operational systems also watch unclassified video feeds through GBS. These are not supplied through normal CSV network hardware, but are made available via an Ethernet connector on the side of the truck.An enhancement that is inexpensive and simple to implement is to provide unclassified multicast connectivity in the vicinity of the remote workstation. • Add an Ethernet cable from the black GBS switch to an unused media converter in the CSV. • Add a fiber pair from the MC to the RWS TFOCA egress. • Provide a new MC at the RWS end of the TFOCA cable. Operational systems have complained of the difficulty in getting the unclassified feeds to their operations area. This gives them access where they need it and maintains red/black optical isolation.

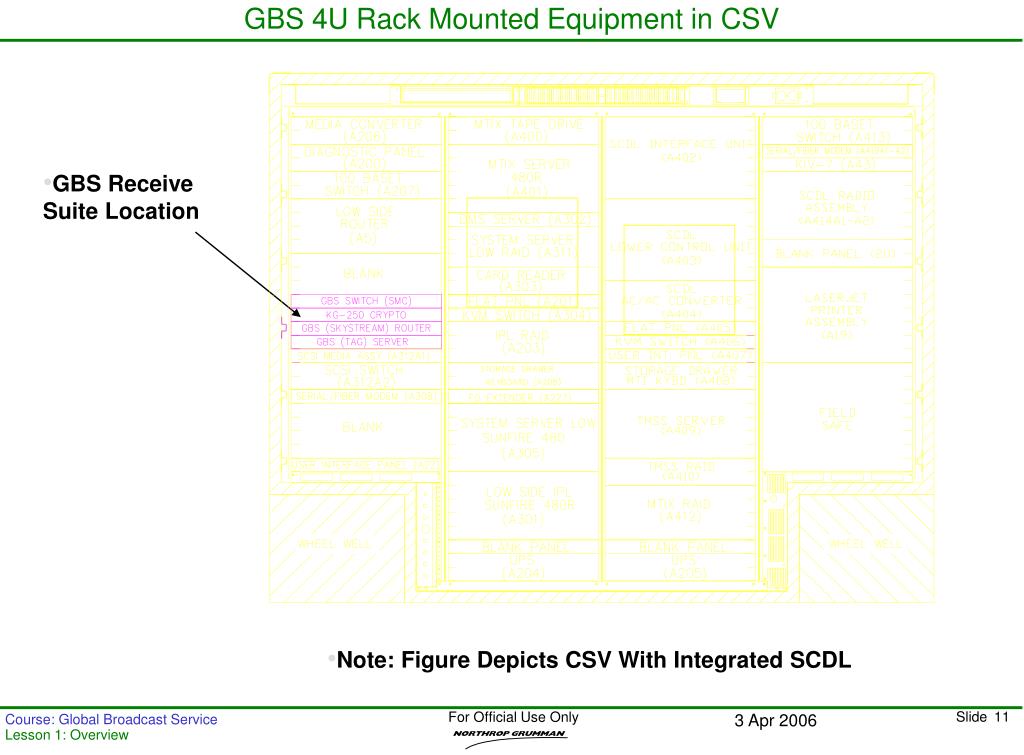

  11. GBS 4U Rack Mounted Equipment in CSV • GBS Receive Suite Location • Note: Figure Depicts CSV With Integrated SCDL

  12. Data Flow – Unclassified Feed (Video Display Only) CSV CSV Card Card Vehicle Utility Vehicle Utility Power Power Reader Reader Outlet Outlet IF IF Power Power Skystream Skystream IF IF IF IF IF IF IF IF Surge Surge Div Div Receiver Receiver IF IF Protector Protector Antenna Antenna ENET ENET Black Black Egress Egress Unmanaged Unmanaged Power Power ENET ENET Panel Panel IF IF Switch Switch Supply Supply RS 232 RS 232 UIP UIP ENET ENET Serial Serial Serial Serial Serial Serial Surge Surge USB USB – – Serial Serial Unclass Unclass Converter Converter GBS GBS Protector Protector Laptop Laptop Server Server KG KG - - 250 250 KIV KIV ENET ENET Existing TES Existing TES Nest Nest New Equipment Raytheon ENET ENET Video Video ENET ENET Mouse Mouse Keyboard Keyboard Customer Equip Managed Switch Managed Switch ENET ENET Ethernet Ethernet Serial Serial Video Video AmiNet AmiNet Monitor Monitor Surge Surge Audio L Audio L 103 103 Audio R Audio R Protector Protector Diag Diag KVM KVM S/COLL Backbone S/COLL Backbone AmiNet AmiNet Panel Panel Switch Switch ENET ENET Fiber ENET Fiber ENET Switch Switch 103 103 Red Red Egress Egress ENET ENET Video Video Panel Panel MAAS ss2lo Video Transit Video Transit Server Server Case Case
