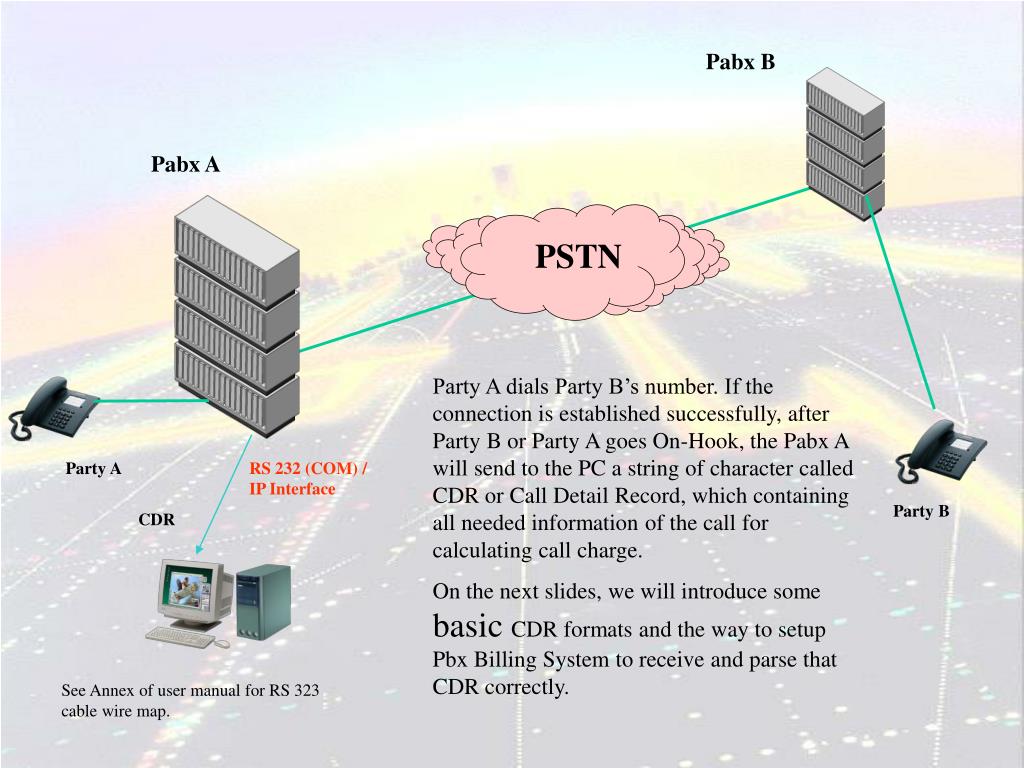

  1. Pabx B Pabx A PSTN Party A dials Party B’s number. If the connection is established successfully, after Party B or Party A goes On-Hook, the Pabx A will send to the PC a string of character called CDR or Call Detail Record, which containing all needed information of the call for calculating call charge. On the next slides, we will introduce some basic CDR formats and the way to setup Pbx Billing System to receive and parse that CDR correctly. Party A RS 232 (COM) / IP Interface Party B CDR See Annex of user manual for RS 323 cable wire map.

  2. Go to Application Tools>>Application Settings to get below dialog. Your dialog may look difference from the sample just because you are using newer version. The principle to configure emains the same. Siemens Pbx CDR Format (Hicom): 13 002 102115 091802102 1. 9.1999 8:14:21 0: 0:50 14 416 102113 091916062 1. 9.1999 8:15: 6 0: 0:16 15 024 100631 091806272 1. 9.1999 8:12:54 0: 3:25 16 130 426776 091802102 1. 9.1999 8:18:17 0: 1:20

  3. Alcatel Pabx CDR Format: 731 278 --> 1 NAT 18/09/00 8:17 1-04 088228333 732 352 --> 19 URB 18/09/00 8:16 1-55 819374 733 231 --> 2 NAT 18/09/00 8:18 1-09 090903792 734 361 --> 3 NAT 18/09/00 8:20 0-43 091940180

  4. Panasonic Pabx CDR Format (With Account Code) 1/31/01 * 2:05PM 102 02 < incoming > 00:01'49" .... 1/31/01 2:07PM 107 01 8291354 00:02'00" ..07 1/31/01 2:09PM 101 02 8244666 00:00'07" ..01 1/31/01 2:10PM 101 02 < incoming > 00:01'12" ....

  5. Panasonic Pabx CDR Format (With Access Code) 1/31/01 * 2:05PM 102 02 < incoming > 00:01'49" .... 1/31/01 2:07PM 107 01 8291354 00:02'00" ..07 1/31/01 2:09PM 101 02 8244666 00:00'07" ..01 1/31/01 2:10PM 101 02 < incoming > 00:01'12" .... The original CDR contains many unnecessary field. Pabx Billing System has filter which can replace such character before process the CDR We enter the filter the following character: -, *,<,>,.. “Date Time Ext. CO Dial number Duration Code” is page title of Panasonic, we can delete such string by enter that string to the filter as well. The CDR after filtering looked like below. It is compatible with CDR Column Separator of Pabx Billing System. 1/31/01 2:05PM 102 02 incoming 00:01'49" 1/31/01 2:07PM 107 01 8291354 00:02'00“ 07 1/31/01 2:09PM 101 02 8244666 00:00'07" 01 1/31/01 2:10PM 101 02 incoming 00:01'12"

  6. Panasonic Pabx CDR Format 1/31/01 2:12PM 106 01 090589469 00:00'36“ 1/31/01 2:13PM 106 01 090589469 00:01'21" 1/31/01 2:12PM 107 02 091908199 00:02'46" 1/31/01 2:15PM 106 01 090818254 00:01'37" For this CDR format of Panasonic Pabx, no need to do filtering before process CDR.
