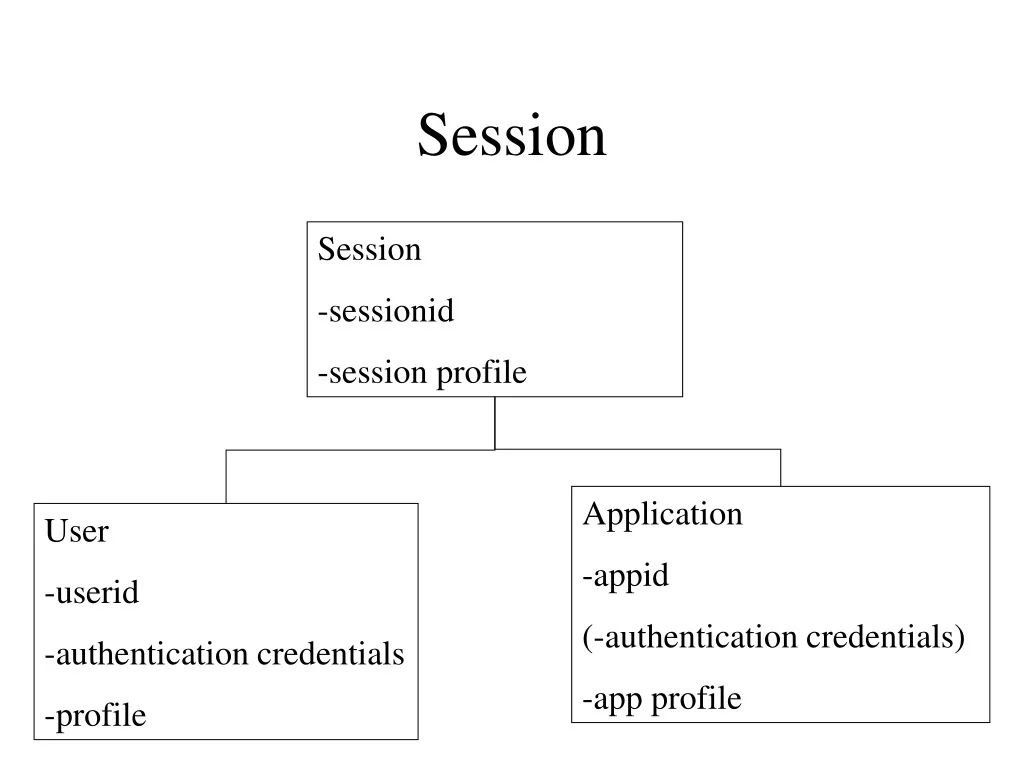

  1. Session Session -sessionid -session profile Application -appid (-authentication credentials) -app profile User -userid -authentication credentials -profile

  2. Session -sessionid -session profile Session -sessionid -authentication credentials -session profile Application -appid (-authentication credentials) -app profile User -userid -authentication credentials -profile Application -appid (-authentication credentials) -app profile

  3. Session -sessionid=371 -session profile=simple Session -sessionid=newnet.dial.223 -authentication credentials=newnet -session profile= auth.newnet Application -appid =extrabandw (-authentication credentials) -app profile=bandwshare Application -appid=localdial (-authentication credentials)=localdialcred -app profile=ispshare User -userid=jrv -authentication credentials=jrvcred -profile=green

  4. Transaction Reqid-2 Authorization Reqid-1 user AAA1 Reqid-3 Authentication Each req is independent

  5. Session -sessionid=371 -session profile=simple Audit tracker Usage record Session -sessionid=newnet.dial.223 -authentication credentials=newnet -session profile= auth.newnet Application -appid =extrabandw (-authentication credentials) -app profile=bandwshare User -userid=jrv -authentication credentials=jrvcred -profile=green Application -appid=localdial (-authentication credentials)=localdialcred -app profile=ispshare
