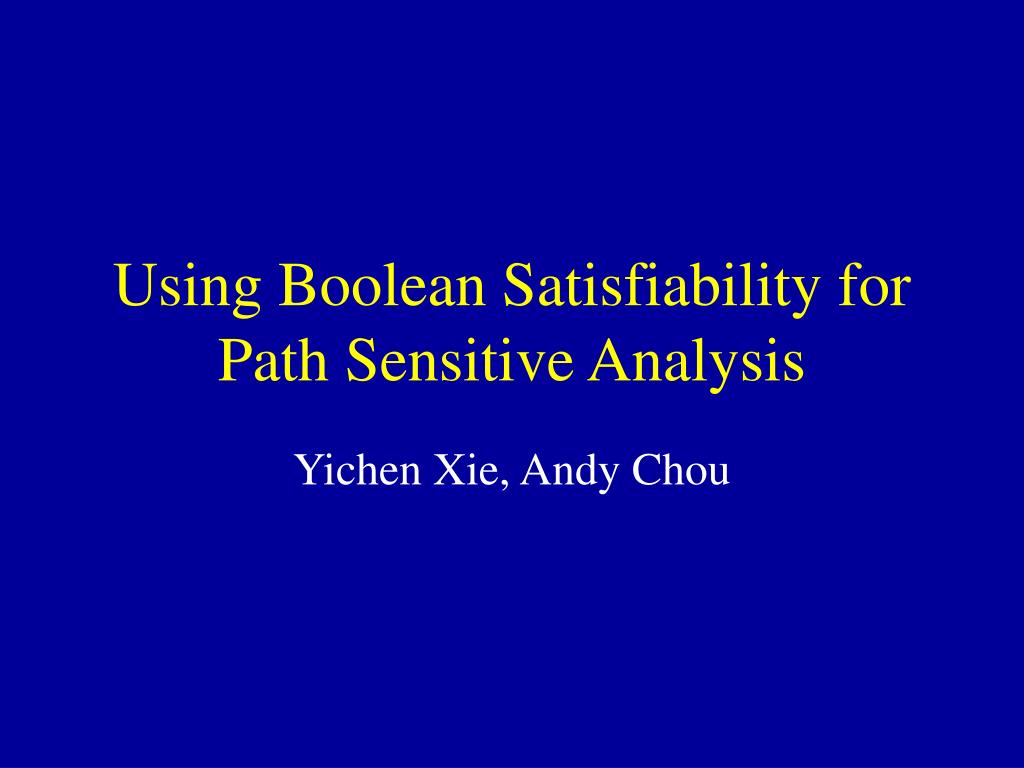

1. Using Boolean Satisfiability for Path Sensitive Analysis Yichen Xie, Andy Chou

2. SAT • Classic NP-complete problem • Backend for many tools in verification, AI, etc. • Much recent work: • Chaff / Grasp / SATO / GSAT • SAT problem P = conjunction of clauses • Clause = Disjunction of literals • Literal = v orv • Example: (x  y)  (x  y) • A is a satisfying assignment if P(A) = true

3. Motivation • Eliminate false positives from false paths • Reasoning about values • Integer overflows • Buffer overruns • Off-by-one errors • Branch correlations / Path sensitivity • Take advantage of SAT solver improvements

4. Modeling Properties if(x) lock(l); if(x) unlock(l); if(x) { assert(l == unlocked); l = locked } if(x) { assert(l == locked); l = unlocked; }

5. Translating Expressions • X => [x31 x30 …x0] • Expressions: Build circuit for operations • X != 0 => x31x30 …  x0 • X == 0 => (x31x30 …  x0) • X == Y => (x31=y31 …  x0=y0) • Addition: ripple-carry adder • Multiply by constant: Booth’s algorithm • Negative numbers: 2’s complement • Bit operations easy • Captures effect of overflow

6. Translating Statements • SSA Transformation Table T(v) = vi • Assignment T[e] => E T’ = Rename(x, T) T[x = e] => (T’(x) = E), T’

7. Translating Control Flow • Similar to verification condition generation • See the ESC/Java paper we read • Build path expression (regular expression of edges in CFG) • Translate path expression • Sequence => AND • Branch => OR • Loop => Desugar and unroll

8. Demo

9. Related Work • Metal - adds path sensitivity • ESC • simpler slicing, variable renaming • interprocedural • annotations optional • SLAM/Lazy Abstraction • no iteration; guaranteed to converge • no need to “discover” predicates • SAT > Model checking

10. Related Work • ESP • Catch more than constants • Prefix • Sound • Simultaneously simulate all paths • Model Checking • Eats too much memory for many problems

11. Future Work • Slice w.r.t. transitions • Only extract variables that influence transitions • Unroll loops & recursion enough times to get all possible transitions
