Boolean Satisfiabilityin Electronic Design Automation (EDA ) By Kunal P. Ganeshpure
Talk structure • Introduction to Boolean Satisfiability • Applications of SAT in EDA • CNF equations for logic gates and combinational circuits • Backtrack search algorithm. • Recursive learning. • Conclusion

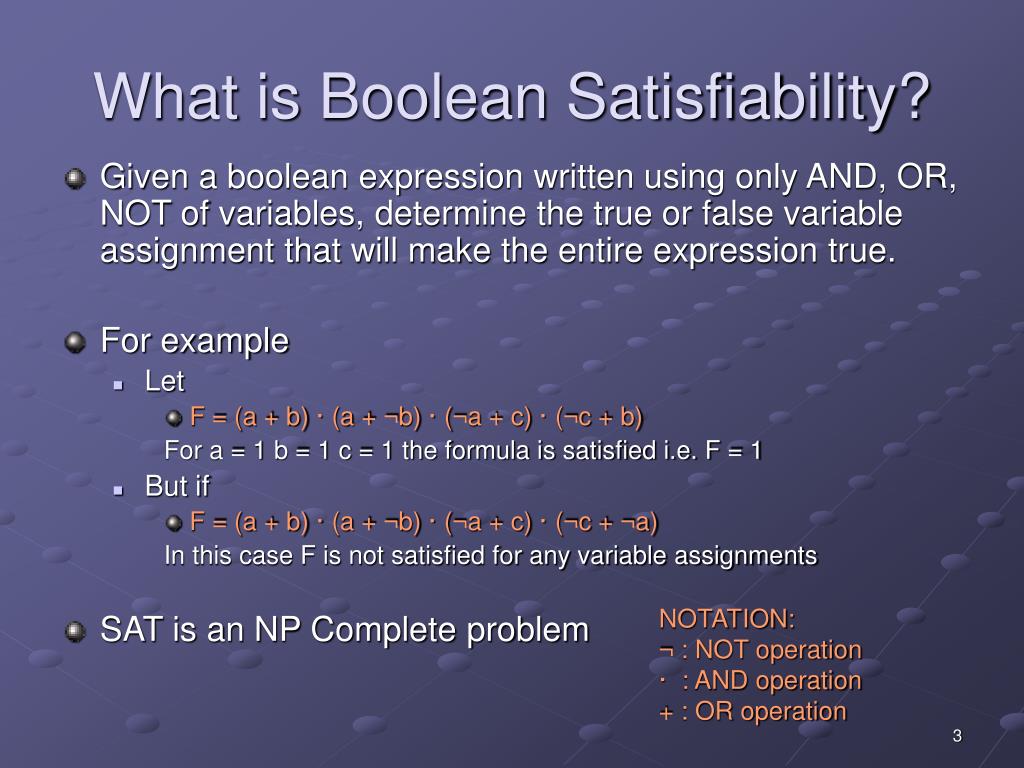

What is Boolean Satisfiability? • Given a boolean expression written using only AND, OR, NOT of variables, determine the true or false variable assignment that will make the entire expression true. • For example • Let • F = (a + b) · (a + ¬b) · (¬a + c) · (¬c + b) For a = 1 b = 1 c = 1 the formula is satisfied i.e. F = 1 • But if • F = (a + b) ·(a + ¬b) · (¬a + c) · (¬c + ¬a) In this case F is not satisfied for any variable assignments • SAT is an NP Complete problem NOTATION: ¬ : NOT operation · : AND operation + : OR operation

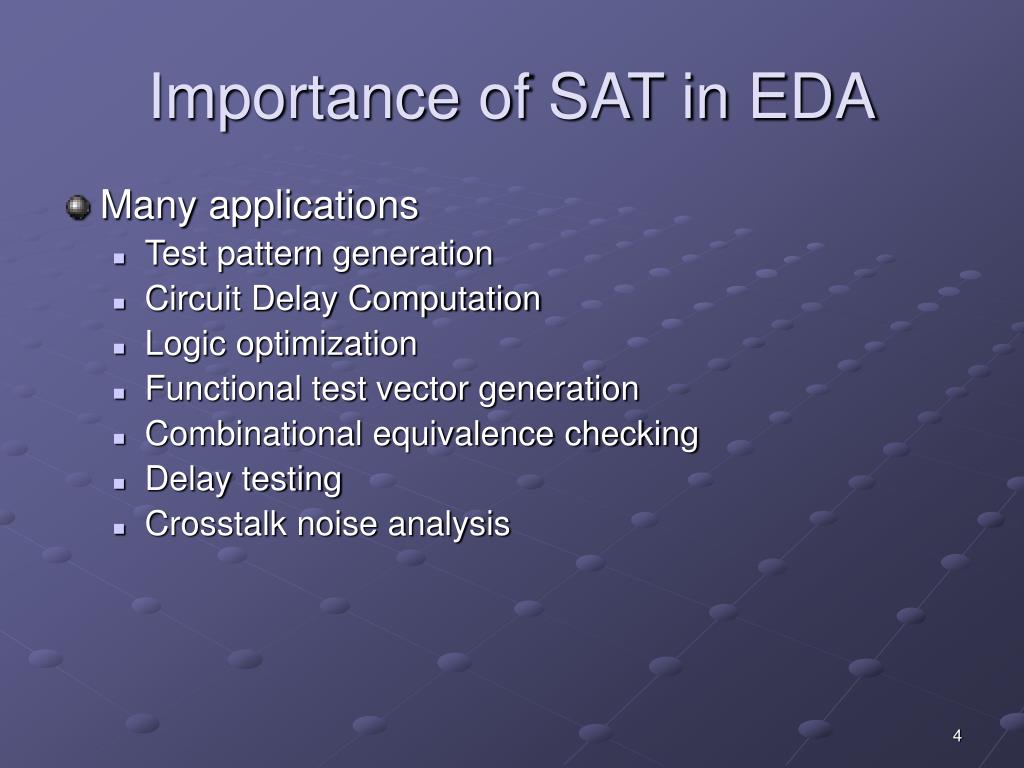

Importance of SAT in EDA • Many applications • Test pattern generation • Circuit Delay Computation • Logic optimization • Functional test vector generation • Combinational equivalence checking • Delay testing • Crosstalk noise analysis

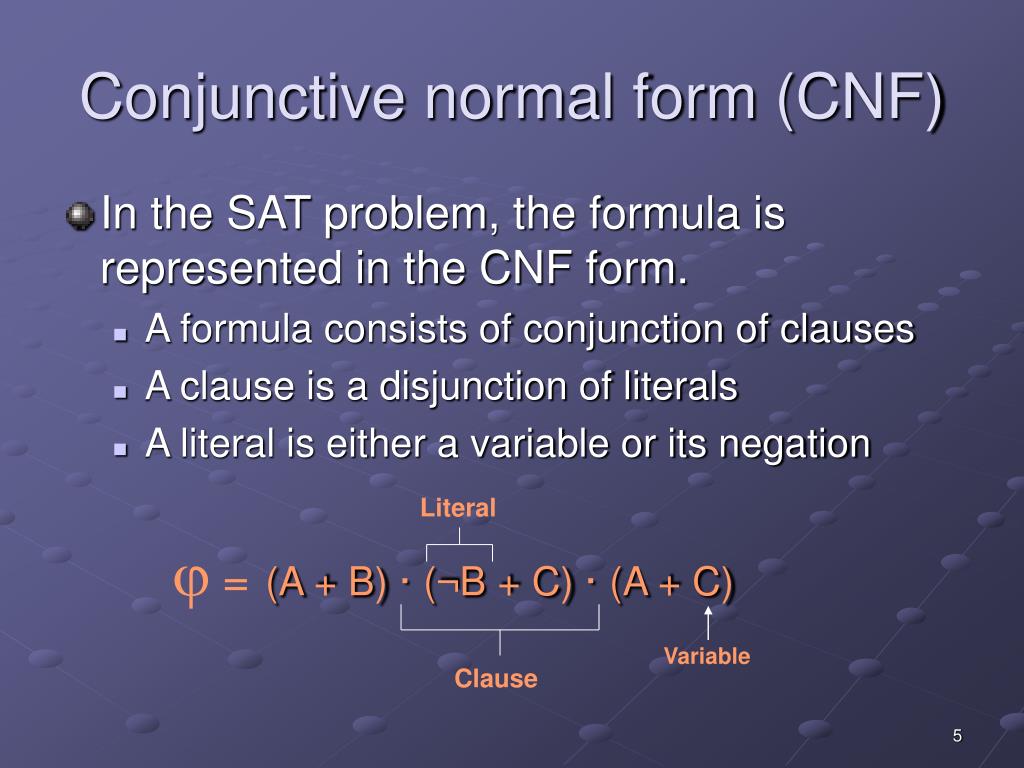

Conjunctive normal form (CNF) • In the SAT problem, the formula is represented in the CNF form. • A formula consists of conjunction of clauses • A clause is a disjunction of literals • A literal is either a variable or its negation Literal =(A + B) · (¬B + C) · (A + C) Variable Clause

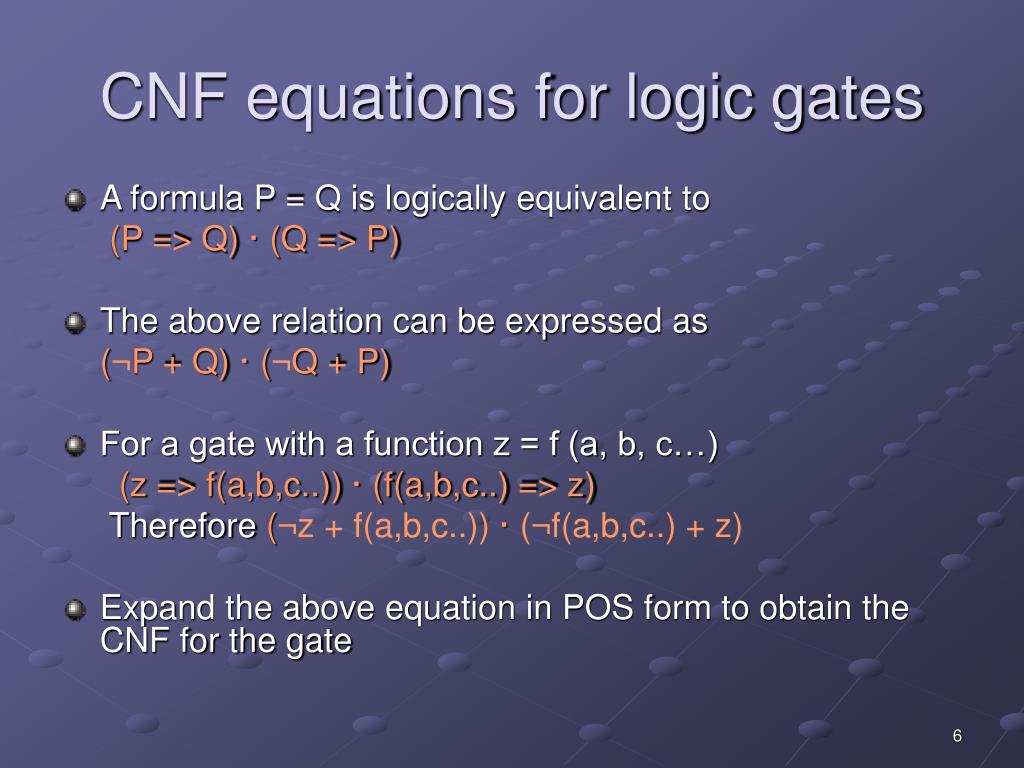

CNF equations for logic gates • A formula P = Q is logically equivalent to (P => Q) · (Q => P) • The above relation can be expressed as (¬P + Q) · (¬Q + P) • For a gate with a function z = f (a, b, c…) (z => f(a,b,c..)) · (f(a,b,c..) => z) Therefore (¬z + f(a,b,c..)) · (¬f(a,b,c..) + z) • Expand the above equation in POS form to obtain the CNF for the gate
CNF equations for gates (example) a z b z = a · b (z => (a · b)) ·((a · b) => z) (¬z + (a · b)) · (¬(a · b) + z) (¬z + a) · (¬z + b) · (z + ¬a + ¬b) Therefore the CNF formula is = (a + ¬z) · ( b + ¬z) · (¬a + ¬b + z)

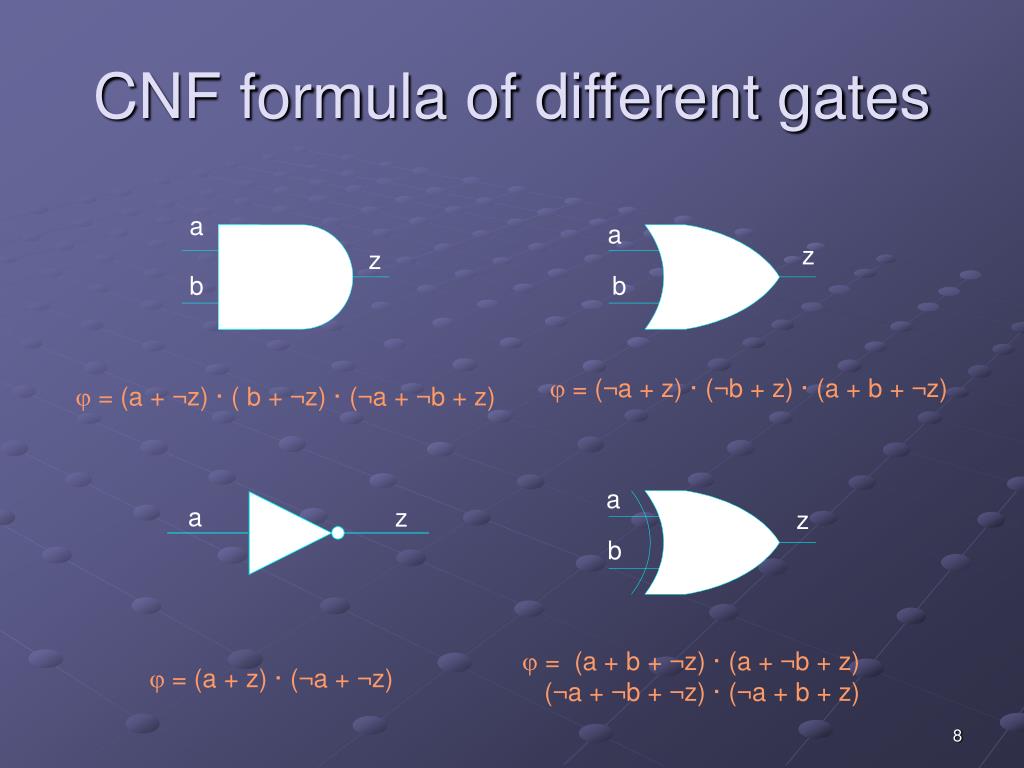

a a z z b b a z a z b CNF formula of different gates = (¬a + z) · (¬b + z) · (a + b + ¬z) = (a + ¬z) · ( b + ¬z) · (¬a + ¬b + z) • = (a + b + ¬z) · (a + ¬b + z) • (¬a + ¬b + ¬z) · (¬a + b + z) = (a + z) · (¬a + ¬z)
CNF equations for a logic circuit DAG for the circuit Original circuit • Breath first propagation • through the DAG. • Take the conjunction of all • equations for all the nodes. O = ((f + ¬d) · (f + ¬e) · (f + d + ¬e)) · ((¬d + c) · (¬d + b) · (d + ¬c + ¬b)) · ((¬e + a) · (¬e + c) · (e + ¬a + ¬c)) · ((c + a) · (c + b) · (¬c + ¬a + ¬b))

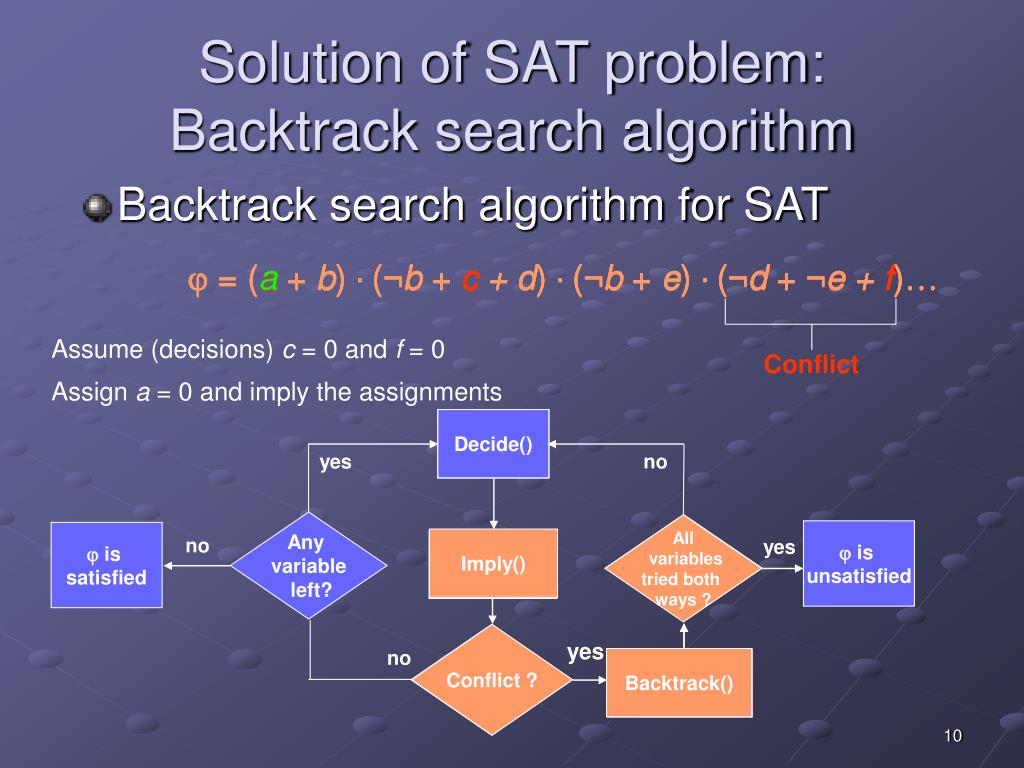

Conflict Solution of SAT problem:Backtrack search algorithm • Backtrack search algorithm for SAT = (a + b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) = (a + b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) = (a+ b) · (¬b+ c + d) · (¬b+ e) · (¬d+ ¬e +f) = (a+ b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) = (a+ b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) = (a+ b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) Assume (decisions) c = 0 and f = 0 Assign a = 0 and imply the assignments Decide() Decide() Decide() yes no Any variable left? All variables tried both ways ? All variables tried both ways ? is unsatisfied is satisfied no Imply() yes Imply() Conflict ? Conflict ? yes no Backtrack() Backtrack()

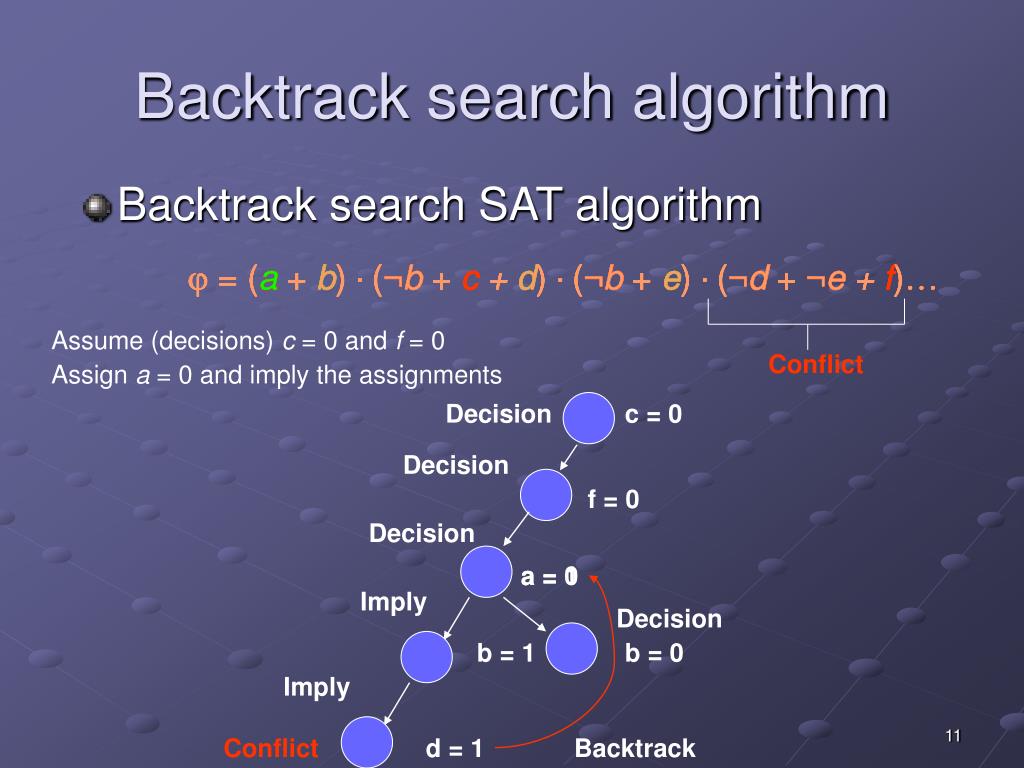

Decision c = 0 Conflict Decision f = 0 Decision Imply Decision b = 1 b = 0 Imply d = 1 Backtrack Backtrack search algorithm • Backtrack search SAT algorithm = (a+ b) · (¬b+ c + d) · (¬b+ e) · (¬d+ ¬e +f) = (a + b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) = (a+ b) · (¬b+ c + d) · (¬b+ e) · (¬d+ ¬e +f) = (a + b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) = (a+ b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) = (a+ b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) = (a+ b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) = (a+ b) · (¬b + c + d) · (¬b + e) · (¬d + ¬e +f) Assume (decisions) c = 0 and f = 0 Assign a = 0 and imply the assignments a = 0 a = 1 Conflict
Recursive Learning • Search space reduction technique. • Study the different ways of satisfying the selected clause. • Determine the assignments that are necessary for the satisfiability instance to get satisfied. • Form a clause that describes the variable assignment.

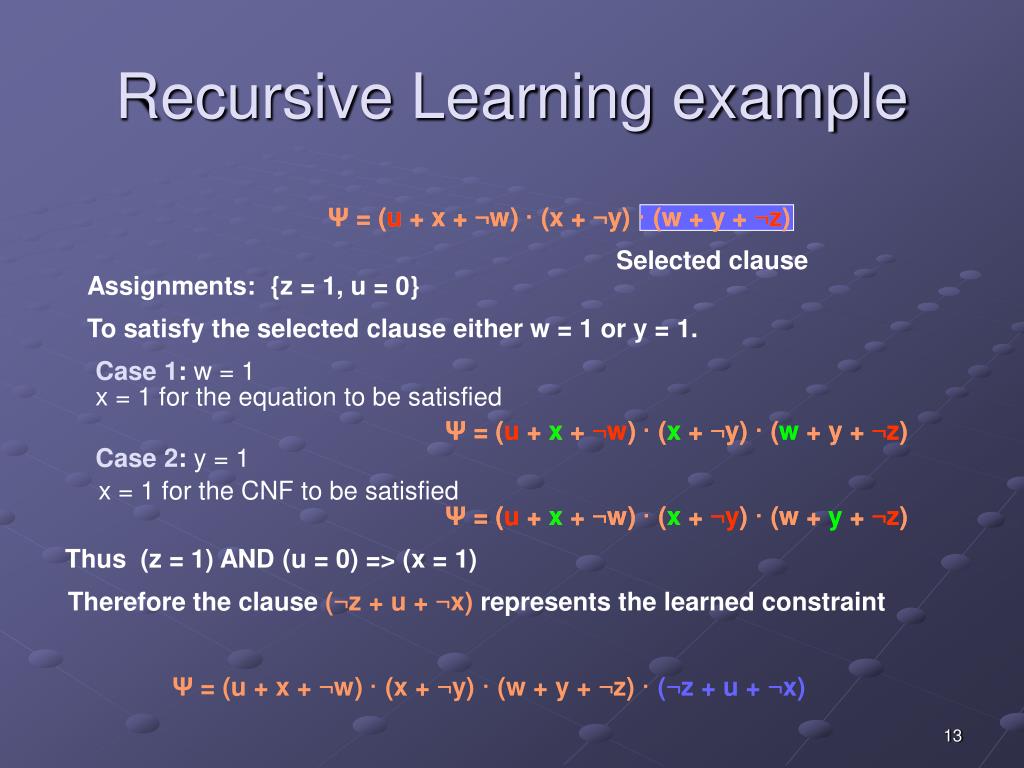

Recursive Learning example Ψ = (u + x + ¬w) · (x + ¬y) · (w + y + ¬z) Ψ = (u+ x + ¬w) · (x + ¬y) · (w + y +¬z) Selected clause Assignments: {z = 1, u = 0} To satisfy the selected clause either w = 1 or y = 1. Case 1: w = 1 x = 1 for the equation to be satisfied Ψ = (u+ x +¬w) · (x + ¬y) · (w+ y +¬z) Ψ = (u+x+¬w) · (x+¬y) · (w+ y +¬z) Case 2: y = 1 x = 1 for the CNF to be satisfied Ψ = (u +x+ ¬w) · (x+¬y) · (w + y+¬z) Ψ = (u + x + ¬w) · (x +¬y) · (w + y+ ¬z) Thus (z = 1) AND (u = 0) => (x = 1) Therefore the clause (¬z + u + ¬x) represents the learned constraint Ψ = (u + x + ¬w) · (x + ¬y) · (w + y + ¬z) · (¬z + u + ¬x)

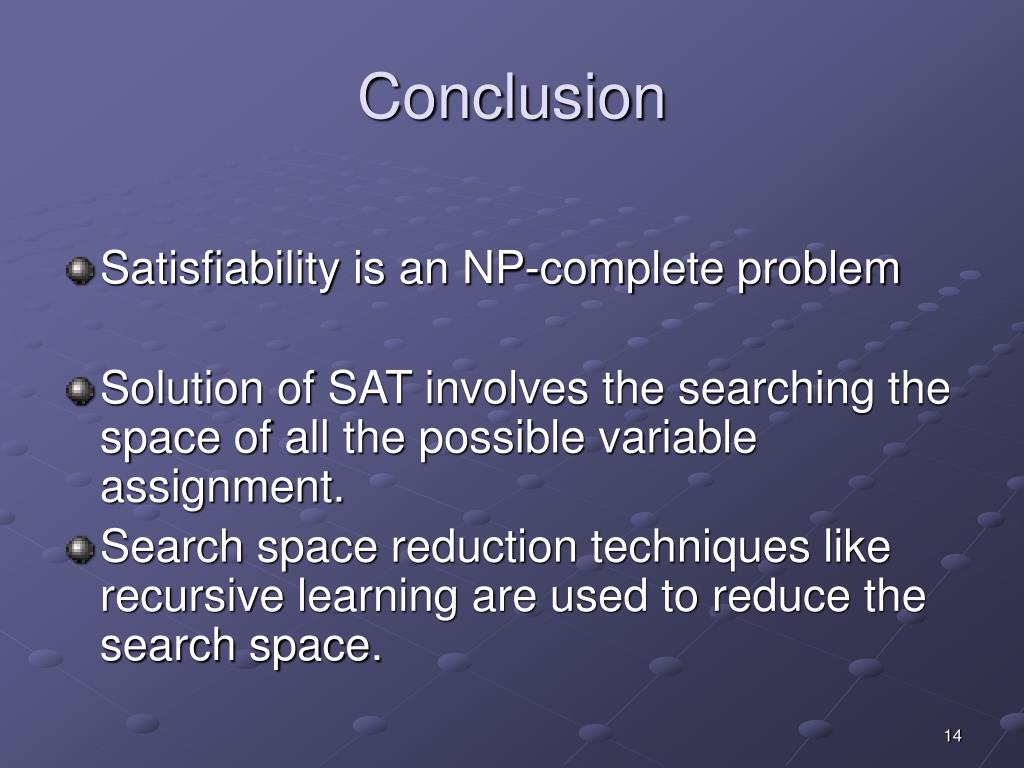

Conclusion • Satisfiability is an NP-complete problem • Solution of SAT involves the searching the space of all the possible variable assignment. • Search space reduction techniques like recursive learning are used to reduce the search space.

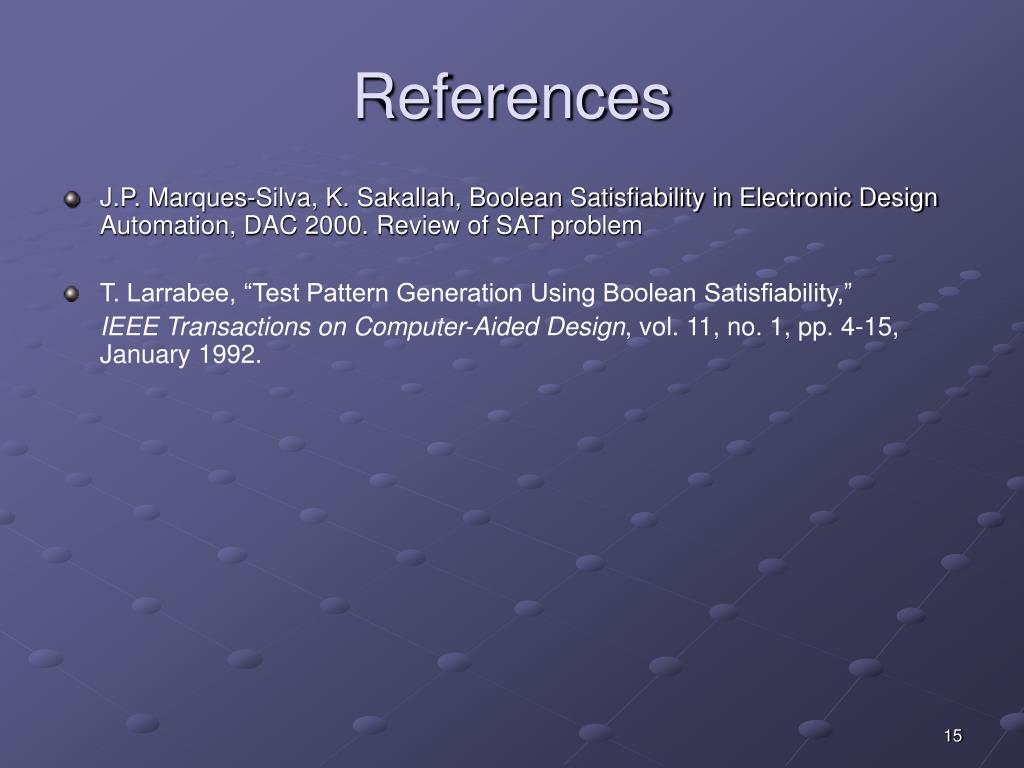

References • J.P. Marques-Silva, K. Sakallah, Boolean Satisfiability in Electronic Design Automation, DAC 2000. Review of SAT problem • T. Larrabee, “Test Pattern Generation Using Boolean Satisfiability,” IEEE Transactions on Computer-Aided Design, vol. 11, no. 1, pp. 4-15, January 1992.
