Flip-flops. Combinational logic circuit. Basic Latch. Both circuit are the same The only feedback path is the red line. Basic Latch. Consider Set = 0, Reset =0. Basic Latch. Consider S = 1, R =0 As S=1, NOR1 output must be 0 As NOR1 ouput = 0 and R =0, NOR2 output must be 1. Basic Latch.

starr
Télécharger la présentation

Flip-flops

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Flip-flops Combinational logic circuit

  2. Basic Latch • Both circuit are the same • The only feedback path is the red line

  3. Basic Latch • Consider Set = 0, Reset =0

  4. Basic Latch • Consider S = 1, R =0 • As S=1, NOR1 output must be 0 • As NOR1 ouput = 0 and R =0, NOR2 output must be 1

  5. Basic Latch • Consider S = 0, R =1 • As R = 1, NOR2 output must be 0

  6. Basic Latch • Consider R = 1 and S =1 • As R = 1, NOR2 output must be 0 • As S = 1, NOR1 output must be 0

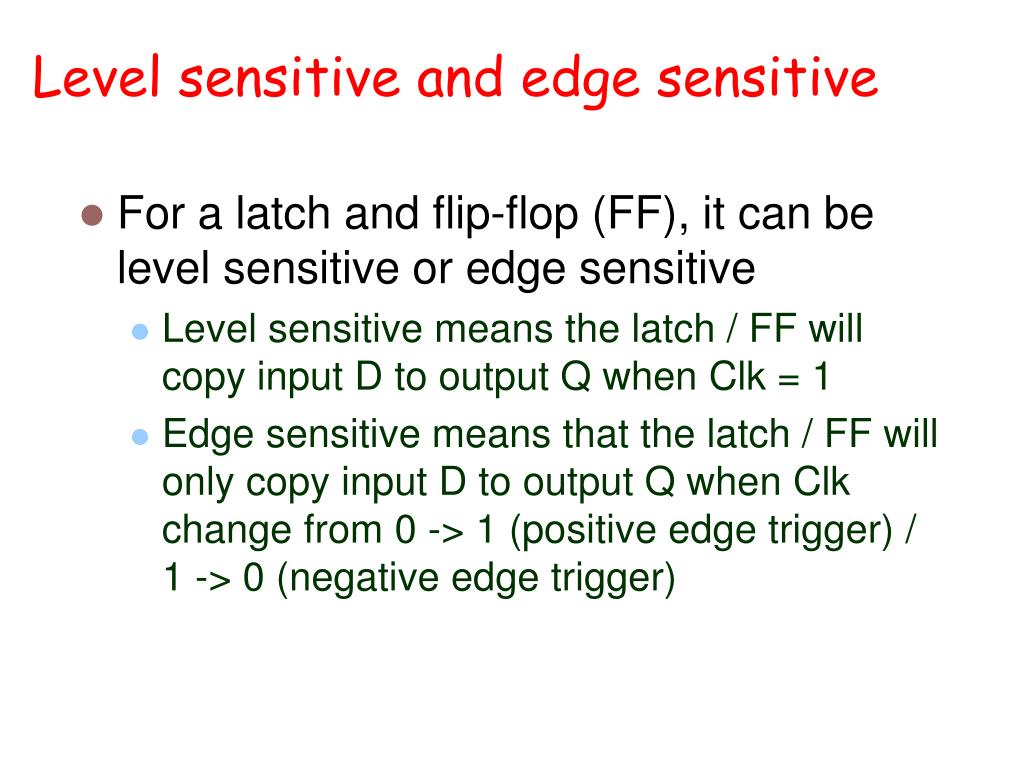

  7. Level sensitive and edge sensitive • For a latch and flip-flop (FF), it can be level sensitive or edge sensitive • Level sensitive means the latch / FF will copy input D to output Q when Clk = 1 • Edge sensitive means that the latch / FF will only copy input D to output Q when Clk change from 0 -> 1 (positive edge trigger) / 1 -> 0 (negative edge trigger)

  8. Level sensitive

  9. Edge sensitive

  10. Representation of Numbers • Single bit signal • signal abc : STD_LOGIC; (define signal) • abc : IN STD_LOGIC; (input port) • Multibit signal • signal abc : STD_LOGIC_VECTOR(3 downto 0); • signal abc : STD_LOGIC_VECTOR(1 to 3); • abc : IN STD_LOGIC_VECTOR(3 downto 0); • abc : IN STD_LOGIC_VECTOR(1 to 3);

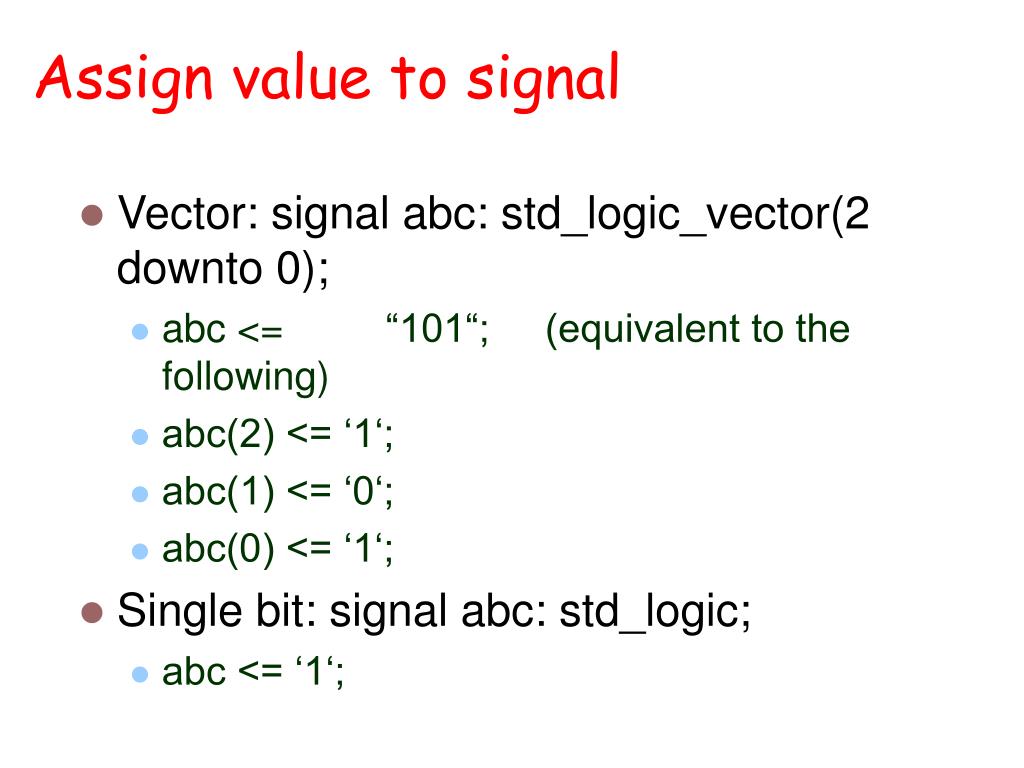

  11. Assign value to signal • Vector: signal abc: std_logic_vector(2 downto 0); • abc <= “101“; (equivalent to the following) • abc(2) <= ‘1‘; • abc(1) <= ‘0‘; • abc(0) <= ‘1‘; • Single bit: signal abc: std_logic; • abc <= ‘1‘;

  12. Alignment of multibit signal • Signal abc : std_logic_vector(3 downto 0); • abc <= “1010”; • abc(3) = 1, abc(2) = 0, abc(1) = 1, abc(0) = 0 • Signal abc : std_logic_vector(0 to 3); • abc <= “1010”; • abc(0) = 1, abc(1) = 0, abc(2) = 1, abc(3) = 0

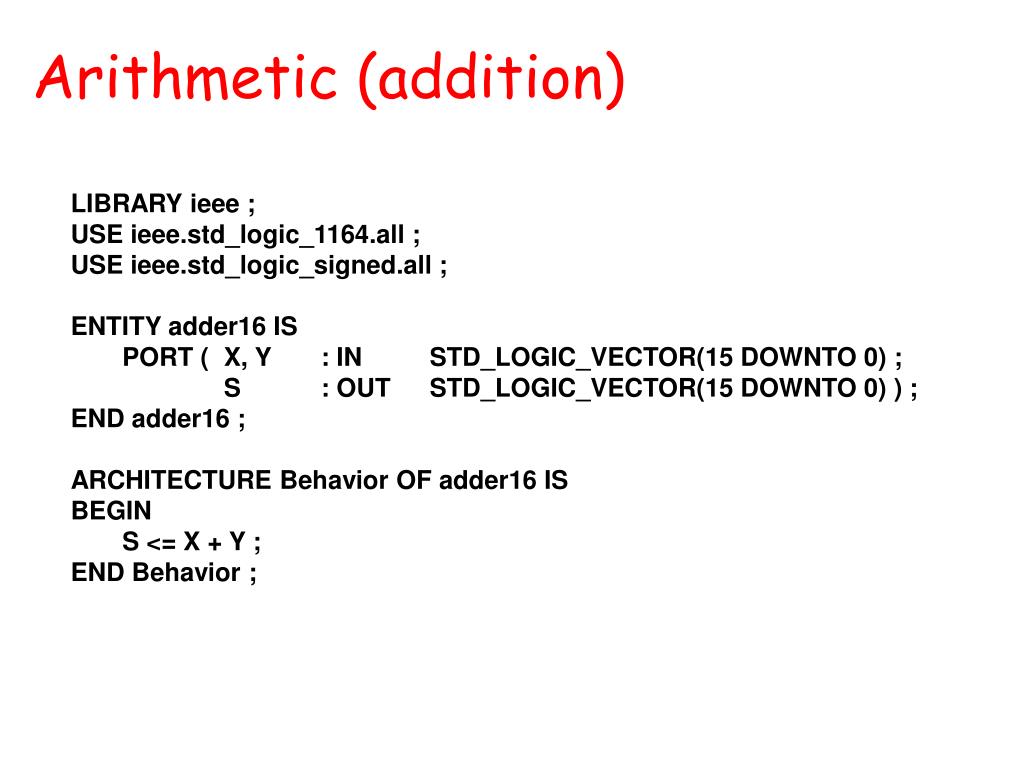

  13. Arithmetic (addition) LIBRARY ieee ; USE ieee.std_logic_1164.all ; USE ieee.std_logic_signed.all ; ENTITY adder16 IS PORT ( X, Y : IN STD_LOGIC_VECTOR(15 DOWNTO 0) ; S : OUT STD_LOGIC_VECTOR(15 DOWNTO 0) ) ; END adder16 ; ARCHITECTURE Behavior OF adder16 IS BEGIN S <= X + Y ; END Behavior ;

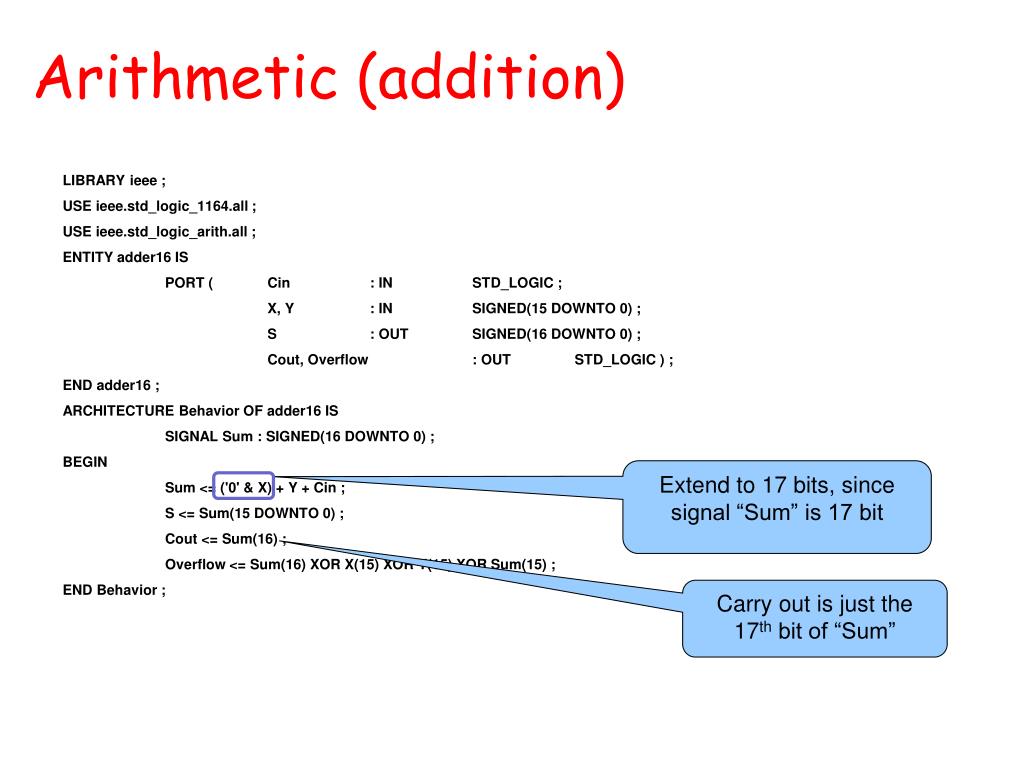

  14. Arithmetic (addition) LIBRARY ieee ; USE ieee.std_logic_1164.all ; USE ieee.std_logic_arith.all ; ENTITY adder16 IS PORT ( Cin : IN STD_LOGIC ; X, Y : IN SIGNED(15 DOWNTO 0) ; S : OUT SIGNED(16 DOWNTO 0) ; Cout, Overflow : OUT STD_LOGIC ) ; END adder16 ; ARCHITECTURE Behavior OF adder16 IS SIGNAL Sum : SIGNED(16 DOWNTO 0) ; BEGIN Sum <= ('0' & X) + Y + Cin ; S <= Sum(15 DOWNTO 0) ; Cout <= Sum(16) ; Overflow <= Sum(16) XOR X(15) XOR Y(15) XOR Sum(15) ; END Behavior ; Extend to 17 bits, since signal “Sum” is 17 bit Carry out is just the 17th bit of “Sum”

  15. If use STD_LOGIC_VECTOR LIBRARY ieee ; USE ieee.std_logic_1164.all ; USE ieee.std_logic_unsigned.all; USE ieee.std_logic_arith.all ; ENTITY adder16 IS PORT ( Cin : IN STD_LOGIC ; X, Y : IN STD_LOGIC_VECTOR(15 DOWNTO 0) ; S : OUT STD_LOGIC_VECTOR(16 DOWNTO 0) ; Cout, Overflow : OUT STD_LOGIC ) ; END adder16 ; ARCHITECTURE Behavior OF adder16 IS SIGNAL Sum : STD_LOGIC_VECTOR(16 DOWNTO 0) ; BEGIN Sum <= ("0" & X) + Y + Cin; S <= Sum(15 DOWNTO 0) ; Cout <= Sum(16) ; Overflow <= Sum(16) XOR X(15) XOR Y(15) XOR Sum(15) ; END Behavior ;

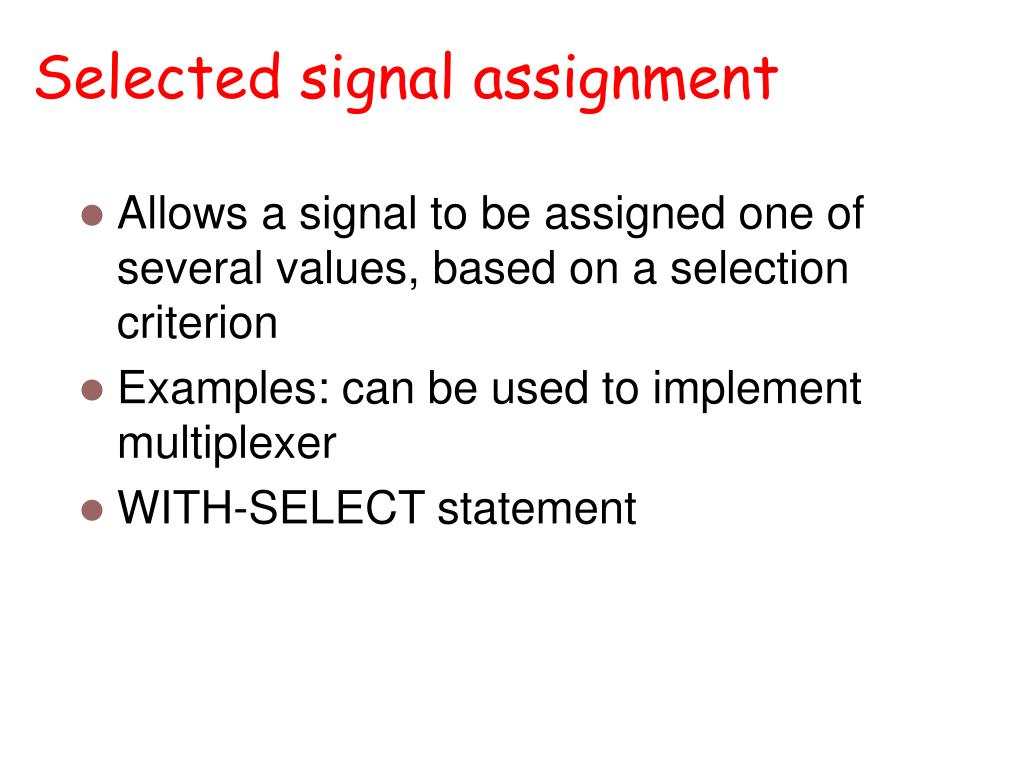

  16. Selected signal assignment • Allows a signal to be assigned one of several values, based on a selection criterion • Examples: can be used to implement multiplexer • WITH-SELECT statement

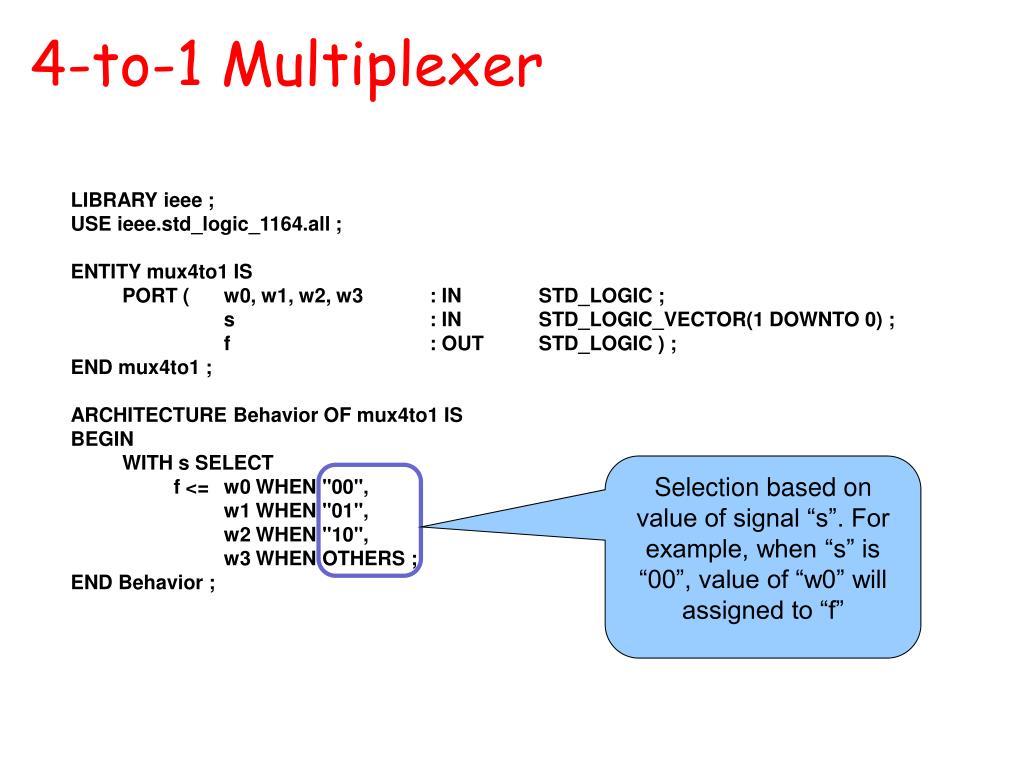

  17. 4-to-1 Multiplexer LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY mux4to1 IS PORT ( w0, w1, w2, w3 : IN STD_LOGIC ; s : IN STD_LOGIC_VECTOR(1 DOWNTO 0) ; f : OUT STD_LOGIC ) ; END mux4to1 ; ARCHITECTURE Behavior OF mux4to1 IS BEGIN WITH s SELECT f <= w0 WHEN "00", w1 WHEN "01", w2 WHEN "10", w3 WHEN OTHERS ; END Behavior ; Selection based on value of signal “s”. For example, when “s” is “00”, value of “w0” will assigned to “f”

  18. 2-to-4 binary decoder LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY dec2to4 IS PORT ( w : IN STD_LOGIC_VECTOR(1 DOWNTO 0) ; En : IN STD_LOGIC ; y : OUT STD_LOGIC_VECTOR(0 TO 3) ) ; END dec2to4 ; ARCHITECTURE Behavior OF dec2to4 IS SIGNAL Enw : STD_LOGIC_VECTOR(2 DOWNTO 0) ; BEGIN Enw <= En & w ; WITH Enw SELECT y <= "1000" WHEN "100", "0100" WHEN "101", "0010" WHEN "110", "0001" WHEN "111", "0000" WHEN OTHERS ; END Behavior ; Concatenation: Enw(2) <= En; Enw(1) <= w(1); Enw(0) <= w(0); “y” will be assigned with different values based on value of “Enw”

  19. PORT-MAP statement LIBRARY ieee ; USE ieee.std_logic_1164.all ; LIBRARY work ; USE work.mux4to1_package.all ; ENTITY mux16to1 IS PORT ( w : IN STD_LOGIC_VECTOR(0 TO 15) ; s : IN STD_LOGIC_VECTOR(3 DOWNTO 0) ; f : OUT STD_LOGIC ) ; END mux16to1 ; ARCHITECTURE Structure OF mux16to1 IS SIGNAL m : STD_LOGIC_VECTOR(0 TO 3) ; BEGIN Mux1: mux4to1 PORT MAP ( w(0), w(1), w(2), w(3), s(1 DOWNTO 0), m(0) ) ; Mux2: mux4to1 PORT MAP ( w(4), w(5), w(6), w(7), s(1 DOWNTO 0), m(1) ) ; Mux3: mux4to1 PORT MAP ( w(8), w(9), w(10), w(11), s(1 DOWNTO 0), m(2) ) ; Mux4: mux4to1 PORT MAP ( w(12), w(13), w(14), w(15), s(1 DOWNTO 0), m(3) ) ; Mux5: mux4to1 PORT MAP ( m(0), m(1), m(2), m(3), s(3 DOWNTO 2), f ) ; END Structure ; This is an example of building a 16to1 multiplexer using five 4to1 multiplexer. Port-Map can be regarded as function call in C language.

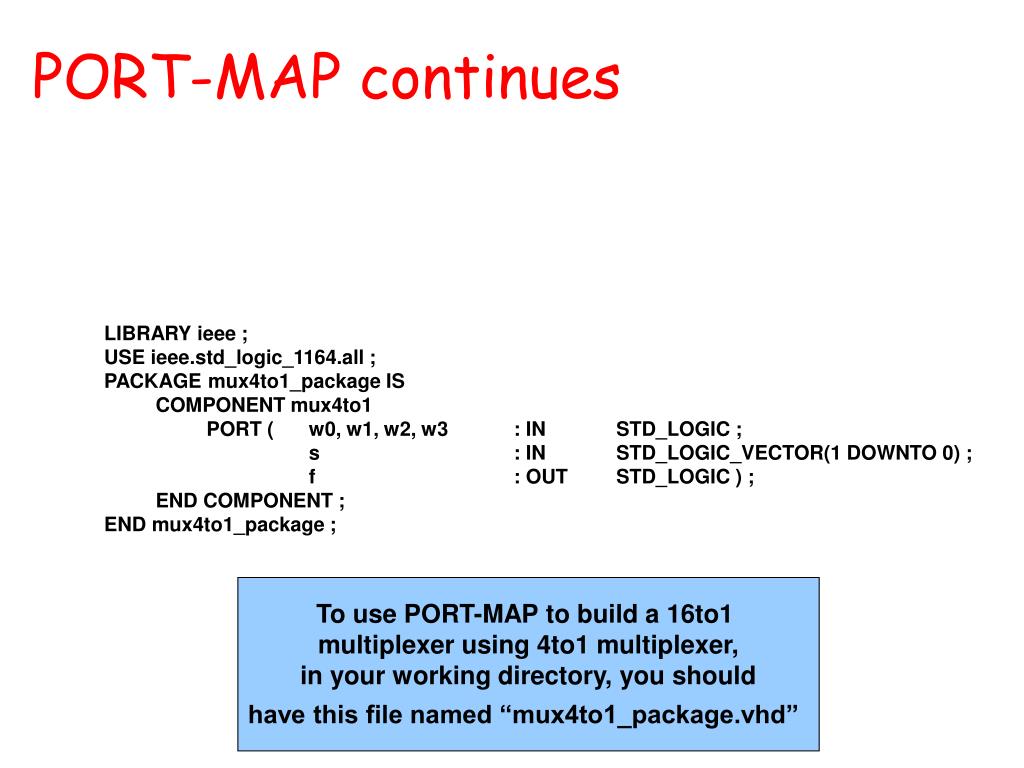

  20. PORT-MAP continues LIBRARY ieee ; USE ieee.std_logic_1164.all ; PACKAGE mux4to1_package IS COMPONENT mux4to1 PORT ( w0, w1, w2, w3 : IN STD_LOGIC ; s : IN STD_LOGIC_VECTOR(1 DOWNTO 0) ; f : OUT STD_LOGIC ) ; END COMPONENT ; END mux4to1_package ; To use PORT-MAP to build a 16to1 multiplexer using 4to1 multiplexer, in your working directory, you should have this file named “mux4to1_package.vhd”

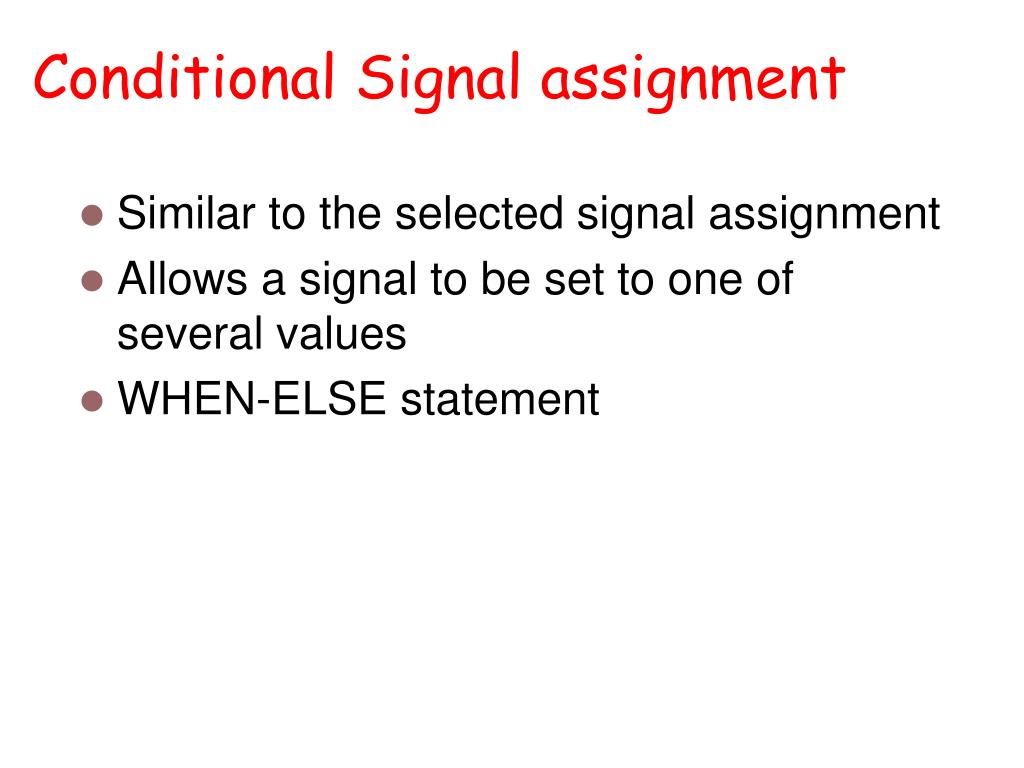

  21. Conditional Signal assignment • Similar to the selected signal assignment • Allows a signal to be set to one of several values • WHEN-ELSE statement

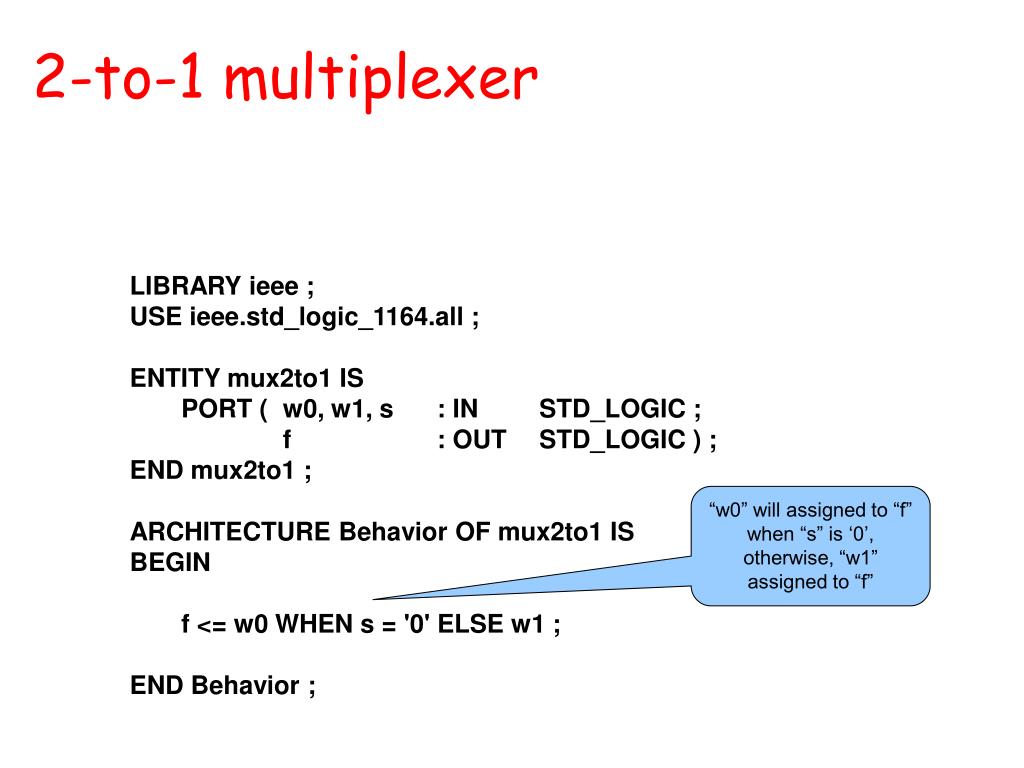

  22. 2-to-1 multiplexer LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY mux2to1 IS PORT ( w0, w1, s : IN STD_LOGIC ; f : OUT STD_LOGIC ) ; END mux2to1 ; ARCHITECTURE Behavior OF mux2to1 IS BEGIN f <= w0 WHEN s = '0' ELSE w1 ; END Behavior ; “w0” will assigned to “f” when “s” is ‘0’, otherwise, “w1” assigned to “f”

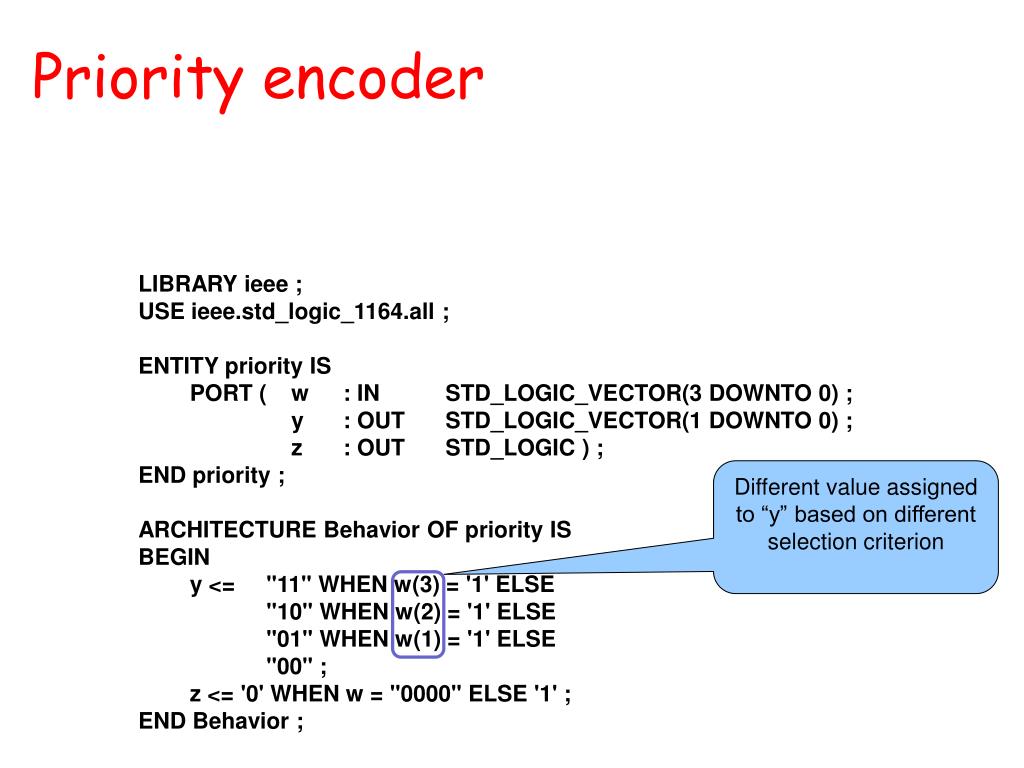

  23. Priority encoder LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY priority IS PORT ( w : IN STD_LOGIC_VECTOR(3 DOWNTO 0) ; y : OUT STD_LOGIC_VECTOR(1 DOWNTO 0) ; z : OUT STD_LOGIC ) ; END priority ; ARCHITECTURE Behavior OF priority IS BEGIN y <= "11" WHEN w(3) = '1' ELSE "10" WHEN w(2) = '1' ELSE "01" WHEN w(1) = '1' ELSE "00" ; z <= '0' WHEN w = "0000" ELSE '1' ; END Behavior ; Different value assigned to “y” based on different selection criterion

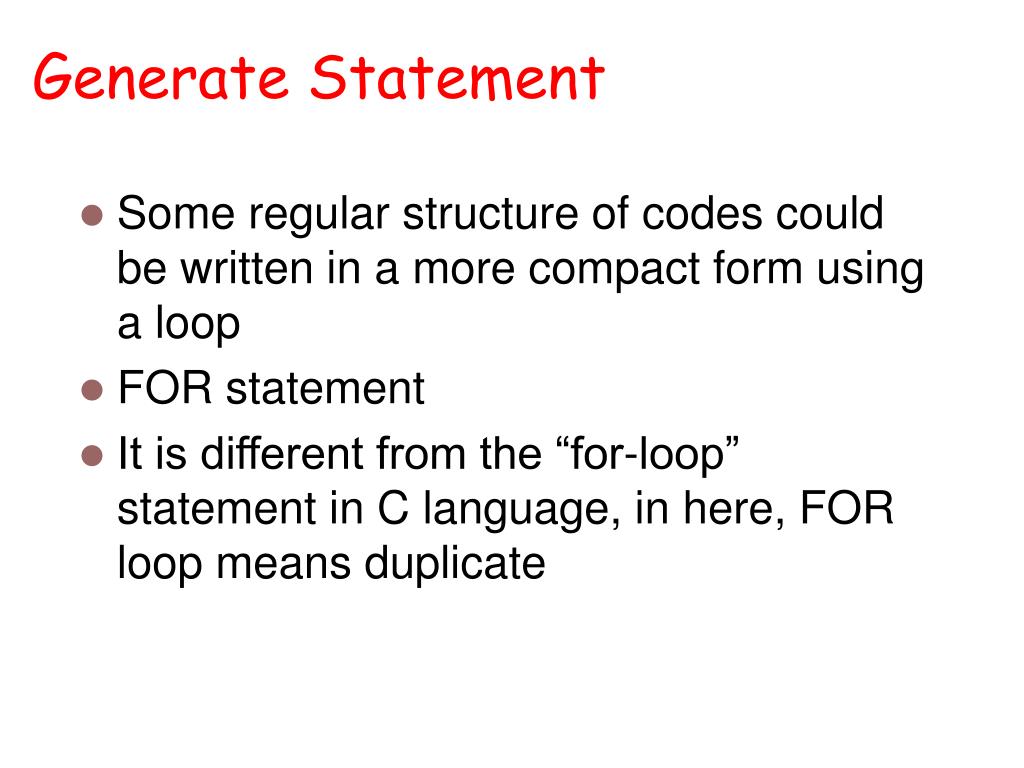

  24. Generate Statement • Some regular structure of codes could be written in a more compact form using a loop • FOR statement • It is different from the “for-loop” statement in C language, in here, FOR loop means duplicate

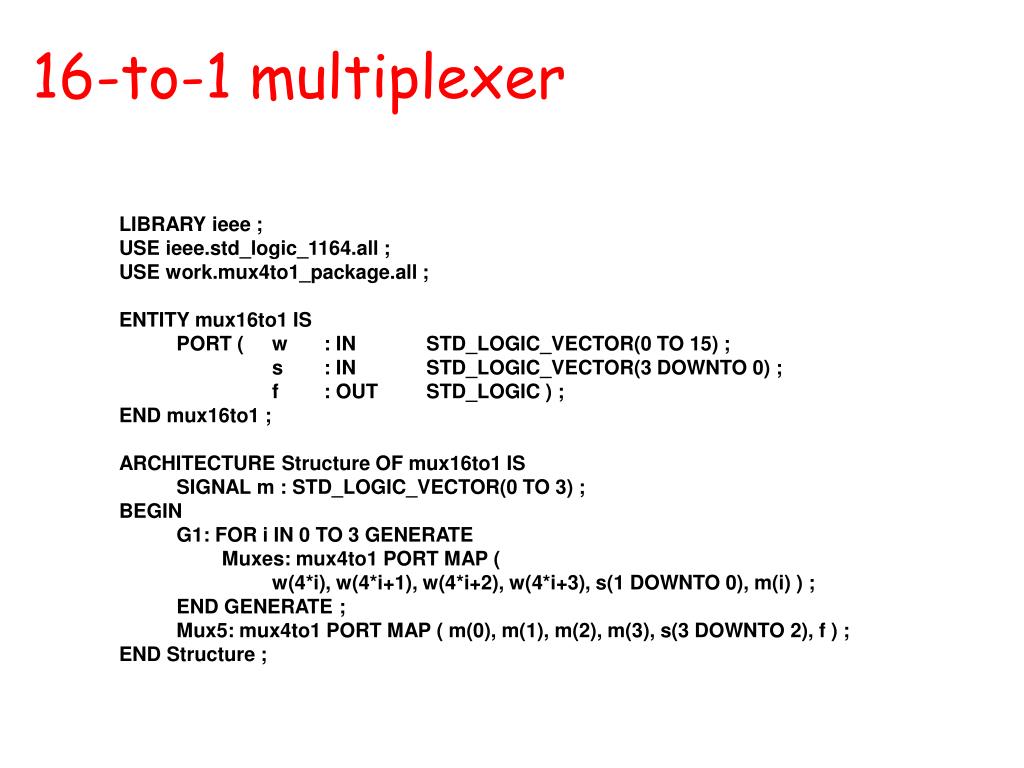

  25. 16-to-1 multiplexer LIBRARY ieee ; USE ieee.std_logic_1164.all ; USE work.mux4to1_package.all ; ENTITY mux16to1 IS PORT ( w : IN STD_LOGIC_VECTOR(0 TO 15) ; s : IN STD_LOGIC_VECTOR(3 DOWNTO 0) ; f : OUT STD_LOGIC ) ; END mux16to1 ; ARCHITECTURE Structure OF mux16to1 IS SIGNAL m : STD_LOGIC_VECTOR(0 TO 3) ; BEGIN G1: FOR i IN 0 TO 3 GENERATE Muxes: mux4to1 PORT MAP ( w(4*i), w(4*i+1), w(4*i+2), w(4*i+3), s(1 DOWNTO 0), m(i) ) ; END GENERATE ; Mux5: mux4to1 PORT MAP ( m(0), m(1), m(2), m(3), s(3 DOWNTO 2), f ) ; END Structure ;

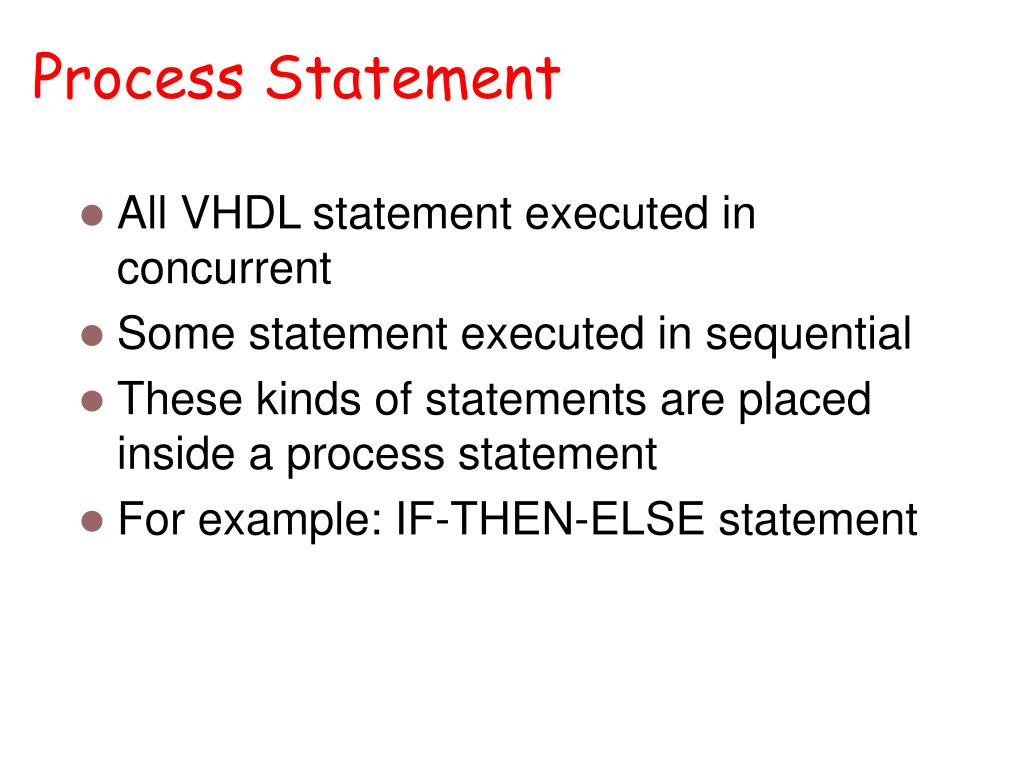

  26. Process Statement • All VHDL statement executed in concurrent • Some statement executed in sequential • These kinds of statements are placed inside a process statement • For example: IF-THEN-ELSE statement

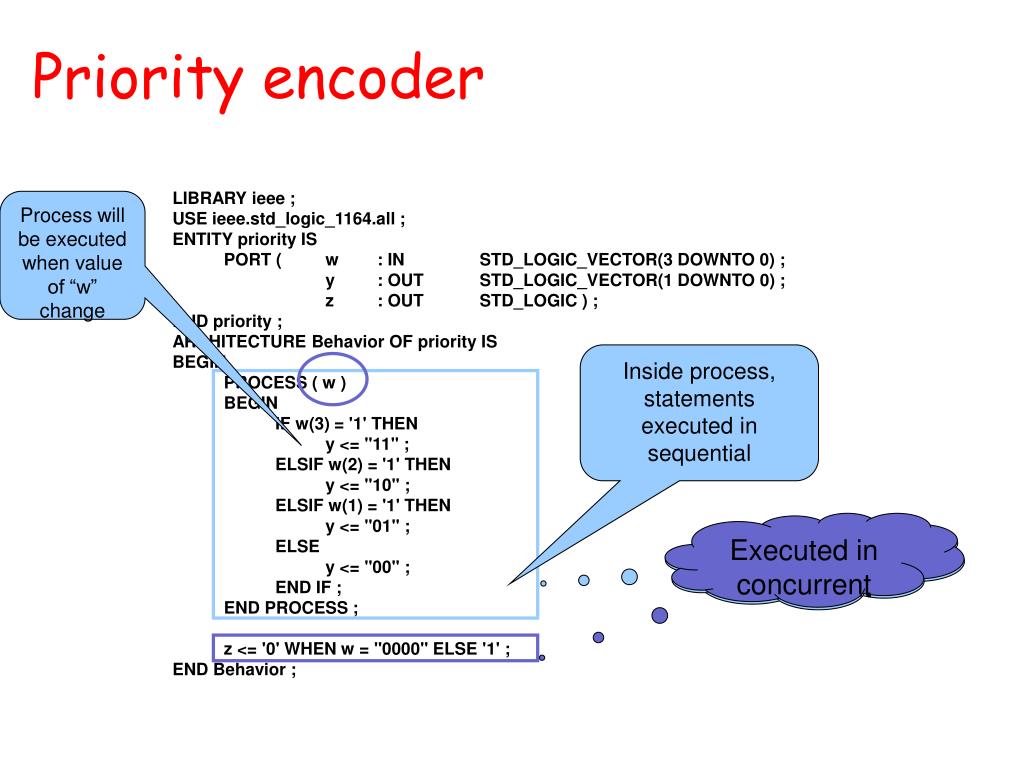

  27. Priority encoder LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY priority IS PORT ( w : IN STD_LOGIC_VECTOR(3 DOWNTO 0) ; y : OUT STD_LOGIC_VECTOR(1 DOWNTO 0) ; z : OUT STD_LOGIC ) ; END priority ; ARCHITECTURE Behavior OF priority IS BEGIN PROCESS ( w ) BEGIN IF w(3) = '1' THEN y <= "11" ; ELSIF w(2) = '1' THEN y <= "10" ; ELSIF w(1) = '1' THEN y <= "01" ; ELSE y <= "00" ; END IF ; END PROCESS ; z <= '0' WHEN w = "0000" ELSE '1' ; END Behavior ; Process will be executed when value of “w” change Inside process, statements executed in sequential Executed in concurrent Executed in concurrent

  28. Case Statement • Similar to select statement • Case statement used inside process statement

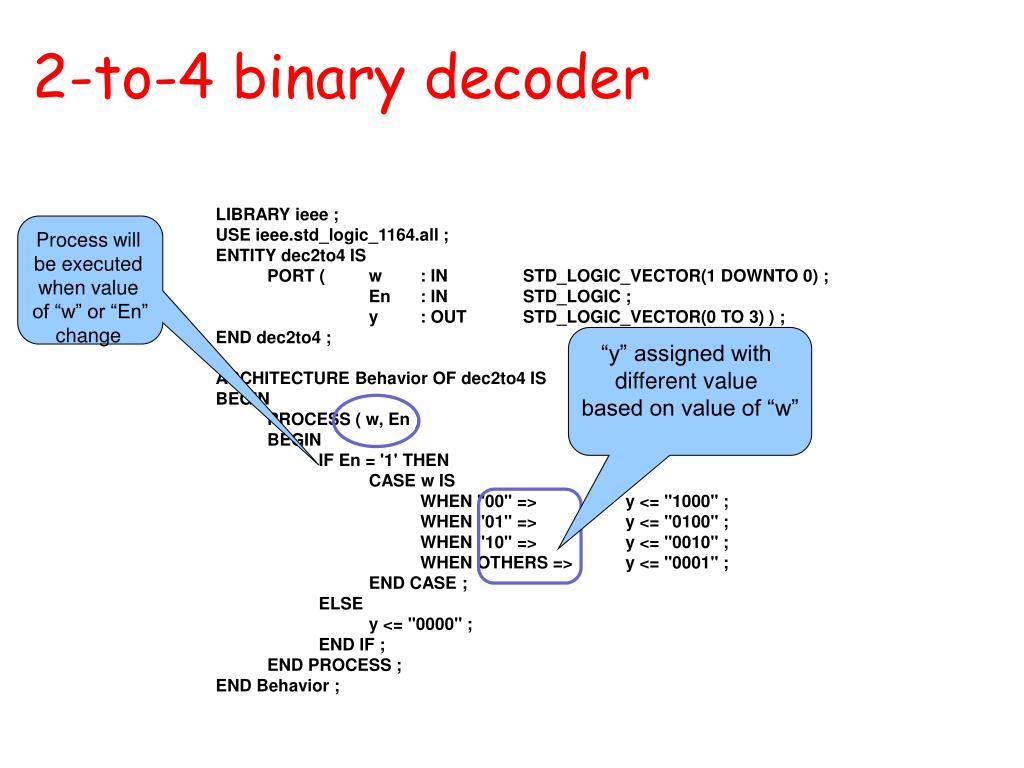

  29. 2-to-4 binary decoder LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY dec2to4 IS PORT ( w : IN STD_LOGIC_VECTOR(1 DOWNTO 0) ; En : IN STD_LOGIC ; y : OUT STD_LOGIC_VECTOR(0 TO 3) ) ; END dec2to4 ; ARCHITECTURE Behavior OF dec2to4 IS BEGIN PROCESS ( w, En ) BEGIN IF En = '1' THEN CASE w IS WHEN "00" => y <= "1000" ; WHEN "01" => y <= "0100" ; WHEN "10" => y <= "0010" ; WHEN OTHERS => y <= "0001" ; END CASE ; ELSE y <= "0000" ; END IF ; END PROCESS ; END Behavior ; Process will be executed when value of “w” or “En” change “y” assigned with different value based on value of “w”
