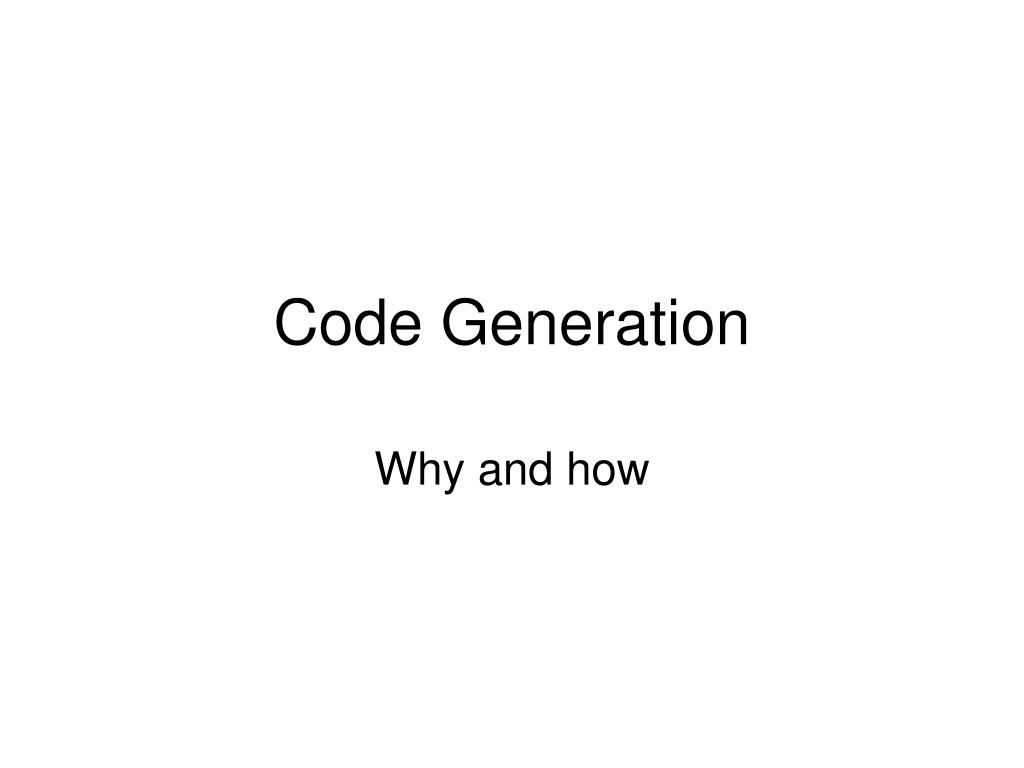

  1. Code Generation Why and how

  2. Why generate code • Manufacturer’s claims • Higher productivity in terms of quantity and conformity of code • Higher flexibility in that the developer is not afraid to repeat the process several times and is therefore more adventurous • Achieves better quality due to higher level of abstraction of specification • Controlled replication of specification information - I.e. if the code is required more than once, the fact that the requirements are tied at a higher level means that the code is correctly replicated only when necessary. • Correctness and consistency of generated code

  3. Reality • Code generated is skeletal only • Code that is added to generated code can be ignored or misinterpreted by the reverse engineering tool • Code generation, while useful, is still not advanced enough to be a perfect solution

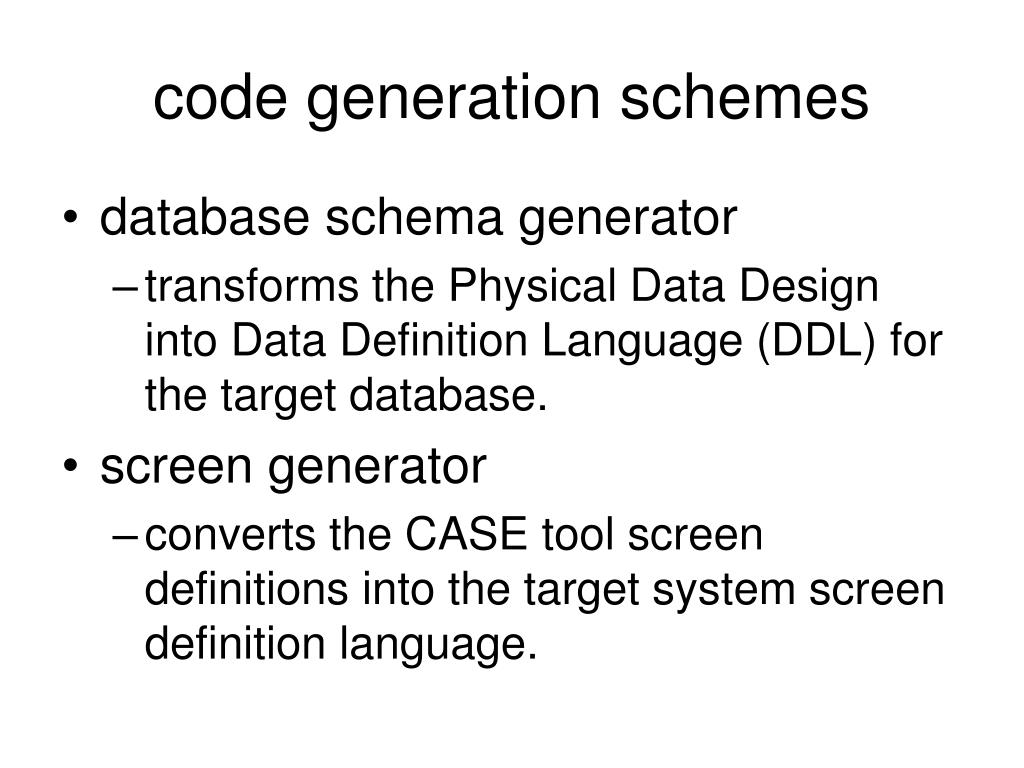

  4. code generation schemes • database schema generator • transforms the Physical Data Design into Data Definition Language (DDL) for the target database. • screen generator • converts the CASE tool screen definitions into the target system screen definition language.

  5. code generator • expands high level pseudo-code statements into more detail • incorporates definition information from screens, data items, records etc. • converts the results into the target language (e.g. C++, Visual Basic, Cobol, Java)

  6. Generator incompatibilities • Generator not integrated with the CASE design database • different vendor • different priorities • different design constructs • run on a different hardware platform • May need interface software • to bridge to a different environment • to convert the CASE output format into the generator input format

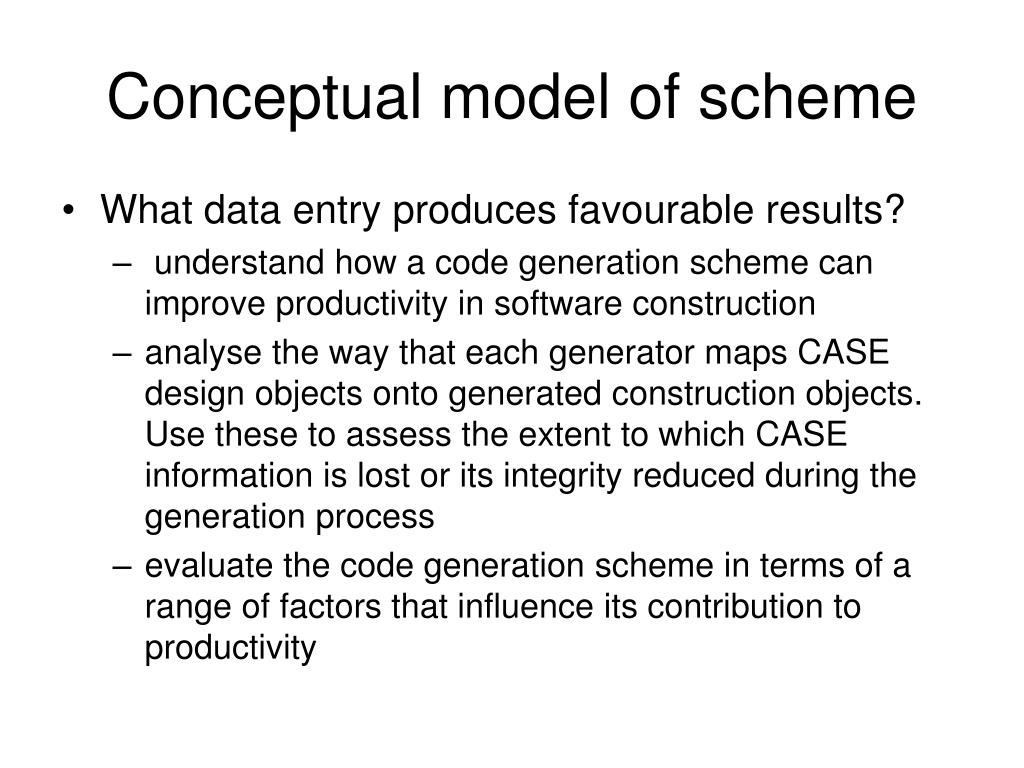

  7. Conceptual model of scheme • What data entry produces favourable results? • understand how a code generation scheme can improve productivity in software construction • analyse the way that each generator maps CASE design objects onto generated construction objects. Use these to assess the extent to which CASE information is lost or its integrity reduced during the generation process • evaluate the code generation scheme in terms of a range of factors that influence its contribution to productivity

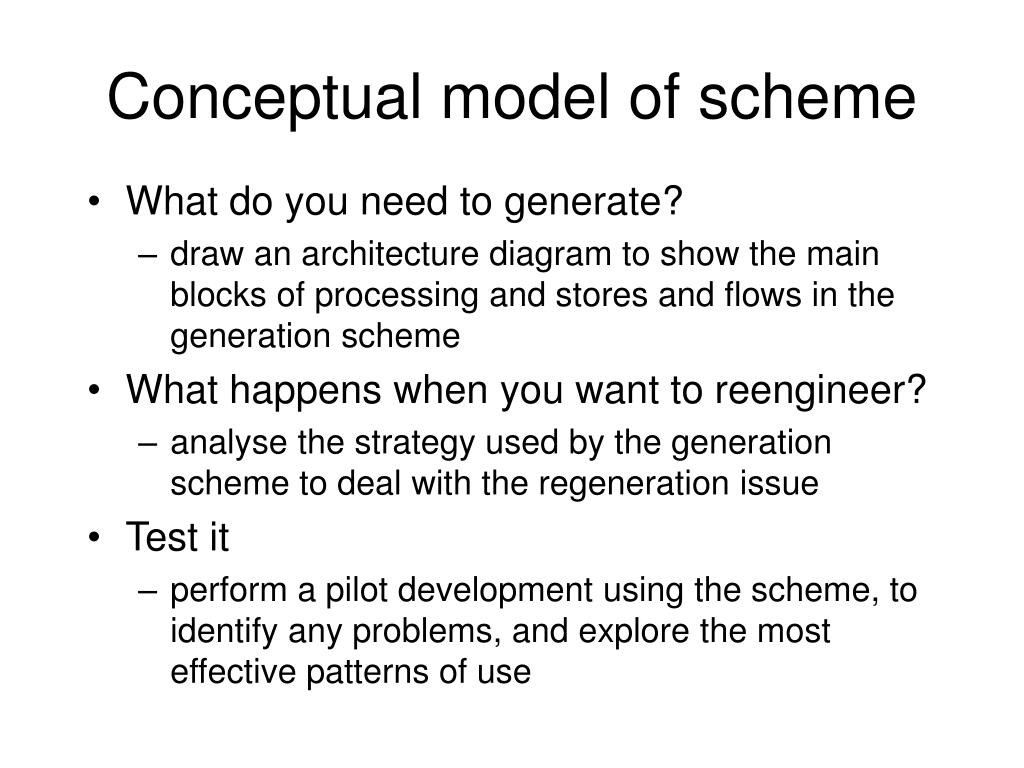

  8. Conceptual model of scheme • What do you need to generate? • draw an architecture diagram to show the main blocks of processing and stores and flows in the generation scheme • What happens when you want to reengineer? • analyse the strategy used by the generation scheme to deal with the regeneration issue • Test it • perform a pilot development using the scheme, to identify any problems, and explore the most effective patterns of use

  9. Project construction plan • Evaluate project priorities • maximise productivity • work within the constraints imposed by the system architecture and the generation scheme. • To achieve this, the project manager needs to: • assess project priorities • analyse system component dependencies • review partitioning options in the generation scheme • assess the feasibility of incremental regeneration

  10. Steps in Generation for each increment • Validate Design against Generation scheme • Elaborate design • Run the generator • Compile, test and debug the generated code • Progressively refine design and regenerate.

  11. 1: Validate Design against Generation Scheme • check for information loss and construct compatibility before starting physical design • comes from the class editor • a declaration and inheritance list extracted from the name of the class and its inheritance hierarchy • data members, generated from the associations, aggregations and attributes

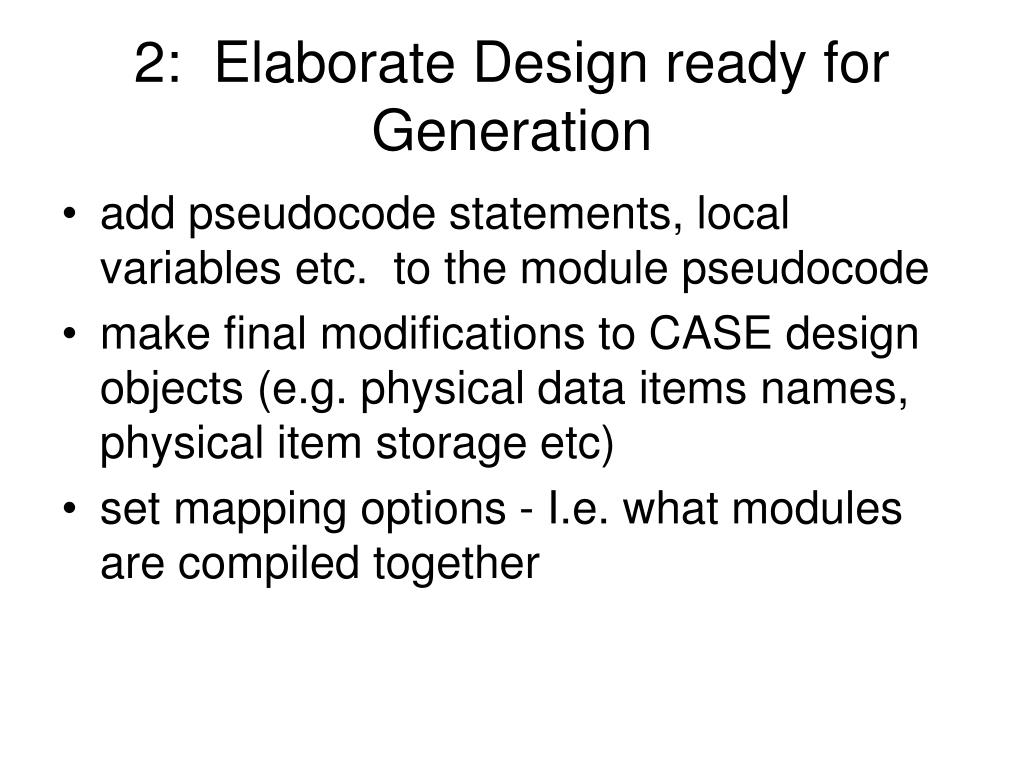

  12. 2: Elaborate Design ready for Generation • add pseudocode statements, local variables etc. to the module pseudocode • make final modifications to CASE design objects (e.g. physical data items names, physical item storage etc) • set mapping options - I.e. what modules are compiled together

  13. Step 3: Run the Generator • provide actual parameters • - e.g. • input object libraries to use, • input objects to generate from, • output library to generate to, • generate only, or generate / compile / link.

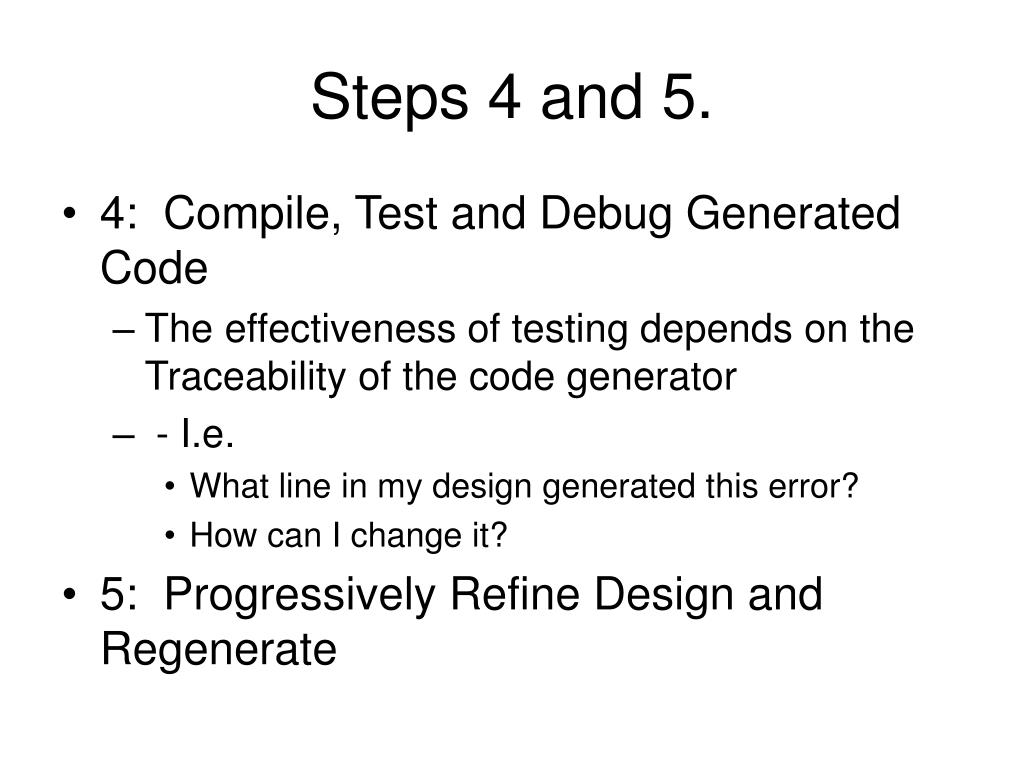

  14. Steps 4 and 5. • 4: Compile, Test and Debug Generated Code • The effectiveness of testing depends on the Traceability of the code generator • - I.e. • What line in my design generated this error? • How can I change it? • 5: Progressively Refine Design and Regenerate

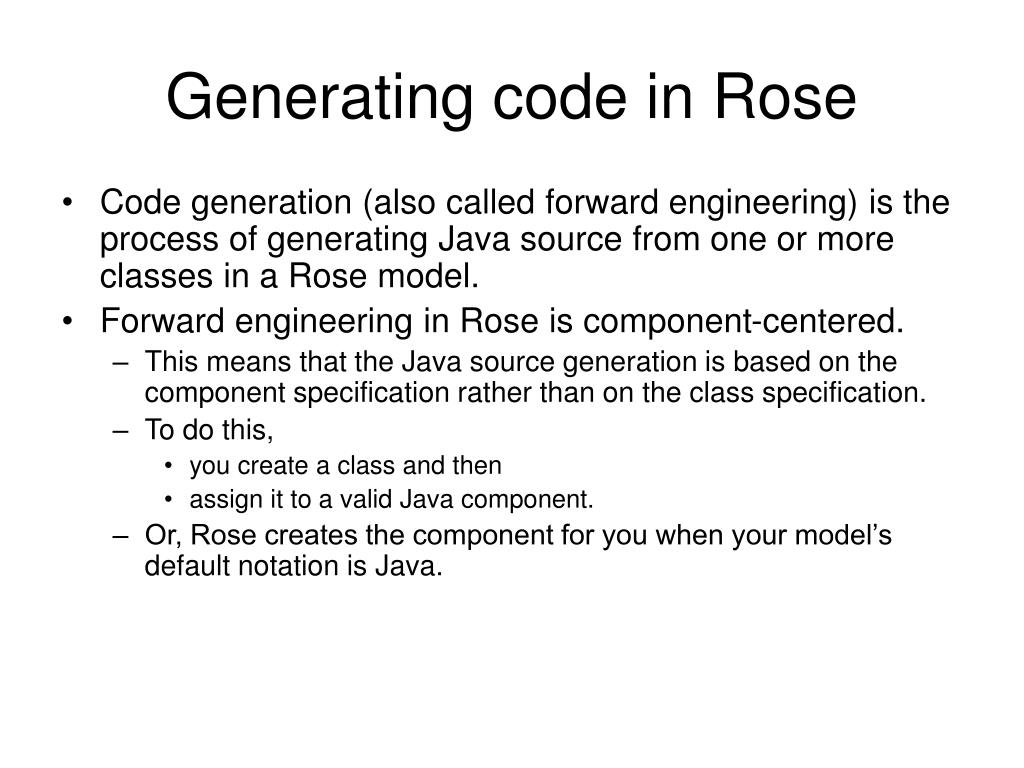

  15. Generating code in Rose • Code generation (also called forward engineering) is the process of generating Java source from one or more classes in a Rose model. • Forward engineering in Rose is component-centered. • This means that the Java source generation is based on the component specification rather than on the class specification. • To do this, • you create a class and then • assign it to a valid Java component. • Or, Rose creates the component for you when your model’s default notation is Java.

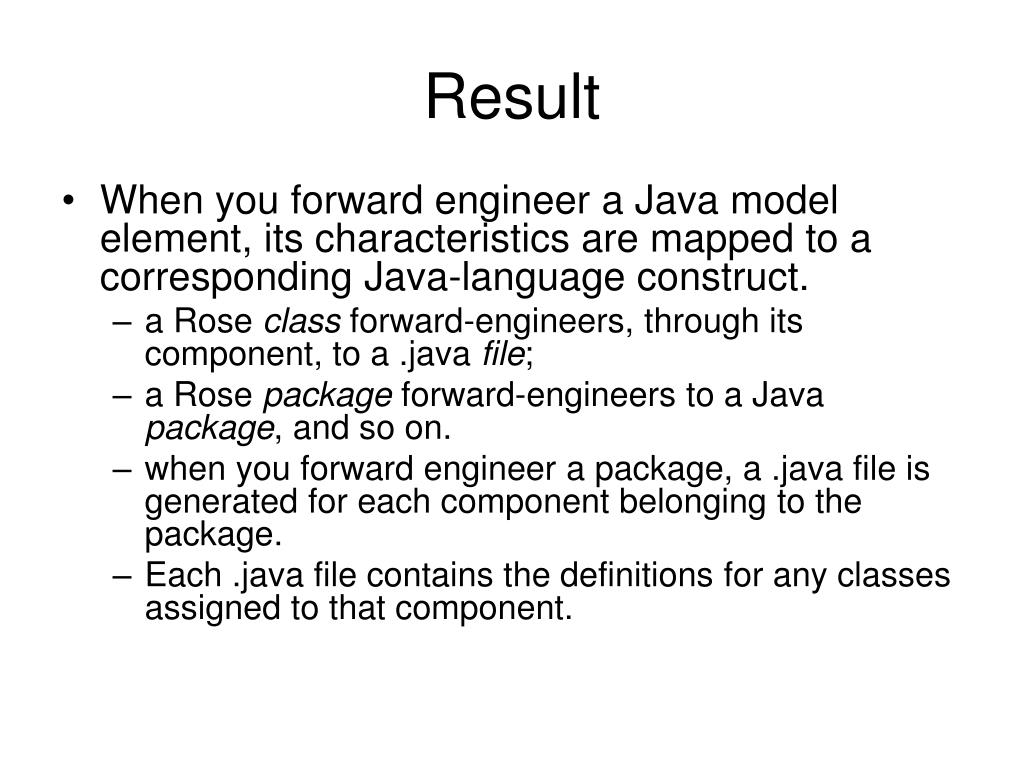

  16. Result • When you forward engineer a Java model element, its characteristics are mapped to a corresponding Java-language construct. • a Rose class forward-engineers, through its component, to a .java file; • a Rose package forward-engineers to a Java package, and so on. • when you forward engineer a package, a .java file is generated for each component belonging to the package. • Each .java file contains the definitions for any classes assigned to that component.

  17. Auto-synchronization mode: • automatically initiates code generation any time you create or modify any Java element in your model. Default is off. • Because Auto Synchronization is normally off, Rose generates RoseIDs for Java methods. This feature allows Rose to track method name changes in the code. When Auto Synchronization is turned on, Generate Rose ID should be turned off (on the Code Generation tab of the Project Specification).

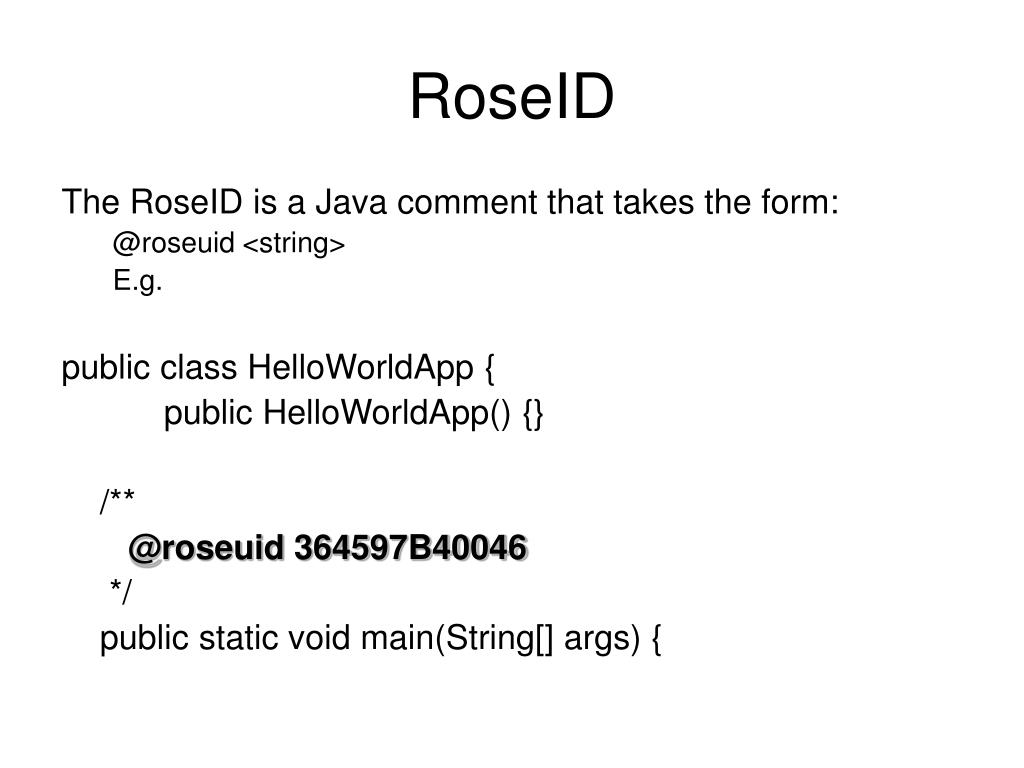

  18. RoseID The RoseID is a Java comment that takes the form: @roseuid <string> E.g. public class HelloWorldApp { public HelloWorldApp() {} /** @roseuid 364597B40046 */ public static void main(String[] args) {

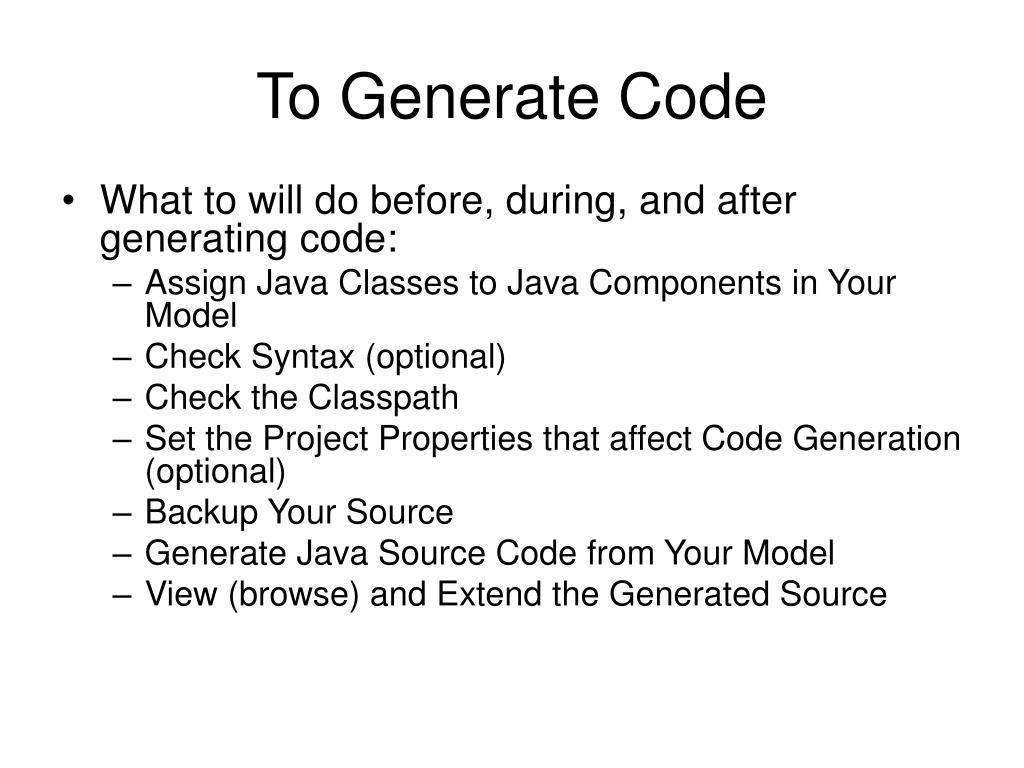

  19. To Generate Code • What to will do before, during, and after generating code: • Assign Java Classes to Java Components in Your Model • Check Syntax (optional) • Check the Classpath • Set the Project Properties that affect Code Generation (optional) • Backup Your Source • Generate Java Source Code from Your Model • View (browse) and Extend the Generated Source

  20. Steps taken • I devised a new package in the Logical view. • I populated the package with classes, giving all attributes and operations data types and parameters. • I made all entity classes persistent. • In the component view, I created a new package. • I dragged the package from the logical view onto the package in the Component view. • I returned to the Logical View, opened a class diagram, dragged the classes from the logical view into the diagram and added associations. (If there were generalizations, I nested the classes). • I selected and right clicked each class in the diagram and generated code.

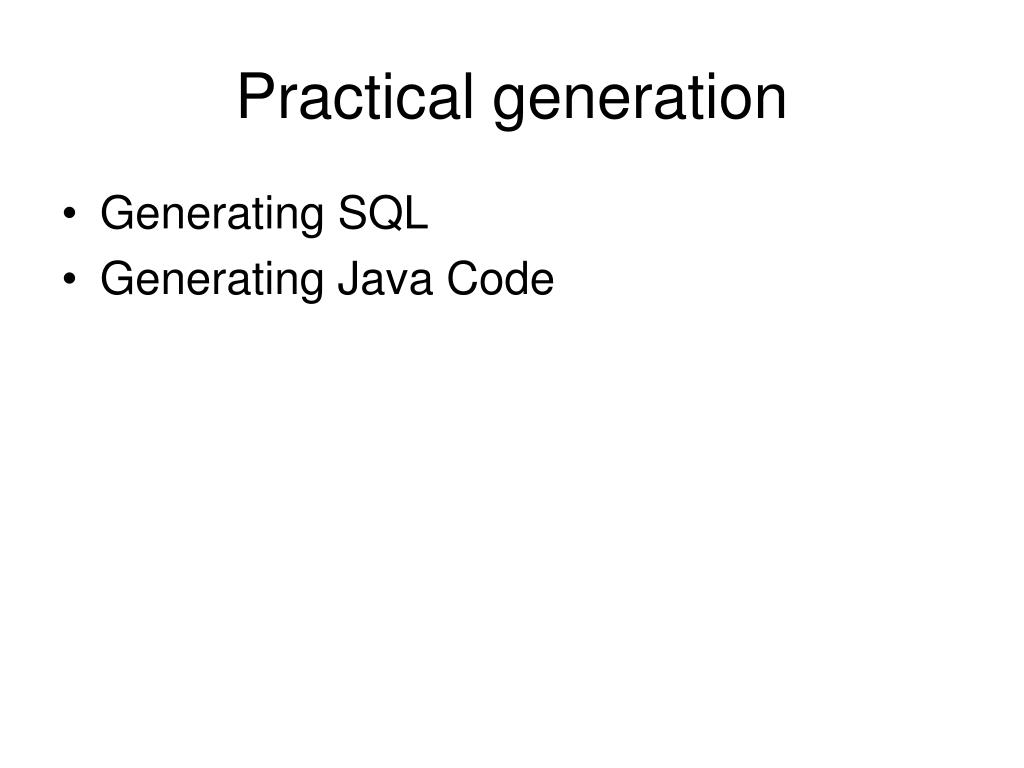

  21. Practical generation • Generating SQL • Generating Java Code

  22. Generating tables from classes • Converting classes to tables. Remember: • You must define the database in your component view (see below). • You can only generate tables from PERSISTENT classes (see below). • To generate tables, there must be a defined schema (see below). • The schema must be associated with a database in the component view (see below).

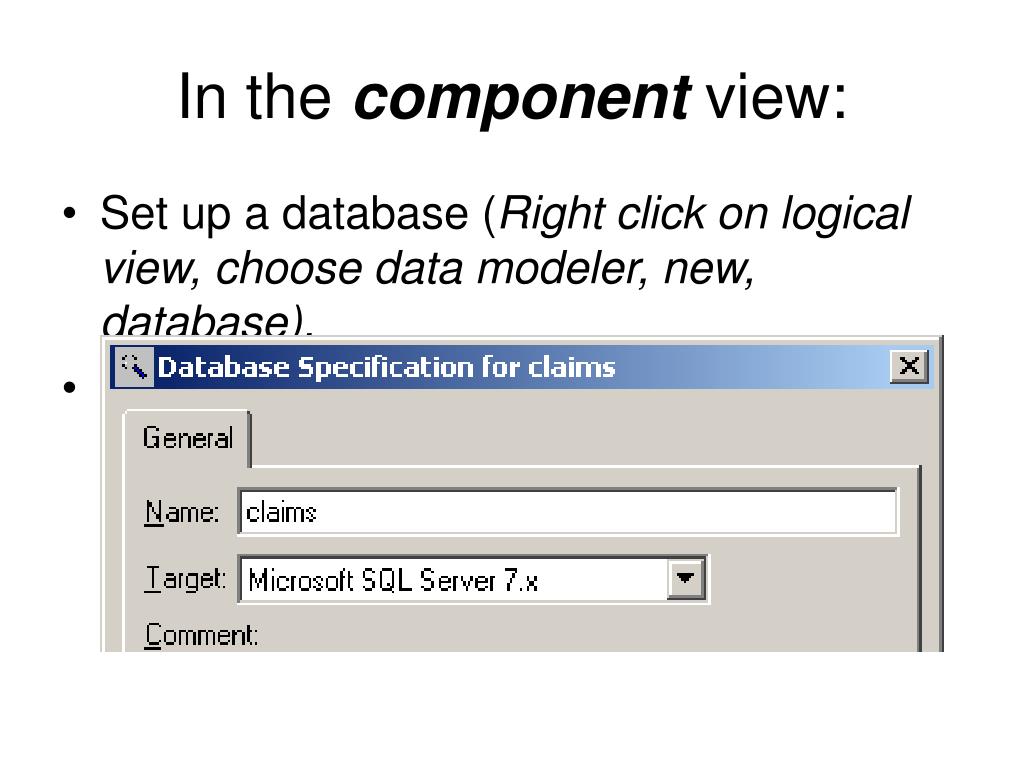

  23. In the component view: • Set up a database (Right click on logical view, choose data modeler, new, database). • Open the specification for the database and associate it with whichever implementation route suits (e.g. SQL Server 7)

  24. In the logical view: • Classify the classes, using a 3-tier system • Set up a new Schema • Transform the objects into Data • Generate (and optionally execute) SQL

  25. (a) Classify the classes • (To do this, tick the ‘Three-tier diagram’ box in the tools - options menu in Rational Rose.) • Move all persistent classes into one package.

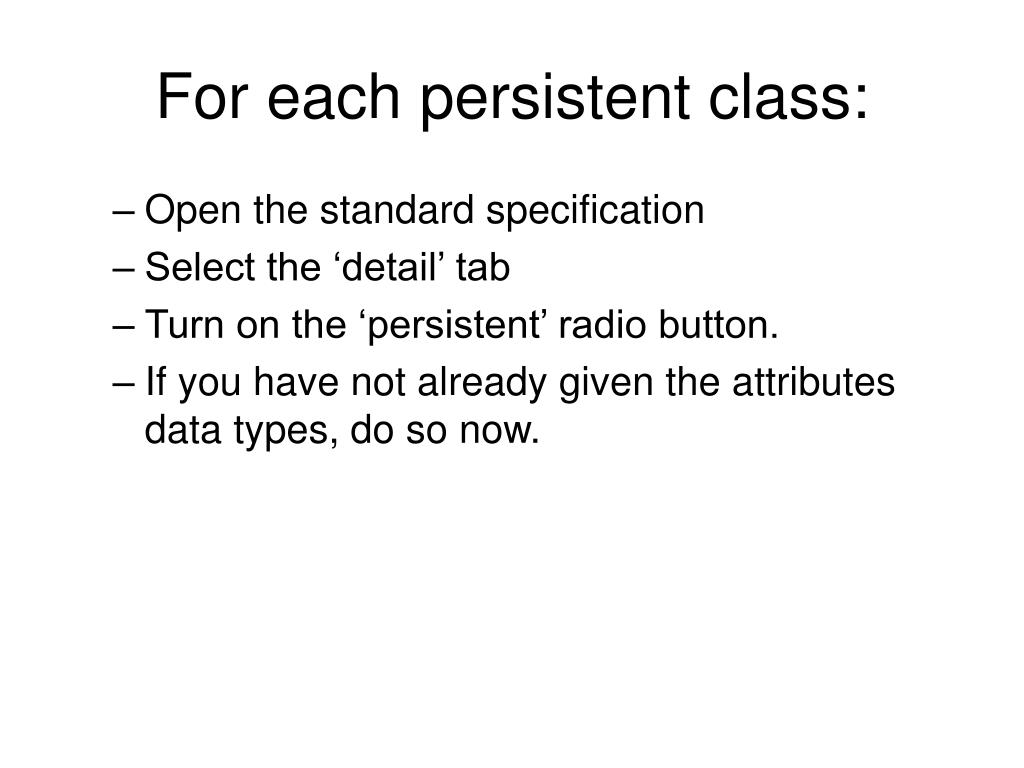

  26. For each persistent class: • Open the standard specification • Select the ‘detail’ tab • Turn on the ‘persistent’ radio button. • If you have not already given the attributes data types, do so now.

  27. (b) Set up a new Schema • (Right click on logical view, choose data modeler, new, schema.) • Open the schema specification. • Associate it with the database you have created.

  28. (c) Transform the objects to data. • Right click on the package that holds the classes in the Logical view. • Choose data modeler • Choose ‘Transform to data model’ • Fill in destination schema and target database that you have set up. Execute the transformation.

  29. Data Model • To see your tables, expand the schema. • If they aren’t there, maybe you didn’t make them persistent? • To see your data model, right click on the schema, choose data modeller, new, data model diagram

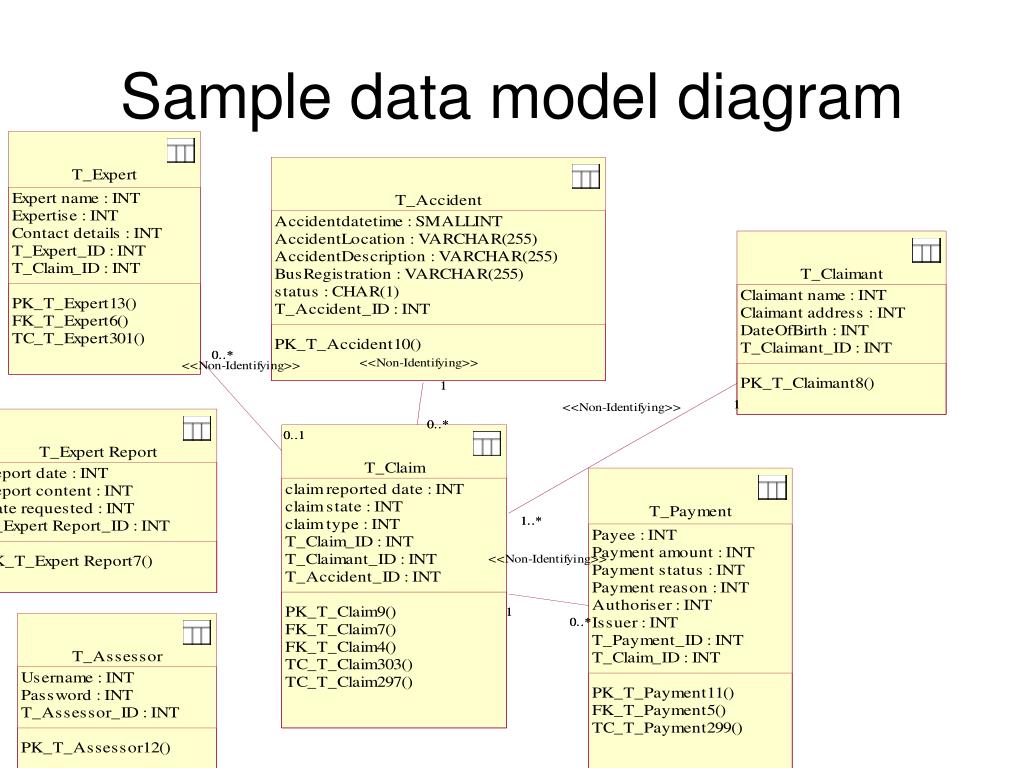

  30. Sample data model diagram

  31. (d) Generate (and optionally execute) SQL. • Right click on the schema; choose data modeller, forward engineer… • This results in your tables being generated into your database. • The example below shows new tables created as part of the ‘Generated Claims’ database. • Note: You can only create tables in databases of which you are the owner or have create table access.

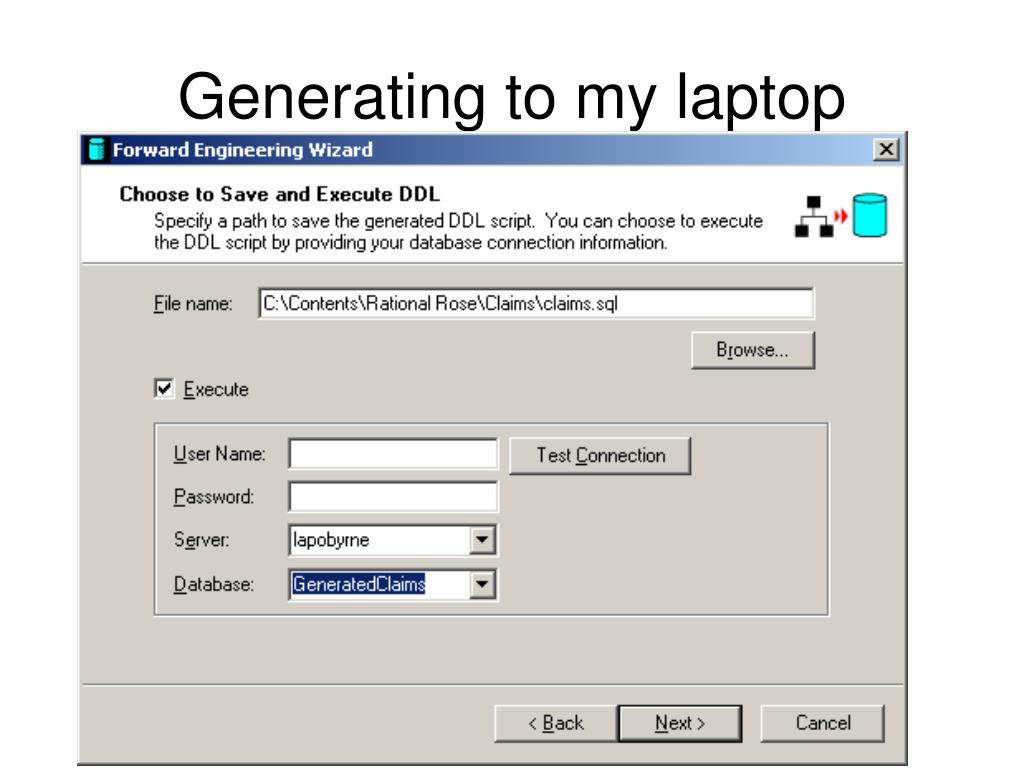

  32. Generating to my laptop

  33. Results in SQL Server browser

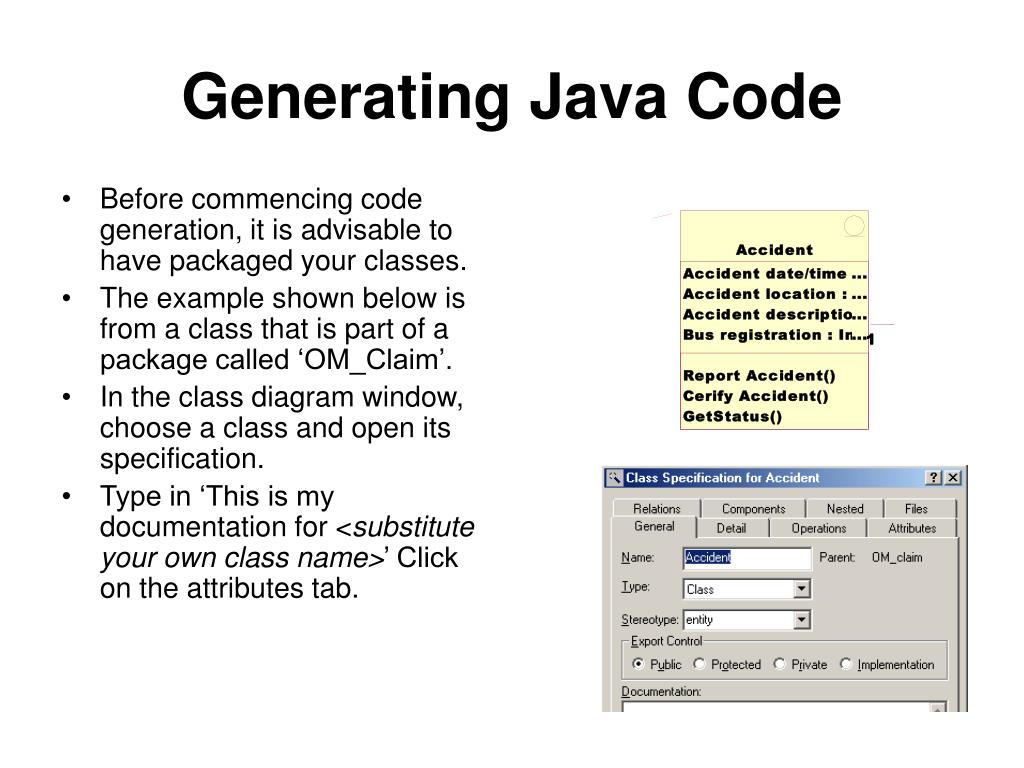

  34. Generating Java Code • Before commencing code generation, it is advisable to have packaged your classes. • The example shown below is from a class that is part of a package called ‘OM_Claim’. • In the class diagram window, choose a class and open its specification. • Type in ‘This is my documentation for <substitute your own class name>’ Click on the attributes tab.

  35. Specifying the attributes • Right click in the attributes table and choose ‘Specification’. • Give the attributes the correct type, initial value and export control. Click OK to return to the class specification window. • Repeat this for all attributes, ending on the class specification window.

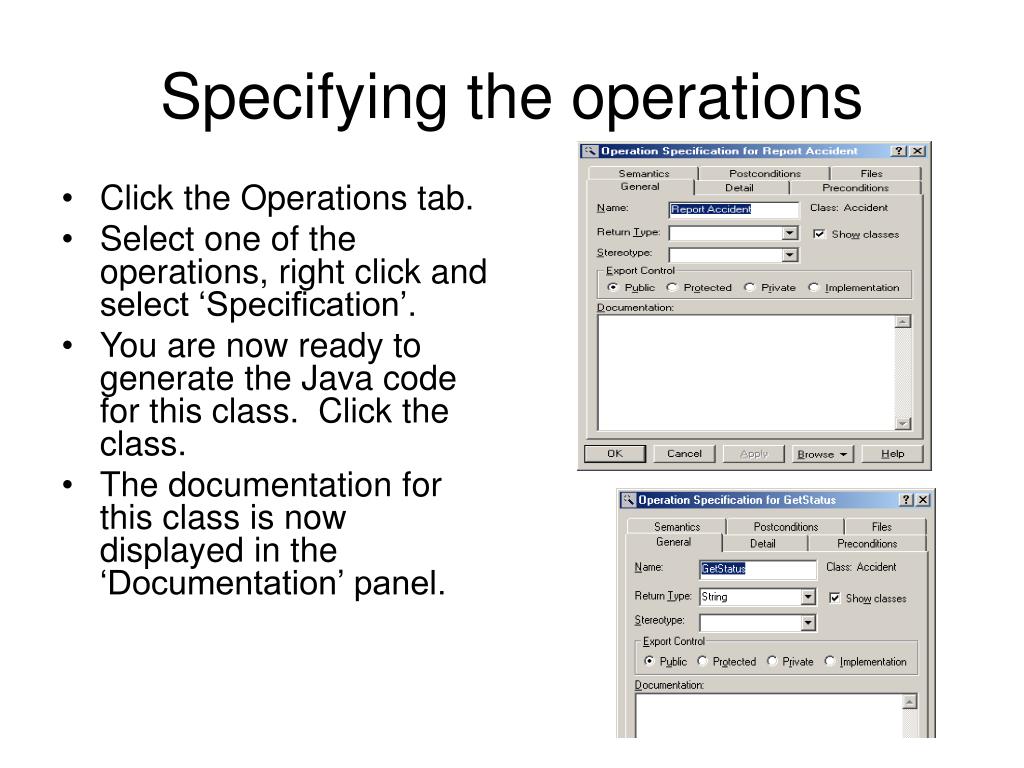

  36. Specifying the operations • Click the Operations tab. • Select one of the operations, right click and select ‘Specification’. • You are now ready to generate the Java code for this class. Click the class. • The documentation for this class is now displayed in the ‘Documentation’ panel.

  37. In the Tools menu, select Java / J2EE and Generate Code for the selected class. • (You may get a warning that not all units are loaded. This is only significant for a completed project.). • Code generation for this yields errors (see next slide).

  38. Initial code generation errors • :10:44:57| Starting Code Generation10:44:57| WARNING: Class Logical View::OM_claim::Accident - the name of attribute Accident date/time is not a valid Java identifier.10:44:57| ERROR: Class Logical View::OM_claim::Accident - a name which is a valid Java identifier cannot be constructed for attribute Accident date/time10:45:16| Starting Code Generation10:45:16| WARNING: Class Logical View::OM_claim::Accident - the name of attribute Accident date/time is not a valid Java identifier.10:45:16| ERROR: Class Logical View::OM_claim::Accident - a name which is a valid Java identifier cannot be constructed for attribute Accident date/time • Note, these are errors due to an incompatibility between the given names and the Java language. • i.e. you cannot call a field “Accident date / time”.

  39. Error handling • Return to the class diagram and fix the problems. • Generate again. This dialogue is displayed:Insert a new classpath as shown on the next slide • Returning to the Classpaths dialogue, click on the component and click ‘Assign’. • The component then disappears from the RHS of the screen. • When the code generation is complete, hopefully you will get ‘Code generation completed successfully’ • The following code has been generated into the folder: C:\Contents\Rational Rose\Claims\JavaCode\OM_claim

  40. //Source file: C:\\Contents\\Rational Rose\\Claims\\JavaCode\\OM_claim\\Accident.java package OM_claim; /** * This is documentation for the Accident class */ public class Accident { private Date Accidentdatetime = 01012004; private String AccidentLocation = None; private String AccidentDescription = None; private String BusRegistration = 00 D 00000; public Claim theClaim[]; /** * @roseuid 418F4FF20390 */ public Accident() { } /** * @return Boolean * @roseuid 418A4EDF0242 */ public Boolean ReportAccident() { return null; } /** * @return Boolean * @roseuid 418A4EE5020F */ public Boolean CerifyAccident() { return null; } /** * @return String * @roseuid 418A4EE90124 */ public String GetStatus() { return null; } }
