  1. COMPONENTS OF THE MICROSCOPE

  2. THE MICROSCOPE • EYEPIECE

  3. THE MICROSCOPE • ARM

  4. THE MICROSCOPE • BASE

  5. THE MICROSCOPE • BINOCULAR TUBE

  6. THE MICROSCOPE • REVOLVING NOSEPIECE

  7. THE MICROSCOPE • OBJECTIVE LENS

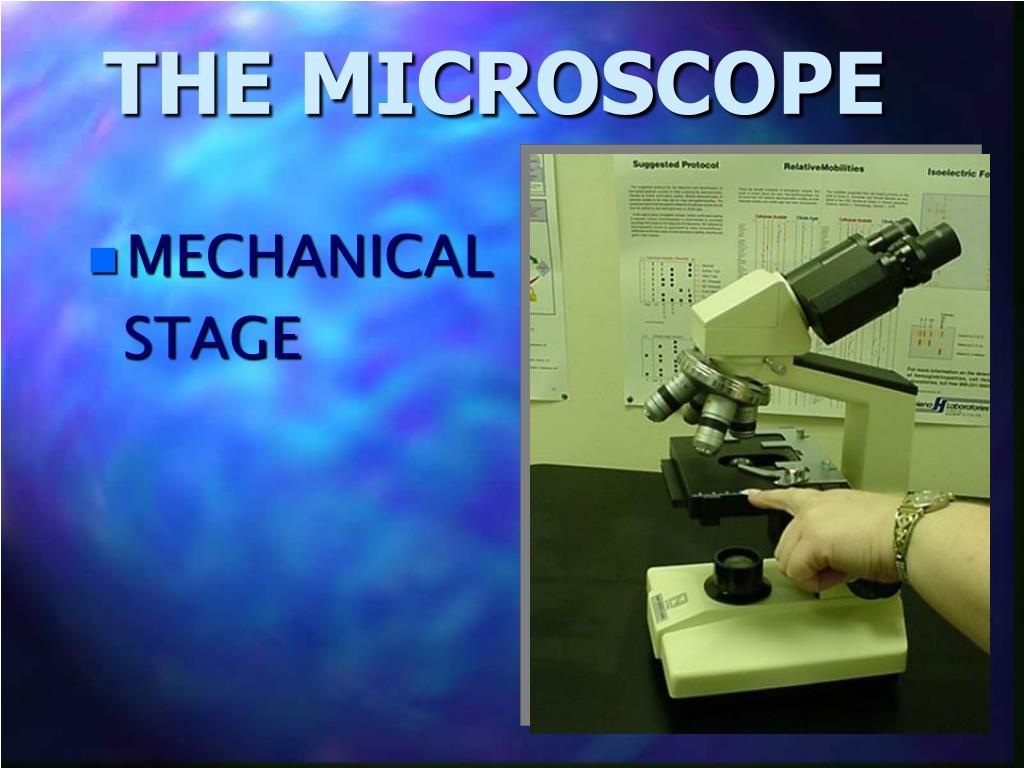

  8. THE MICROSCOPE • MECHANICAL STAGE

  9. THE MICROSCOPE • STAGE CLIPS

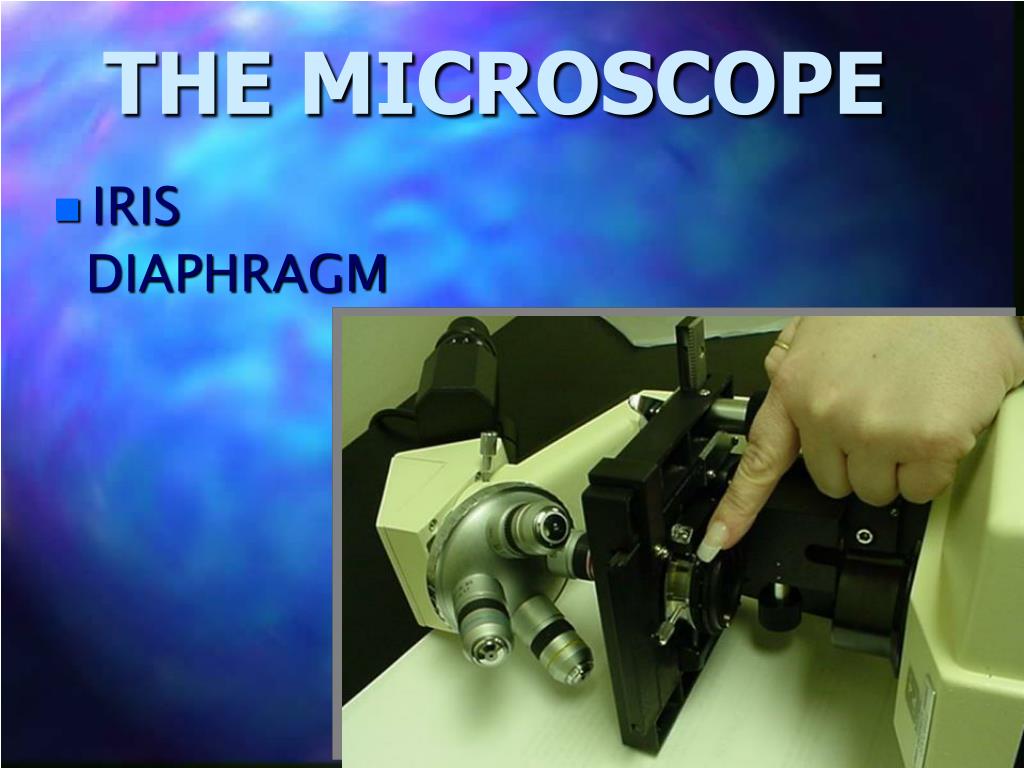

  10. THE MICROSCOPE • IRIS DIAPHRAGM

  11. THE MICROSCOPE • COARSE ADJUSTMENT KNOB

  12. THE MICROSCOPE • FINE ADJUSTMENT KNOB

  13. THE MICROSCOPE • LAMP

  14. THE MICROSCOPE • BULB

  15. THE MICROSCOPE • ON/OFF SWITCH

  16. CARE OFTHE MICROSCOPE • Always carry the microscope by the arm and the base.

  17. CARE OFTHE MICROSCOPE • Wrap the cord around the microscope.

  18. CARE OFTHE MICROSCOPE • Always use a dust cover!
