10-2: Conic Sections - Circles

This guide explores the fundamental concepts of circles in geometry, including the definition of a circle as the set of all coplanar points equidistant from a fixed point (the center). We cover the standard circle equation, (x-h)² + (y-k)² = r², where (h,k) is the center and r is the radius. Additionally, we demonstrate how to graph circles using given equations by completing the square and applying transformations. Key examples illustrate finding circle equations from center and radius or endpoints of a diameter, enhancing your understanding of circular geometry.

stevie
Télécharger la présentation

10-2: Conic Sections - Circles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 10-2: Conic Sections - Circles circle

  2. Circle The set of all co-planar points equidistant from a fixed point (center). radius

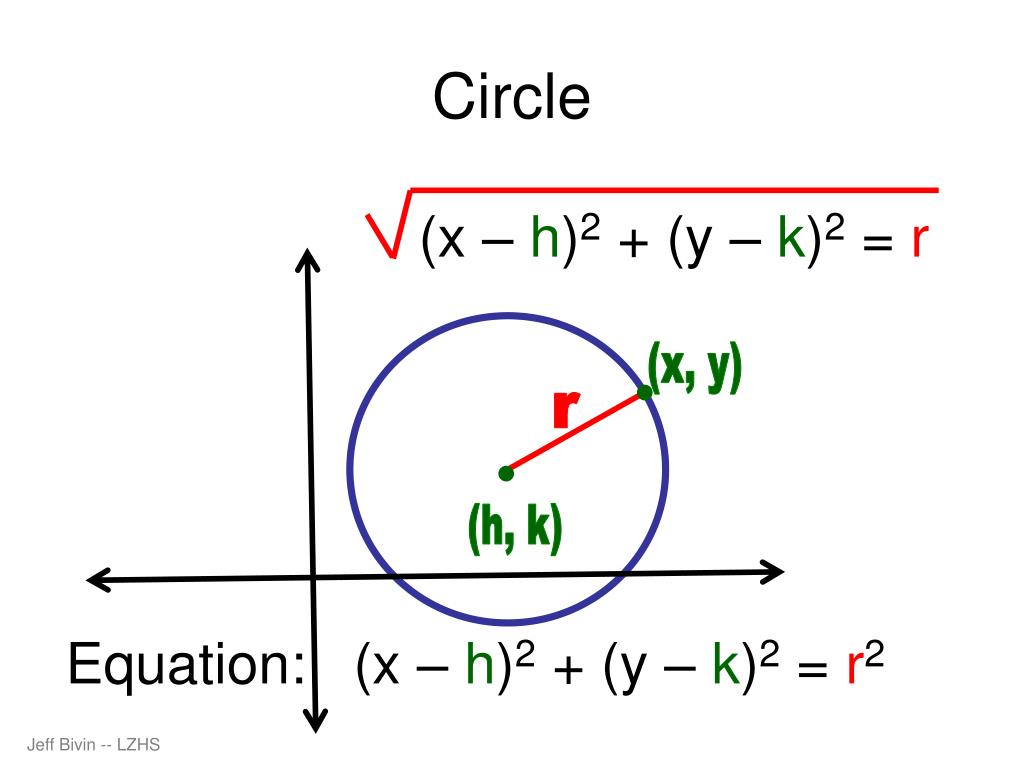

  3. Circle Equation: (x – h)2 + (y – k)2 = r2 (x – h)2 + (y – k)2 = r (x, y) r (h, k)

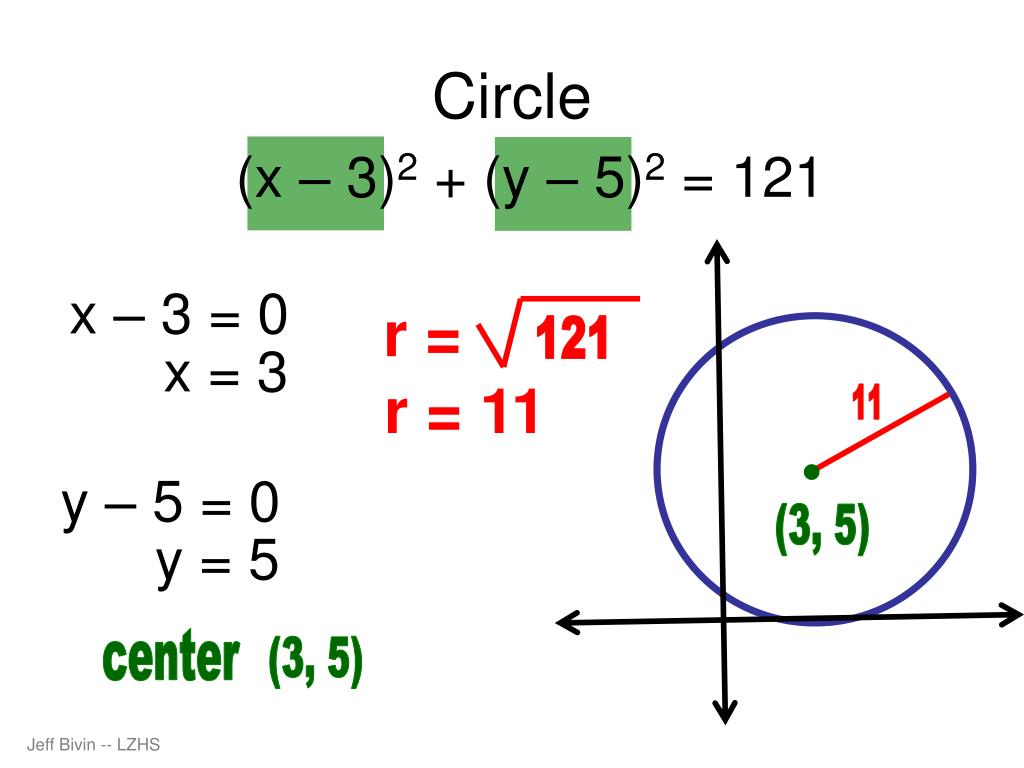

  4. Circle (x – 3)2 + (y – 5)2 = 121 x – 3 = 0 r = 121 x = 3 r = 11 11 y – 5 = 0 (3, 5) y = 5 center (3, 5)

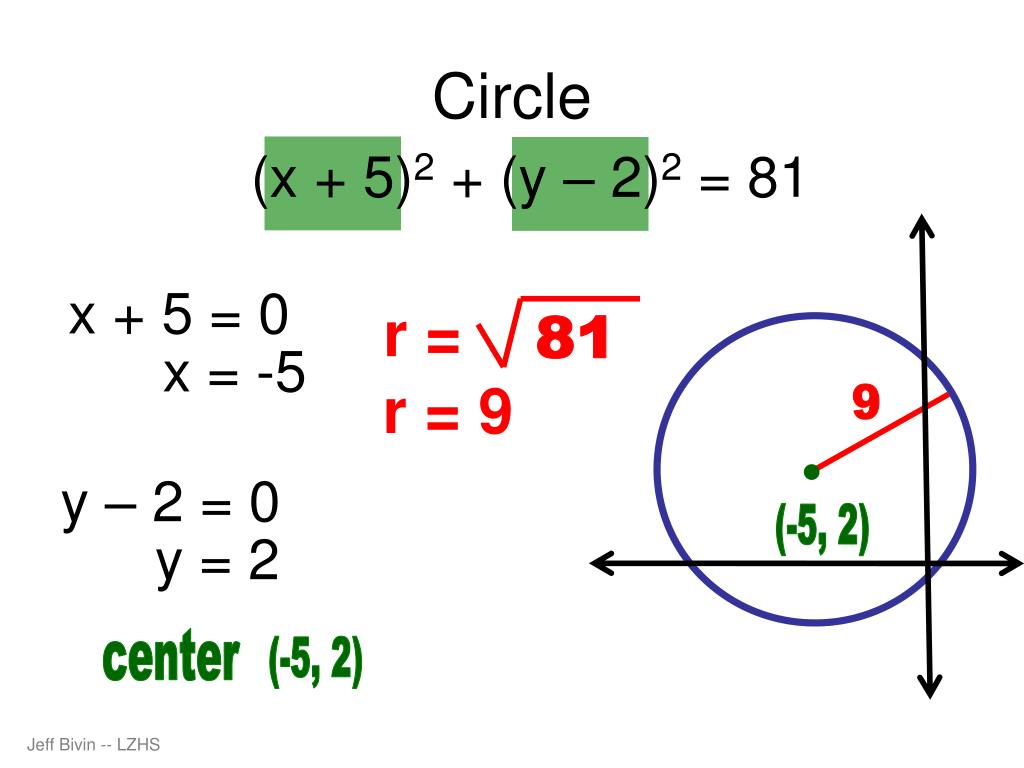

  5. Circle (x + 5)2 + (y – 2)2 = 81 x + 5 = 0 r = 81 x = -5 r = 9 9 y – 2 = 0 (-5, 2) y = 2 center (-5, 2)

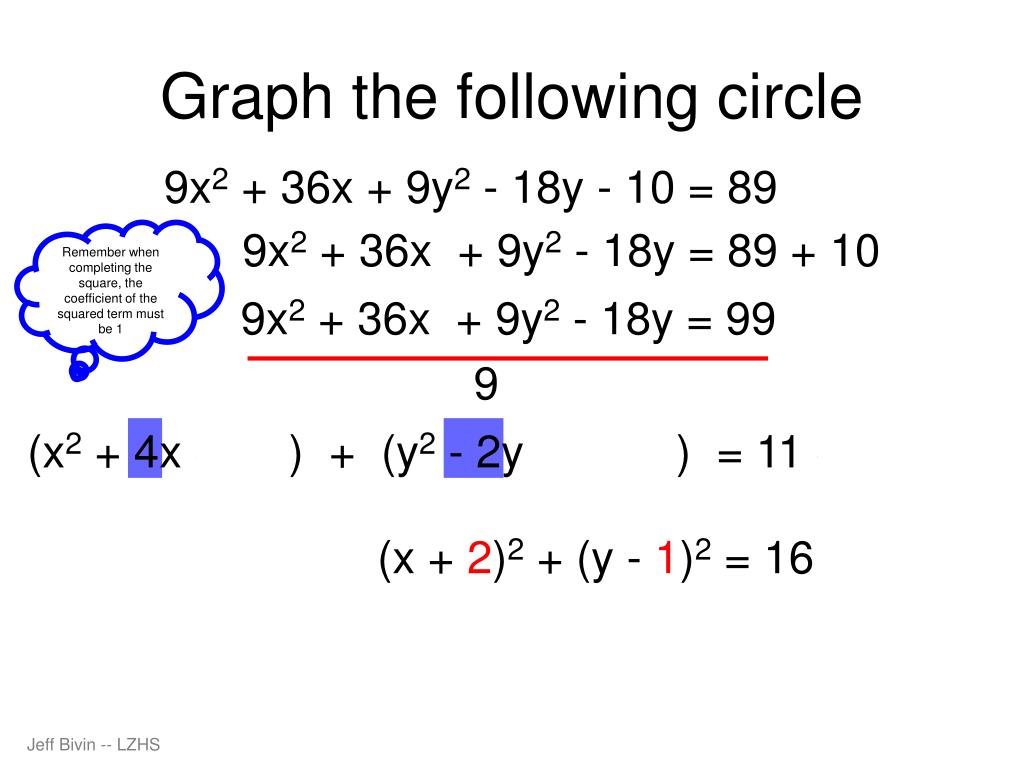

  6. Graph the following circle 9x2 + 36x + 9y2 - 18y - 10 = 89 9x2 + 36x + 9y2 - 18y = 89 + 10 Remember when completing the square, the coefficient of the squared term must be 1 9x2 + 36x + 9y2 - 18y = 99 9 (x2 + 4x + 22 ) + (y2 - 2y + (-1)2 ) = 11 + 4 + 1 (x + 2)2 + (y - 1)2 = 16

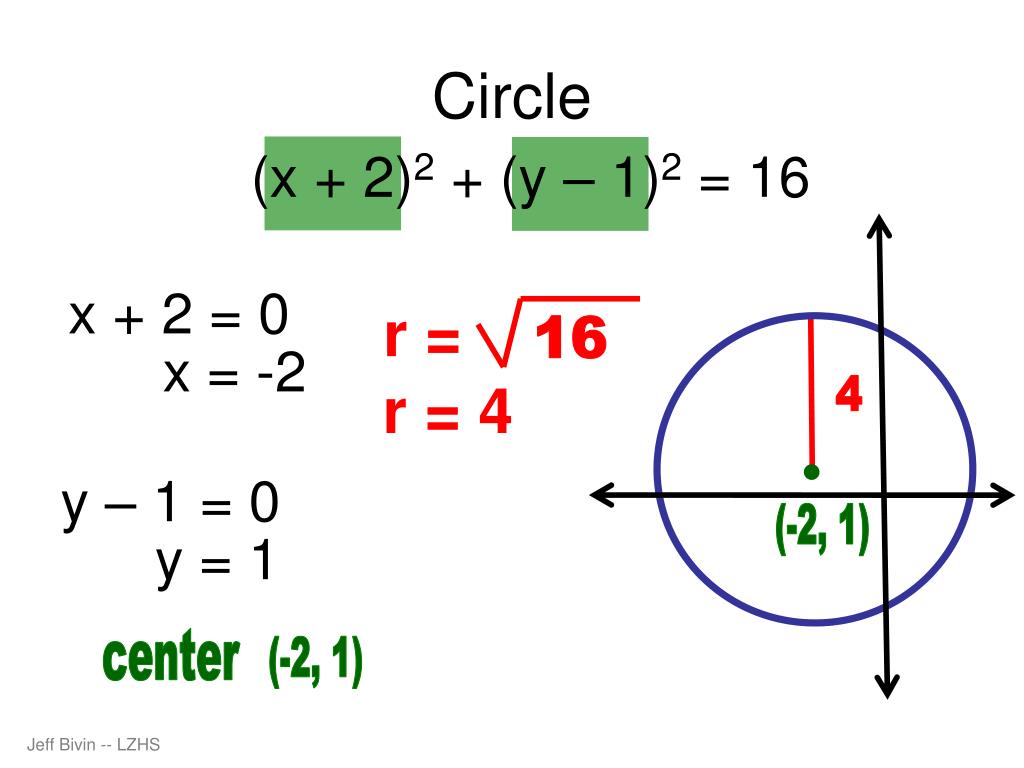

  7. Circle (x + 2)2 + (y – 1)2 = 16 x + 2 = 0 r = 16 x = -2 r = 4 4 y – 1 = 0 (-2, 1) y = 1 center (-2, 1)

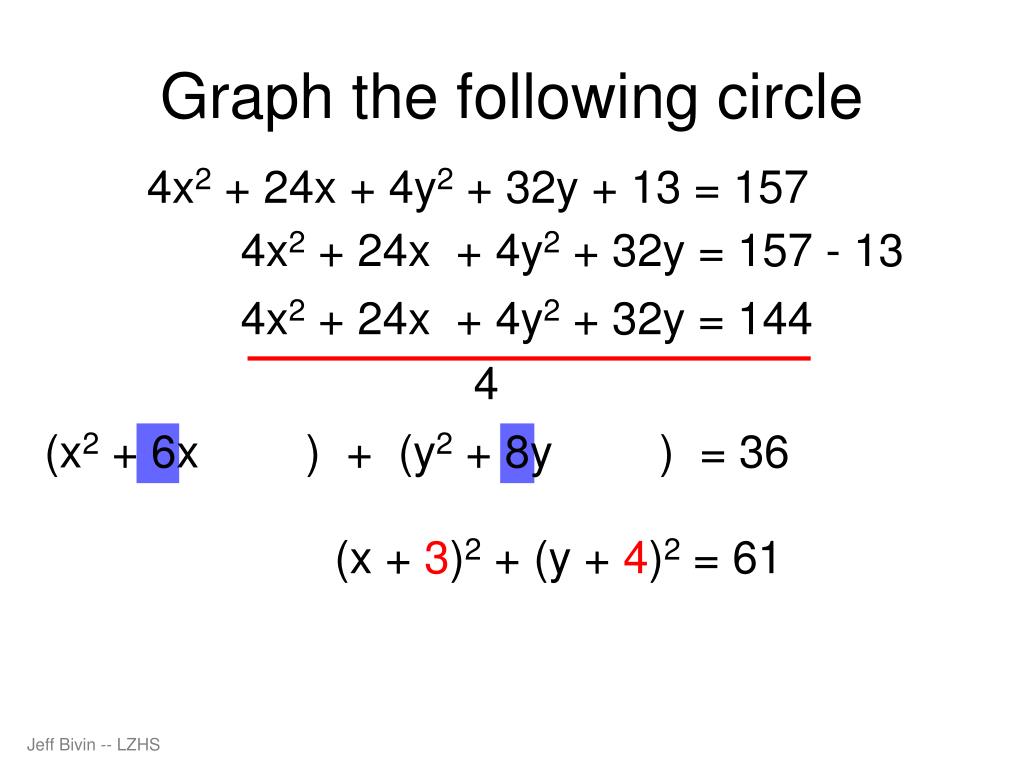

  8. Graph the following circle 4x2 + 24x + 4y2 + 32y + 13 = 157 4x2 + 24x + 4y2 + 32y = 157 - 13 4x2 + 24x + 4y2 + 32y = 144 4 (x2 + 6x + 32 ) + (y2 + 8y + 42 ) = 36 + 9 + 16 (x + 3)2 + (y + 4)2 = 61

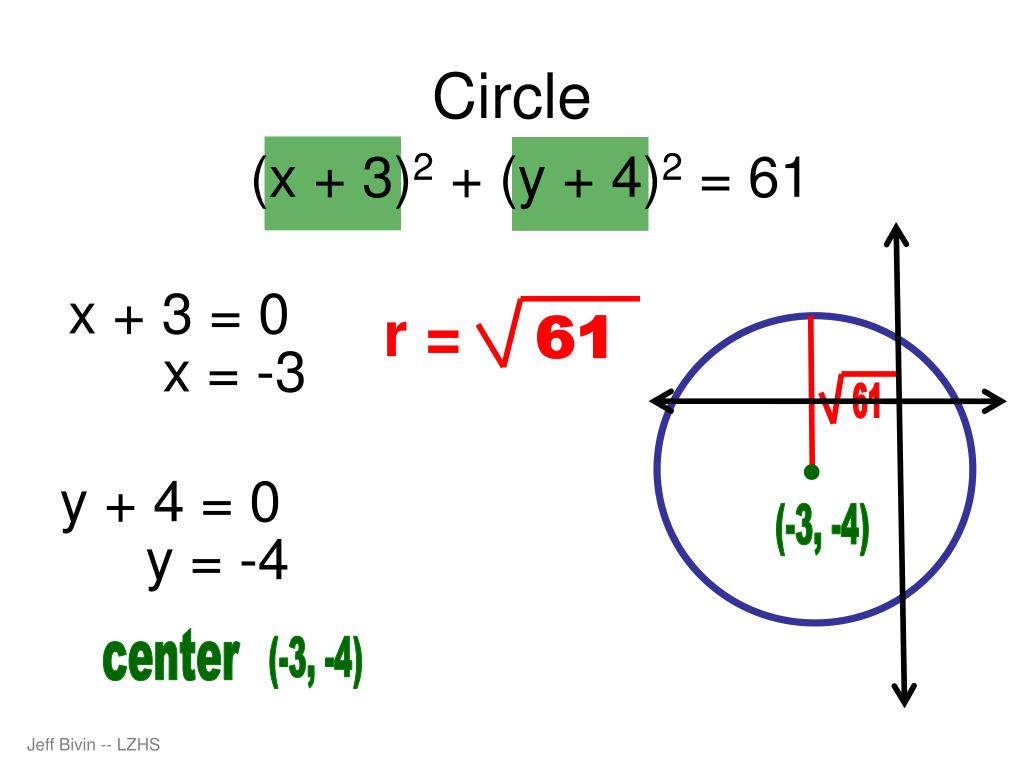

  9. Circle (x + 3)2 + (y + 4)2 = 61 x + 3 = 0 r = 61 x = -3 61 y + 4 = 0 (-3, -4) y = -4 center (-3, -4)

  10. Graph the following circle 5x2 - 80x + 5y2 + 20y - 34 = 106 5x2 - 80x + 5y2 + 20y = 106 + 34 5x2 - 80x + 5y2 + 20y = 140 5 (x2 - 16x + (-8)2 ) + (y2 + 4y + 22 ) = 28 + 64 + 4 (x - 8)2 + (y + 2)2 = 96

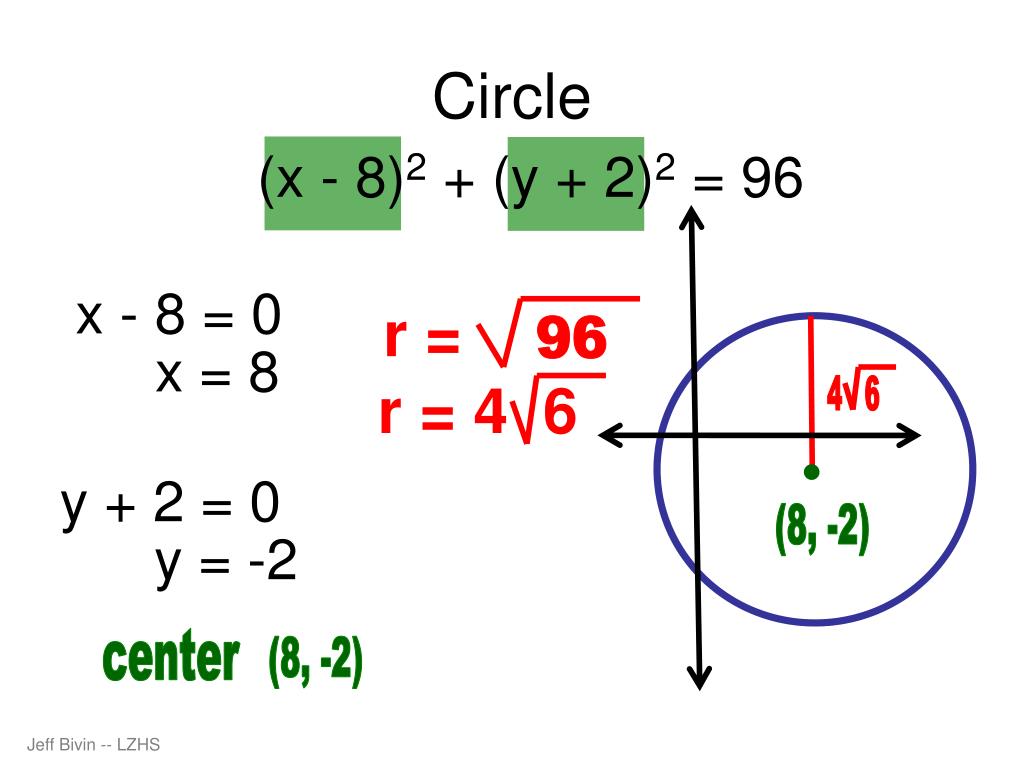

  11. Circle (x - 8)2 + (y + 2)2 = 96 x - 8 = 0 r = 96 x = 8 r = 4 6 4 6 y + 2 = 0 (8, -2) y = -2 center (8, -2)

  12. Graph the following circle 2x2 + 10x + 2y2 + 8y + 4 = 25 2x2 + 10x + 2y2 + 8y = 25 - 4 2x2 + 10x + 2y2 + 8y = 21 2 (x2 + 5x + ) + (y2 + 4y + 22 ) = + + 4 (x + )2 + (y + 2)2 =

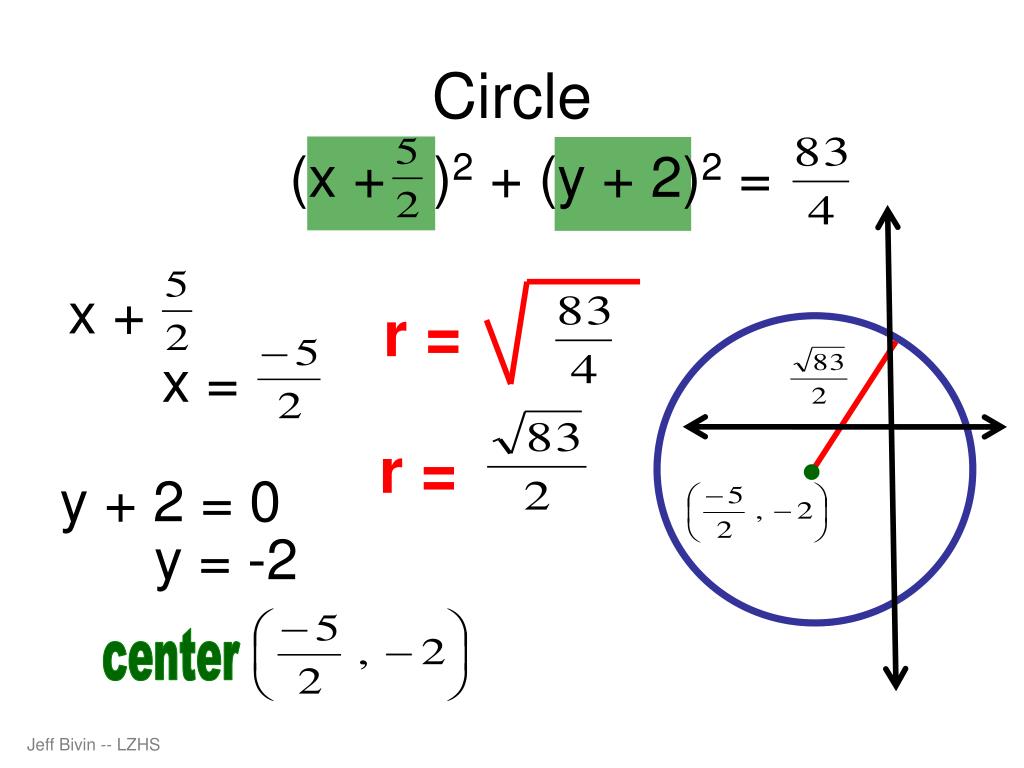

  13. Circle (x + )2 + (y + 2)2 = x + = 0 r = x = r = y + 2 = 0 y = -2 center

  14. Find the equation of the circle such that the endpoints of a diameter are (2,7) and (-6, 15). Center: use midpoint formula radius: use distance formula (h,k) = radius
