  1. Properties of Matter: Physical Properties Cscope Unit 3 Lesson 1

  2. TEKS • The student knows that relationships exist between properties of matter and its components. • 7B Research and describe the historical development of the atomic theory.

  3. Key Understandings and Guiding Questions • -The development of the atomic theory comes from the contributions of several scientists. • — How has atomic theory evolved over time, and why is it not considered a law? -

  4. Vocabulary of Instruction • theory • law • atomic theory

  5. Mystery Boxes • Get in groups of 4 • Get a set of mystery boxes 1-3 • Do not open or peek inside boxes. • Do your best to figure out what is inside each without looking. • Write down your conclusion for each box

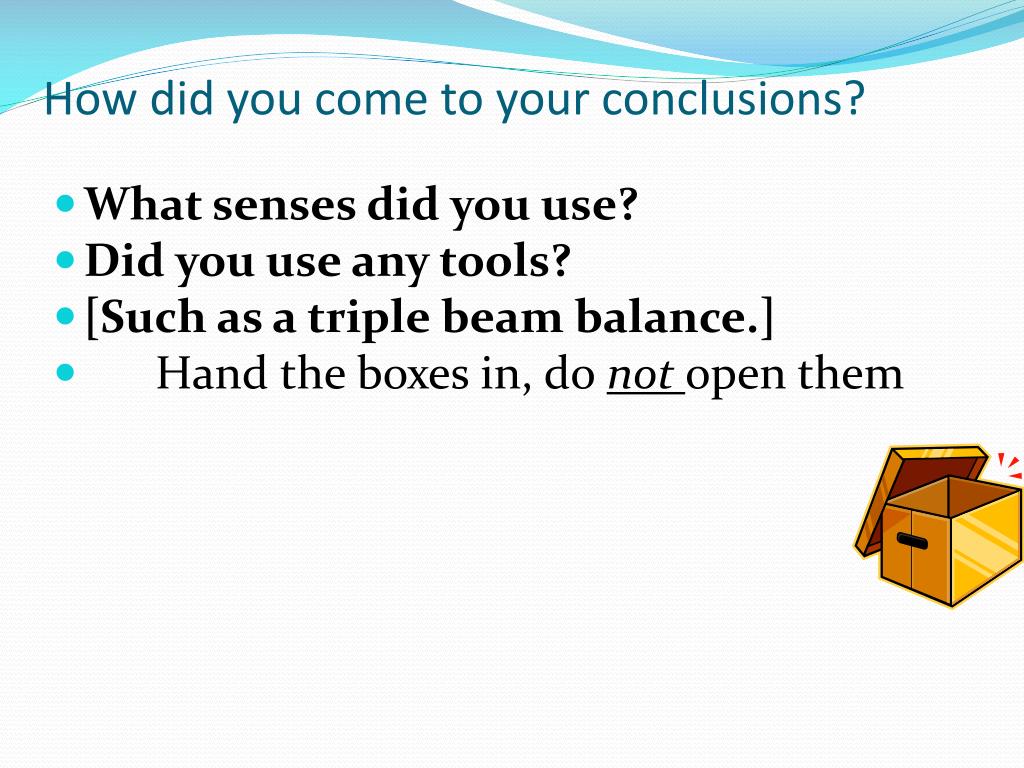

  6. How did you come to your conclusions? • What senses did you use? • Did you use any tools? • [Such as a triple beam balance.] • Hand the boxes in, do not open them

  7. Boxes answers? • I’m Not telling you the answers • CONFUSED? • Scientist don’t know the answers they must do there best without all the answers

  8. A Theory is an explanation of a natural event. Theories are sometimes our best guess, and are often revised as we discover new information.Example; the formation of the UniverseIf proven- over time it can become a law.

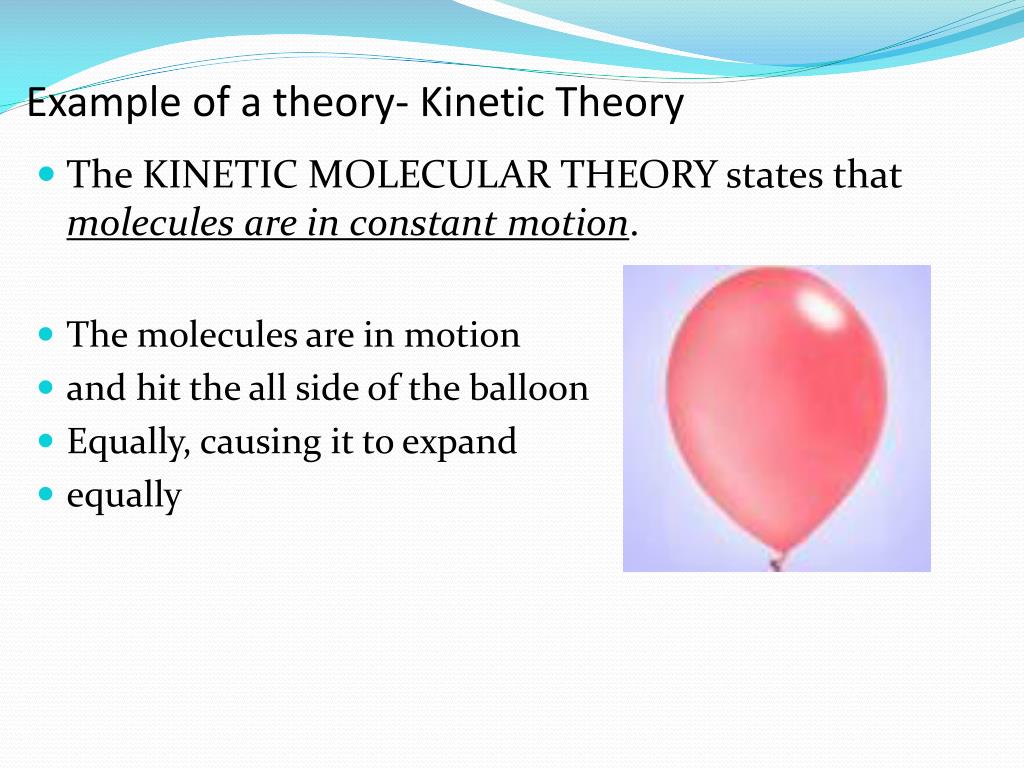

  9. Example of a theory- Kinetic Theory • The KINETIC MOLECULAR THEORY states that molecules are in constant motion. • The molecules are in motion • and hit the all side of the balloon • Equally, causing it to expand • equally

  10. Scientific Law A law states a summary of a repeated observation about a natural event. The sun always rises in the East

  11. Law

  12. Hot wheels are nearly exact replicas of cars but smallerThey are models of carsthey can help us understand what a type of car looks like

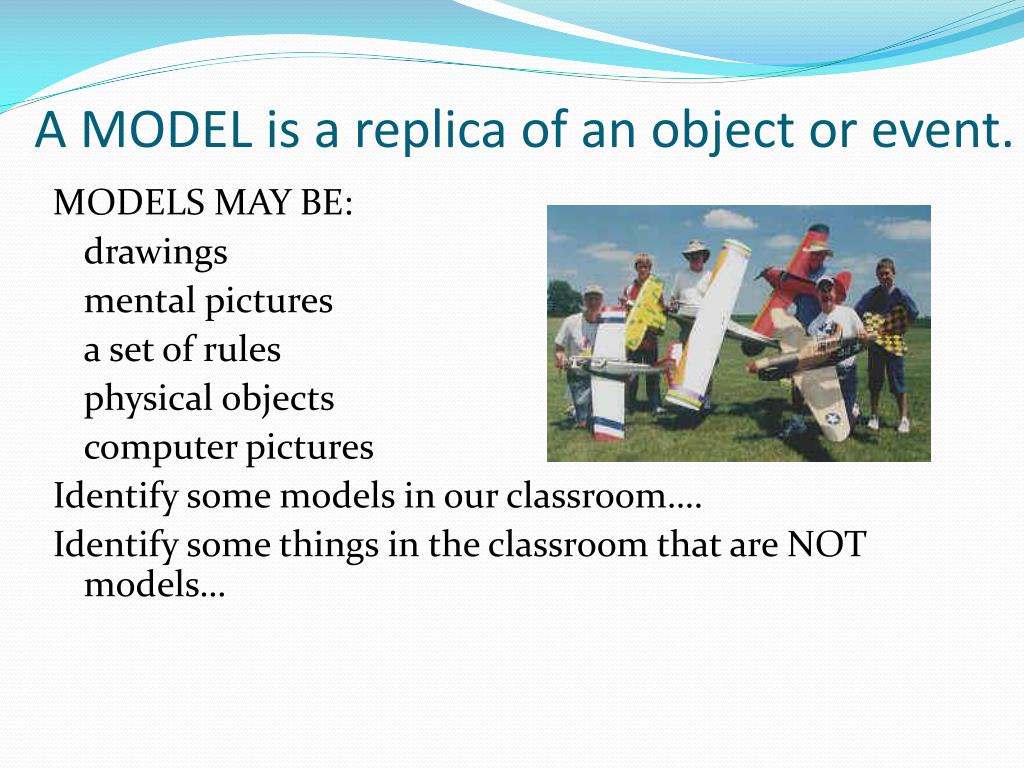

  13. A MODEL is a replica of an object or event. MODELS MAY BE: drawings mental pictures a set of rules physical objects computer pictures Identify some models in our classroom…. Identify some things in the classroom that are NOT models…

  14. Model Activity • Groups of 4 • Number off 1-4 at each table • 1- read directions • 2- locate the next piece • 3- put the piece in the correct place • 4- checker to verify correctness • Build the model that is at your table. • Follow the directions

  15. Models • In the case of atoms, scientists use large models to explain something that is very small • Models of the atom were used to explain data or facts that were gathered experimentally. • So, these models are also theories

  16. History of the Atomic Theory

  17. Research project • Atomic Theory Timeline (use your hand out) • Create a timeline you have 1 day to research, 1 day to construct it • Include- • Scientists who contributed to the atomic theory • Significant discoveries • New inventions which helped scientists in their studies • Draw the atoms at each stage

  18. Atomic Structure Timeline Use the following information to complete the lecture handout. On tomorrow’s quiz, you will be expected to… draw the atomic models match scientists to their experiments and discoveries place the models in chronological order

  19. Democritus (400 B.C.) • Proposed that matter was composed of tiny indivisible particles • Not based on experimental data • Greek: atomos

  20. Alchemy (next 2000 years) • Mixture of science and mysticism. • Lab procedures were developed, but alchemists did not perform controlled experiments like true scientists.

  21. John Dalton (1807) • British Schoolteacher • based his theory on others’ experimental data • Billiard Ball Model • atom is a uniform, solid sphere

  22. John Dalton Dalton’s Four Postulates 1. Elements are composed of small indivisible particles called atoms. 2. Atoms of the same element are identical. Atoms of different elements are different. 3. Atoms of different elements combine together in simple proportions to create a compound. 4. In a chemical reaction, atoms are rearranged, but not changed.

  23. Henri Becquerel (1896) • Discovered radioactivity • spontaneous emission of radiation from the nucleus • Three types: • alpha () - positive • beta () - negative • gamma () - neutral

  24. J. J. Thomson (1903) • Cathode Ray Tube Experiments • beam of negative particles • Discovered Electrons • negative particles within the atom • Plum-pudding Model

  25. J. J. Thomson (1903) Plum-pudding Model • positive sphere (pudding) with negative electrons (plums) dispersed throughout

  26. Ernest Rutherford (1911) • Gold Foil Experiment • Discovered the nucleus • dense, positive charge in the center of the atom • Nuclear Model

  27. Ernest Rutherford (1911) • Nuclear Model • dense, positive nucleus surrounded by negative electrons

  28. Rutherford’s gold foil experiment http://www.shsu.edu/%7Echm_tgc/sounds/pushmovies/l2ruther.gif - source of animation

  29. Niels Bohr (1913) • Bright-Line Spectrum • tried to explain presence of specific colors in hydrogen’s spectrum • Energy Levels • electrons can only exist in specific energy states • Planetary Model

  30. Niels Bohr (1913) • Planetary Model • electrons move in circular orbits within specific energy levels Bright-line spectrum

  31. Erwin Schrödinger (1926) • Quantum mechanics • electrons can only exist in specified energy states • Electron cloud model • orbital: region around the nucleus where e- are likely to be found

  32. Erwin Schrödinger (1926) Electron Cloud Model (orbital) • dots represent probability of finding an e-not actual electrons

  33. James Chadwick (1932) • Discovered neutrons • neutral particles in the nucleus of an atom • Joliot-Curie Experiments • based his theory on their experimental evidence

  34. James Chadwick (1932) Neutron Model • revision of Rutherford’s Nuclear Model

  35. Current atomic model • Electron Cloud Model- nucleus with protons and neutrons in the center • Electrons in clouds around the nucleus- very large area compared to the nucleus • Electrons move too fast to find exact location at any one time • Atoms are mostly empty space!http://www.teachersdomain.org/resource/phy03.sci.phys.matter.atoms/

  36. Modern Models of AtomsQUARKS • Protons, and neutrons are made up of smaller particles- quarks • Quarks- smallest particles- make up protons, neutrons, and electrons- 6 types • up, down, top, bottom, strange and charm • To study quarks- accelerate charged particles to high speeds and cause them to collide with protons, breaking the proton

  37. QUARKS • http://en.wikipedia.org/wiki/Particle_accelerator • A proton is made up of 2 up quarks and 1 down quark = charge of +1 • a neutron contains 1 up quark and 2 down quarks, yielding a net charge of 0 • All you’ve learned about atomic structure is just a model • Model- help you visualize or understand something too large or small to see all at once • http://www.teachersdomain.org/resources/phy03/sci/phys/matter/atoms/index.html

  38. A closer look at quantum mechanics: http://www.fearofphysics.com/Atom/atom1.html

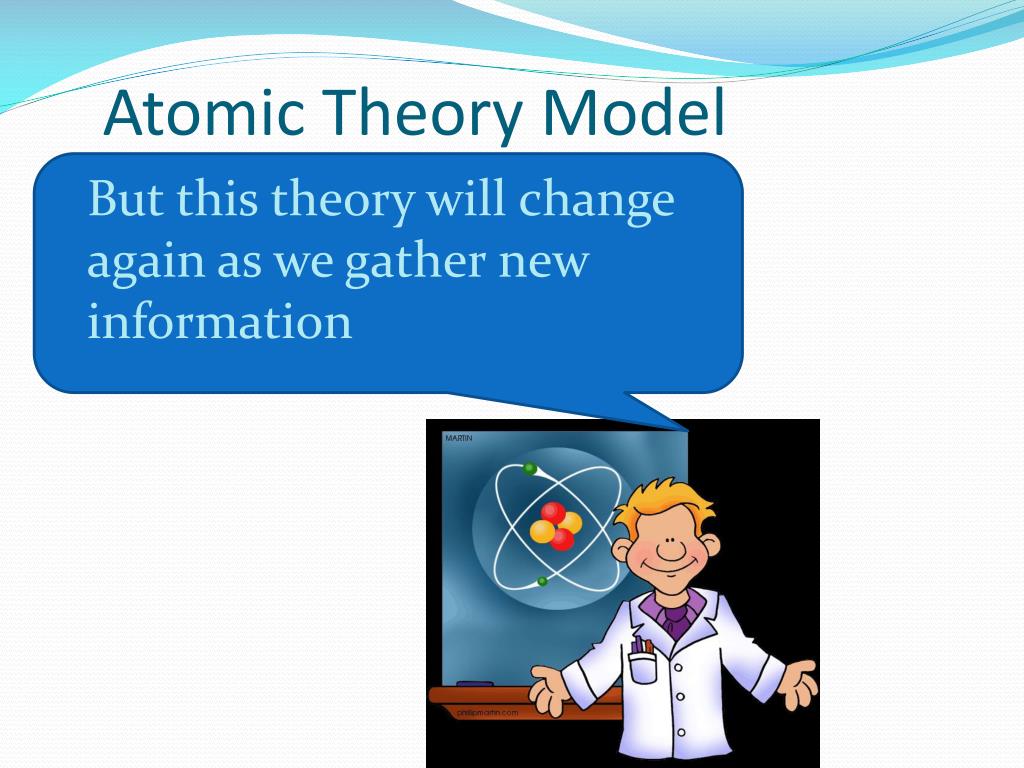

  39. Atomic Theory Model But this theory will change again as we gather new information • the smallest unit of an element, • having all the characteristics of that element • consisting of a dense,  central, positively charged nucleus • surrounded by a system of electrons.

  40. JOKE • A neutron walks into a restaurant and orders a coke. • As she is about to leave, she asks the waiter how much she owes.  • The waiter replies "For you, No Charge! ,!!"

  41. Atoms Family Album • a Story OF aTOMS

  42. Atoms Family Album • Around the Nucleus Arcade, you will find a series of roadways that are used by another member of the Atoms Family, Enraged Elliott Electron. • Elliott races madly around the Arcade on his bright red chrome plated Harley-Davidson. He rides so fast that no one can be sure where he is at any time. • Elliott is much smaller than Patty and Nelda and he is always angry because these bigger relatives will not let him in the Arcade. • He has a frown on his face, eyes that are squinted with anger, and a very negative (-) attitude. Elliot Electron

  43. Atoms Family Album • In the center of Matterville, there is a place called the Nucleus Arcade, where two members of the Atoms Family like to hang out. • Perky Patty Proton, like her sisters, is quite large with a huge smile and eyes that sparkle (+). • Patty is always happy and has a very positive personality. Nerdy Nelda Neutron is large like Patty, but she has a boring, flat mouth and eyes with zero expression (o). • Her family is very apathetic and neutral about everything. Patty, Nelda, and their sisters spend all their time at the arcade. + + Patty Proton Nelda Neutron

  44. Atoms Family Album • The first energy street can only hold only two Electron brothers. • The second energy street, called the Energy Freeway, can hold 8 brothers. • The third energy street, called the Energy Superhighway, can hold 18 of the brothers.

  45. Atom worksheet • Complete the diagram of the Bohr model of the atom • Cut it out • glue it into your notebook

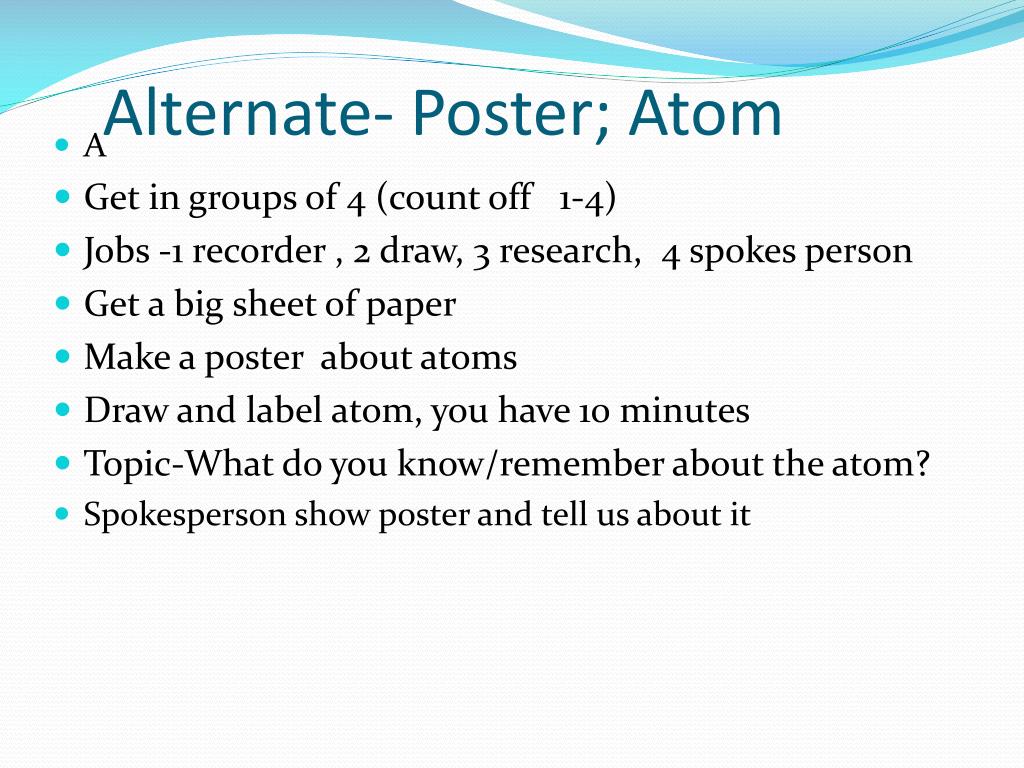

  46. Alternate- Poster; Atom • A • Get in groups of 4 (count off 1-4) • Jobs -1 recorder , 2 draw, 3 research, 4 spokes person • Get a big sheet of paper • Make a poster about atoms • Draw and label atom, you have 10 minutes • Topic-What do you know/remember about the atom? • Spokesperson show poster and tell us about it

  47. JOKE • Two atoms are walking down the street. • Says one atom to the other, "Hey! I think I lost an electron!" • The other says, "Are you sure??" • "Yes, I'm positive!"
