Electric Current

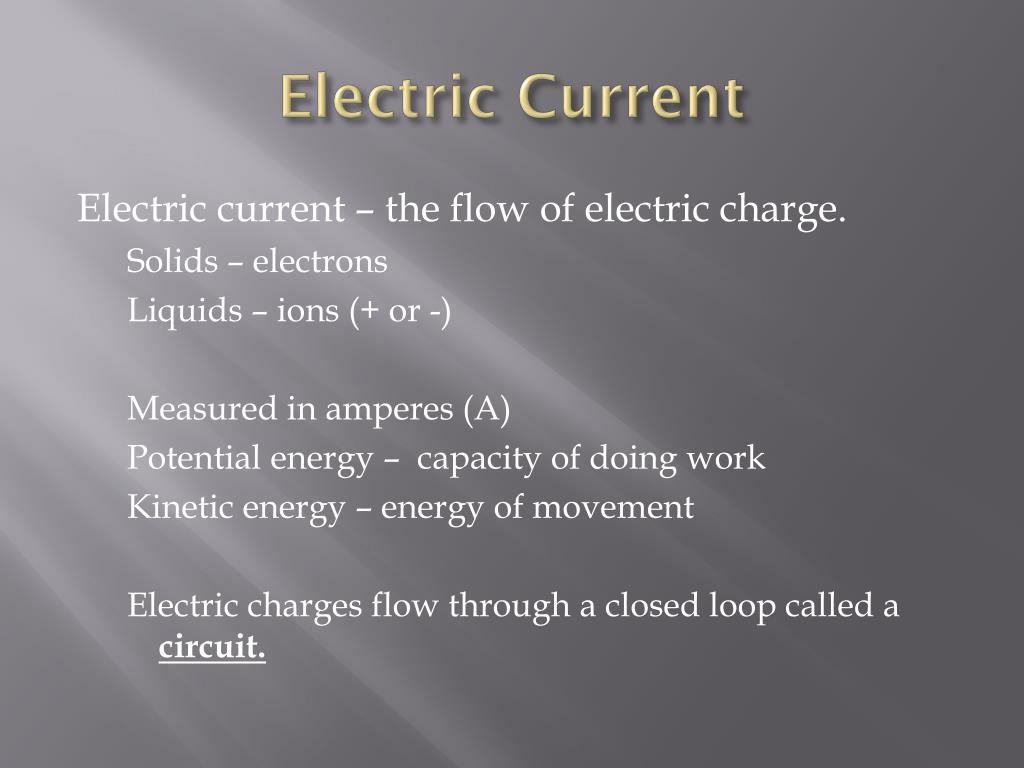

Electric Current. Electric current – the flow of electric charge. Solids – electrons Liquids – ions (+ or -) Measured in amperes (A) Potential energy – capacity of doing work Kinetic energy – energy of movement Electric charges flow through a closed loop called a circuit.

suchin
Télécharger la présentation

Electric Current

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Electric Current Electric current – the flow of electric charge. Solids – electrons Liquids – ions (+ or -) Measured in amperes (A) Potential energy – capacity of doing work Kinetic energy – energy of movement Electric charges flow through a closed loop called a circuit.

  2. Electric Current • Simple Circuit – source of electrical energy (battery) plus an electric conductor (wire). • Battery ------ wire-----light bulb------battery. • Electric current flows as long as the connection is not broken. • Voltage – measure of how much electrical potential energy each electron can gain. • Volts (V)

  3. Electric Current • As voltage increases, more electrical potential energy is available. • Battery

  4. Positive terminal Negative terminal

  5. Resistance • Resistance – how difficult it is for electrons to flow. • The amount of electrical energy that is heat or light depends on resistance. • Copper – low resistance • Light bulb filament - high resistance, becomes hot enough to emit light.

  6. Ohm’s Law • Ohm’s Law – How does changing voltage in a circuit affect the current? • Voltage = Current (amperes) x Resistance (Ώ) V= IR If the light bulb has a resistance of 220 Ώ and the current is 0.5A, what is the voltage provided by the outlet. V= IR V= 0.5A x 220Ώ V = 110

  7. Series and Parallel Circuits • Series circuit – only one path for the electric current. • Parallel circuit – more than one path for the electric circuit. • Adding or removing devices on a branch does not break the current. • Resistance in each branch can be different.

  8. Electrical Power • Rate at which electrical energy is converted into forms of energy = electrical power. • Electric Power Equation • P (in watts) = Current (Amperes) x Voltage (volts) • P=IV • A light bulb is plugged into a 110V wall outlet. How much electric power does the light bulb use if the current is 0.55A? • P= IV • P = O.55A x 110 V • P = 60.5 Watts
