The Brain

The Brain. And its Functions. Neuron. Neural Impulse / Action Potential. All or none = the least amount of energy needed to start the motion Action Potential = the movement of neural activity Refractory Period = the time where no motion can occur (no energy)

suchin
Télécharger la présentation

The Brain

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The Brain And its Functions

  2. Neuron

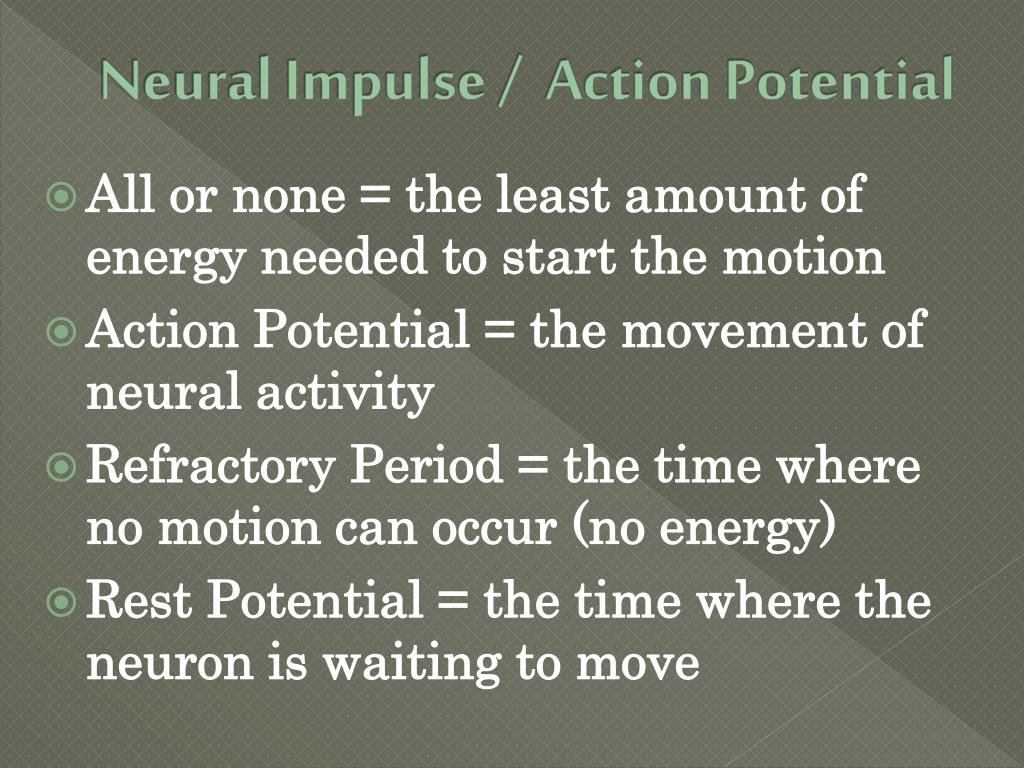

  3. Neural Impulse / Action Potential • All or none = the least amount of energy needed to start the motion • Action Potential = the movement of neural activity • Refractory Period = the time where no motion can occur (no energy) • Rest Potential = the time where the neuron is waiting to move

  4. Neurons (cont.) • Neurons are nerve cells that transmit nerve signals to and from the brain throughout the body • A typical neuron has about 1,000 to 10,000 synapses • There are about 100 billion neurons in the brain.

  5. Neurons (cont.) http://www.youtube.com/watch?v=RWS32l3dTsM

  6. Neurons (cont.) • Part – Function • Dendrite - treelike extensions at the beginning of a neuron that help increase the surface area of the cell body and are covered with synapses. These receive information from other neurons and transmit electrical stimulation to the soma • Cell Body - where the signals from the dendrites are joined and passed on. The cell body does not play an active role in the transmission of the neural signal; instead, keeps the neuron alive.

  7. Neurons (cont.) • Part – Function • Axon - the elongated fiber that extends from the cell body to the terminal endings and transmits the neural signal. The larger the axon, the faster it transmits information • Myelin Sheath - fatty substance called myelin that acts as an insulator. These myelinated axons transmit information much faster than other neurons • Axon terminal – at the end of the neuron and are responsible for sending the signal on to other neurons (through synapses)

  8. Synapse

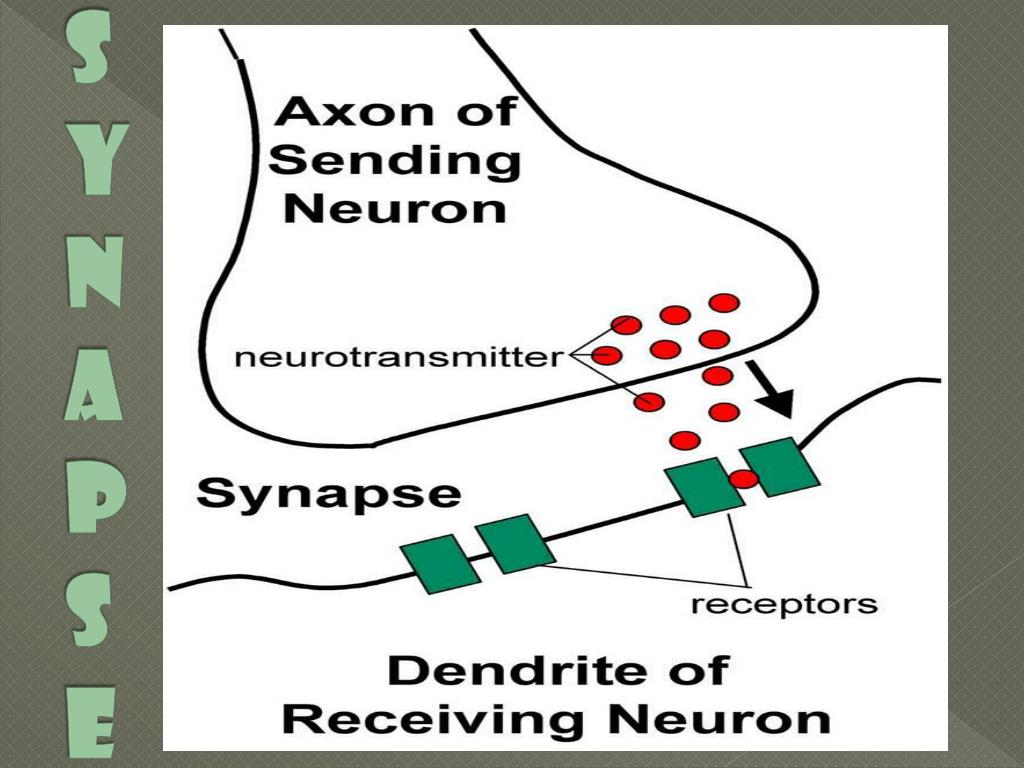

  9. Synapse – small gap at the end of a neuron that allows information to pass from one neuron to the next Neurotransmitter – is a chemical messenger that sends and moderates signals between neurons and other cells in the body (Acetylcholine, GABA, Serotonin, Dopamine, etc.) Receptor – an area on the dendrite where neurotransmitters bind Reuptake – is the process of unused neurotransmitters being taken back into the axon terminal Synapse

  10. Neurons (cont.) • There are different types of neurons, which all carry electro-chemical nerve signals throughout the Central Nervous System (CNS) • Sensory neurons or Afferent neurons carry messages from the body's sense receptors (eyes, ears, etc.) to the CNS. • Motorneurons or Efferent neurons carry signals from the CNS to the muscles and glands. • Interneurons are the neural wiring within the CNS. These have two axons.

  11. Neurons (cont.) Interneurons

  12. * ECS * * * *

  13. Parts of Brain • Frontal Lobe • Parietal Lobe • Temporal Lobe • Occipital Lobe • Corpus Callosum • Longitudinal fissure • Motor Cortex • Wernicke’s Area • Broca Area • Brain Stem • Reticular Formation • Medulla • Pons • Thalamus • Cerebellum • Hypothalamus • Hippocampus • Amygdala • Pituitary Gland

  14. Hemispheres • Right =Random; Intuitive; Holistic; Synthesizing; Subjective; Looks at whole • Left =Logical; Sequential; Rational; Analytical; Objective; Looks at parts • Corpus Callosum = tissue that connects the two sides of the brain and allows communication

  15. Central Core Corpus Callosum • Life Sustaining Center Thalamus Brainstem

  16. Central Core • Thalamus = “The Relay Station” in the brain: sensory signals, auditory, visual, somatosensory (touch) • Medulla = helps control the body's autonomic functions like respiration, digestion and heart rate • Cerebellum = deals with movement through regulation and coordination of bodily movements, posture and balance • Pons = monitors the level of stimulation or consciousness and sleep (while asleep) • Reticular Formation = monitors the state of the body and functions in such processes as arousal and sleep and attention and muscle tone (FS/WU)

  17. Limbic System • Manages functions: memory; eating; sleeping

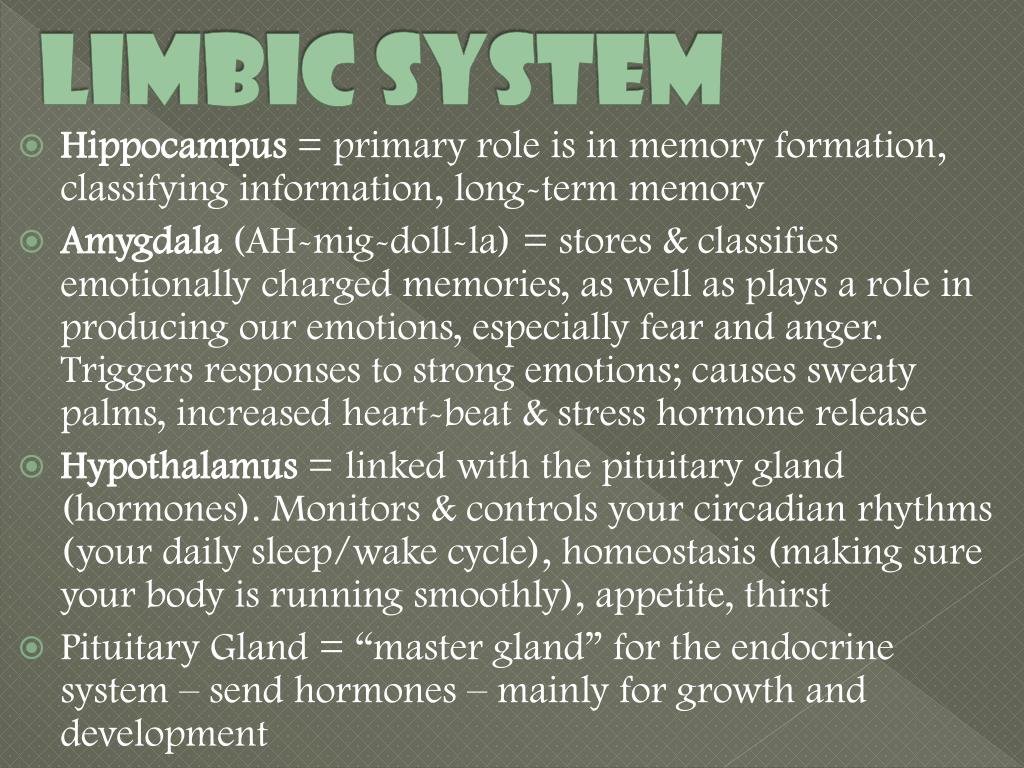

  18. Limbic System • Hippocampus = primary role is in memory formation, classifying information, long-term memory • Amygdala (AH-mig-doll-la) = stores & classifies emotionally charged memories, as well as plays a role in producing our emotions, especially fear and anger. Triggers responses to strong emotions; causes sweaty palms, increased heart-beat & stress hormone release • Hypothalamus =linked with the pituitary gland (hormones). Monitors & controls your circadian rhythms (your daily sleep/wake cycle), homeostasis (making sure your body is running smoothly), appetite, thirst • Pituitary Gland = “master gland” for the endocrine system – send hormones – mainly for growth and development

  19. Cerebral Cortex • Control & Processing Center

  20. Cerebral Cortex • Frontal Lobe = responsible for functions such as reasoning, problem solving, judgment, impulse control (develops later than most parts and area most susceptible to drugs & alcohol) • Parietal Lobe involved in processing pain & touch sensation. Where the somatosensory (from your skin and internal organs) Cortex resides. Associated with cognition (including calculating location & speed of objects), movement, orientation, recognition & speech • Occipital Lobe = controls visual sensation and processing • Temporal Lobe = involved in auditory (sound) sensation

  21. Language Area Motor Cortex Broca Wernicke

  22. Language Areas • Broca = speech production; facial and mouth control; and language Processing (language output) • Wernicke = language Comprehension; semantic Processing; language Recognition; and language Interpretation (language structure) • Motor Cortex = movement of mouth - pronounce/hands
