Where is Intelligence in the GSM network?

HLR. MAP. MSC. MAP. MSC. MSC. ISUP. GSM network (PLMN). Where is Intelligence in the GSM network?. Normal GSM subscriber Makes and receives a call. SSP. SSP. HLR. Where is IN in the GSM network?. GSM operator wants to

sun
Télécharger la présentation

Where is Intelligence in the GSM network?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

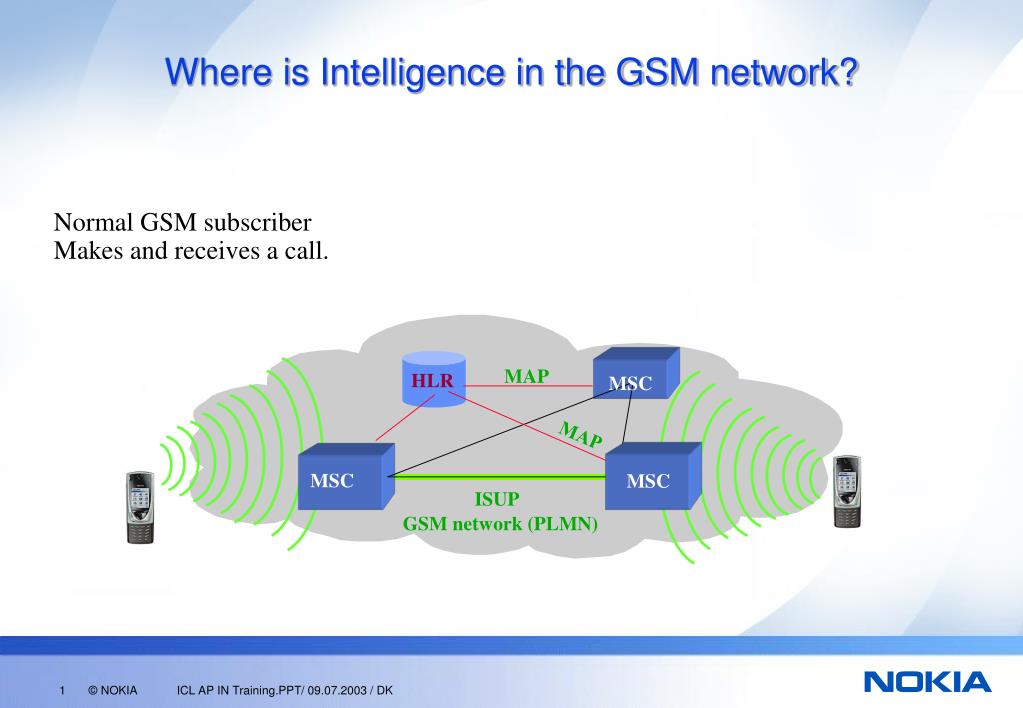

  1. HLR MAP MSC MAP MSC MSC ISUP GSM network (PLMN) Where is Intelligence in the GSM network? Normal GSM subscriber Makes and receives a call.

  2. SSP SSP HLR Where is IN in the GSM network? GSM operator wants to provide new services quickly & efficiently in the network and that is possible only through IN. CSS7 Signaling link between SSP and SCP provides the communication channel between IN and GSM network. IN environment SPACE SCP MAP MSC MAP MSC MSC ISUP GSM network (PLMN)

  3. Intelligent Network Concept

  4. Intelligent Network Logic

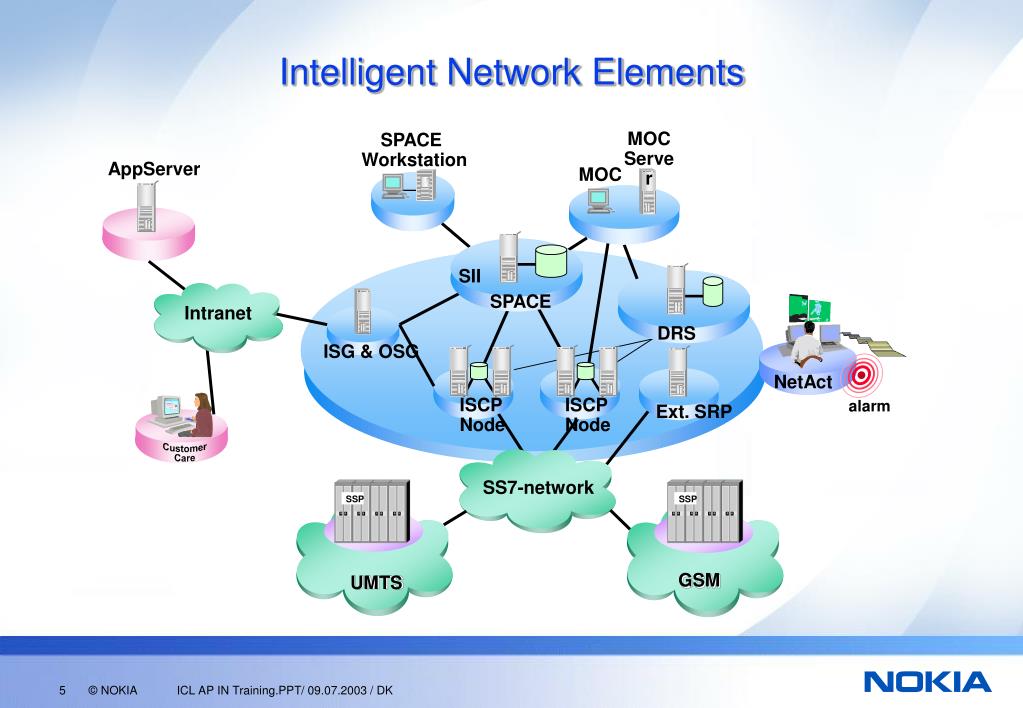

  5. MOC Server SPACE Workstation MOC AppServer SII SPACE Intranet DRS ISG & OSG NetAct SSP SSP ISCP Node ISCP Node alarm Ext. SRP SS7-network 0 GSM UMTS Intelligent Network Elements

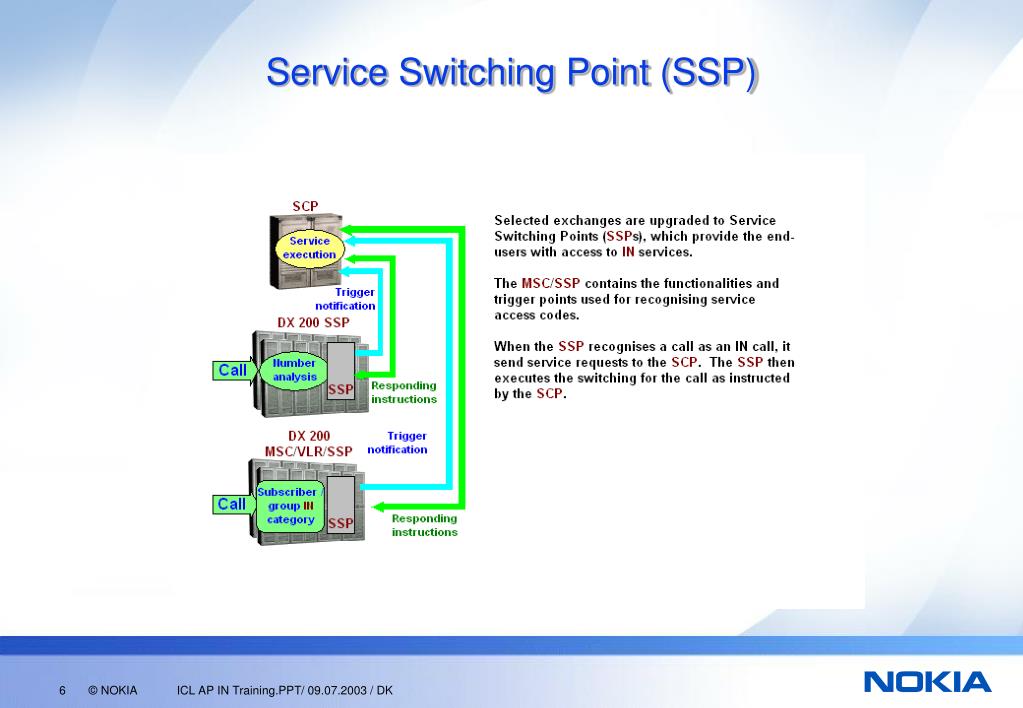

  6. Service Switching Point (SSP)

  7. Service Control Point (SCP)

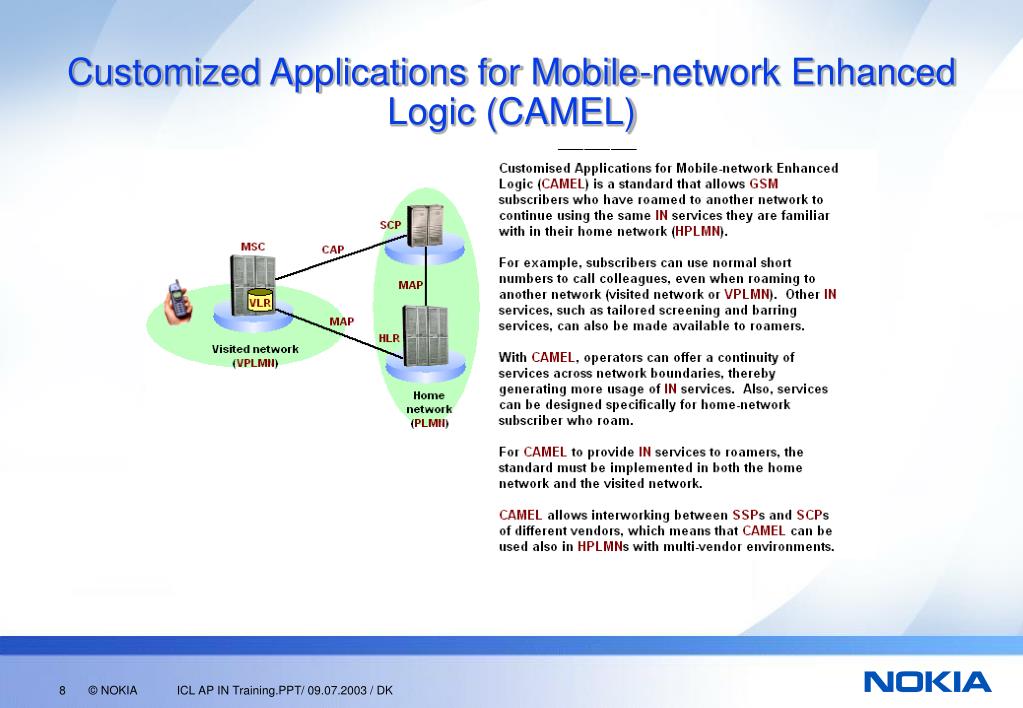

  8. Customized Applications for Mobile-network Enhanced Logic (CAMEL)

  9. Trigger for IN Services
