Ranger Update

Ranger Update. Chuck Boeheim SLAC. History. Nicemon Patrol 2.0 Ranger 3.0 – Never released Ranger 4.0. New Approach. Previous versions interpreted a rules file This added complexity and errors New version is a Perl toolkit No scanner, parser, or interpreter needed

sunila
Télécharger la présentation

Ranger Update

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

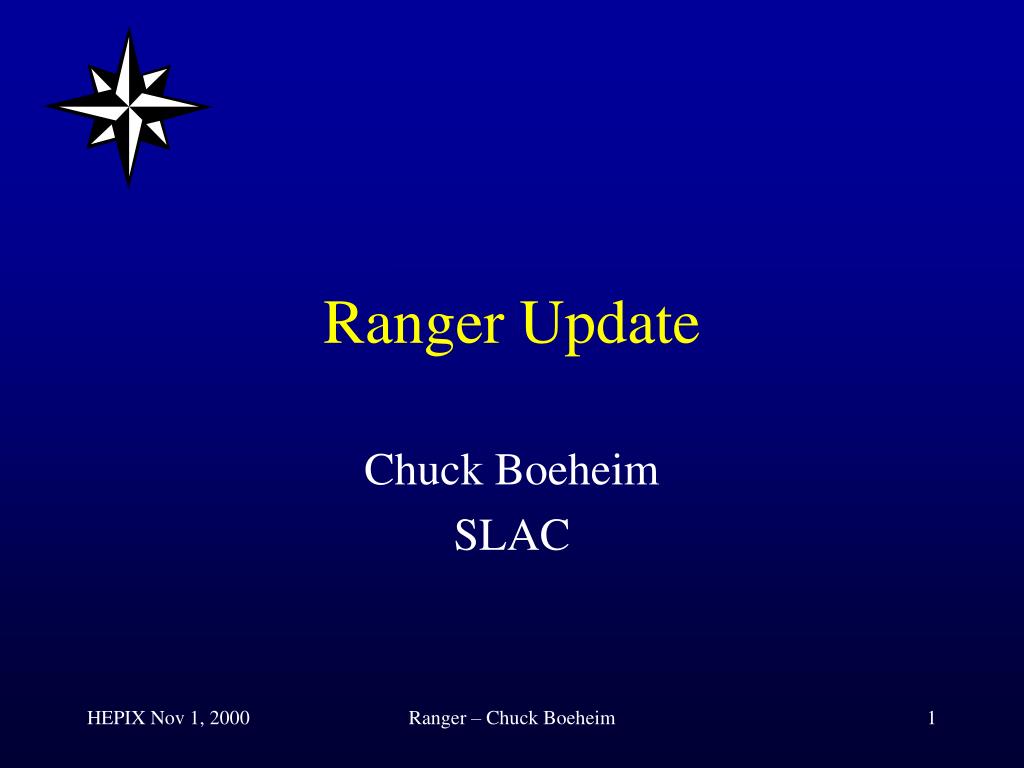

  1. Ranger Update Chuck Boeheim SLAC Ranger – Chuck Boeheim

  2. History • Nicemon • Patrol 2.0 • Ranger 3.0 – Never released • Ranger 4.0 Ranger – Chuck Boeheim

  3. New Approach • Previous versions interpreted a rules file • This added complexity and errors • New version is a Perl toolkit • No scanner, parser, or interpreter needed • Rich library of tests and actions provided • Nearly anything else can be expressed in Perl Ranger – Chuck Boeheim

  4. Observations • An observation is an object with the values describing one entity • E.g. one process, one filesystem, one file • Observations may be saved between runs • Deltas calculated from previous runs • History may be accumulated • Observations may be made about aggregate entities, too • E.g. cumulative processes for one user, numbers of daemons running. Ranger – Chuck Boeheim

  5. Collectors • Collectors return observations to the calling script • Also responsible for saving them between calls • New collectors easily created by overriding the base Collector class Ranger – Chuck Boeheim

  6. Built-in Collectors • PSCollector – processes • DFCollector – file systems • FileCollector – file sizes, md5 signatures • NSCollector – listening sockets • SystemCollector – load averages, uptime, number of users, processes • Watch – tail a file or process (in development) Ranger – Chuck Boeheim

  7. Includes code for collector Basic Structure Generates one observation per call use PSCollector; apply pscollector => ruleset { rule { cpu > 50 and time > 60*MIN } action { log; mail LIMIT, user; kill }; rule { cpu > 50 and time > 20*MIN } action { log; mail HOG, user; nice }; }; Calls collector repeatedly, feeds observation to ruleset Brackets a set of rules Rules return true or false Actions are blocks done when true The first rule that succeeds ends the ruleset Ranger – Chuck Boeheim

  8. Rules • A rule statement is followed by a block that must return true or false rule { (pct > 50 and delta > 10) or (pct > 75 and delta > 5) } sub chk { pct > $_[0] and delta > $_[1] } rule { chk(50,10) or chk(75,5) } • Each rule has an associated action Ranger – Chuck Boeheim

  9. Actions • An action statement is followed by a block. • Any perl statements allowed within the block. rule { pct > 90 } action { system 'cleanup' }; Ranger – Chuck Boeheim

  10. Built-in Actions • Built-in actions operate on the current observation: • nice – kill – restart • mail – page – log • mcons • action { kill; mail RUNAWAY, user; page BADPROC, 'admin', log }; Ranger – Chuck Boeheim

  11. Messages • The Message statement stores text in a library and tags it: Message HOG => <<'EOF'; You have been using $pct% of one CPU on $host. EOF • Actions like mail, page, and log retrieve message by their tag: mail HOG, user; • Messages are evaluated each time they are retrieved. Ranger – Chuck Boeheim

  12. Observation Values • Functions provide values from current observation • name – size – user • pct – time – delta • loadavg – numcpu – numusers • Numprocs • Can be used in either rules or actions. • Prototyped unary functions need no args Ranger – Chuck Boeheim

  13. Scheduling Tasks every 10*MIN => background { apply pscollector => ruleset { … }; }; Ranger – Chuck Boeheim

  14. Units • Constants are provided to provide natural expression of units: • Time: SEC, MIN, HOUR, DAY • Size: KB, MB, GB • Examples cpu > 2*HOUR size > 1*MB and delta > 100*KB Ranger – Chuck Boeheim

  15. Repetition Suppression • Many actions take a parameter to suppress multiple triggers for the same observation mail HOG, user, 6*HR; Ranger – Chuck Boeheim

  16. MD5 Watching • The file collector can observe MD5 checksums of files • Either supply a list of known good checksums: rule { name eq '/lib/security/pam_afs.so' and md5change('bf1501489fc0bb9bf0052f624558aed4', '13f50f924bbe64758c6400c4fd412ae7') } • Or let it record the first one as the base: rule { name eq '/usr/lib/libc.a' and md5change } Ranger – Chuck Boeheim

  17. Filtering a File • Intended to replace swatch for many purposes apply watch('/var/log/messages') => ruleset { rule { /error/ } action { mcons; log }; rule { /ecache parity error/ } action { page …}; }; Ranger – Chuck Boeheim

  18. Example: Watch for Bad Guys apply pscollector => ruleset { # Processes that we want to know about. rule { name =~ /crack|irc|eggd|satan/ } action { mail PROC_REPORT,'boeheim',1*DAY; mcons ALERT; log 1*DAY }; } Message PROC_REPORT => '$name is running on $host'; Ranger – Chuck Boeheim

  19. Example: Watch Daemons apply pscollector([sshd ools]) ruleset { # Only execute this ruleset for summary records by name. return unless summary eq 'BYNAME'; rule { number == 0 } action { my $mailto = admin; perform ruleset { rule { name eq "sshd" } action { restart '/usr/etc/sshd' }; rule { name eq 'ools' } action { $mailto = 'oomonitor' }; }; mail NO_DAEMON, $mailto; mcons ALERT; log 6*HR; } } Ranger – Chuck Boeheim

  20. Example: Watch Filesystems apply dfcollector() => ruleset { rule { name =~ m(^/(var|tmp)) } action { rule { size 99 } action { mail FSFULL, admin, 6*HR; log 2*HR }; rule { size 95, [90,1], [80,5], [50+50] } action { mcons 2*HR; log 2*HR }; }; }; Ranger – Chuck Boeheim
