  1. Hard Drives & RAID 1.5 Install and configure storage devices and use appropriate media PM Video 10:28

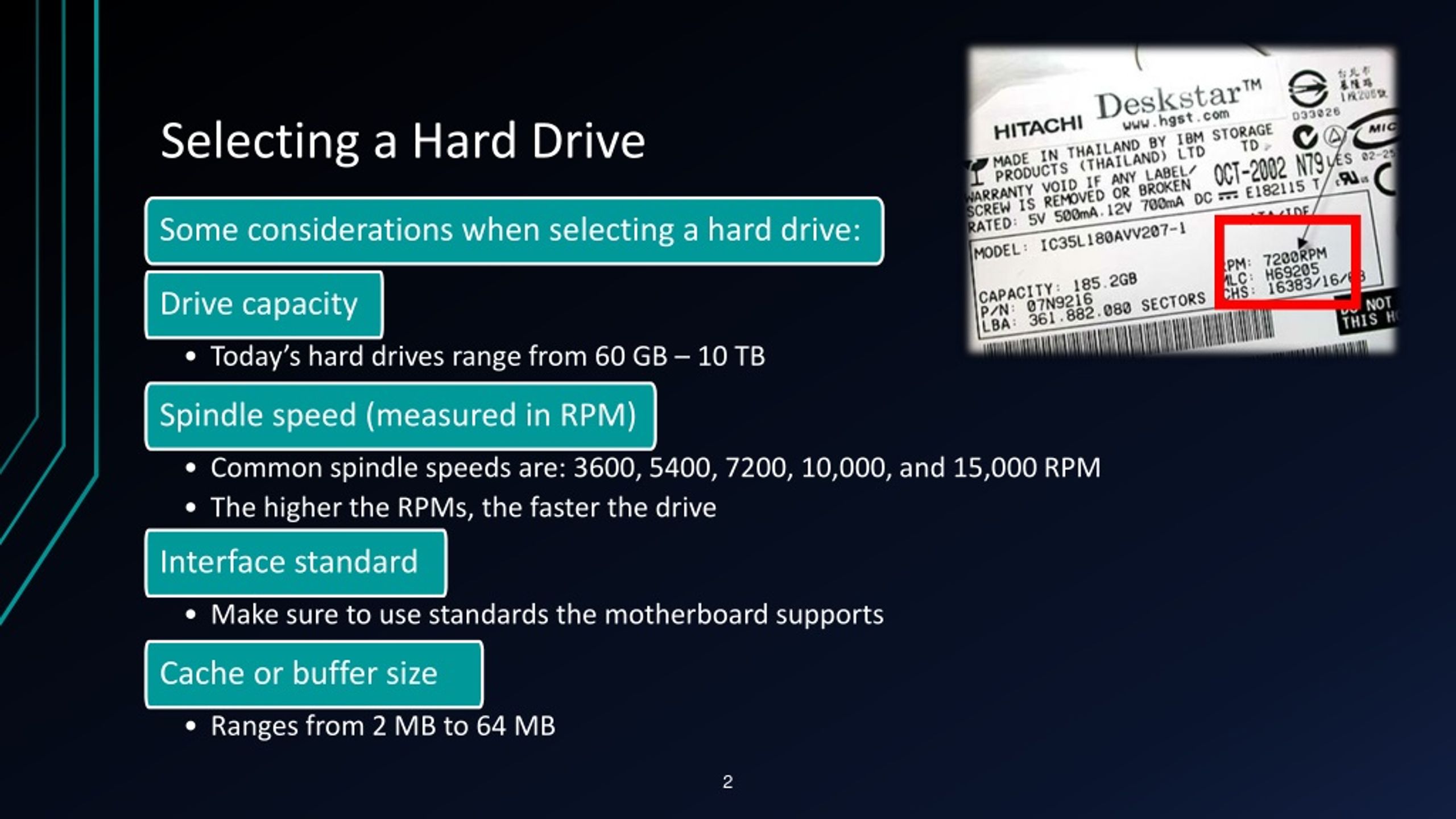

  2. Selecting a Hard Drive • Some considerations when selecting a hard drive: • Drive capacity • Today’s hard drives range from 60 GB – 10 TB • Spindle speed (measured in RPM) • Common spindle speeds are: 3600, 5400, 7200, 10,000, and 15,000 RPM • The higher the RPMs, the faster the drive • Interface standard • Make sure to use standards the motherboard supports • Cache or buffer size • Ranges from 2 MB to 64 MB

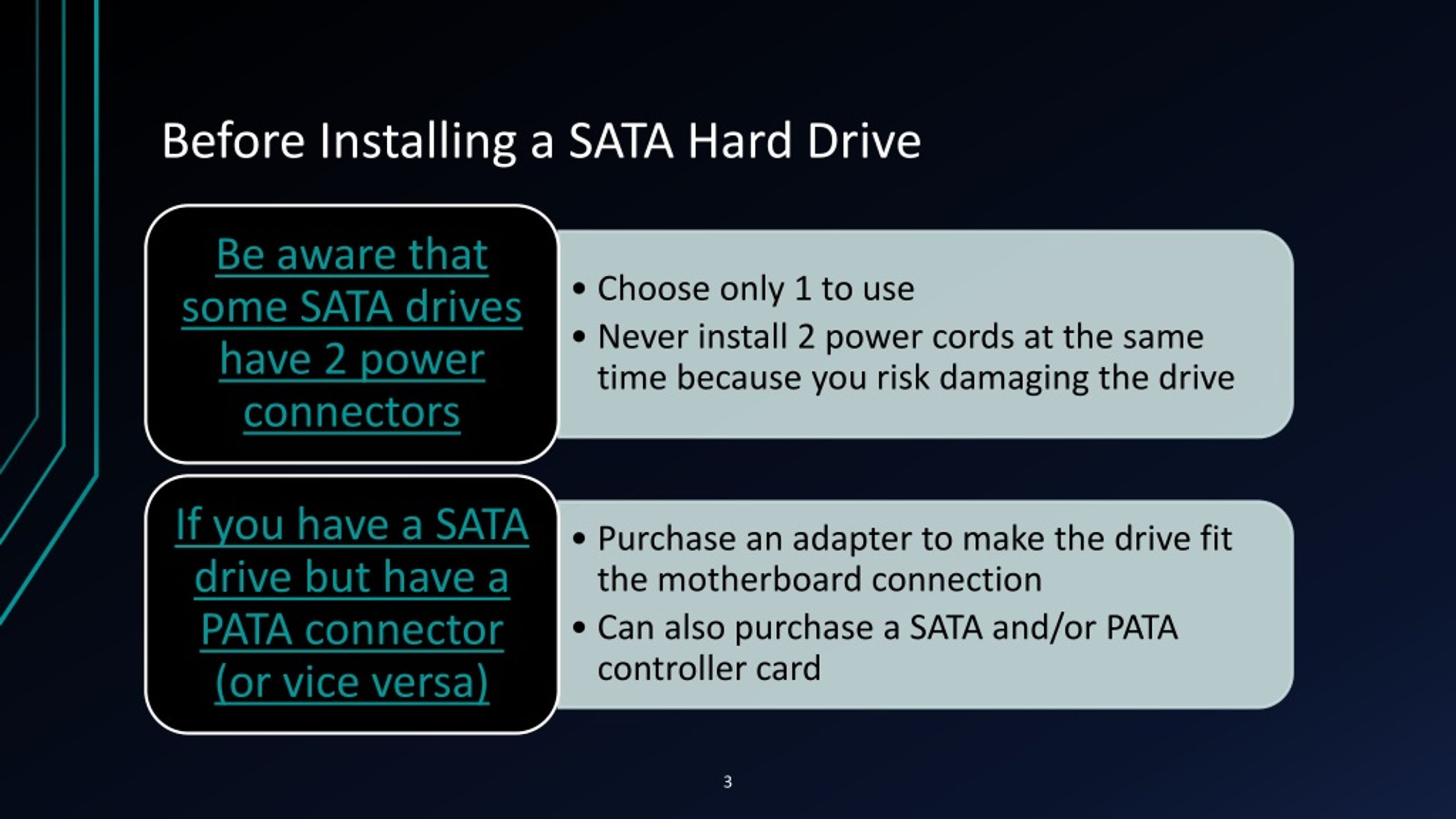

  3. Before Installing a SATA Hard Drive • Be aware that some SATA drives have 2 power connectors • Choose only 1 to use • Never install 2 power cords at the same time because you risk damaging the drive • If you have a SATA drive but have a PATA connector (or vice versa) • Purchase an adapter to make the drive fit the motherboard connection • Can also purchase a SATA and/or PATA controller card

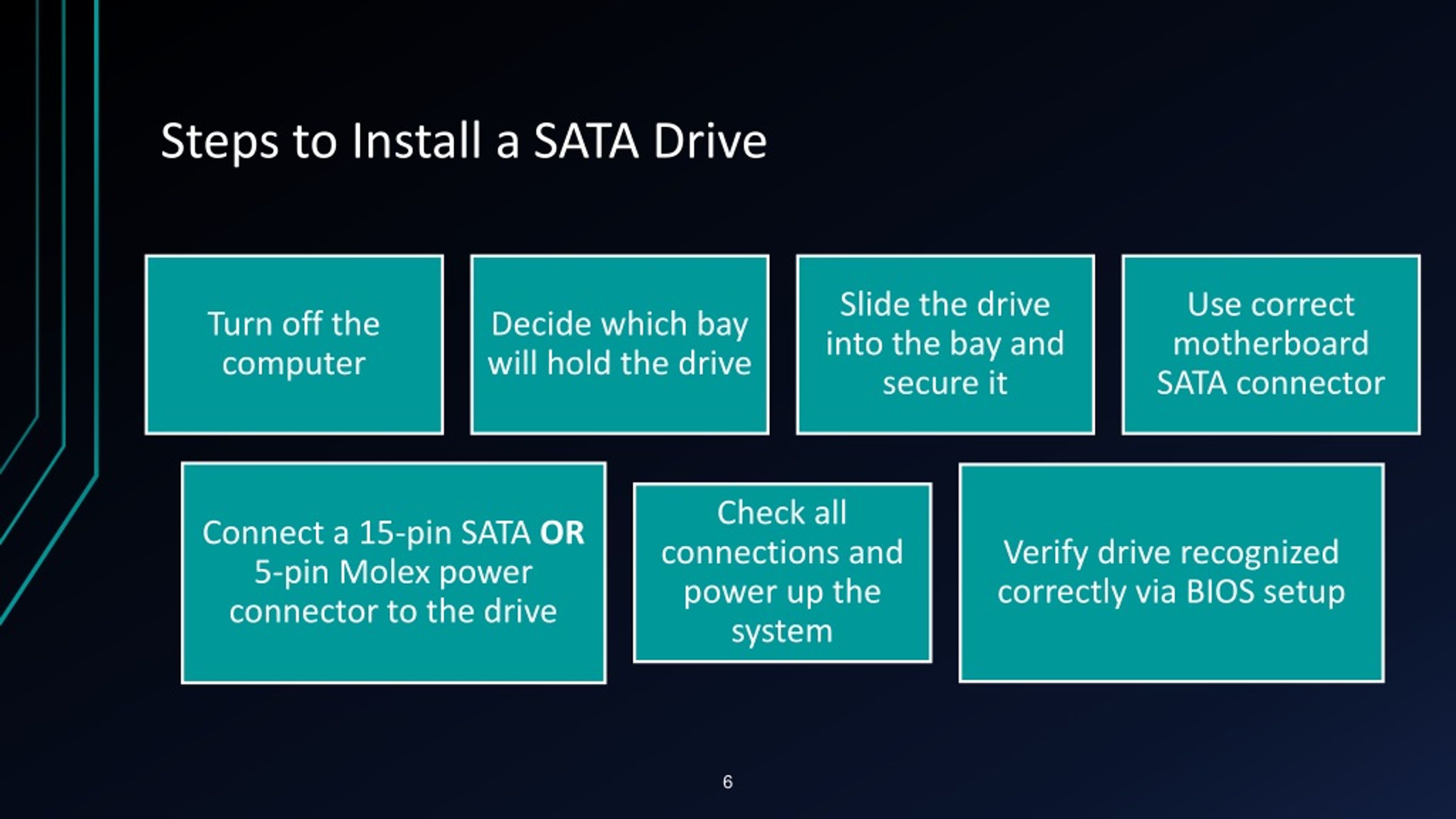

  4. Steps to Install a SATA Drive • Turn off the computer • Decide which bay will hold the drive • Slide the drive into the bay and secure it • Use correct motherboard SATA connector • Connect a 15-pin SATA OR 5-pin Molex power connector to the drive • Verify drive recognized correctly via BIOS setup • Check all connections and power up the system

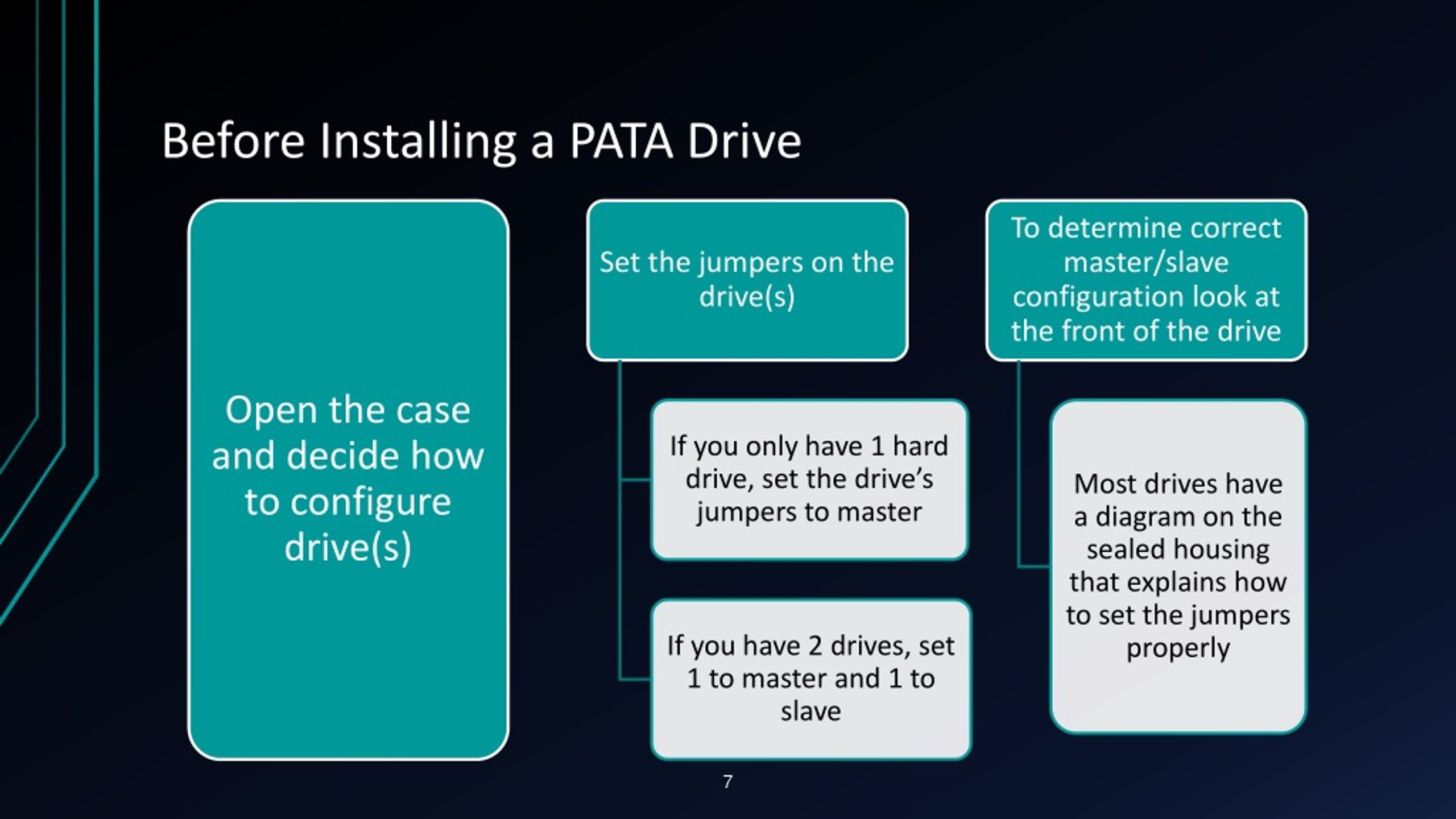

  5. Before Installing a PATA Drive • Open the case and decide how to configure drive(s) • Set the jumpers on the drive(s) • To determine correct master/slave configuration look at the front of the drive • If you only have 1 hard drive, set the drive’s jumpers to master • Most drives have a diagram on the sealed housing that explains how to set the jumpers properly • If you have 2 drives, set 1 to master and 1 to slave

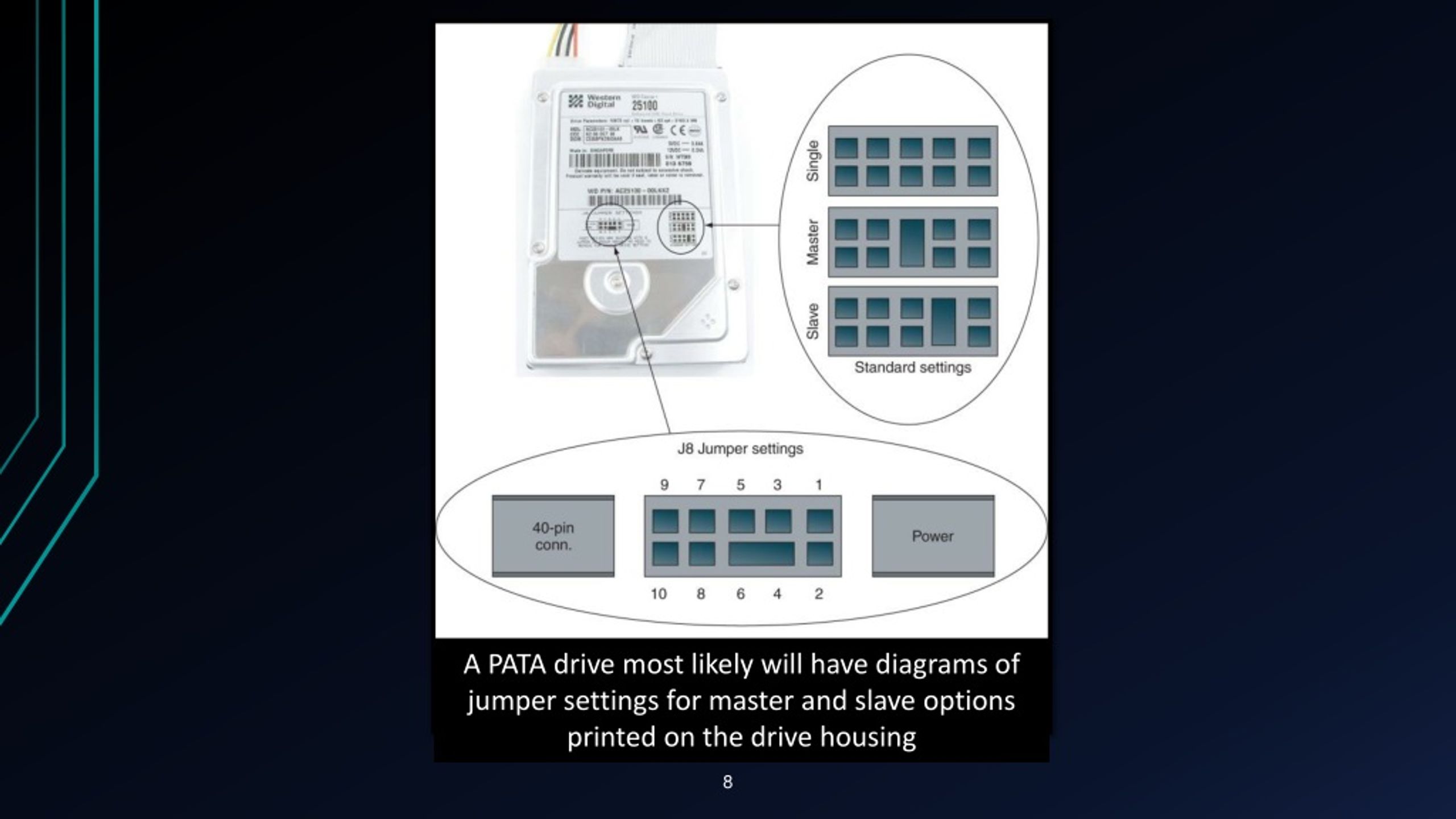

  6. A PATA drive most likely will have diagrams of jumper settings for master and slave options printed on the drive housing

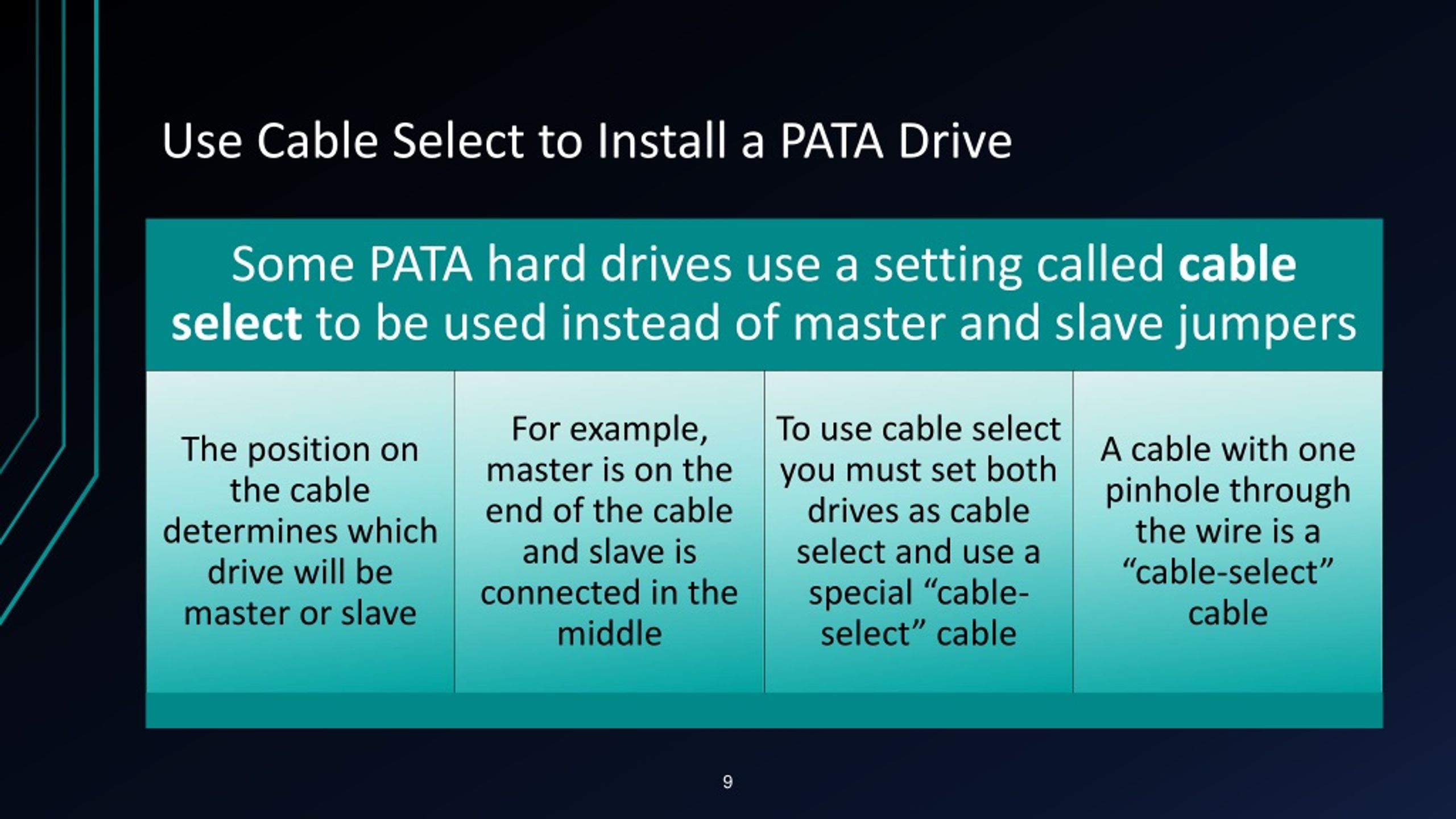

  7. Use Cable Select to Install a PATA Drive • Some PATA hard drives use a setting called cable select to be used instead of master and slave jumpers • The position on the cable determines which drive will be master or slave • For example, master is on the end of the cable and slave is connected in the middle • To use cable select you must set both drives as cable select and use a special “cable-select” cable • A cable with one pinhole through the wire is a “cable-select” cable

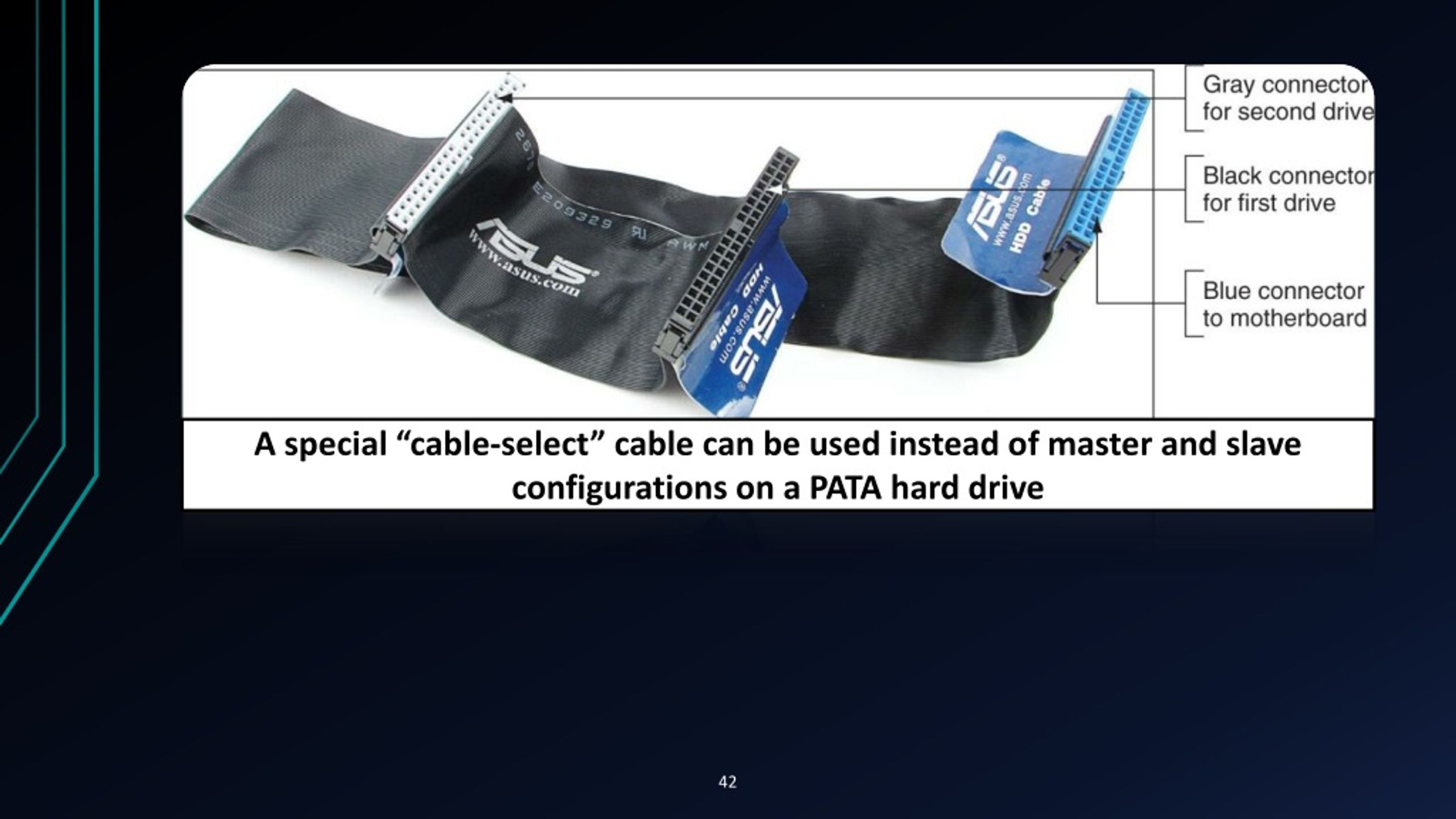

  8. A special “cable-select” cable can be used instead of master and slave configurations on a PATA hard drive

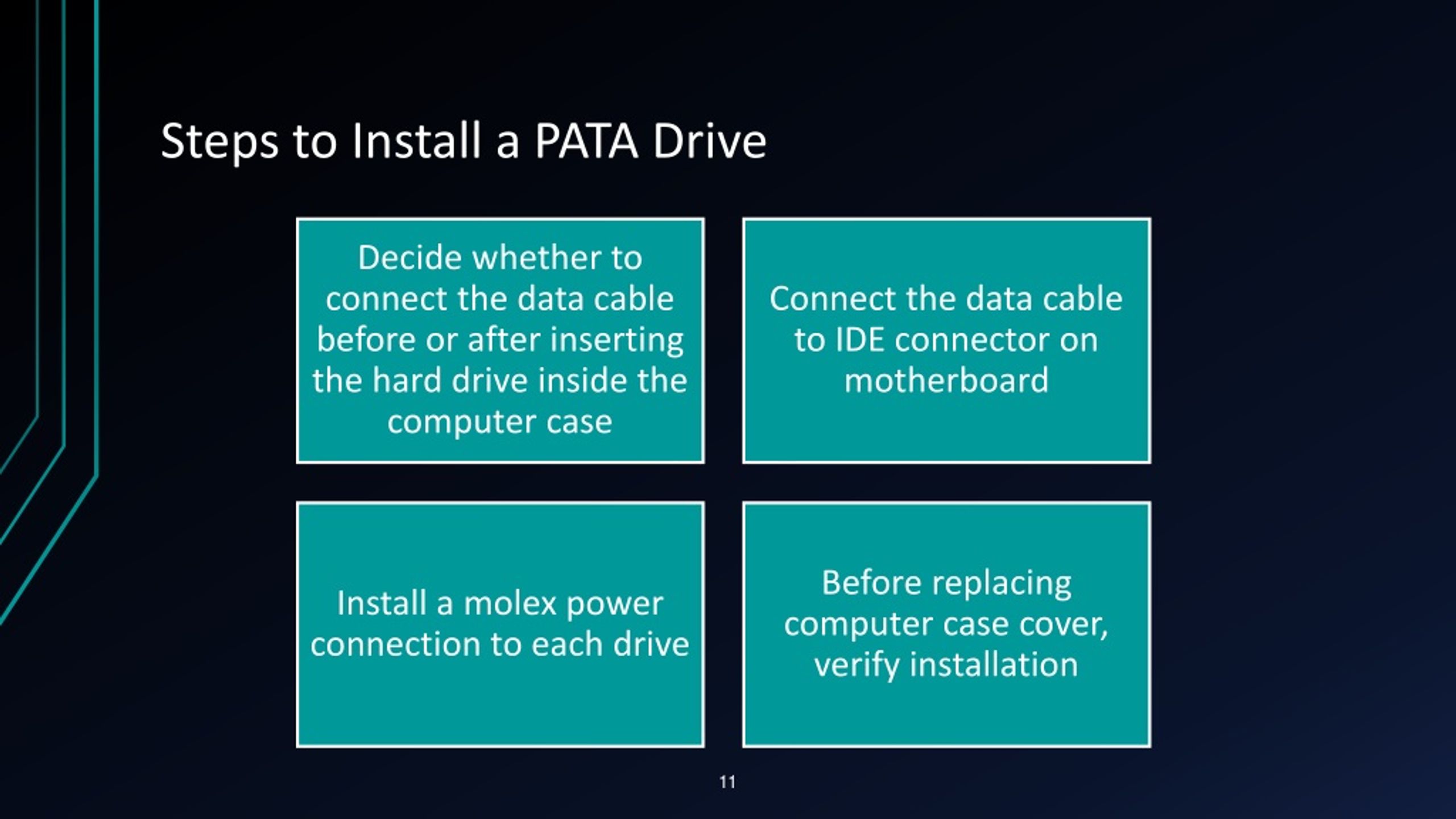

  9. Steps to Install a PATA Drive • Decide whether to connect the data cable before or after inserting the hard drive inside the computer case • Connect the data cable to IDE connector on motherboard • Install a molex power connection to each drive • Before replacing computer case cover, verify installation

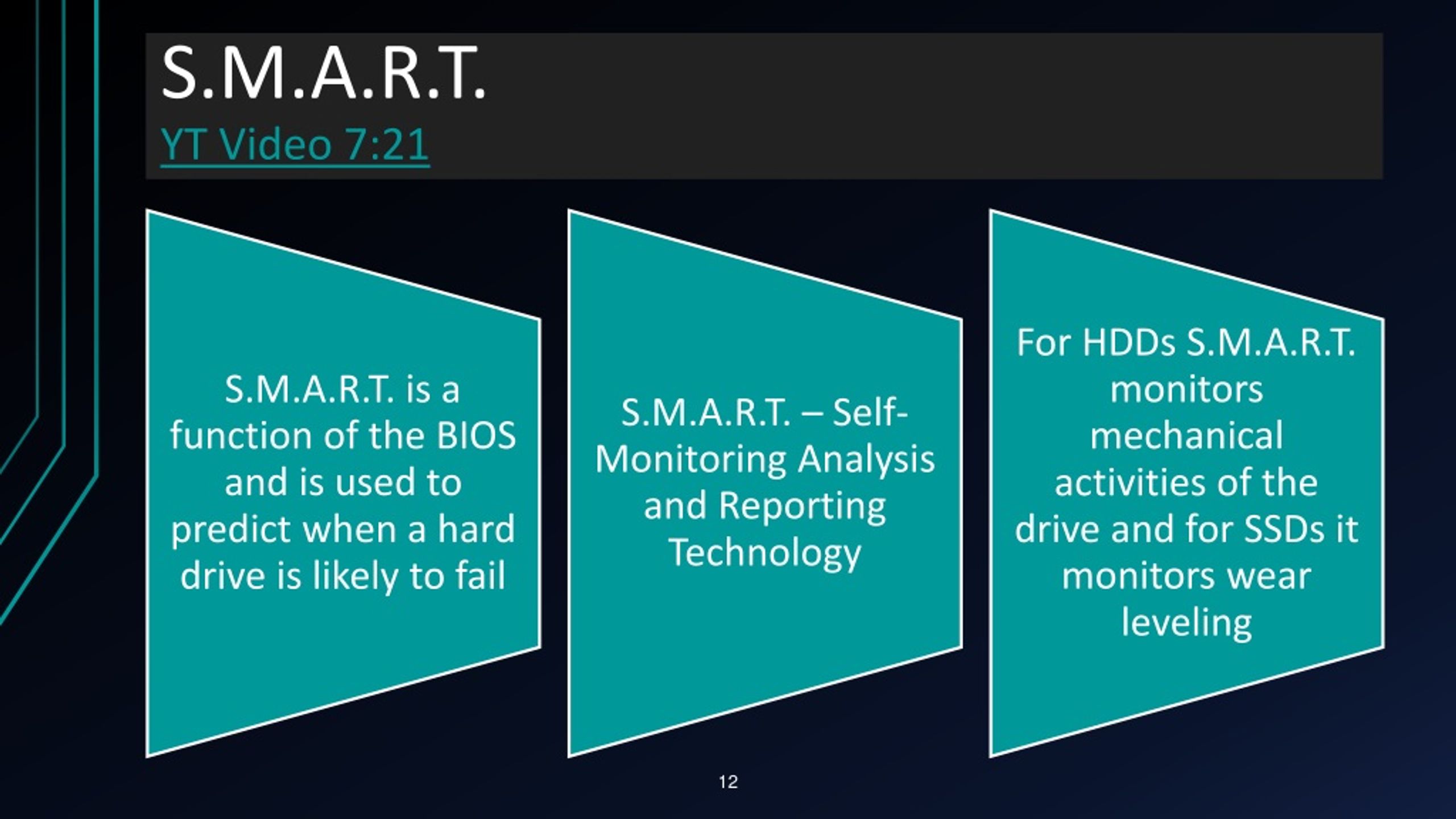

  10. S.M.A.R.T.YT Video 7:21

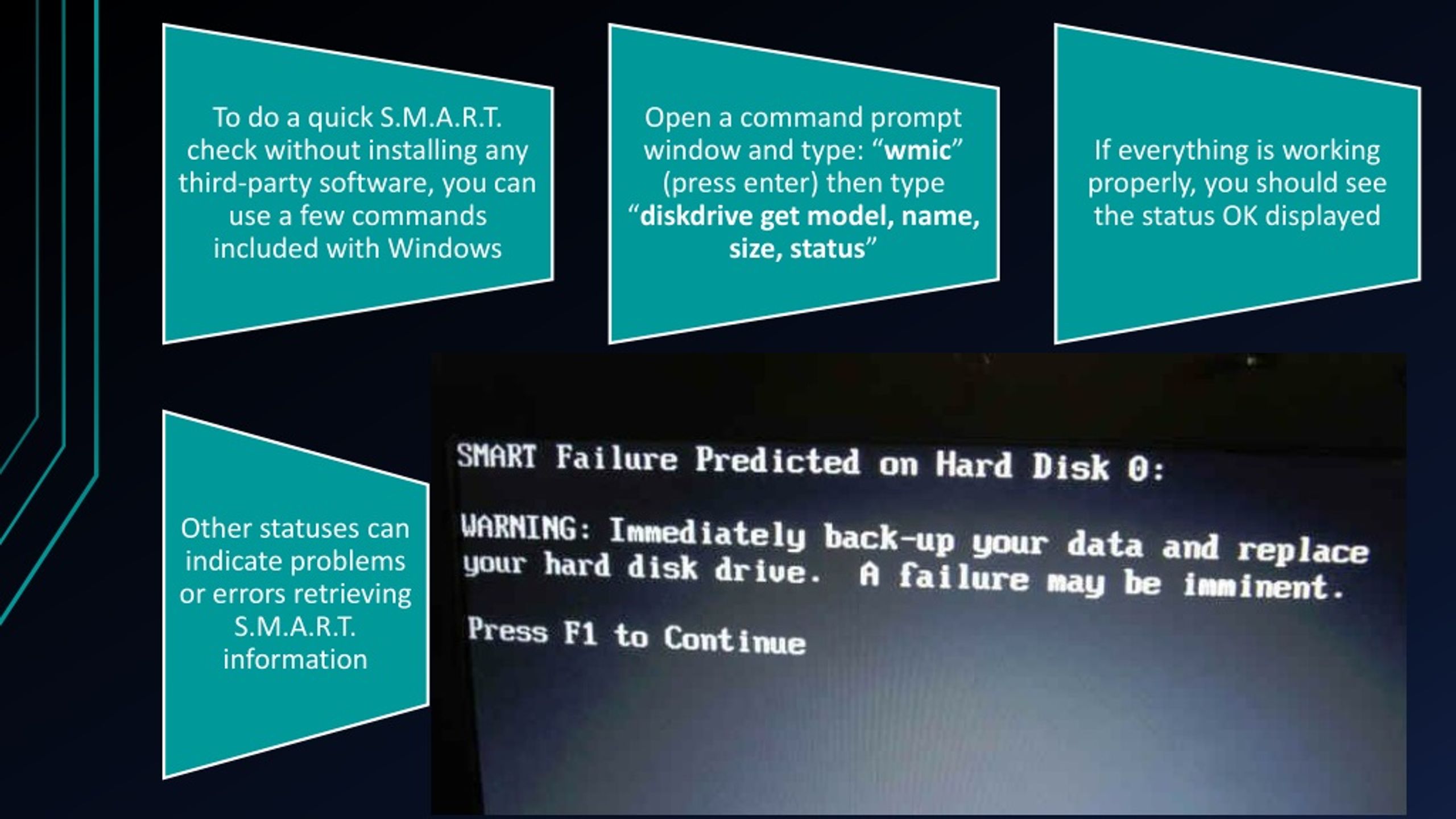

  11. If everything is working properly, you should see the status OK displayed • To do a quick S.M.A.R.T. check without installing any third-party software, you can use a few commands included with Windows • Open a command prompt window and type: “wmic” (press enter) then type “diskdrive get model, name, size, status” • Other statuses can indicate problems or errors retrieving S.M.A.R.T. information

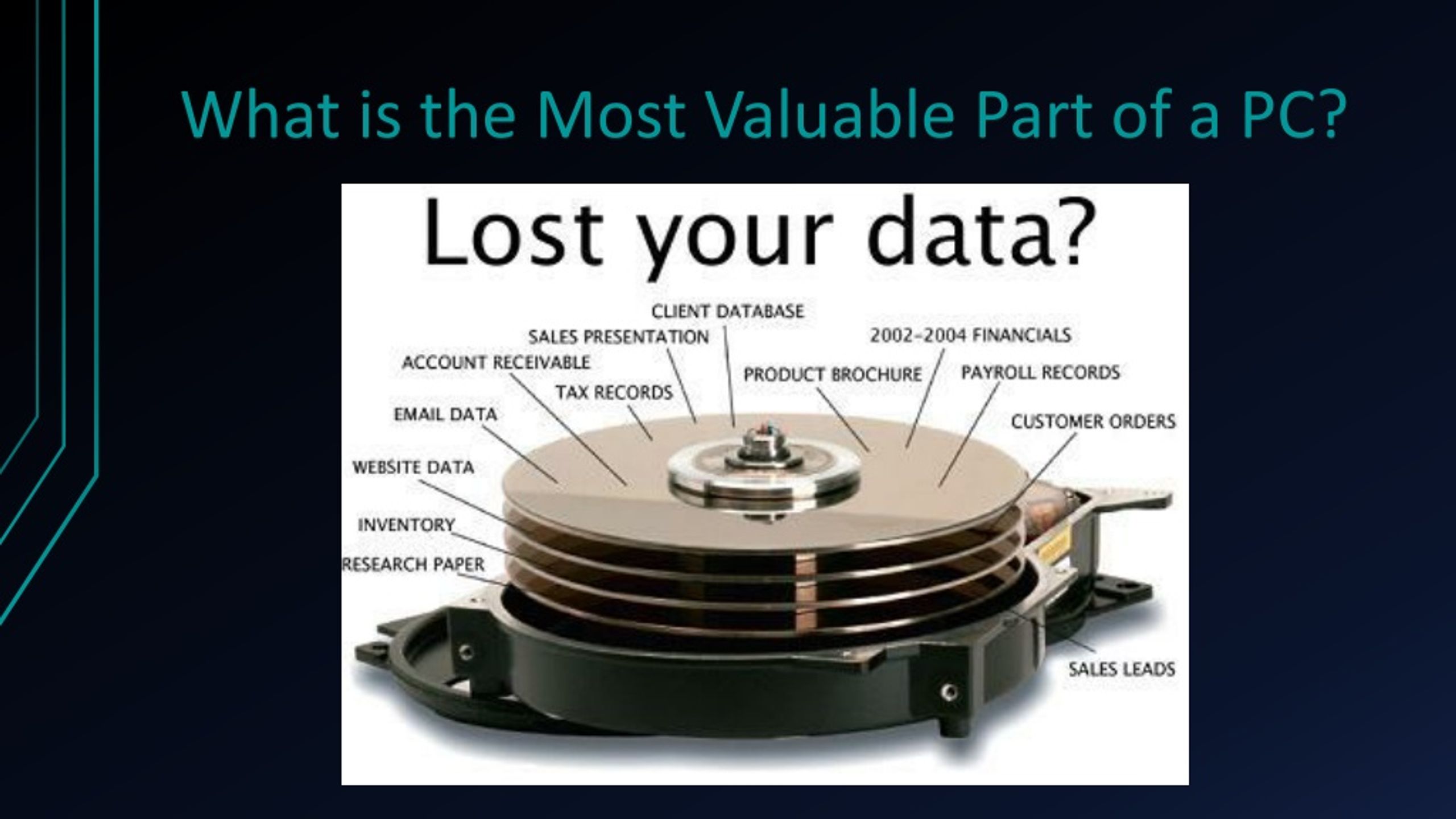

  12. What is the Most Valuable Part of a PC?

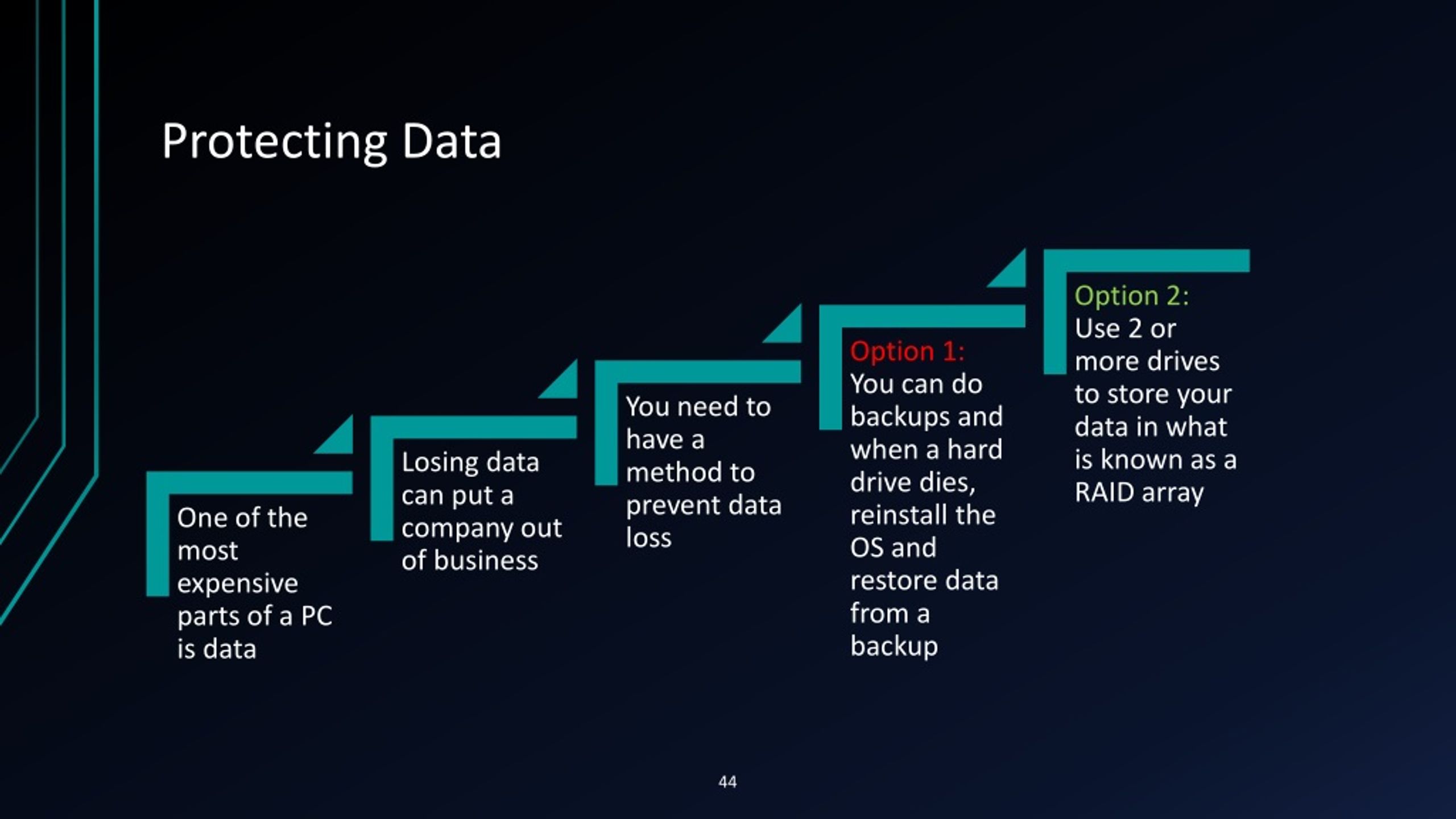

  13. Protecting Data • Option 2: Use 2 or more drives to store your data in what is known as a RAID array • Option 1: You can do backups and when a hard drive dies, reinstall the OS and restore data from a backup • You need to have a method to prevent data loss • Losing data can put a company out of business • One of the most expensive parts of a PC is data

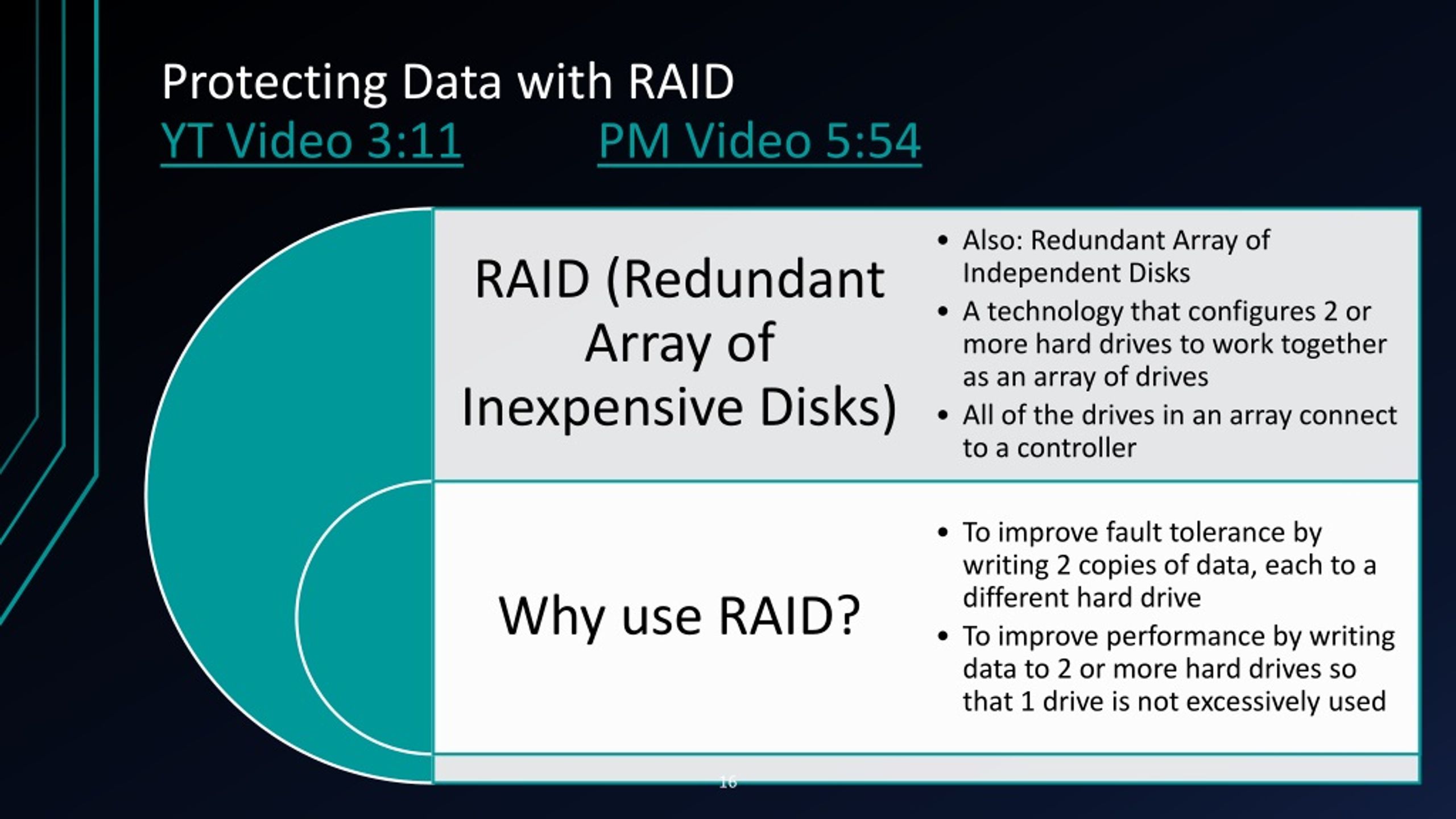

  14. Protecting Data with RAIDYT Video 3:11PM Video 5:54 • RAID (Redundant Array of Inexpensive Disks) • Also: Redundant Array of Independent Disks • A technology that configures 2 or more hard drives to work together as an array of drives • All of the drives in an array connect to a controller • Why use RAID? • To improve fault tolerance by writing 2 copies of data, each to a different hard drive • To improve performance by writing data to 2 or more hard drives so that 1 drive is not excessively used

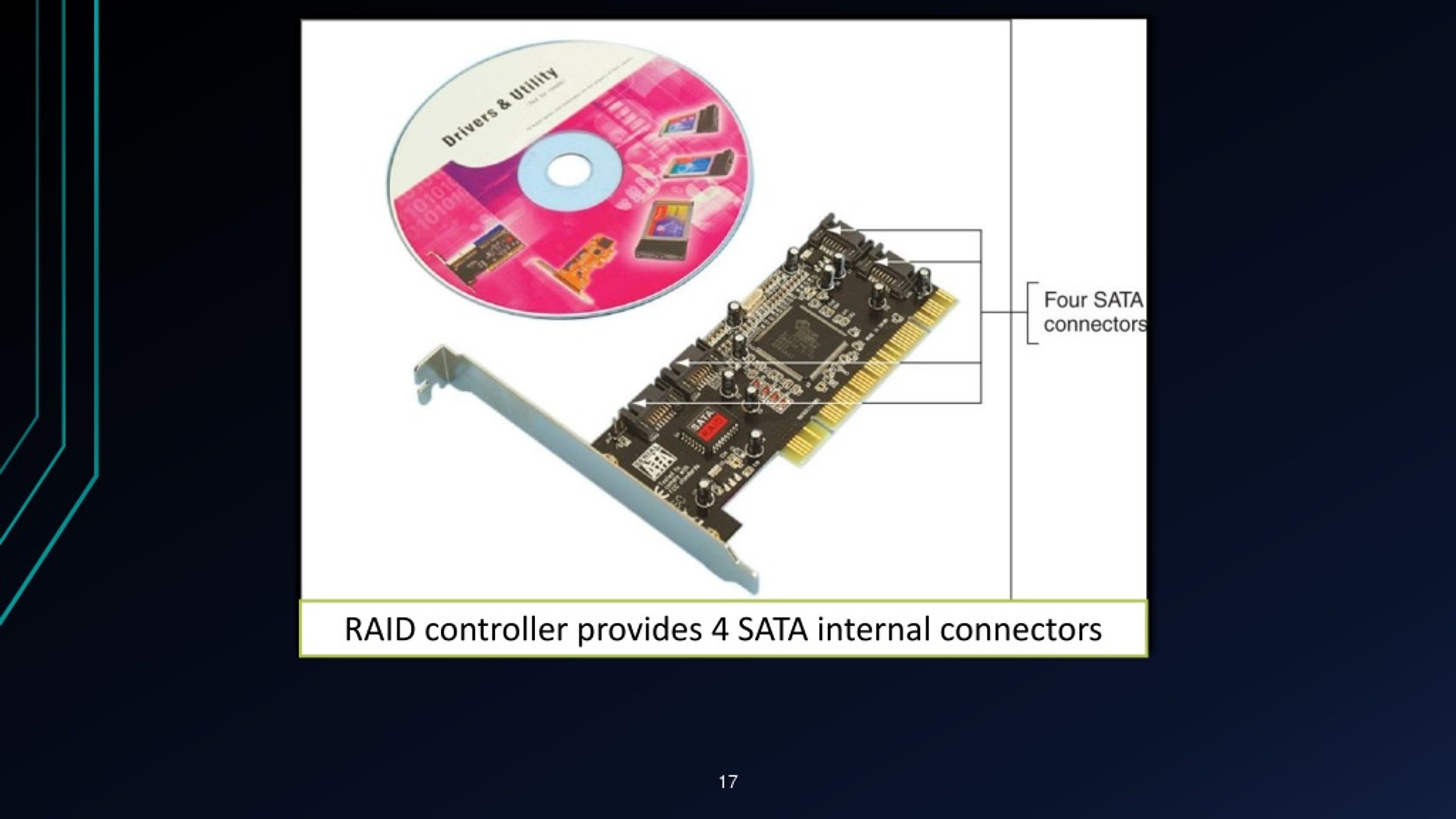

  15. RAID controller provides 4SATA internal connectors

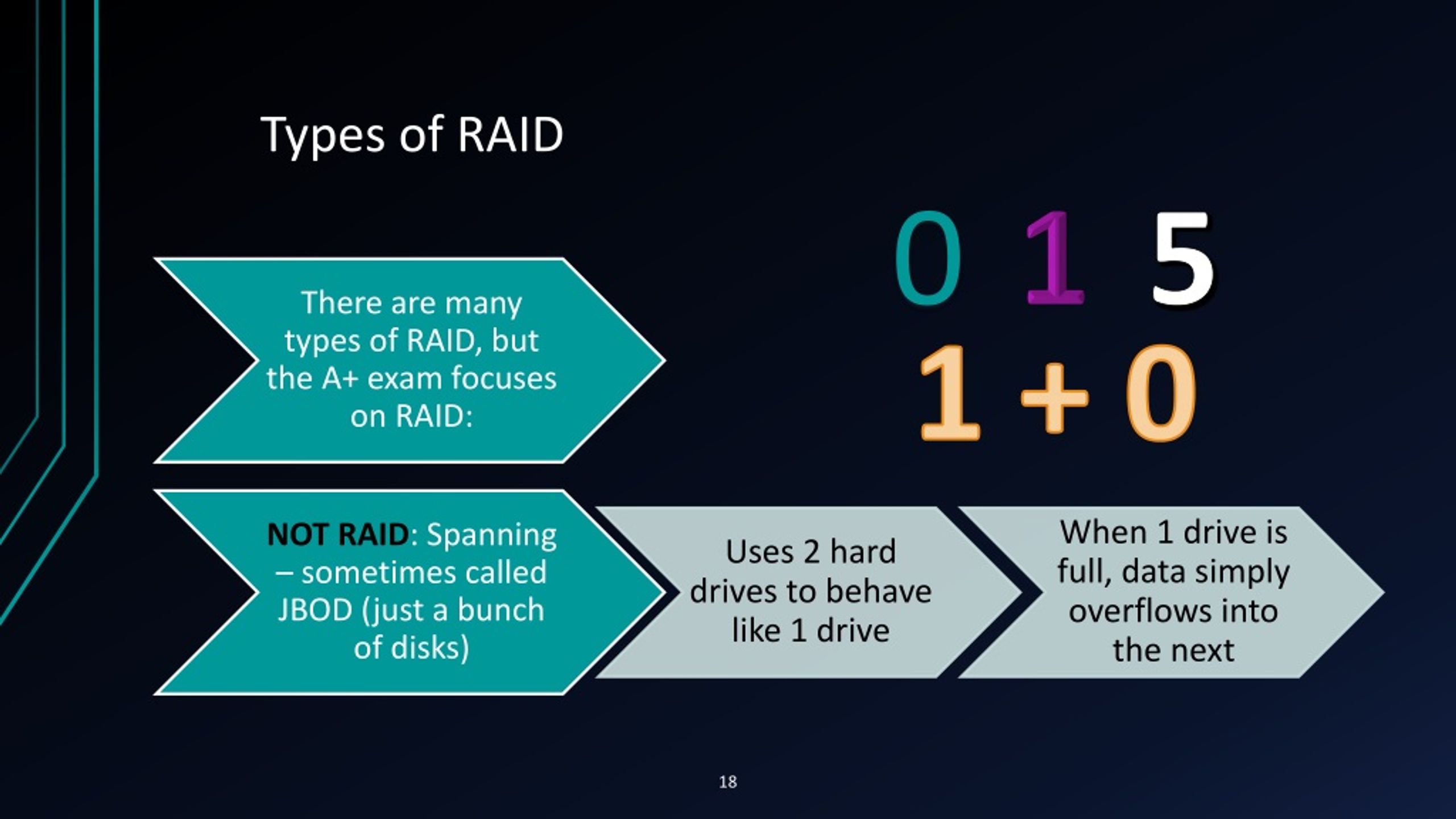

  16. Types of RAID 0 1 5 • There are many types of RAID, but the A+ exam focuses on RAID: 1 + 0 • NOT RAID: Spanning – sometimes called JBOD (just a bunch of disks) • Uses 2 hard drives to behave like 1 drive • When 1 drive is full, data simply overflows into the next

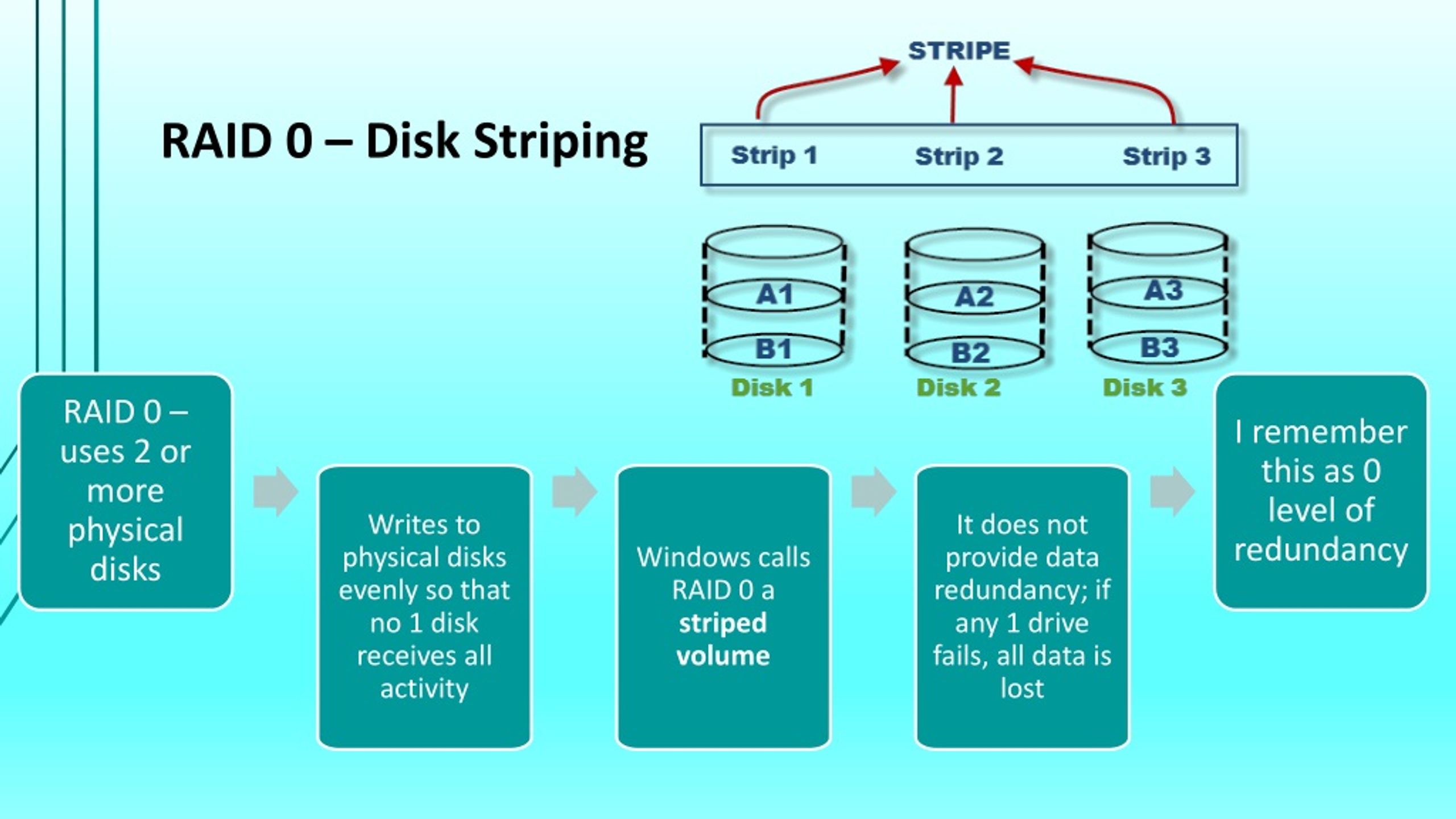

  17. RAID 0 – Disk Striping • RAID 0 – uses 2 or more physical disks • I remember this as 0 level of redundancy • Writes to physical disks evenly so that no 1 disk receives all activity • Windows calls RAID 0 a striped volume • It does not provide data redundancy; if any 1 drive fails, all data is lost

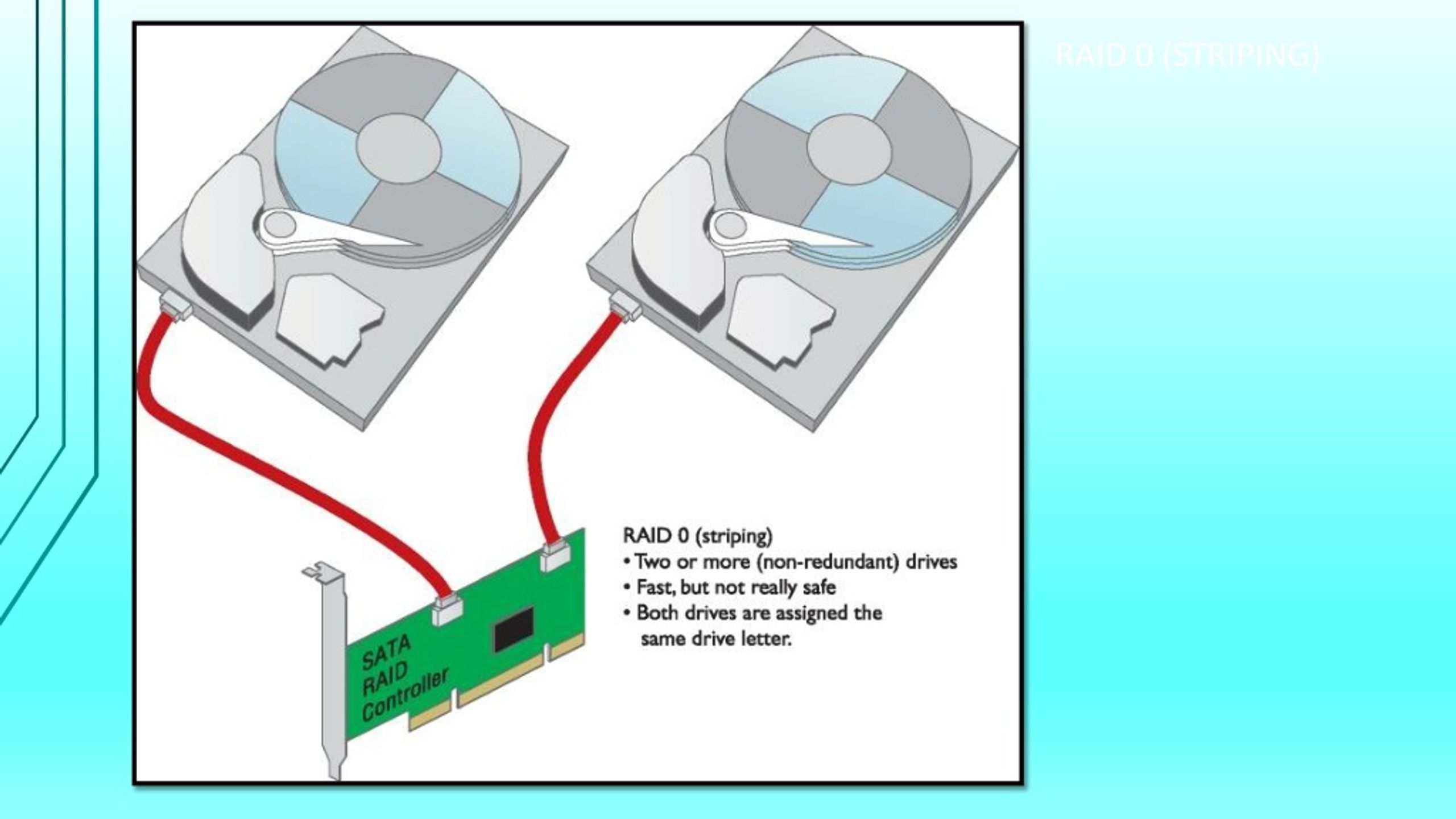

  18. RAID 0 (STRIPING)

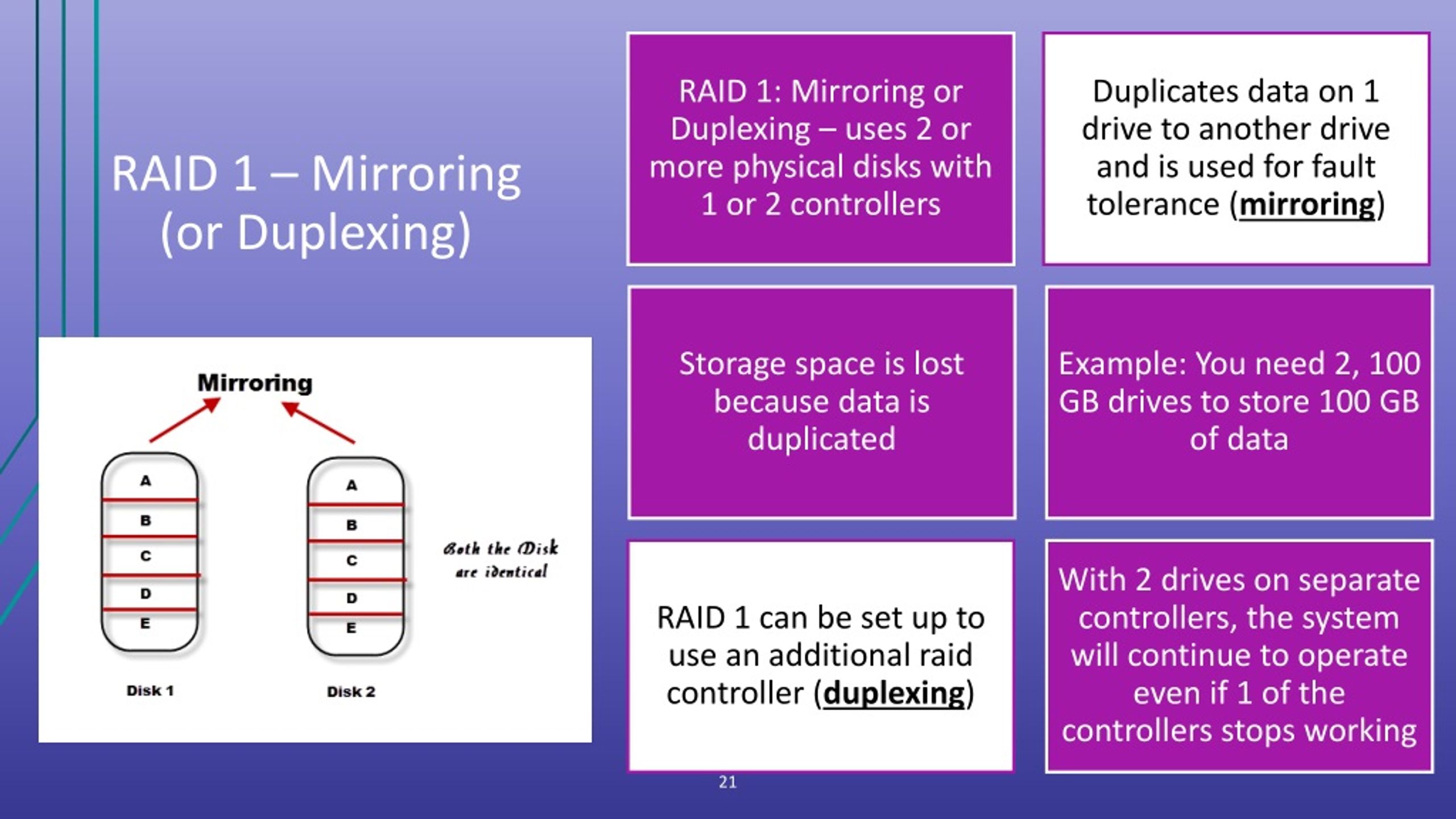

  19. RAID 1: Mirroring or Duplexing – uses 2 or more physical disks with 1 or 2 controllers • Duplicates data on 1 drive to another drive and is used for fault tolerance (mirroring) RAID 1 – Mirroring (or Duplexing) • Example: You need 2, 100 GB drives to store 100 GB of data • Storage space is lost because data is duplicated • With 2 drives on separate controllers, the system will continue to operate even if 1 of the controllers stops working • RAID 1 can be set up to use an additional raid controller (duplexing)

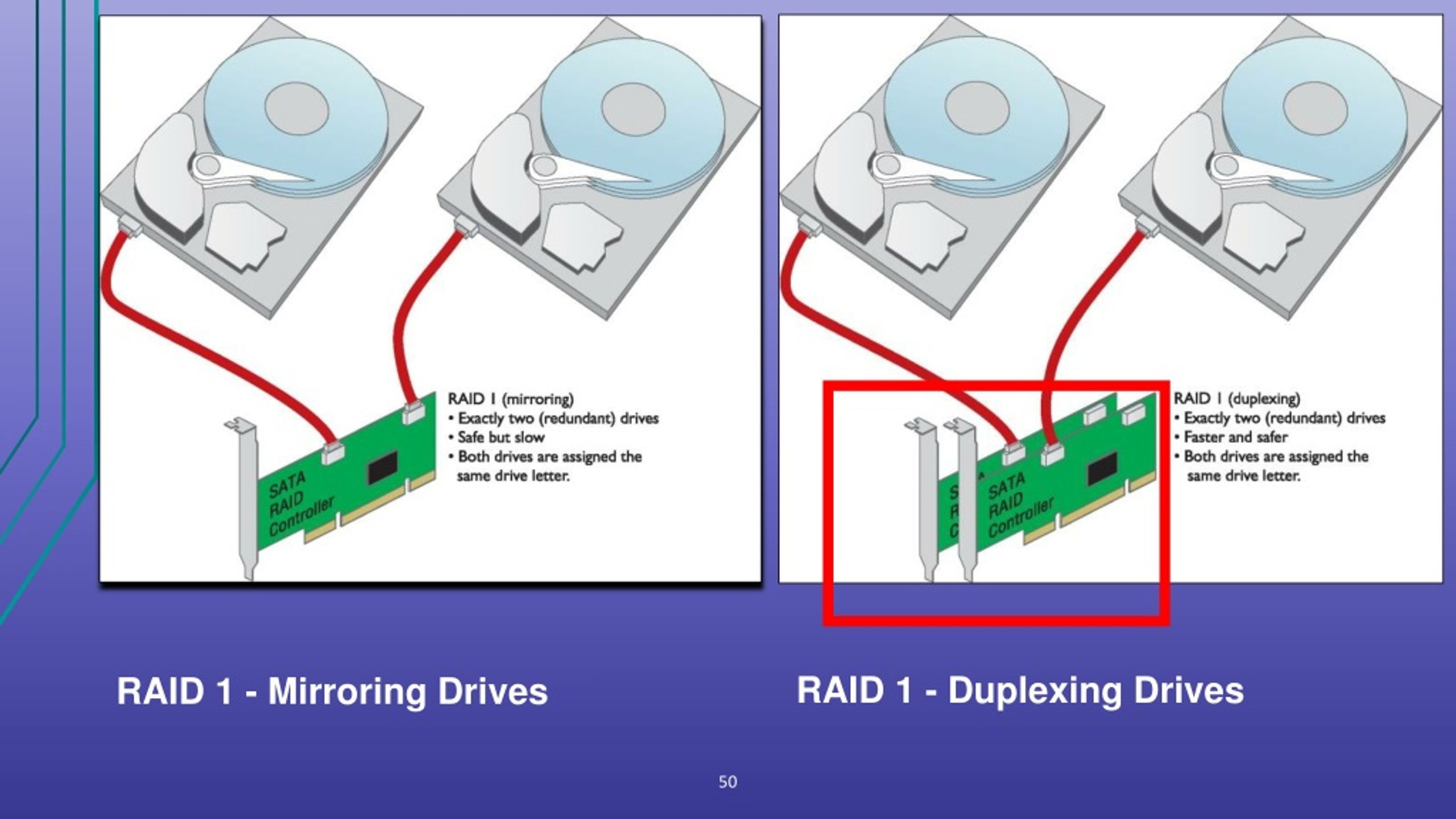

  20. RAID 1 - Duplexing Drives RAID 1 - Mirroring Drives

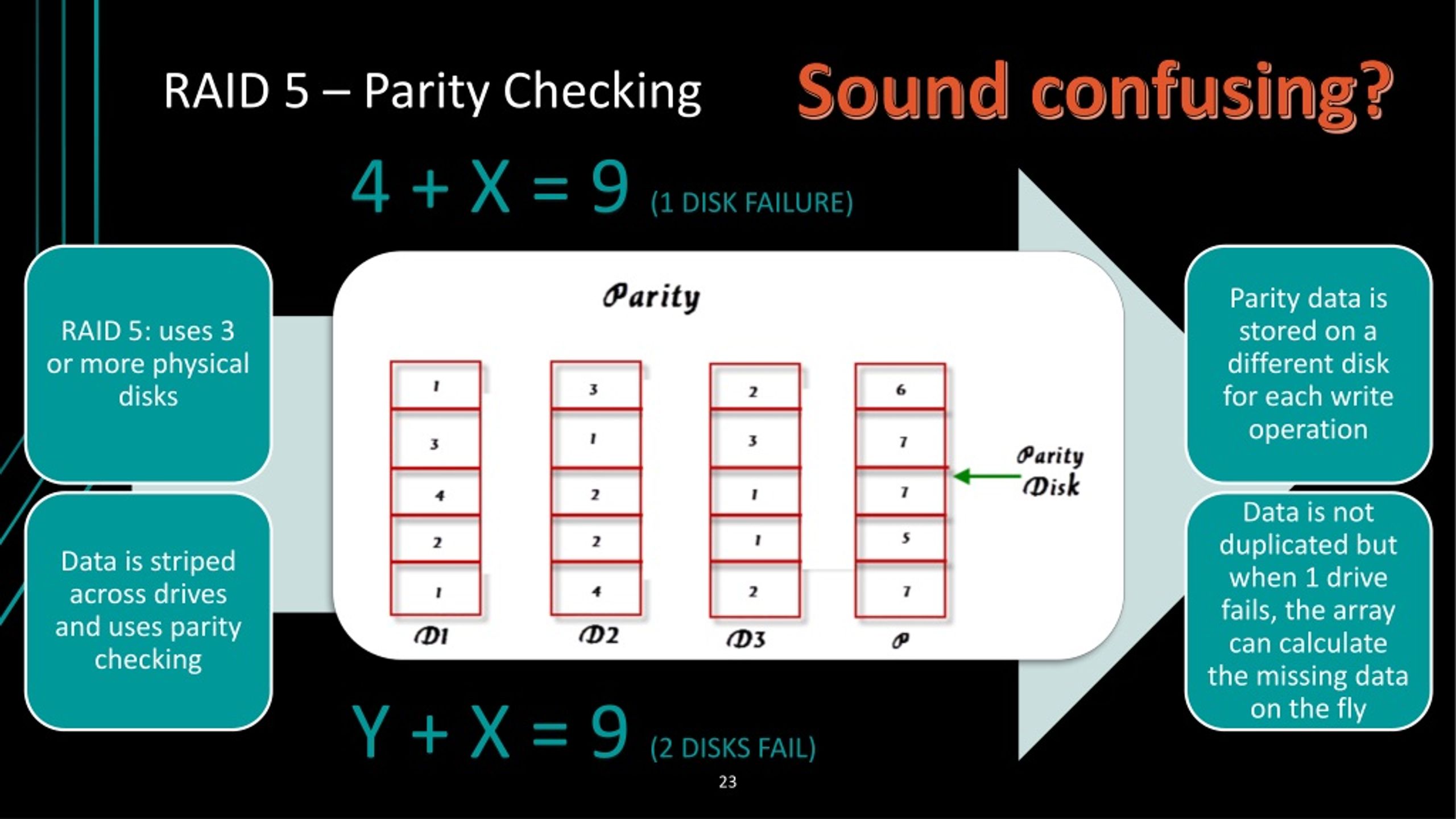

  21. RAID 5 – Parity Checking Sound confusing? 4 + X = 9 (1 DISK FAILURE) • RAID 5: uses 3 or more physical disks • Parity data is stored on a different disk for each write operation • Data is striped across drives and uses parity checking • Data is not duplicated but when 1 drive fails, the array can calculate the missing data on the fly Y + X = 9 (2 DISKS FAIL)

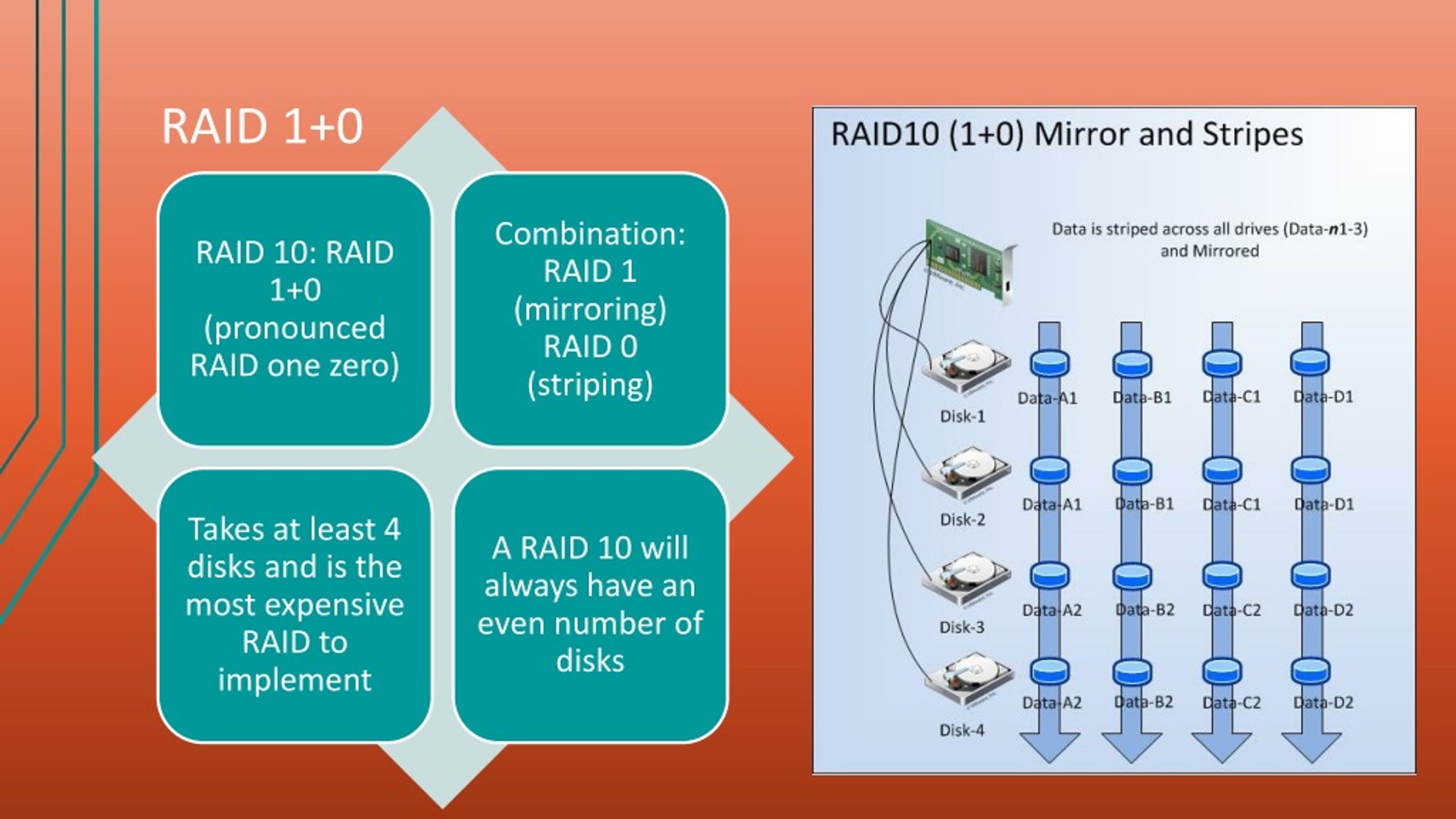

  22. RAID 1+0 • RAID 10: RAID 1+0 (pronounced RAID one zero) • Combination: RAID 1 (mirroring) RAID 0 (striping) • Takes at least 4 disks and is the most expensive RAID to implement • A RAID 10 will always have an even number of disks

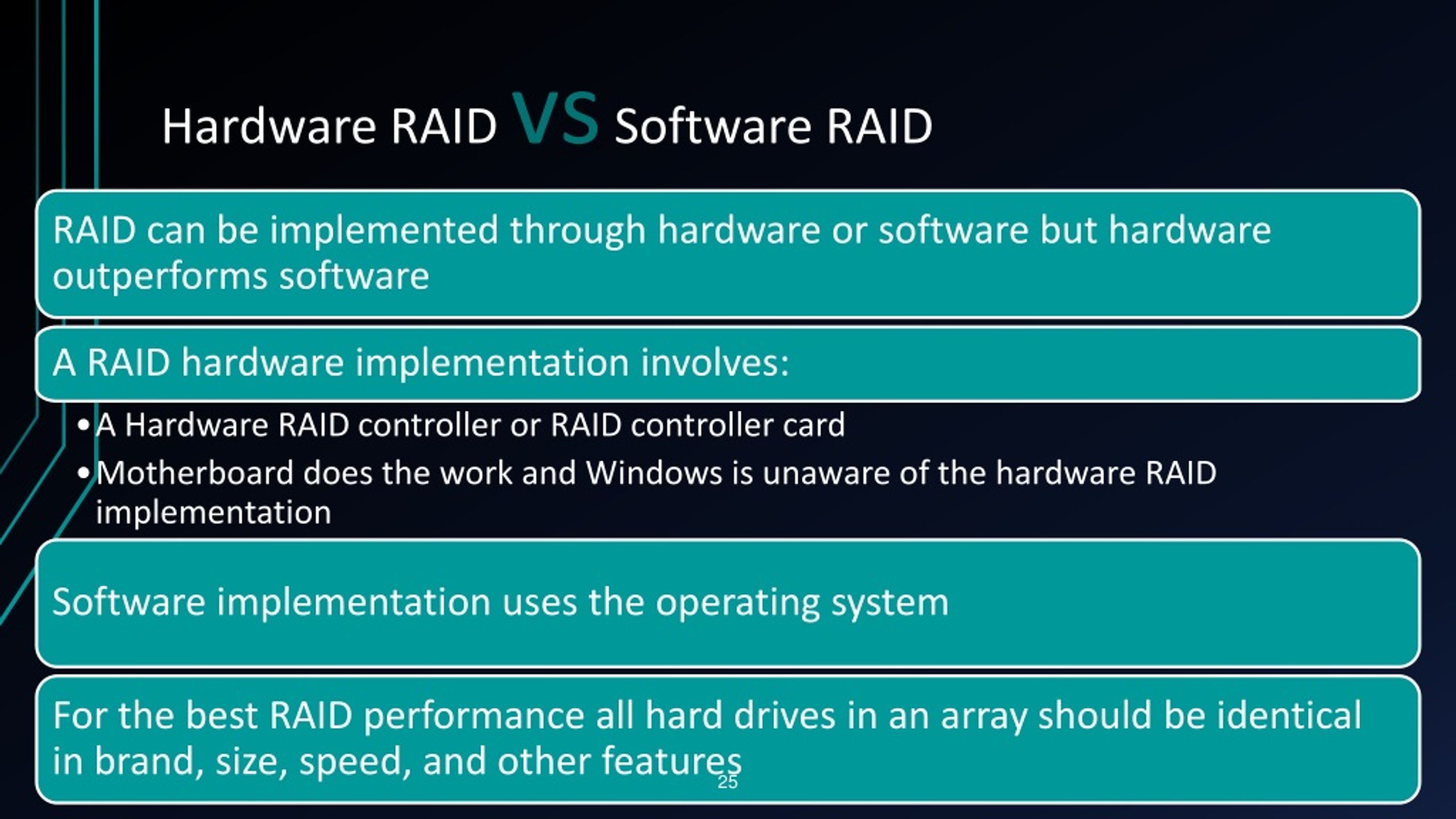

  23. Hardware RAID vs Software RAID • RAID can be implemented through hardware or software but hardware outperforms software • A RAID hardware implementation involves: • A Hardware RAID controller or RAID controller card • Motherboard does the work and Windows is unaware of the hardware RAID implementation • Software implementation uses the operating system • For the best RAID performance all hard drives in an array should be identical in brand, size, speed, and other features

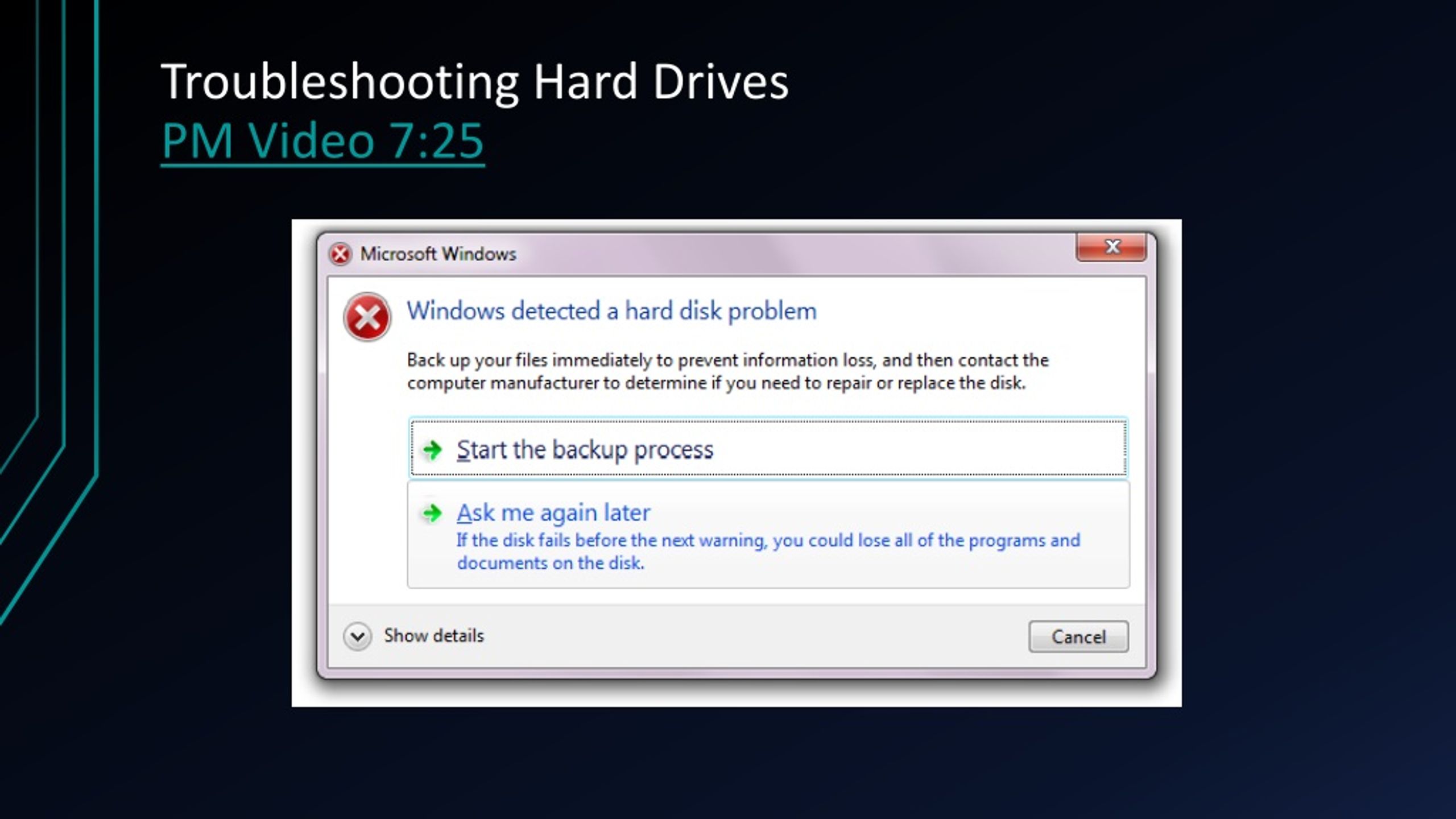

  24. Troubleshooting Hard DrivesPM Video 7:25
