  1. LASG seminar 17 October 2008 The effect of doubled CO2 and model basic state biases on the monsoon-ENSO system Part I: mean and interannual variability Andrew Turner, P.M. Inness & J.M. Slingo

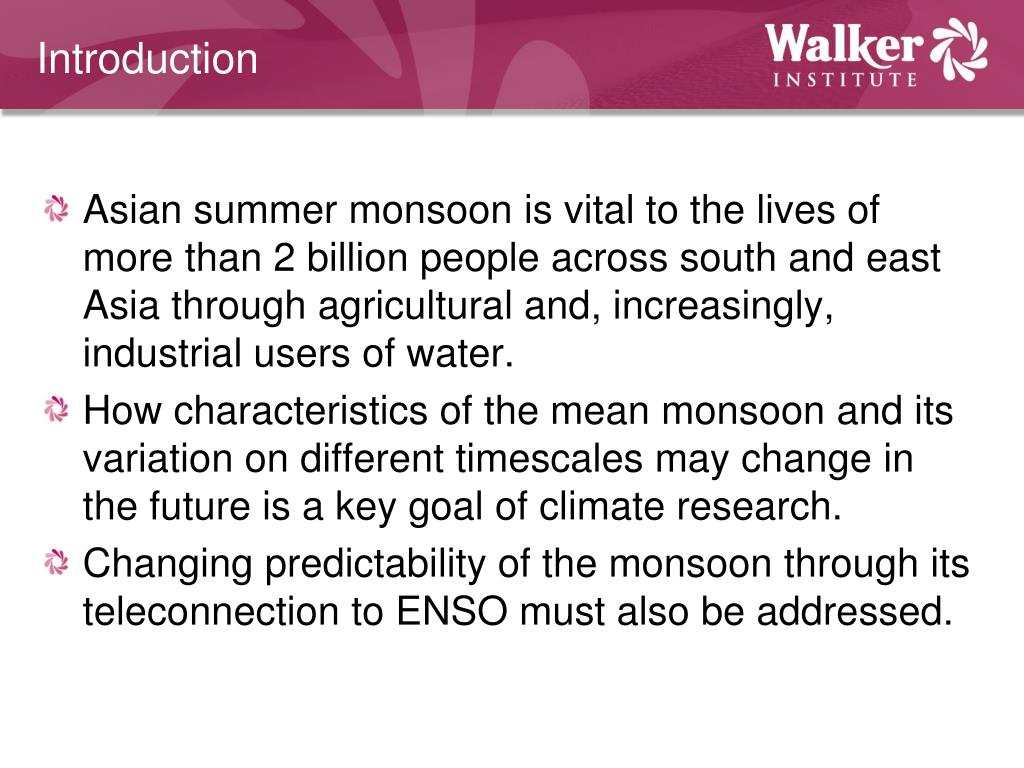

  2. Introduction • Asian summer monsoon is vital to the lives of more than 2 billion people across south and east Asia through agricultural and, increasingly, industrial users of water. • How characteristics of the mean monsoon and its variation on different timescales may change in the future is a key goal of climate research. • Changing predictability of the monsoon through its teleconnection to ENSO must also be addressed.

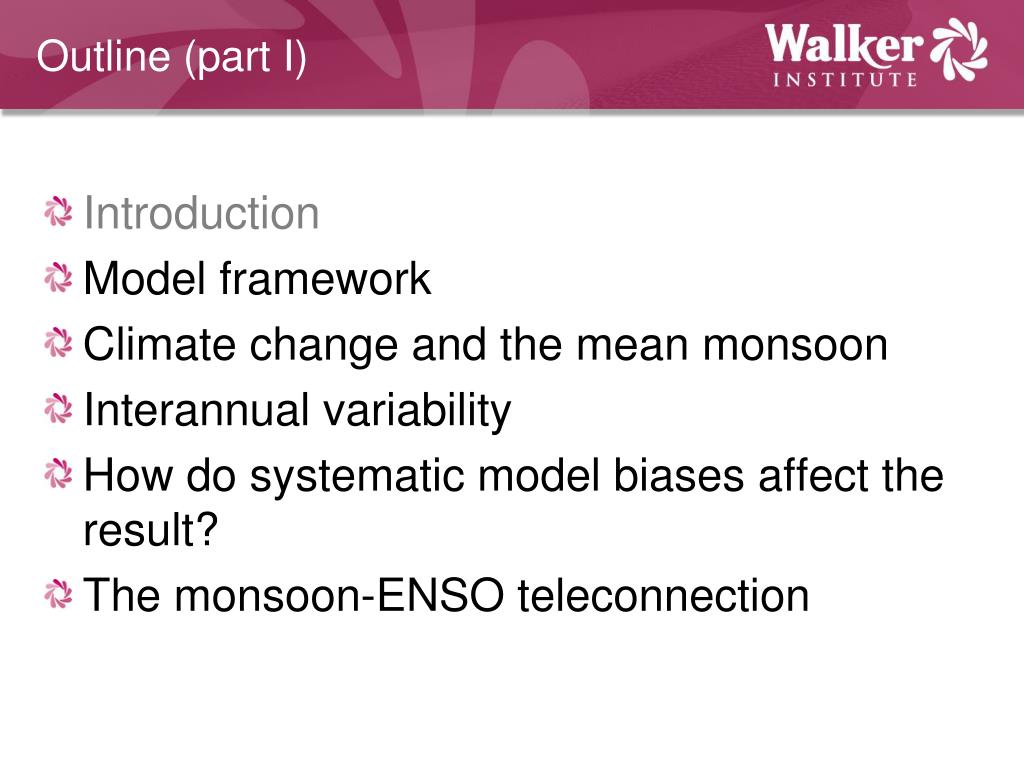

  3. Outline (part I) • Introduction • Model framework • Climate change and the mean monsoon • Interannual variability • How do systematic model biases affect the result? • The monsoon-ENSO teleconnection

  4. Model set-up • Hadley Centre coupled model HadCM3 run at high vertical resolution (L30) which better represents intraseasonal tropical convection1 and has an improved atmospheric response to El Niño2. • Control (1xCO2) and future climate (2xCO2) integrations used to test the impact of increased GHG forcing. • Further integration of each climate scenario to test the role of systematic model biases. 1P.M. Inness, J.M. Slingo, S. Woolnough, R. Neale, V. Pope (2001). Clim. Dyn. 17: 777--793. 2H. Spencer, J.M. Slingo (2003). J. Climate16: 1757--1774.

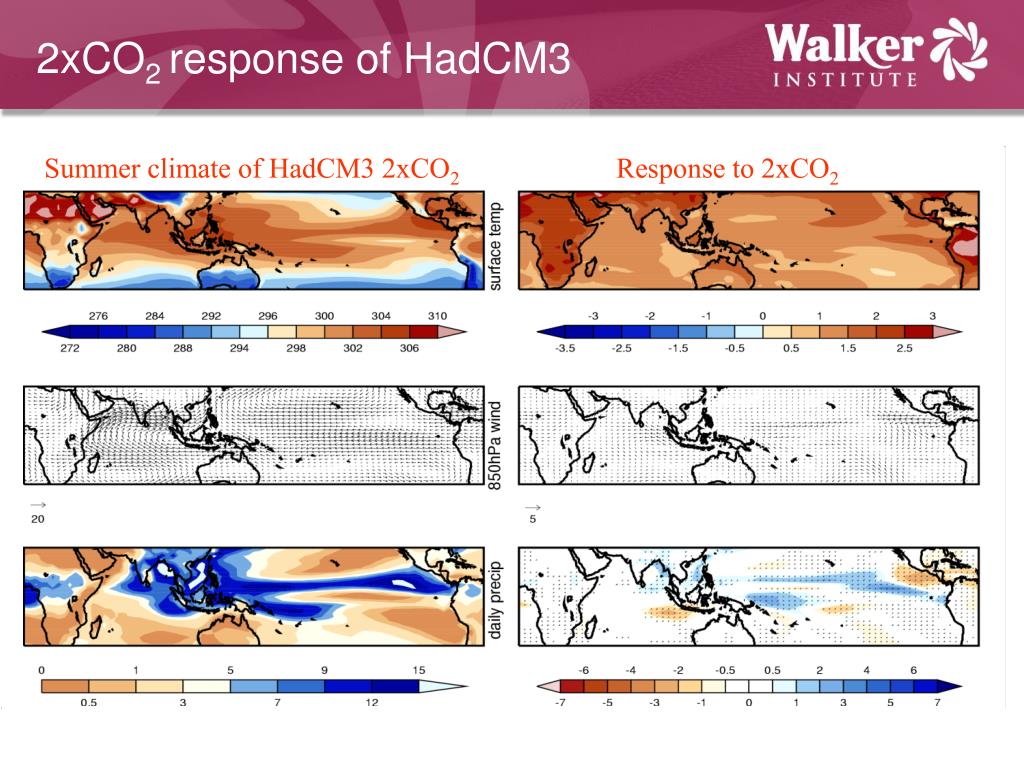

  5. 2xCO2 response of HadCM3 Summer climate of HadCM3 2xCO2 Response to 2xCO2

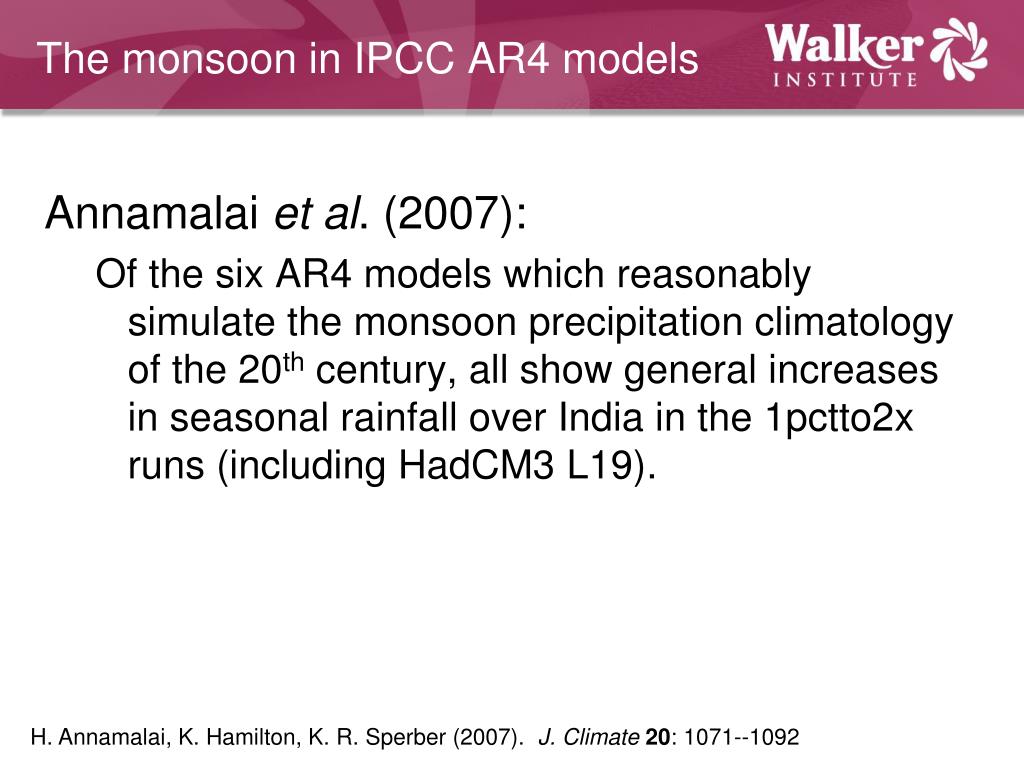

  6. The monsoon in IPCC AR4 models Annamalai et al. (2007): Of the six AR4 models which reasonably simulate the monsoon precipitation climatology of the 20th century, all show general increases in seasonal rainfall over India in the 1pctto2x runs (including HadCM3 L19). H. Annamalai, K. Hamilton, K. R. Sperber (2007). J. Climate20: 1071--1092

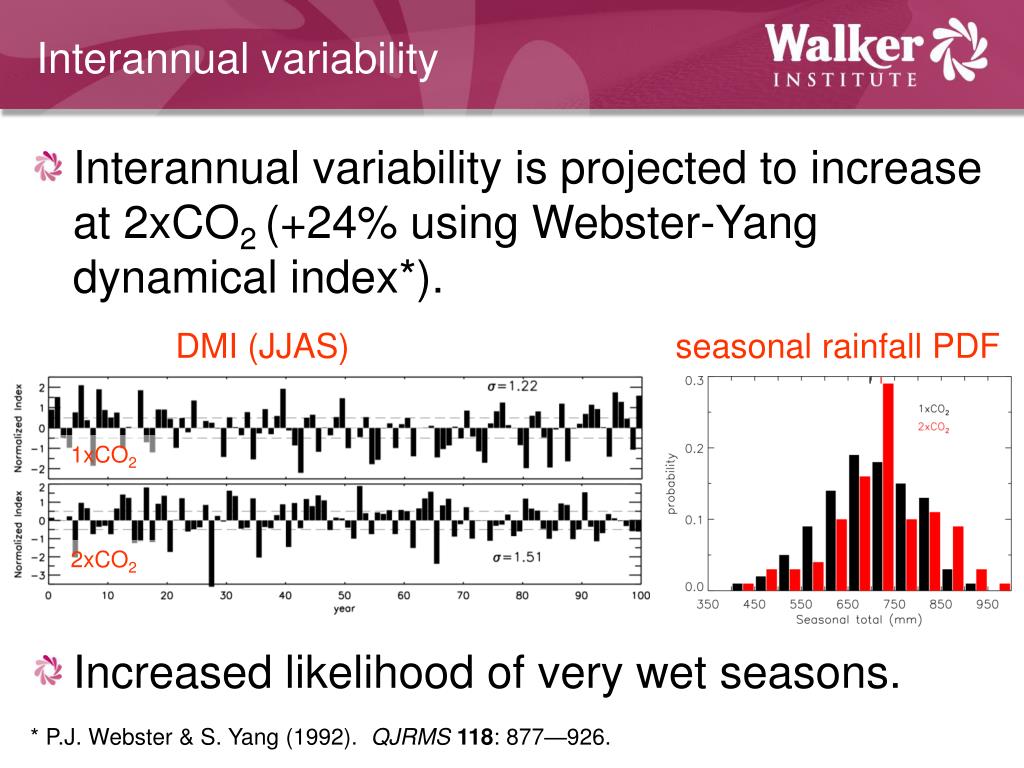

  7. seasonal rainfall PDF • Increased likelihood of very wet seasons. Interannual variability • Interannual variability is projected to increase at 2xCO2 (+24% using Webster-Yang dynamical index*). DMI (JJAS) 1xCO2 2xCO2 * P.J. Webster & S. Yang (1992). QJRMS118: 877—926.

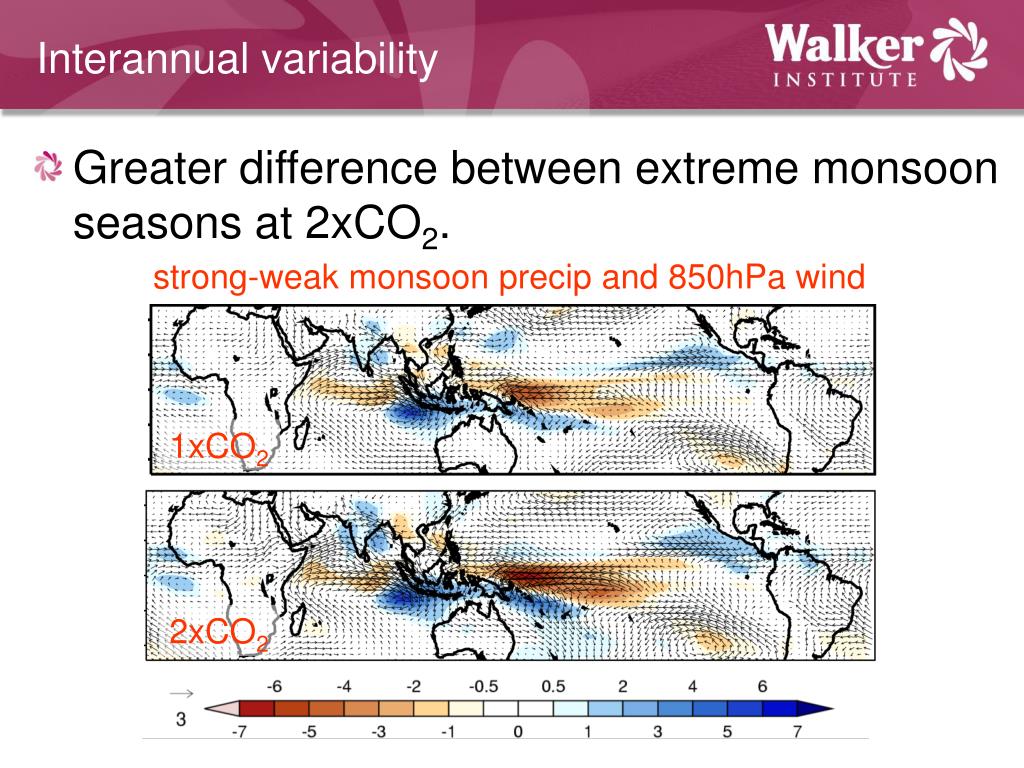

  8. strong-weak monsoon precip and 850hPa wind 1xCO2 2xCO2 Interannual variability • Greater difference between extreme monsoon seasons at 2xCO2.

  9. Model set-up • Hadley Centre coupled model HadCM3 run at higher vertical resolution (L30), which better represents intraseasonal tropical convection1 and has an improved atmospheric response to El Niño2. • Control (1xCO2) and future climate (2xCO2) integrations used to test the impact of increased GHG forcing. • Further integration of each climate scenario to test the role of systematic model biases. 1P.M. Inness, J.M. Slingo, S. Woolnough, R. Neale, V. Pope (2001). Clim. Dyn. 17: 777--793. 2H. Spencer, J.M. Slingo (2003). J. Climate16: 1757--1774.

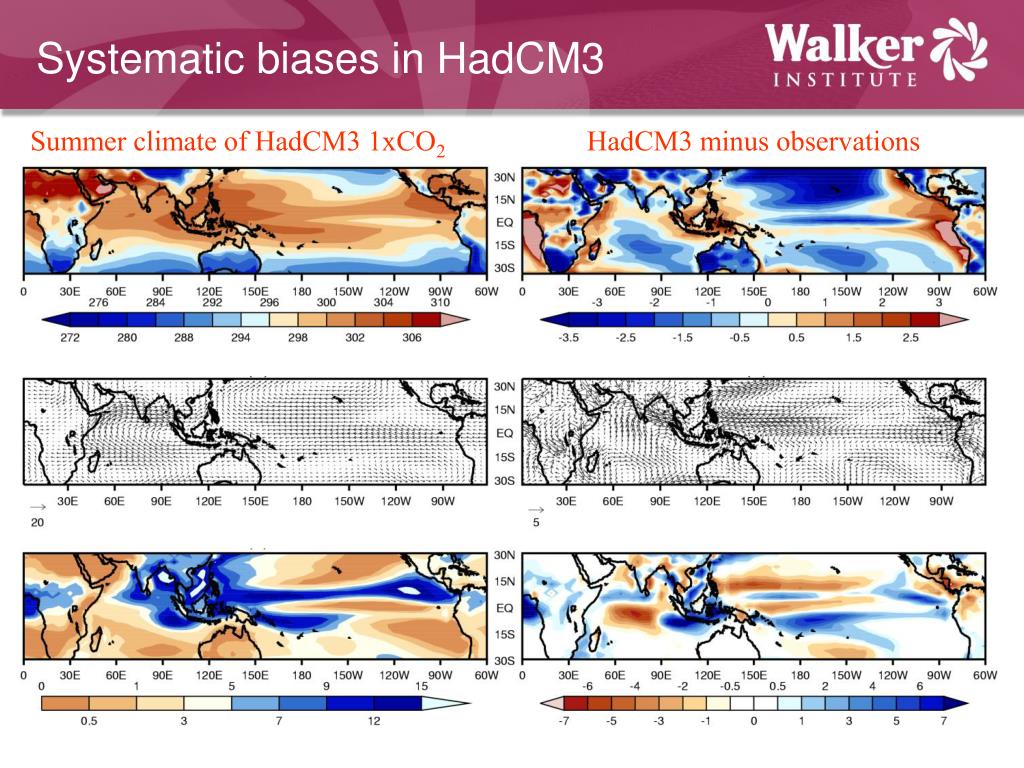

  10. Systematic biases in HadCM3 Summer climate of HadCM3 1xCO2 HadCM3 minus observations

  11. Monsoon-ENSO teleconnection: lag-correlations DMI (JJAS) vs. Niño-3 • The monsoon-ENSO teleconnection is weak and mis-timed in HadCM3.

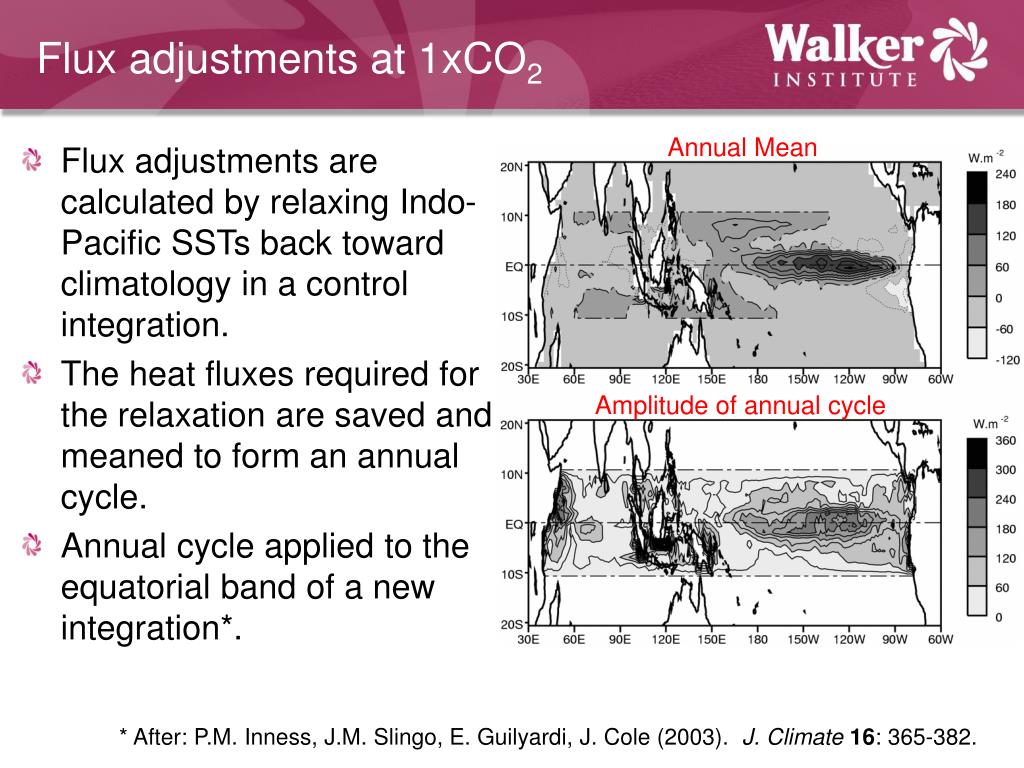

  12. Flux adjustments at 1xCO2 Annual Mean • Flux adjustments are calculated by relaxing Indo-Pacific SSTs back toward climatology in a control integration. • The heat fluxes required for the relaxation are saved and meaned to form an annual cycle. • Annual cycle applied to the equatorial band of a new integration*. Amplitude of annual cycle * After: P.M. Inness, J.M. Slingo, E. Guilyardi, J. Cole (2003). J. Climate16: 365-382.

  13. Systematic biases in HadCM3 & their reduction in HadCM3FA Results from A.G. Turner, P.M. Inness, J. M. Slingo (2005) QJRMS 131: 781-804 Maritime Continent cooled; cold tongue warmed Coupled response: reduced trade wind errors and monsoon jet Reduced convection over Maritime Continent & other precip errors opposed HadCM3FA minus HadCM3 HadCM3 minus observations

  14. Flux adjustments at 2xCO2 • Assume systematic biases will still be present in the future climate. • Assume that the adjustments necessary to correct these biases will be the same. • Same annual cycle of flux adjustments used at 2xCO2 (in common with previous studies where adjustments were necessary to combat drift, eg in HadCM2*). * M. Collins (2000). J. Climate13: 1299-1312.

  15. 2xCO2 response of HadCM3 Summer climate of HadCM3 2xCO2 Response of HadCM3 2xCO2

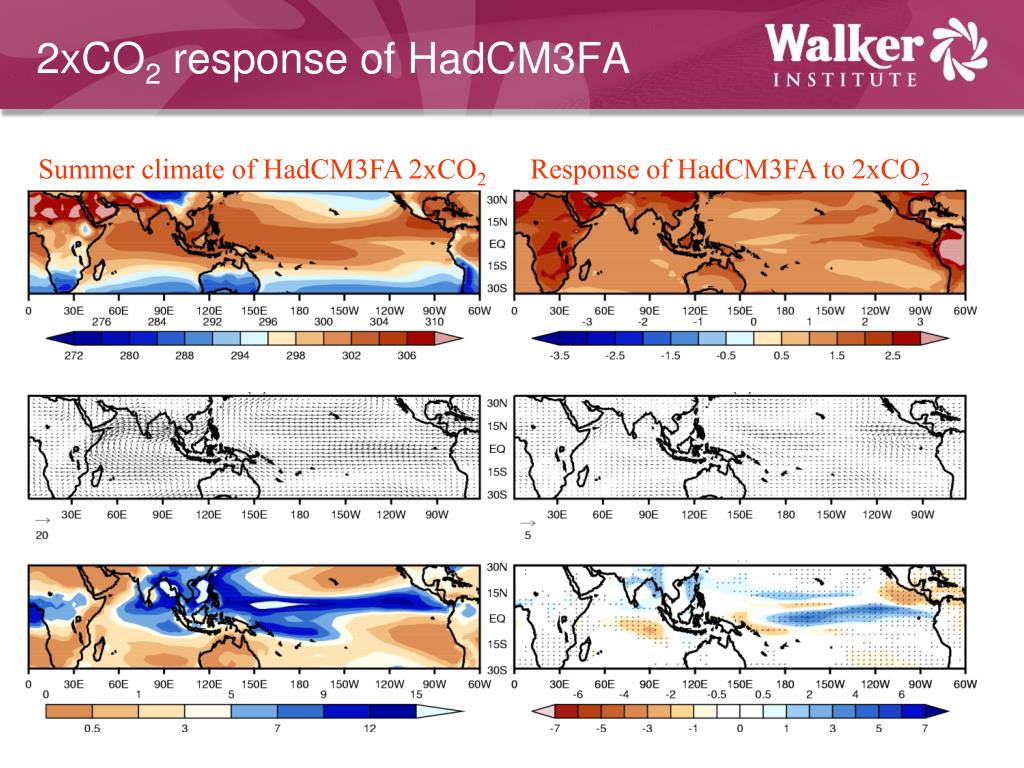

  16. 2xCO2 response of HadCM3FA Summer climate of HadCM3FA 2xCO2 Response of HadCM3FA to 2xCO2

  17. Systematic bias seems to mask full impact of changing climate Monsoon precipitation response Taken from A.G. Turner, P.M. Inness, J.M. Slingo (2007a). QJRMS 133.

  18. Monsoon-ENSO teleconnection: lag-correlations DMI Indian rainfall • Flux adjustments have dramatic impact on the teleconnection, particularly when measured by Indian rainfall. • The impact of increased GHG forcing is less clear but the teleconnection is generally robust.

  19. Monsoon-ENSO teleconnection: moving correlations • Variations of correlation strength in models are of similar amplitude to those seen in observations despite fixed CO2 forcing. • See also AR4 models in Annamalai et al. (2007). HadISST vs. All-India gauge data DMI rainfall

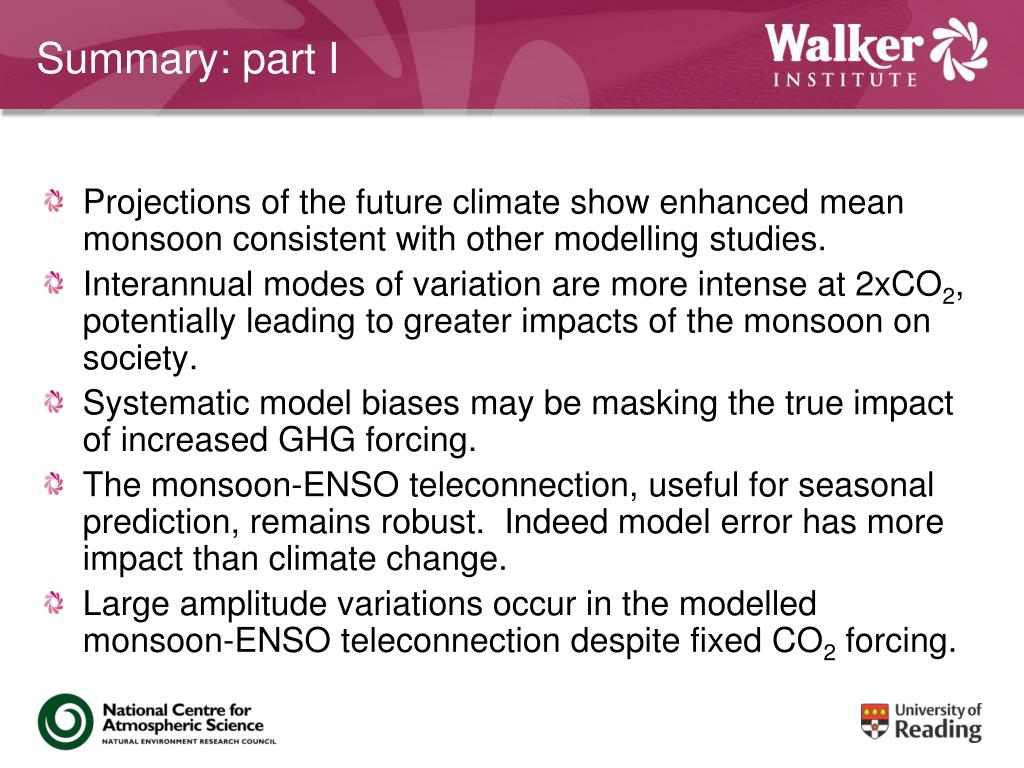

  20. Summary: part I • Projections of the future climate show enhanced mean monsoon consistent with other modelling studies. • Interannual modes of variation are more intense at 2xCO2, potentially leading to greater impacts of the monsoon on society. • Systematic model biases may be masking the true impact of increased GHG forcing. • The monsoon-ENSO teleconnection, useful for seasonal prediction, remains robust. Indeed model error has more impact than climate change. • Large amplitude variations occur in the modelled monsoon-ENSO teleconnection despite fixed CO2 forcing.

  21. LASG/IAP seminar 17 September 2008 The effect of doubled CO2 and model basic state biases on the monsoon-ENSO system Part II: the TBO and changing ENSO regimes Andrew Turner, P.M. Inness & J.M. Slingo

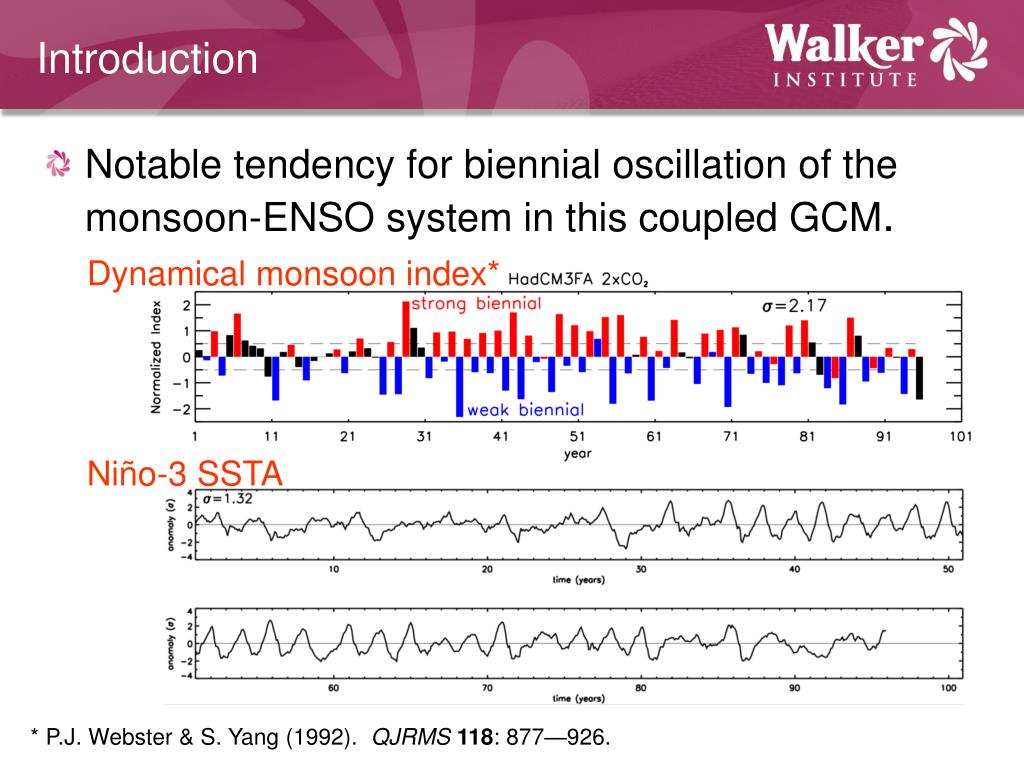

  22. Introduction • Notable tendency for biennial oscillation of the monsoon-ENSO system in this coupled GCM. Dynamical monsoon index* Niño-3 SSTA * P.J. Webster & S. Yang (1992). QJRMS118: 877—926.

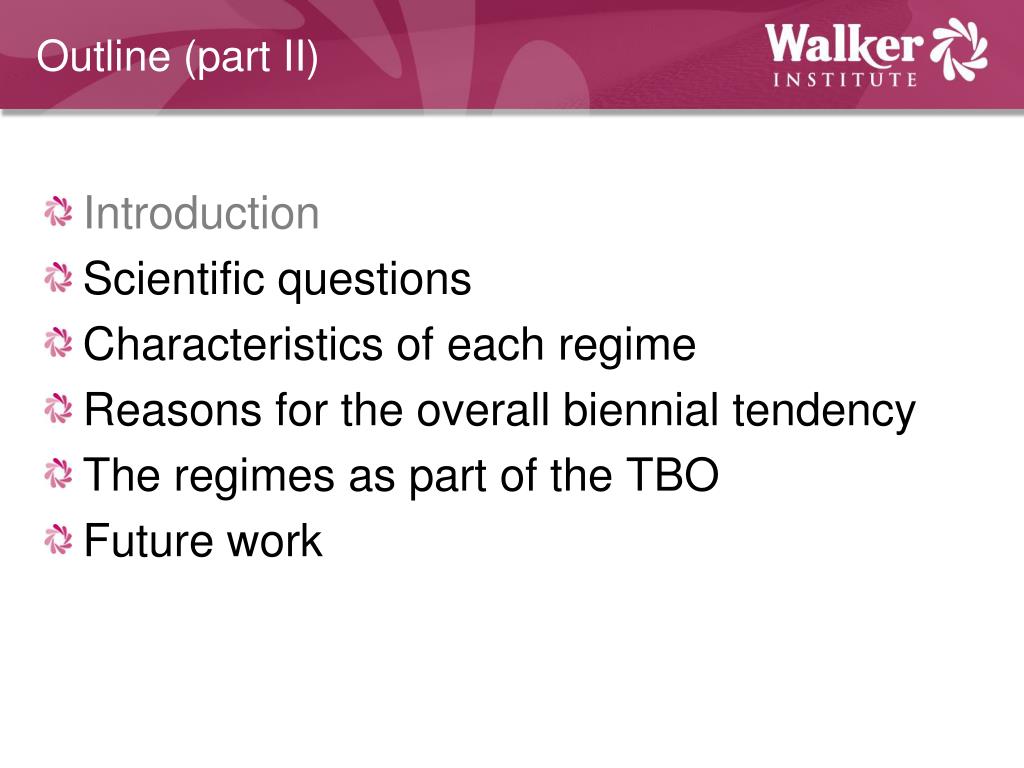

  23. Outline (part II) • Introduction • Scientific questions • Characteristics of each regime • Reasons for the overall biennial tendency • The regimes as part of the TBO • Future work

  24. HadCM3FA 2xCO2 ENSO ENSO at 2xCO2 in HadCM3FA Why the overall biennial tendency? Why are there distinct regime shifts?

  25. ENSO characteristics Niño-3 anomaly index Phase-locking Niño-3 power spectra (normalized to annual cycle) • Biennial regime features large amplitude events strongly phase locked to the seasonal cycle. • Biennial power exceeds annual cycle .

  26. ENSO propagation Anomalous depth of equatorial 20°C isotherm irregular biennial • Irregular regime shows signature of longer duration El Niño events based in the central Pacific. • Biennial regime shows more evidence of basinwide, eastward propagation at depth, consistent with thermocline mode events.

  27. ENSO propagation #2 HadCM3 1xCO2 HadCM3FA 1xCO2 • Lag correlations of the Trans-Niño Index1 with Niño-3 show strong eastward propagation of SST anomalies during biennial regime, consistent with thermocline mode events. • Tendency towards eastward propagation occurs both with 2xCO22 and with flux adjustments. HadCM3 2xCO2 HadCM3FA 2xCO2 1K.E. Trenberth, D.P. Stepaniak (2001). J. Climate14: 1697-1701. 2E. Guilyardi (2006). Clim. Dyn. 26: 329-348.

  28. Summary of regime characteristics Irregular regime Biennial regime Large amplitude, periodic, strong phase-locking, ENSO dominant mode. ENSO peaks in east, with eastward propagation, consistent with T-mode. Low amplitude, irregular ENSO, annual cycle dominates. ENSO more central, consistent with S-mode. Consistent with irregular and self-excited modes in Jin’s recharge oscillator* as coupling strength is increased. Short biennial period in contrast to observed T-mode ENSO (4-5 years) and at odds with longer period as air-sea coupling is increased in Zebiak-Cane models. *F-F. Jin (1997). J. Atmos. Sci. 54: 811-829.

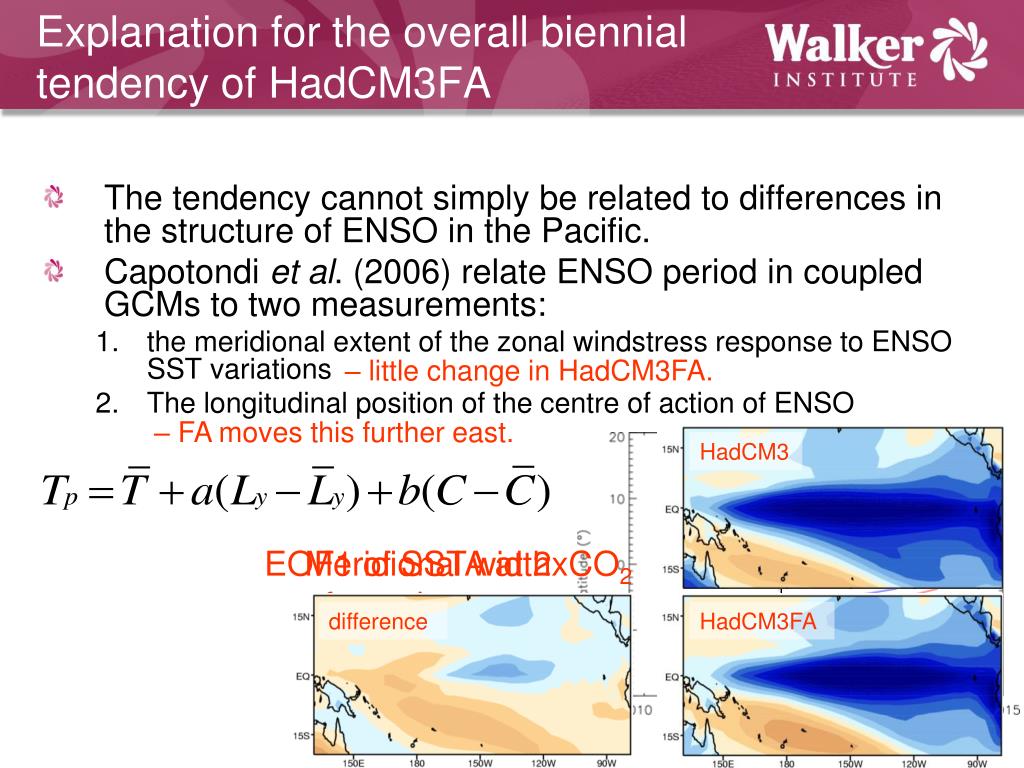

  29. – little change in HadCM3FA. • – FA moves this further east. HadCM3 EOF1 of SSTA at 2xCO2 Meridional width of zonal average taux regressed onto Niño-3 difference HadCM3FA Explanation for the overall biennial tendency of HadCM3FA • The tendency cannot simply be related to differences in the structure of ENSO in the Pacific. • Capotondi et al. (2006) relate ENSO period in coupled GCMs to two measurements: • the meridional extent of the zonal windstress response to ENSO SST variations • The longitudinal position of the centre of action of ENSO

  30. Explanation for the overall biennial tendency of HadCM3FA #2 • A key mechanism for biennial ENSO is monsoon wind forcing in West Pacific1, eg, strong monsoon forcing adjusting the WPA2. • Inclusion of ASM heating anomalies in the Zebiak-Cane model leads to increased feedbacks between the Indo-Pacific3. • Extension of Jin’s recharge oscillator4 to the Indian Ocean shows that increased coupling between the two basins significantly shortens the period of oscillation. • Strongly coupled El Niño events terminate more rapidly than uncoupled events5 (SINTEX CGCM). 1K-M. Kim, K-M. Lau (2001). GRL28: 315-318. 2K-M. Lau, H.T. Wu (2001). J. Climate14: 2880-2895. 3C. Chung, S. Nigam (1999). J. Climate12: 2787-2807. 4J-S. Kug, I-S. Kang (2006). J. Climate19: 1784-1801. 5J-S. Kug, T. Li, S-I. An, I-S. Kang, J-J. Luo, S. Masson, T. Yamagata (2006). GRL33.

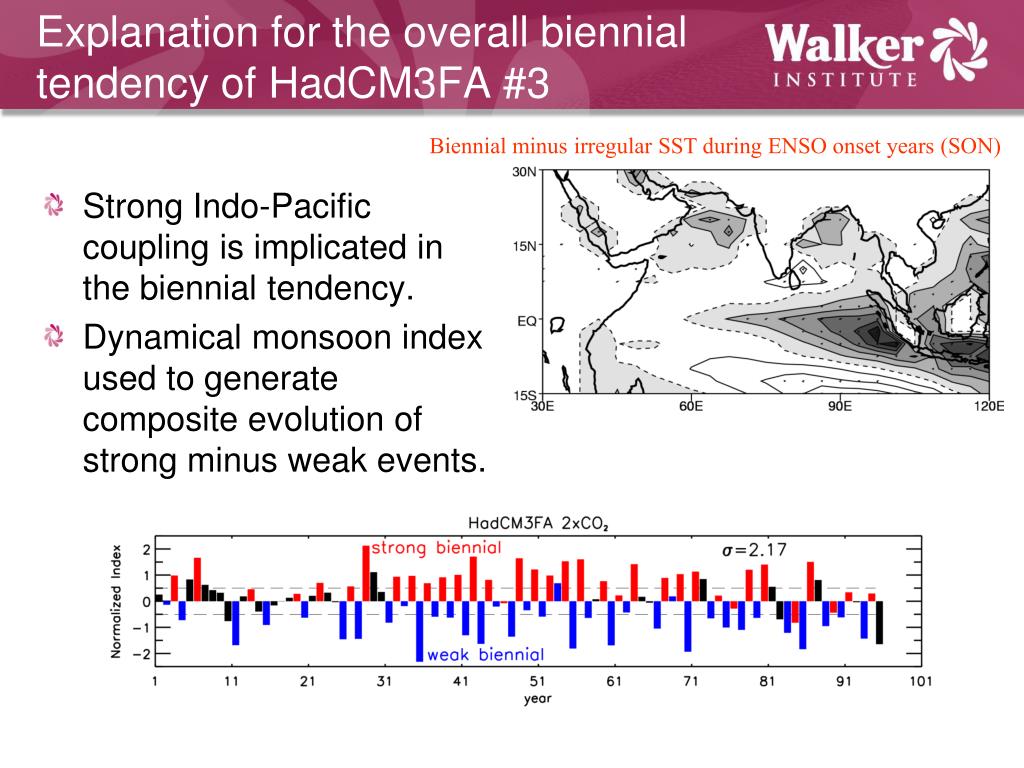

  31. Explanation for the overall biennial tendency of HadCM3FA #3 Biennial minus irregular SST during ENSO onset years (SON) • Strong Indo-Pacific coupling is implicated in the biennial tendency. • Dynamical monsoon index used to generate composite evolution of strong minus weak events.

  32. The TBO

  33. The TBO and biennial ENSO

  34. The TBO and irregular ENSO

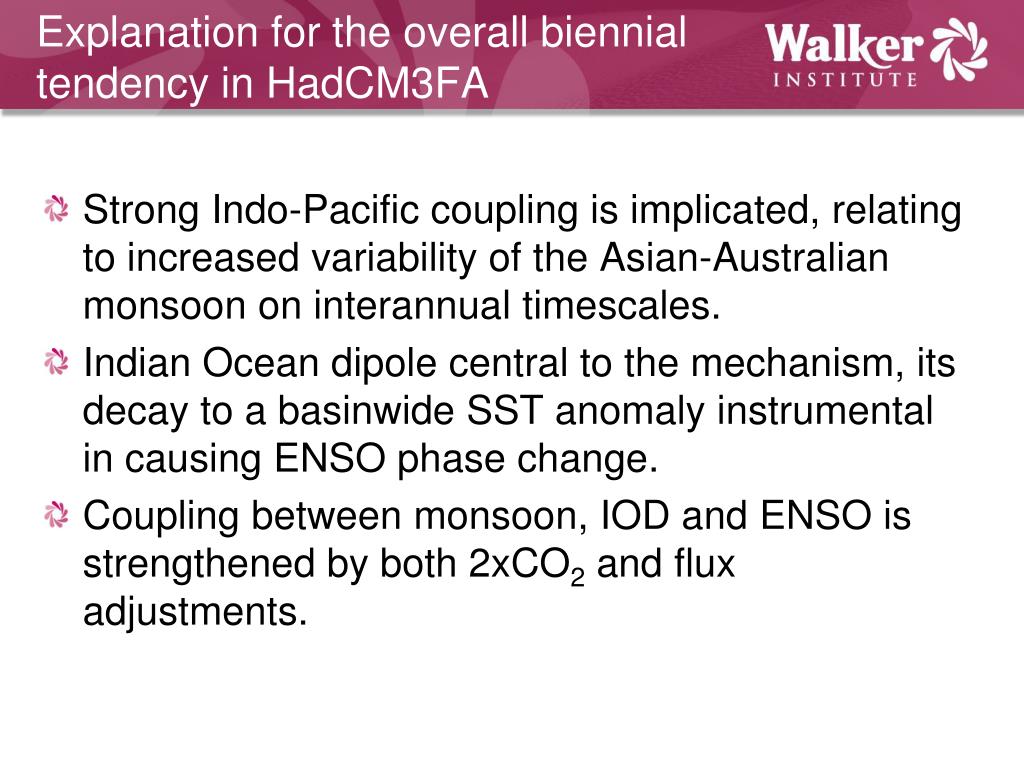

  35. Explanation for the overall biennial tendency in HadCM3FA • Strong Indo-Pacific coupling is implicated, relating to increased variability of the Asian-Australian monsoon on interannual timescales. • Indian Ocean dipole central to the mechanism, its decay to a basinwide SST anomaly instrumental in causing ENSO phase change. • Coupling between monsoon, IOD and ENSO is strengthened by both 2xCO2 and flux adjustments.

  36. Summary • ENSO behaviour in HadCM3FA 2xCO2 features distinct irregular and biennial regimes, with notable biennial tendency. • Some consistency with ENSO modes based on air-sea interaction and those dependent on basinwide ocean wave coupling. • Increased Indo-Pacific coupling and monsoon-IOD-ENSO interactions implicated in biennial tendency.

  37. The monsoon-ENSO teleconnection DMI rainfall • ENSO regimes have dramatic impact on teleconnection. • Much greater monsoon predictability during the biennial regime.

  38. Further questions • Realism of regime changes uncertain, but they have potential to have dramatic impacts on remote teleconnections. • Reasons for changes between regimes not yet elucidated, possibly: • Interactions with the annual cycle in east Pacific. • Changes to meridional circulations in the subtropical Pacific.

  39. Thank You! Email: a.g.turner@reading.ac.uk Web: www.met.rdg.ac.uk/~sws05agt Part I: Q.J.R.Meteorol.Soc. (2007) 133: 1143—1157 Part II: Q.J.R.Meteorol.Soc. (2007) 133: 1159—1173
